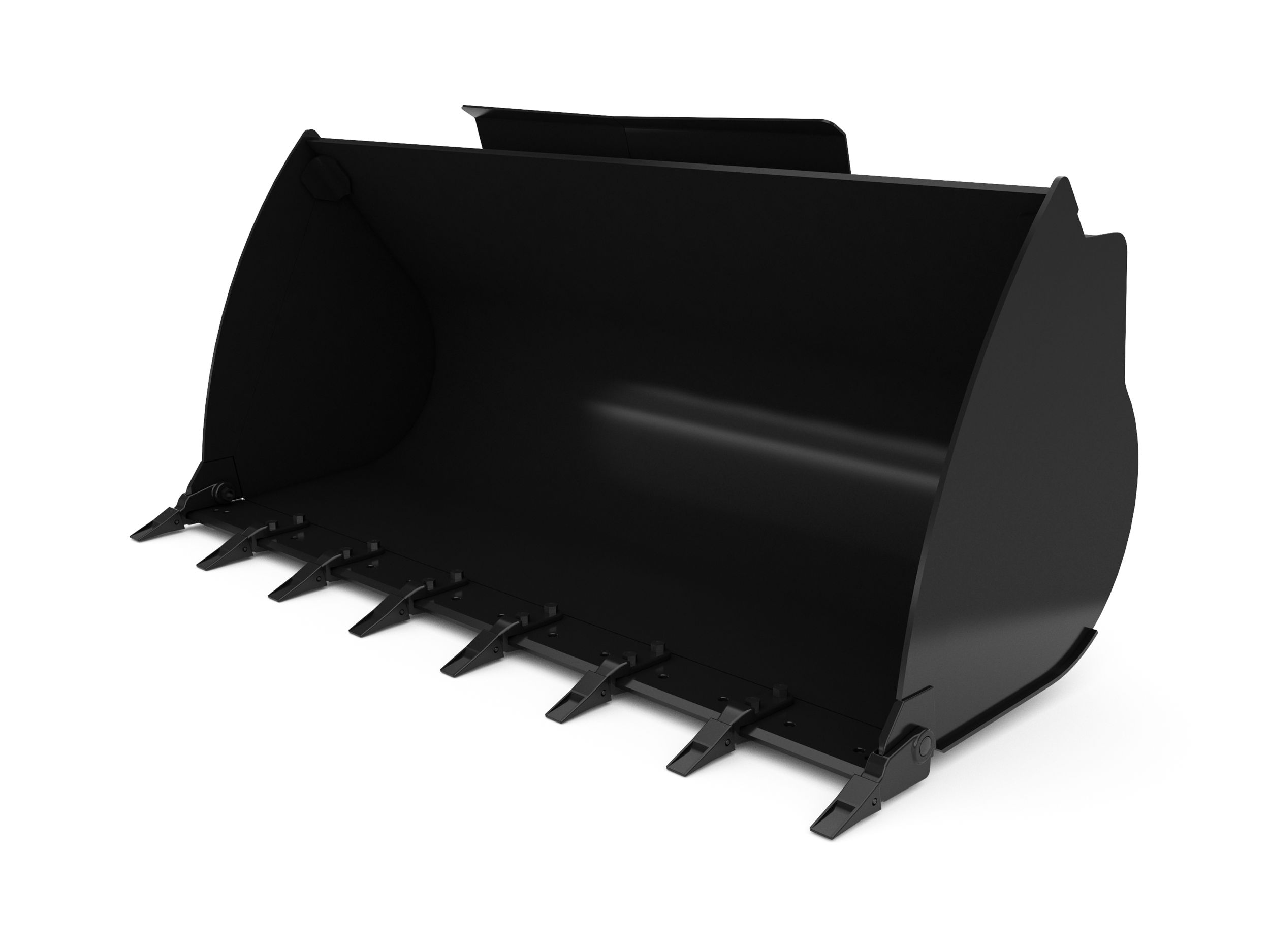

1.6 m3 (2.1 yd3), IT Coupler, Bolt-On Teeth

1.6 m3 (2.1 yd3) IT Coupler General Purpose Bucket – Performance Series With Bolt-On Teeth

General Purpose Performance Series buckets provides higher fill factors and material retention in load and carry applications, as well as grading, leveling and dumping in a wide variety of applications and materials.

Category:
Add to Quote

Application

Performance Series buckets improve productivity, increase material retention and reduce fuel burn with easier pile work in a wide variety of applications. The fill factor for Performance Series buckets can be up to 115% on top of the specified capacity.

Profile Shape

Performance Series profile for easy loading and maximum carry load.

Rounded Sidebars

Penetrating rounded sidebars help funnel material into the bucket, holding more material with less spillage.

Strike Plane

Improved strike plane leads to better sight lines for faster load cycles.

Open Throat Design

Open throat design improves heap size and fill factor.

Videos

Additional information

Offering Type

Width

2428 mm ( 95.6 in )
Weight

590.09 kg ( 1300.9 lb )
Height

1163 mm ( 45.8 in )
Length

1275 mm ( 50.2 in )
Capacity

1.6 m³ ( 2.1 yd³ )
Base Edge Thickness

19 mm ( 0.7 in )
Interface Type

IT Coupler
