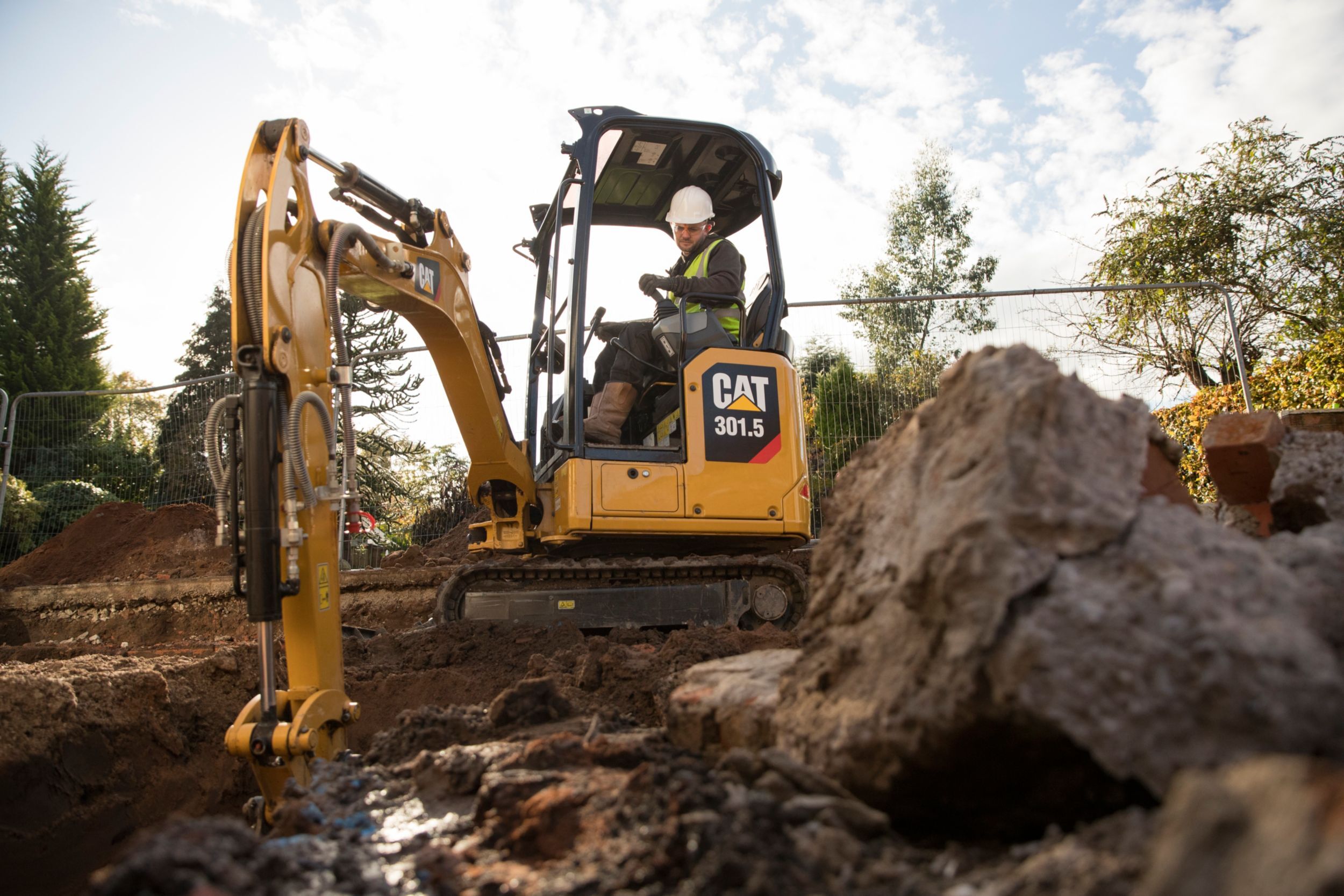

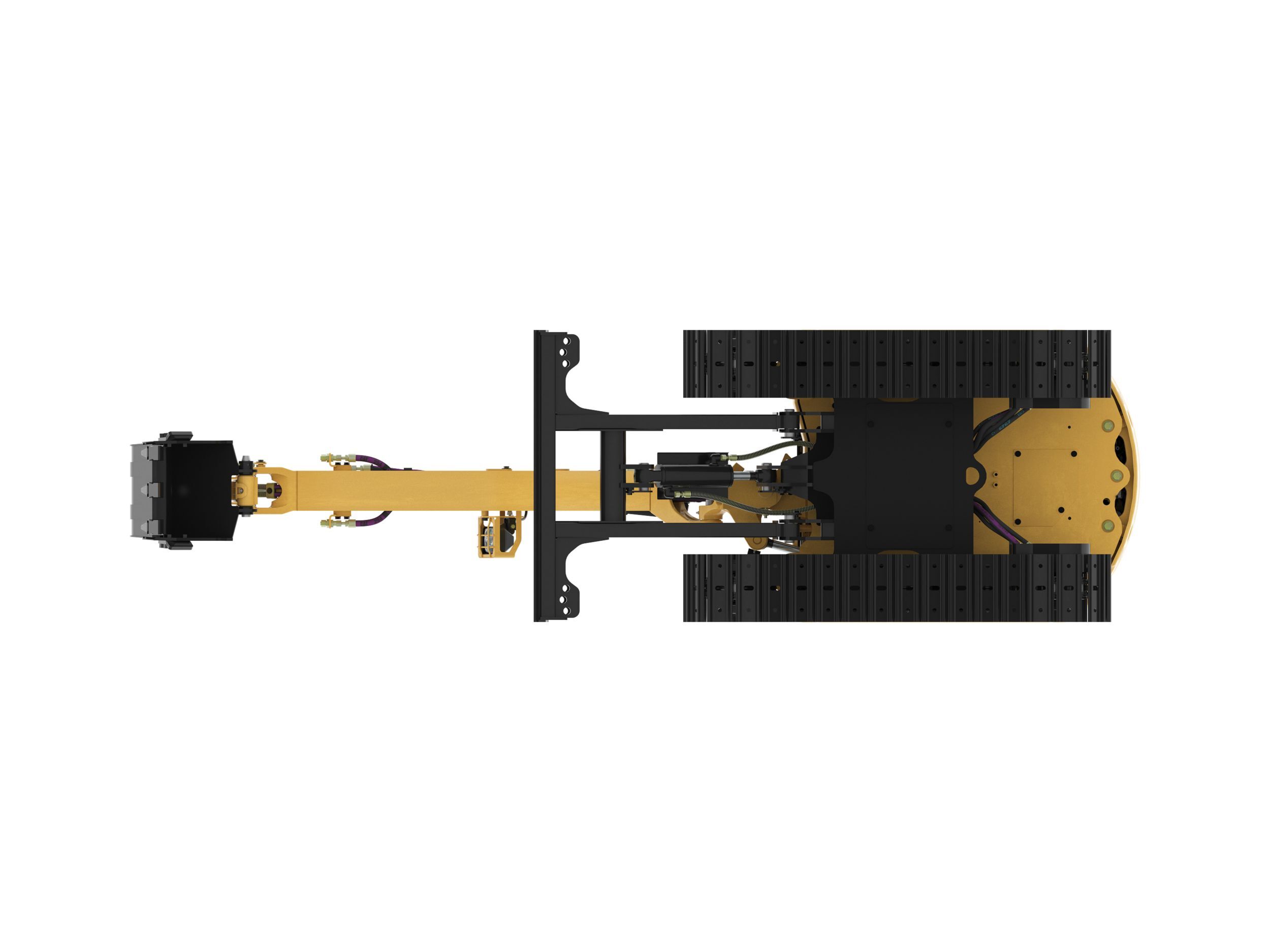

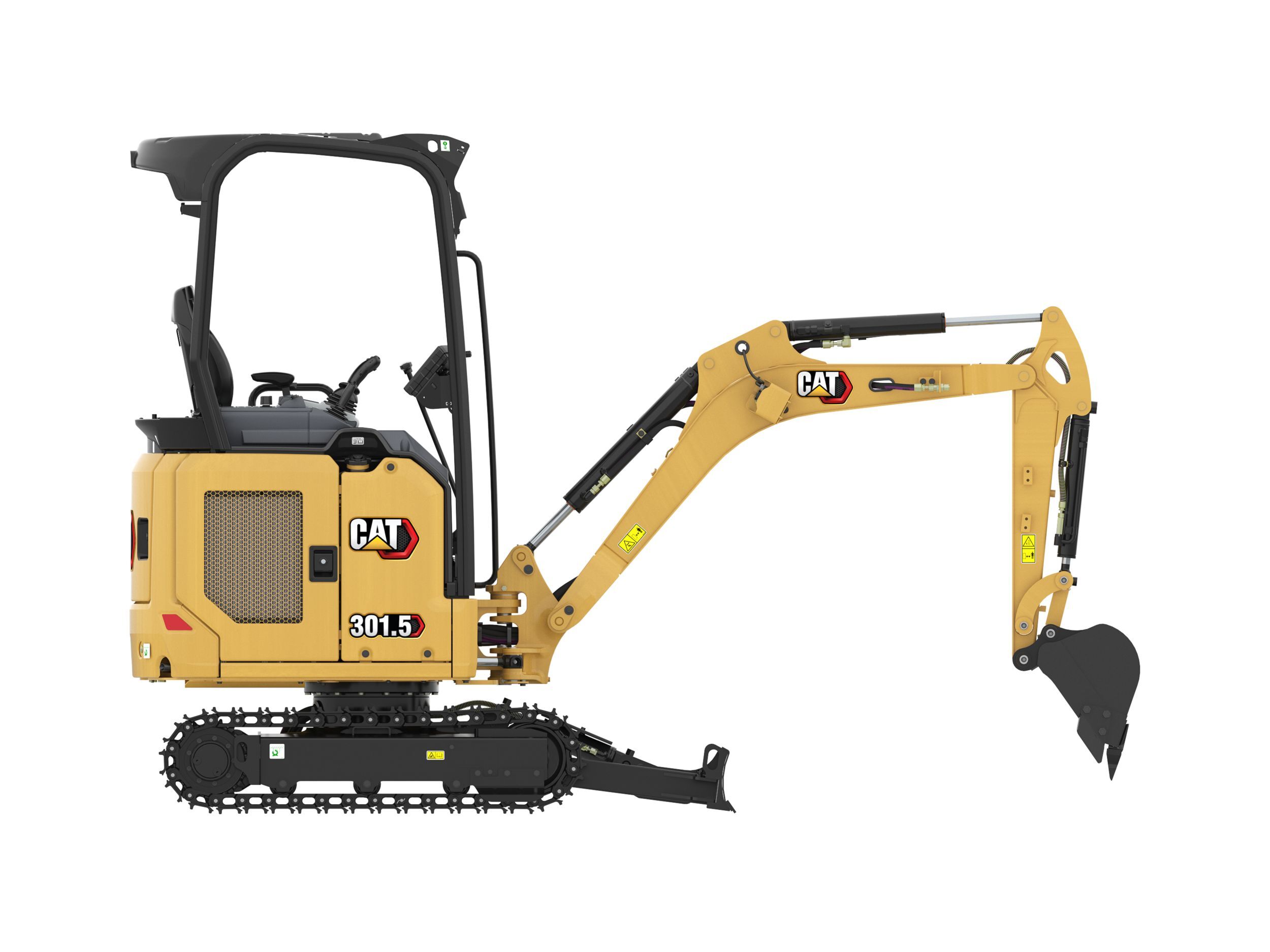

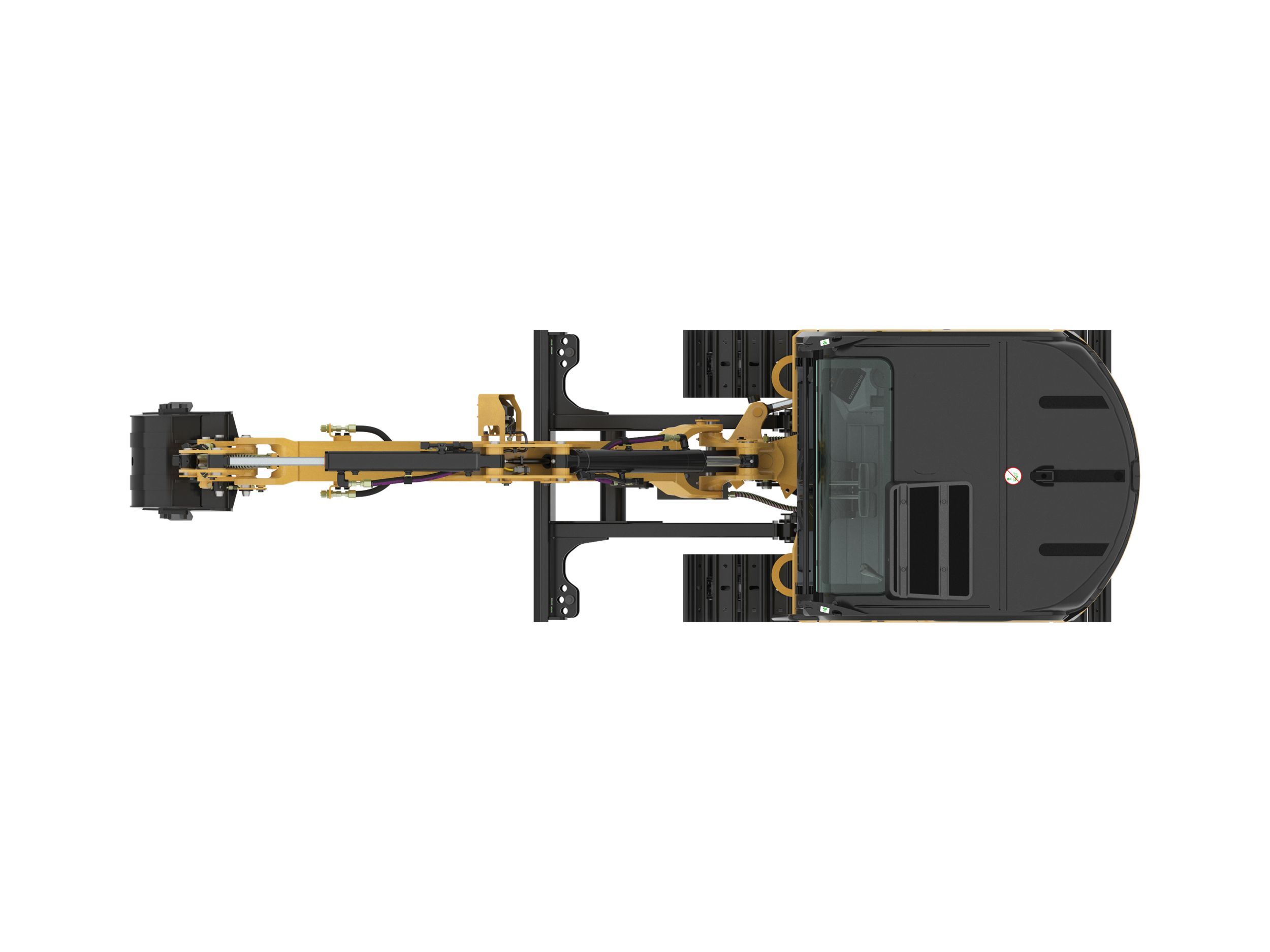

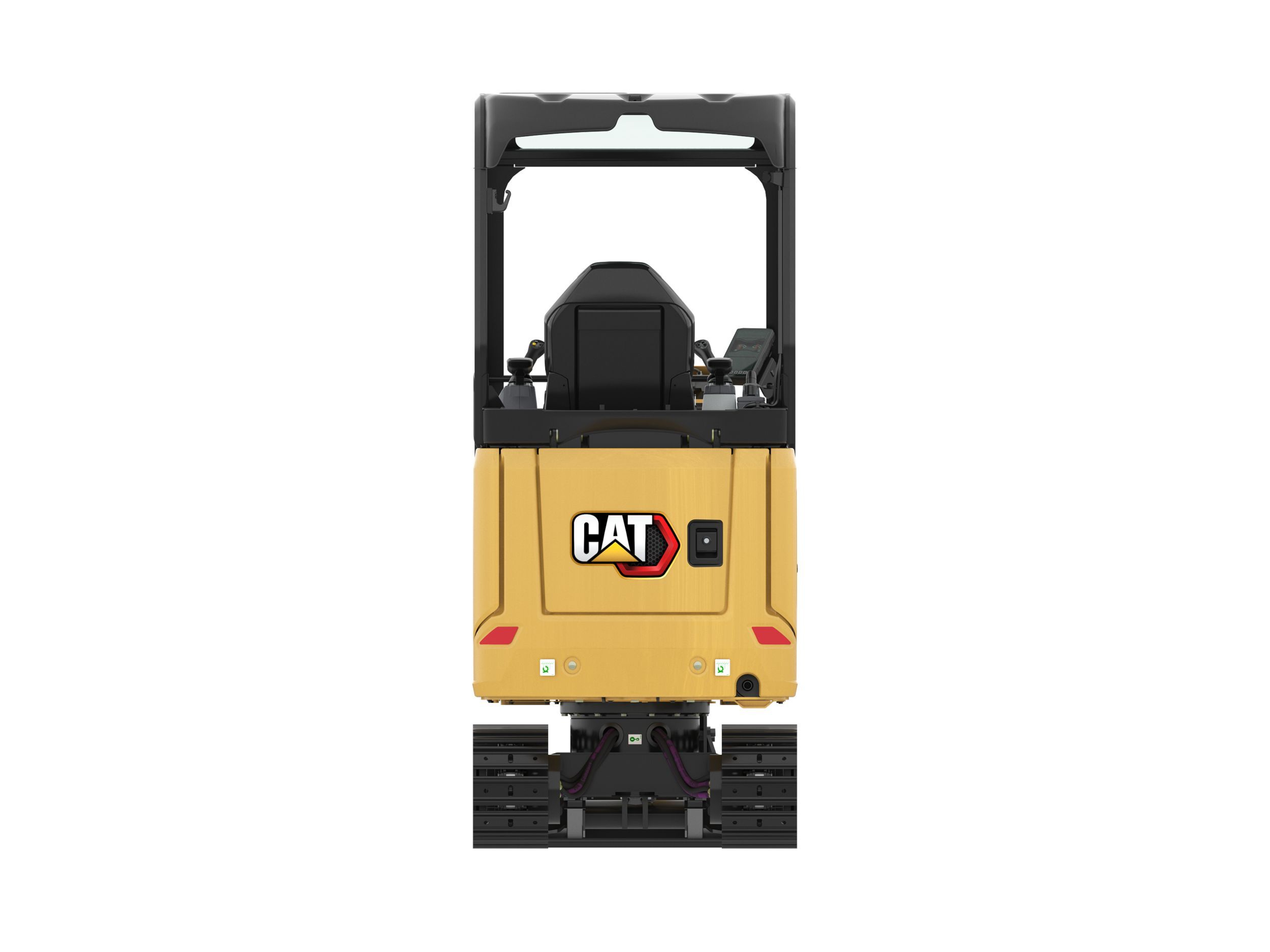

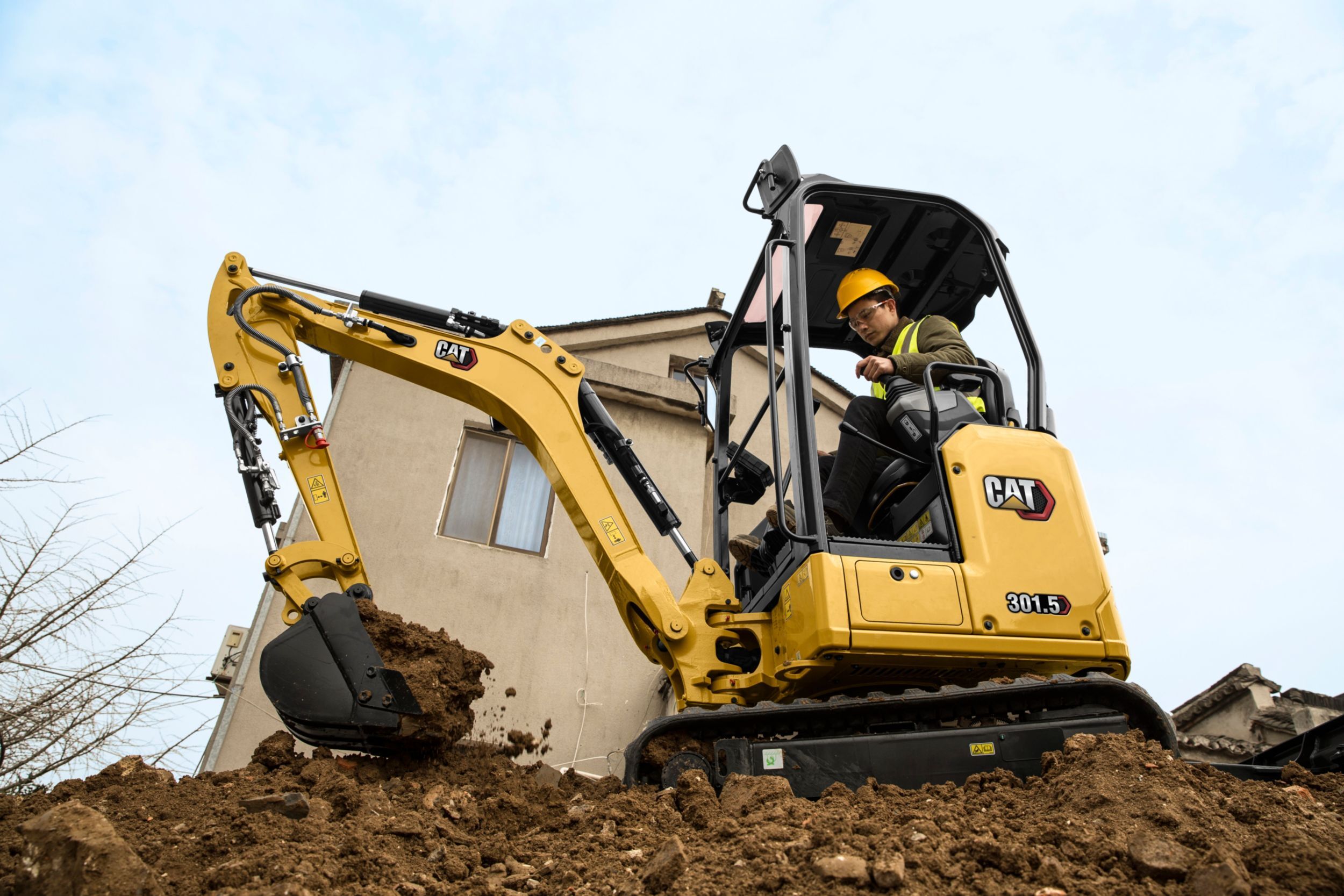

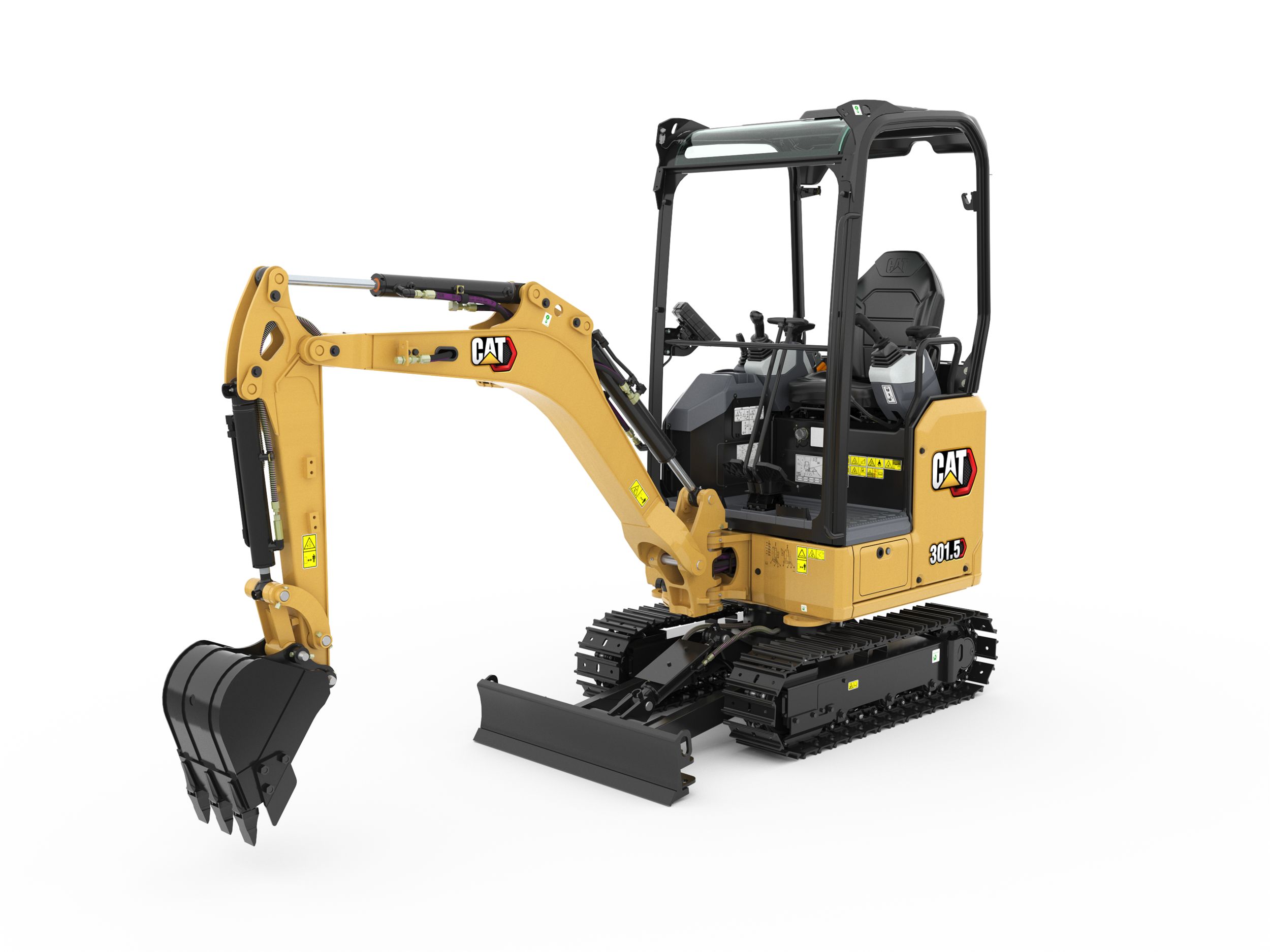

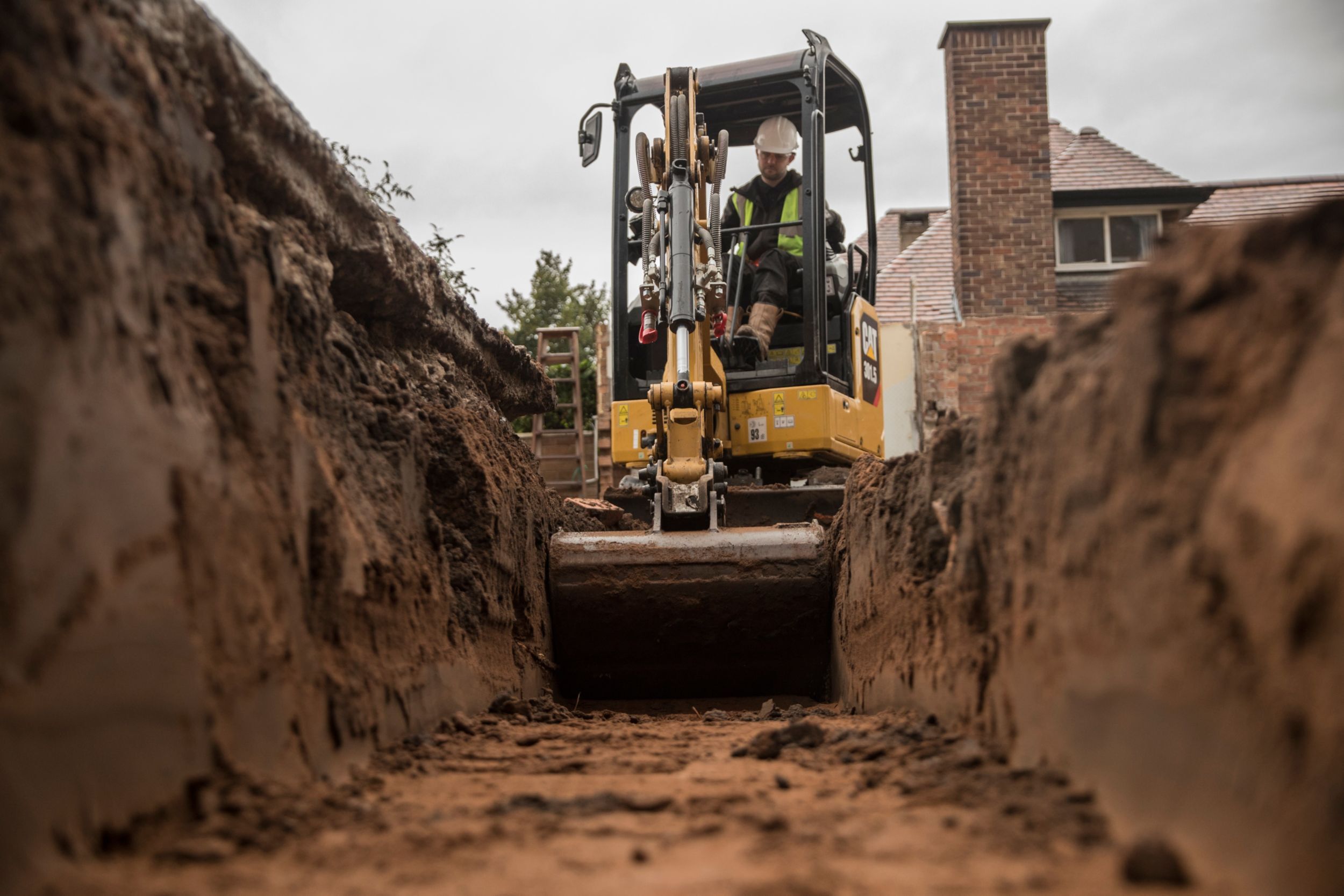

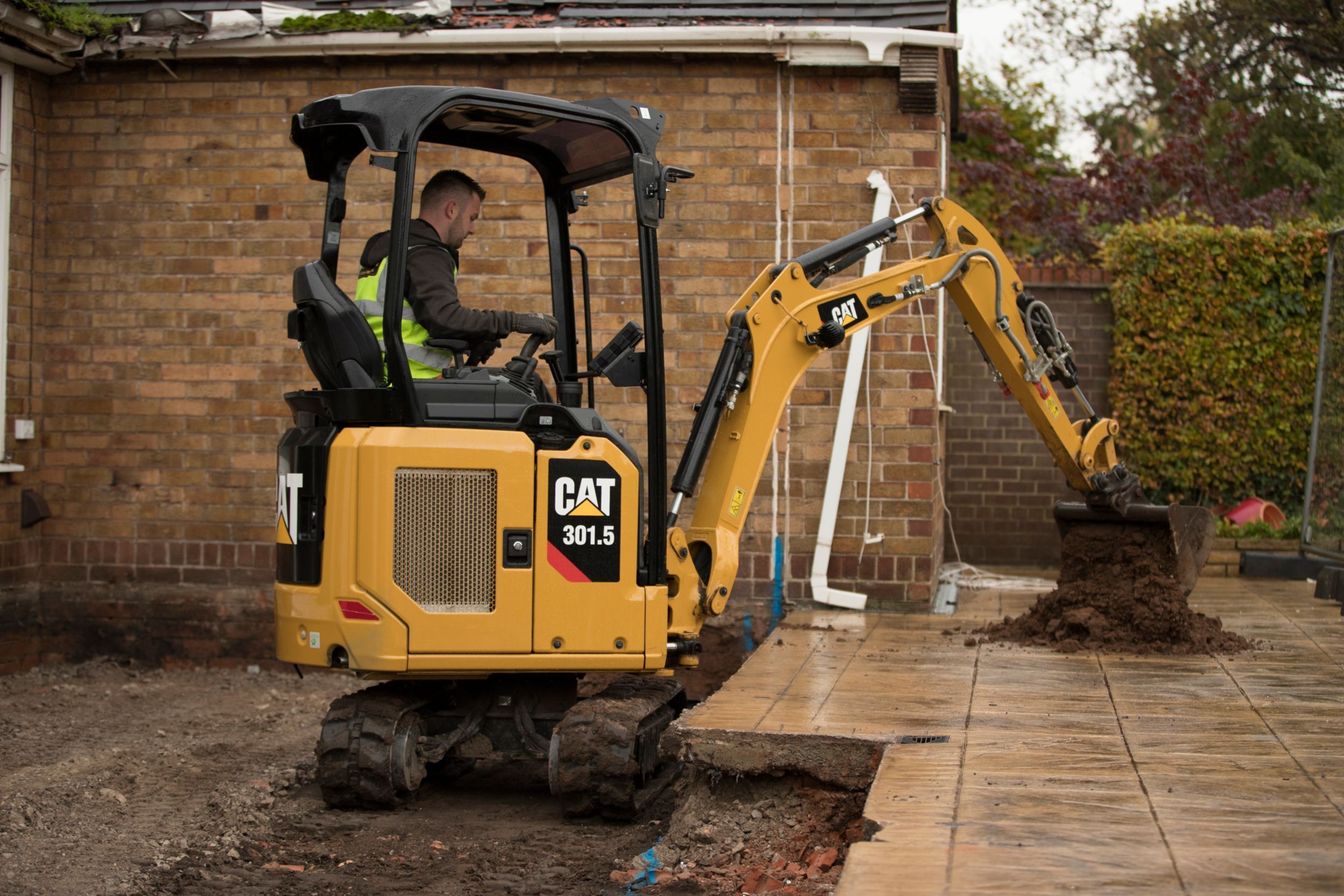

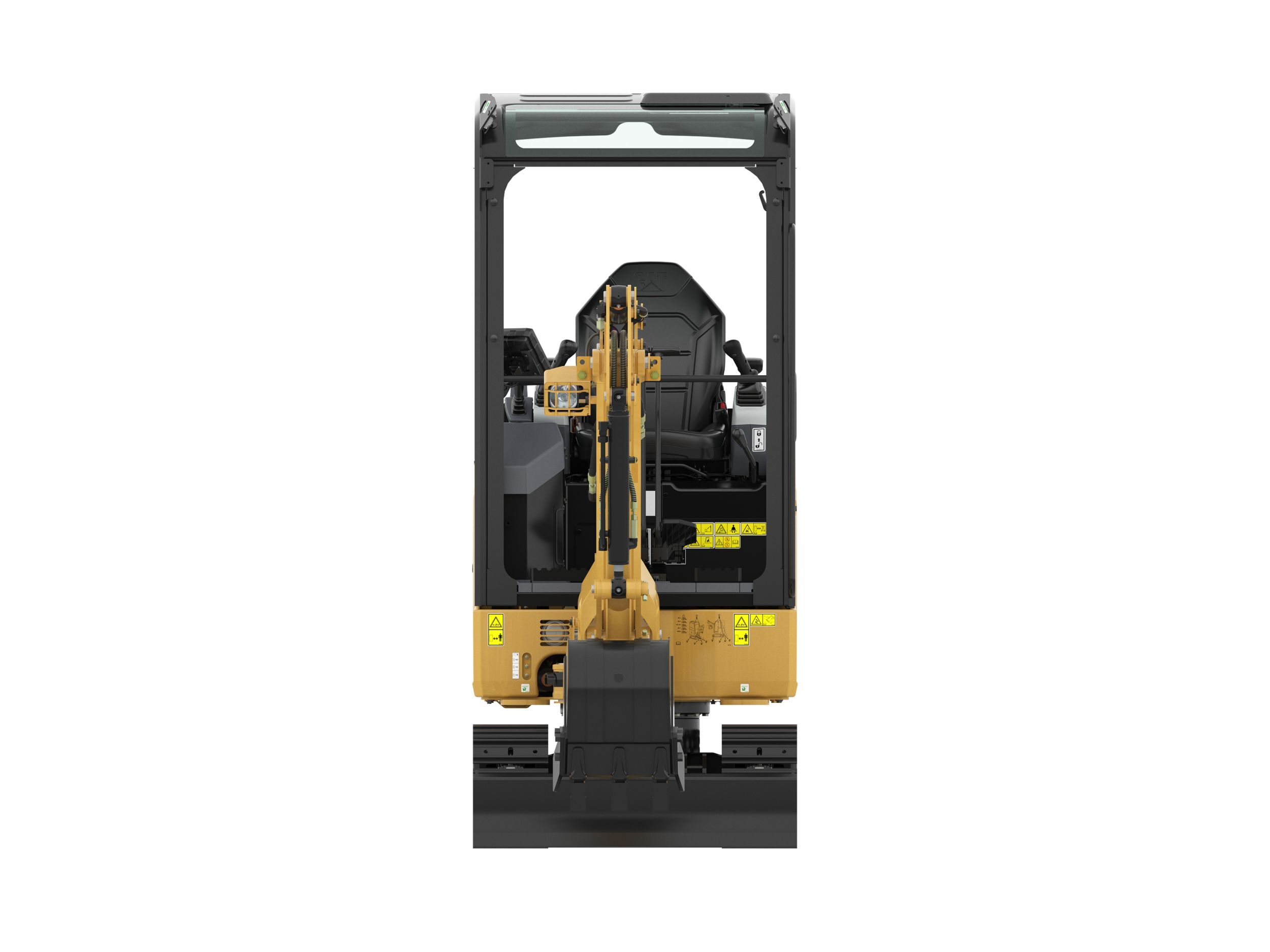

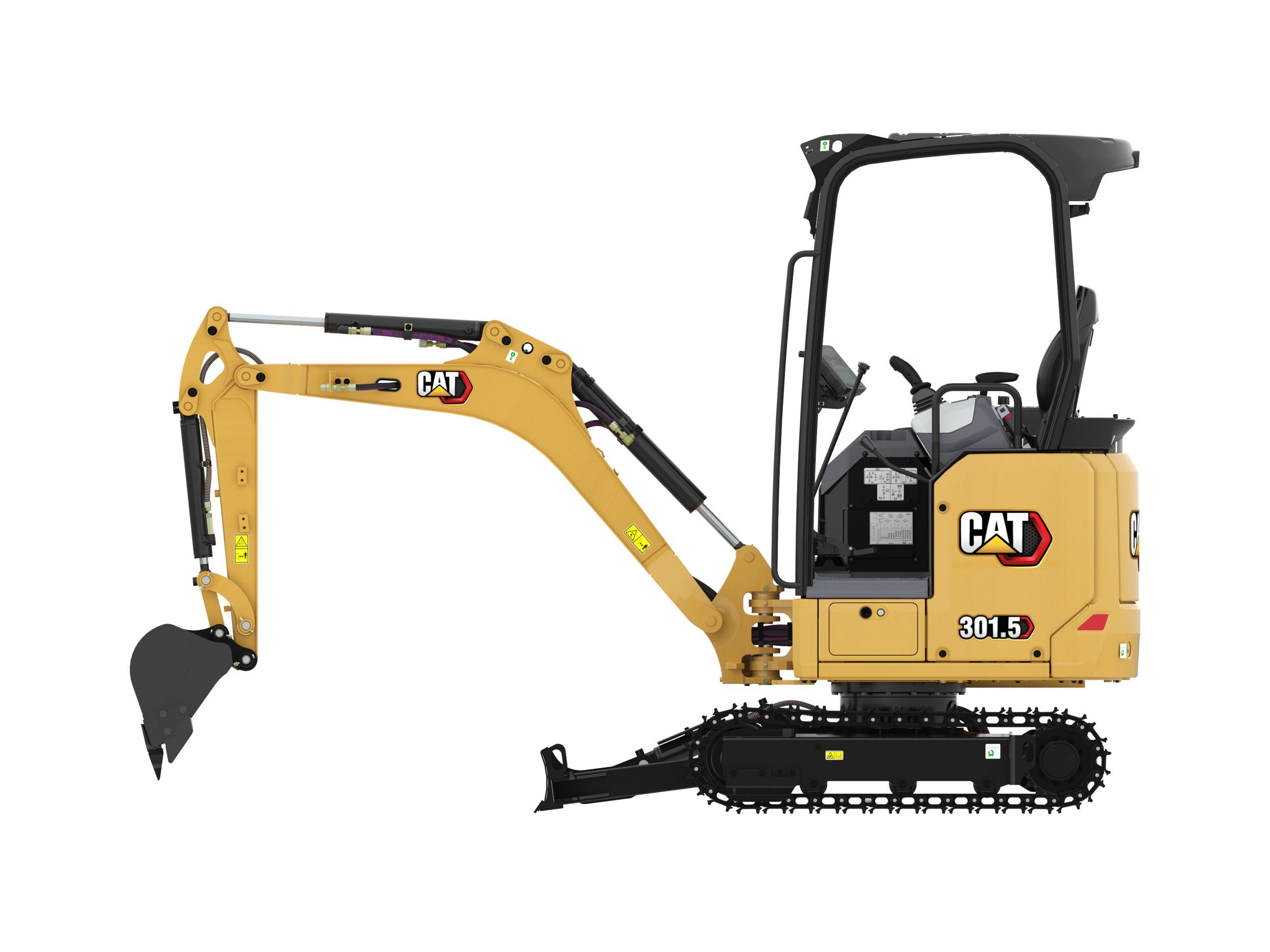

301.5 Mini Hydraulic Excavator

The Cat® 301.5 Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.

Category:

ALL DAY COMFORT

  • Adjustable wrist rests and a suspension seat option help keep you working comfortably all day long.

EASY TO OPERATE

  • Controls are easy to use and the intuitive Next Generation LCD monitor provides easy to read machine information.

STICK STEER TRAVEL MODE

  • Moving around the job site is even easier with the Cat Stick Steer option. Easily switch from traditional travel controls with levers and pedals to joystick controls with a push of a button. The benefit of less effort and improved control is in your hands!

BIG PERFORMANCE IN A COMPACT DESIGN

  • Strong lift and dig performance helps you get the job done faster. The retractable undercarriage lets you access and work in the tightest areas. Dig-to-blade and dozer float features allow for easy clean up.

SAFETY ON THE JOB SITE

  • Your safety is our top priority. The Cat mini excavator is designed to help keep you safe on the job. Courtesy work lights and a fluorescent retractable seat belt are just a couple of the safety features we've built into the machine.

SIMPLE SERVICE FOR LESS DOWNTIME

  • Maintenance is quick and easy on the Cat mini excavator. Routine check points are easy to access at ground level through the side doors. The unique tilt up canopy lets you reach additional service areas when needed.

LOWER OPERATING COSTS

  • Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the Cat mini excavator was designed with reducing your operating costs in mind.

SUSTAINABILITY

  • The Cat® C1.1 engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
  • Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
  • Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
  • Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
  • Cruise control helps you maintain a constant speed as you travel across your jobsite saving fuel and reducing greenhouse gas emissions.
  • The Cat® Seat Belt Reminder provides audible and visual warnings to remind operators to buckle up during machine operation. The easy-to-install system is compatible with all equipment brands to help ensure operator safety.
  • Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
  • Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.(if equipped)
  • Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.(if equipped)

*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel. (for use of blends higher than 20% biodiesel, consult your Cat dealer)

Standard Equipment

ENGINE
  • Cat C1.1 Engine (U.S. EPA Tier 4 Final/EU Stage V)
  • Automatic Engine Idle
  • Automatic Engine Shutdown
  • Automatic Two Speed Travel
  • Fuel Water Separator
  • Power on Demand (not available in all regions)
  • Variable Displacement Piston Pump
  • Load Sensing/Flow Sharing Hydraulics
HYDRAULICS
  • Smart Tech Electronic Pump
  • Accumulator
  • Automatic Swing Brake
  • Auxiliary Hydraulic Lines
  • One and Two Way Auxiliary Flow
  • Continuous Auxiliary Flow
  • Auxiliary Line Quick Disconnects
OPERATOR ENVIRONMENT
  • Tilt-up Canopy
  • Top Guard ISO 10262:1998 Level I
  • ROPS – ISO 12117-2:2008
  • TOPS – ISO 12117:1997
  • Machine 2-Point Lifting
  • Stick Steer Mode
  • Travel Cruise Control
  • Control Pattern Changer (optional in some regions)
  • Adjustable Wrist Rests
  • Washable Floor Mat
  • Travel Pedals and Hand Levers
  • Machine Security
  • Machine Security – Standard Key with Pass Code
  • Vinyl Non-Suspension Seat
  • Hydraulic Lockout – All Controls
  • Retractable High Visibility Seat Belt (75 mm/3 in)
  • Coat Hook
  • Cup Holder
  • Storage Pocket
  • Skylight
  • Mounting Bosses for Front
  • Signaling/Warning Horn
  • Boom Light, Halogen
  • Utility Space for Mobile Phone
  • Next Generation Color LCD Monitor (IP66)
    – Fuel Level and Coolant Temperature Gauges
    – Maintenance and Machine Monitoring
    – Performance and Machine Adjustments
    – Numeric Security Code
    – Multiple Languages
    – Hour Meter with Wake Up Switch
UNDERCARRIAGE
  • Expandable Undercarriage
  • Rubber Belt (230 mm/9 in wide)
  • Dozer Blade
  • Dozer Blade Float
  • Hydraulic Track Adjusters
  • Tie Downs on Track Frame
BOOM, STICK AND LINKAGES
  • One Piece Boom (1780 mm/70 in)
  • Standard Stick (960 mm/37.8 in)
  • Front Shovel Capable
  • Front Shovel Capable – Pin-On
  • Thumb Ready (not available in all regions)
  • Certified Lifting Eye (optional in some regions)
ELECTRICAL
  • 12 Volt Battery
  • Software (machine and monitor)
  • Maintenance Free Battery
  • Signaling/Warning Horn
  • 12 Volt Power Socket

Additional information

Offering Type

Engine - Net Power

15.7 kW ( 21 HP )

Weights - Operating Weight

1775 kg ( 3913 lb )

Dimensions - Long Stick - Dig Depth

2540 mm ( 100 in )

Engine Model

C1.1

Blade - Height

225 mm ( 8.9 in )

Weights - Minimum Operating Weight with Canopy*

1580 kg ( 3483 lb )

Dimensions - Standard Stick - Swing Bearing - Height

445 mm ( 17.5 in )

Engine - Displacement

1.1 l ( 69 in³ )

Dimensions - Long Stick - Maximum Blade Height

275 mm ( 10.8 in )

Dimensions - Standard Stick - O/A Undercarriage Length

1460 mm ( 57.5 in )

Engine - Stroke

81 mm ( 3.2 in )

Hydraulic System - Pump Flow at 2,400 rpm

66 l/min ( 17.4 gal/min )

Travel System - Maximum Traction Force - High Speed

10.3 kN ( 2315.5 lbf )

Dimensions - Standard Stick - Maximum Reach - Ground Level

3730 mm ( 146.9 in )

Certification - Canopy - Roll Over Protective Structure (ROPS)

ISO 12117-2:2008

Dimensions - Long Stick - Stick Length

1160 mm ( 45.7 in )

Hydraulic System - Digging Force - Stick - Long

7.2 kN ( 1616.4 lbf )

Dimensions - Standard Stick - Boom Swing - Left

65 ° ( 65 ° )

Dimensions - Standard Stick - Maximum Reach

3800 mm ( 149.6 in )

Dimensions - Standard Stick - O/A Shipping Height

2310 mm ( 90.9 in )

Hydraulic System - Operating Pressure - Swing

103 bar ( 1493.9 psi )

Average Exterior Sound Pressure (ISO 6395:2008)

93 dB(A) ( 93 dB(A) )

Dimensions - Standard Stick - Maximum Blade Depth

260 mm ( 10.2 in )

Dimensions - Long Stick - Boom Height - Shipping Position

1040 mm ( 40.9 in )

Engine - Bore

77 mm ( 3 in )

Dimensions - Standard Stick - Minimum Ground Clearance Below Undercarriage

155 mm ( 6.1 in )

Engine - Emissions

Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.

Dimensions - Long Stick - Maximum Reach

3960 mm ( 155.9 in )

Dimensions - Long Stick - Maximum Dig Height

3490 mm ( 137.4 in )

Dimensions - Long Stick - Note

*Overall Shipping Length depends on blade position during shipment.

Dimensions - Long Stick - Tail Swing

820 mm ( 32.3 in )

Dimensions - Standard Stick - Vertical Wall

1800 mm ( 70.9 in )

Dimensions - Long Stick - O/A Undercarriage Length

1460 mm ( 57.5 in )

Travel System - Ground Pressure - Minimum Weight

27.3 kPa ( 4 psi )

Dimensions - Standard Stick - Dig Depth

2340 mm ( 92.1 in )

Dimensions - Long Stick - Track Width - Expanded

1300 mm ( 51.18 in )

Hydraulic System - Digging Force - Stick - Standard

8.2 kN ( 1843.4 lbf )

Dimensions - Long Stick - Boom In Reach

1450 mm ( 57.1 in )

Dimensions - Standard Stick - Track Width - Expanded

1300 mm ( 51.18 in )

Hydraulic System - Auxiliary Circuit - Primary - Flow

33 l/min ( 8.7 gal/min )

Service Refill Capacities - Cooling System

3.9 l ( 1 gal (US) )

Dimensions - Long Stick - O/A Shipping Height

2310 mm ( 90.9 in )

Travel System - Ground Pressure - Maximum Weight

30.6 kPa ( 4.4 psi )

Hydraulic System - Auxiliary Circuit - Secondary - Pressure

213 bar ( 3089.3 psi )

Dimensions - Standard Stick - Track Belt/Shoe Width

230 mm ( 9.1 in )

Dimensions - Long Stick - Maximum Blade Depth

260 mm ( 10.2 in )

Dimensions - Standard Stick - Stick Length

960 mm ( 37.8 in )

Dimensions - Long Stick - Maximum Reach - Ground Level

3890 mm ( 153.1 in )

Dimensions - Standard Stick - Maximum Dig Height

3430 mm ( 135 in )

Service Refill Capacities - Engine Oil

4.4 l ( 1.2 gal (US) )

Swing System - Machine Swing Speed

9.8 r/min ( 9.8 r/min )

Hydraulic System - Operating Pressure - Travel

213 bar ( 3089.3 psi )

Blade - Note

*Expanded – 1300 mm (51 in)

Dimensions - Standard Stick - Overall Shipping Length*

3620 mm ( 142.5 in )

Blade - Width*

990 mm ( 39 in )

Dimensions - Standard Stick - Boom In Reach

1460 mm ( 57.5 in )

Dimensions - Standard Stick - Maximum Blade Height

275 mm ( 10.8 in )

Dimensions - Long Stick - Overall Shipping Length*

3590 mm ( 141.3 in )

Travel System - Travel Speed - High

4.4 km/h ( 2.7 mile/h )

Weights - Note (1)

*Minimum Weight is based on rubber tracks, operator, fixed undercarriage and full fuel tank.

Dimensions - Standard Stick - Maximum Dump Clearance

2450 mm ( 96.5 in )

Engine - Note

Net power is tested per ISO 9249:2007 and 80/1269/EEC.

Dimensions - Long Stick - Maximum Dump Clearance

2510 mm ( 98.8 in )

Weight Increase from Minimum Configuration - Long Stick

8 kg ( 18 lb )

Dimensions - Standard Stick - Boom Swing - Right

50 ° ( 50 ° )

Dimensions - Long Stick - Swing Bearing - Height

445 mm ( 17.5 in )

Dimensions - Standard Stick - Note

*Overall Shipping Length depends on blade position during shipment.

Engine - Note (2)

Net power advertised is the power available at the flywheel when the engine is at rated speed and rated power when the engine is installed with the factory configured fan, air intake system, exhaust system, and alternator with a minimum alternator load.

Dimensions - Long Stick - Minimum Ground Clearance Below Undercarriage

155 mm ( 6.1 in )

Travel System - Travel Speed - Low

2.9 km/h ( 1.8 mile/h )

Dimensions - Long Stick - Boom Swing - Left

65 ° ( 65 ° )

Hydraulic System - Operating Pressure - Equipment

213 bar ( 3089.3 psi )

Travel System - Maximum Traction Force - Low Speed

16 kN ( 3597 lbf )

Service Refill Capacities - Hydraulic System

26 l ( 6.9 gal (US) )

Dimensions - Long Stick - Vertical Wall

1890 mm ( 74.4 in )

Service Refill Capacities - Hydraulic Tank

18 l ( 4.8 gal (US) )

Dimensions - Long Stick - Track Width - Retracted

990 mm ( 39 in )

Dimensions - Long Stick - Track Belt/Shoe Width

230 mm ( 9.1 in )

Dimensions - Standard Stick - Boom Height - Shipping Position

1090 mm ( 42.9 in )

Hydraulic System - Auxiliary Circuit - Secondary - Flow

14 l/min ( 3.7 gal/min )

Dimensions - Standard Stick - Tail Swing

820 mm ( 32.3 in )

Certification - Canopy - Tip Over Protective Structure (TOPS)

ISO 12117:1997

Certification - Canopy - Top Guard

ISO 10262:1998 (Level I)

Weights - Maximum Operating Weight with Canopy**

1775 kg ( 3913 lb )

Hydraulic System - Digging Force - Bucket

14.1 kN ( 3169.8 lbf )

Sound - Note

European Union Directive “2000/14/EC”

Weight Increase from Minimum Configuration - Steel Tracks

57 kg ( 126 lb )

Dimensions - Long Stick - Boom Swing - Right

50 ° ( 50 ° )

Hydraulic System - Auxiliary Circuit - Primary - Pressure

213 bar ( 3089.3 psi )

Dimensions - Standard Stick - Track Width - Retracted

990 mm ( 39 in )

Weights - Note (2)

**Maximum Weight is based on steel tracks, operator, expandable undercarriage and full fuel tank.

Travel System - Gradeability - Maximum

30 degrees

Hydraulic System - Type

Load Sensing Hydraulics with Variable Displacement Piston Pump

Engine - Note (1)

Engine power is tested per ISO 14396:2002.

Service Refill Capacities - Fuel Tank

22 l ( 5.8 gal (US) )

Weight Increase from Minimum Configuration - Expandable Undercarriage

129 kg ( 284 lb )

Weights - EU: CE Plate Weight***

1740 kg ( 3836 lb )

Weights - Note (3)

***CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket.

Engine - Net Power - 2,400 rpm - ISO 9249, 80/1269/EEC

15.7 kW ( 21 HP )

Engine - Gross Power - SAE J1995:2014

16.1 kW ( 21.6 HP )

Sustainability - Recyclability

95%

  • Dual Lock™ Pin Grabber Couplers - Mini Excavator

    1 Ton Mini Excavators Manual

    View Details
  • Tilting Ditch Cleaning Buckets - Mini Excavator

    1000 mm (39 in)

    View Details
  • Tilting Ditch Cleaning Buckets - Mini Excavator

    1000 mm (39 in)

    View Details
  • Grading Buckets - Mini Excavator

    1000 mm (39 in)

    View Details
  • Ditch Cleaning Buckets - Mini Excavator

    1000 mm (39 in)

    View Details
  • Ditch Cleaning Buckets - Mini Excavator

    1000 mm (39 in)

    View Details
  • Ditch Cleaning Buckets - Mini Excavator

    1000 mm (40 in)

    View Details
  • Digging Buckets - Mini Excavator

    230 mm (9 in)

    View Details
  • Banana Buckets

    250 mm (10 in)

    View Details
  • Utility Thumbs

    292 mm (11 in) 5 Teeth/2 Tines

    View Details
  • Digging Buckets - Mini Excavator

    300 mm (12 in)

    View Details
  • Digging Buckets - Mini Excavator

    300 mm (12 in)

    View Details
  • Digging Buckets - Mini Excavator

    300 mm (12 in)

    View Details
  • Digging Buckets - Mini Excavator

    302 mm (12 in)

    View Details
  • Compaction Wheels

    305 mm (12 in) 1 Ton, Pin On

    View Details
  • Digging Buckets - Mini Excavator

    400 mm (16 in)

    View Details
  • Digging Buckets - Mini Excavator

    400 mm (16 in)

    View Details
  • Digging Buckets - Mini Excavator

    400 mm (16 in)

    View Details
  • Digging Buckets - Mini Excavator

    400 mm (16 in)

    View Details
  • Digging Buckets - Mini Excavator

    402 mm (16 in)

    View Details
  • Compaction Wheels

    406 mm (16 in) 1 Ton, Pin On

    View Details
  • Digging Buckets - Mini Excavator

    450 mm (18 in)

    View Details
  • Digging Buckets - Mini Excavator

    450 mm (18 in)

    View Details
  • Digging Buckets - Mini Excavator

    452 mm (18 in)

    View Details
  • Digging Buckets - Mini Excavator

    460 mm (18 in)

    View Details
  • Digging Buckets - Mini Excavator

    500 mm (20 in)

    View Details
  • Digging Buckets - Mini Excavator

    500 mm (20 in)

    View Details
  • Digging Buckets - Mini Excavator

    500 mm (20 in)

    View Details
  • Compaction Wheels

    559 mm (22 in) 1 Ton, Pin On

    View Details
  • Digging Buckets - Mini Excavator

    600 mm (24 in)

    View Details
  • Digging Buckets - Mini Excavator

    600 mm (24 in)

    View Details
  • Digging Buckets - Mini Excavator

    600 mm (24 in)

    View Details
  • Ditch Cleaning Buckets - Mini Excavator

    800 mm (32 in)

    View Details
  • Augers

    A11

    View Details
  • Hammers

    B1

    View Details
  • Hammers

    B1s

    View Details
  • Hammers

    B2

    View Details
  • Hammers

    B2 Side Mount

    View Details
  • Hammers

    B2s

    View Details
  • CW Series Couplers

    CW-05 Hydraulic 1 Ton Mini Excavators

    View Details
  • CW Series Couplers

    CW-05 Hydraulic 1 Ton Mini Excavators

    View Details
  • CW Series Couplers

    CW-05 Manual 1 Ton Mini Excavators

    View Details
  • CW Series Couplers

    CW-05 Manual 1 Ton Mini Excavators

    View Details
  • Hammers

    H35s

    View Details
  • Hammers

    H45s

    View Details
Select Up To 3 Models To Compare
