C1.5
C1.5 Marine Generator Set Engine

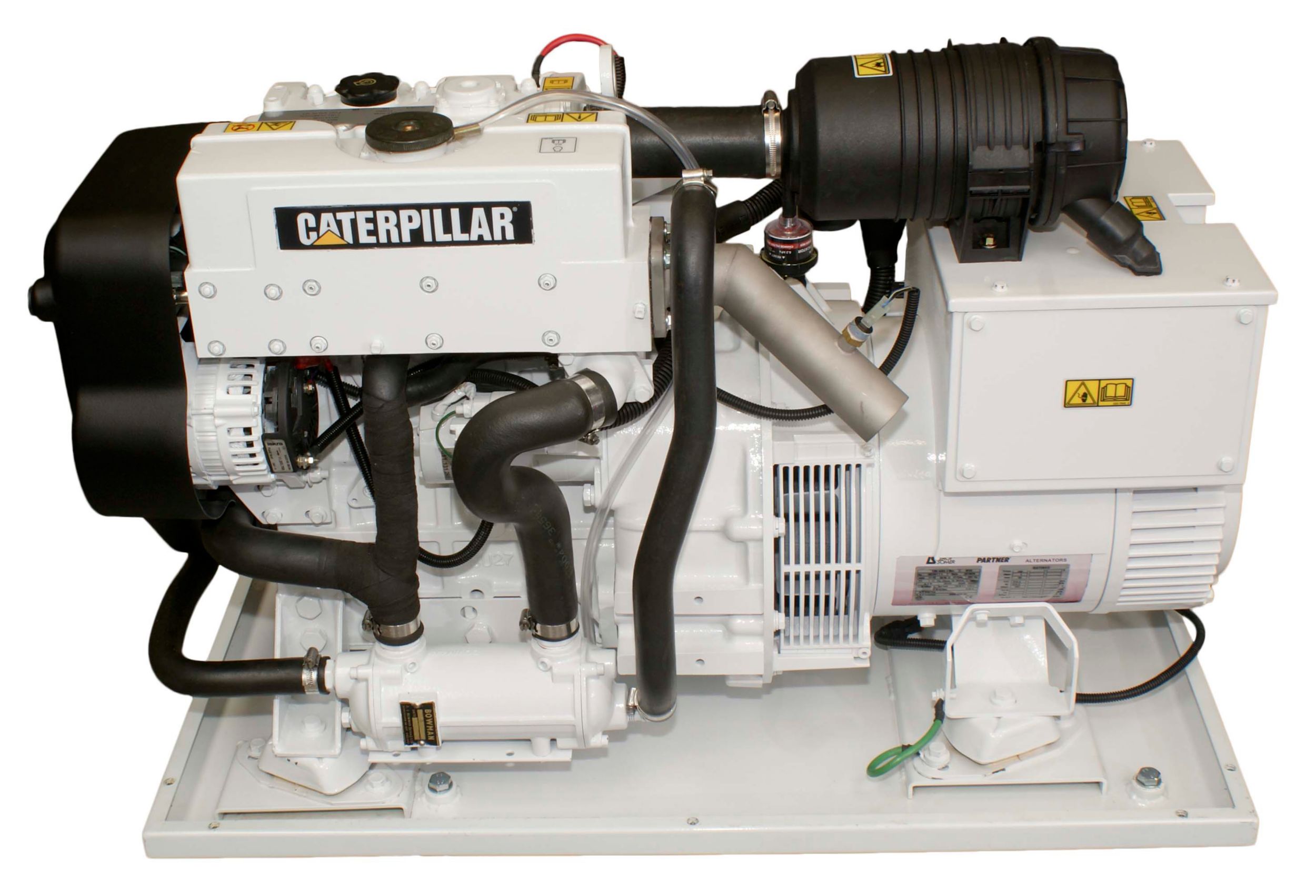

Cat® C1.5 Diesel Marine Generator Set
Key Features & Benefits
- This compact unit provides required power on demand, operating very efficiently with optimum performance.
- The 3 cylinder naturally aspirated engine operates with little vibration and low sound levels.
- Available as an open set or with a sound enclosure, this package is ideal for power requirements in any application.
- Low operating and maintenance costs with excellent fuel economy.
- The single side servicing with extended service intervals makes maintenance easy.
Documents & Brochures
Standard Equipment
Standard Equipment
- Single element air cleaner
- Water-cooled exhaust manifold
- Single or Three phase brushless generator
- 12 or 24 volt electric starting motor
- 12 volt 55 amp alternator
- Single sided service points
- Anti-vibration mounts.
- Electronic automatic safety shutdowns
Additional information
| Offering Type | |
|---|---|
| Generator Set Specifications - Maximum Rating | 12 ekW (12 kVA) |
| Generator Set Specifications - Minimum Rating | 10 ekW (10 kVA) |
| Generator Set Specifications - Frequency | 50 Hz or 60 Hz |
| Engine Specifications - Displacement | 1.5 l ( 91 in³ ) |
| Engine Specifications - Aspiration | Naturally Aspirated |
| Engine Specifications - Governor Type | Electrical Isochronous |
| Engine Specifications - Bore | 84 mm ( 3.31 in ) |
| Engine Specifications - Stroke | 90 mm ( 3.5 in ) |
| Generator Set Dimensions - Length | 40.8 in / 1,038 mm (open) 43.1 in / 711 mm (enclosed) |
| Generator Set Dimensions - Width | 21.1 in / 535 mm (open) 24.0 in / 608 mm (enclosed) |
| Generator Set Dimensions - Height | 27.1 in / 535 mm (open) 27.9 in / 711 mm (enclosed) |
| Generator Set Specifications - Speed | 1500 / 1800 rpm |
| Engine Specifications - Emissions | U.S. EPA Tier 3 |
| Engine Specifications - Configuration | Inline 3, 4-Stroke Cycle diesel |
| Engine Specifications - Refill Capacity | Lube Oil System w/oil filter change: 6 L (1.6 gal) |
| Engine Specifications - Oil Change Interval | 500 hrs |
| Engine Specifications - Rotation from Flywheel End | Counterclockwise |
| Engine Specifications - Cooling | Hex or Single Circuit Keel |
| Generator Set Dimensions - Engine Dry Weight | 703 lb / 319 kg |
