C15 (60 Hz)

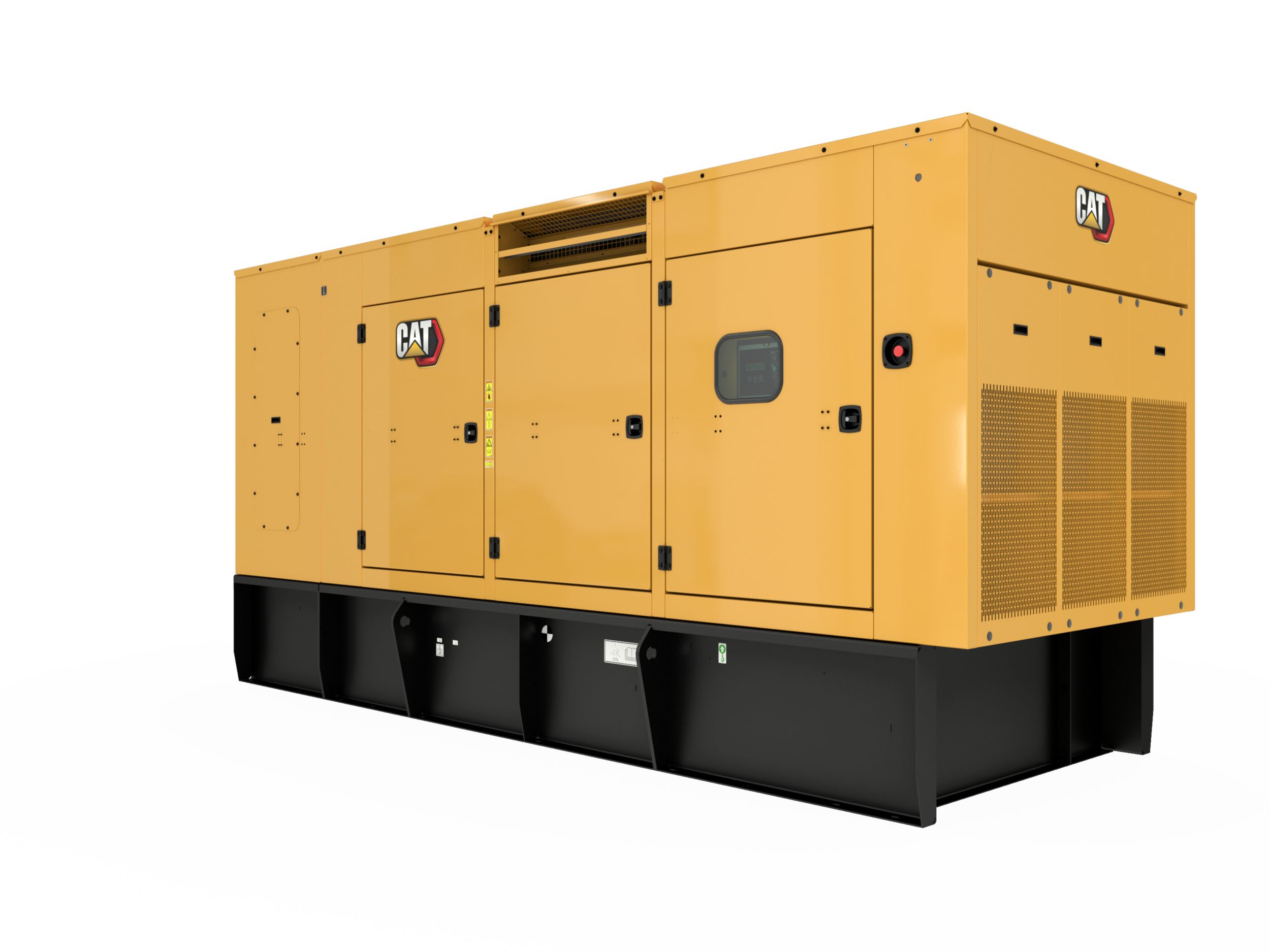

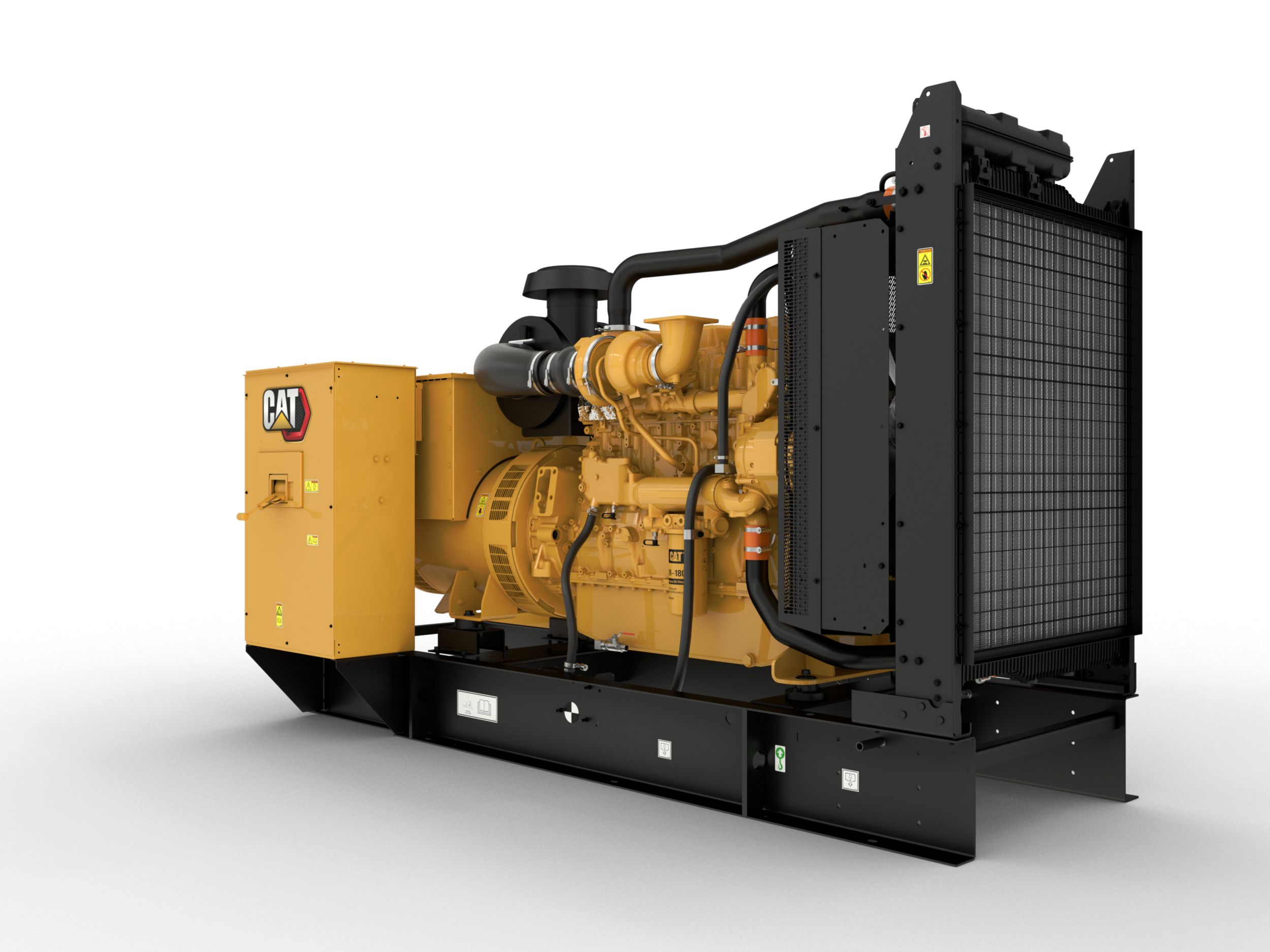

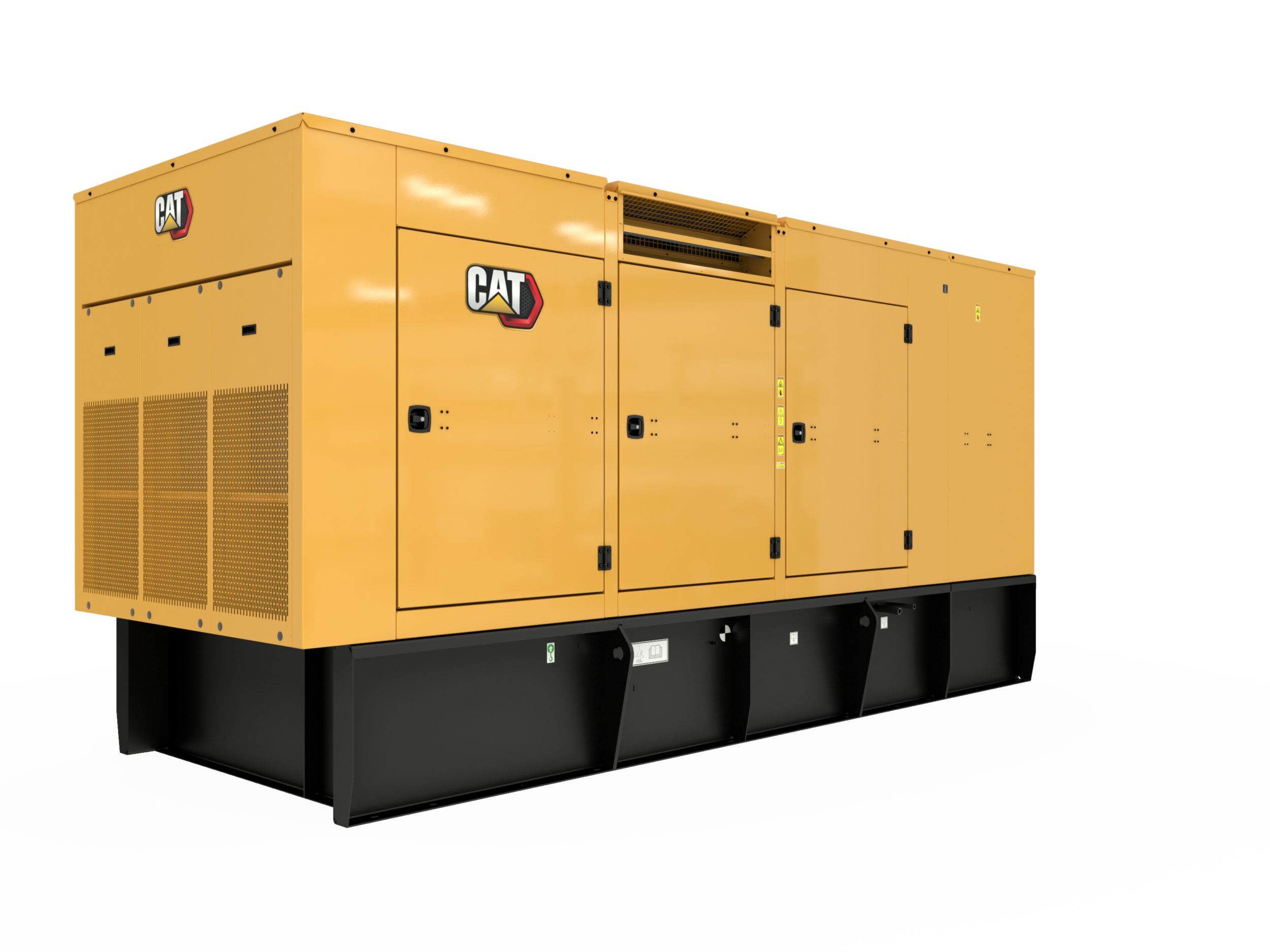

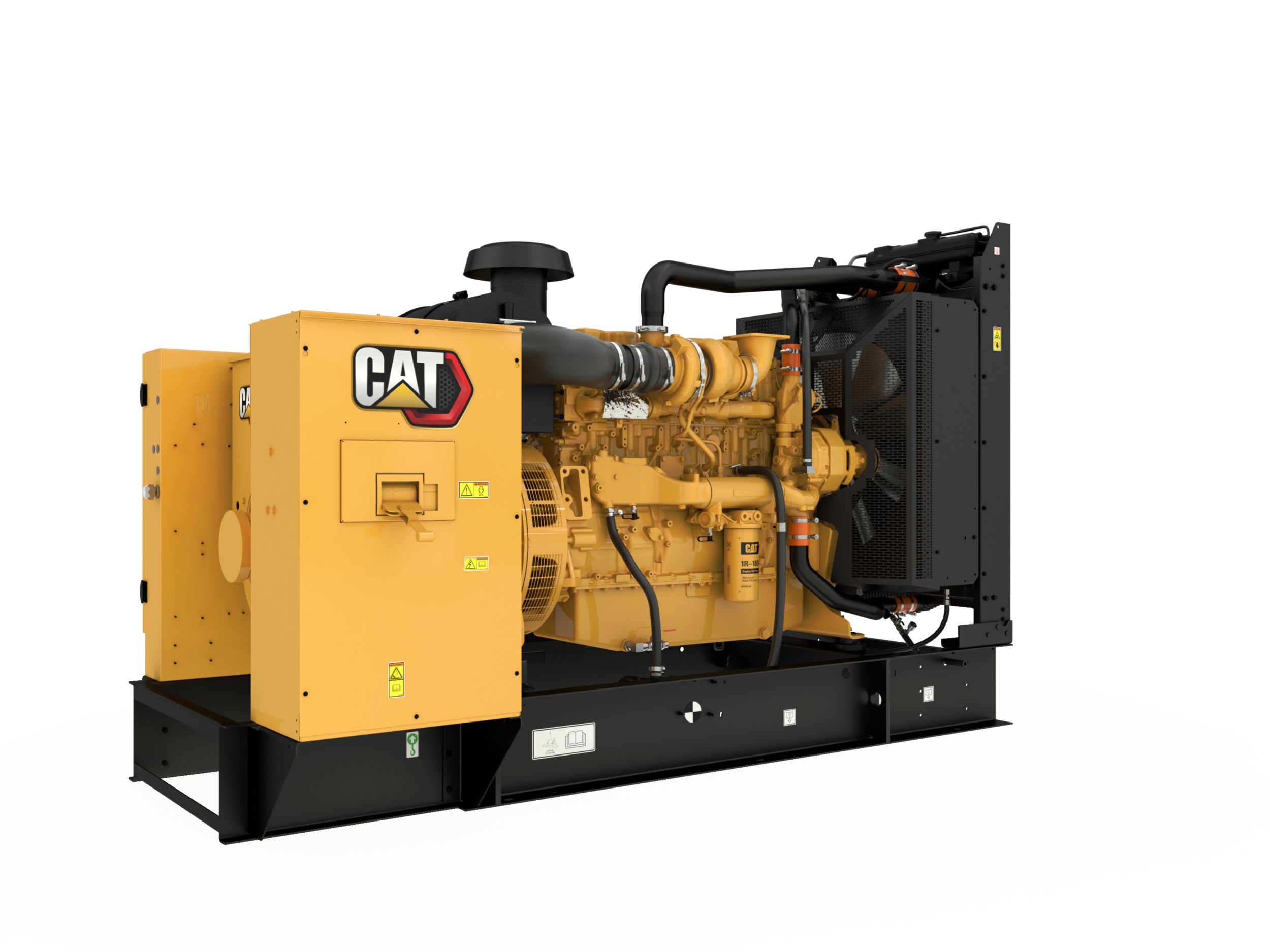

C15 Generator Set
The C15 diesel generator sets certified Low Fuel Consumption, have been developed for standby and prime applications producing reliable power from 400 to 500 ekW at 60 Hz, meeting ISO 8528-5 transient response requirements.
Cat Generator Set Package
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
A-Frame Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
GCCP 1.3 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
Cooling System
- Designed to operate in standard ambient temperatures up to 55°C (131°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Certifications
UL2200 Listed; CSA 22.2; Certification of Compliance – IBC Seismic; Dual IBC & HCAI
One Safe Source
- Components used in the generator set are selected based on seamless design integration to provide the optimum performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
Worldwide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Virtual Tours
Documents & Brochures
Standard Equipment
Air System
- Turbocharger
- Air cleaner - Non canister disposable paper filter
- Aftercooler core
Air Inlet
- Air cleaner
Control Panel
- GCCP 1.3
- GCCP Genset Controller
Cooling
- Package mounted radiator
Cooling System
- Coolant drain line with valve
- Fan drive, battery charging alternator drive
- Caterpillar extended life coolant
- Radiator and cooling fan with guard
Exhaust
- Base, formed steel with single wall integral 8-hour fuel tank
- Standard open set fuel tank/base supplied
- Exhaust flange outlet
Fuel
- Primary fuel filter with integral water separator
- Secondary fuel filters
- Fuel priming pump
Fuel System
- Engine fuel transfer pump
- Flexible fuel lines
- Fuel cooler
- Fuel priming pump
- Primary fuel filter w/integral water separator and secondary filter
Generator
- IP23 Protection
- Load adjustment module provides engine relief upon load impact and improves load acceptance and recovery time
- Matched to the performance and output characteristics of Cat engines
Power Termination
- Busbar
Mounting
- Rubber vibration isolators
Generator and Attachments
- Segregated low voltage (AC/DC) wiring panel
- Optional LC Frame generator - IP23 Protection
- Power center, IP22
- Mandatory option circuit breaker, IEC, 3 pole, mounted in power centre
- Integrated voltage regulator (IVR)
- A Frame generator - IP21 Protection
Governing System
- Cat electronic governor (ADEM A4).
Lube System
- Oil drain valves
- Oil cooler
Mounting System
- Captive linear vibration isolators between base and engine-generator includes lifting provisions and termination points for coolant and lube oil drain lines
Starting/Charging
- 24 Volt battery with rack and cables
- 24 volt starting motor
- Batteries
General
- Engine and alternator pre paint, Caterpillar yellow
- Paint - Caterpillar yellow except rails and radiators gloss black
Additional information
| Offering Type | |
|---|---|
| Generator Set Specifications - Maximum Rating | 500 ekW |
| Generator Set Specifications - Minimum Rating | 400 ekW |
| Generator Set Specifications - Emissions/Fuel Strategy | Low Fuel Consumption |
| Generator Set Specifications - Voltage | 208 to 600 Volts |
| Generator Set Specifications - Frequency | 60 Hz |
| Generator Set Specifications - Speed | 1800 rpm |
| Generator Set Specifications - Duty Cycle | Standby, Prime |
| Engine Specifications - Engine Model | C15 ATAAC, I-6, 4-Stroke Water-Cooled Diesel |
| Engine Specifications - Bore | 137.2 mm ( 5.4 in ) |
| Engine Specifications - Stroke | 171.4 mm ( 6.75 in ) |
| Engine Specifications - Displacement | 15.2 l ( 927.56 in³ ) |
| Engine Specifications - Compression Ratio | 16.1:1 |
| Engine Specifications - Aspiration | Air to Air Aftercooled |
| Engine Specifications - Fuel System | MEUI |
| Engine Specifications - Governor Type | Adem™A4 |
| Generator Set Dimensions - Length - Maximum | 4273 mm ( 168.2 in ) |
| Generator Set Dimensions - Width - Maximum | 2058 mm ( 81 in ) |
| Generator Set Dimensions - Height - Maximum | 2092 mm ( 82.4 in ) |
-
