C15 ACERT™

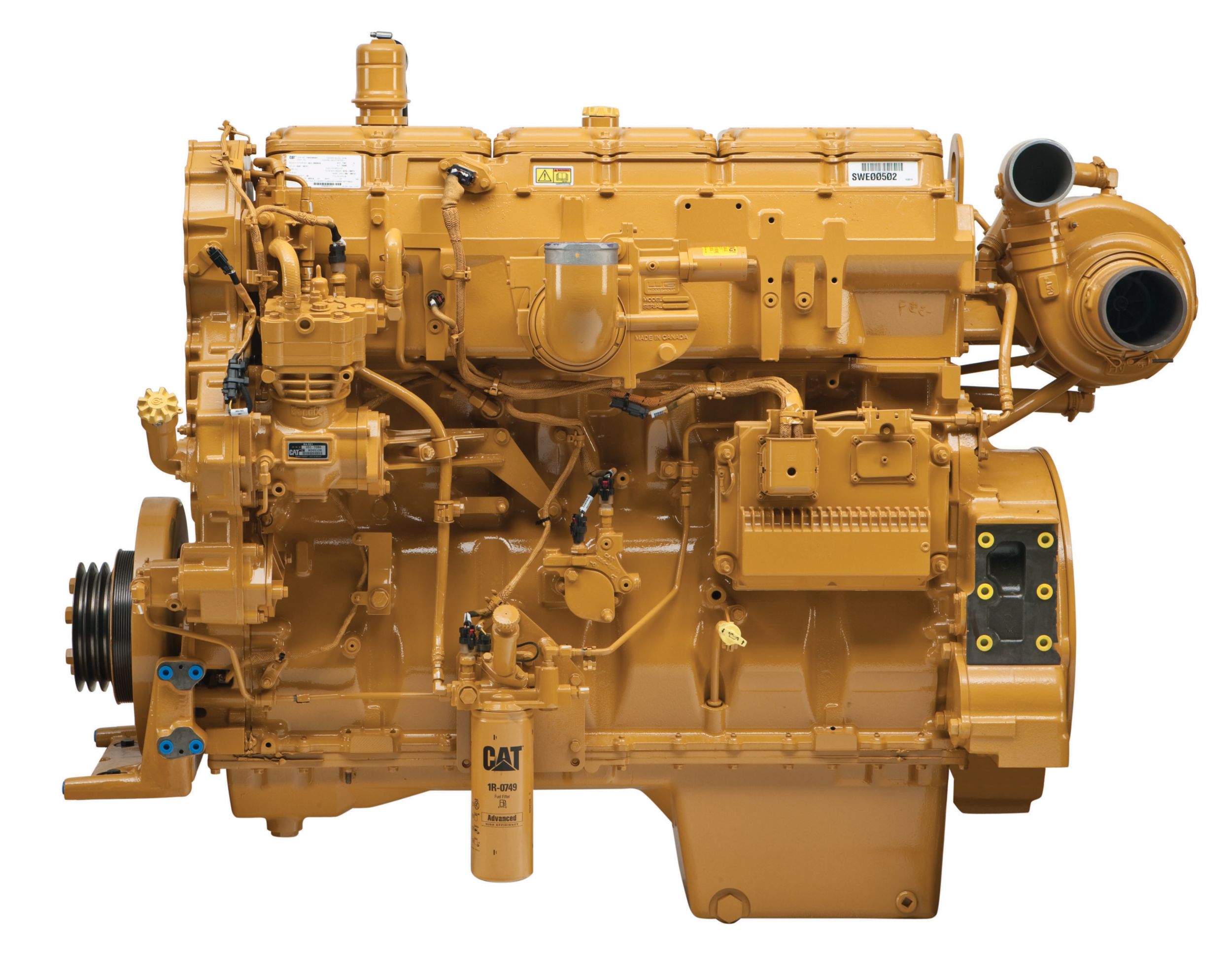

C15 ACERT Land Mechanical Drilling Engine
Cat C15 ACERT engines are the ideal solution for your demanding operations in the oilfield. Decades of field operation and intense research and development allow Cat C15 ACERT engines to deliver excellent performance with low operating costs and emissions. This is an ideal engine for land mechanical drilling applications such as mud pump drives. Cat engines are backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty. Cat C15 ACERT™ Industrial Diesel Engine. Ratings: 328-444 bkW (440-595 bhp) @ 1800-2100 rpm meet China Stage II, U.S. EPA Tier 3 equivalent, EU Stage IIIA equivalent emission standards.
Custom Packaging
For any petroleum application, trust Caterpillar to meet your project needs with custom factory generator sets and mechanical packages. Cat engines, generators, controls, radiators, and transmissions can be custom designed and matched in collaboration with our local dealers to create unique solutions. Custom packages are globally supported and are covered by a one year warranty after startup.
Custom Packaging
For any petroleum application, trust Caterpillar to meet your project needs with custom factory generator sets and mechanical packages. Cat engines, generators, controls, radiators, and transmissions can be custom designed and matched in collaboration with our local dealers to create unique solutions. Custom packages are globally supported and are covered by a one year warranty after startup.
Transmissions
Caterpillar has a full line of engine-transmission packages that can be fully integrated with your axle, hydraulics, and operator interface. Cat transmissions deliver continuous operation under full load, smooth shifting at any speed, and maximum up time, with unmatched durability and easy maintenance.
Full Range of Attachments
Large variety of factory-installed engine attachments reduces packaging time
Testing
Every engine is full-load tested to ensure proper engine performance.
Product Support Offered Through Global Cat Dealer
- More than 2,200 dealer outlets - Cat factory-trained dealer technicians service every aspect of your petroleum engine - Cat parts and labor warranty - Preventive maintenance agreements available for repairbefore-failure options - S•O•SSM program matches your oil and coolant samples against Caterpillar set standards
Over 80 Years of Engine Manufacturing Experience
Ownership of these manufacturing processes enables Caterpillar to produce high quality, dependable products.
Over 80 Years of Engine Manufacturing Experience
Ownership of these manufacturing processes enables Caterpillar to produce high quality, dependable products.
Web Site
For all your petroleum power requirements, visit www.catoilandgasinfo.com.
Web Site
For all your petroleum power requirements, visit www.catoilandgasinfo.com.
Documents & Brochures
Standard Equipment
Air Inlet System
- Single turbocharger, mid-mounted, inlet 152.4 mm (6 in), hose connection
Control System
- Electronic governing, PTO speed control
- Programmable ratings
- Cold mode start strategy
- Automatic altitude compensation
- Power compensation for fuel temperature
- Programmable low and high idle and TEL
- Electronic diagnostics and fault logging
- Engine monitoring and protection system (speed, temperature, pressure)
- J1939 Broadcast (diagnostic, engine status, and control)
Cooling System
- Thermostats and housing — outlet vertical
- Jacket water pump — gear-driven, centrifugal, RH
- RH front water pump inlet
- All plugs/fittings are STOR for lines gp water
Exhaust System
- Exhaust manifold — dry
- Front turbo exhaust
- Full marmon connection, maximum load 10 kg for direct connection to turbo
Flywheels and Flywheel Housings
- See Mandatory Options
Fuel System
- MEUI system
- Fuel filter, secondary, mid-mount (LH 2 micron high performance)
- Fuel transfer pump, LH front
- Fuel priming pump, LH mid-mount
- Fuel sample valve, mounted on fuel filter base
Lube System
- Crankcase breather — rear valve cover
- Oil cooler — RH
- Oil filter — RH
- Oil pan — front sump
- Oil filler — LH front
- Oil dipstick — LH front
- Oil pump
- Oil valve sampling — on oil filter base
Mounting System
- Front support (shipping only)
Power Take-Offs
- Crankshaft pulley, 203.2 mm (8 in), 3 grooves 292.1 mm (11.5 in) 1 groove, all 15.9 mm (.63 in) width
- Hydraulic pump drive, SAE A, 11 tooth
General
- Vibration damper
- Paint — Cat yellow
- Lifting eyes
- Automatic variable timing, electronic
- Electronic installation kit 70-pin connector (connectors, pins, sockets)
- Literature group owner and operator
Mandatory Options
- Throttle position sensor
- Exhaust system — front or rear
- Flywheel housing or rear PTO
- Primary filter/water separator
Additional information
| مواصفات المحرك - أدنى تقدير | 328.0 bkW ( 440.0 BHP ) |
|---|---|
| مواصفات المحرك - الحد الأقصى للتقدير | 444.0 bkW ( 595.0 BHP ) |
| مواصفات المحرك - الانبعاثات | وكالة حماية البيئة (EPA) ومجلس الموارد الجوية بكاليفورنيا (CARB) للمركبات المتنقلة التي لا تسير على الطرق من المستوى 3، الاتحاد الأوروبي من المستوى IIIA |
| مواصفات المحرك - السرعة المقدرة | 1800.0 دورة في الدقيقة ( 2100.0 دورة في الدقيقة ) |
| مواصفات المحرك - التجويف | 137.2 مم ( 5.4 بوصة ) |
| مواصفات المحرك - الشوط | 171.0 مم ( 6.75 بوصة ) |
| مواصفات المحرك - الإزاحة | 15.2 l ( 928.0 بوصة³ ) |
| مواصفات المحرك - السحب | يعمل بشاحن توربيني-مبرد لاحقًا |
| مواصفات المحرك - المنظم والحماية | ADEM A3 |
| مواصفات المحرك - وزن المحرك، الصافي الجاف | 1245.0 كجم ( 2743.0 رطل ) |
| مواصفات المحرك - الدوران من طرف الحدافة | عكس عقارب الساعة |
| مواصفات المحرك - الفاصل الزمني لتغيير الزيت | 250 |
| مواصفات المحرك - الحدافة ومبيت الحدافة | معيار SAE رقم 0 أو SAE رقم 1 |
| مواصفات المحرك - أسنان الحدافة | 136 (SAE 0)، 113 (SAE 1) |
| سعة السوائل - الحد الأدنى لنظام التبريد (المحرك فقط) | 20.8 l ( 5.5 جالون (أمريكي) ) |
| Dimensions - الطول | 1377.0 مم ( 54.2 بوصة ) |
| Dimensions - العرض | 927.0 مم ( 36.5 بوصة ) |
| الأبعاد - الارتفاع | 1227.0 مم ( 48.3 بوصة ) |
