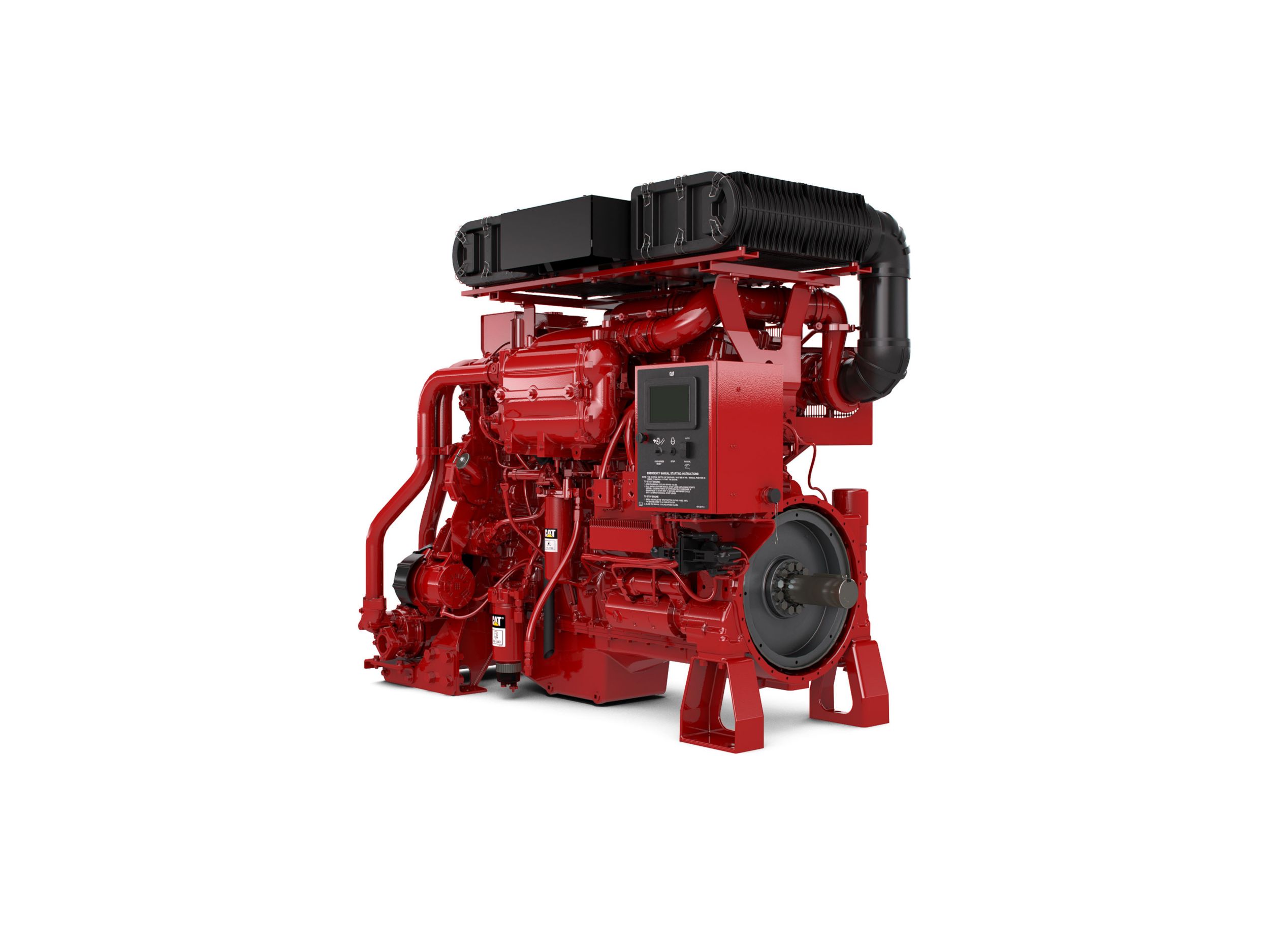

Cat® C18 Diesel Fire Pump

Cat® C18 Fire Pump Engines, with ratings: 447-597 kW (600-800 hp)@ 1750-2100 rpm, meet U.S. EPA Tier 3 or U.S. EPA Tier 2 emission standards for stationary emergency fire pump engines. Rating: 522 kW (700 hp) @ 1500 rpm is Non-certified. All ratings are FM Approved and UL Listed. Starting on demand is a must for a fire pump engine – always. Cat® fire pump engines have a reputation for reliable starts and long efficient service. The Cat line of fire engine pumps covers a wide range of installations. At 447-597 kW (600-800 hp) the C18 is the newest addition to the Cat fire pump engine line and continues the strong legacy of dependable starts and long, durable life.

Category:

Reliable, Quiet and Durable Power

World-class manufacturing capability and processes coupled with proven core engine designs assure reliability, quiet operation, and many hours of productive life.

World-class Product Support Offered Through Global Cat Dealer Network

  • Scheduled maintenance, including SOSSM sample
  • Customer Support Agreements (CSA)
  • Caterpillar Extended Service Coverage (ESC)
  • Superior dealer service network
  • Extended dealer service network through the Cat Industrial Service Distributor (ISD) program

Virtual Tours

Standard Equipment

Air Inlet System
  • Dual turbocharger: front and rear inlet 127.mm (5.0 in)
  • Separate Circuit Aftercooled (SCAC)
  • Optional Air Cleaner - dual element, installed
Charging System
  • Charging alternator 24 volt, 50 amp
Control System
  • Dual Electronic Control Units (ECU), primary and secondary with auto switching capability
  • Electronic governing, PTO speed control
  • Cold mode start strategy
  • Automatic altitude compensation
  • Power compensation for fuel temperature
  • Programmable low and high idle and top engine limit
  • Electronic diagnostics and fault logging
  • Engine monitoring and protection system (speeds, temperature, pressure)
  • SAE J1939 broadcast (diagnostic, engine status, and control)
Cooling System
  • Thermostats and housing, vertical outlet
  • Jacket water pump, gear driven, centrifugal
  • Heat exchanger installed
  • Expansion tank
  • FM Required Raw Water Cooling Loops: 1.5" iron, horizontal or vertical, 1.5" 316 stainless steel, horizontal or vertical, 2" iron, horizontal or vertical (2100 rated rpm only), or 2" 316 stainless steel, horizontal or vertical (2100 rated rpm only)
Exhaust System
  • Exhaust manifold, dry
  • Dual turbo: exhaust elbow, dry 203 mm (8 in)
Flywheels and Flywheel Housing
  • SAE No. 1 flywheel
  • SAE No. 1 flywheel housing
  • SAE standard rotation
Fuel System
  • Electronic unit injector
  • Fuel filter, secondary (2 micron)
  • Fuel transfer pump
  • Fuel sample valve, mounted on fuel filter base
  • Primary fuel filter / water separator
Instrumentation
  • Digital Display mounted in Junction Box, LH side of engine. Displays: Oil pressure, Fuel pressure, Charging voltage, Coolant temperature, Raw water temperature, and Engine hours
Lube System
  • Crankcase breather, front valve cover
  • Oil cooler
  • Lube oil filter
  • Front sump oil pan
  • Oil filler
  • Oil dipstick
  • Oil pump
Mounting System
  • Front and rear support
Power Take-Offs
  • Flywheel stub shaft
Protection System
  • Stop-Start System, automatic (compatible with NFPA 20 requirements, able to be energized from either of two battery sources and capable of manual starter actuation)
Starting System
  • 24 volt, LH electric starting motor
  • Jacket water heater (3 kW, 120-240 volt)
General
  • Vibration damper and guard
  • Lifting eyes
  • Automatic variable timing, electronic
  • Paint - fire pump red

Additional Information

تقدير القدرة - القدرة القصوى

597 كيلووات ( 800 حصان )
تقدير القدرة - السرعة المقدرة

1500‏-2100 دورة في الدقيقة
تقدير القدرة - القدرة الدنيا

447 كيلووات ( 600 حصان )
معايير الانبعاثات - الانبعاثات

يفي بمعايير الانبعاثات الخاصة بوكالة حماية البيئة (EPA) الأمريكية من المستوى 3 أو المستوى 2 أو معايير الانبعاثات غير المعتمدة لمحركات مضخات إطفاء الحرائق الثابتة للطوارئ. معتمد من FM، ومدرج في قوائم UL
عام - تكوين المحرك

ديزل بدورة من 4 أشواط، ذو 6 أسطوانات في خط مستقيم
عام - التجويف

145 مم ( 5.7 بوصة )
عام - الشوط

183 مم ( 7.2 بوصة )
عام - الإزاحة

18.1 l ( 1104.5 بوصة³ )
عام - نسبة الانضغاط

16.3:1
عام - السحب

مزوَّد بشاحن توربيني ومبرد لاحق (TA)
عام - الدوران من طرف الحدافة

عكس اتجاه حركة عقارب الساعة
عام - المعالجة اللاحقة

–
أبعاد المحرك - بالتقريب - الطول

1889 مم ( 74.7 بوصة )
أبعاد المحرك - بالتقريب - العرض

1082 مم ( 42.6 بوصة )
أبعاد المحرك - بالتقريب - الارتفاع

1380 مم ( 54.3 بوصة )
أبعاد المحرك - بالتقريب - الوزن - الصافي الجاف - محرك التشغيل الأساسي من دون الملحقات الاختيارية

1953 كجم ( 4306 رطل )
