C32

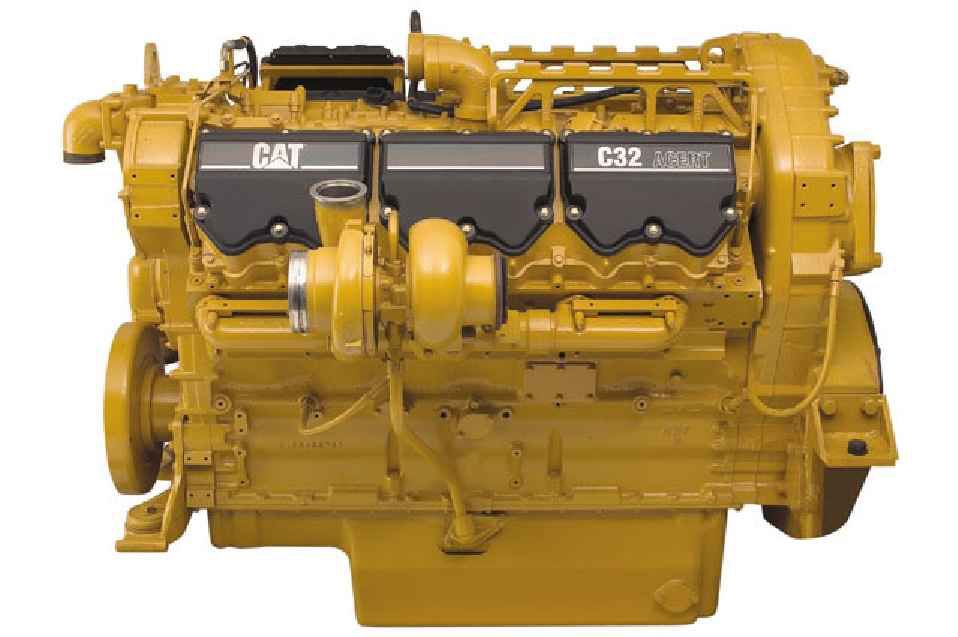

Cat® C32
No matter where they operate and no matter what the application, Cat® C32 Industrial Diesel Engines will deliver durable, reliable power that will keep your customers productive while lowering their operating costs to keep them profitable. Today’s Cat® engines are the finest ever produced by Caterpillar – with a legacy of power and rugged reliability driven by the demands of performance. Industries and applications powered by these high power engines include Bore/Drill Rigs, Chippers/Grinders, Construction, Cranes, Dredgers, Forestry, Hydraulic Power Units, General Industrial, Irrigation Equipment, Material Handling, Mobile Earthmoving Equipment, Paving Equipment, Pumps, Shovels/Draglines, Surface Hauling Equipment and Trenchers. These C32 engines, with ratings: 708-1007 bkW (950-1350 bhp) @ 1800-2100 rpm, meet U.S. EPA Tier 2 equivalent emission standards. They are available using U.S. EPA Flexibility, and for other regulated and non-regulated areas.
Reliable, Quiet and Durable Power
World-class manufacturing capability and processes coupled with proven core engine designs assure reliability, quiet operation, and many hours of productive life.
Broad Application Range
Industry leading range of factory configurable ratings and options for agricultural, material handling, construction, mining, aircraft ground support, and other industrial applications.
Package Size
Exceptional power density enables standardization across numerous applications. Multiple installation options minimize total package size. Ideal for equipment with narrow engine compartments.
World-class Product Support Offered Through Global Cat Dealer Network
- Scheduled maintenance, including SOSSM sample
- Customer Support Agreements (CSA)
- Caterpillar Extended Service Coverage (ESC)
- Superior dealer service network
- Extended dealer service network through the Cat Industrial Service Distributor (ISD) program
Standard Equipment
Air Inlet System
- Twin Turbocharged Aftercooled
- Air-to-Air Aftercooled
Control System
- Electronic governing, PTO speed control
- Programmable ratings
- Automatic altitude compensation
- Power compensation for fuel temperature
- Programmable low and high idle and total engine limit
- Electronic diagnostics and fault logging
- Engine monitoring system SAE J1939 broadcast and control
- ADEM™ A4 Electronic Control Unit (ECU)
Cooling System
- Thermostats and housing, vertical outlet
- Jacket water pump, centrifugal
- Water pump, inlet
Exhaust System
- Exhaust manifold, dry
- Optional exhaust outlet
Flywheels and Flywheel Housing
- SAE No. 1 flywheel housing
Fuel System
- MEUI injection
- Fuel filter, secondary (2 micron)
- ACERT™ Technology
- Fuel transfer pump
- Fuel priming pump
Lube System
- Crankcase breather
- Oil cooler
- Oil filler
- Lube oil filter
- Front sump oil pan
- Oil dipstick
- Gear driven oil pump
General
- Vibration damper
- Lifting eyes
- Cold start capability to -20° C (-4° F)
- Paint: Caterpillar yellow, with optional colors available at request
Additional information
| تقدير القدرة - القدرة القصوى | 1007 كيلووات ( 1350 حصان ) |
|---|---|
| تقدير القدرة - أقصى عزم دوران | 6166 Nm @ 1400 rpm ( 4548 رطل-قدم عند 1400 دورة/دقيقة ) |
| تقدير القدرة - السرعة المقدرة | 1800-2100 دورة في الدقيقة |
| تقدير القدرة - القدرة الدنيا | 708 كيلووات ( 950 حصان ) |
| معايير الانبعاثات - الانبعاثات | معايير مكافئة لمعايير وكالة حماية البيئة (EPA) الأمريكية من المستوى 2 |
| عام - تكوين المحرك | ديزل بدورة من 4 أشواط، ذو 12 أسطوانة على شكل V |
| عام - التجويف | 145 مم ( 5.7 بوصة ) |
| عام - الشوط | 162 مم ( 6.4 بوصة ) |
| عام - الإزاحة | 32.1 l ( 1958.9 بوصة³ ) |
| عام - نسبة الانضغاط | 16.5:1 |
| عام - السحب | مزوَّد بشاحن توربيني ومبرد لاحق (TA) |
| عام - نظام الاحتراق | حقن مباشر |
| عام - الدوران من طرف الحدافة | عكس اتجاه حركة عقارب الساعة |
| عام - المعالجة اللاحقة | – |
| أبعاد المحرك - بالتقريب - الطول | 1917 مم ( 75.5 بوصة ) |
| أبعاد المحرك - بالتقريب - العرض | 1479 مم ( 58.2 بوصة ) |
| أبعاد المحرك - بالتقريب - الارتفاع | 1319 مم ( 51.9 بوصة ) |
| أبعاد المحرك - بالتقريب - الوزن - الصافي الجاف - محرك التشغيل الأساسي من دون الملحقات الاختيارية | 2946 كجم ( 6495 رطل ) |
| Offering Type |
