C32 ACERT™
C32 ACERT Tier 4 Final

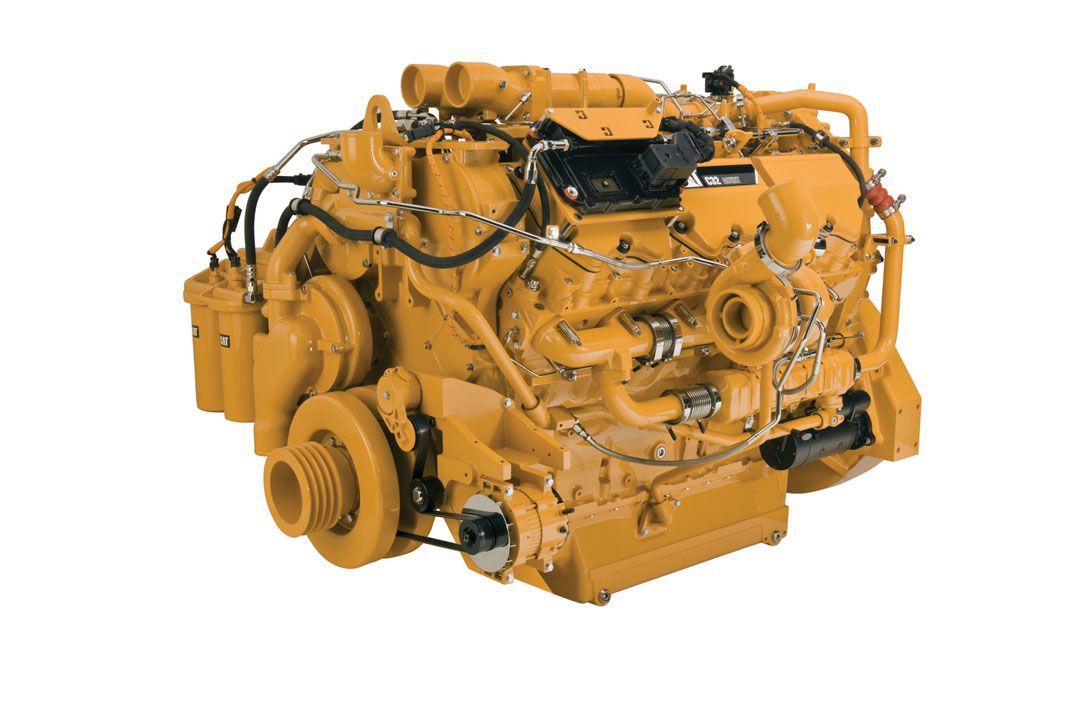

Cat C32 ACERT engines are the ideal solution for your demanding operations in the oilfield. Decades of field operation and intense research and development allow Cat C32 ACERT engines to deliver excellent performance with low operating costs while meeting the tightest environmental requirements.This is an ideal engine for applications that require Tier 4 Final emissions certifications in land mechanical drilling equipment such as mud pumps.Cat engines are backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty.Cat C32 ACERT Diesel Engine. Ratings: 839 bkW (1125 bhp) @ 1800 rpm, designed to meet U.S. EPA Tier 4 Final emission standards.
Emissions
- Designed to meet U.S. EPA Tier 4 Final emissions requirements. - On-engine NOx reduction system with optimized piston, ring, liner, and fuel system configuration to reduce NOx while minimizing in-cylinder sooting- Aftertreatment features diesel oxidation catalyst- Meets Tier 4 Final emissions requirements four years early, achieving environmental benefits earlier than required.
Engine Design
- Proven reliability and durability of engine and aftertreatment- Broad operating speed range- High power density- PTO drive options provide flexible access to auxiliary power for pumps and other needs
Low Total Cost of Ownership
- Optimized fuel consumption- Maintenance-free aftertreatment
Advanced Digital Engine Management
ADEM A4 control system providing integrated ignition, speed governing, protection, and controls. ADEM A4 has improved: user interface, display system, shutdown controls, and system diagnostics.
Custom Packaging
For any petroleum application, trust Caterpillar to meet your exact needs with a factory custom package. Cat® engines, generators, enclosures, controls, radiators, transmissions, aftertreatment solutions — anything your project requires — can be custom designed and matched to create a one-of-a kind solution. Custom packages are globally supported and are covered by a one-year warranty after startup.
Transmissions
- Caterpillar has a full line of engine-transmission packages that can be fully integrated with your axle, hydraulics, and operator interface.- C32 ACERT™ optimized Cat transmission match: TH48-E70
Testing
Every engine is full-load tested to ensure proper engine performance.
Product Support Offered Through Global Cat Dealer
- More than 2,200 dealer outlets- Caterpillar factory-trained dealer technicians service every aspect of your petroleum engine- Caterpillar parts and labor warrantyPreventive maintenance agreements available for repairbefore-failure optionsS•O•SSM program matches your oil and coolant samples against Caterpillar set standards to determine:- Internal engine component condition- Presence of unwanted fluids- Presence of combustion by-products- Site-specific oil change interval
Over 80 Years of Engine Manufacturing Experience
Ownership of these manufacturing processes enables Caterpillar to produce high quality, dependable products.- Cast engine blocks, heads, cylinder liners, and flywheel housings- Machine critical components- Assemble complete engine
Web Site
For all your petroleum power requirements, visit www.catoilandgas.cat.com.
Documents & Brochures
Standard Equipment
Air Inlet System
- Twin side-mounted turbochargers, ATAAC
Control System
- Automatic altitude compensation; power compensation for fuel temperature; electronic diagnostics and fault logging; engine monitoring and protection system (speeds, temperature, pressure); J1939 Broadcast (diagnostic, engine status and control); ADEM A4 electronic control
Cooling System
- Thermostats and housing; jacket water pump, geardriven, centrifugal, RH
Exhaust System
- Exhaust dry manifold, 127 mm (5 in) slip fit connection, diesel oxidation catalyst
Fuel System
- Mechanical Electronic Unit Injection (MEUI) system; primary, secondary, and tertiary fuel filter; electronic fuel priming pump-integrated with primary fuel filter base; fuel transfer pump
Lube System
- Crankcase fumes filtration system, RH mounted; oil cooler — RH; oil filler — RH; oil level gauge — RH; shallow rear sump oil pan — 250-hour
Additional information
| مواصفات المحرك - الحد الأقصى للتقدير | 839.0 bkW ( 1125.0 BHP ) |
|---|---|
| مواصفات المحرك - الانبعاثات | المعايير الخاصة للطرق الوعرة من المستوى 4 النهائي |
| مواصفات المحرك - الإزاحة | 32.1 l ( 1958.0 بوصة³ ) |
| مواصفات المحرك - أدنى تقدير | 839.0 bkW ( 1125.0 BHP ) |
| مواصفات المحرك - التجويف | 145.0 مم ( 5.7 بوصة ) |
| مواصفات المحرك - الشوط | 162.0 مم ( 6.4 بوصة ) |
| مواصفات المحرك - السرعة المقدرة | 1800.0 دورة في الدقيقة ( 1800.0 دورة في الدقيقة ) |
| مواصفات المحرك - السحب | يعمل بشاحن توربيني-مبرد لاحقًا |
| مواصفات المحرك - المنظم والحماية | ADEM A4 |
| مواصفات المحرك - وزن المحرك، الصافي الجاف | 2770.0 كجم ( 6107.0 رطل ) |
| مواصفات المحرك - الفاصل الزمني لتغيير الزيت | 250 |
| مواصفات المحرك - الدوران من طرف الحدافة | عكس عقارب الساعة |
| مواصفات المحرك - الحدافة ومبيت الحدافة | معيار SAE رقم 0 |
| مواصفات المحرك - أسنان الحدافة | 136 |
| سعة السوائل - الحد الأدنى لنظام التبريد (المحرك فقط) | 60.0 l ( 15.9 جالون (أمريكي) ) |
| Dimensions - الطول | 2159.0 مم ( 85.0 بوصة ) |
| Dimensions - العرض | 1253.0 مم ( 49.0 بوصة ) |
| الأبعاد - الارتفاع | 1594.0 مم ( 63.0 بوصة ) |
| Offering Type |
