C7.1

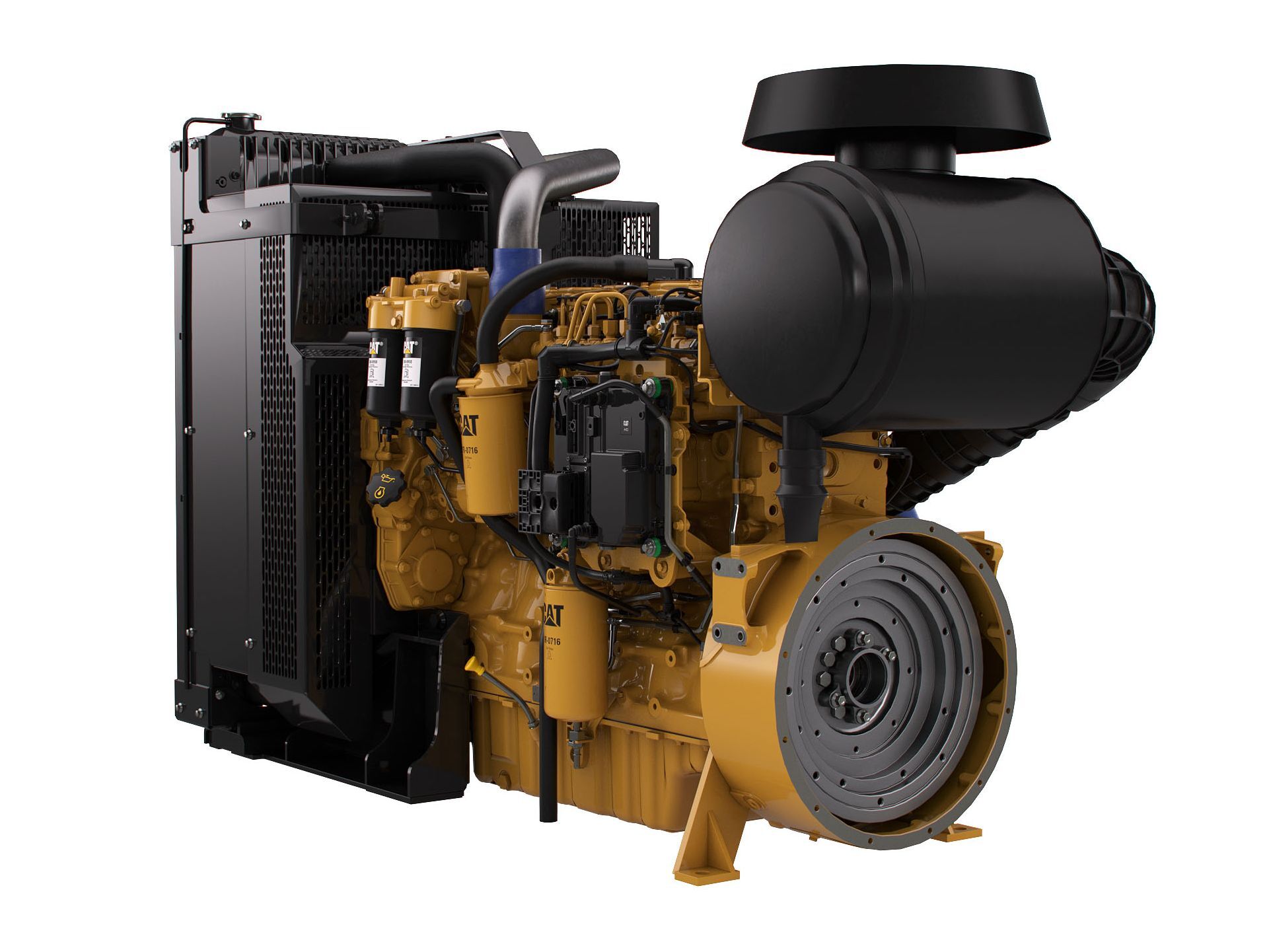

Cat® C7.1 Industrial Power Unit
The C7.1 Industrial Power Unit is a complete power package containing a radiator, flywheel, alternator and alternator wiring, completely pre-assembled for fast, straightforward installation in a number of OEM, customer and packager applications. These fuel efficient units are ready-made for irrigation, industrial, mining and other pump applications.
Reliable, Quiet and Durable Power
World-class manufacturing capability and processes coupled with proven core engine designs assure reliability, quiet operation, and many hours of productive life.
Fuel Efficiency
Fuel consumption optimized to match operating cycles of a wide range of equipment and applications while maintaining low operating costs.
Broad Application Range
Industry leading range of factory configurable ratings and options for agricultural, material handling, construction, mining, aircraft ground support, and other industrial applications.
Package Size
Exceptional power density enables standardization across numerous applications. Multiple installation options minimize total package size. Ideal for equipment with narrow engine compartments.
World-class Product Support Offered Through Global Cat Dealer Network
- Scheduled maintenance, including SOS℠ sample
- Customer Support Agreements (CSA)
- Caterpillar Extended Service Coverage (ESC)
- Superior dealer service network
- Extended dealer service network through the Cat Industrial Service Distributor (ISD) program
Virtual Tours
Documents & Brochures
Standard Equipment
Air Inlet
- Standard air cleaners
Control System
- Full electronic control system, all connectors and wiring looms waterproof and designed to withstand harsh off-highway environments
- Flexible and configurable software features and well-supported SAE J1939 CAN bus enables highly integrated machines
Cooling System
- Top tank temperature 108° C (226° F) as standard to minimize cooling pack size
- 50:50 water glycol mix
- Cooling system designed for operation in 48 C (118 F) ambient.
Flywheels and Flywheel Housing
- Wide choice of drivetrain interfaces, including SAE No. 1, SAE No. 2, and SAE No. 3 configurations
Fuel System
- Electronic high pressure common rail
- ACERT Technology
- Innovative filter design to ensure maximum protection of the engine
Lube System
- Wide choice of sumps for different applications
Power Take Off
- SAE A or SAE B flanges on left-hand side. Right-hand side twin PTO also available. Engine power can also be taken from the front of the engine on some applications.
General
- Paint: Caterpillar yellow
Additional information
| تقدير القدرة - القدرة القصوى | 205 كيلووات ( 275 حصان ) |
|---|---|
| تقدير القدرة - أقصى عزم دوران | 1050 Nm @ 1400 rpm ( 774 رطل-قدم عند 1400 دورة/دقيقة ) |
| تقدير القدرة - السرعة المقدرة | 116-205 كيلووات للفرامل/156-275 hp للفرامل عند 2200 دورة في الدقيقة، 129 كيلووات للفرامل/173 hp للفرامل عند 2500 دورة في الدقيقة |
| تقدير القدرة - القدرة الدنيا | 116 كيلووات ( 156 حصان ) |
| معايير الانبعاثات - الانبعاثات | المعايير الصينية لمحركات البيئات الوعرة من المرحلة III، والمعايير البرازيلية MAR-1، ومعايير الأمم المتحدة ECE R96 من المرحلة IIIA |
| عام - تكوين المحرك | ديزل بدورة من 4 أشواط، ذو 6 أسطوانات في خط مستقيم |
| عام - التجويف | 105 مم ( 4.1 بوصة ) |
| عام - الشوط | 135 مم ( 5.3 بوصة ) |
| عام - الإزاحة | 7.01 l ( 427.7 بوصة³ ) |
| عام - نسبة الانضغاط | 16.8:1 |
| عام - السحب | مزوَّد بشاحن توربيني ومبرد لاحق (TA) |
| عام - الدوران من طرف الحدافة | عكس اتجاه حركة عقارب الساعة |
| عام - المعالجة اللاحقة | – |
| أبعاد وحدة القدرة - الطول | 1728 مم ( 68 بوصة ) |
| أبعاد وحدة القدرة - العرض | 788 مم ( 31 بوصة ) |
| أبعاد وحدة القدرة - الارتفاع | 1140 مم ( 44.8 بوصة ) |
| أبعاد وحدة القدرة - الوزن | 788 كجم ( 1737 رطل ) |
| Offering Type |
