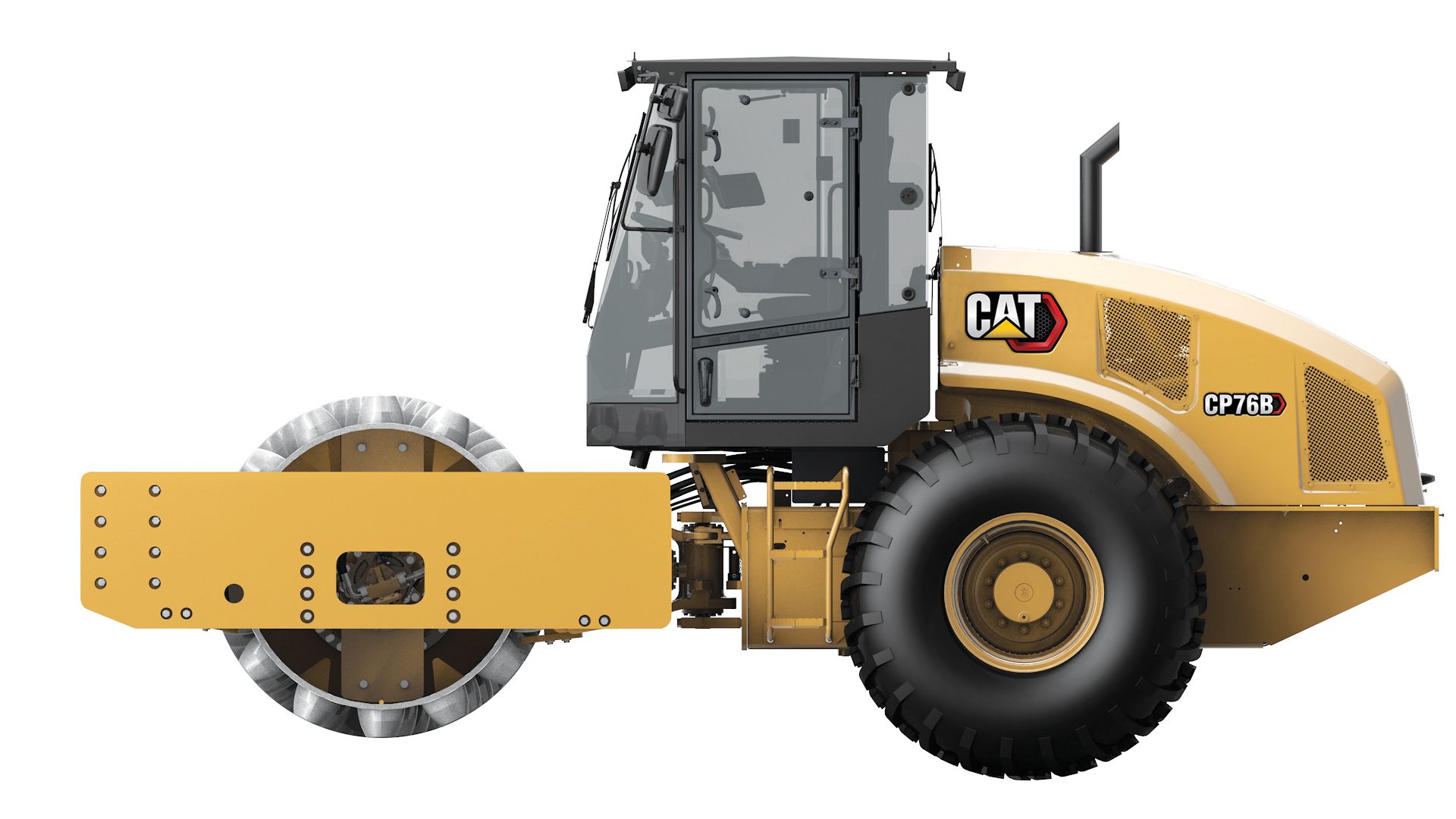

CP76B Vibratory Soil Compactor

The CP76B provides exceptional performance for granular soil compaction applications.

Additional information

Offering Type

Weights - Operating Weight - With Cab

17677 kg ( 38971 lb )

Weights - Weight - Drum with Cab

11924 kg ( 26288 lb )

Operating Specifications - Compaction Width

2134.0 mm ( 84.0 in )

Operating Specifications - Turning Radius - Inside Drum Edge

3.68 m ( 12.08 ft )

Operating Specifications - Travel Speed - Maximum

11.4 km/h ( 7.0 mile/h )

Operating Specifications - Ground Clearance

445.0 mm ( 17.5 in )

Engine - Gross Power

129.5 kW ( 173.7 HP )

Engine Model

Cat C6.6 with ACERT

Dimensions - Overall Length

6.05 m ( 19.83 ft )

Dimensions - Drum Diameter

1295.0 mm ( 51.0 in )

Dimensions - Overall Width

2.33 m ( 7.67 ft )

Dimensions - Height - With ROPS/FOPS or Cab

3.11 m ( 10.25 ft )

Dimensions - Drum Width

2134.0 mm ( 84.0 in )

Dimensions - Wheel Base

2.9 m ( 9.58 ft )

Dimensions - Drum Diameter - Over Pads

1549.0 mm ( 61.0 in )

Vibratory System - Centrifugal Force - Minimum

166.0 kN ( 37300.0 lb )

Vibratory System - Vibratory Frequency - Standard

28 Hz (1680 vpm)

Vibratory System - Centrifugal Force - Maximum

332.0 kN ( 74600.0 lb )

Vibratory System - Nominal Amplitude - High

2.1 mm ( 0.083 in )

Vibratory System - Nominal Amplitude - Low

0.98 mm ( 0.039 in )

Vibratory System - Variable Frequency Option Range

23.3 – 28 Hz (1400-1680 vpm)

Tires

23.1 x 26

Service Refill Capacities - Fuel Tank Capacity

332.0 l ( 88.0 gal (US) )

Weights - Weight at Drum with Open Platform

11694 kg ( 25781 lb )

Weights - Weight at Drum with Steel Sun Canopy

11734 kg ( 25869 lb )

Weights - Operating Weight - With Open Platform

17087 kg ( 37670 lb )

Weights - Operating Weight - With ROPS/FOPS Canopy

17357 kg ( 38266 lb )

Weights - Operating Weight - With Steel Sun Canopy

17182 kg ( 37879 lb )

Weights - Weight - Drum with ROPS/FOPS Canopy

11789 kg ( 26010 lb )
