DE715 GC

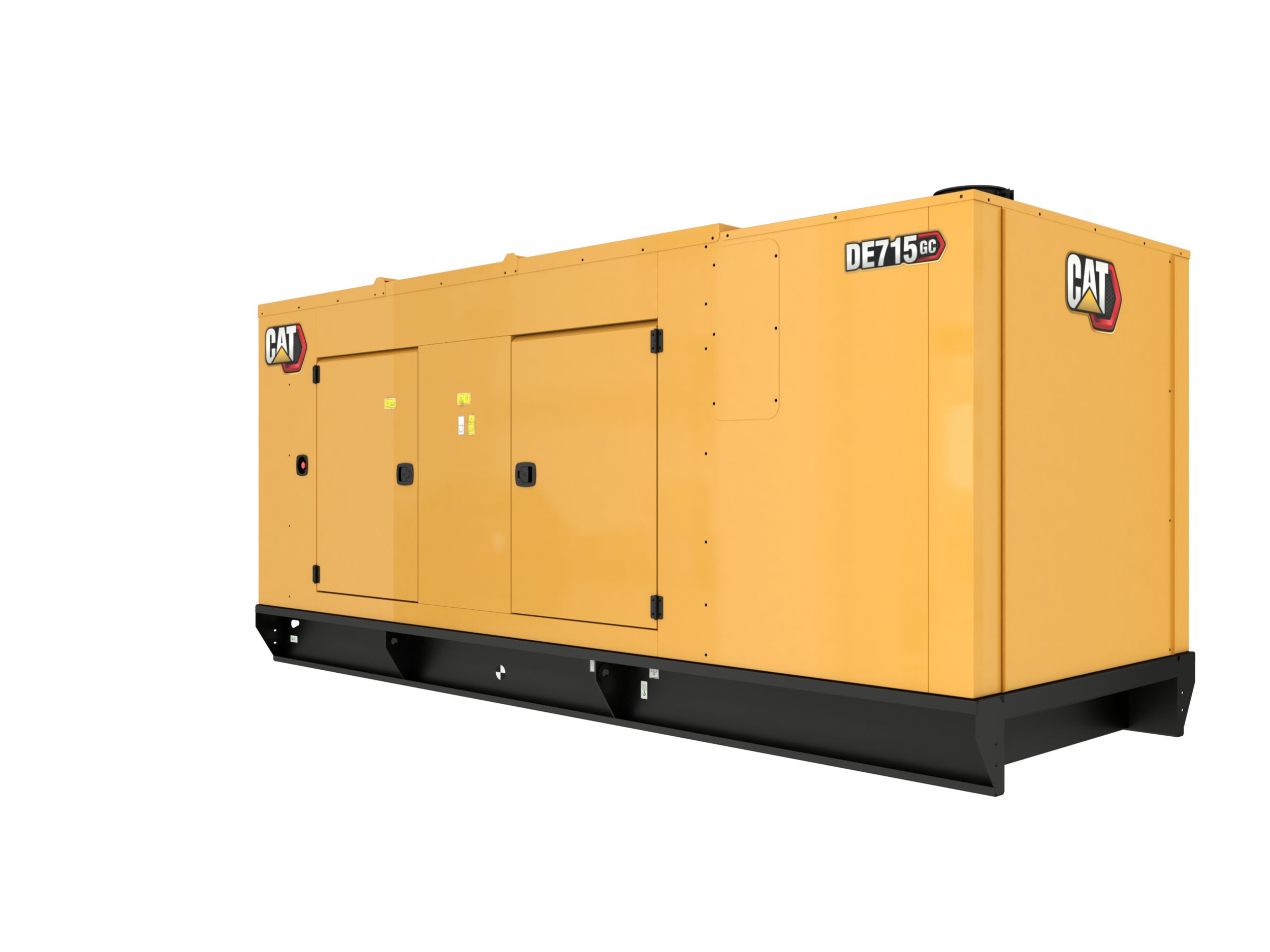

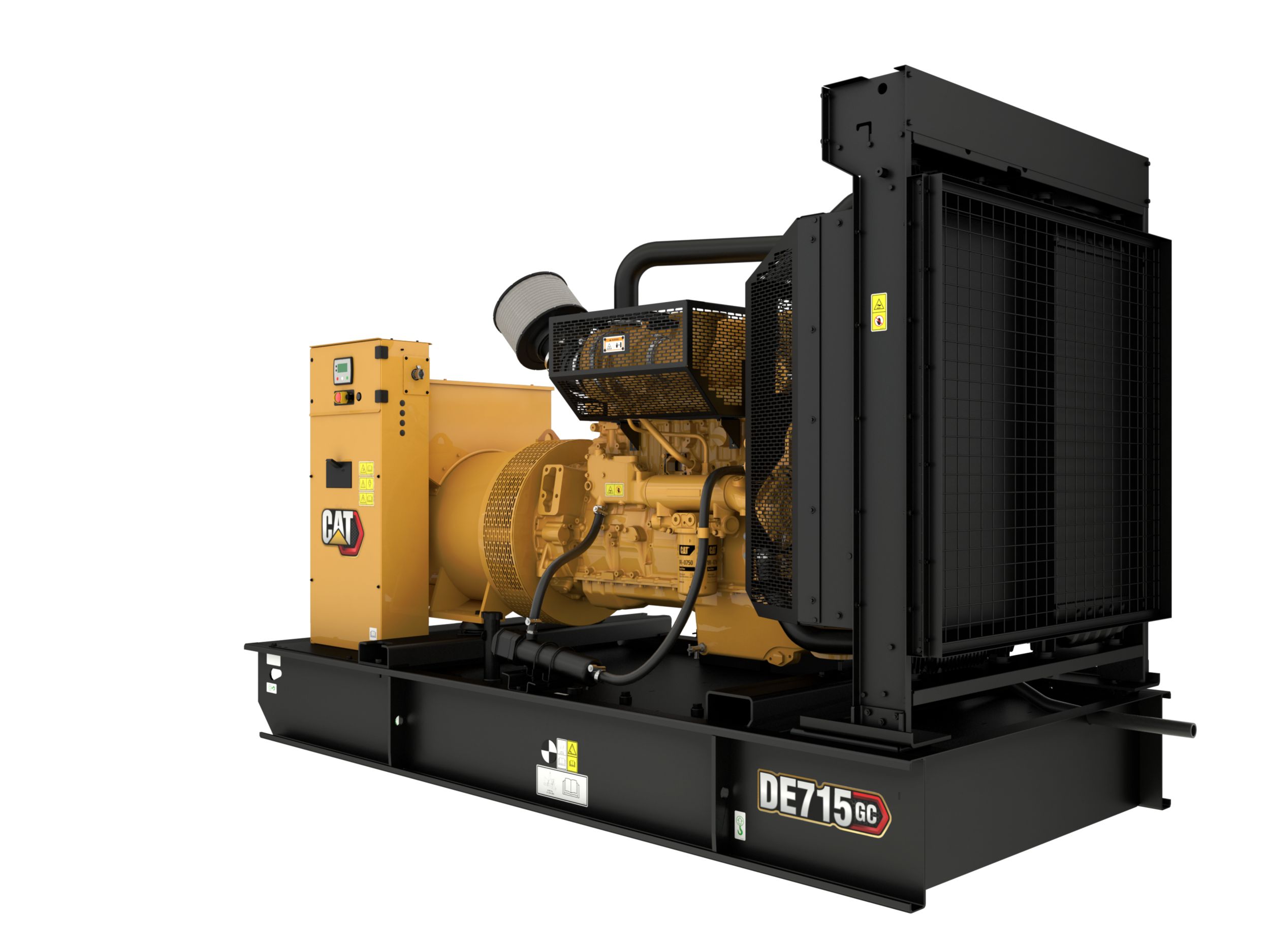

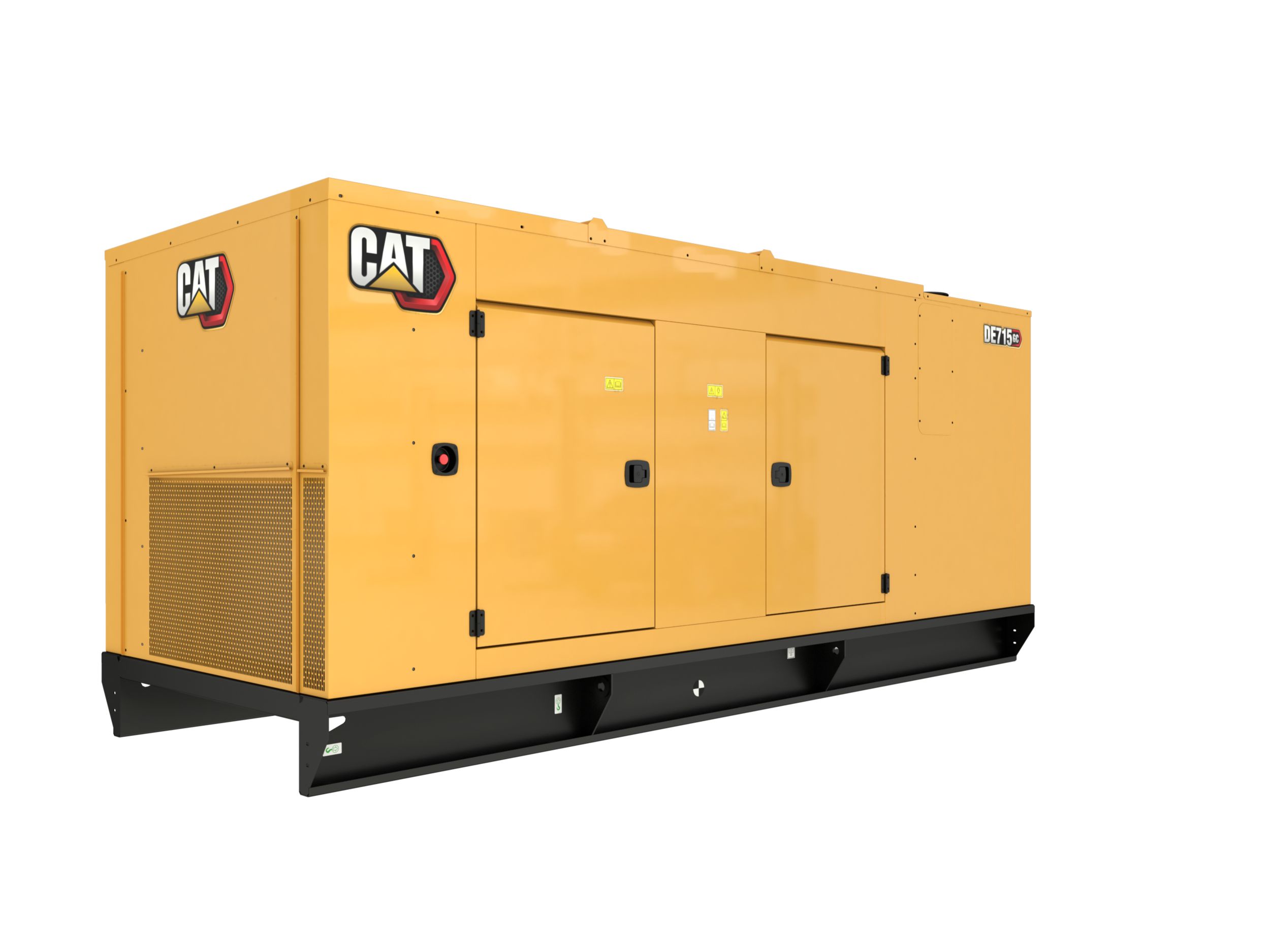

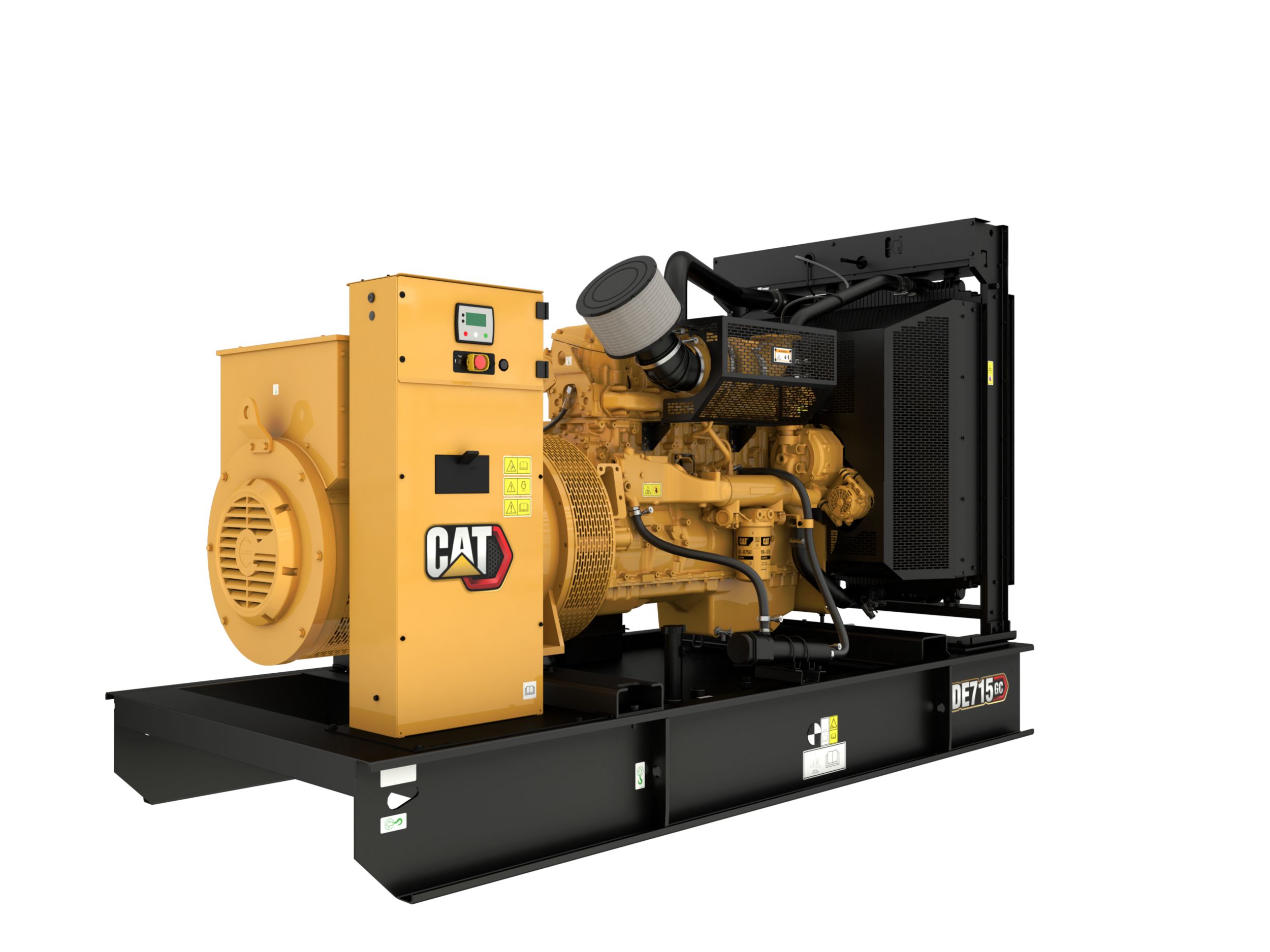

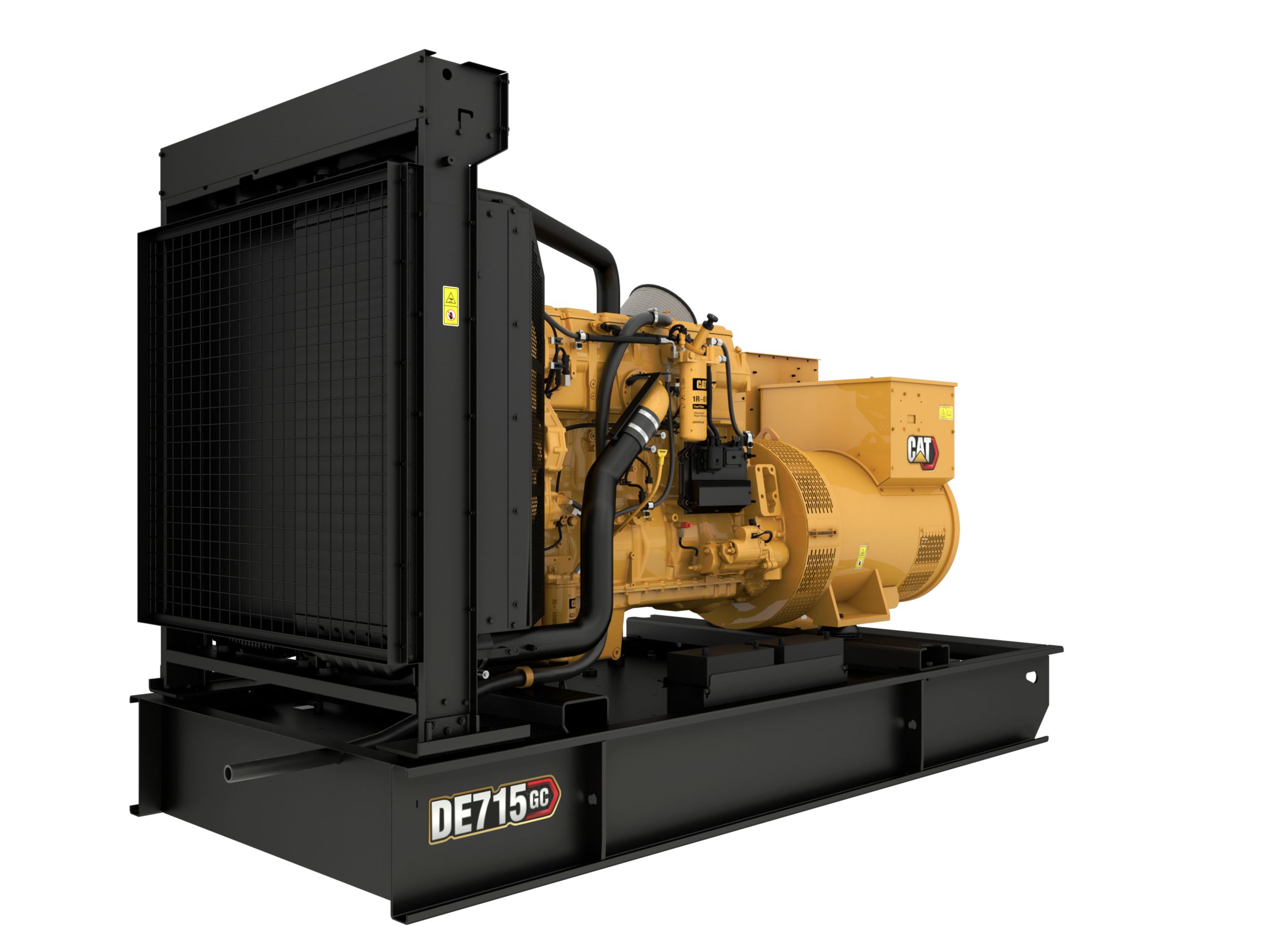

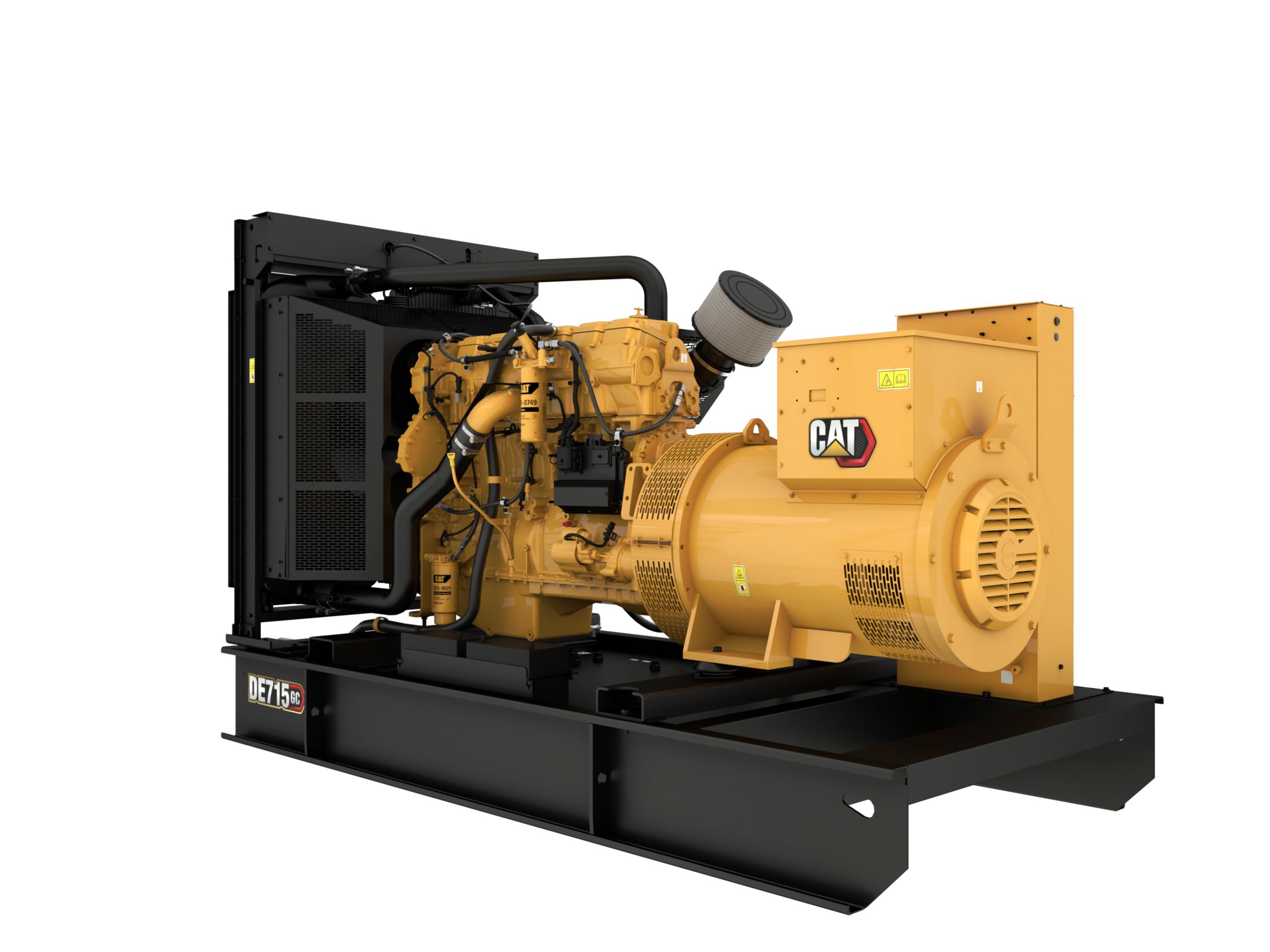

DE715 GC Generator Set
Producing reliable power 715 kVA at 50 Hz, our DE715 GC generator set powerd by C15 diesel engine designed to ISO 8528-5 transient response requirements.
Cat Generator Set Package
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
A-Frame Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
GCCP1.3 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
Cooling System
- Designed to operate in standard ambient temperatures up to 55°C (131°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
One Safe Source
- Components used in the generator set are selected based on seamless design integration to provide the optimum performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
Worldwide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Virtual Tours
Documents & Brochures
Standard Equipment
Engine
- Cat® C15 Inline 6 cylinder, 4 stroke diesel
Air Inlet
- Air cleaner
Control Panels
- GCCP 1.1
Governor
- Mechanical governor
Alternator
- A Frame standard alternator
Cooling
- Package mounted radiator
Fuel Storage
- Single wall 8 hour fuel tank
Cooling System
- Radiator and cooling fan with guards
- Fan drive, battery charging alternator drive
Fuel
- Secondary fuel filters
- Primary fuel filter with integral water separator
- Fuel priming pump
Electrical Options
- 3 Pole Circuit breaker
- Neutral earth link
- 24 Volt battery with rack and cables
Air inlet system
- Air cleaner; light duty with disposable element
Generator
- Matched to the performance and output characteristics of Cat engines
- Load adjustment module provides engine relief upon load impact and improves load acceptance and recovery time
- IP23 Protection
Lube system
- Lubricating oil
- Oil drain line with valve
Mounting system
- Captive linear vibration isolators
- Lifting provision and drag points
Power Termination
- Busbar
Generator and Attachments
- Power center, IP22
- Segregated low voltage (AC/DC) wiring panel
- Integrated voltage regulator (IVR)
- Optional LC Frame generator - IP23 Protection
- Mandatory option circuit breaker, IEC, 3 pole, mounted in power centre
Mounting
- Rubber vibration isolators
Governing System
- Cat electronic governor (ADEM A4).
Lube System
- Oil cooler
- Oil drain valves
Mounting System
- Captive linear vibration isolators between base and engine-generator includes lifting provisions and termination points for coolant and lube oil drain lines
Starting/Charging
- 24 Volt battery with rack and cables
General
- Engine and alternator pre paint, Caterpillar yellow
- Engine and alternator pre paint, Caterpillar yellow
Additional information
| Offering Type | |
|---|---|
| Generator Set Specifications - Maximum Rating | 715 kVA |
| Generator Set Specifications - Minimum Rating | 715 kVA |
| Generator Set Specifications - Emissions/Fuel Strategy | Non Regulated |
| Generator Set Specifications - Voltage | 380 to 415 Volts |
| Generator Set Specifications - Frequency | 50 Hz |
| Generator Set Specifications - Speed | 1500 rpm |
| Generator Set Specifications - Duty Cycle | Standby |
| Engine Specifications - Engine Model | C15 In-line 6, 4-cycle diesel |
| Engine Specifications - Bore | 137 mm ( 5.4 in ) |
| Engine Specifications - Stroke | 171 mm ( 6.8 in ) |
| Engine Specifications - Displacement | 15.2 l ( 928 in³ ) |
| Engine Specifications - Compression Ratio | 16.1:1 |
| Engine Specifications - Aspiration | Turbocharged Air-to-Air Aftercooled |
| Engine Specifications - Fuel System | EUI |
| Engine Specifications - Governor Type | Adem™A4 |
| Generator Set Dimensions - Length - Maximum | 3328 mm ( 131 in ) |
| Generator Set Dimensions - Width - Maximum | 1540 mm ( 60.6 in ) |
| Generator Set Dimensions - Height - Maximum | 2187 mm ( 86.1 in ) |
| Generator Set Dimensions - Dry Weight - Genset (maximum) | 3907 kg ( 8613 lb ) |
