M320 Wheeled Excavator

A quiet cab and efficient power systems mean happier operators and more profit from every task you throw at the Cat® M320 Wheeled Excavator. Built to take on the toughest conditions, the M320 offers optional configurations and attachments to handle most any job site need.

Category:
Add to Quote

PERFORMANCE AND PRODUCTIVITY



  • Cat® C7.1 engine meets EU Stage IIIA equivalent emission standards.

    •

  • Engine fuel system designed to manage world-wide fuel quality and provide outstanding low fuel consumption during both working and traveling applications.

    •

  • One-Touch Low Idle Control and Automatic Engine Speed Control reduce engine speed if no operation is performed, reducing fuel consumption and sound levels.

    •

  • Three working modes: Power mode, Eco mode and Travel mode.

    •

  • Constant Power Strategy, providing a quick response to changing loads, while delivering the same amount of power.

    •

  • Choice of various booms and sticks provides the right balance of reach and digging forces for all applications.

    •

  • Dedicated Swing Pump allows faster and smoother combined movements when using the implements while swinging.

EXPAND YOUR CAPABILITIES



  • Multiple configurations meet all your applications needs, with a choice of booms, sticks, blade and/or stabilizer undercarriages.

    •

  • Highly mobile, the M320 can travel up to 37 km/h.

    •

  • Standard one-way high pressure hydraulics allow customers to install attachments like hammers without adding other lines.

    •

  • Ten hydraulic pump flow and pressure settings can be preset within the monitor allowing quicker and easier attachment (optional).

    •

  • A lifting eye into the bucket linkage, the heavy lift mode and the overload warning signal allow operators to safely lift heavy loads.

    •

  • Wide range of Cat attachments to handle any job at hand.

OPERATOR COMFORT AND SAFETY



  • ROPS cab structure and Operator Protective Guards (top and front guards) are available.

    •

  • Ergonomically designed cab with controls kept to a minimum, conveniently located and easy to operate.

    •

  • The optional air-suspension seat, with automatic weight adjustment and heated cushions enhance comfort and productivity.

    •

  • Safety is enhanced by the all-round visibility provided by large glass areas and skylight and the standard rear-mounted camera image displayed on the full color monitor.

    •

  • Low sound levels, as a result of the variable fan speed and remote cooling system enabling.

LOWER MAINTENANCE COSTS



  • 500 hours fuel filter replacement (reduced to 250 hours if fuel quality is sub-standard) allows reduced maintenance cost.

    •

  • All daily maintenance points are accessible from ground level.

    •

  • Clean design, with colored and numbered electrical wires, protected by thick braiding for ease of service.

    •

  • Greasing points are centralized and kept to a minimum.

    •

  • Cat XT™-6 ES hoses are resistant and durable, which reduces the risk of leaks that can decrease the performance of the machine.

    •

  • Rigidity and long life with effective transmission protection and heavy duty axle.

    •

  • Standard heavy duty batteries for improved cold start capability.

INTEGRATED CAT TECHNOLOGIES



  • Cat technology solutions increase production and minimize operating costs. Link technologies wirelessly connect you to your job site, providing machine location, hours, fuel usage, idle time
    and event codes.

Videos

Virtual Tours

Documents & Brochures

Standard Equipment

NOTE
  • Standard and optional equipment may vary. Consult your Cat dealer for details.
ELECTRICAL SYSTEM
  • Alternator, 75 A
  • Boom working light
  • Cab mounted working lights, front and rear
  • Roading and indicator lights, front and rear
  • Main shut-off switch
  • Maintenance free batteries
ENGINE
  • Cat® C7.1 Single Turbo diesel engine - meets U.S. EPA Tier 4 Final and EU Stage emission standards.
  • Power mode selector
  • Air filter/fuel filter
  • Automatic engine speed control
  • Automatic starting aid
  • Work up to 3000 m (9,842 ft) above sea level without engine power de-rating
  • Fuel/water separator with level indicator
  • Muffler
HYDRAULIC SYSTEM
  • Heavy lift mode
  • Separate dedicated swing pump
  • Stick regeneration circuit
  • Variable displacement, load sensing hydraulic system
  • Automatic swing brake
  • Capability to add auxiliary hydraulic circuits
  • Cat XT-6 ES hoses
  • Adjustable hydraulic sensitivity
  • Oil cooler
  • Anti-drift valve for bucket cylinder
  • Hydraulic mineral oil, Cat HYDO™ advanced 10 oil
  • Load sensing hydraulic system
SAFETY AND SECURITY
  • Camera mounted on counterweight
  • Mirrors, frame and cab
  • Travel alarm
  • Signal/warning horn
SERVICE AND MAINTENANCE
  • Sampling ports for Scheduled Oil Sampling (SOS)
  • Caterpillar Datalink and Electronic Technician capability
  • Door locks and cab locks with Caterpillar one-key security system
CAT TECHNOLOGIES
  • Cat Product Link™
UNDERCARRIAGE AND STRUCTURES
  • Creeper speed/ four wheel drive
  • Heavy-duty axles, advanced disc brake system and travel motor, adjustable braking force
  • Parking brake
  • Oscillating front axle, lockable, with remote greasing point
  • Full hydraulic steering with emergency capability
  • Steps with tool box in undercarriage (left and right)
  • Two-piece drive shaft
  • Two speed hydrostatic transmission
  • Counterweight (4000 KG-8818 lb)

Additional information

Offering Type

pa_sp1457123901
Engine - Note (2)

No engine power derating required below 3,000 m (9,843 ft) altitude.
Engine - Note (3)

Recommended for use up to 3000 m (9,843 ft) altitude with engine power derate above 3000 m (9,840 ft).
Engine - Note (4)

Rated speed at 2,000 rpm.
Working Ranges and Forces - Note (1)

Range values are calculated with a bucket (1200GD-CW30) (0.91 m3) with TIP GP-GEN DUTY (K80) and CW-30 quick coupler with a tip radius of 1535 mm (5'5").
Machine Weight - Note (1)

Operating weight includes medium stick, 4000 kg counterweight, full fuel tank, operator, 245 kg quick coupler, 695 kg bucket and dual pneumatic tires. Weight varies depending on configuration.
Engine Power - ISO 14396

128.8 kW ( 173 HP )
Engine Model

Cat® C4.4
Engine - Bore

105 mm ( 4.1 in )
Engine - Displacement

7 l ( 427.8 in³ )
Engine - Stroke

135 mm ( 5.3 in )
Engine Emissions

Meets U.S. EPA Tier 3 and EU Stage IIIA emission standards.
Engine - Note (1)

The M320 meets Tier 3 and Stage IIIA emission standards. Net power is tested per ISO 9249:2007. Standards in effect at the time of manufacture. Net power available at flywheel when the engine is equipped with fan, air cleaner, muffler, and alternator with engine speed at 2,000 rpm.
Hydraulic System - Main System - Maximum Flow - Implement

280 kPa ( 74 gal/min )
Hydraulic System - Maximum Pressure - Equipment

35000 kPa ( 5076 psi )
Hydraulic System - Maximum Pressure - Swing

31000 kPa ( 4496 psi )
Hydraulic System - Maximum Pressure - Travel

35000 kPa ( 5076 psi )
Swing Mechanism - Maximum Swing Torque

43.4 kN·m ( 32116 ft·lbf )
Swing Mechanism - Maximum Swing Speed

9.2 r/min ( 9.2 r/min )
Machine Weight - Operating Weight Maximum

19500 kg ( 42990 lb )
Machine Weight - Operating Weight Minimum

19000 kg ( 41890 lb )
Service Refill Capacities - Cooling System

37 l ( 9.6 gal (US) )
Service Refill Capacities - Final Drive

2.5 l ( 0.7 gal (US) )
Service Refill Capacities - Fuel Tank

385 l ( 101.7 gal (US) )
Service Refill Capacities - Hydraulic System - Including Tank

270 l ( 71 gal (US) )
Service Refill Capacities - Hydraulic Tank

170 l ( 44.9 gal (US) )
Dimensions - Boom

5350 mm (17'7")
Dimensions - Bucket

GD 0.91 m³ (1.19 yd³)
Dimensions - Stick

2.5 m (8'2")
Dimensions - Counterweight Clearance

1280 mm ( 4.2 ft )
Dimensions - Shipping Height - Top of Cab

3300 mm ( 10.8 ft )
Dimensions - Shipping Length

8960 mm ( 29.4 ft )
Dimensions - Tail Swing Radius

2565 mm ( 8.4 ft )
Working Ranges and Forces - Boom Type

One-Piece Boom
Working Ranges and Forces - Bucket

GD 0.91 m³ (1.19 yd³)
Working Ranges and Forces - Stick

2.5 m (8'2")
Working Ranges and Forces - Digging Height

8940 mm ( 29.3 ft )
Working Ranges and Forces - Dump Height

6140 mm ( 20.2 ft )
Working Ranges and Forces - Reach at Ground Level

9295 mm ( 30.5 ft )
Working Ranges and Forces - Vertical Wall Digging Depth

3935 mm ( 12.9 ft )
Air Conditioning System - Note

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.85 kg of refrigerant which has a CO2 equivalent of 1.216 metric tonnes.
Drive - Maximum Travel Speed

37 km/h ( 23 mile/h )

  • Technology Kits

    Cat® Detect with Smart Camera

    View Details

  • Technology Kits

    Cat® Detect with Surround Cameras

    View Details

  • Clamshell Grapples

    CTV15-1000 Clamshell Grapple

    View Details

  • Clamshell Grapples

    CTV15-1200 Clamshell Grapple

    View Details

  • Vibratory Plate Compactors

    CVP75

    View Details

  • CW Series Couplers

    CW-30

    View Details

  • CW Series Couplers

    CW-30

    View Details

  • CW Series Couplers

    CW-30S

    View Details

  • CW Series Couplers

    CW-30S

    View Details

  • Ditch Cleaning

    Ditch Cleaning Bucket 1800 mm (72 in): 439-7332

    View Details

  • Ditch Cleaning

    Ditch Cleaning Bucket 1800 mm (72 in): 439-7341

    View Details

  • Ditch Cleaning

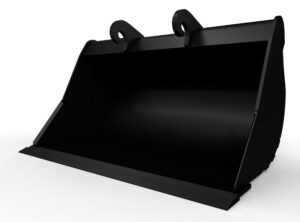

    Ditch Cleaning Bucket 1800 mm (72 in): 442-1786

    View Details

  • Ditch Cleaning

    Ditch Cleaning Bucket 2000 mm (78 in): 439-7311

    View Details

  • Ditch Cleaning Tilt

    Ditch Cleaning Tilt Bucket 1800 mm (72 in): 509-9135

    View Details

  • Demolition and Sorting Grapples

    G317 GC Demolition & Sorting Grapple: 587-8720

    PlaceholderView Details

  • Demolition and Sorting Grapples

    G317 GC Demolition & Sorting Grapple: 587-8721

    PlaceholderView Details

  • Demolition and Sorting Grapples

    G318 Demolition & Sorting Grapple: 587-8965

    View Details

  • Demolition and Sorting Grapples

    G318 Demolition & Sorting Grapple: 587-8966

    View Details

  • Demolition and Sorting Grapples

    G318 Demolition & Sorting Grapple: 595-1393

    View Details

  • Demolition and Sorting Grapples

    G318 WH Demolition & Sorting Grapple: 587-8970

    View Details

  • Demolition and Sorting Grapples

    G318 WH Demolition & Sorting Grapple: 587-8975

    View Details

  • Demolition and Sorting Grapples

    G318 WH Demolition & Sorting Grapple: 587-8976

    View Details

  • General Duty

    General Duty – Leveling Edge Bucket 1000 mm (39 in): 477-3378

    View Details

  • General Duty

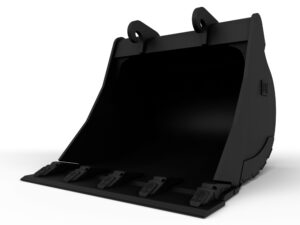

    General Duty – Leveling Edge Bucket 1184 mm (47 in): 490-0055

    View Details

  • General Duty

    General Duty – Leveling Edge Bucket 1200 mm (47 in): 477-3379

    View Details

  • General Duty

    General Duty – Leveling Edge Bucket 1300 mm (51 in): 477-3380

    View Details

  • General Duty

    General Duty – Leveling Edge Bucket 1400 mm (55 in): 477-3381

    View Details

  • General Duty

    General Duty – Leveling Edge Bucket 1500 mm (59 in): 477-3382

    View Details

  • General Duty

    General Duty – Leveling Edge Bucket 650 mm (25 in): 485-7621

    View Details

  • General Duty

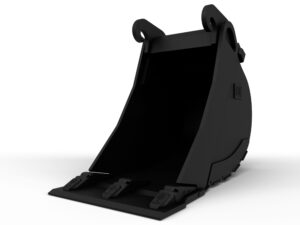

    General Duty – Leveling Edge Bucket 690 mm (27 in): 491-0536

    View Details

  • General Duty

    General Duty – Leveling Edge Bucket 790 mm (31 in): 455-0746

    View Details

  • General Duty

    General Duty – Leveling Edge Bucket 800 mm (31 in): 485-7622

    View Details

  • General Duty

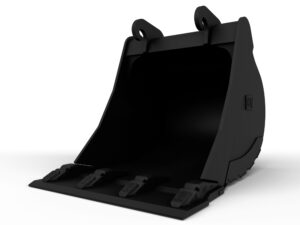

    General Duty – Leveling Edge Bucket 996 mm (39 in): 455-0747

    View Details

  • General Duty

    General Duty Bucket 1000 mm (40 in): 571-2892

    View Details

  • General Duty

    General Duty Bucket 1100 mm (43 in): 550-9347

    View Details

  • General Duty

    General Duty Bucket 1100 mm (43 in): 550-9379

    View Details

  • General Duty

    General Duty Bucket 1100 mm (43 in): 571-2869

    View Details

  • General Duty

    General Duty Bucket 1100 mm (43 in): 571-2893

    View Details

  • General Duty

    General Duty Bucket 1200 mm (48 in): 550-9348

    View Details

  • General Duty

    General Duty Bucket 1200 mm (48 in): 550-9380

    View Details

  • General Duty

    General Duty Bucket 1200 mm (48 in): 571-2870

    View Details

  • General Duty

    General Duty Bucket 1200 mm (48 in): 571-2894

    View Details

  • General Duty

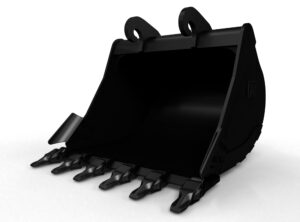

    General Duty Bucket 1200 mm (48 in): 571-2942

    View Details

  • General Duty

    General Duty Bucket 1300 mm (51 in): 550-9349

    View Details

  • General Duty

    General Duty Bucket 1400 mm (55 in): 550-9382

    View Details

  • General Duty

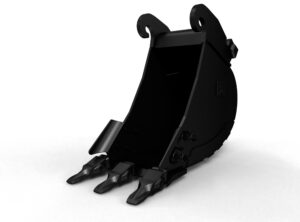

    General Duty Bucket 450 mm (18 in): 571-2877

    View Details

  • General Duty

    General Duty Bucket 500 mm (20 in): 571-2890

    View Details

  • General Duty

    General Duty Bucket 600 mm (24 in): 462-8166

    View Details

  • General Duty

    General Duty Bucket 600 mm (24 in): 550-9376

    View Details

  • General Duty

    General Duty Bucket 600 mm (24 in): 571-2867

    View Details

  • General Duty

    General Duty Bucket 600 mm (24 in): 571-2886

    View Details

  • General Duty

    General Duty Bucket 600 mm (24 in): 571-2891

    View Details

  • General Duty

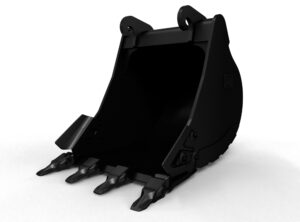

    General Duty Bucket 750 mm (30 in): 571-2880

    View Details

  • General Duty

    General Duty Bucket 900 mm (36 in): 550-9378

    View Details

  • General Duty

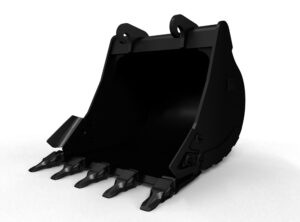

    General Duty Bucket 900 mm (36 in): 571-2868

    View Details

  • General Duty

    General Duty Bucket 900 mm (36 in): 571-2881

    View Details

  • Grading

    Grading Bucket 1500 mm (59 in): 512-8396

    View Details

  • Grading

    Grading Bucket 1600 mm (63 in): 512-8410

    View Details

  • Orange Peel Grapples

    GSH420 4-Tine, 500-Liter Orange Peel Grapple

    View Details

  • Orange Peel Grapples

    GSH420 4-Tine, 600-Liter Orange Peel Grapple

    View Details

  • Orange Peel Grapples

    GSH420 4-Tine, 750-Liter Orange Peel Grapple

    View Details

  • Orange Peel Grapples

    GSH425 4-Tine, 1150-Liter Orange Peel Grapple

    View Details

  • Orange Peel Grapples

    GSH425 4-Tine, 750-Liter Orange Peel Grapple

    View Details

  • Orange Peel Grapples

    GSH425 4-Tine, 950-Liter Orange Peel Grapple

    View Details

  • Orange Peel Grapples

    GSH520 5-Tine, 500-Liter Orange Peel Grapple

    View Details

  • Orange Peel Grapples

    GSH520 5-Tine, 600-Liter Orange Peel Grapple

    View Details

  • Orange Peel Grapples

    GSH520 5-Tine, 750-Liter Orange Peel Grapple

    View Details

  • Orange Peel Grapples

    GSH525 5-Tine, 750-Liter Orange Peel Grapple

    View Details

  • Orange Peel Grapples

    GSH525 5-Tine, 950-Liter Orange Peel Grapple

    View Details

  • Orange Peel Grapples

    GSV520 5-Tine, 400-Liter Orange Peel Grapple

    View Details

  • Orange Peel Grapples

    GSV520 5-Tine, 500-Liter Orange Peel Grapple

    View Details

  • Orange Peel Grapples

    GSV520 5-Tine, 600-Liter Orange Peel Grapple

    View Details

  • Orange Peel Grapples

    GSV520 5-Tine, 750-Liter Orange Peel Grapple

    View Details

  • Orange Peel Grapples

    GSV520 GC 5-Tine, 400-Liter Orange Peel Grapple

    View Details

  • Orange Peel Grapples

    GSV520 GC 5-Tine, 500-Liter Orange Peel Grapple

    View Details

  • Orange Peel Grapples

    GSV520 GC 5-Tine, 600-Liter Orange Peel Grapple

    View Details

  • Orange Peel Grapples

    GSV520 GC 5-Tine, 750-Liter Orange Peel Grapple

    View Details

  • Orange Peel Grapples

    GSV525 5-Tine, 600-Liter Orange Peel Grapple

    PlaceholderView Details

  • Orange Peel Grapples

    GSV525 5-Tine, 750-Liter Orange Peel Grapple

    PlaceholderView Details

  • Orange Peel Grapples

    GSV525 5-Tine, 950-Liter Orange Peel Grapple

    PlaceholderView Details

  • Performance Hammers

    H115 S

    View Details

  • GC Hammers

    H120 GC S

    PlaceholderView Details

  • Performance Hammers

    H120 S

    View Details

  • Performance Hammers

    H130 S

    View Details

  • Heavy Duty

    Heavy Duty Bucket 1050 mm (42 in): 573-5003

    View Details

  • Heavy Duty

    Heavy Duty Bucket 1200 mm (48 in): 550-9417

    View Details

  • Heavy Duty

    Heavy Duty Bucket 1200 mm (48 in): 571-2926

    View Details

  • Heavy Duty

    Heavy Duty Bucket 1200 mm (48 in): 571-2927

    View Details

  • Heavy Duty

    Heavy Duty Bucket 1200 mm (48 in): 571-2928

    View Details

  • Heavy Duty

    Heavy Duty Bucket 1200 mm (48 in): 573-5009

    View Details

  • Heavy Duty

    Heavy Duty Bucket 1200 mm (48 in): 573-5012

    View Details

  • Heavy Duty

    Heavy Duty Bucket 1300 mm (51 in): 550-9418

    View Details

  • Heavy Duty

    Heavy Duty Bucket 500 mm (20 in): 571-2929

    View Details

  • Heavy Duty

    Heavy Duty Bucket 900 mm (36 in): 573-5002

    View Details

  • Multi-Processor with Concrete Cutter Jaws

    MP318 Concrete Cutter Jaw

    View Details

  • Multi-Processor with Demolition Jaws

    MP318 Demolition Jaw

    View Details

  • Multi-Processor with Shear Jaws

    MP318 Shear Jaw

    View Details

  • Multi-Processor with Universal Jaws

    MP318 Universal Jaw

    View Details

  • Primary Pulverizers

    P318 Primary Pulverizer

    PlaceholderView Details

  • Rotary Cutters

    RC15

    View Details

  • Mobile Scrap & Demolition Shears

    S3025 Rotating Scrap & Demolition Shear

    PlaceholderView Details

  • Skeleton Buckets

    Skeleton – General Duty Bucket 1250 mm (49 in): 445-0954

    View Details

  • Skeleton Buckets

    Skeleton – Light Duty Bucket 1200 mm (48 in): 369-7337

    View Details

  • Trenching Buckets

    Trenching Bucket 540 mm (21 in): 512-8411

    View Details

  • Trenching Buckets

    Trenching Bucket 660 mm (26 in): 512-8399

    View Details

  • Utility Duty

    Utility Duty Bucket 1000 mm (39 in): 220-1045

    View Details

  • Utility Duty

    Utility Duty Bucket 1000 mm (39 in): 220-1045

    PlaceholderView Details

  • Utility Duty

    Utility Duty Bucket 1000 mm (39 in): 226-2139

    View Details

  • Utility Duty

    Utility Duty Bucket 1000 mm (39 in): 226-2139

    PlaceholderView Details

  • Utility Duty

    Utility Duty Bucket 1100 mm (43 in): 226-2140

    View Details

  • Utility Duty

    Utility Duty Bucket 1100 mm (43 in): 226-2140

    PlaceholderView Details

  • Utility Duty

    Utility Duty Bucket 1100 mm (43 in): 226-2143

    View Details

  • Utility Duty

    Utility Duty Bucket 1100 mm (43 in): 226-2143

    PlaceholderView Details

  • Utility Duty

    Utility Duty Bucket 1110 mm (44 in): 376-0340

    View Details

  • Utility Duty

    Utility Duty Bucket 1110 mm (44 in): 376-0340

    PlaceholderView Details

  • Utility Duty

    Utility Duty Bucket 500 mm (20 in): 351-3349

    View Details

  • Utility Duty

    Utility Duty Bucket 650 mm (26 in): 187-7672

    View Details

  • Utility Duty

    Utility Duty Bucket 650 mm (26 in): 187-7673

    View Details

  • Utility Duty

    Utility Duty Bucket 650 mm (26 in): 326-1031

    View Details

Related products

  • Equipment
  • Power Systems
  • Attachments
  • Material Handling
Select Up To 3 Models To Compare
Compare
