M322D2

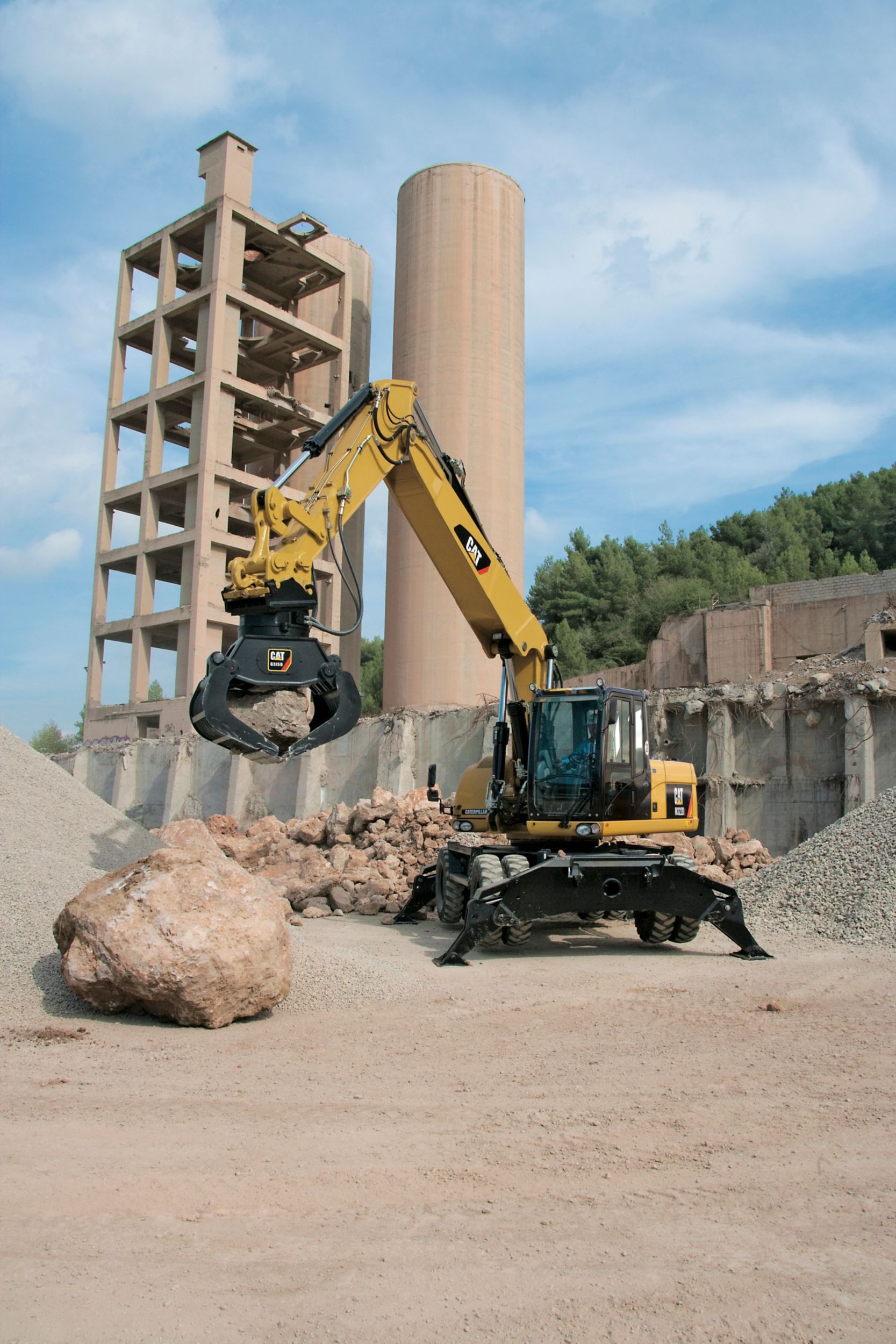

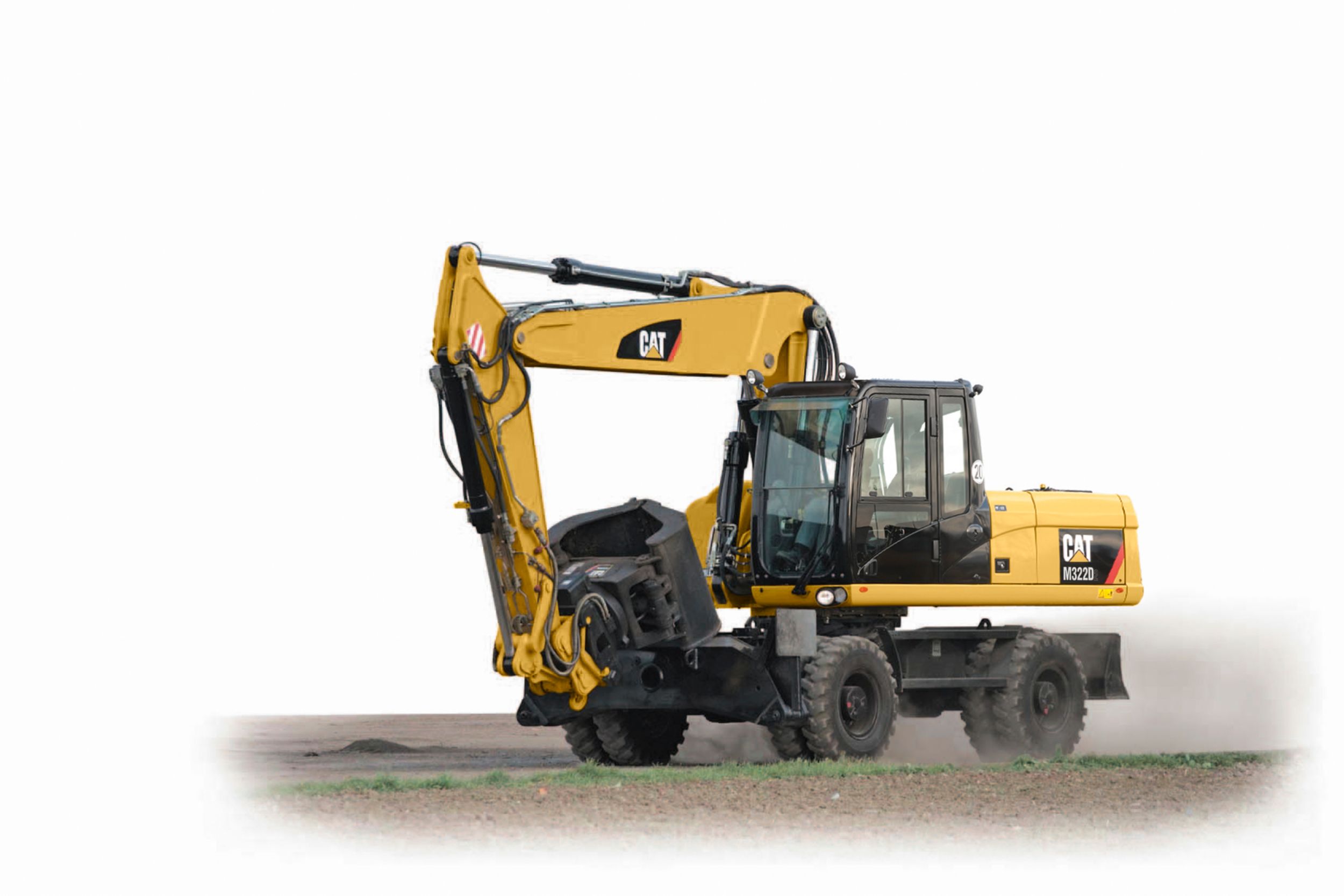

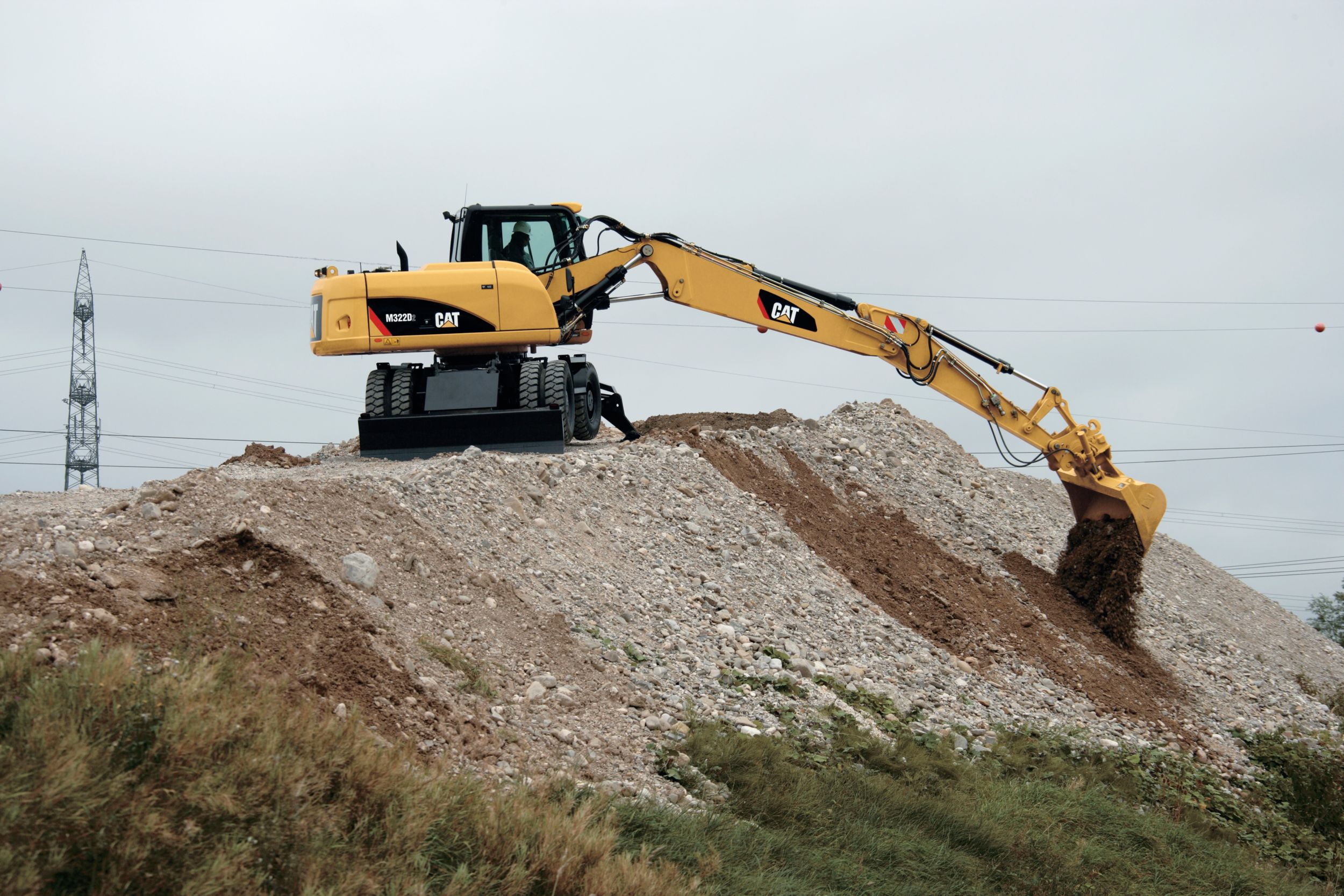

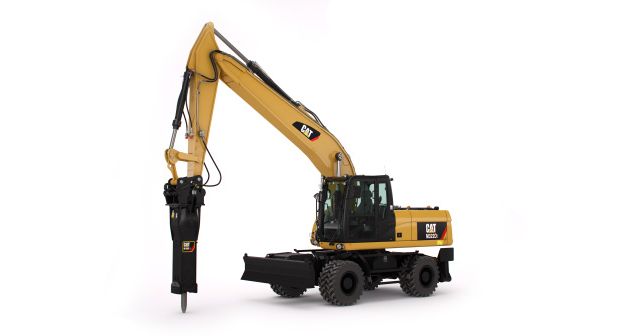

M322D2 Wheeled Excavator

With fast cycle times, excellent lift capacity and high bucket and stick forces, the Cat® M322D2 Wheeled Excavator is the machine to go to to handle a range of tasks. A quiet, comfortable cab, boom and stick options and a range of work tools allow you to customize this machine to nearly any job.

BUILT TO PERFORM

  • Cat C7.1 engine meets EU Stage IIIA, U.S. EPA Tier 3equivalent emission standards and meets China Nonroad III emission standards.
  • Engine fuel system designed to manage world-wide fuel quality and provide outstanding low fuel consumption during both working and traveling applications.
  • One-Touch Low Idle Control. The Automatic Engine Speed Control reduces engine speed if no operation is performed, reducing fuel consumption and sound levels.
  • Constant Power Strategy, providing a quick response to changing loads, while delivering the same amount of power.
  • Choice of various booms and sticks provides the right balance of reach and digging forces for all applications.
  • Dedicated Swing Pump allows faster and smoother combined movements when using the implements while swinging.

EXPAND YOUR CAPABILITIES

  • Multiple configurations meet all your applications needs, with a choice of booms, sticks, blade and/or stabilizer undercarriages.
  • Highly mobile, the M322D2 can travel up to 25 km/h.
  • Standard one-way high pressure hydraulics allow customers to install attachments like hammers without adding other lines.
  • Ten hydraulic pump flow and pressure settings can be preset within the monitor allowing quicker and easier attachment changes.
  • A lifting eye into the bucket linkage, the heavy lift mode and the overload warning signal allow operators to safely lift heavy loads.
  • Wide range of Cat attachments to handle any job at hand.

OPERATOR COMFORT AND SAFETY

  • ROPS cab structure and Operator Protective Structure (top and front guards) are available.
  • Ergonomically designed cab with controls kept to a minimum, conveniently located and easy to operate.
  • The optional air-suspension seat, with automatic weight adjustment and heated cushions enhance comfort and productivity.
  • Safety is enhanced by the all-round visibility provided by large glass areas and skylight and the standard rear-mounted camera image displayed on the full color monitor.
  • Low sound levels, as a result of the variable fan speed and remote cooling system enabling the machine to be used in noise sensitive areas like urban areas.

LOWER MAINTENANCE COSTS

  • 500 hours fuel filter replacement (reduced to 250 hours if fuel quality is sub-standard) allows reduced maintenance cost.
  • All daily maintenance points are accessible from ground level.
  • Clean design, with colored and numbered electrical wires, protected by thick braiding for ease of service.
  • Greasing points are centralized and kept to a minimum.
  • Cat XT™-6 ES hoses are resistant and durable, which reduce the risk of leaks that can reduce the performance of the machine.
  • Rigidity and long life with effective transmission protection and heavy duty axle.
  • Standard heavy duty batteries for improved cold start capability

INTEGRATED CAT TECHNOLOGIES

  • Cat technology solutions increase production and minimize operating costs. Link technologies wirelessly connect you to your job site, providing machine location, hours, fuel usage, idle timeand event codes.

Standard Equipment

NOTE
  • Standard and optional equipment may vary. Consult your Cat dealer for details.
ELECTRICAL
  • Alternator, 75 A
  • Lights: – Halogen working lights
    • Cab mounted: two front, one rear
    • Boom

    – Roading lights

    • Halogen front lights
    • LED rear lights
  • Main shut-off switch
  • Two Cat maintenance free heavy-duty batteries
  • Signal/warning horn
ENGINE
  • Cat C7.1 meets China Stage III Nonroad emission standards and meets Tier 3/Stage IIIA equivalent emission standards
  • Automatic engine speed control, including one touch low idle
  • Automatic starting aid
  • Power mode selector (Eco and standard)
  • Altitude capability: 3000 m
  • Fuel/water separator with level indicator, fuel priming pump, water level switch and a visual restriction indicator
HYDRAULICS
  • Cat XT-6 ES hoses
  • Adjustable hydraulic sensitivity
  • Oil cooler
  • Anti-drift valve for bucket cylinder
  • Hydraulic mineral oil, Cat HYDO Advanced 10 oil
  • Heavy lift mode
  • Load-sensing hydraulic system
  • Separate swing pump
  • Stick regeneration circuit
OPERATOR STATION
  • Reinforced cab structure compliant with 2006/42/EC (tested according to ISO 12117-2:2008) (Not available in all markets. Available only for Africa, Middle East and Eurasia. Please contact your Cat dealer for details.)
  • Washer bottle for wipers
  • Interior lighting
  • Joysticks, pilot operated
  • Literature compartment behind the seat
  • Mounting provisions for radio and speakers
  • Adjustable armrests
  • Air conditioner, heater and defroster with automatic climate control
  • Ash tray with cigarette lighter (24 volt)
  • Beverage cup/can holder
  • Bolt-on guards capability
  • Bottle holder
  • Bottom mounted, intermittent, parallel wiping system that covers the upper and lower windshield glass

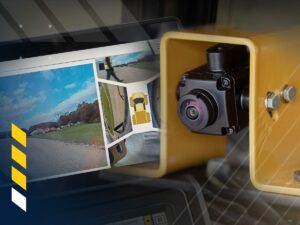

  • Camera mounted on counterweight displays through cab monitor
  • Coat hook
  • Floor mat, washable, with storage compartment
  • Instrument panel and gauges, with full color monitor display: – Information and warning messages in local language – Gauges for fuel level, engine coolant and hydraulic oil temperature – Filters/fluids change interval – Indicators for headlights, turning signal, low fuel, engine dial setting – Clock with 10-day backup battery
  • Laminated front windshield
  • Left side console, tiltable, with lock out for all controls
  • Literature holder in right hand cab panel
  • Mobile phone holder
  • Parking brake
  • Positive filtered ventilation, variable speed
  • Power supply, 12V-7A
  • Rear window, emergency exit
  • Retractable seat belt, 51 mm
  • Skylight
  • Sliding door windows
  • Steering column, tiltable
  • Storage area suitable for a lunch box
  • Sunshade for windshield and skylight
  • Travel speed lock
UNDERCARRIAGE
  • Hydrostatic transmission, two speeds
  • Creeper speed
  • Full hydraulic steering with emergency capability
  • Four wheel drive
  • Two-piece drive shaft
  • Heavy Duty axles, with advanced disc brake system and travel motor with adjustable braking force
  • Oscillating front axle, lockable, with remote greasing point
  • Steps, wide, left and right
  • Toolbox, left and right
OTHER EQUIPMENT
  • Automatic swing brake
  • Counterweight, 4400 kg
  • Mirrors, frame and cab
  • Cat Product Link
  • Capability to add other auxiliary hydraulic circuits
  • Caterpillar Datalink and Electronic Technician capability
  • Door locks and cab locks with Cat one-key security system
  • S·O·S quick sampling valves for engine oil, hydraulic oil and coolant

Additional information

Offering Type

Engine Model

Cat C7.1

Engine - Net Power

122 kW ( 164 HP )

Engine - Bore

105 mm ( 4.13 in )

Engine - Stroke

135 mm ( 5.31 in )

Engine - Displacement

7.01 l ( 427.8 in³ )

Engine - Maximum Torque - 1,400 rpm

868 N·m ( 640.2 lb/ft )

Engine - Number of Cylinders

6

Swing Mechanism - Swing Speed

9.0 r/min ( 9.0 r/min )

Transmission - Drawbar Pull

112.4 kN ( 25269 lbf )

Service Refill Capacities - Engine Crankcase

15 l ( 4.0 gal (US) )

Service Refill Capacities - Final Drive

2.5 l ( 0.7 gal (US) )

Service Refill Capacities - Powershift Transmission

2.5 l ( 0.7 gal (US) )

Service Refill Capacities - Rear Axle - Housing (Differential)

14 l ( 3.7 gal (US) )

Service Refill Capacities - Cooling System

37 l ( 9.8 gal (US) )

Service Refill Capacities - Front Steering Axle - Differential

11 l ( 2.9 gal (US) )

Tires - Standard

11.00-20 (dual pneumatic)

Undercarriage - Ground Clearance

380 mm ( 15.0 in )

Working Ranges - Maximum Digging Depth

6680 mm ( 21.9 ft )

Drive - Maximum Travel Speed

25 km/h ( 15.5 mile/h )

Tires - Optional

10.00-20 (dual solid rubber)

Engine - Net Power - Rated - ISO 9249/SAE J1349

122 kW ( 164 HP )

Standards - Note

*Not available in all markets. Available only for Africa, Middle East and Eurasia. Please contact your Cat dealer for details.

Engine Emissions

China Stage III Nonroad, and Tier 3/Stage IIIA equivalent

Standards - Cab - FOPS

Cab with FOPS (Falling Object Protective Structure) meets FOPS criteria ISO 10262:1998 and SAE J1356:2008

Weights - Weight - One-Piece Boom - Rear Dozer Only

19000 kg ( 41888 lb )

Undercarriage - Maximum Steering Angle

35°

Working Ranges - Maximum Reach - Ground Level

10320 mm ( 33.9 ft )

Engine - Net Power (Maximum) - ISO 9249/SAE J1349 (metric)

122 kW/166 hp (PS)

Hydraulic System - Tank Capacity

220 l ( 58.1 gal (US) )

Engine - Power (Maximum) - ISO 14396 at 2,000 rpm

128.8 kW ( 173 HP )

Hydraulic System - Maximum Pressure - Implement Circuit - Travel Circuit

35000 kPa ( 5076 psi )

Hydraulic System - Maximum Flow - Swing Mechanism

112 l/min ( 29.6 gal/min )

Engine - Net Power - Maximum - ISO 9249/SAE J1349

122 kW ( 164 HP )

Weights - Weight - Sticks - Long (2900 mm)

780 kg ( 1720 lb )

Hydraulic System - Maximum Pressure - Implement Circuit - Heavy Lift

37500 kPa ( 5439 psi )

Engine - Net Power (Rated) - ISO 9249/SAE J1349 - Metric

122 kW/166 hp (PS)

Weights - Weight - One-Piece Boom - Rear Dozer, Front Outriggers

20200 kg ( 44533 lb )

Hydraulic System - Maximum Pressure - Implement Circuit - Normal

35000 kPa ( 5076 psi )

Dimensions - Blade Width

2750 mm ( 108.3 in )

Weights - Operating Weight - With Attachment

20 500 kg-22 500 kg (45,195 lb-49,604 lb)

Sound Performance - Exterior Sound - 2000/14/EC

103 dB(A) ( 103 dB(A) )

Weights - Weight - Sticks - Medium (2500 mm)

700 kg ( 1543 lb )

Weights - Weight - Counterweight - Optional (1)

4400 kg ( 9700 lb )

Blade - Maximum Lowering Depth from Ground

130 mm ( 5.1 in )

Standards - Cab/ROPS*

ROPS (Rollover Protective Structure) offered by Caterpillar meets ROPS criteria ISO 12117-2:2008

Transmission - Forward/Reverse - 1st Gear

7.0 km/h ( 4.3 mile/h )

Hydraulic System - Maximum Pressure - Auxiliary Circuit - Medium Pressure

18500 kPa ( 2683 psi )

Sound Performance - Operator Sound - 2000/14/EC

74 dB(A) ( 74 dB(A) )

Weights - Weight - Counterweight - Standard

3900 kg ( 8598 lb )

Engine - Net Power - Rated - 80/1269/EEC

122 kW ( 164 HP )

Engine - Bio Diesel up to B20

Meets EN 14214 or ASTM D6751 with EN590 or ASTM D975 standard mineral diesel fuels

Weights - Weight - VA Boom - Rear Dozer, Front Outriggers

20850 kg ( 45966 lb )

Hydraulic System - Maximum Flow - Implement/Travel Circuit

350 l/min ( 92.5 gal/min )

Blade Type

Radial

Transmission - Forward/Reverse - 2nd Gear

25.0 km/h ( 15.5 mile/h )

Undercarriage - Minimum Turning Radius - End of One-Piece Boom

9300 mm ( 366.1 in )

Weights - Weight - One-Piece Boom - Front and Rear Outriggers

20450 kg ( 45085 lb )

Transmission - Creeper Speed - 1st Gear

3.0 km/h ( 1.9 mile/h )

Engine - Net Power - Maximum - 80/1269/EEC

122 kW ( 164 HP )

Weights - Weight - VA Boom - Front and Rear Outriggers

21100 kg ( 46518 lb )

Hydraulic System - System

350 l ( 92.5 gal (US) )

Hydraulic System - Maximum Pressure - Swing Mechanism

34000 kPa ( 4931 psi )

Service Refill Capacities - Fuel Tank - Total Capacity

385 l ( 101.7 gal (US) )

Blade Roll - Over Height

576 mm ( 22.7 in )

Hydraulic System - Maximum Pressure - Auxiliary Circuit - High Pressure

35000 kPa ( 5076 psi )

Engine Gross Power (Maximum) - ISO 14396 - Metric

128.8 kW/175 hp (PS)

Hydraulic System - Maximum Flow - Auxiliary Circuit - Medium Pressure

50 l/min ( 13.2 gal/min )

Undercarriage - Minimum Turning Radius - Outside of Tire

6800 mm ( 267.7 in )

Weights - Weight - Sticks - Short (2200 mm)

650 kg ( 1433 lb )

Weights - Weight - VA Boom - Rear Dozer Only

19650 kg ( 43321 lb )

Undercarriage - Oscillation Axle Angle

±9°

Bucket Specifications - Bucket Capacities

0.44 m³-1.57 m³ (0.58 yd3-2.05 yd3)

Weights - Weight - Counterweight - Optional (2)

5400 kg ( 11905 lb )

Transmission - Maximum Gradeability (21 000 kg)

60.2%

Blade - Maximum Raising Height Above Ground

490 mm ( 19.3 in )

Standards - Cab/Sound Levels

Meets appropriate standards as listed in “Sound Performance”

Hydraulic System - Maximum Flow - Auxiliary Circuit - High Pressure

250 l/min ( 66.0 gal/min )

Engine - Ratings

2000 r/min ( 2000 r/min )

Engine - Power (Maximum) - ISO 9249 at 1,700 rpm

122 kW ( 164 HP )

Weights - Operating Weight

20 500-22 500 kg (45,195-49,604 lb)

Swing Mechanism - Swing Torque

56 kN·m ( 41303 lb/ft )

Blade Total Height

610 mm ( 24.0 in )

Transmission - Creeper Speed - 2nd Gear

12.0 km/h ( 7.5 mile/h )

Undercarriage - Minimum Turning Radius - End of VA Boom

7800 mm ( 307.1 in )

Engine Gross Power (Maximum) - ISO 14396

128.8 kW ( 173 HP )

Engine - Emission Standards

China Stage III Nonroad, U.S. EPA Tier 3/EU Stage IIIA equivalent emission standards

Engine - Cat Bio HYDO™ Advanced

Readily biodegradable, EU Flower eco-label certified

  • Demolition and Sorting Grapples

    G317 GC Demolition & Sorting Grapple: 587-8720

    View Details
  • Demolition and Sorting Grapples

    G317 GC Demolition & Sorting Grapple: 587-8721

    View Details

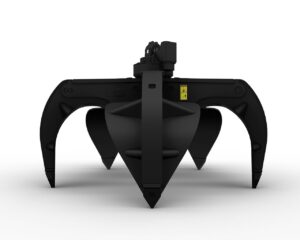

  • Orange Peel Grapples

    GSV525 5-Tine, 1150-Liter Orange Peel Grapple

    View Details
  • Orange Peel Grapples

    GSV525 5-Tine, 600-Liter Orange Peel Grapple

    View Details
  • Orange Peel Grapples

    GSV525 5-Tine, 750-Liter Orange Peel Grapple

    View Details
  • Orange Peel Grapples

    GSV525 5-Tine, 950-Liter Orange Peel Grapple

    View Details

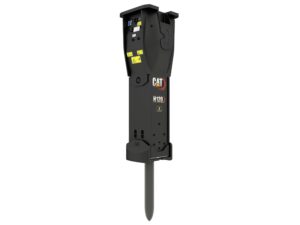

  • GC Hammers

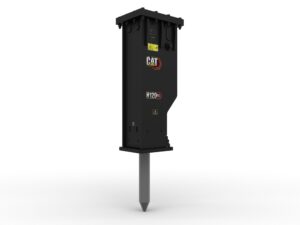

    H120 GC S

    View Details
  • Primary Pulverizers

    P318 Primary Pulverizer

    View Details
  • Pin Grabber Couplers

    Pin Grabber Coupler (B-Linkage): 455-3909

    View Details
  • Pin Grabber Couplers

    Pin Grabber Coupler (B-Linkage): 455-3910

    View Details
  • Mobile Scrap & Demolition Shears

    S3025 Rotating Scrap & Demolition Shear

    View Details
Select Up To 3 Models To Compare
