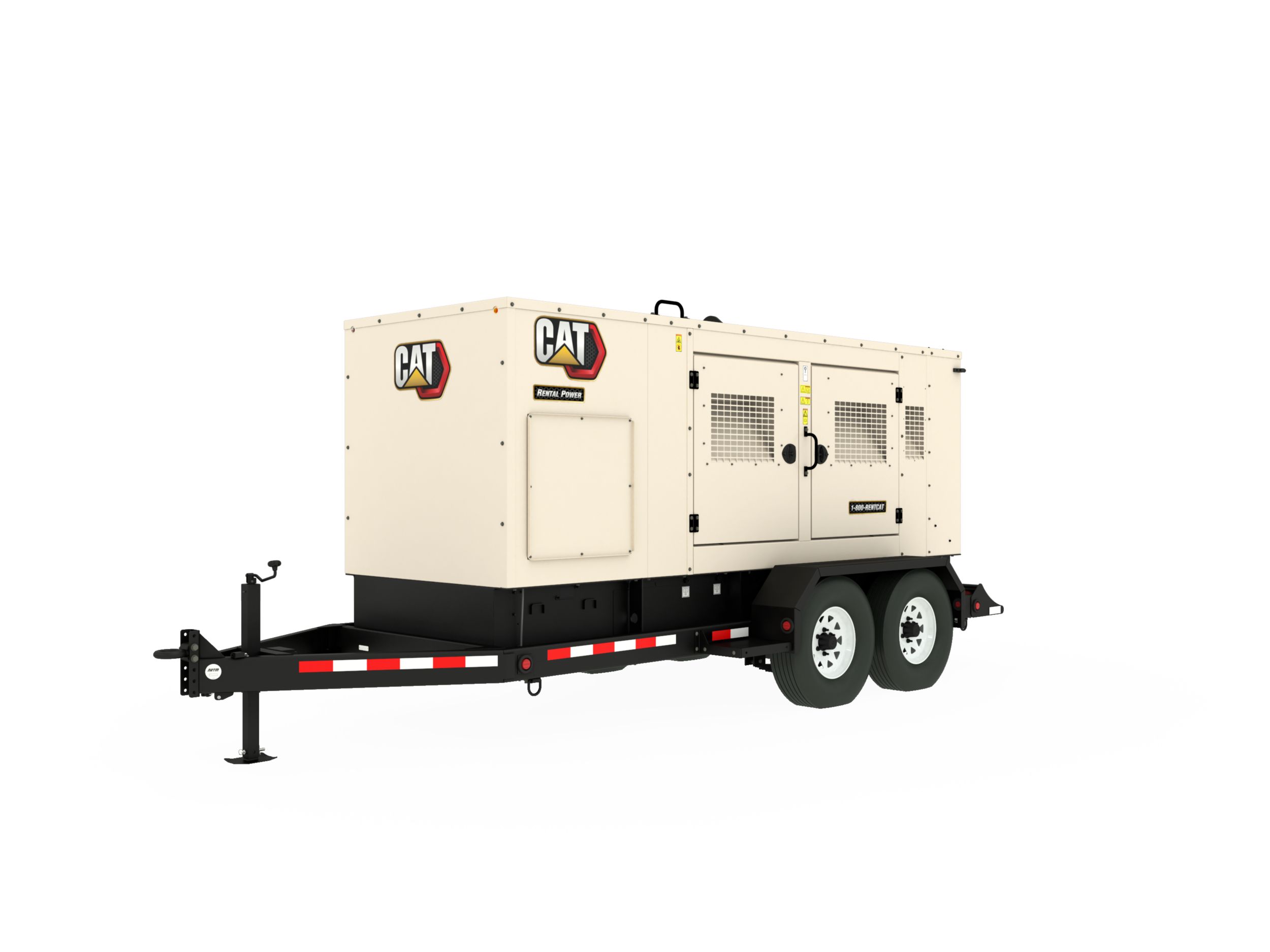

XQ230 Tier 4 Final
XQ230 Rental Power
The Cat XQ230 is powered by a C 7.1 Tier 4 Final compliant industrial diesel engine offering the perfect balance of durability, efficiency and low emissions. With advanced research and development techniques, the after treatment system is precisely matched to the engine ensuring performance is optimized for maximum productivity.
Rental ready. Retail Optimized (Option)
Robust, durable product with a range of rental ready features to meet job requirements and applications.

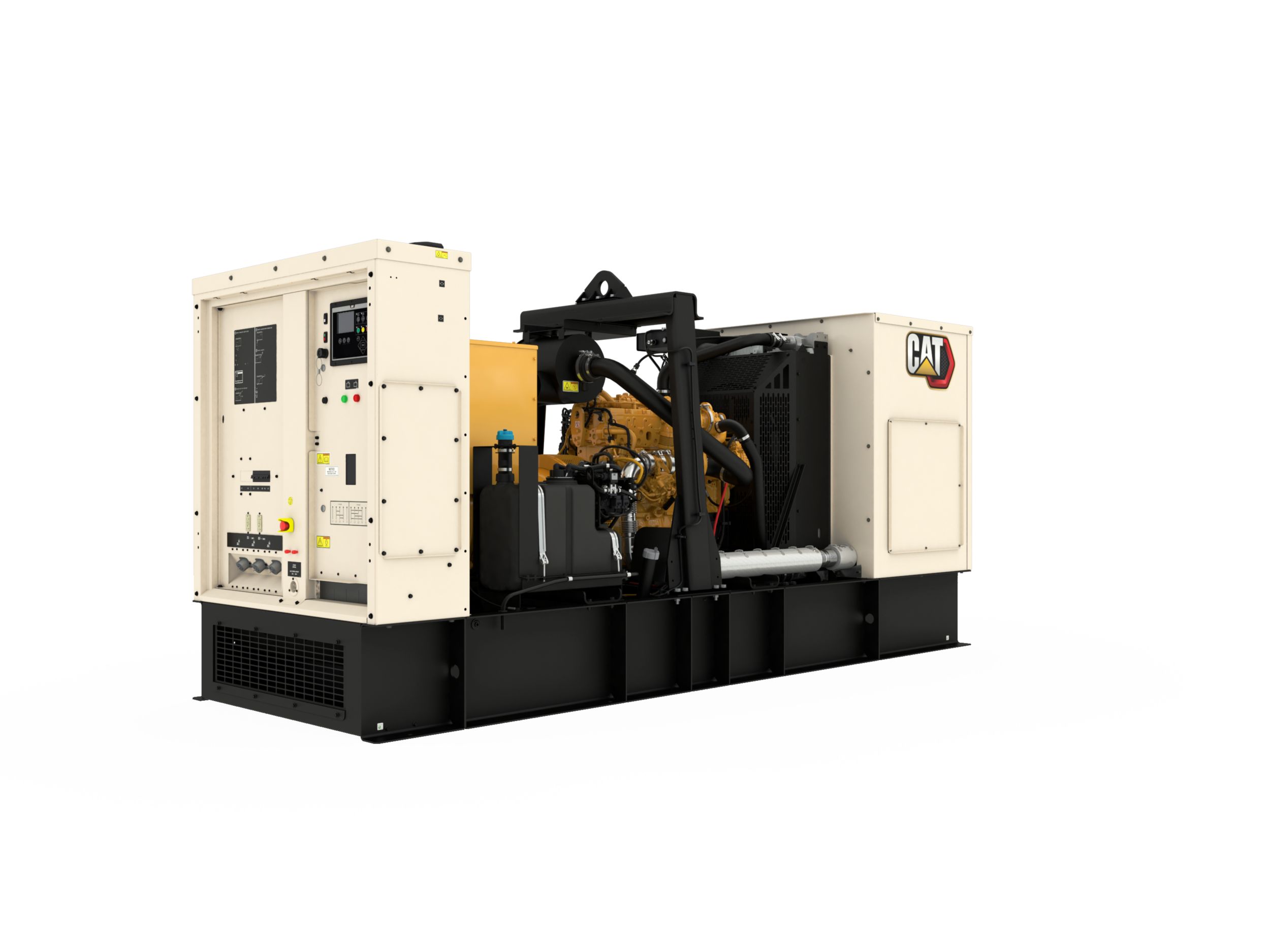

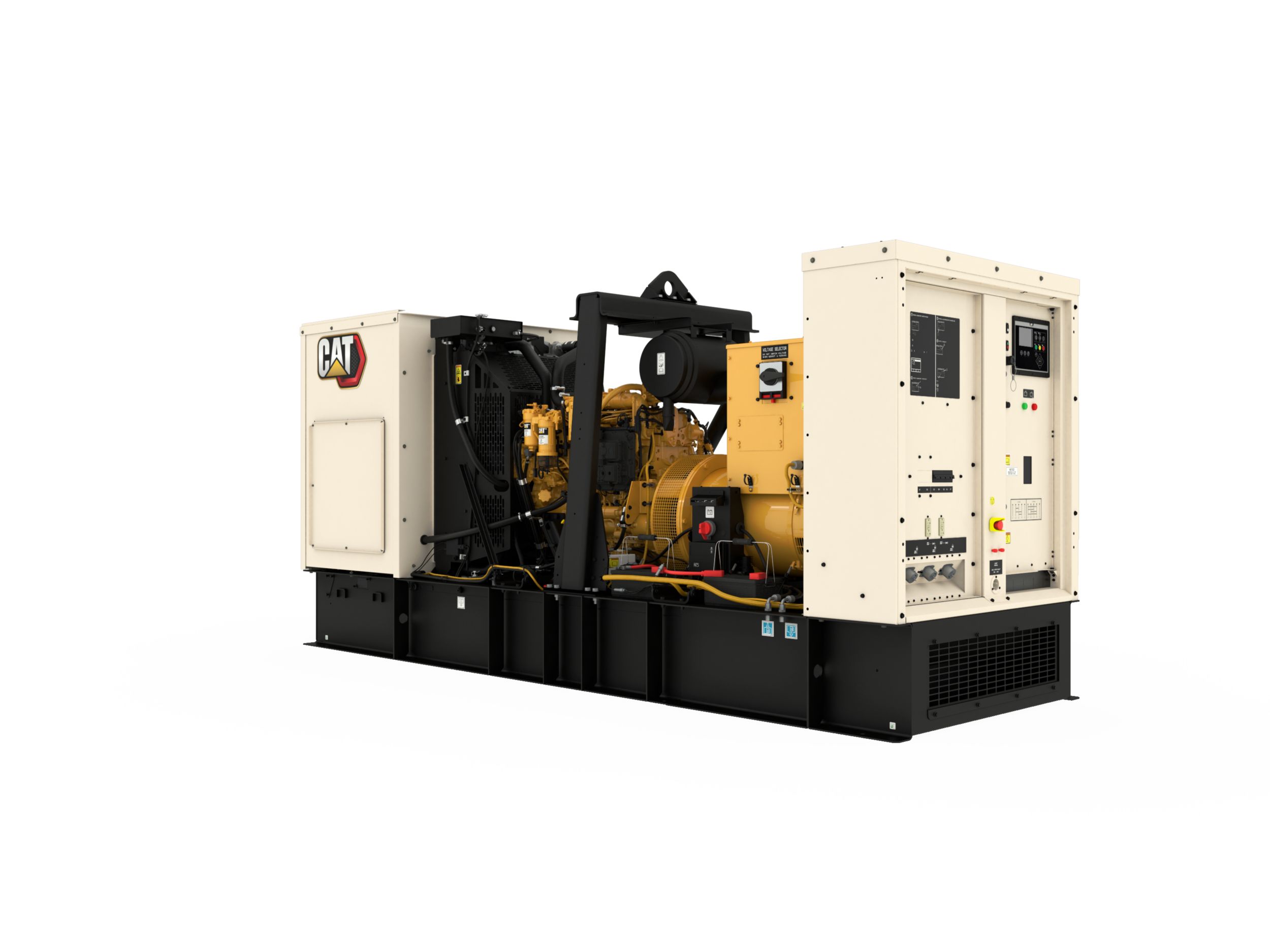

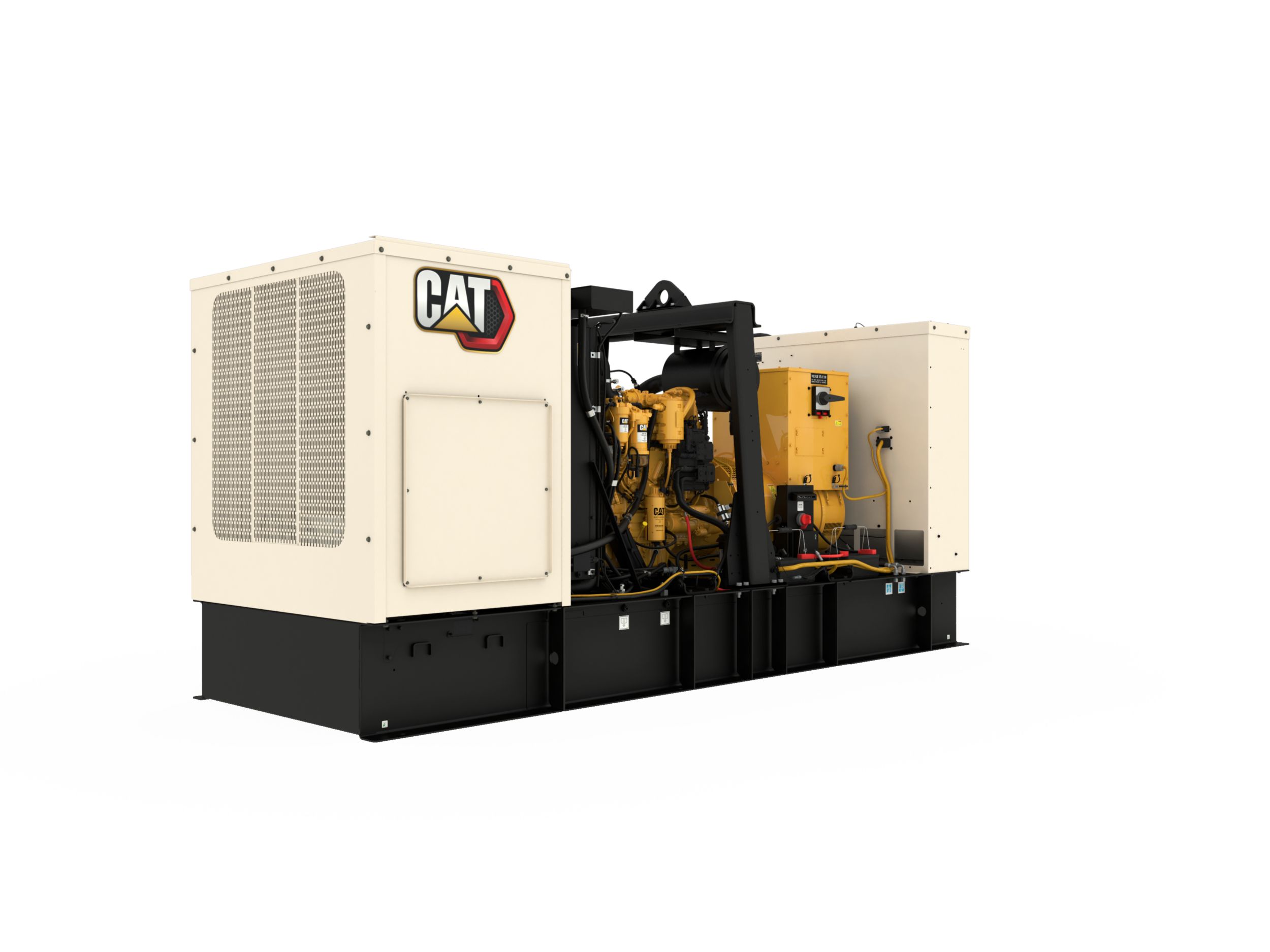

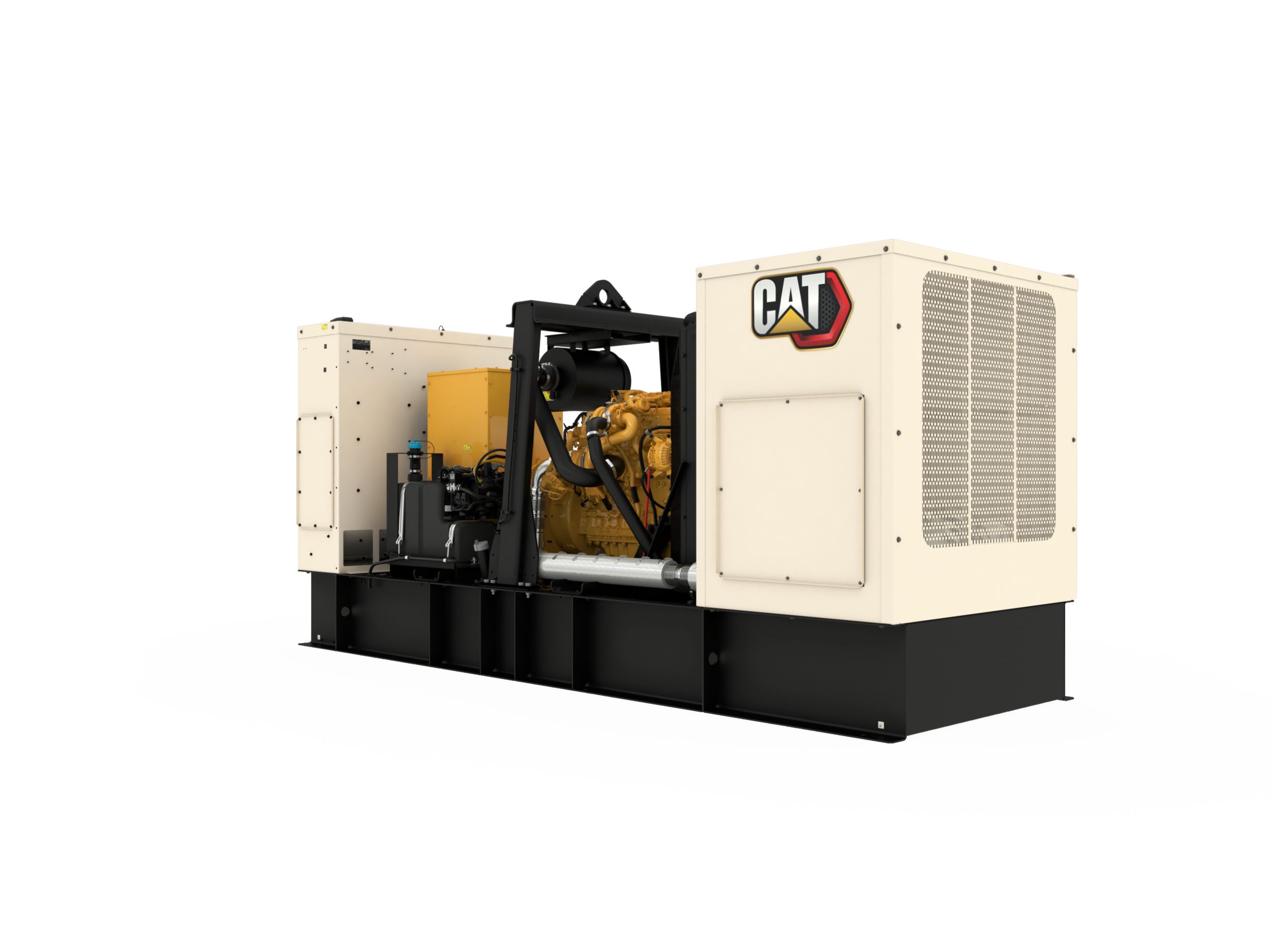

Option for open genset to meet retail customer needs.
Fuel/Emissions Strategy
Meets U.S. EPA Tier 4 Final emission standards and CARB certified for non-road mobile applications at all 60 Hz ratings
Cat C7.1 Diesel Engine
Industry proven reliability
CAT EMCP4.2B digital controls
Easy to use digital controls
Cat LC Series Generator
Integrated voltage regular for fast response in demanding applications
Sound Isolated Operator panel
Improved operator comfort
Cat Connect
Remote monitoring for fleet management and asset tracking
Factory designed, built and tested
Single-source Supplier
World Wide Product Support
Supported by an industry leading global dealer network
Worldwide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Improved transportability

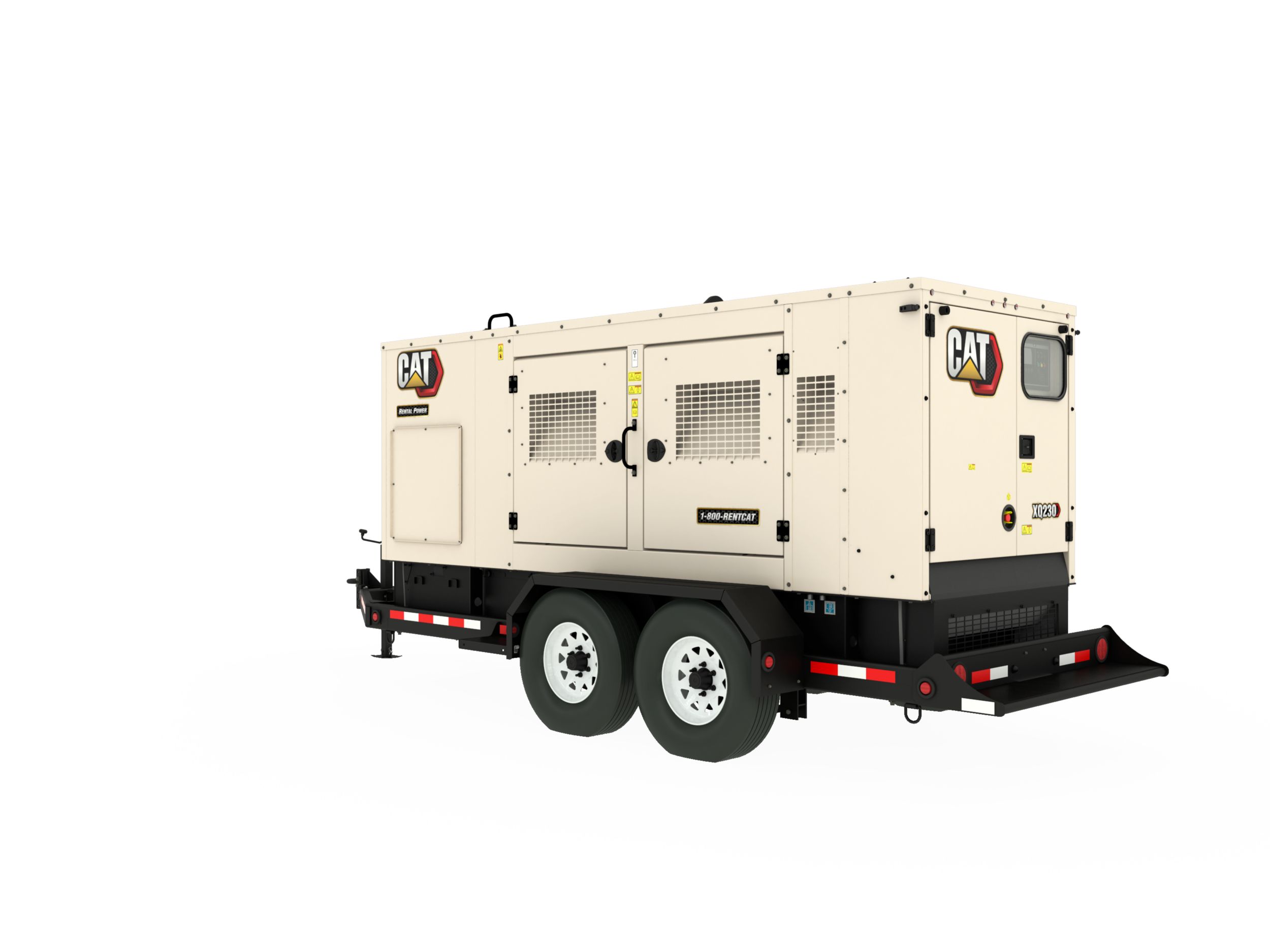

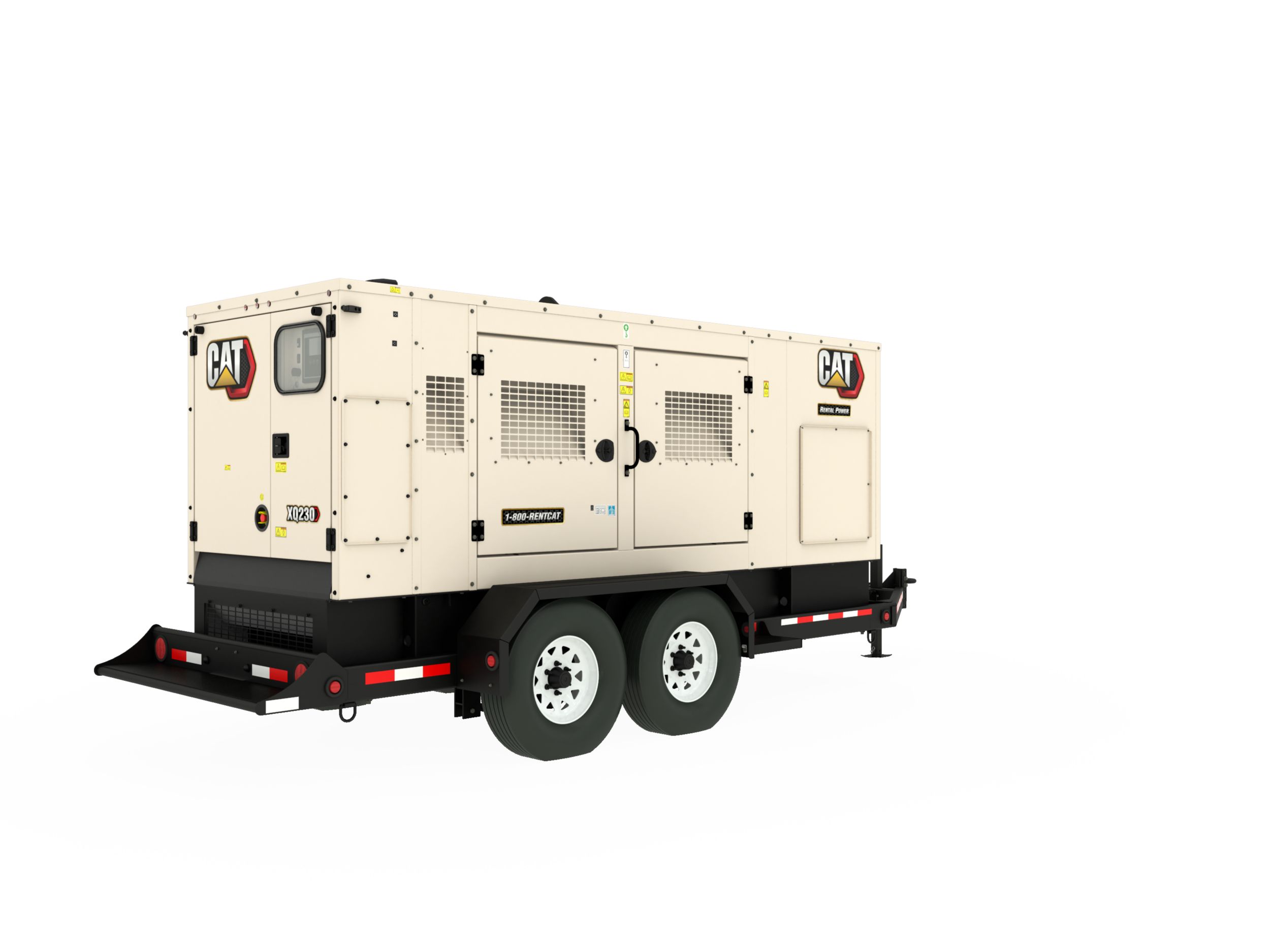

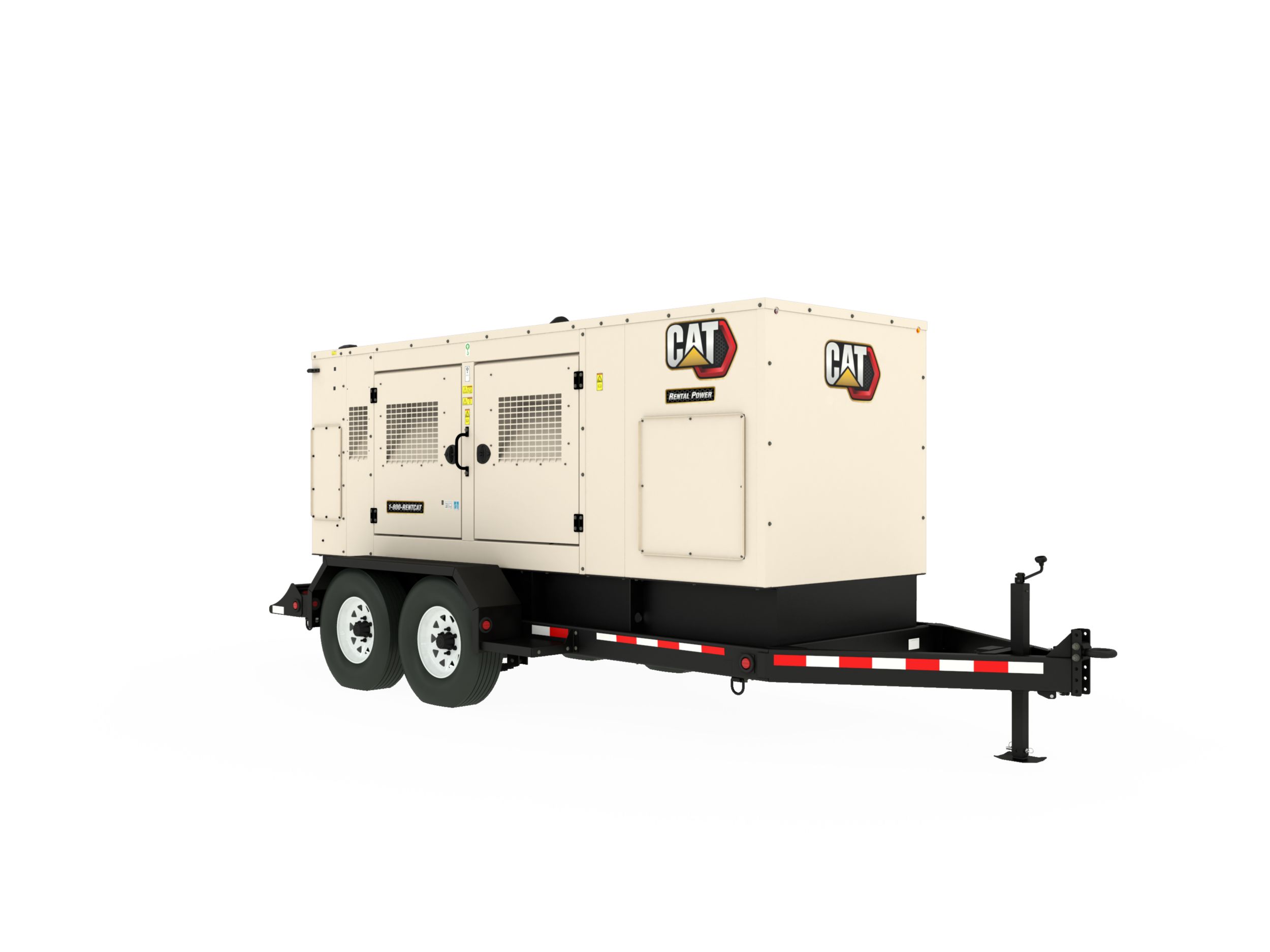

Lifting frame, 4 point lift and trailers
Power Distribution
Distribution sockets
Additional options
Synchronising controls.
Extended Service interval kits
600V generator
208V 3-phase NEMA Sockets
Retail Optimised
Option for open genset to meet Retail customer needs
Videos
Documents & Brochures
Standard Equipment
CAT C7.1 Diesel Engine
- Heavy-duty.
Turbocharged.
After treatment
Generator
- LC5034H Frame
Control Panel
- Digital EMCP4.2B set mounted controller
Cat Connect remote monitoring
- Provides package monitoring and management
Cooling System
- Package mounted radiator with vertical air discharge.
Filled from factory
Charging / Starting System
- 12V heavy duty starting motor and charging alternator c/w battery isolator
Fuel System
- 24 hour dual wall fuel tank with 3 way directional valve for external supply
Air Filter
- Cyclonic/paper with dust cup and service indicator
Distribution
- Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off
Structure
- Heavy Duty steel base frame with integral fuel tank.
Lifting frame and 4 point lift.
base frame is wider than enclosure to protect generator set during transportation
Enclosure
- Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance
Exhaust
- Integrated spark arresting silencer
Lube Oil
- On engine primary and secondary oil filters. Filled from factory
General
- Factory tested and inspected
Additional information
| Offering Type | |
|---|---|
| Generator Set - Rating Prime | 182 ekW (228 kVA) |
| Generator Set - Frequency | 60 Hz |
| Generator Set - Voltage | 120 – 600 V |
| Generator Set - Rating Standby | 200 ekW (250 kVA) |
| Engine | Cat C7.1 |
| Engine - Fuel | Diesel |
| Dimensions - Height - Without Trailer | 1994 mm ( 78.5 in ) |
| Dimensions - Length - Without Trailer | 4120 mm ( 162.2 in ) |
| Dimensions - Width - Without Trailer | 1595 mm ( 62.8 in ) |
| Dimensions - Weight with Lube Oil and Coolant, Without Trailer | 3828 kg ( 8432 lb ) |
| Fuel Consumption - 100% Load 60Hz | 56 l/hr ( 14.7 gal/hr ) |
| Fuel Consumption - 75% Load 60Hz | 41 l/hr ( 10.8 gal/hr ) |
| Fuel Consumption - 50% Load 60Hz | 28 l/hr ( 7.4 gal/hr ) |
| Noise rating (with enclosure) - Sound Power @ 7 meters (23 feet) @ All Ratings | 72 dB(A) |
