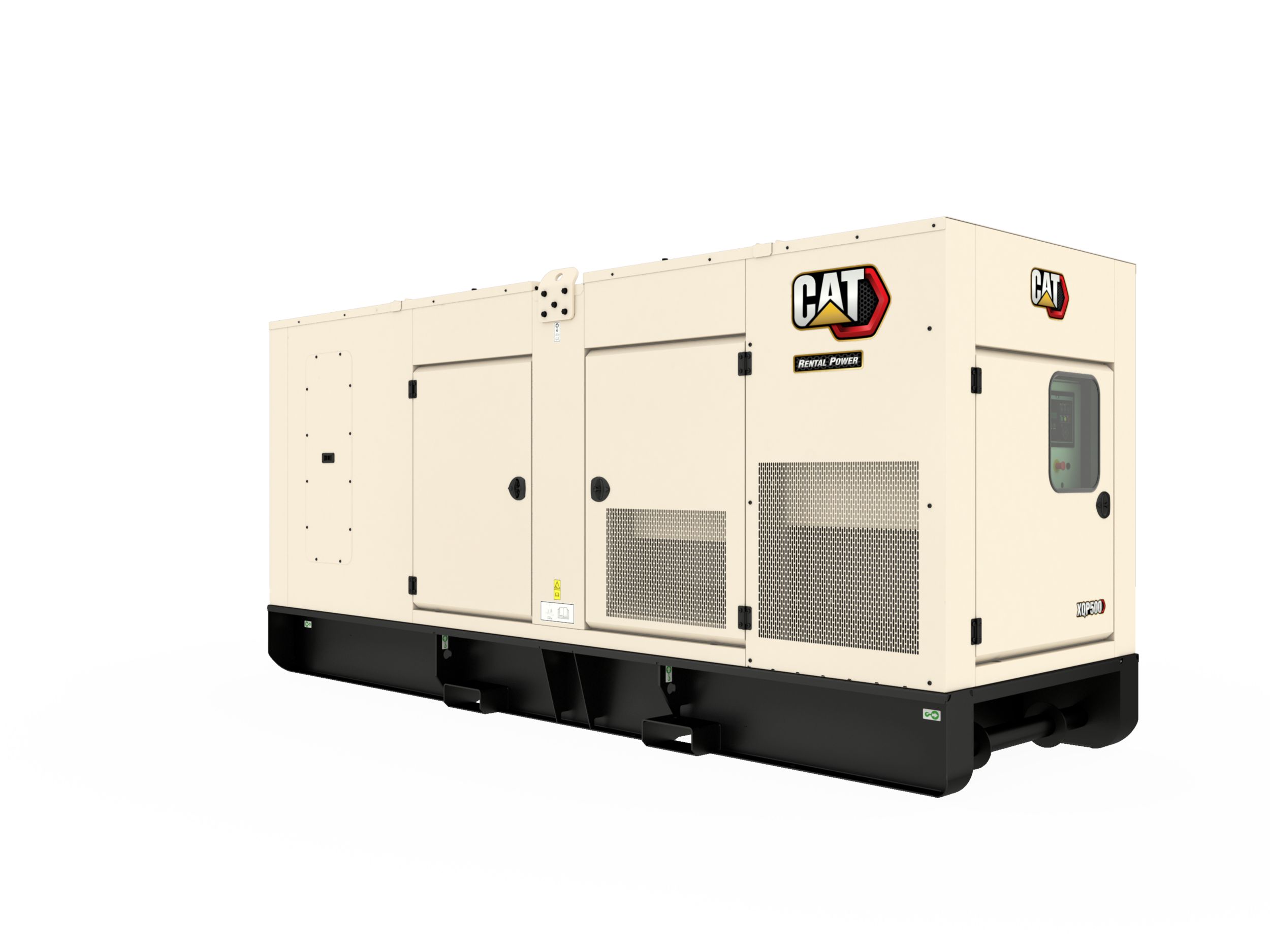

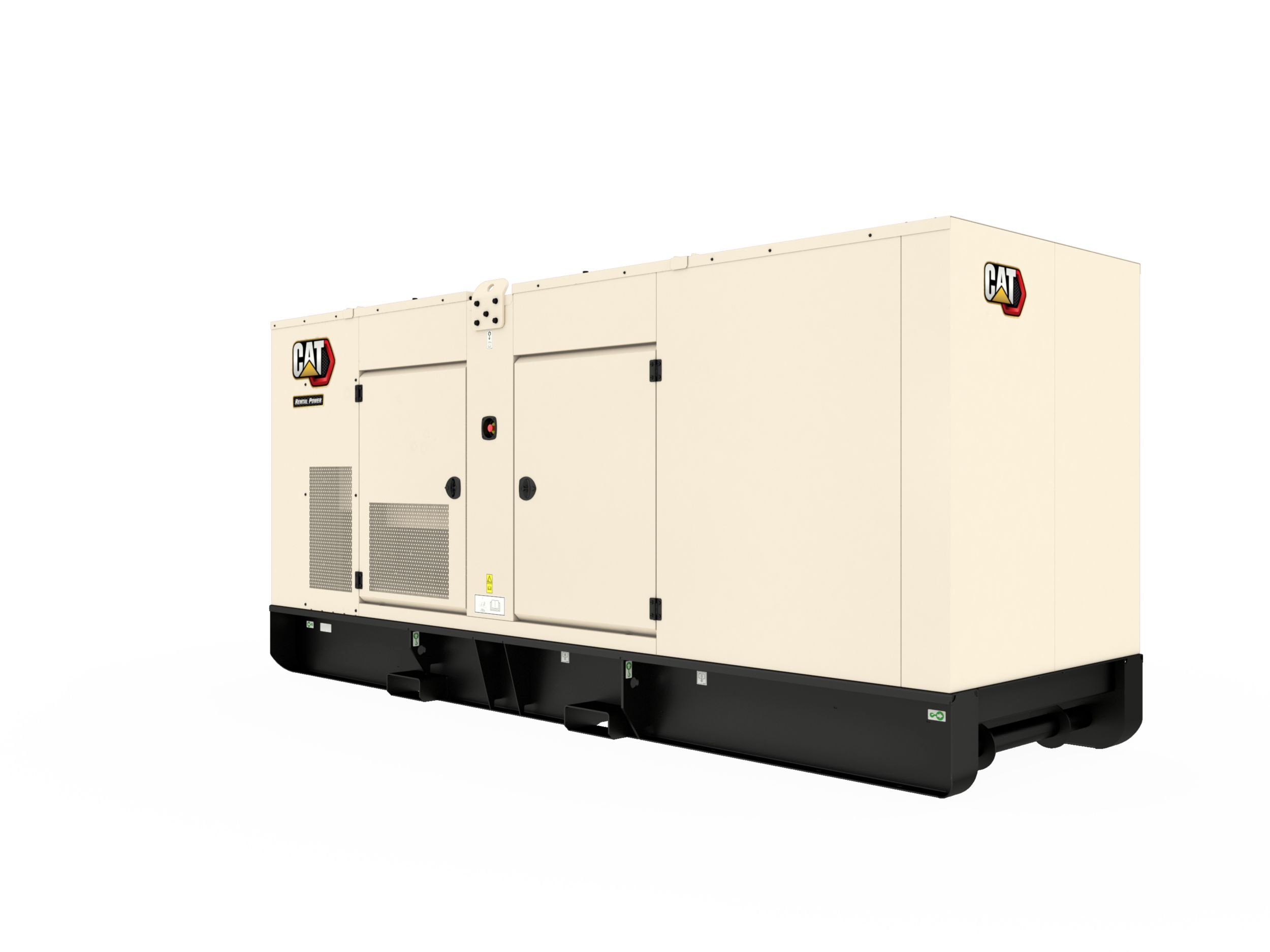

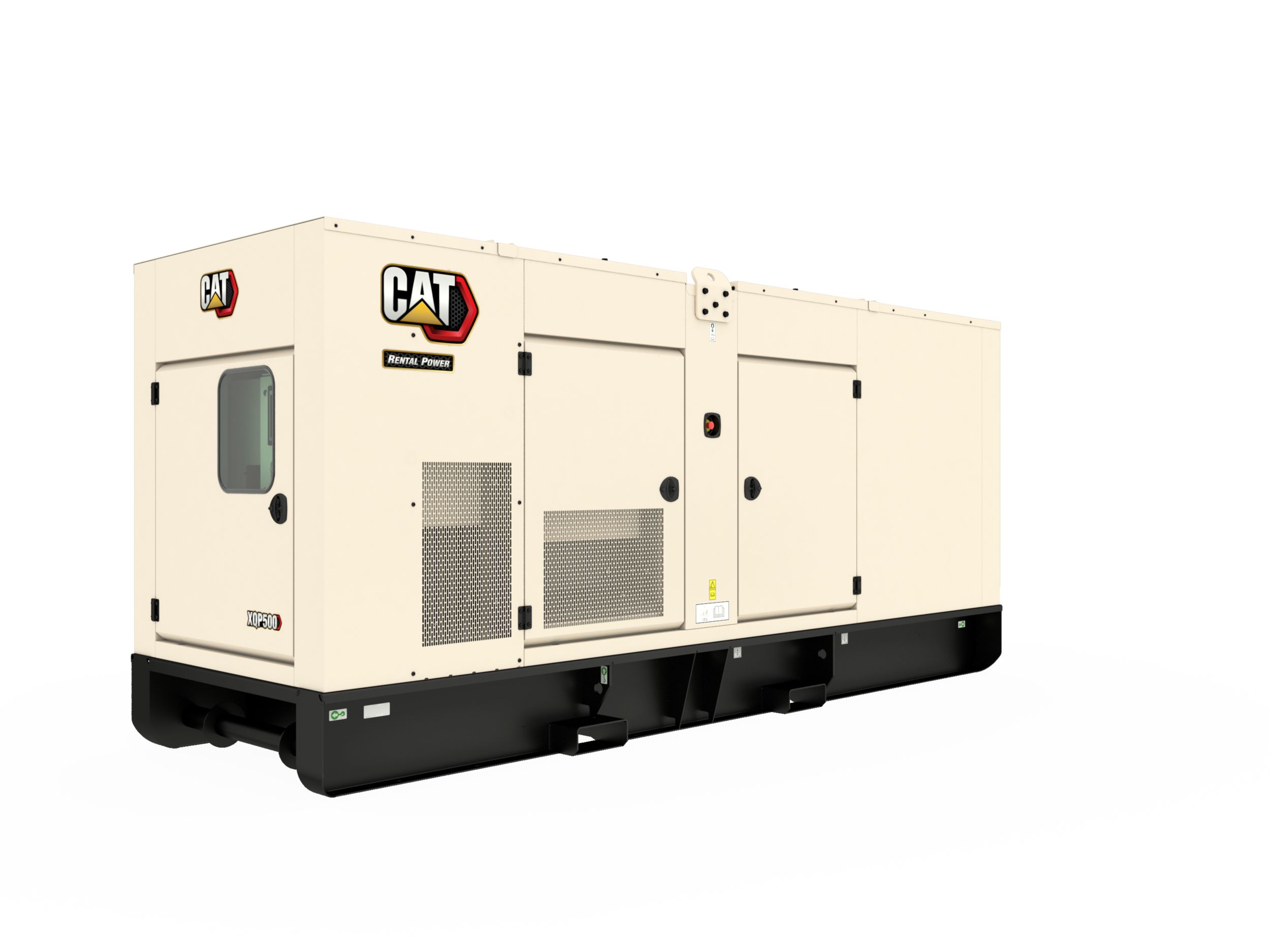

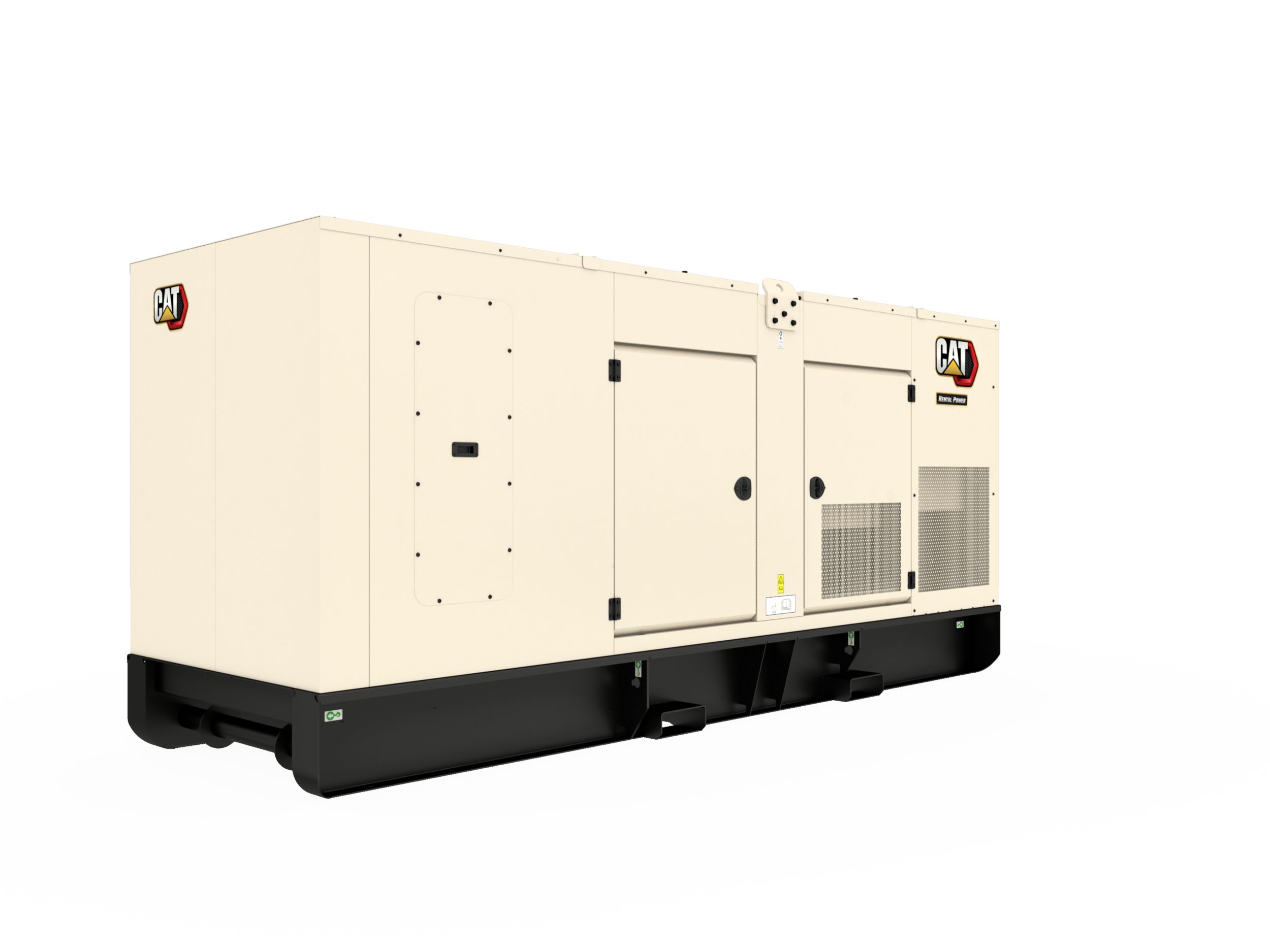

XQP500

This XQP500 generator set is fuel consumption optimized. A unique feature is the introduction of clutch fan drive technology, where the fan no longer needs to runs continuously at full speed and power. This saves additional fuel, while also lowering noise output; an ideal feature when operating at lower loads, in cooler temperatures, or most importantly, in evenings when noise levels are most noticeable.

Rental ready

Robust, durable product with a range of rental ready features to meet job requirements and applications.

Fuel/Emissions Strategy

Emissions Equivalent to R96 EU Stage IIIA or Best Fuel Efficiency.

Cat C15 Diesel Engine

Industry proven reliability.

Cat EMCP 4.2B Control Panel

Easy to use digital controls.

Cat LC6100 Generator

Integrated voltage regular for fast response in demanding applications.

Robust Galvanised Enclosure

Inhibits corrosion in service. Prevents water ingress, provides security and sound attenuation.

Sound Isolated Operator Panel

Improved operator comfort.

Cat Connect

Remote monitoring for fleet management and asset tracking.

Factory Designed, Built and Tested

Single-source Supplier

Worldwide Product Support

  • Cat dealers have over 1,800 dealer branch stores operating in 200 countries
  • Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements

500 hr Oil Change Intervals

Reducing operating costs and producing less waste.

Improved Transportability

Drag bars, Lifting frame, Fork lift pockets and 4 point lift.

Additional Options Available

Synchronising controls.
Extended Service interval kits.

Standard Equipment

CAT C15 Diesel Engine
  • Turbocharged
Generator
  • LC6114F Frame
Air Filter
  • Cyclonic/paper with dust cup and service indicator
Cat Connect remote monitoring
  • Provides package monitoring and management
Cooling System
  • Package mounted radiator with vertical air discharge. Filled from factory
Charging / Starting System
  • 24V heavy duty starting motor and charging alternator c/w battery isolator
Fuel System
  • Dual wall fuel tank with 3 way directional valve for external supply
Control Panel
  • Digital EMCP4.2B set mounted controller
Distribution
  • Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off
Structure
  • Heavy Duty steel base frame with integral fuel tank. Fork lift pockets. Dragging bars. Lifting frame and 4 point lift. base frame is wider than enclosure to protect generator set during transportation.
Enclosure
  • Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance
Exhaust
  • Integrated spark arresting silencer
Lube Oil
  • On engine primary and secondary oil filters. Filled from factory
General
  • Factory tested and inspected

Additional information

Offering Type

Generator Set - Rating Prime

500 kVA

Generator Set - Frequency

50/60 Hz

Generator Set - Voltage

127 – 480 V

Engine

Cat C15

Engine - Fuel

Diesel

Dimensions - Width

1954 mm ( 77 in )

Dimensions - Height

2292 mm ( 90 in )

Dimensions - Length

5103 mm ( 200.9 in )

Dimensions - Weight - With Lube Oil and Coolant

5977 kg ( 13176 lb )

Fuel Consumption EU Stage IIIA - 100% Load 50Hz

110.2 l/hr ( 29.1 gal/hr )

Fuel Consumption EU Stage IIIA - 100% Load 60Hz

121 l/hr ( 32 gal/hr )

Fuel Consumption EU Stage IIIA - 75% Load 50Hz

86.8 l/hr ( 23 gal/hr )

Fuel Consumption EU Stage IIIA - 75% Load 60Hz

99.7 l/hr ( 26.3 gal/hr )

Fuel Consumption EU Stage IIIA - 50% Load 50Hz

62 l/hr ( 16.4 gal/hr )

Fuel Consumption EU Stage IIIA - 50% Load 60Hz

69.2 l/hr ( 18.3 gal/hr )

Fuel consumption Best Fuel Efficiency - 100% Load 50Hz

102 l/hr ( 29 gal/hr )

Fuel consumption Best Fuel Efficiency - 100% Load 60Hz

107 l/hr ( 28.3 gal/hr )

Fuel consumption Best Fuel Efficiency - 75% Load 50Hz

76.2 l/hr ( 20.1 gal/hr )

Fuel consumption Best Fuel Efficiency - 75% Load 60Hz

83 l/hr ( 22 gal/hr )

Fuel consumption Best Fuel Efficiency - 50% Load 50Hz

54 l/hr ( 14.3 gal/hr )

Fuel consumption Best Fuel Efficiency - 50% Load 60Hz

59.3 l/hr ( 15.7 gal/hr )

Noise rating (with enclosure) EU Stage IIIA - Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz)

77.5 dB(A)

Noise rating (with enclosure) EU Stage IIIA - Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz)

79.8 dB(A)

Noise rating (with enclosure) Best Fuel Efficiency - Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz)

80.1 dB(A)

Noise rating (with enclosure) Best Fuel Efficiency - Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz)

80 dB(A)
