11 m³ (14.4 yd³) – 565-2053

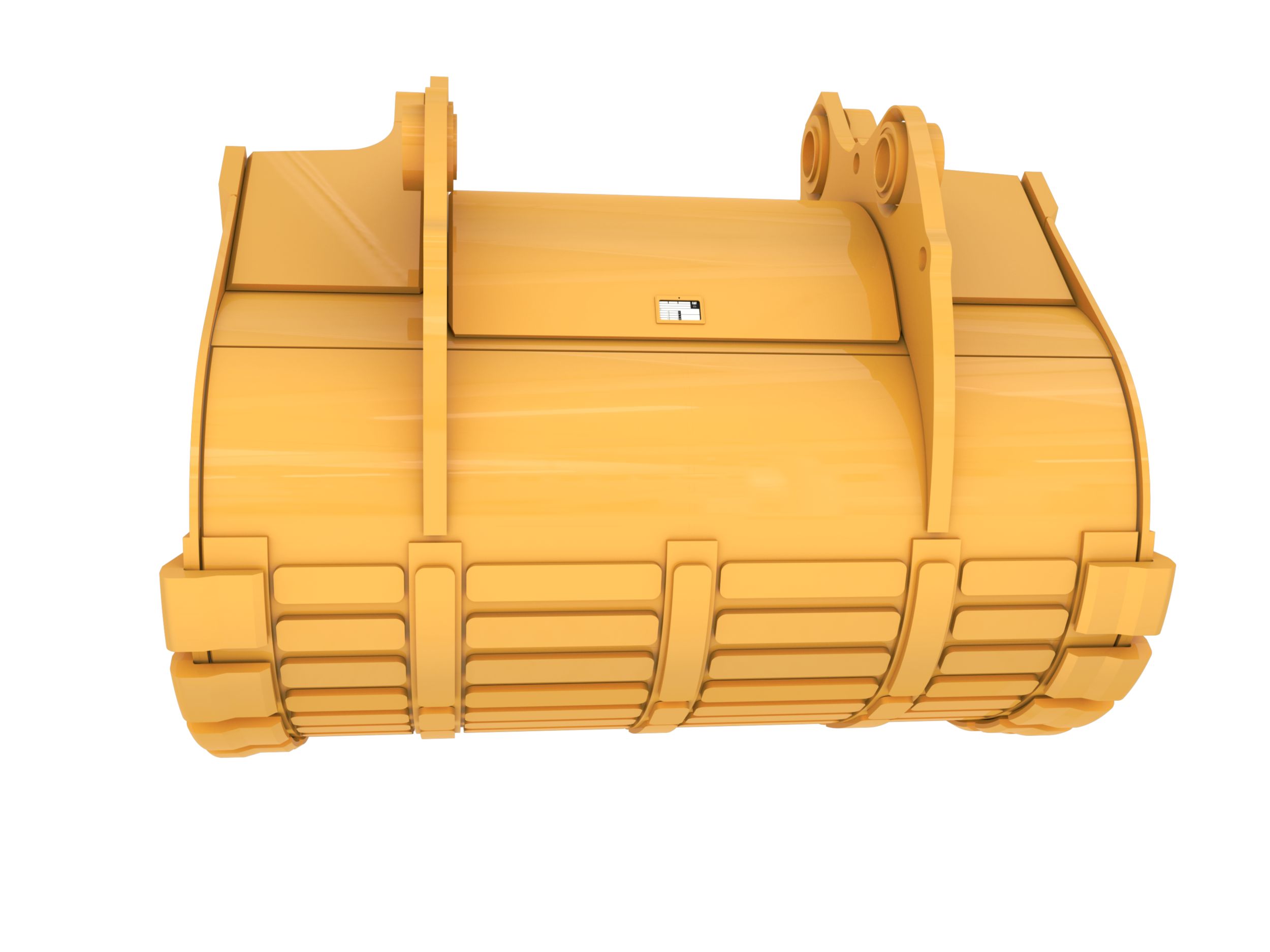

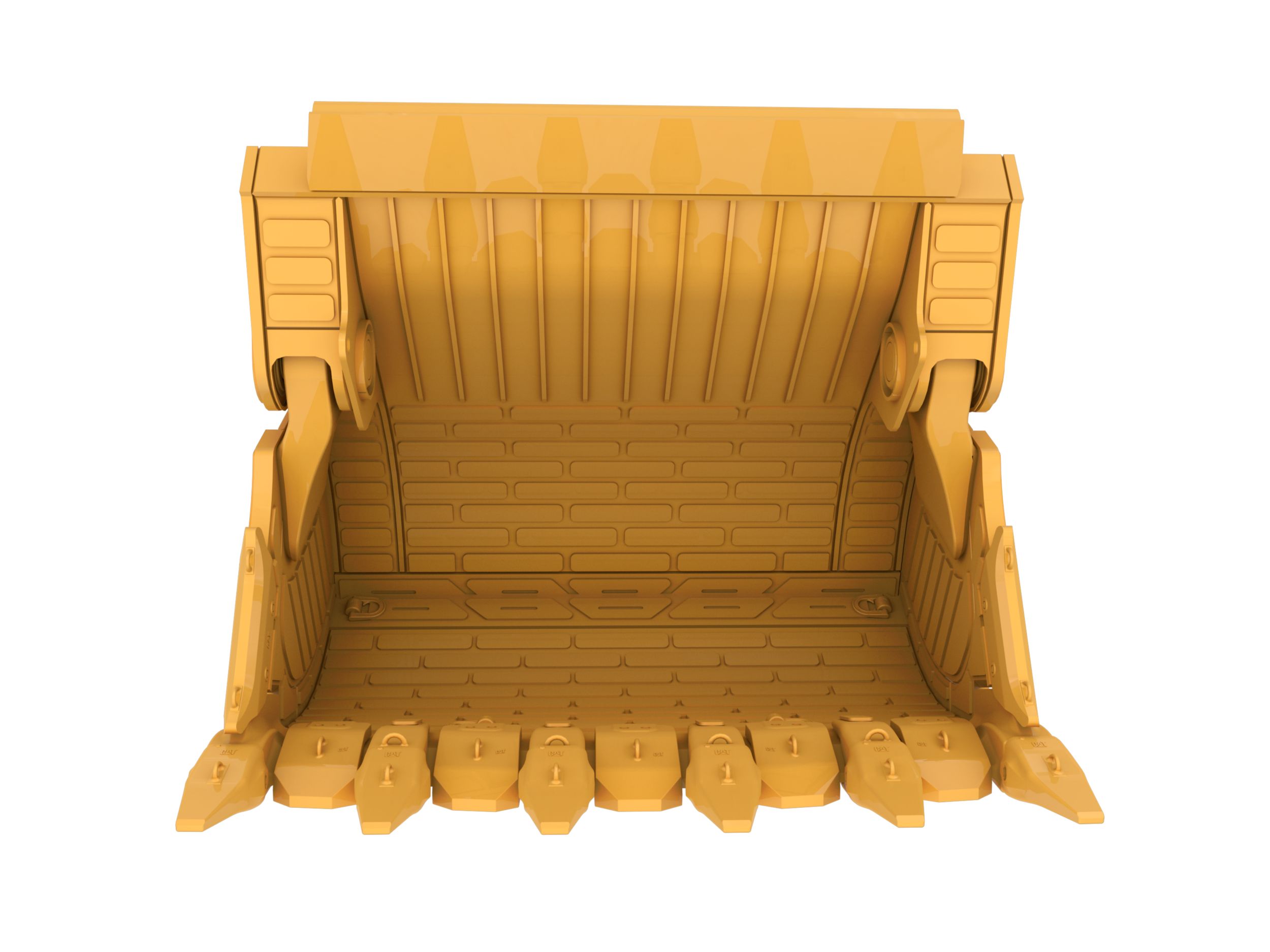

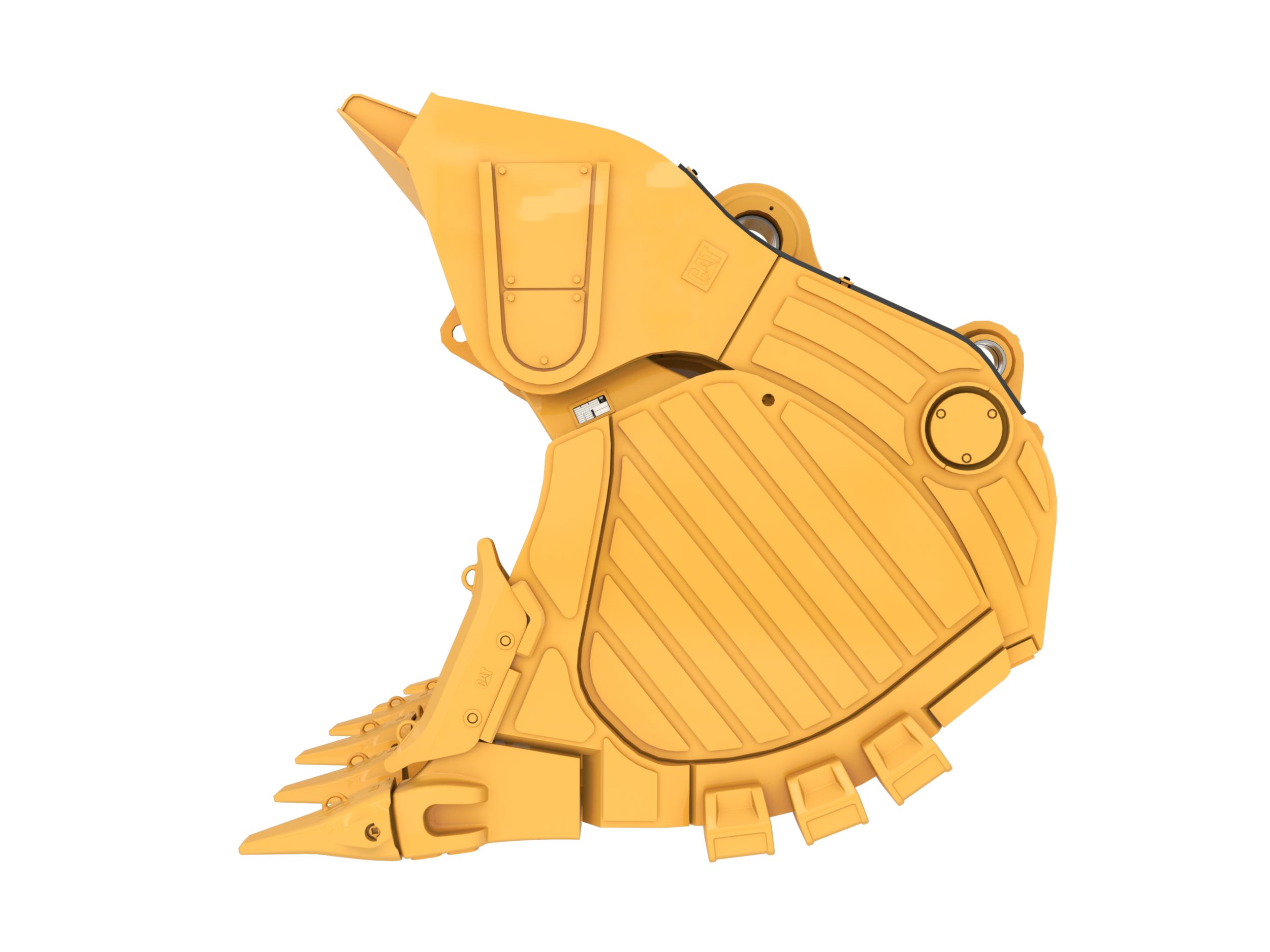

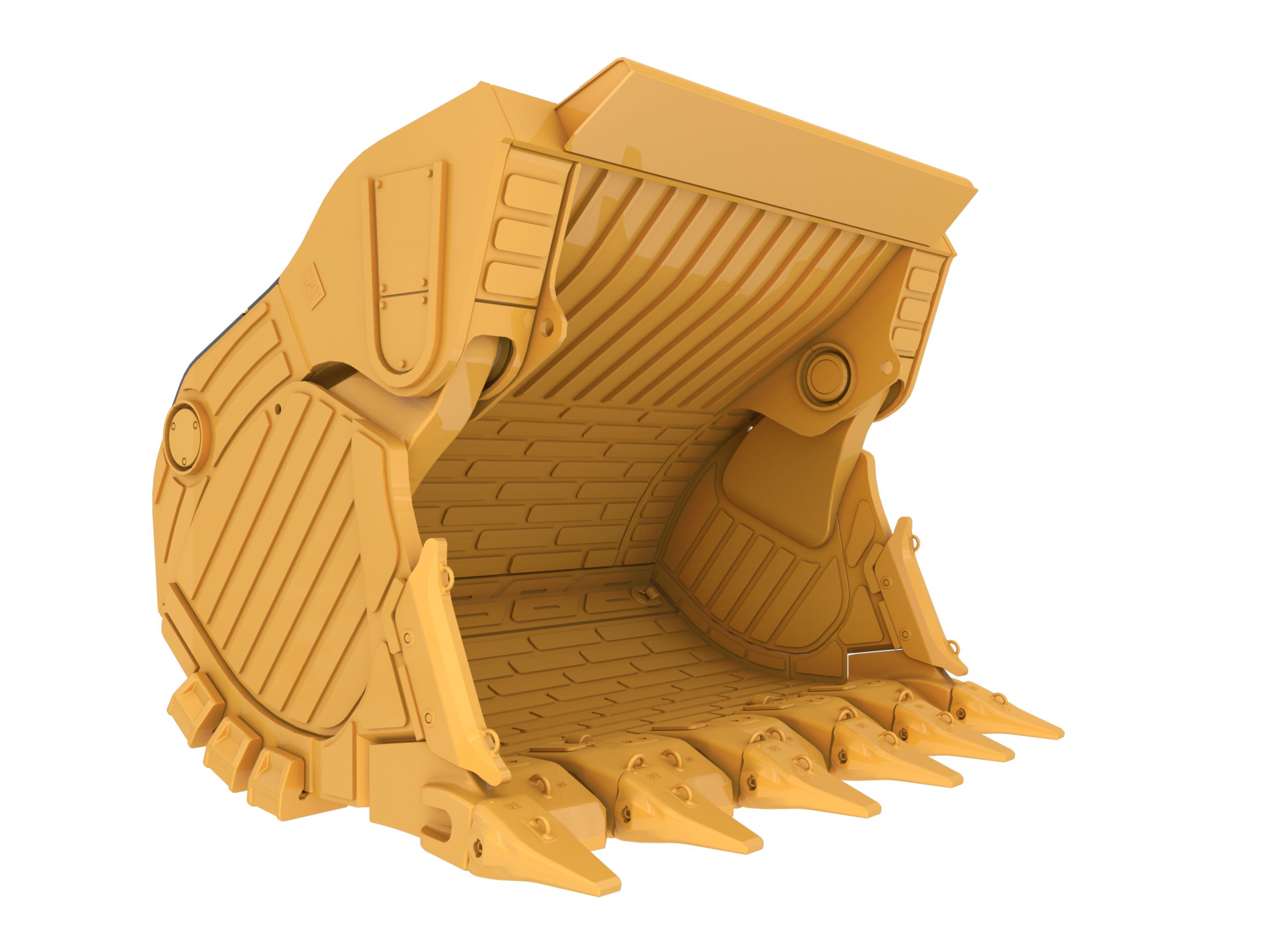

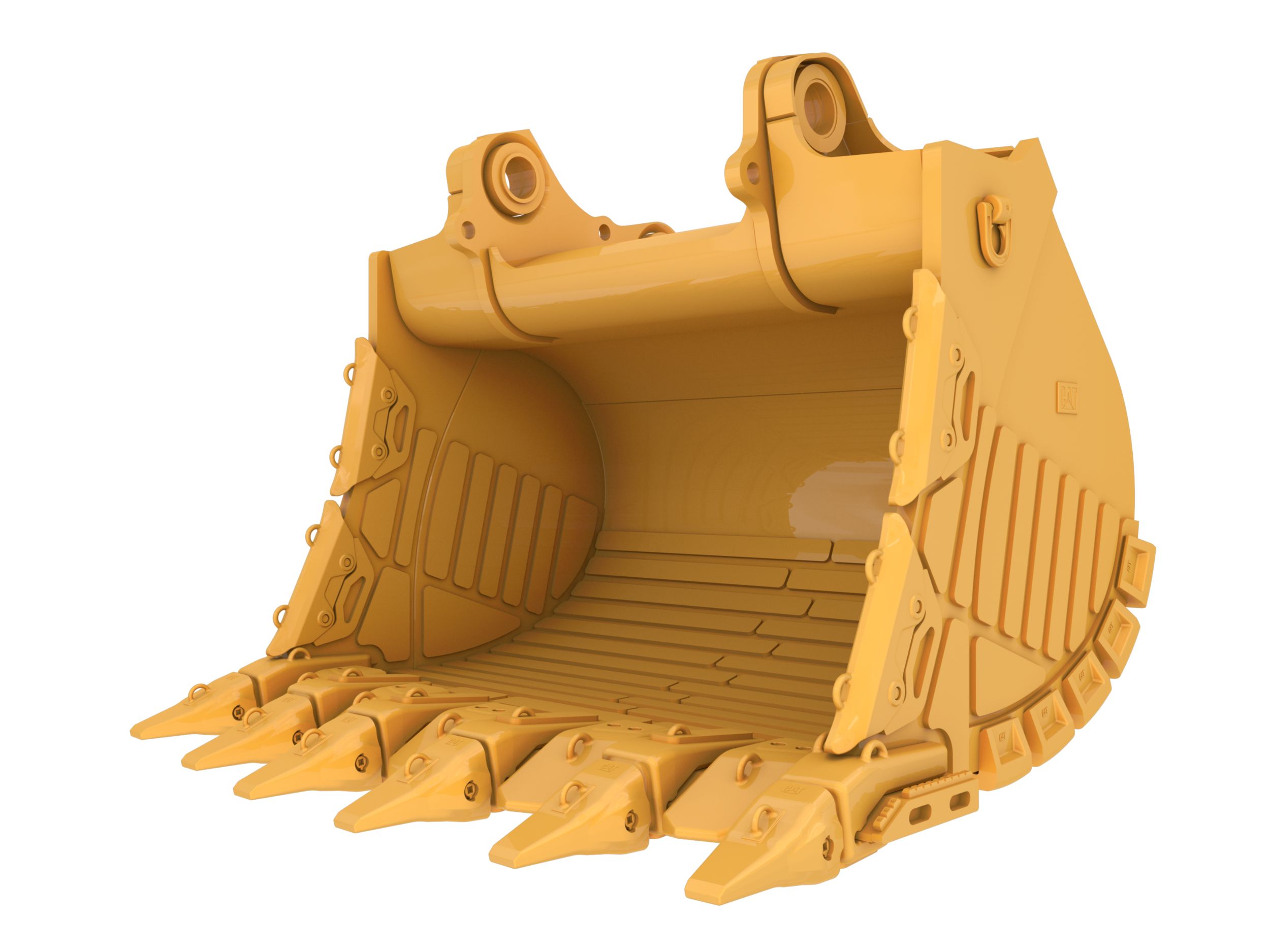

11 m³ (14.4 yd³) Heavy Rock bucket for the 6020B Hydraulic Mining Shovel

11 m³ (14.4 yd³) Heavy Rock bucket for the 6020B Hydraulic Mining Shovel

التصنيف:
اضافة إلى طلب عرض سعر

Efficient

Pass matched to Cat and Unit Rig trucks for an efficient, cost-effective system at your mine site.

Maximum Payload

Rated at ISO 7451 payload standards with a 1:1 heap ratio

Support When You Need It

Cat mining buckets are fully supported by the Cat dealer network for round the clock support.

معلومات إضافية

Material Density

1.8 t/m³ ( 3034 lb/yd³ )
Outer Width

3450 mm ( 135.8 in )
Inner Width

3000 mm ( 118.1 in )
Wear Package

Extreme Duty – Impact
Weight

13 279 kg ( 29,275 lb )
Ground Engaging Tool (GET) System

Cat C85
Machine Model

6020B
Capacity

11 m³ ( 14.4 yd³ )
Offering Type
