18 m³ (23.5 yd³) – 590-9626

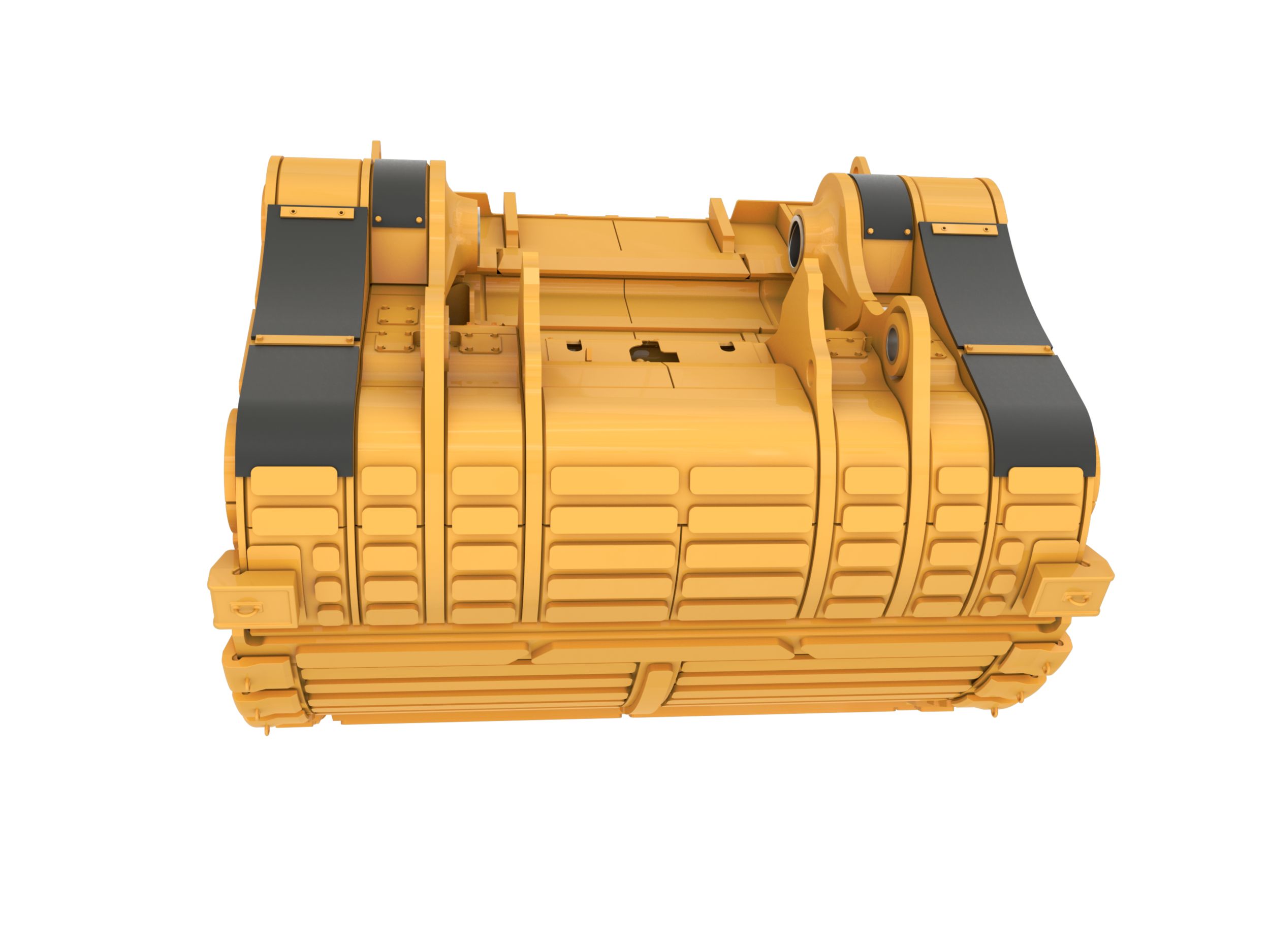

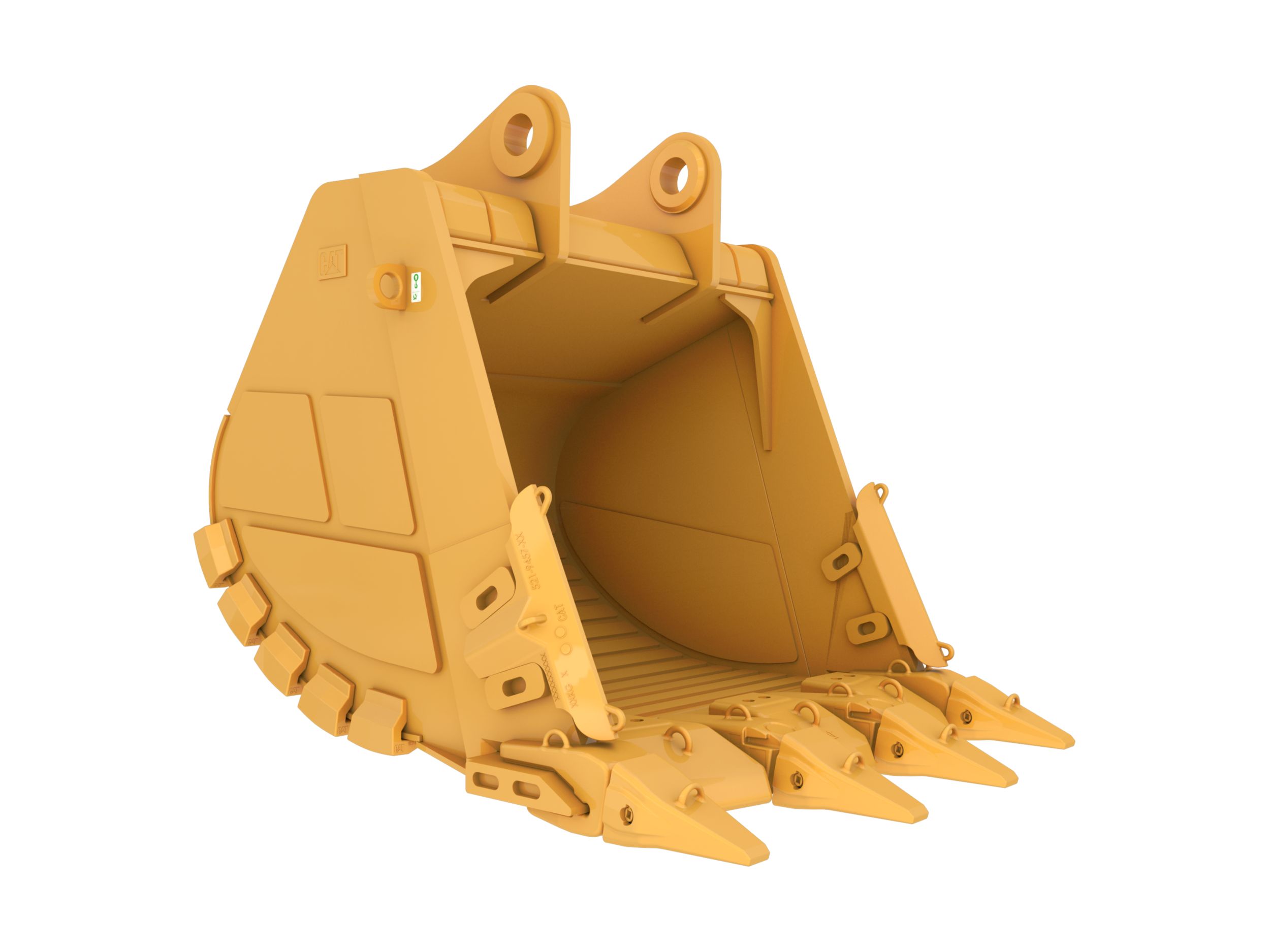

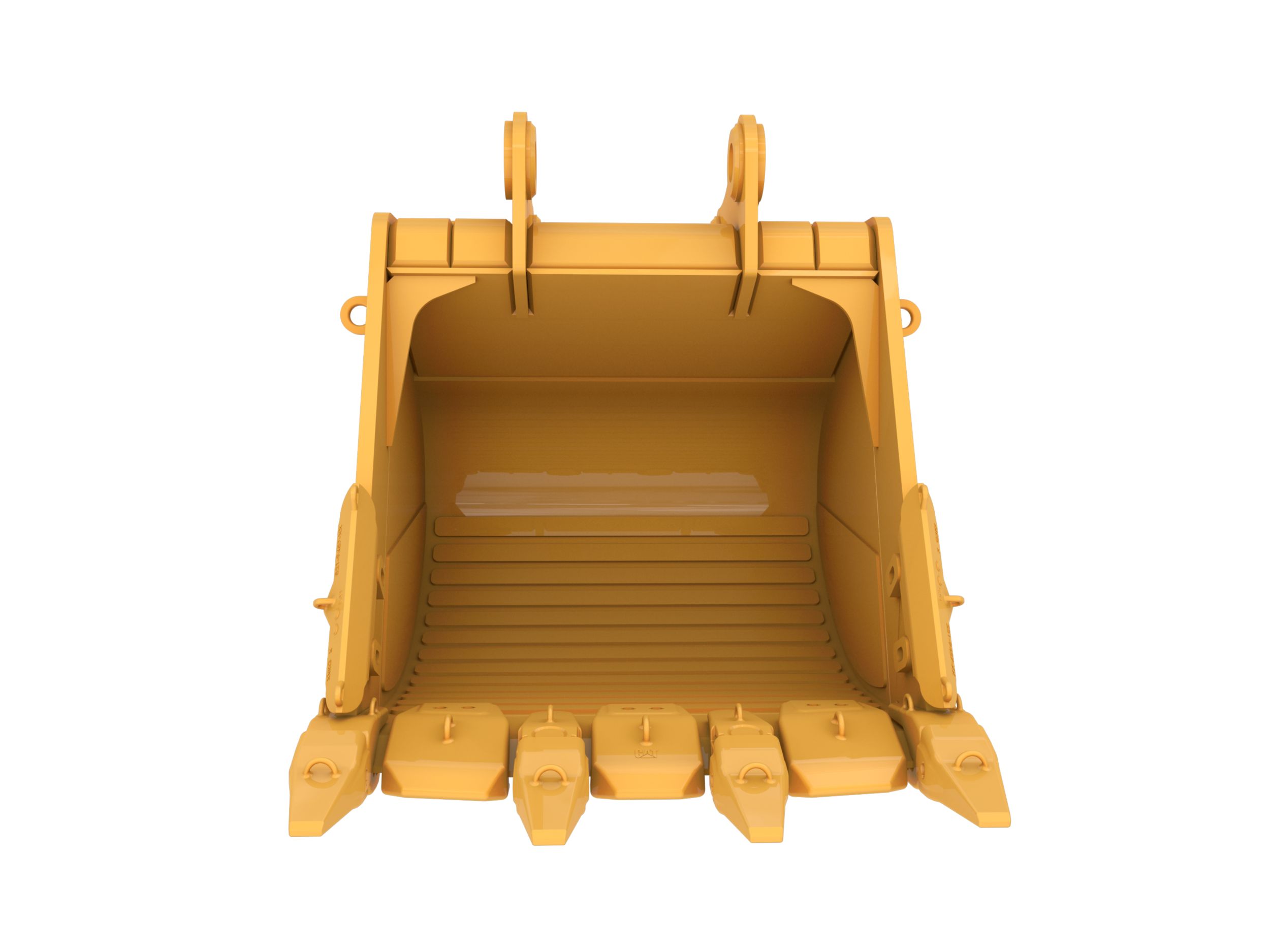

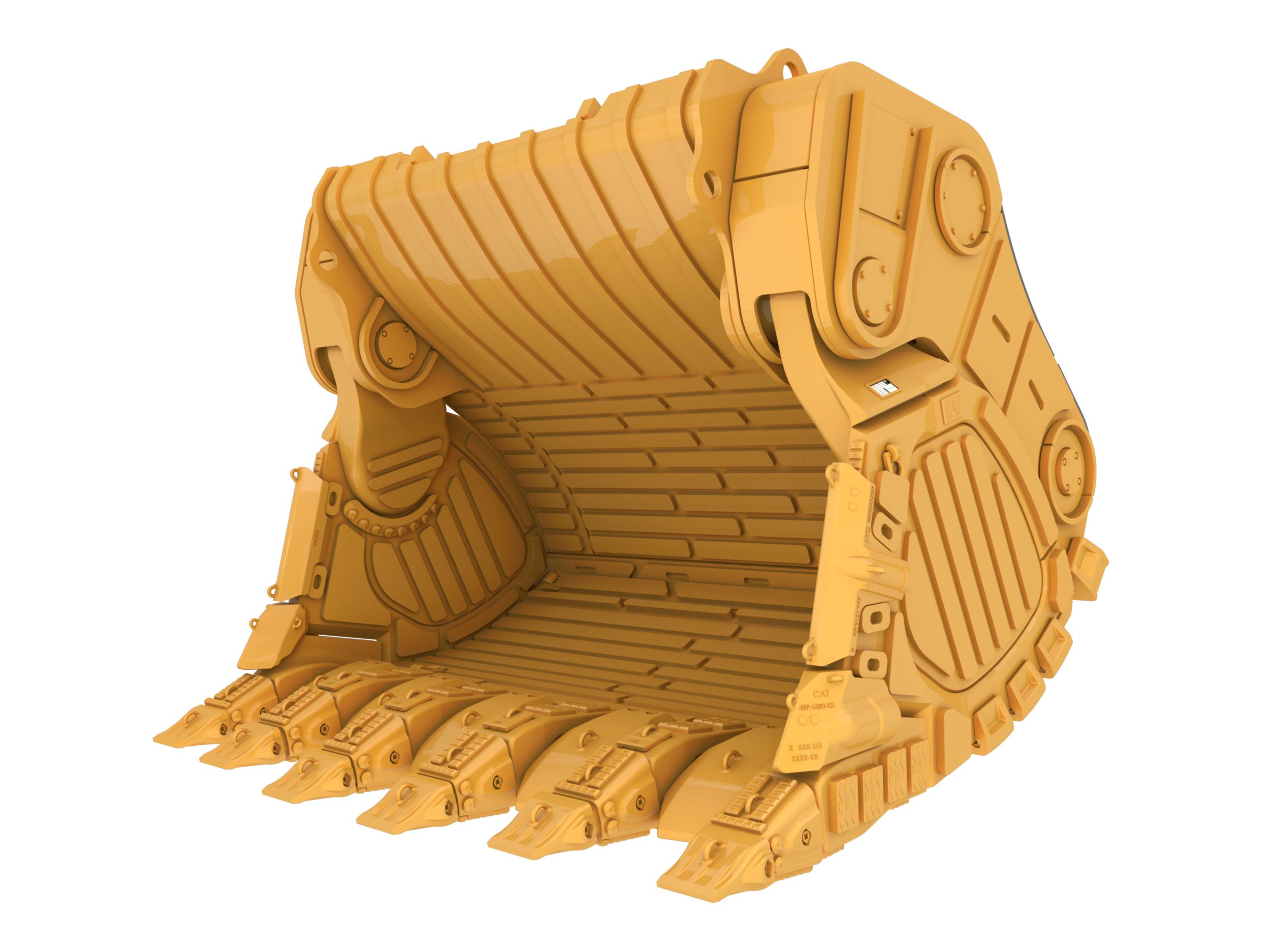

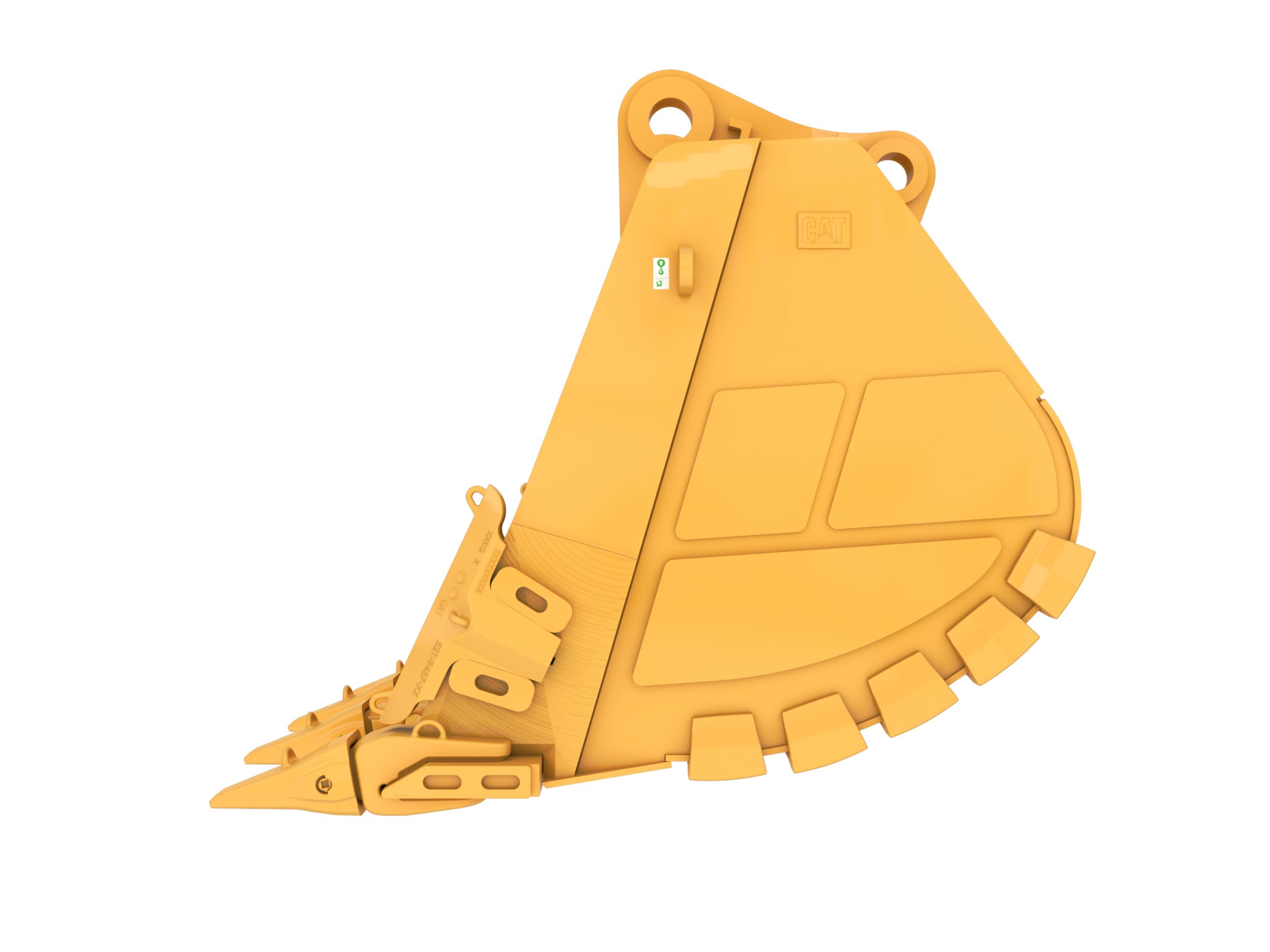

18 m³ (23.5 yd³) Heavy Rock bucket for the 6040 Hydraulic Mining Shovel
18 m³ (23.5 yd³) Heavy Rock face shovel for the 6040 Hydraulic Mining Shovel
Optimum Productivity
A perfect match to the Cat Hydraulic Mining Shovels. Designed to give excellent payload and matched to the power of Cat machines for a long service life.
Efficient
Pass matched to Cat and Unit Rig trucks for an efficient system at your mine site.
Max Payload
Rated with ISO 7451 payload standards with a 1:1 heap ratio
The Support You Need
Cat buckets are fully covered by the Cat dealer network for round the clock support.
معلومات إضافية
| Wear Package | High Abrasion |
|---|---|
| Weight | 80,006 kg ( 36 290 lb ) |
| Outer Width | 4258 mm ( 167.6 in ) |
| Material Density | 2.2 t/m³ ( 3708 lb/yd³ ) |
| Inner Width | 3840 mm ( 151.2 in ) |
| Ground Engaging Tool (GET) System | Cat C110 |
| Machine Model | 6040 |
| Capacity | 18 m³ ( 23.5 yd³ ) |
| Offering Type |
منتجات ذات صلة
-
جرافة الصخور الثقيلة
18 m³ (23.5 yd³) – 601-1886
مشاهدة التفاصيل -
جرافة الصخور الثقيلة
26 m³ (34 yd³) – 602-4606
مشاهدة التفاصيل -
جرافة الصخور الثقيلة

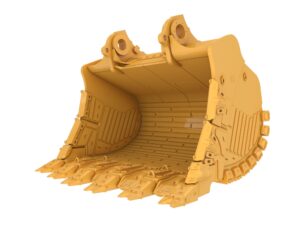

31 m³ (40.5 yd³) – 561-0105
