26 m³ (34 yd³) – 602-4606

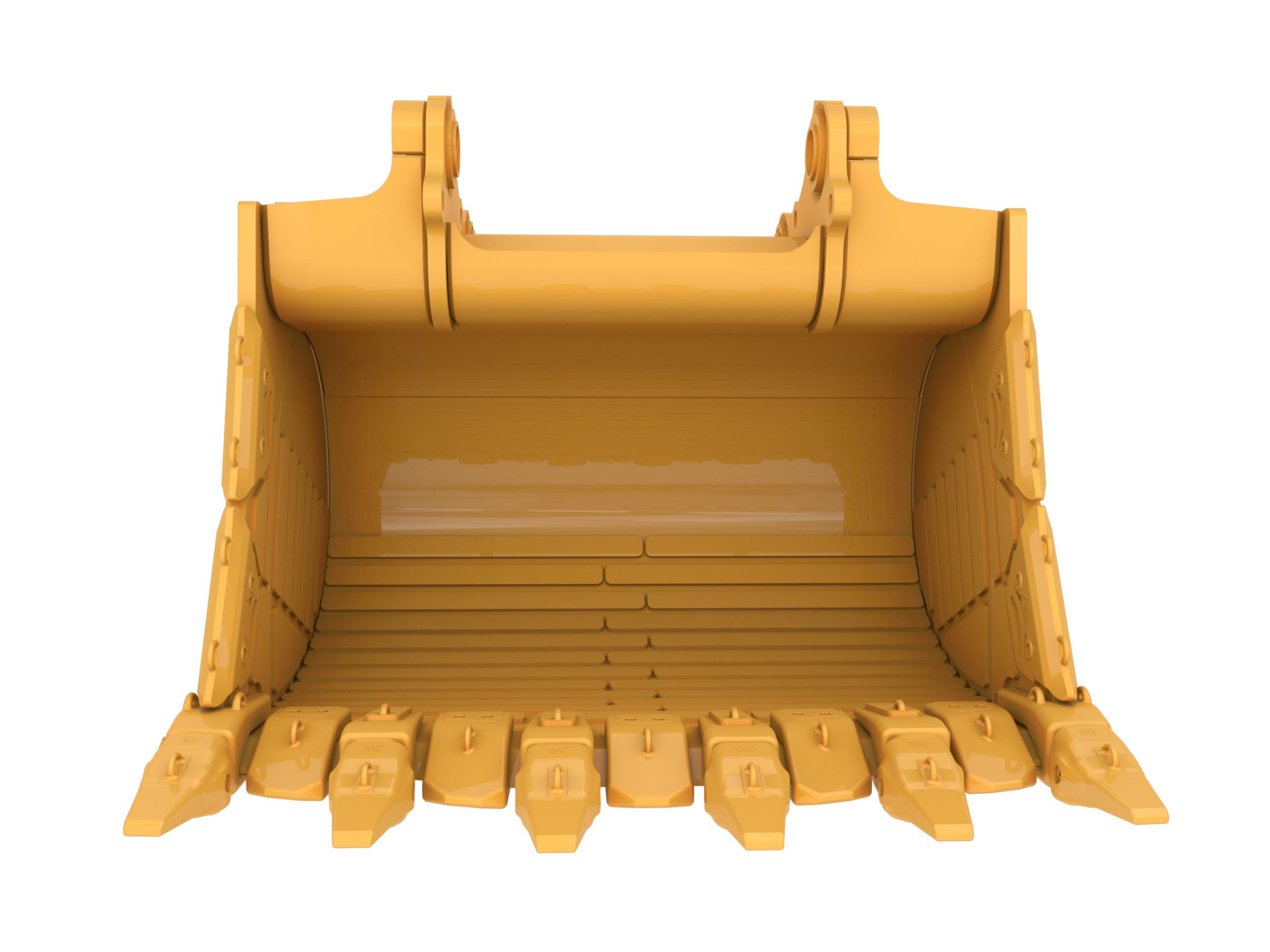

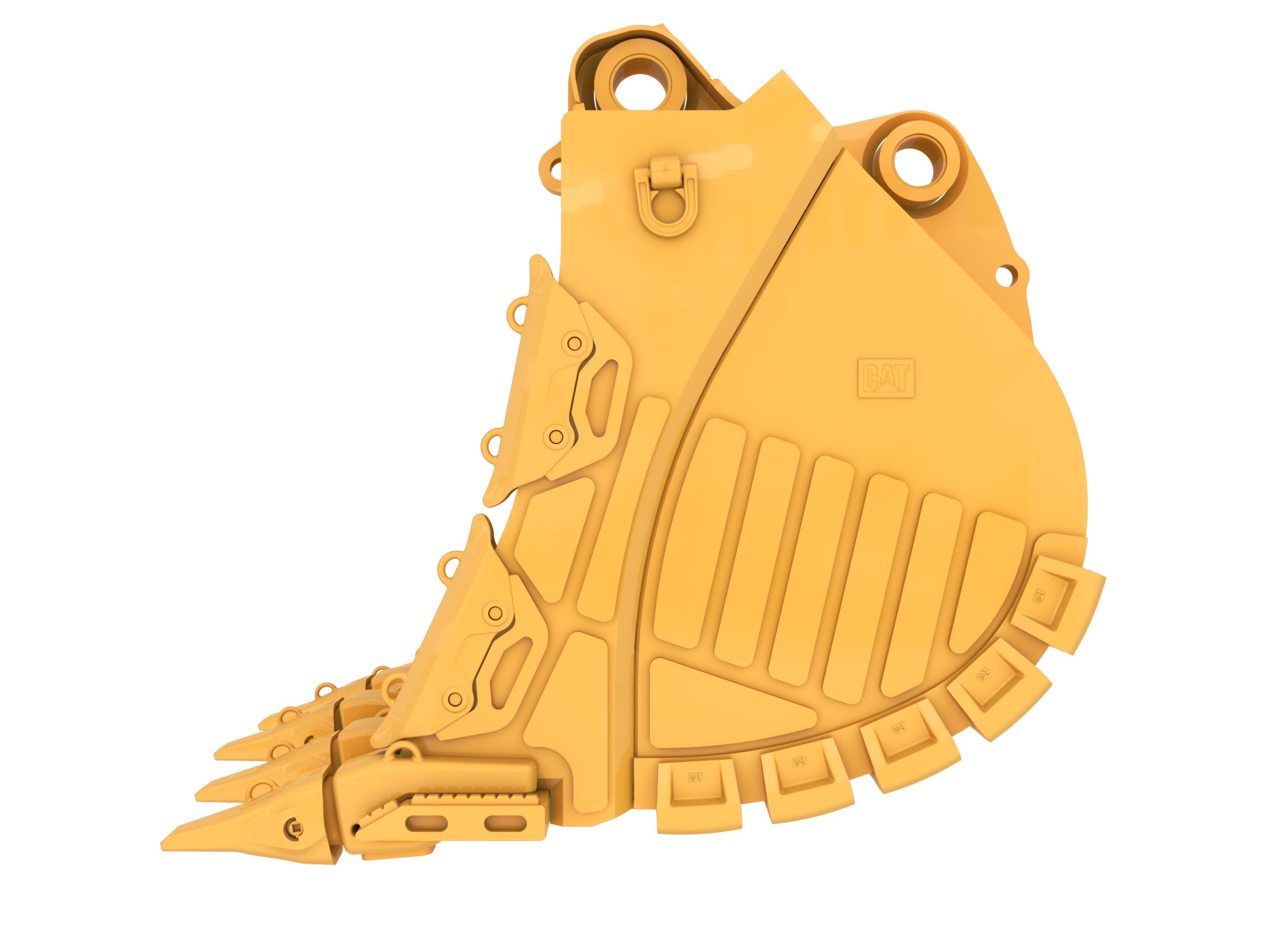

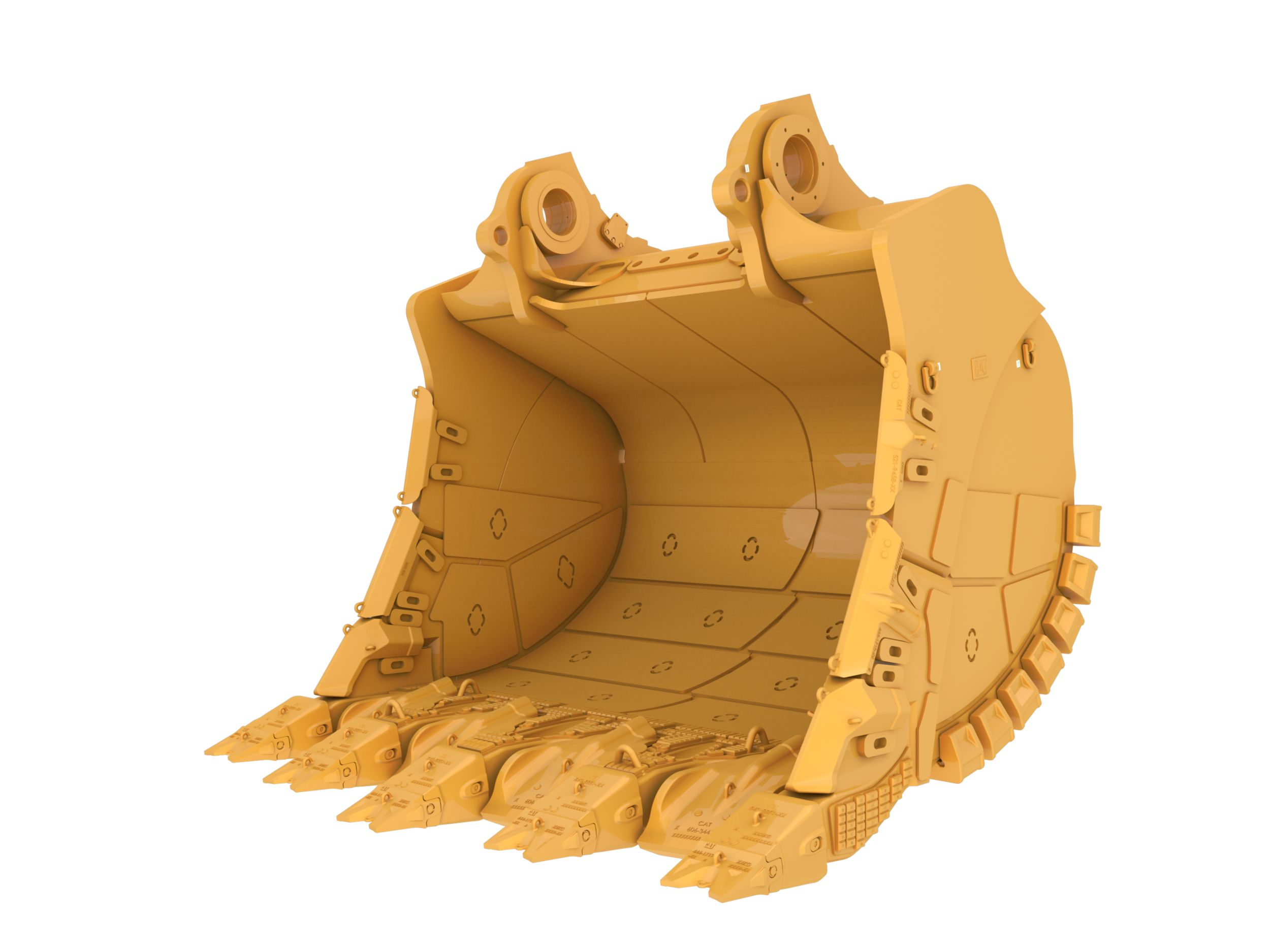

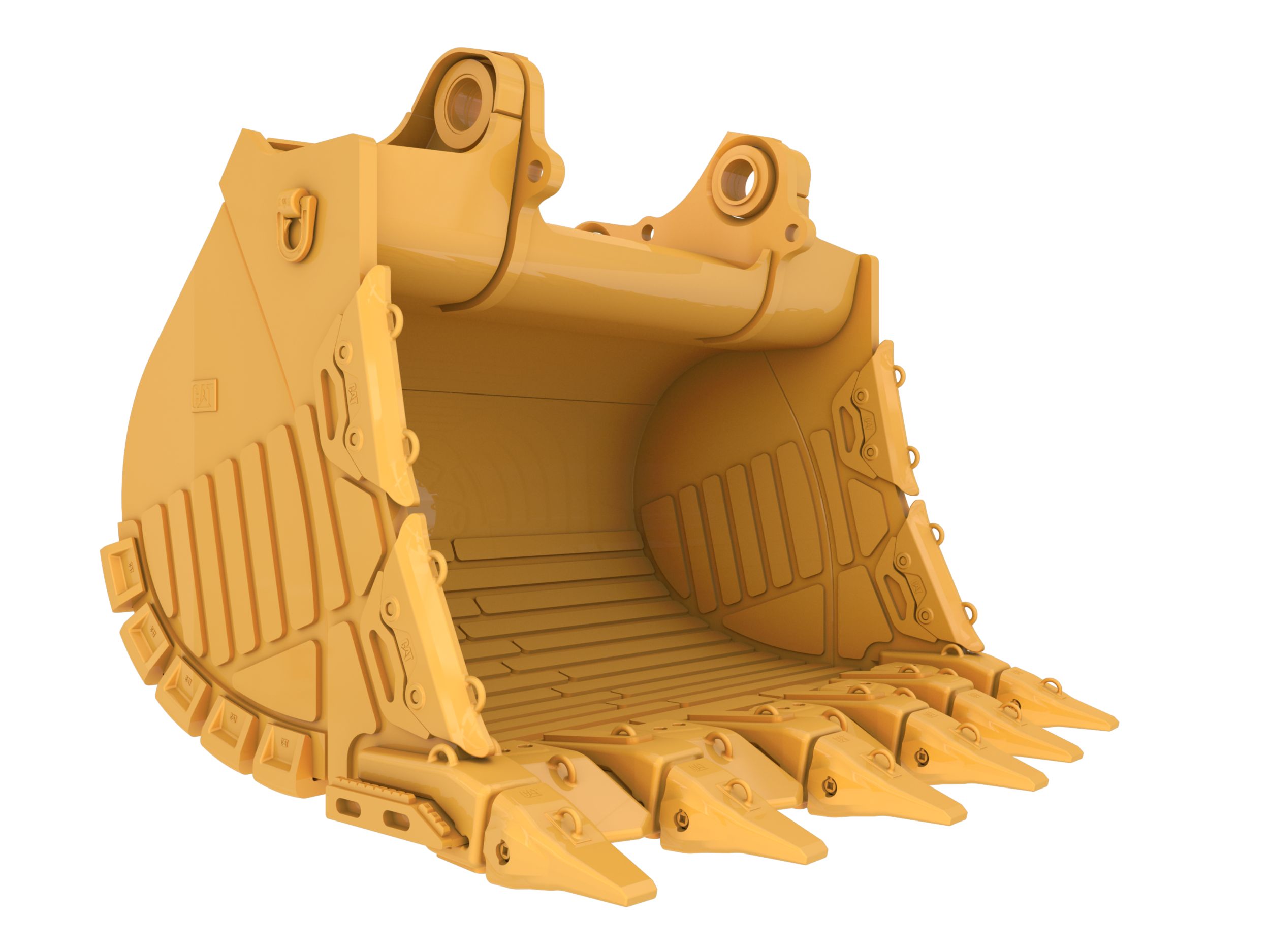

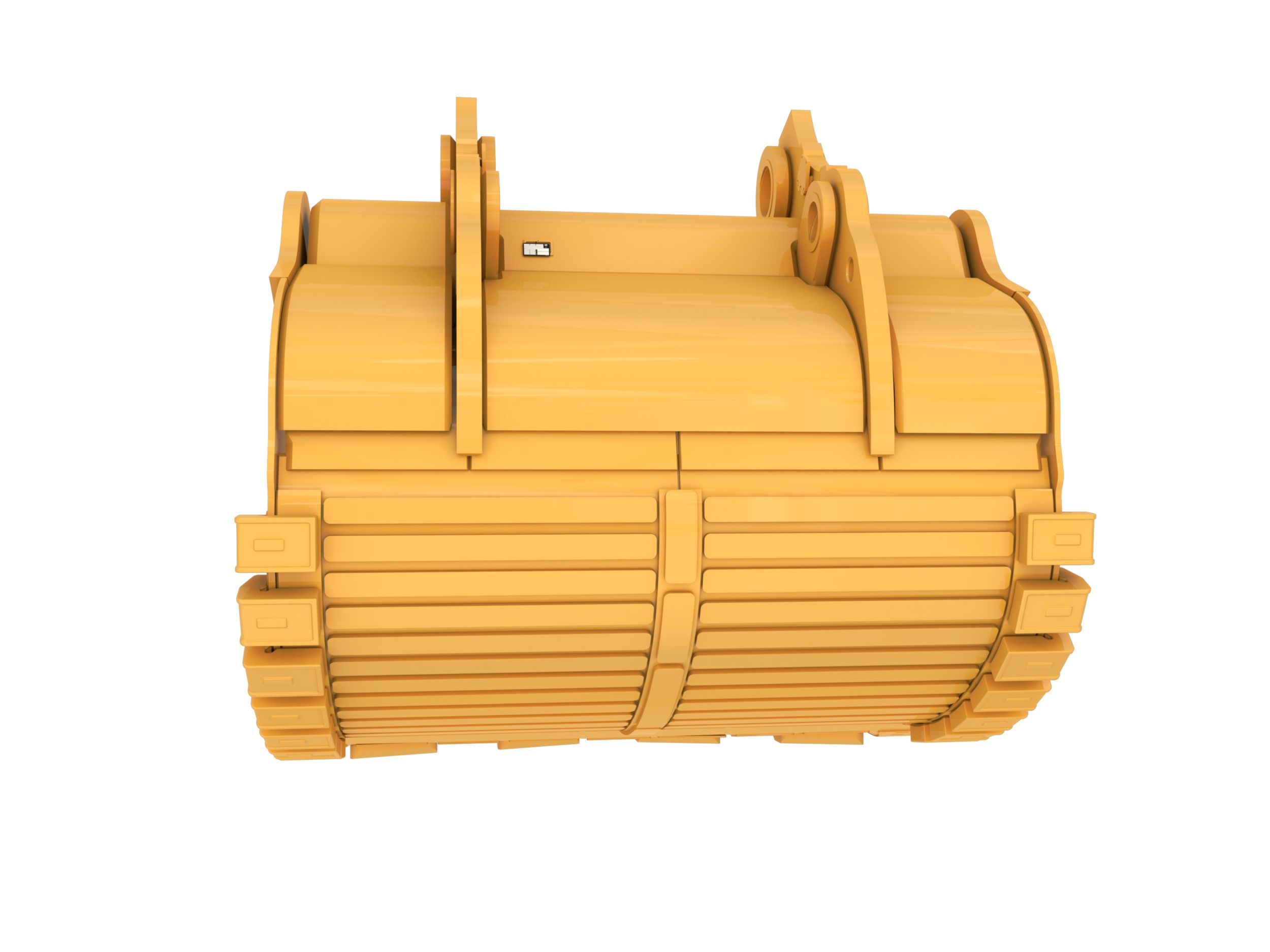

26 m³ (34 yd³) Heavy Rock bucket for the 6060 Hydraulic Mining Shovel

26 m³ (34 yd³) Heavy Rock bucket for the 6060 Hydraulic Mining Shovel

التصنيف:
اضافة إلى طلب عرض سعر

Optimum Productivity

A perfect match to the Cat Hydraulic Mining Shovels. Designed to give excellent payload and matched to the power of Cat machines for a long service life.

Efficient

Pass matched to Cat and Unit Rig trucks for an efficient system at your mine site.

Max Payload

Rated with ISO 7451 payload standards with a 1:1 heap ratio

The Support You Need

Cat buckets are fully covered by the Cat dealer network for round the clock support.

معلومات إضافية

Wear Package

Extreme Duty – Impact
Weight

76,293 kg ( 34 606 lb )
Outer Width

4264 mm ( 167.9 in )
Material Density

2.2 t/m³ ( 3708 lb/yd³ )
Inner Width

3760 mm ( 148 in )
Ground Engaging Tool (GET) System

Cat W950
Machine Model

6060
Capacity

26 m³ ( 34 yd³ )
Offering Type
