28 m³ (36.6 yd³) – 565-9157

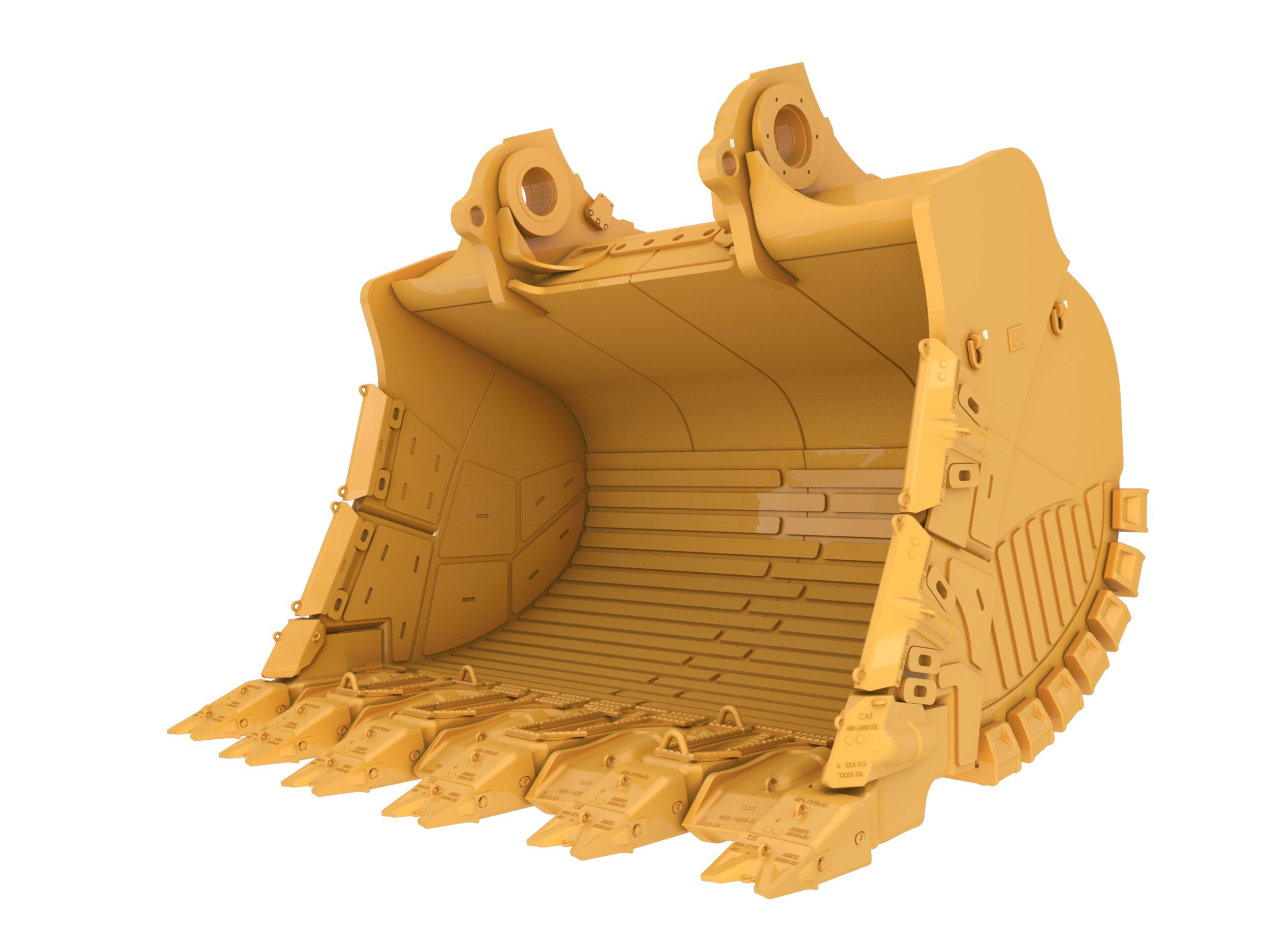

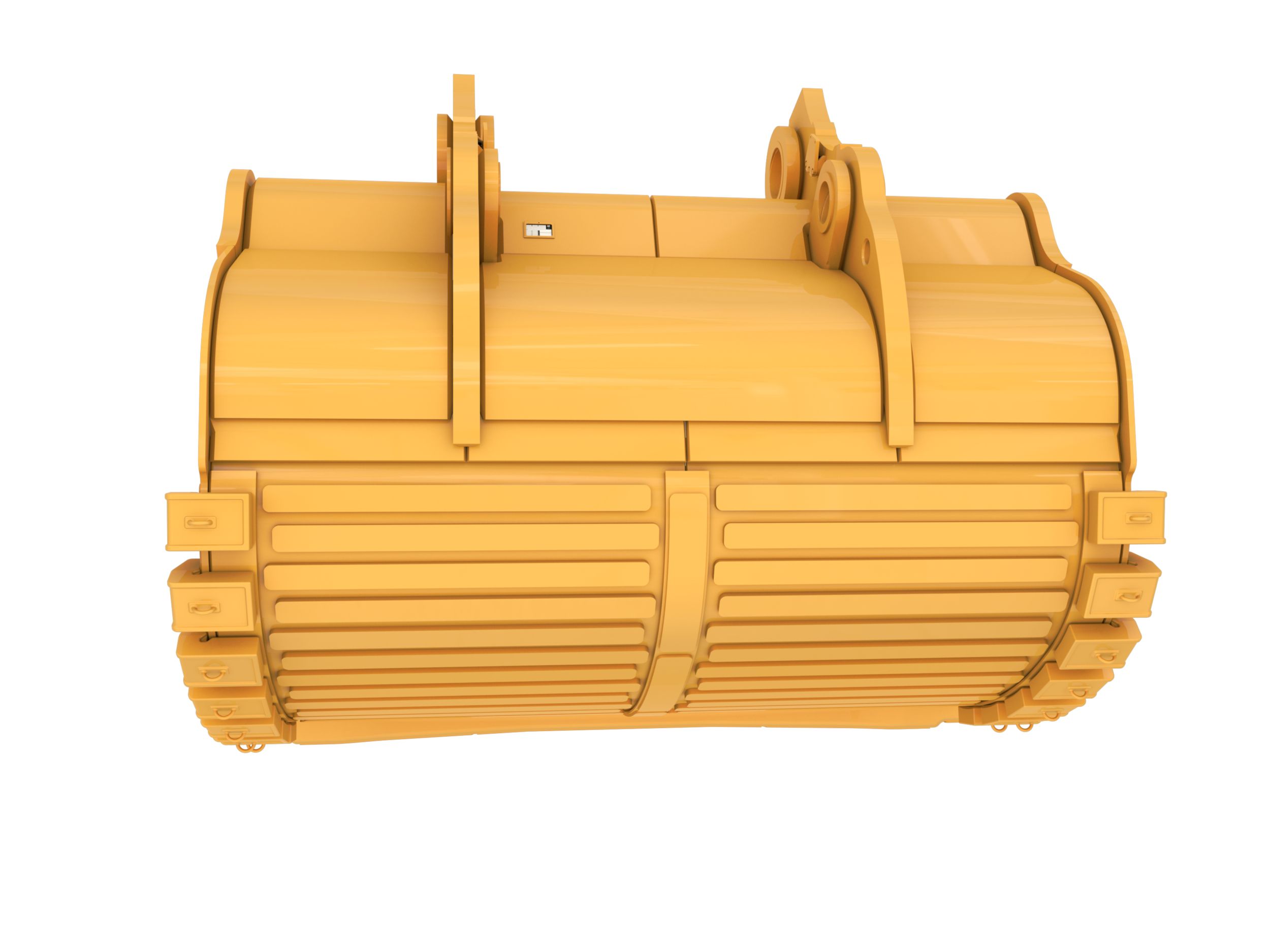

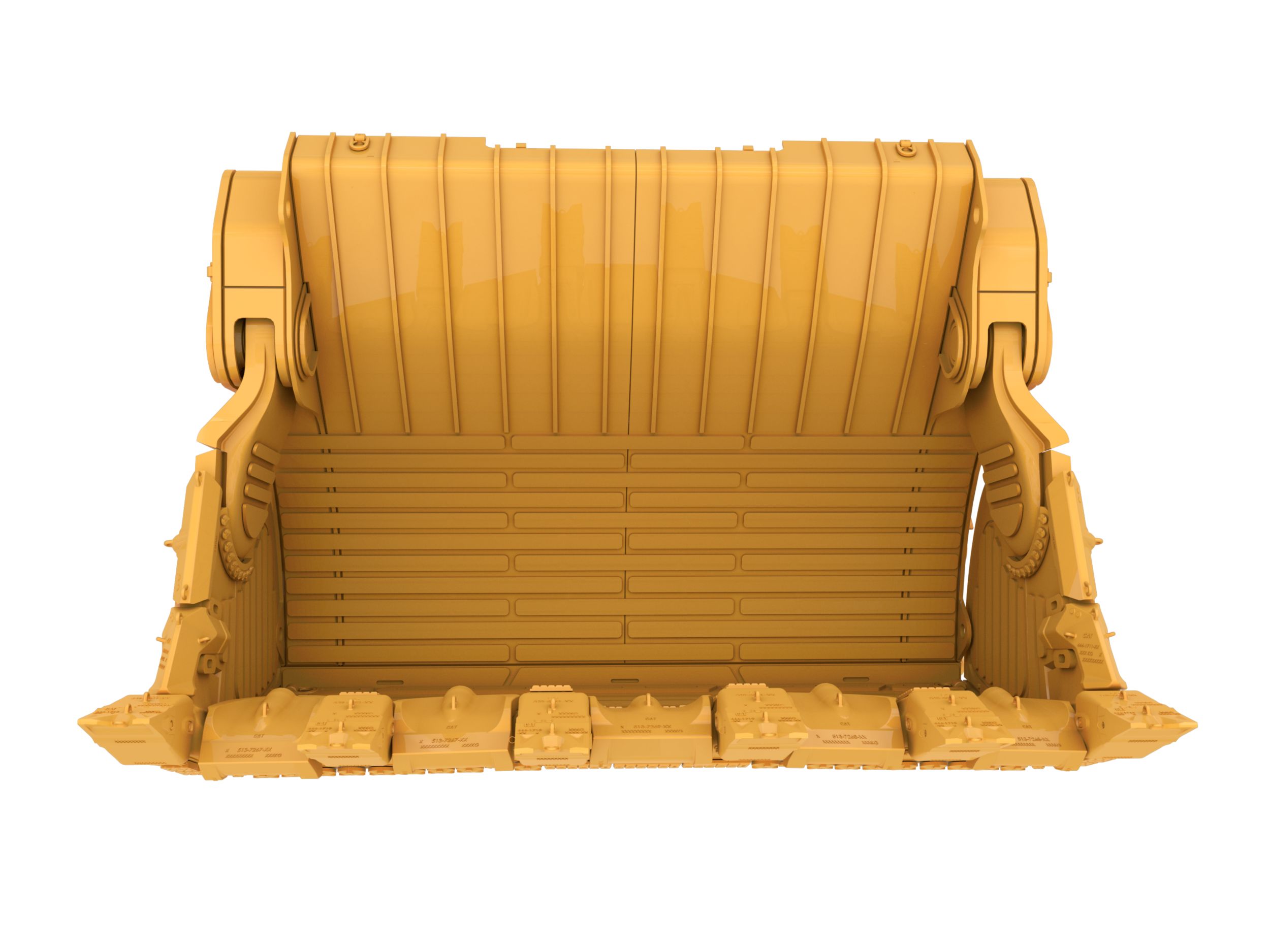

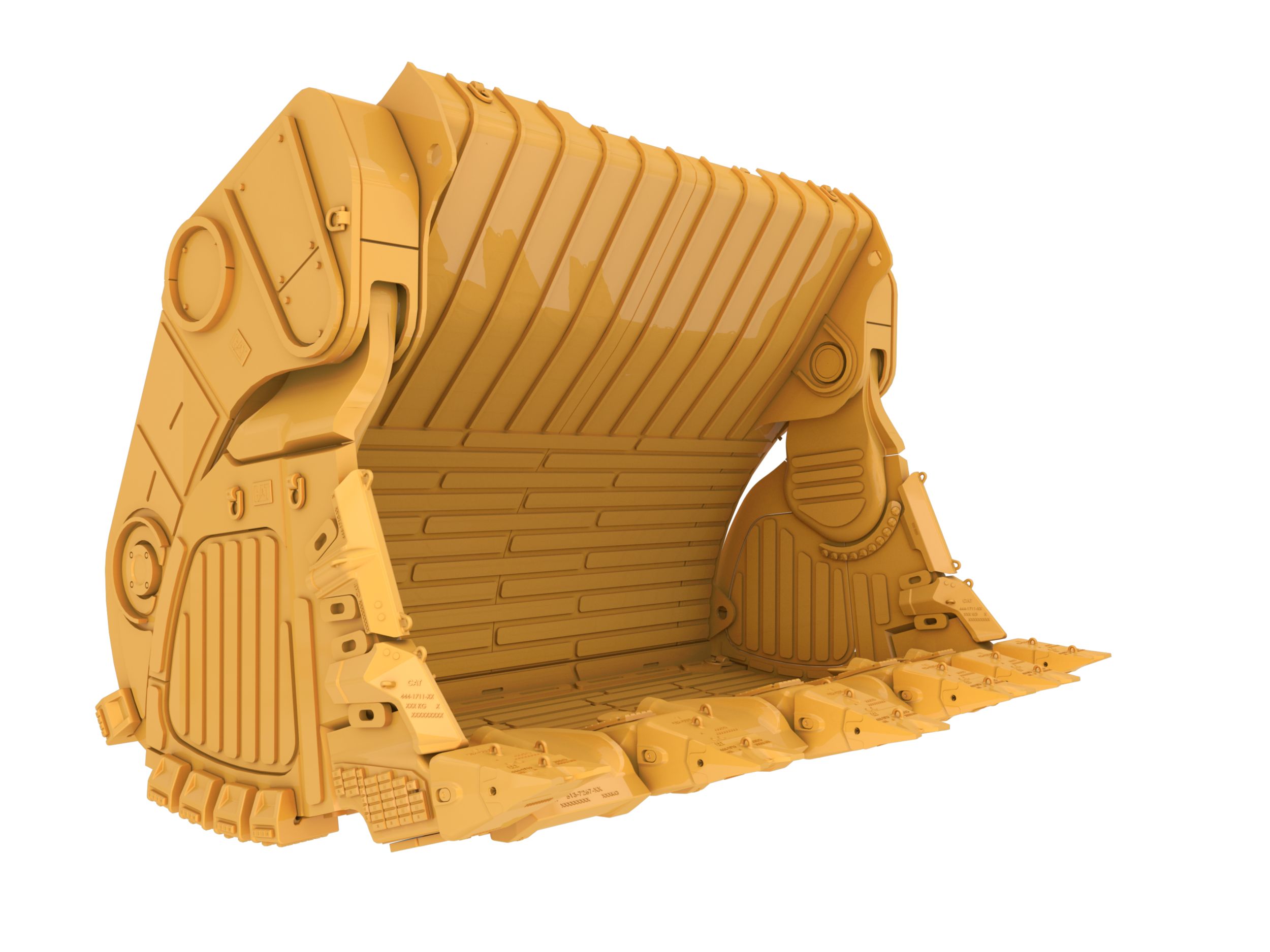

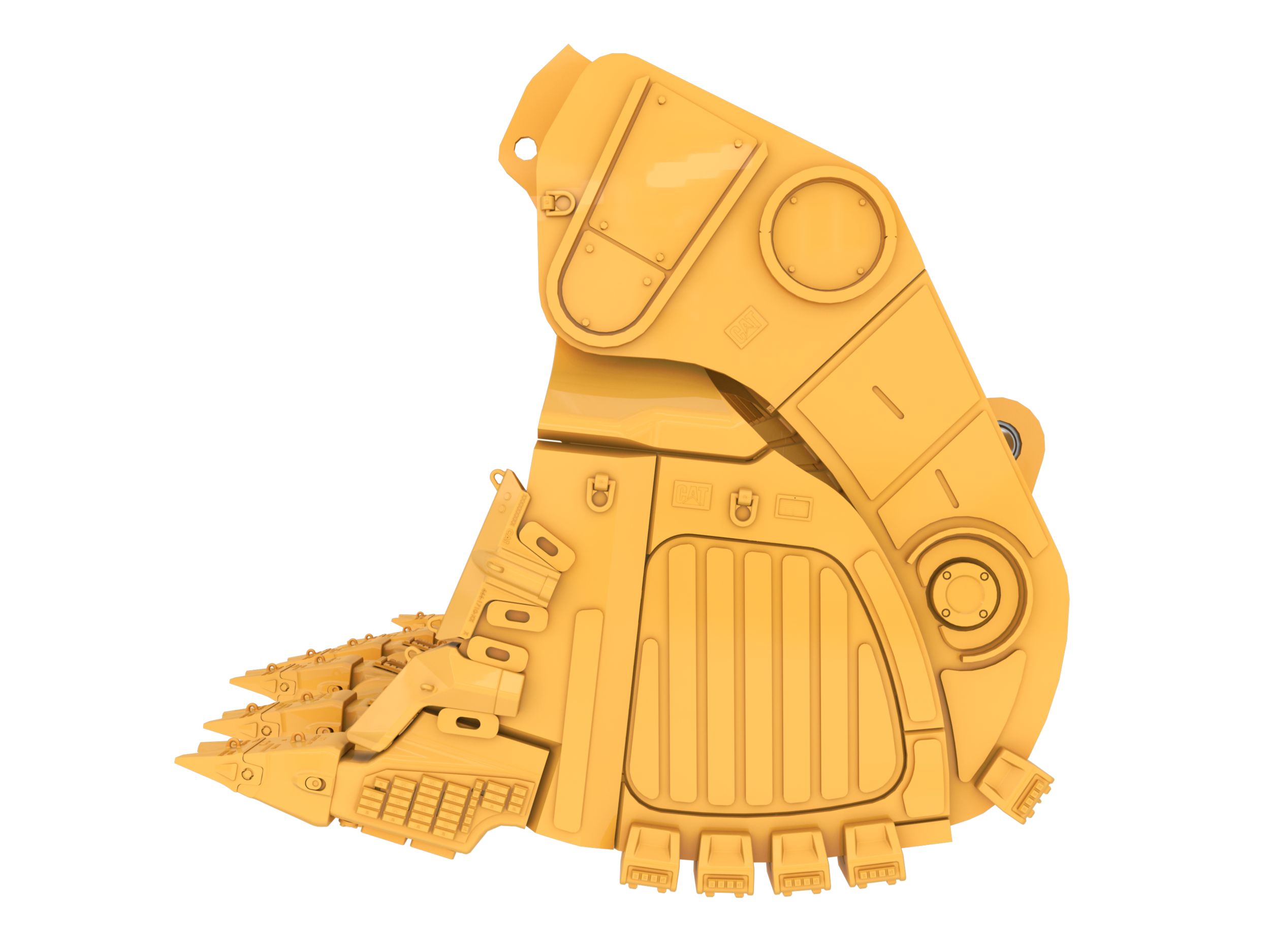

28 m³ (36.6 yd³) Heavy Rock bucket for the 6060 Hydraulic Mining Shovel

28 m³ (36.6 yd³) Heavy Rock bucket for the 6060 Hydraulic Mining Shovel

التصنيف:
اضافة إلى طلب عرض سعر

Optimum Productivity

A perfect match to the Cat Hydraulic Mining Shovels. Designed to give excellent payload and matched to the power of Cat machines for a long service life.

Efficient

Pass matched to Cat and Unit Rig trucks for an efficient system at your mine site.

Max Payload

Rated with ISO 7451 payload standards with a 1:1 heap ratio

The Support You Need

Cat buckets are fully covered by the Cat dealer network for round the clock support.

معلومات إضافية

Wear Package

Extreme Duty – Impact
Weight

78,513 kg ( 35 613 lb )
Outer Width

4767 mm ( 187.7 in )
Material Density

2 t/m³ ( 3371 lb/yd³ )
Inner Width

4300 mm ( 169.3 in )
Ground Engaging Tool (GET) System

Cat W900
Machine Model

6060
Capacity

28 m³ ( 36.6 yd³ )
Offering Type
