34 m³ (44.5 yd³) – 512-7166

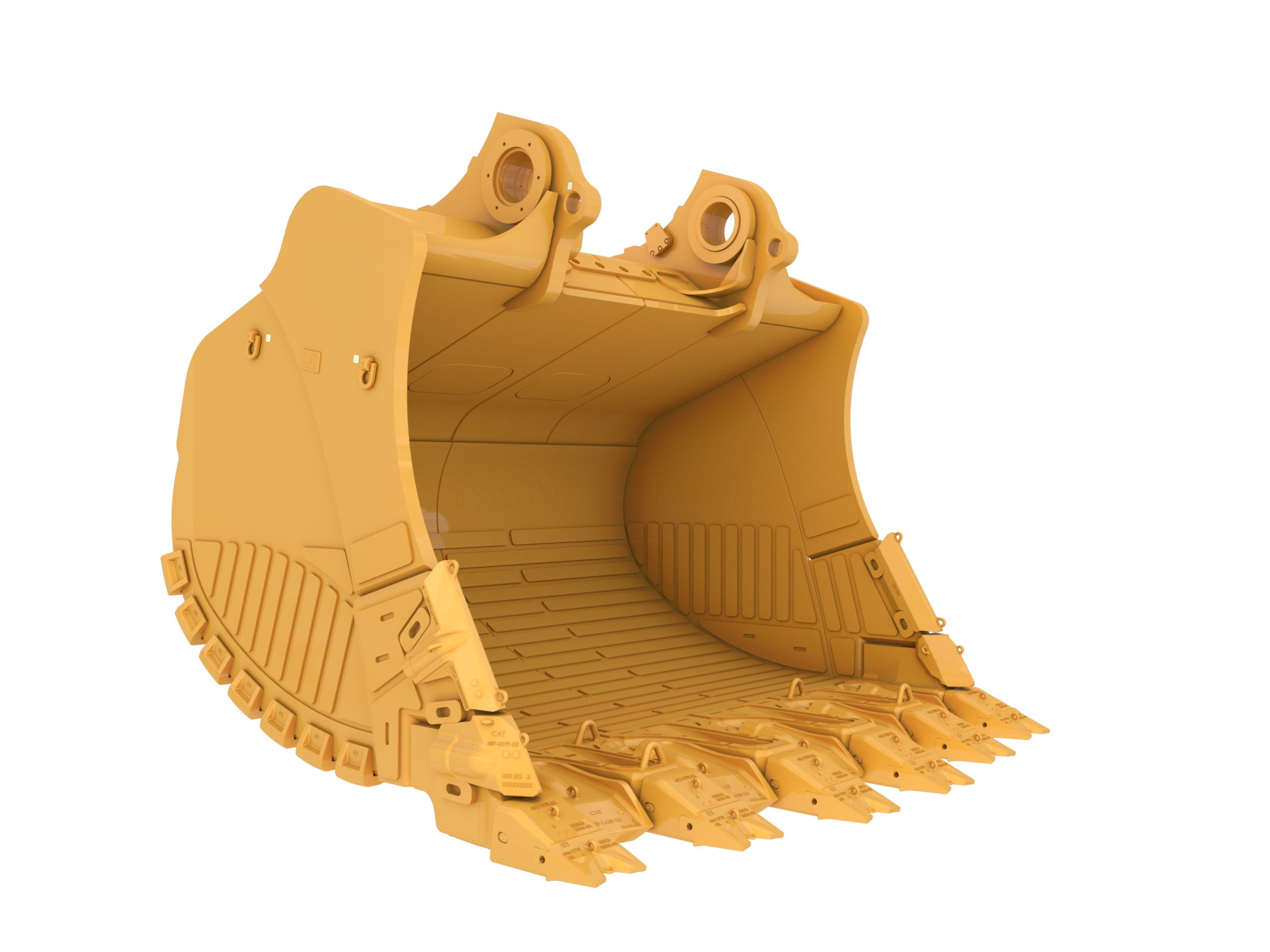

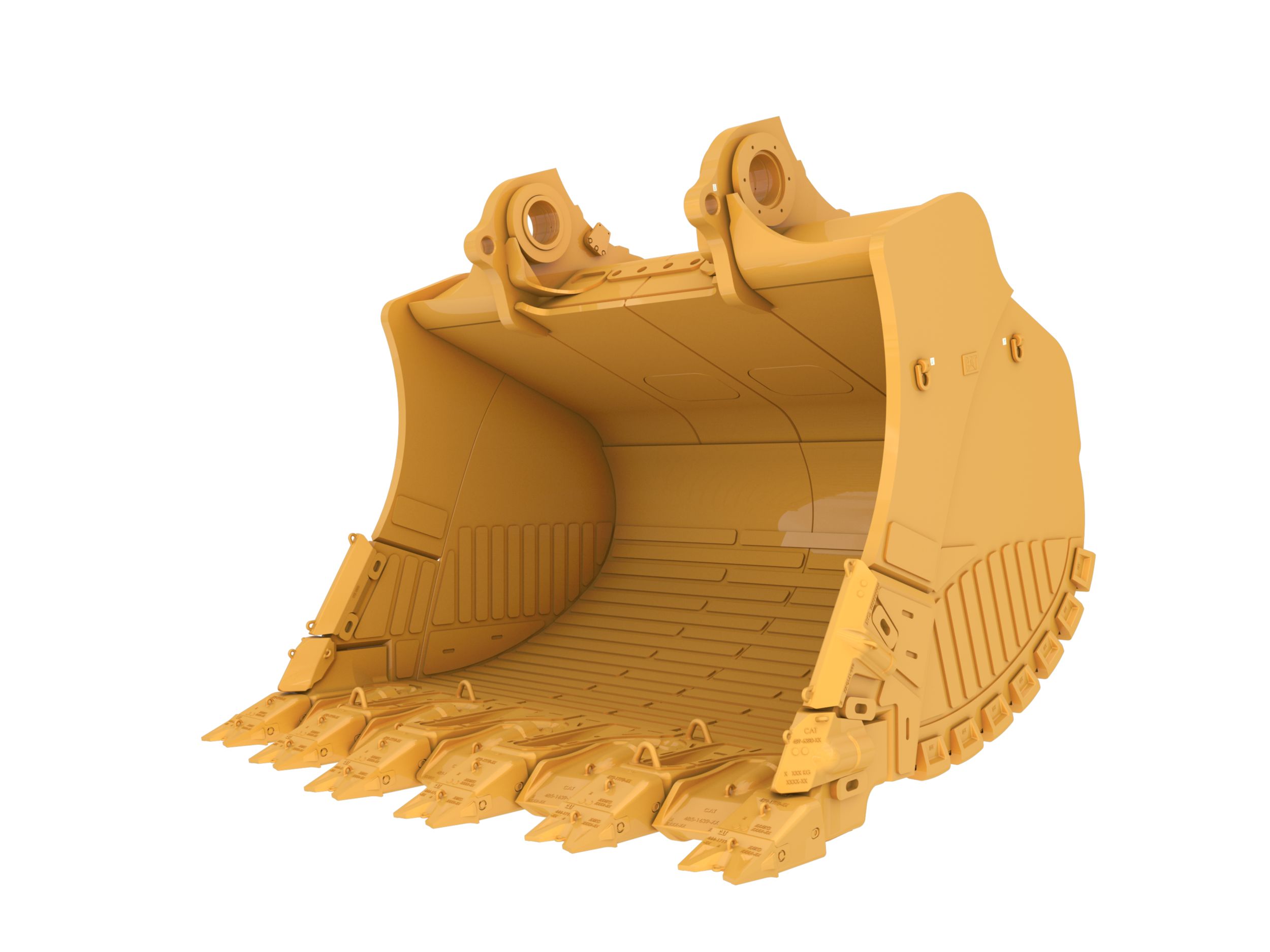

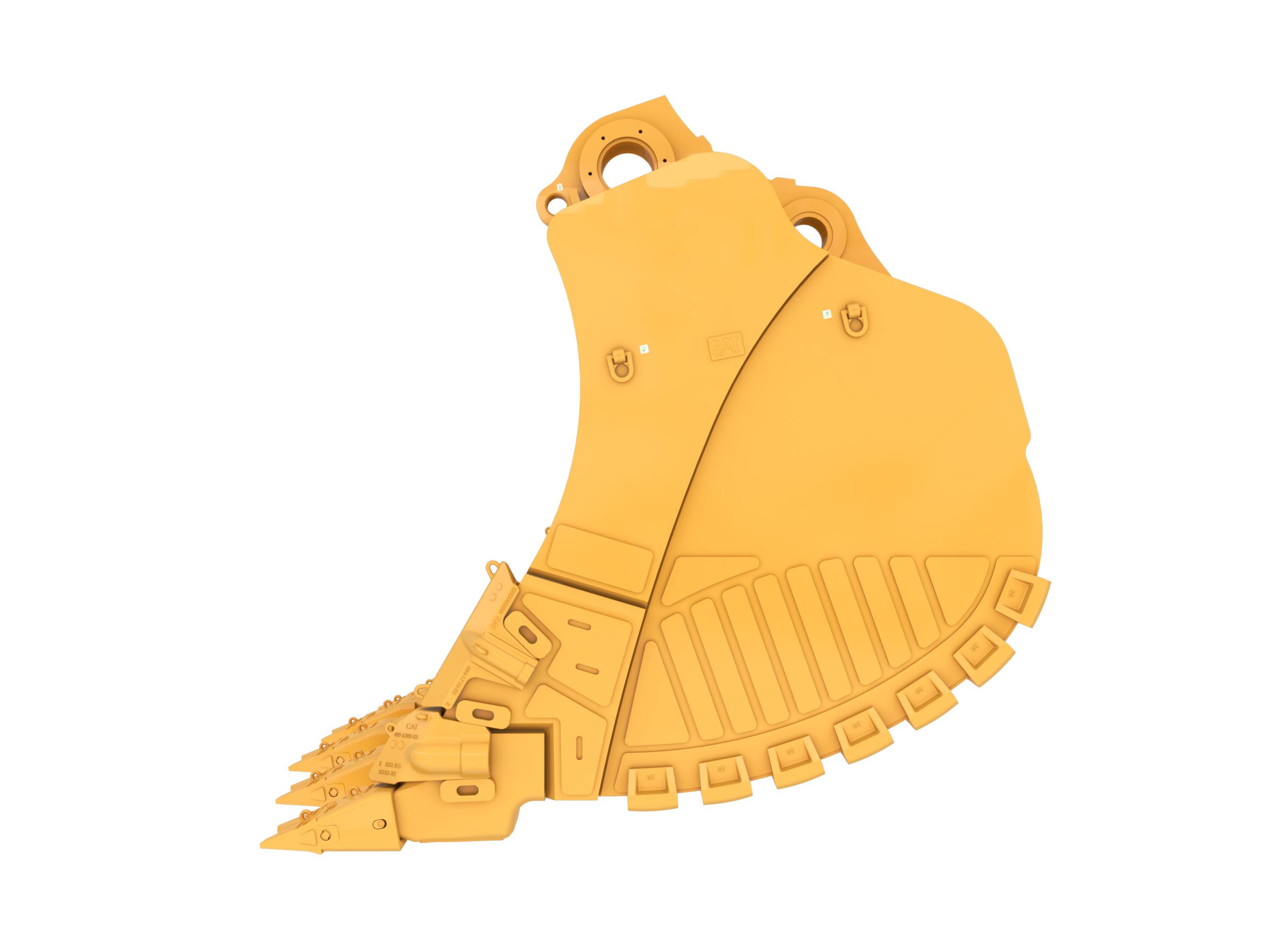

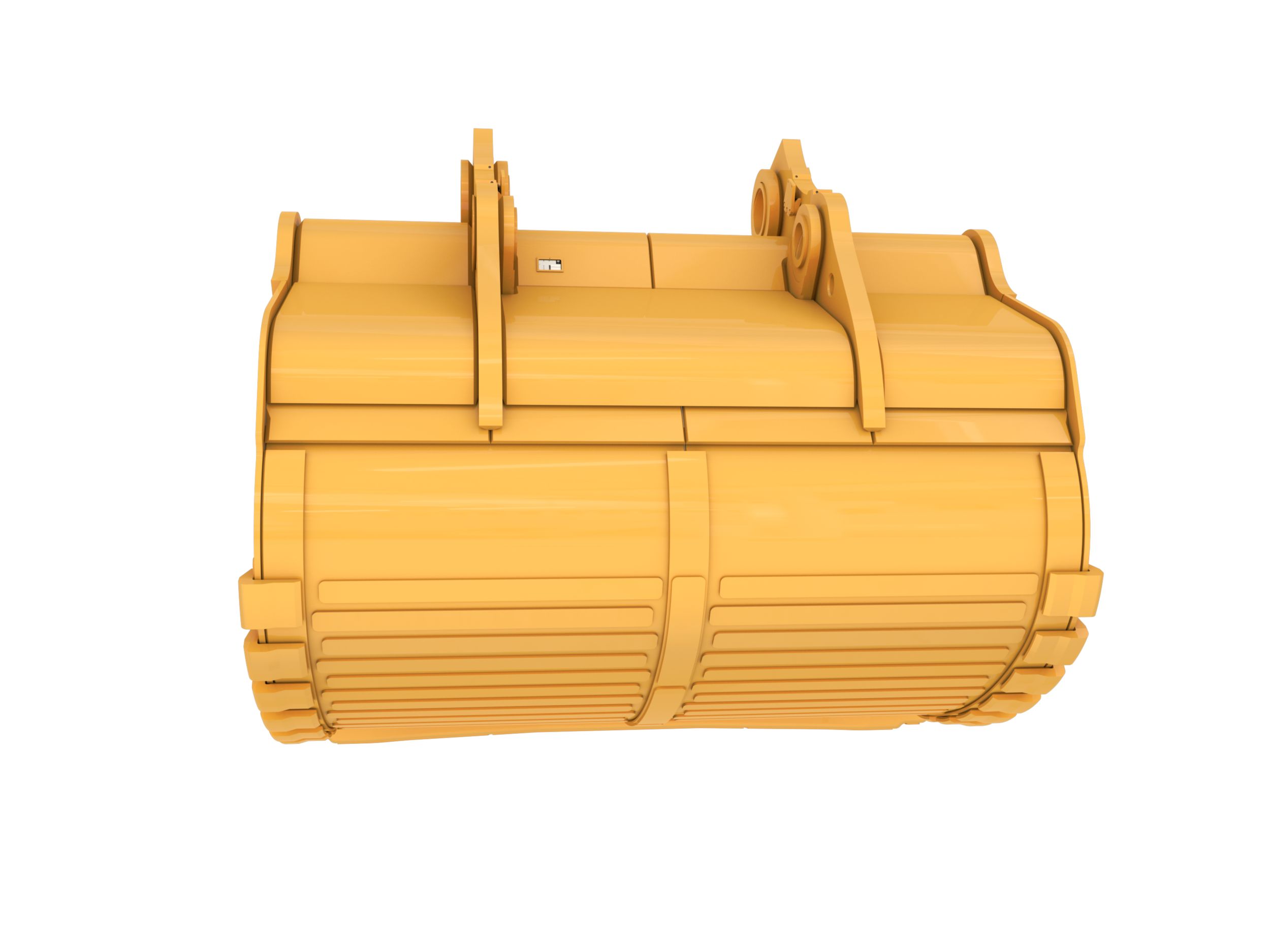

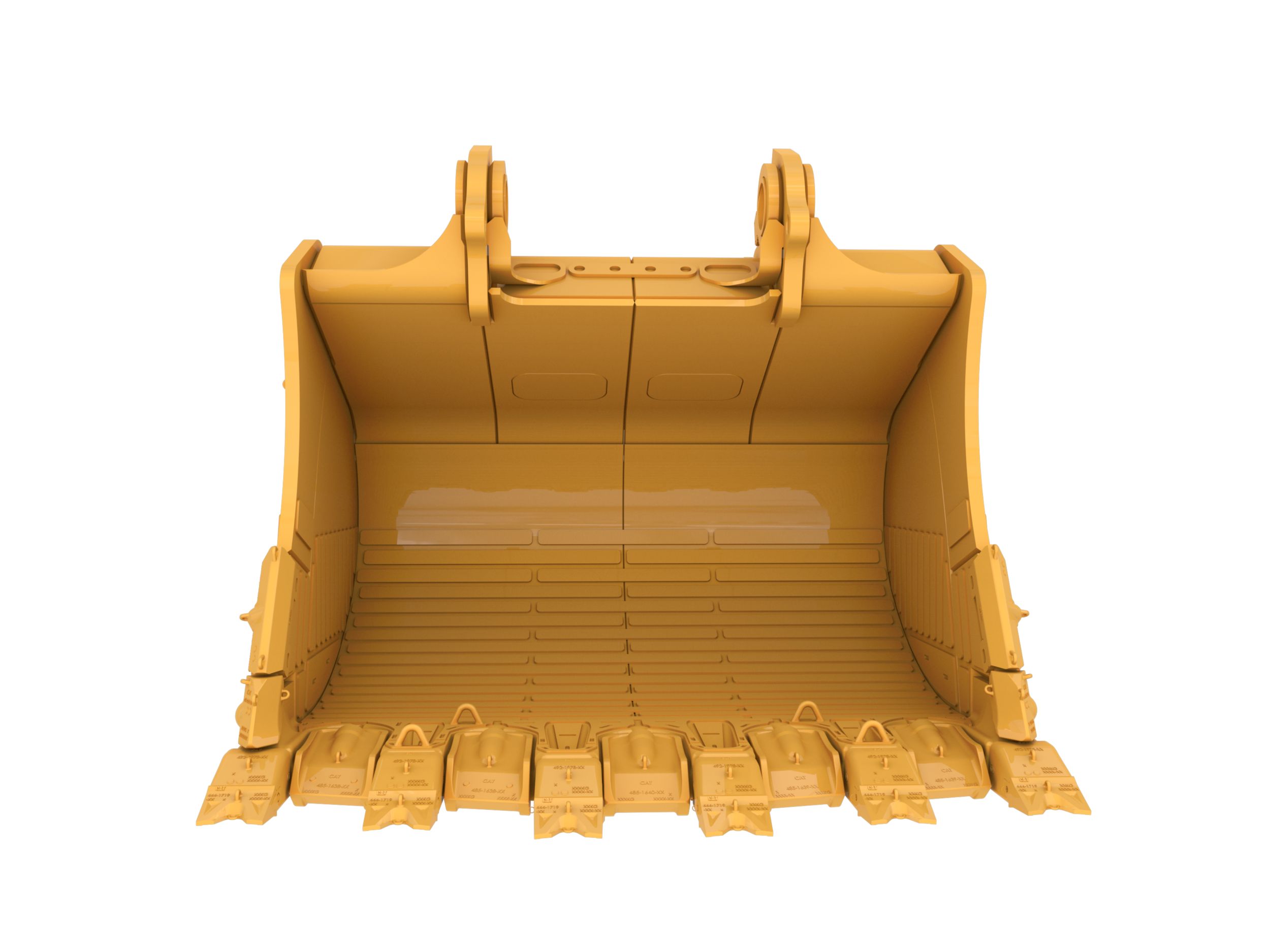

34 m³ (44.5 yd³) Standard Rock bucket for the 6060 Hydraulic Mining Shovel
Cat Standard Rock buckets are production-oriented buckets designed for use in medium-density material, which can stick to the walls of other buckets. Standard Rock buckets come equipped with wear protection for the leading edges and heel. Wear plates are usually Quenched and Tempered for maximum durability in high-impact conditions.
معلومات إضافية
| Material Density | 1.8 t/m³ ( 3034 lb/yd³ ) |
|---|---|
| Wear Package | Heavy Duty – Abrasive |
| Ground Engaging Tool (GET) System | Cat W900 |
| Machine Model | 6060 |
| Capacity | 34 m³ ( 44.5 yd³ ) |
| Weight | 34652 kg ( 76394 lb ) |
| Outer Width | 4762 mm ( 187.5 in ) |
| Inner Width | 4300 mm ( 169.3 in ) |
| Offering Type |
