5.8 m³ (7.6 yd³) – 458-3475

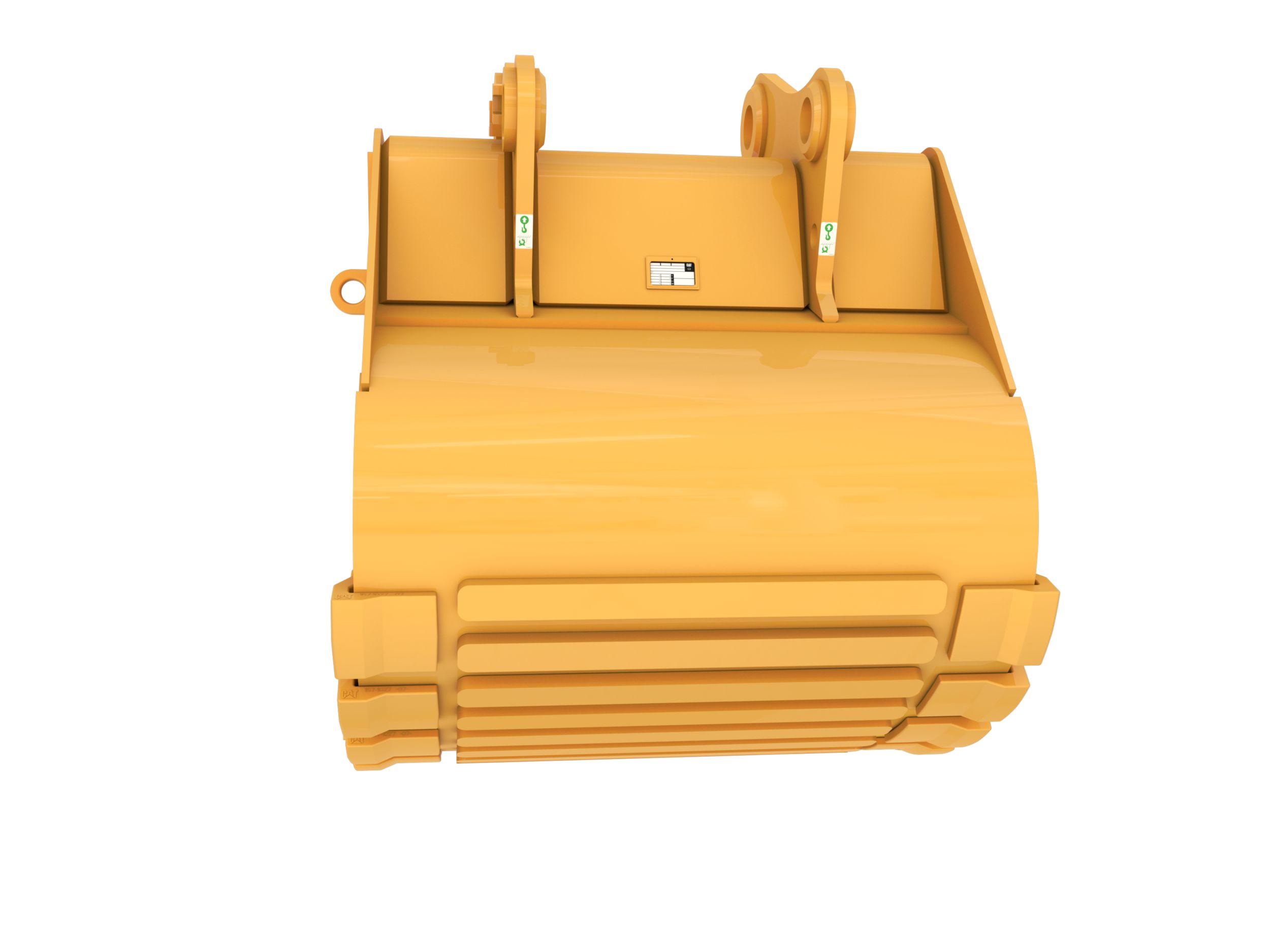

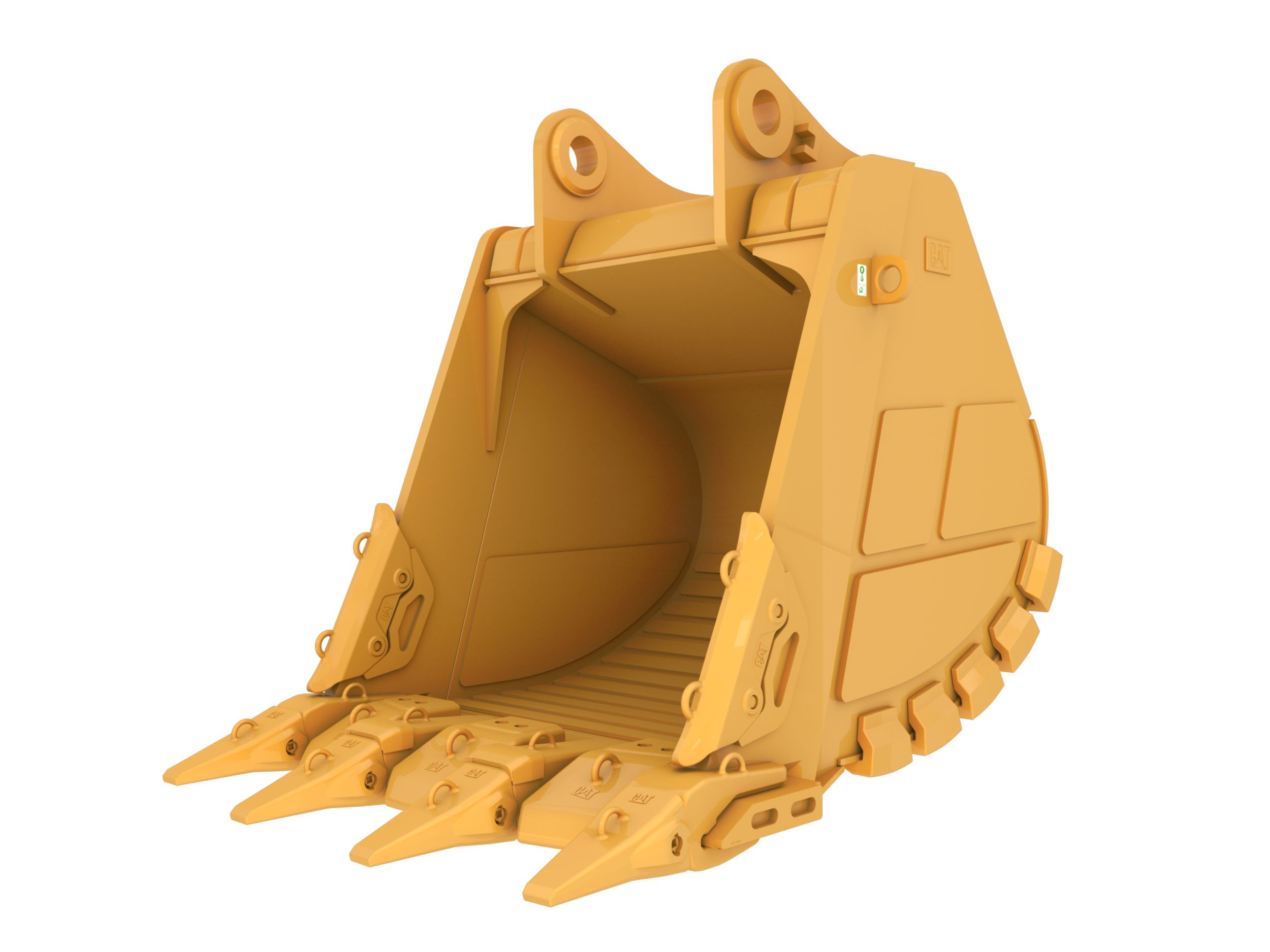

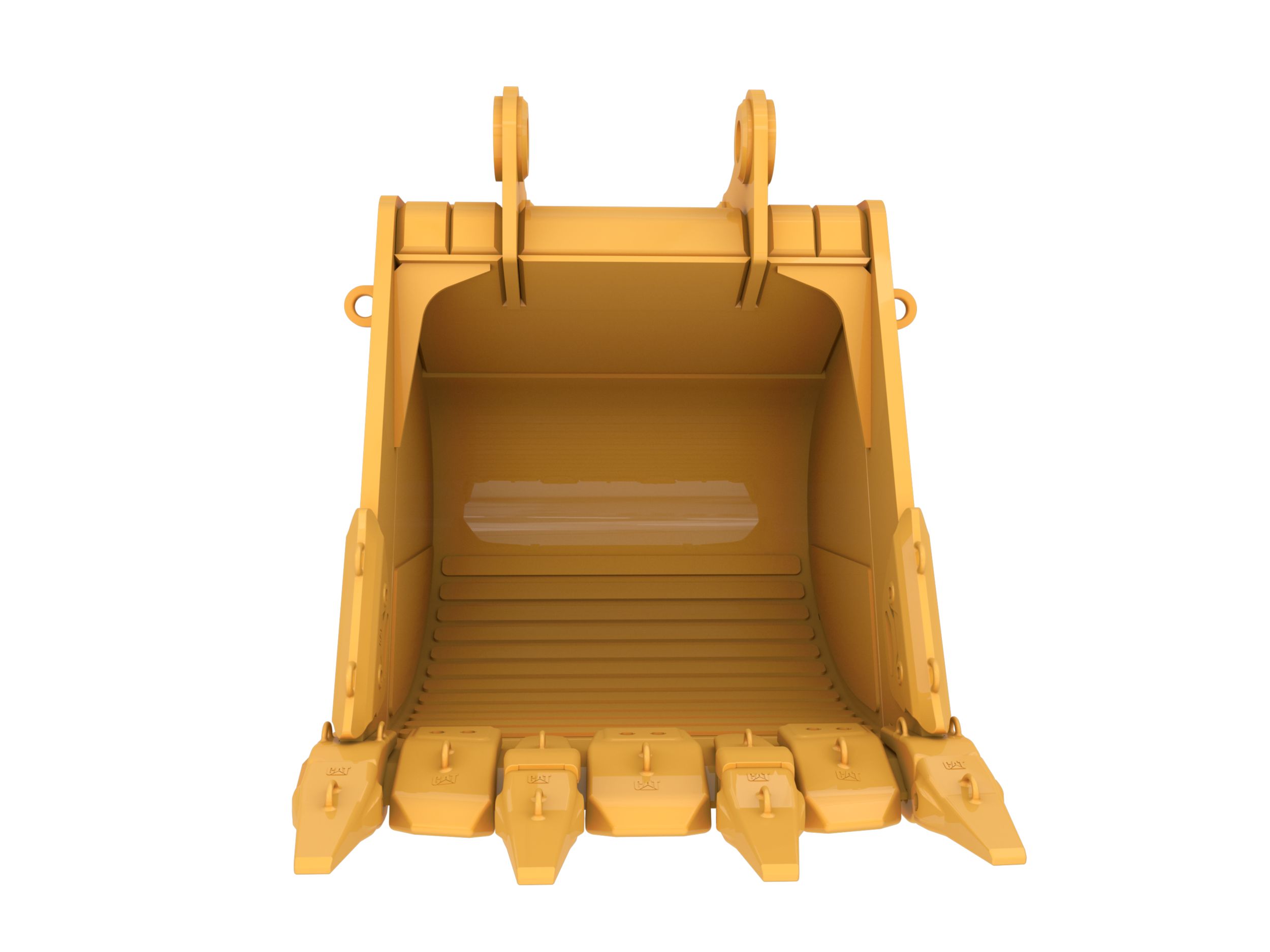

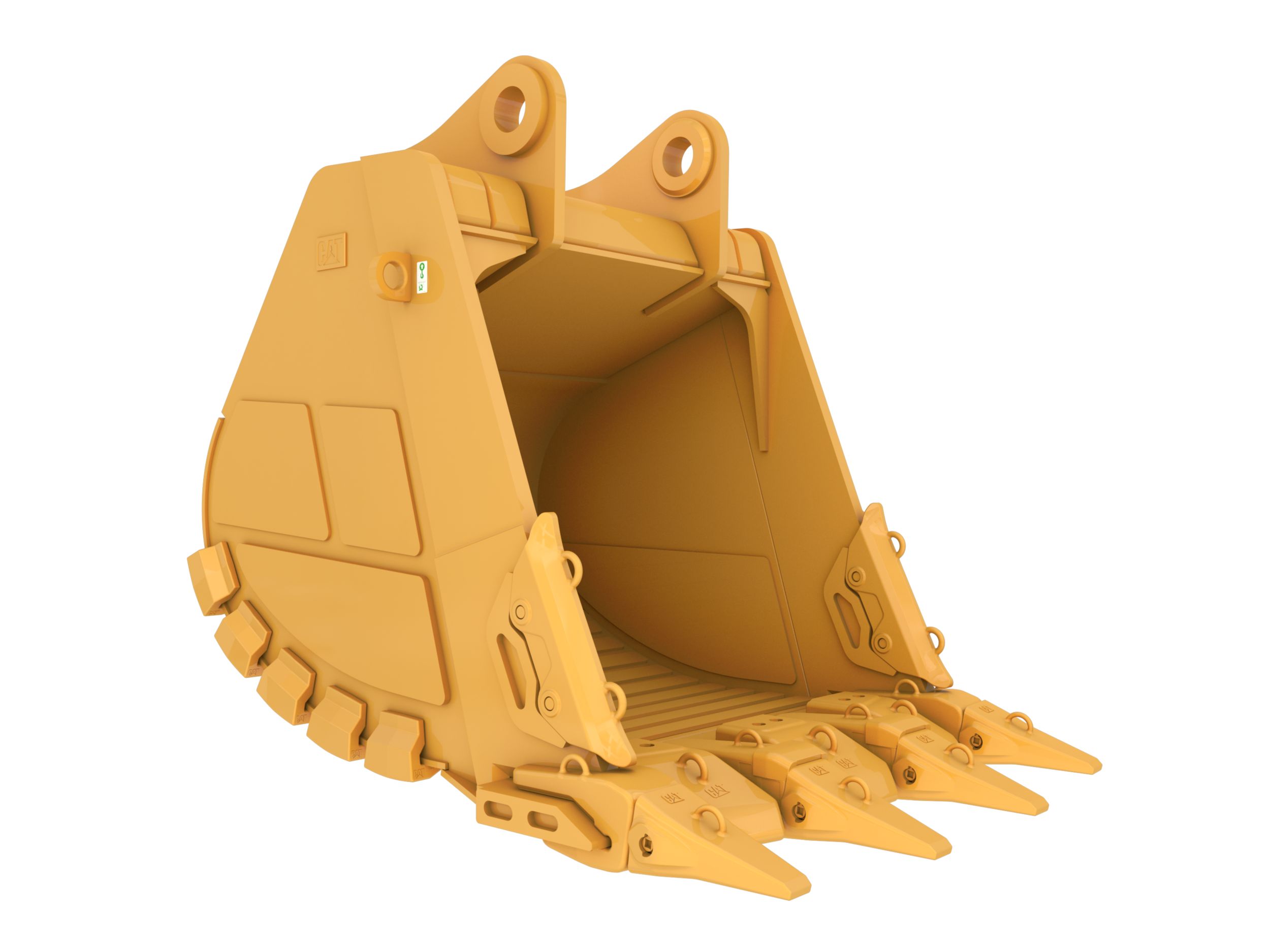

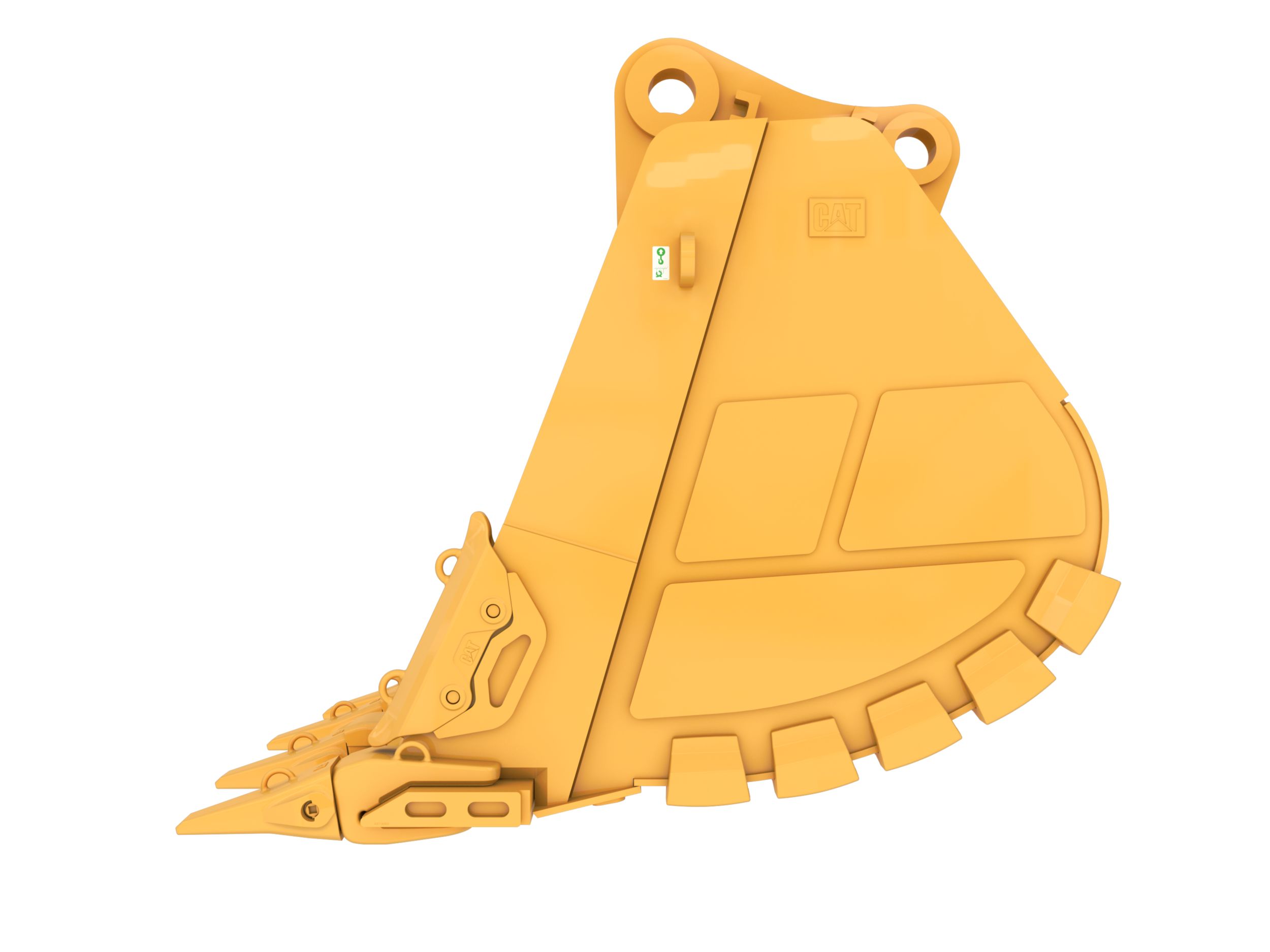

5.8 m³ (7.6 yd³) Standard Rock bucket for the 6015 Hydraulic Mining Shovel
Cat Standard Rock buckets are production-oriented buckets designed for use in medium-density material, which can stick to the walls of other buckets. Standard Rock buckets come equipped with wear protection for the leading edges and heel. Wear plates are usually Quenched and Tempered for maximum durability in high-impact conditions.
معلومات إضافية
| Material Density | 1.8 t/m³ ( 3034 lb/yd³ ) |
|---|---|
| Wear Package | Heavy Duty – Impact |
| Ground Engaging Tool (GET) System | Cat M75 |
| Machine Model | 6015 |
| Capacity | 5.8 m³ ( 7.6 yd³ ) |
| Weight | 7424 kg ( 16367 lb ) |
| Outer Width | 2154 mm ( 84.8 in ) |
| Inner Width | 1762 mm ( 69.4 in ) |
| Offering Type |
