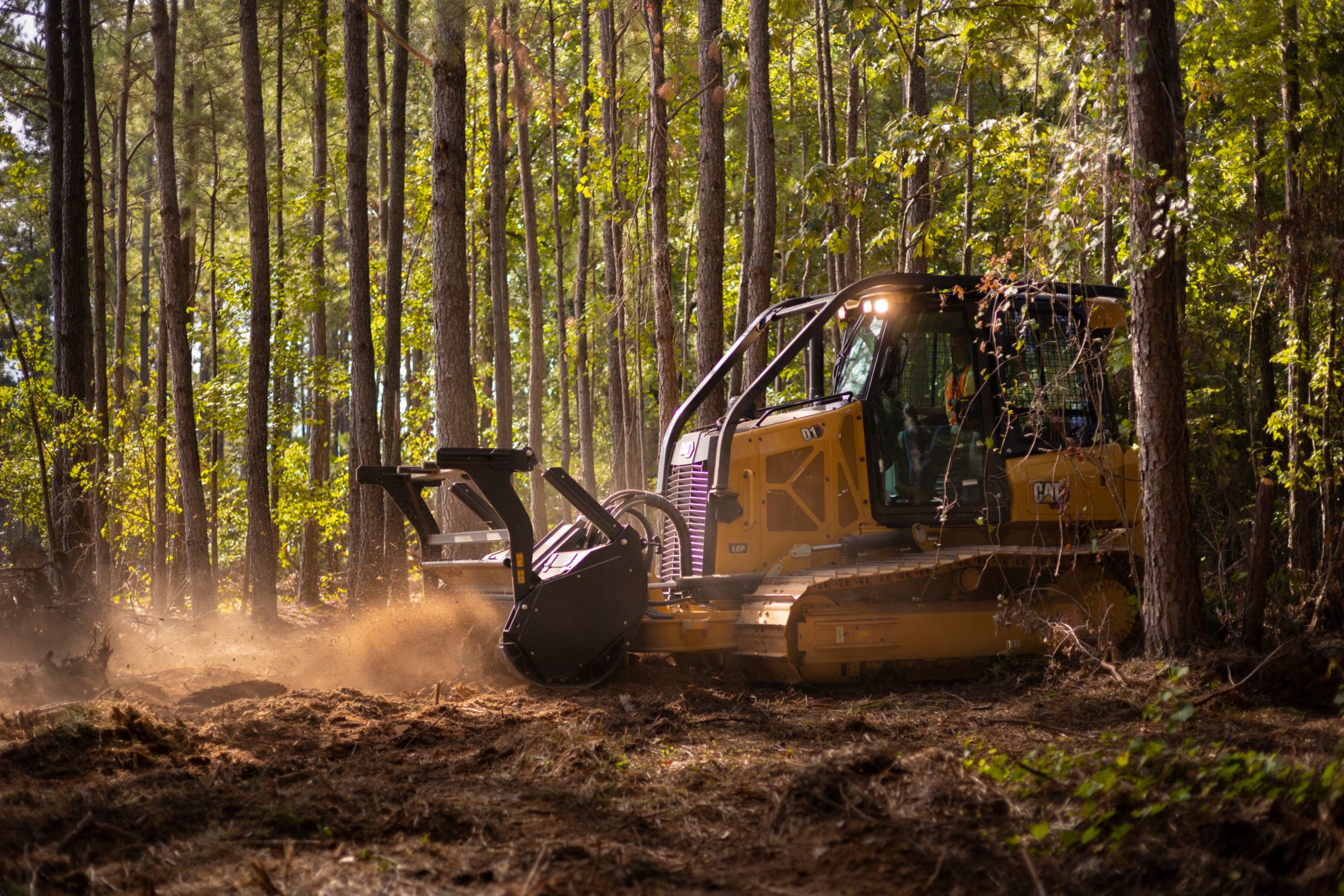

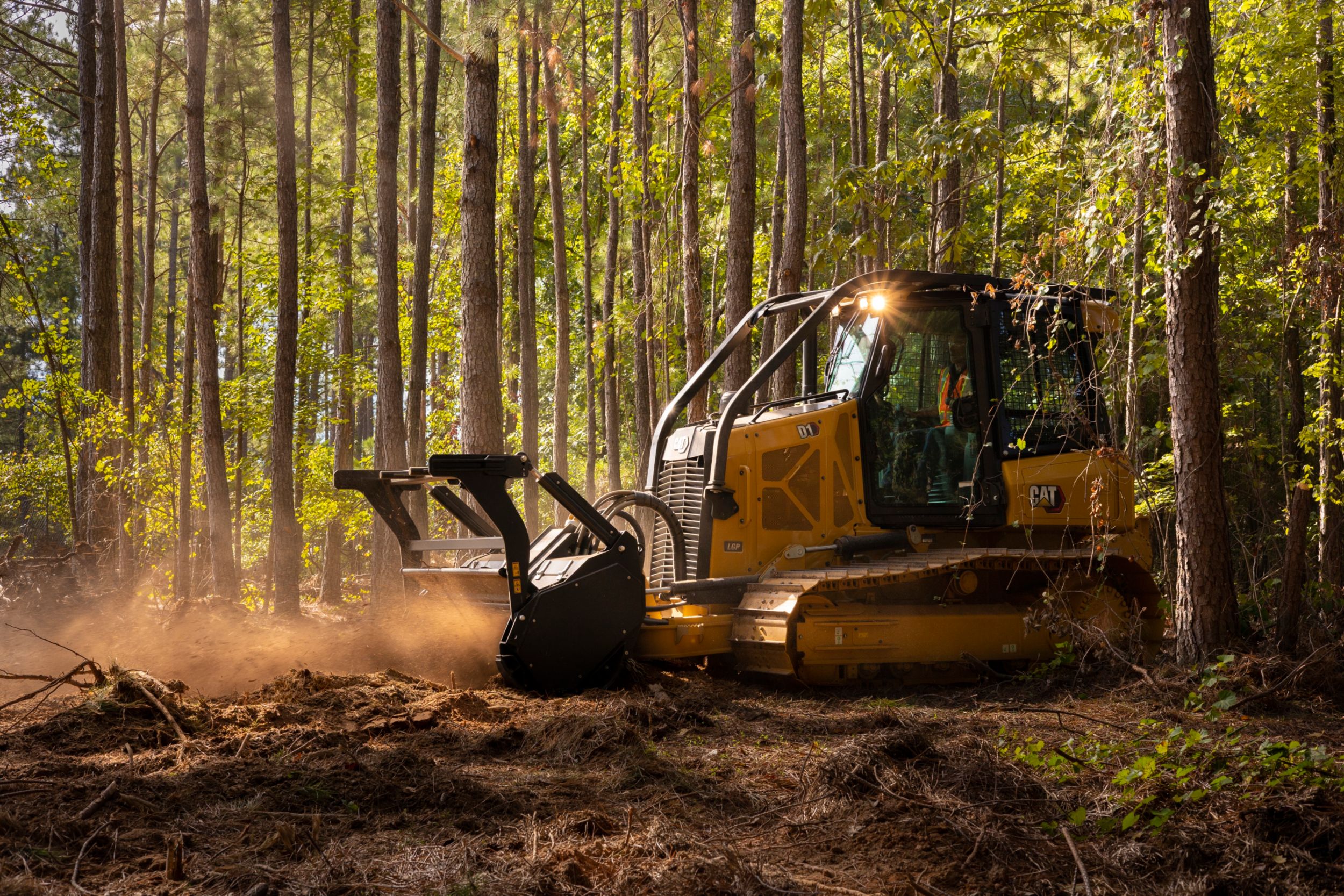

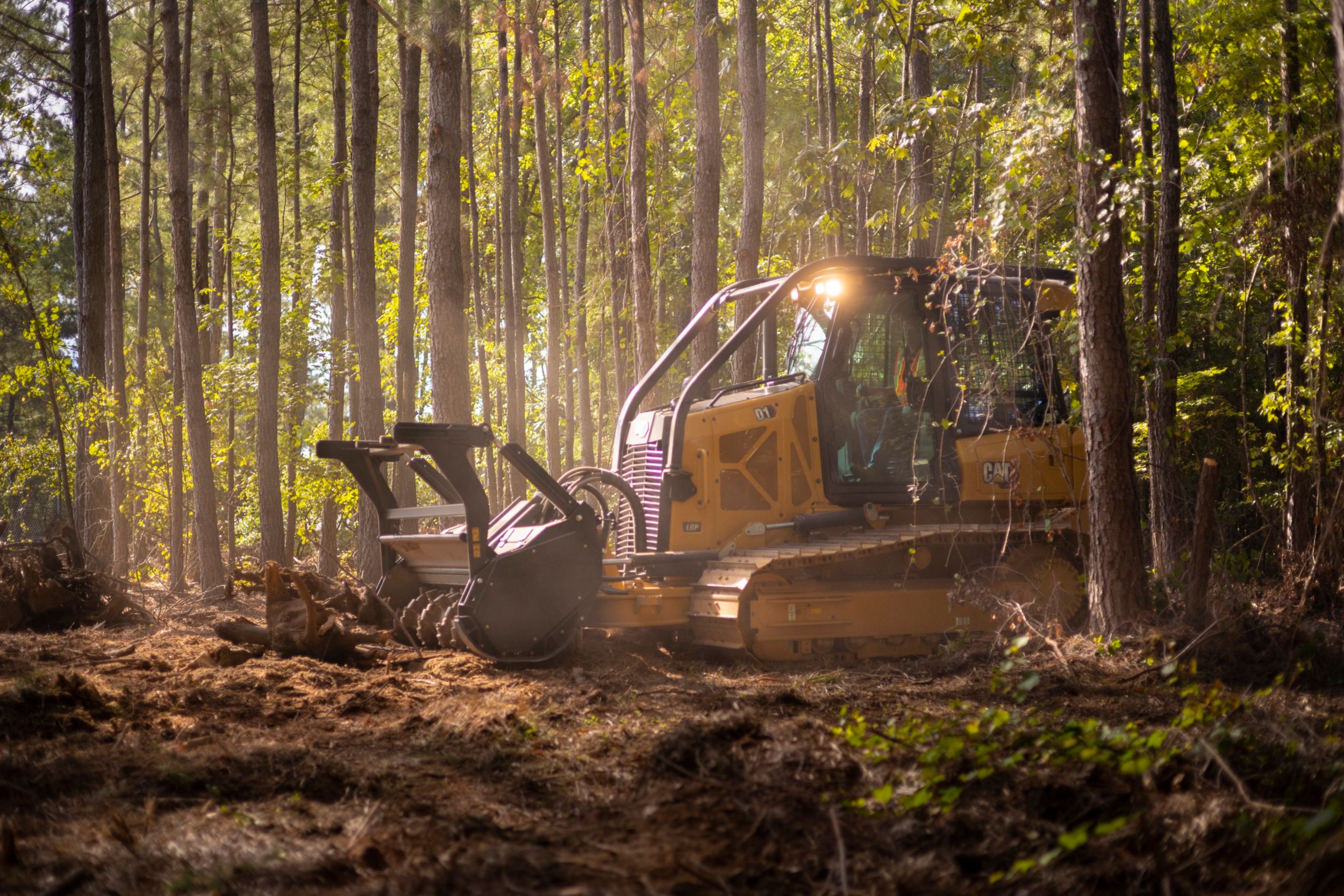

D1 Mulcher
D1 Mulcher
The D1 Mulcher features improved visibility, seat mounted controls, an intuitive operator interface, a pressurized cab, a hinged radiator grill, a tractor platform, a long life mulching head, a hydraulically operated front door and adjustable push bar, a closed loop hydrostatic circuit, a reversible drum, a drum speed bar indicator, a Cat C3.6 diesel engine, a Cat Sealed and Lubricated Track, a reversing fan, a turbine precleaner, and improved fuel economy.
IMPROVED VISIBILITY
- A lower sloping hood line provides improved peripheral vision to the mulching head, allowing the operator to better assess the jobsite.

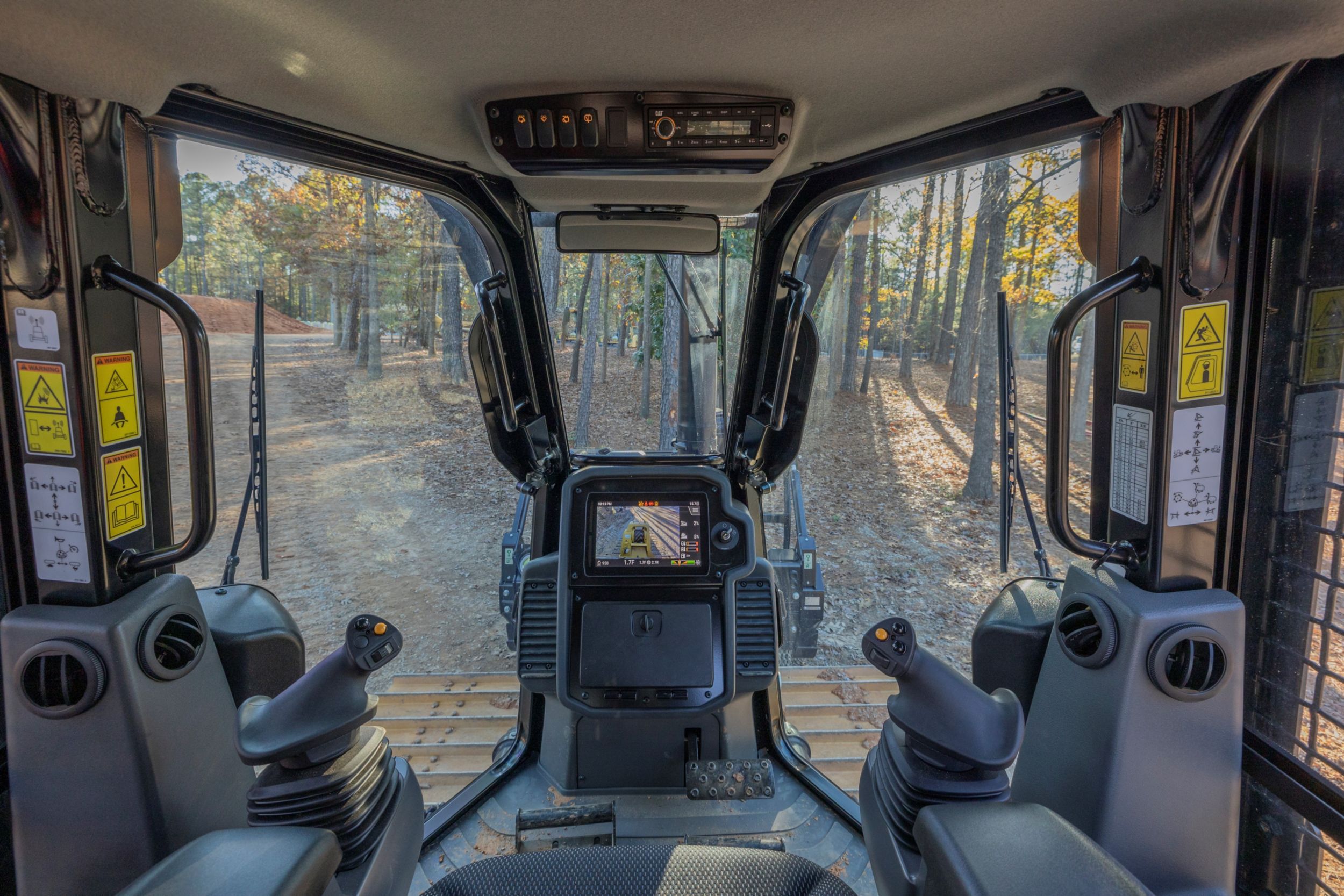

SEAT MOUNTED CONTROLS
- Mounted on the air suspension seats, these controls isolate the machine vibration from the operator, reducing operator fatigue.
INTUITIVE OPERATOR INTERFACE

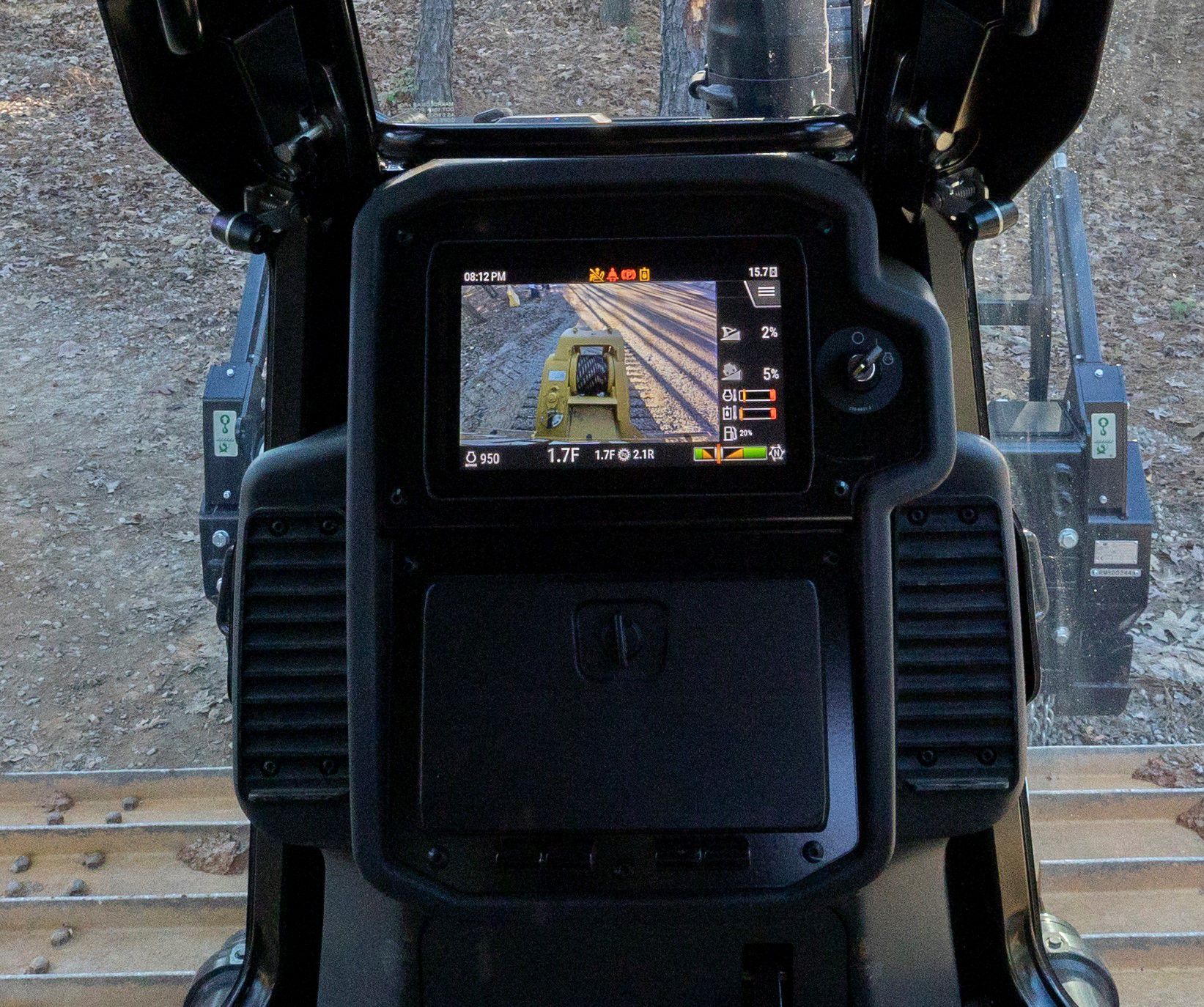

- Primary display is a 254 mm (10") touchscreen color monitor with back up camera.
PRESSURIZED CAB
- Heated and air conditioned cab offers comfortable working environment resulting in less operator fatigue and improved productivity.
HINGED RADIATOR GRILL
- Allows for easy clean out of radiator without the need for tools.
TRACTOR PLATFORM
- Balanced and rugged for operating in rough terrain and soft underfoot conditions.
LONG LIFE MULCHING HEAD
- New Cat® HM518 mulcher frame is designed for longer life using cladding material in high wear areas.
HYDRAULICALLY CONTROLLED
- Mulcher conveniently operates with a hydraulically operated front door and adjustable push bar.
CLOSED LOOP HYDROSTATIC CIRCUIT
- Delivers efficient, high performance power to the mulcher head, using less pump flow.
REVERSIBLE DRUM
- Easier operation and improved productivity.
DRUM SPEED BAR INDICATOR
- In-cab indicator, aids operator in managing ground speed and overall mulching productivity.
ENGINE
- Cat C3.6 diesel engine meets U.S. EPA Tier 3 equivalent emission standards.
UNDERCARRIAGE
- Cat Sealed and Lubricated Track with 406 mm (16 in) or 635 mm (25 in) track shoes provides superior flotation and stability for wide range of operating conditions.
REVERSING FAN
- Auto reversing fan changes air flow direction to purge debris from radiator and enclosures.
TURBINE PRECLEANER
- Improves engine air filter life by removing large debris particles.
IMPROVED FUEL ECONOMY
- The D1 features the lowest fuel consumption in this size class with the same great performance you've come to expect.
المستندات والكتيبات
المعدات القياسية
ELECTRICAL
- Alternator, 150 Amp, heavy duty
- Alarm, backup
- Batteries, heavy duty, maintenance free, 1,000 CCA
- Diagnostic connector
- Horn, electric
- Four integrated front halogen lights, two rear halogen
- Starter, electric, 12 volt heavy duty
OPERATOR ENVIRONMENT
- ROPS/FOPS cab
- Cab, polycarbonate windows and air conditioning
- Seat, air suspended, cloth
- Seatbelt, retractable 76 mm (3 in)
- Foot pads, dash
- Primary display, 254 mm (10") touchscreen color monitor with back up camera
- Electronic Monitoring System with:
– Gauges for engine coolant temperature, hydraulic oil temperature and fuel level
– Travel speed limiter, electronic
– Engine RPM and gear display
– Hour meter, electric
– Engine air cleaner service indicator, electronic
– Water-in-fuel indicator, electronic
– Mulcher drum speed and direction bar - Slope Indicate
- Throttle switch, rotary
- Controls, seat mounted, fore/aft adjustment
- Armrests, adjustable
- Mirror, rearview, inside
- Single pedal combining deceleration and braking functions
- Independent forward/reverse speed settings
- Power port, 12 volt
- Coat hook
- Storage compartment
- Cup holder
- Floor mat, rubber, heavy duty
MULCHER HYDRAULICS
- Hydraulics, 4 valve (for use with retrieval winch or ripper)
- Load sensing hydraulics
- Single lever, three function control
- Hydraulic pump and oil
- Closed-loop hydrostatic circuit
- Axial Piston variable displacement pump and motor
POWER TRAIN
- Cat C3.6 diesel engine
- Turbocharged aftercooled
- Aluminum bar plate cooling system (radiator, power train)
- Air cleaner with precleaner, automatic dust ejection and under-hood intake
- Automatic traction control
- Drive, auxiliary
- Dual path, closed-loop hydrostatic transmission
- Electric fuel pump
- Fuel/water separator
- Reversing fan
UNDERCARRIAGE
- SALT Undercarriage
- 6 roller track frame
- Track rollers, lifetime lubricated
- Carrier rollers
- Track adjusters, hydraulic
- Guards, front/rear guiding
OTHER STANDARD EQUIPMENT
- Cat Product Link™ PL641 Cellular
- C-Frame, VPAT, hydraulic cylinders and lines
- Lockable engine enclosures
- Front pull device
- Ecology drains (engine, power train and implement oil and engine coolant)
- Scheduled oil sampling ports (engine, power train implement oil)
- Vandalism protection
- Hinged radiator grill
- Rearview camera
ANTIFREEZE
- Extended life coolant, –37° C (–35° F)
GUARDS
- Guard, track guiding, center
- Screen, rear, cab
- Screen, side, cab
- Sweeps, front
- Sweeps, rear
- Heavy duty crankcase guard
معلومات إضافية
| Engine Model | Cat C3.6 |
|---|---|
| Engine - Power - Net | 77.6 kW ( 104 hp ) |
| Engine - Displacement | 3.6 l ( 220 in³ ) |
| Engine - Net Power - 2,200 rpm - ISO 9249/EEC 80/1269 | 77.6 kW ( 104 hp ) |
| Engine - Net Power - 2,200 rpm - SAE J1349 | 77.6 kW ( 104 hp ) |
| Engine - Note (1) | Net power is tested per ISO 9249:2007 and SAE J1349:2011 and as advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system and alternator. |
| Engine - Power Train | Hydrostatic |
| Engine - Note (2) | Engine equivalent to U.S. EPA Tier 3 emission standards. |
| Weights - Operating Weight | 10586 kg ( 23338 lb ) |
| Weights - Operating Weight - LGP | 10981 kg ( 24209 lb ) |
| Weights - Note | Specifications shown are for machine equipped with mulcher, cab ROPS, back-up alarm, operator, coolant, lubricants and full fuel tank. |
| Cab - FOPS | ISO 3449:2005 Level II |
| Cab - ROPS | ISO 3471:2008 |
| Transmission - Drive Pumps | 1 |
| Transmission - Maximum Travel Speed - Reverse | 10 km/h ( 6.2 mile/h ) |
| Transmission - Maximum Travel Speed - Forward | 9 km/h ( 5.6 mile/h ) |
| Transmission - Relief Valve Settings | 48500 kPa ( 7033 psi ) |
| Transmission - Track Motors | 2 |
| Undercarriage - Track Gauge - LGP | 1725 mm ( 68 in ) |
| Undercarriage - Ground Pressure | 44.5 kPa ( 6.45 psi ) |
| Undercarriage - Length of Track on Ground | 2248 mm ( 89 in ) |
| Undercarriage - Shoe Width - LGP | 635 mm ( 25 in ) |
| Number of Shoes - Each Side - Sealed and Lubricated Track (SALT) Undercarriage | 43 |
| Undercarriage - Track Gauge | 1495 mm ( 59 in ) |
| Undercarriage - Shoe Width - Standard | 406 mm ( 16 in ) |
| Undercarriage - Length - Track on Ground - LGP | 2248 mm ( 89 in ) |
| Undercarriage - Ground Pressure - LGP | 29.9 kPa ( 4.3 psi ) |
| Undercarriage - Number of Rollers - Each Side | 6 |
| Service Refill Capacities - Final Drives - Each Side | 10 l ( 2.6 gal (US) ) |
| Service Refill Capacities - Cooling System | 19 l ( 4.2 gal (US) ) |
| Service Refill Capacities - Crankcase - With Filter | 10.5 l ( 2.8 gal (US) ) |
| Service Refill Capacities - Fuel Tank | 195 l ( 51.5 gal (US) ) |
| Service Refill Capacities - Final Drive - Each - LGP | 10 l ( 2.6 gal (US) ) |
| Service Refill Capacities - Transmission - Hydraulic Tank | 90 l ( 23.8 gal (US) ) |
| Hydraulic Controls - Pump Output | 65 l/min ( 17.2 gal/min ) |
| Hydraulic Controls - Relief Valve Settings | 20600 kPa ( 2988 psi ) |
| Winch - Drum Capacity - Optional Cable | 78 m ( 256 ft ) |
| Winch - Maximum Line Speed - Full Drum | 63 m/min ( 207 ft/min ) |
| Winch - Drum Capacity - Recommended Cable | 113 m ( 371 ft ) |
| Winch - Maximum Line Speed - Bare Drum | 40 m/min ( 131 ft/min ) |
| Winch - Throat Clearance | 171.5 mm ( 6.75 in³ ) |
| Winch - Overall Width | 741 mm ( 29.2 in ) |
| Winch - Rope Diameter - Recommended | 16 mm ( 0.63 in ) |
| Winch - Maximum Line Pull - Full Drum | 11340 kg ( 25000 lb ) |
| Winch - Weight | 610 kg ( 1345 lb ) |
| Winch - Drum Diameter | 254 mm ( 10 in ) |
| Winch - Rope Diameter - Optional | 19 mm ( 0.75 in ) |
| Winch - Maximum Line Pull - Bare Drum | 18144 kg ( 40000 lb ) |
| Winch Drive | Hydrostatic |
| Winch - Speed | Variable |
| Winch Length | 705 mm ( 27.76 in ) |
| Winch - Drum Width | 274 mm ( 10.8 in ) |
| Winch - Control | Hydraulic |
| Air Conditioning System - Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.8 kg of refrigerant which has a CO2 equivalent of 2.574 metric tonnes. |
| Dimensions - Ground Clearance - LGP | 332 mm ( 13 in ) |
| Dimensions - Track Gauge - Standard | 1495 mm ( 58.9 in ) |
| Dimensions - Overall Length - With Blade - Standard | 4266 mm ( 168 in ) |
| Dimensions - Length - Basic Tractor - Without Mulcher - LGP | 3275 mm ( 128.9 in ) |
| Dimensions - Tractor Height - LGP | 2763 mm ( 108.8 in ) |
| Dimensions - Track Gauge - LGP | 1725 mm ( 67.9 in ) |
| Dimensions - Overall Length - With Blade - LGP | 4255 mm ( 167.6 in ) |
| Dimensions - Length - Basic Tractor - Without Mulcher - Standard | 3275 mm ( 128.9 in ) |
| Dimensions - Tractor Height - Standard | 2845 mm ( 112 in ) |
| Dimensions - Ground Clearance - Standard | 332 mm ( 13 in ) |
| Dimensions - Width - Tractor - Standard Shoes - No Mulcher - Standard | 1901 mm ( 74.8 in ) |
| Dimensions - Width - Tractor - Standard Shoes - No Mulcher - LGP | 2360 mm ( 92.9 in ) |
| Specifications - HM518 - Length | 1354 mm ( 53 in ) |
| Specifications - HM518 - Maximum Angle - Either Side | 25° |
| Specifications - HM518 - Drive Method | Polychain belt |
| Specifications - HM518 - Motor | Closed loop hydrostatic |
| Specifications - HM518 - Overall Height | 1480 mm ( 58 in ) |
| Specifications - HM518 - Fixed Teeth per Drum | 38 |
| Specifications - HM518 - Lift Height | 787 mm ( 31 in ) |
| Specifications - HM518 - Weight | 1450 kg ( 3197 lb ) |
| Specifications - HM518 - Working Width | 1822 mm ( 72 in ) |
| Specifications - HM518 - Optimum Hydraulic Pressure | 407 bar ( 5900 psi ) |
| Specifications - HM518 - Drum Speed Range | 2,150-2,450 rpm |
| Specifications - HM518 - Optimum Hydraulic Flow | 114 l/min ( 30 gal/min ) |
| Specifications - HM518 - Maximum Tilt | 368 mm ( 14.5 in ) |
| Specifications - HM518 - Overall Width | 2122 mm ( 84 in ) |
| Offering Type |
منتجات ذات صلة
-
الجرارات الصغيرة

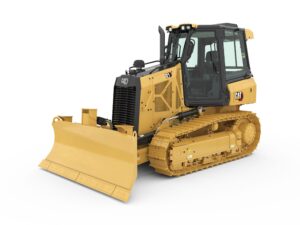

D1
مشاهدة التفاصيل
-
الجرارات الصغيرة

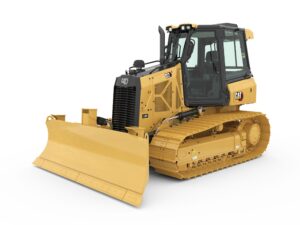

D2
مشاهدة التفاصيل
-
الجرارات الصغيرة

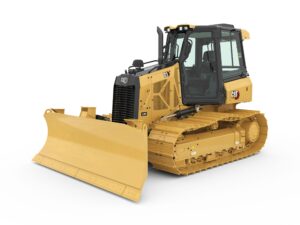

D3
