H190 S

بانتظار صورة المنتج

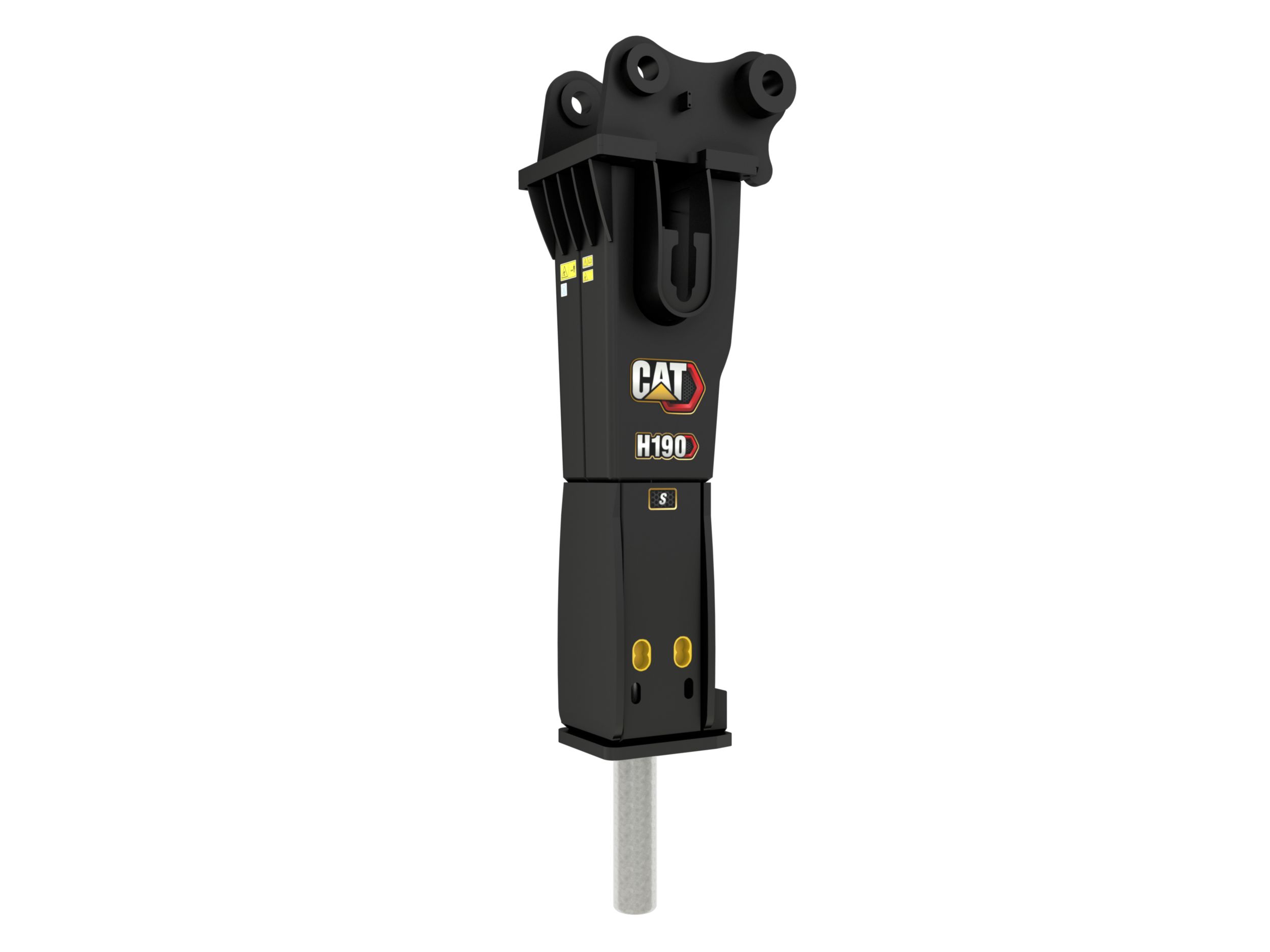

H190 S Hammer

Cat® H190 S Performance hammers are designed for productivity in rock breaking and concrete demolition. With powerful hydraulics and quick access to maintenance areas, Cat H190 S Performance hammers help increase overall productivity and reduce maintenance costs. Cat H190 S Performance hammers are a versatile solution for many applications, including road construction, trenching, and demolition.

التصنيف:
اضافة إلى طلب عرض سعر

High Performance



  • Automatic shut off offers blank firing protection by stopping the piston when there is no material under the tool to help extend the life of the hammer.

    •

  • The internal buffering system helps reduce machine vibration and increase noise suppression.

    •

  • The standard silencing feature allows you to use a Performance hammer on job sites in noise-sensitive areas like neighborhoods or near hospitals where noise is regulated.

Increase Productivity



  • Manually adjust the piston speed by choosing between high piston speed or maximum power to help increase efficiency and production on the job site.

    •

  • The oil-fired operating cycle helps provide full power during every blow and less waste heat.

    •

  • Critical hydraulic components are shielded from damage inside the housing, helping decrease downtime on the job site.

Easy to Maintain



  • Standard on-board autolube provides continuous greasing as the hammer runs, eliminating the need for manual greasing.

    •

  • The slip-fit and 90-degree rotatable lower bushing allows for easy replacement in the field, helping reduce service time and extend service life.

    •

  • The oil-fired design eliminates the need to check gas charge.

    •

  • Quick and easy access to maintenance areas helps make hammer maintenance simple.

Boost Efficiency and Productivity with Integrated Technologies



  • Never waste time looking for your attachments again. Cat asset tracking is available on all hammers.

    •

  • Track your entire fleet of attachments and machines from one source. Hammers with asset tracking can be viewed within VisionLink®.

    •

  • Keep your assets secure. Hammers with an asset tracker send an alert if they leave an easy-to-set up site boundary.

فيديو

المستندات والكتيبات

معلومات إضافية

Blows per Minute

370 to 530
Minimum Operating Weight

5200 kg ( 11440 lb )
Rated Flow - Minimum

280 l/min ( 74 gal/min )
Rated Flow - Maximum

380 l/min ( 101 gal/min )
Minimum Operating Pressure

16000 kPa ( 2320 psi )
Maximum Operating Pressure

17000 kPa ( 2465 psi )
Tool Shaft Diameter

190 mm ( 7.5 in )
Minimum Carrier Weight

43 t ( 94798 lb )
Maximum Carrier Weight

80 t ( 176368 lb )
