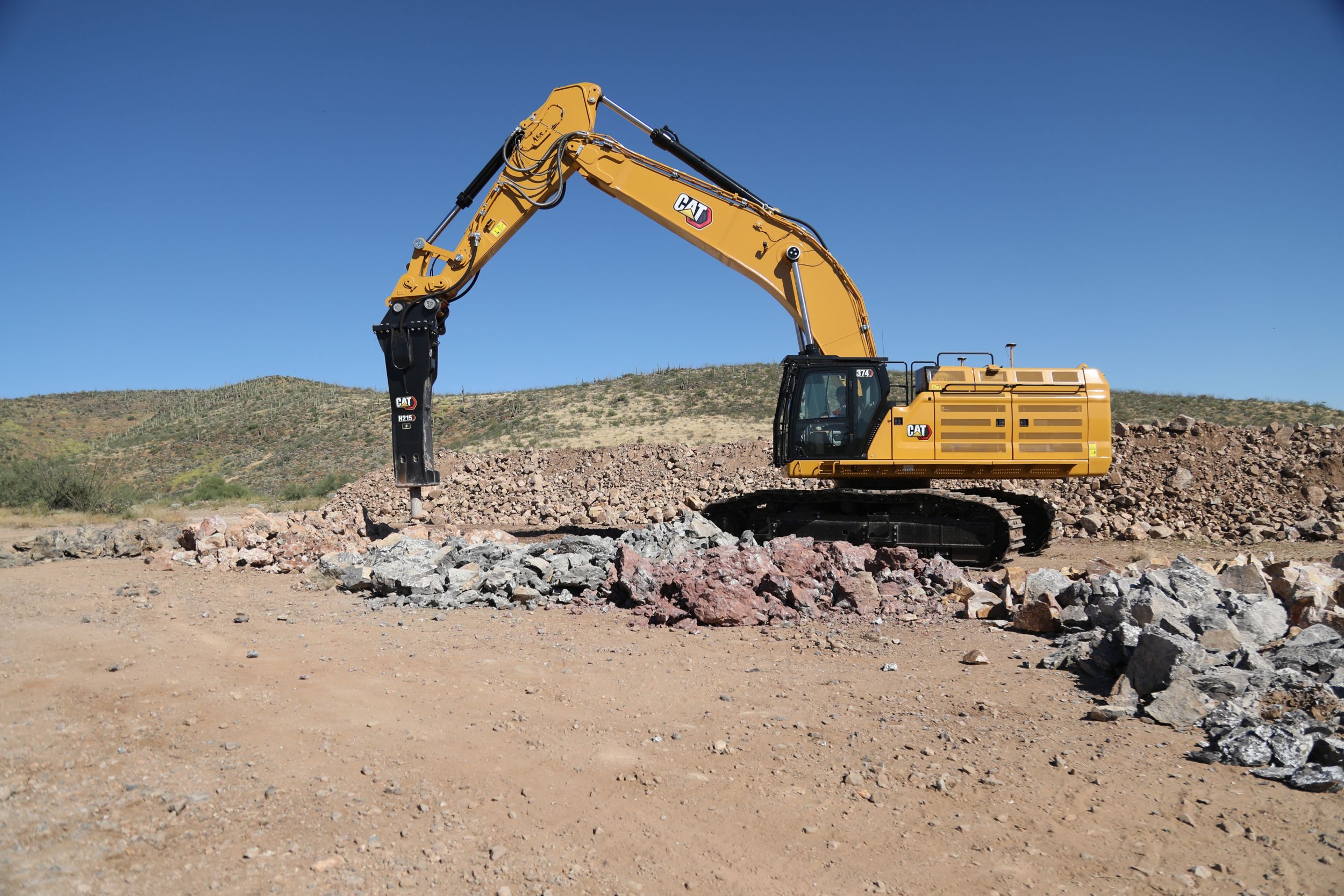

H215 S - Image 2

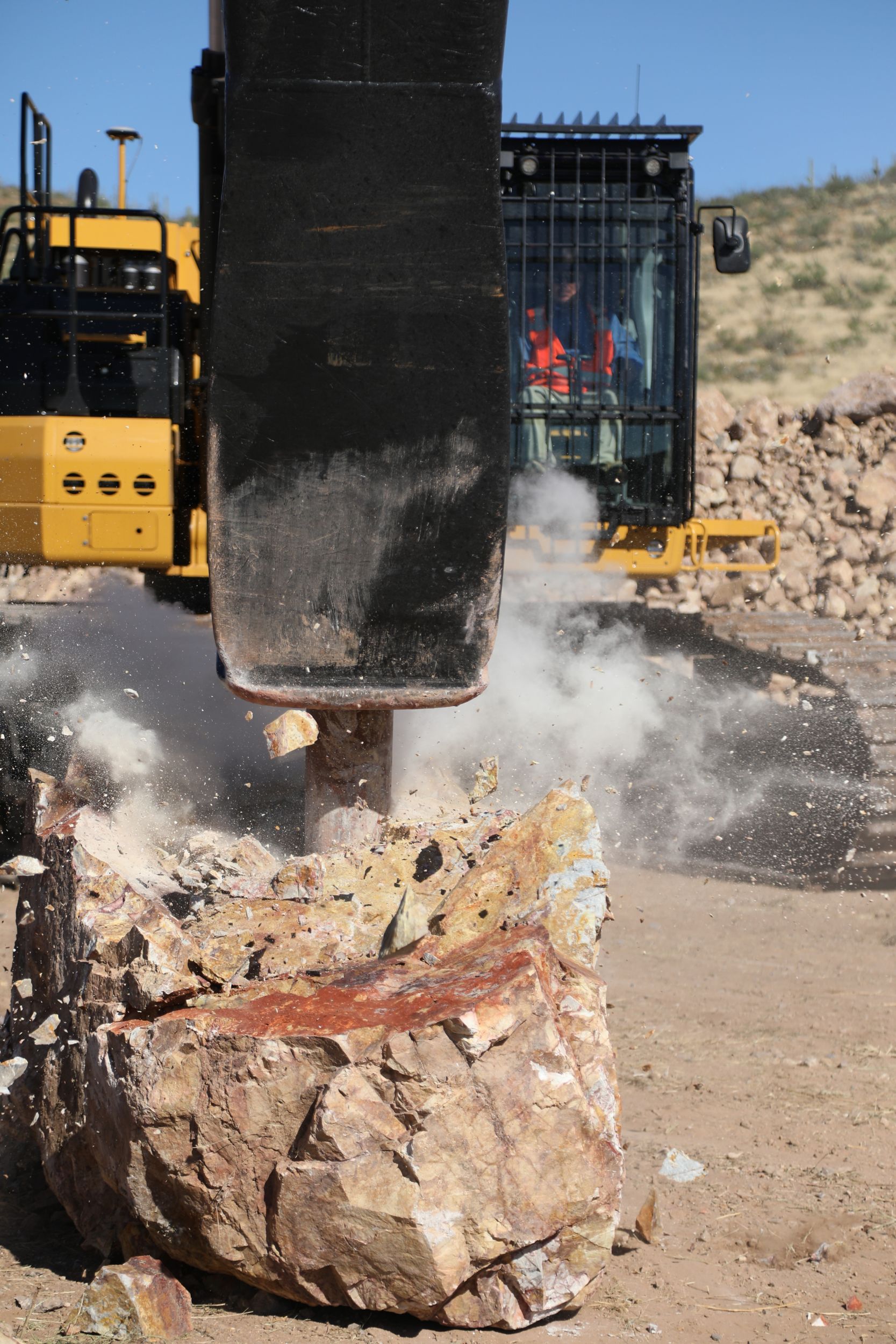

H215 S - Image 3

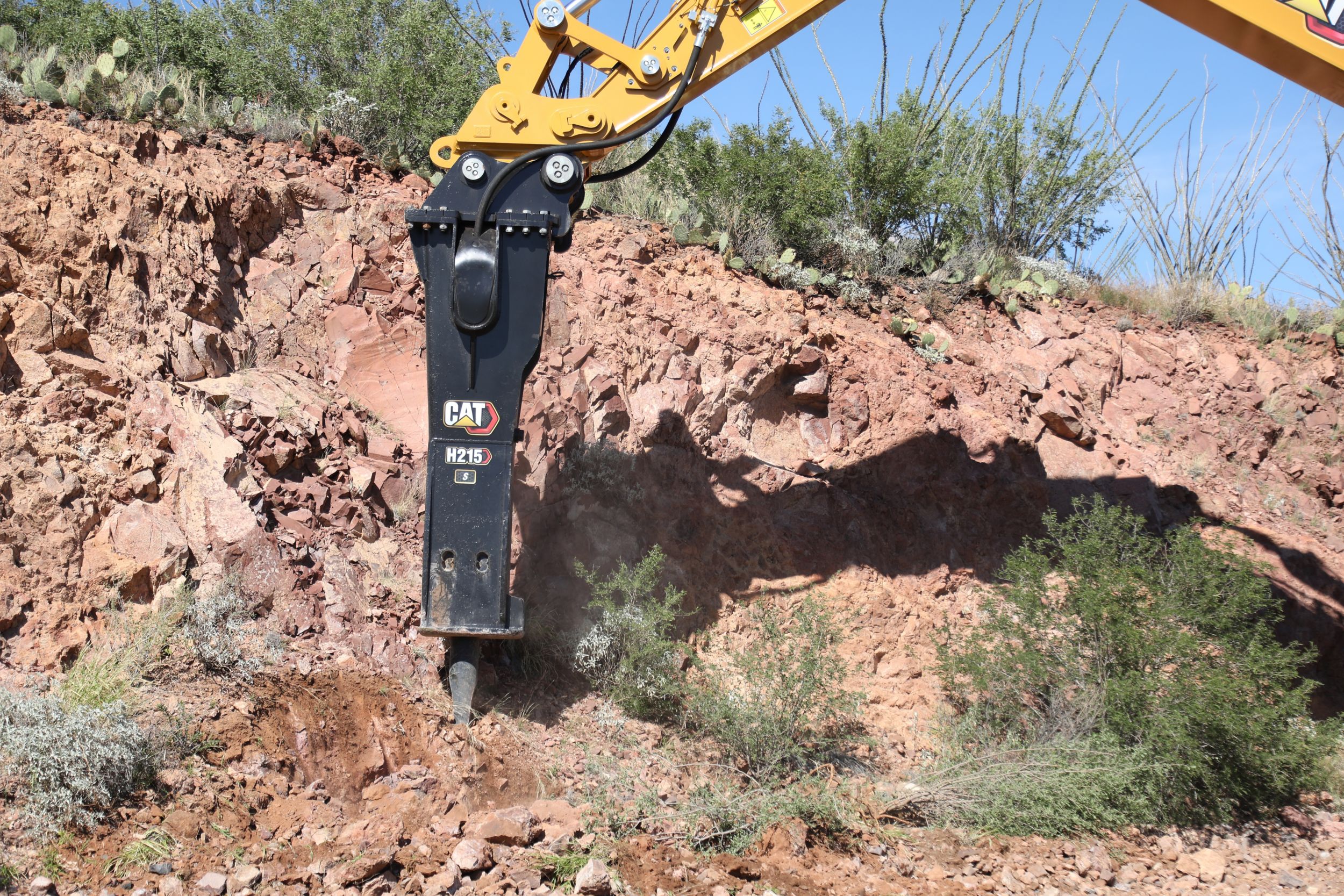

H215 S - Image 4

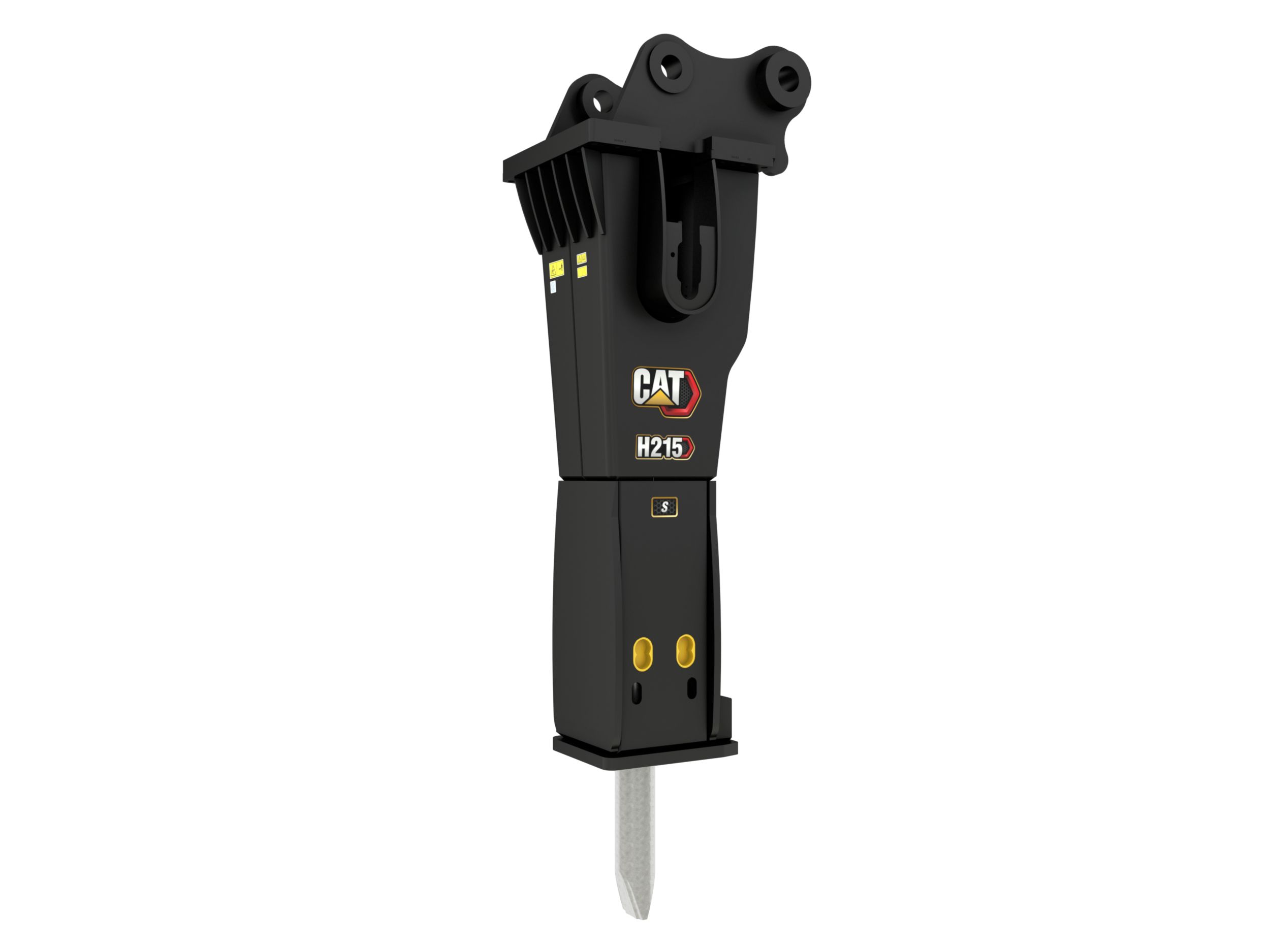

H215 S Hammer

Cat® H215 S Performance hammers are designed for productivity in rock breaking and concrete demolition. With powerful hydraulics and quick access to maintenance areas, Cat H215 S Performance hammers help increase overall productivity and reduce maintenance costs. Cat H215 S Performance hammers are a versatile solution for many applications, including road construction, trenching, and demolition.

التصنيف:

High Performance



  • Automatic shut off offers blank firing protection by stopping the piston when there is no material under the tool to help extend the life of the hammer.

    •

  • The internal buffering system helps reduce machine vibration and increase noise suppression.

    •

  • The standard silencing feature allows you to use a Performance hammer on job sites in noise-sensitive areas like neighborhoods or near hospitals where noise is regulated.

Increase Productivity



  • Manually adjust the piston speed by choosing between high piston speed or maximum power to help increase efficiency and production on the job site.

    •

  • The oil-fired operating cycle helps provide full power during every blow and less waste heat.

    •

  • Critical hydraulic components are shielded from damage inside the housing, helping decrease downtime on the job site.

Easy to Maintain



  • Standard on-board autolube provides continuous greasing as the hammer runs, eliminating the need for manual greasing.

    •

  • The slip-fit and 90-degree rotatable lower bushing allows for easy replacement in the field, helping reduce service time and extend service life.

    •

  • The oil-fired design eliminates the need to check gas charge.

    •

  • Quick and easy access to maintenance areas helps make hammer maintenance simple.

Boost Efficiency and Productivity with Integrated Technologies



  • Never waste time looking for your attachments again. Cat asset tracking is available on all hammers.

    •

  • Track your entire fleet of attachments and machines from one source. Hammers with asset tracking can be viewed within VisionLink®.

    •

  • Keep your assets secure. Hammers with an asset tracker send an alert if they leave an easy-to-set up site boundary.

فيديو

المستندات والكتيبات

معلومات إضافية

Blows per Minute

: 290 to 510
Minimum Operating Weight

: 7400 kg (16280 lb)
Rated Flow - Minimum

: 360 l/min (95 gal/min)
Rated Flow - Maximum

: 450 l/min (119 gal/min)
Minimum Operating Pressure

: 17000 kPa (2465 psi)
Maximum Operating Pressure

: 18000 kPa (2610 psi)
Tool Shaft Diameter

: 215 mm (8.5 in)
Minimum Carrier Weight

: 65 t (143299 lb)
Maximum Carrier Weight

: 120 t (264552 lb)
