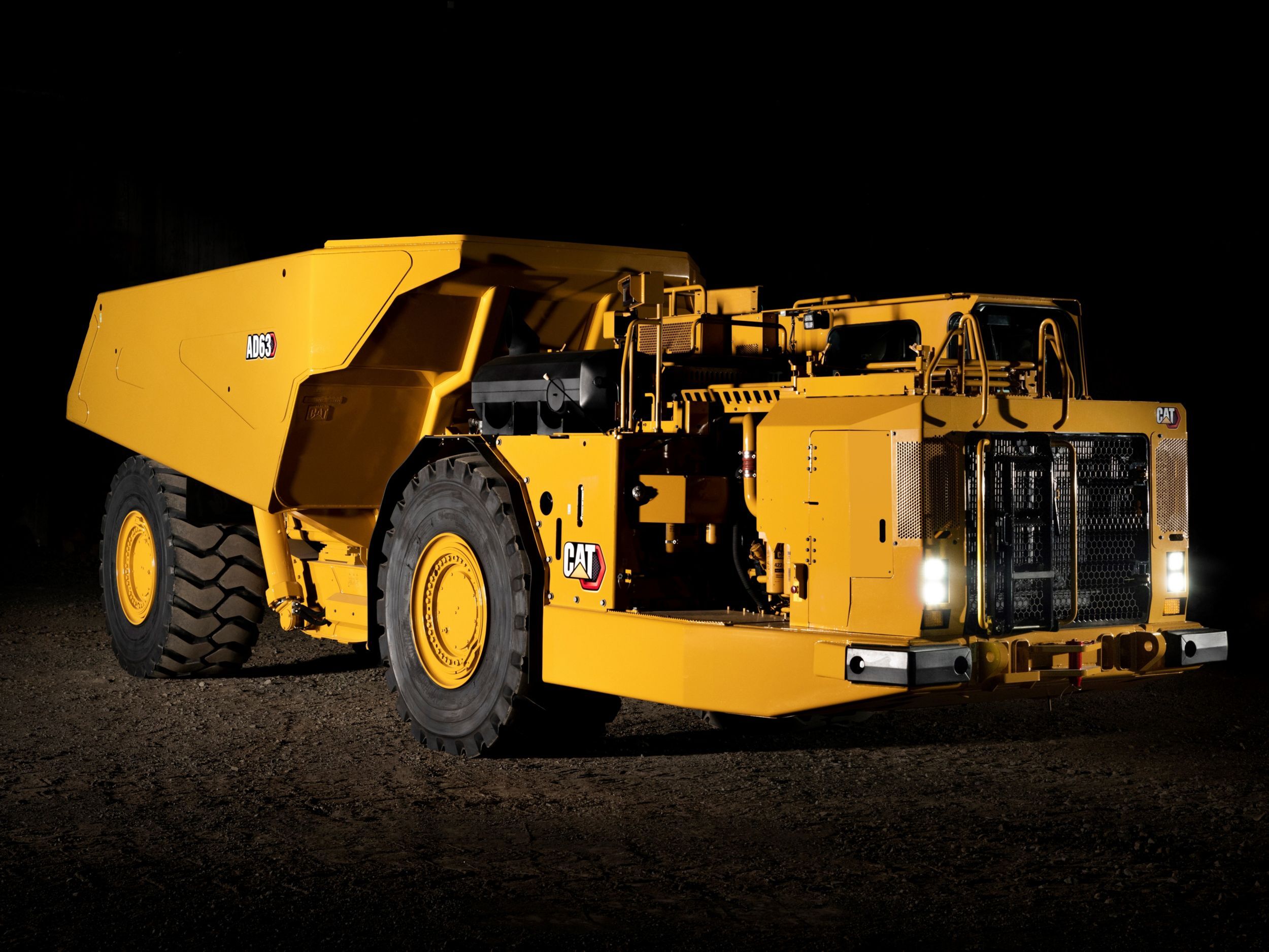

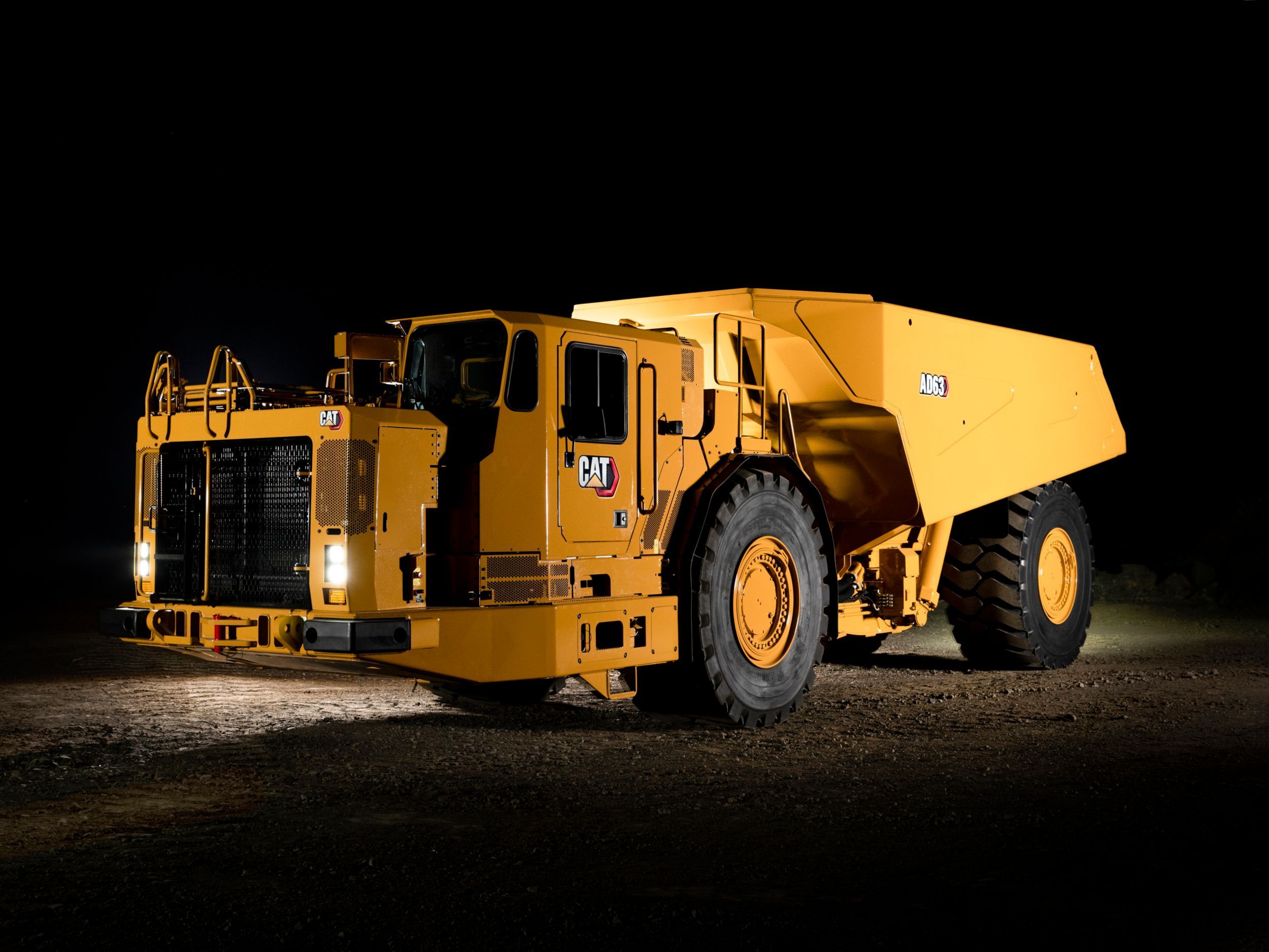

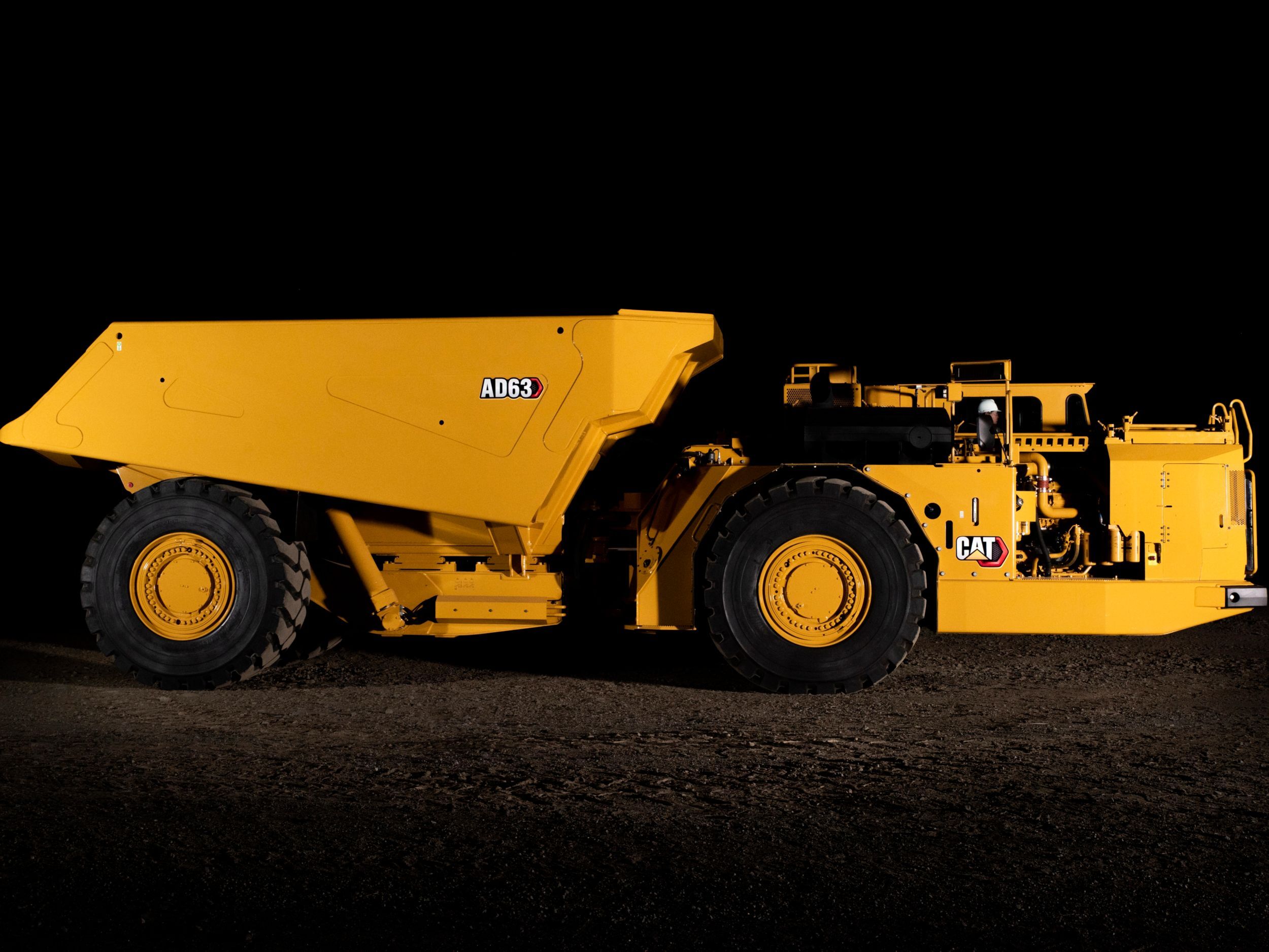

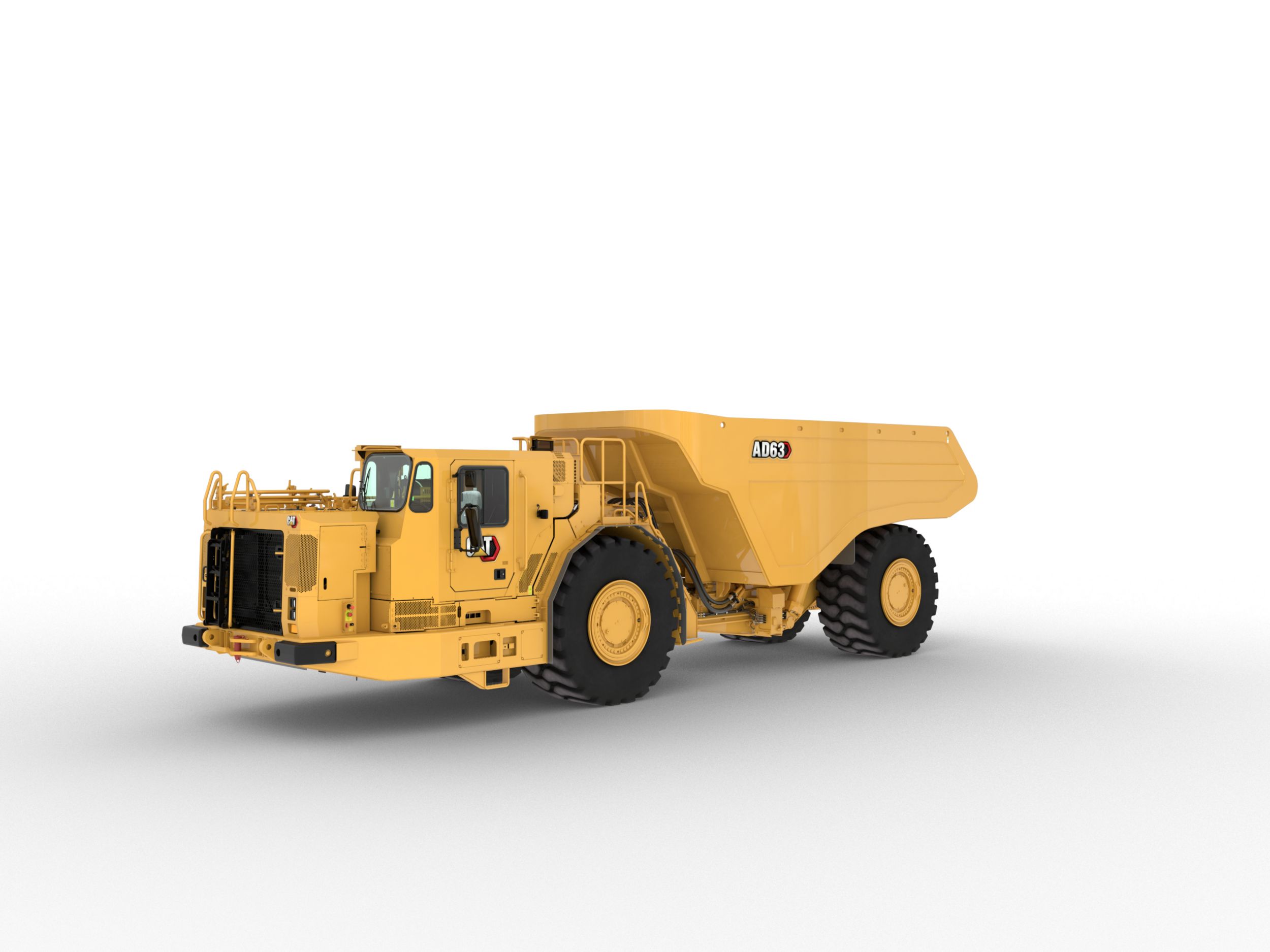

AD63 Underground Articulated Truck

The Cat® AD63 Underground Truck is designed for high production, lower costs and increased efficiency. It’s built tough to stand up to the harsh conditions of your site, and features a number of improvements over its predecessor, including a 5% greater payload and more torque. The world-class cab keeps operators safe and comfortable all shift long, and new enhancements help ensure the safety of everyone working in, on or around the machine. It’s powered by a Cat C27 engine that meets EU Stage V Emissions Standards for cleaner performance, as well as reduced ventilation costs. And its rugged construction and simplified maintenance make for longer life and lower operating costs, so you can get the most out of your investment.

Category:
Add to Quote

SAFETY

  • Standard Operator Present System, which protects the machine and operator from uncontrolled machine movements, with hydraulic system neutralization and door sensor.
  • Safer access and egress with anti-skid upper deck surfaces, new and improved upper deck handrails, 3-point cabin and machine access, additional access via the front grill and alternate exit via windows.
  • Integrated Cat braking system that delivers reliable performance and control, plus service brake system actuated by hydraulic pressure and parking brake function that is spring applied and hydraulic released to ensure braking in the event of loss of hydraulic pressure.
  • Safer service with steering frame lock, body retaining pins, exhaust heat shielding and firewall fitted, plus hitch hydraulic hoses fitted with burst protection sleeves.

OPERATOR COMFORT & CONTROL

  • Controls, levers, switches and gauges positioned to maximize productivity and minimize fatigue.
  • Standard sound-suppressed enclosed ROPS cab for a quiet, secure and comfortable air-conditioned working environment with fresh, pressurized, temperature-controlled air circulation.
  • Ergonomic, fully adjustable suspension seat with thick cushions that reduce pressure on lower back and thighs and wide, retractable seat belts that provide a secure, comfortable restraint.
  • Comfort wheel with tilt steering that provides a comfortable driving position, secure grip and greater control.
  • Rollover Protective Structure (ROPS) and Falling Objects Protective Structure (FOPS) resiliently mounted to the mainframe to isolate the operator from vibration for a more comfortable ride.

PRODUCTIVITY & PERFORMANCE

  • 63-tonne (69-ton) payload that is 5% larger than its predecessor, the AD60 for more material carried every cycle for maximum production.
  • Mechanical powertrain and power shift transmission that offer unmatched operating efficiency and control on steep grades and in poor underfoot conditions.
  • Automatic Retarder Control (ARC), which electronically controls retarding on grade, allowing the operator to maintain optimum engine speeds for faster downhill hauls and greater productivity.

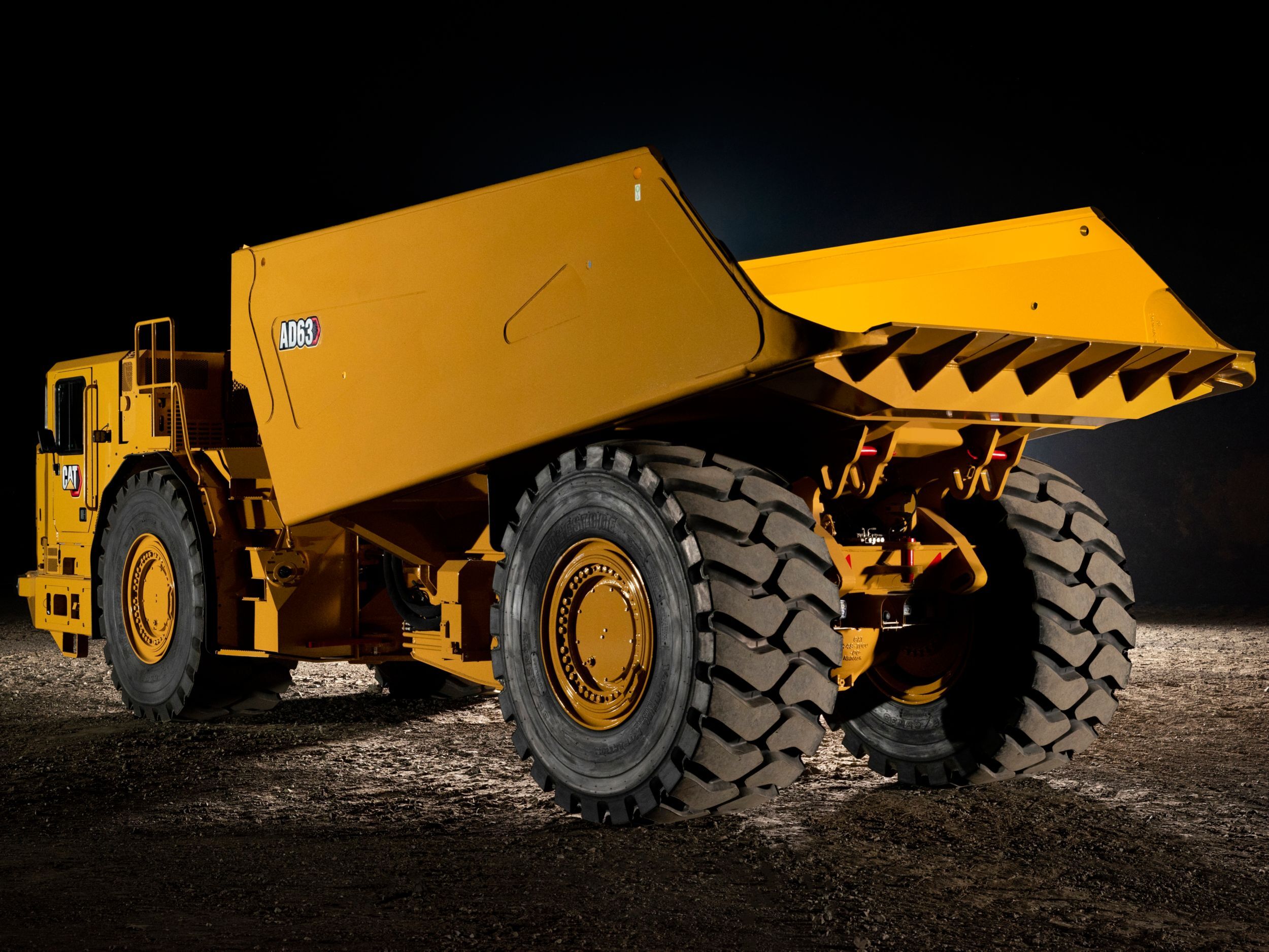

  • Single-stage hoist cylinders that provide fast dump cycle times of 13 seconds for raise and 24 seconds for lower.

POWER & EFFICIENCY

  • Powered by a Cat C27 engine with an EU Stage V emission rating to comply with emissions regulations while providing unmatched power.
  • Increase of engine torque rise from 18% to 28%, coupled with a powertrain ratio update to spread the torque rise, for superior grade holding capability.
  • Cat Data Link, which decreases fuel consumption, regulates engine speed and prevents shifting above a pre-programmed gear while the body isn’t fully lowered.
  • Torque converter lock-up clutch that combines the high rimpull and smooth shifting of a torque converter drive with the efficiency and performance of direct drive.
  • Modular HVAC system with dual power options —operates when engine is running to provide maximum efficiency in hot applications and is powered by the electric system when the engine is turned off, for less engine idling and lower operating costs.

TRUCK BODIES

  • Cat truck bodies designed for optimal strength, capacity and durability.
  • Designed and matched with the integrated chassis system for optimum structural reliability, durability and long life.
  • Five body size options, including new lightweight dump body, for the most efficient hauling solution at the lowest cost per ton.

RELIABILITY & DURABILITY

  • Box-section frame design with stiff frame beams to resist twisting forces; weld joint and materials matched to optimize structural life.
  • Two independent variable rebound suspension cylinders that dissipate haul road forces for longer frame life and a comfortable ride.
  • Articulating / oscillating hitch that provides steering and oscillation and enables the truck to maintain all-wheel ground contact in rough terrain.
  • Frame, powertrain, engine and components that are built to be rebuilt, delivering second and third lives.

SERVICEABILITY

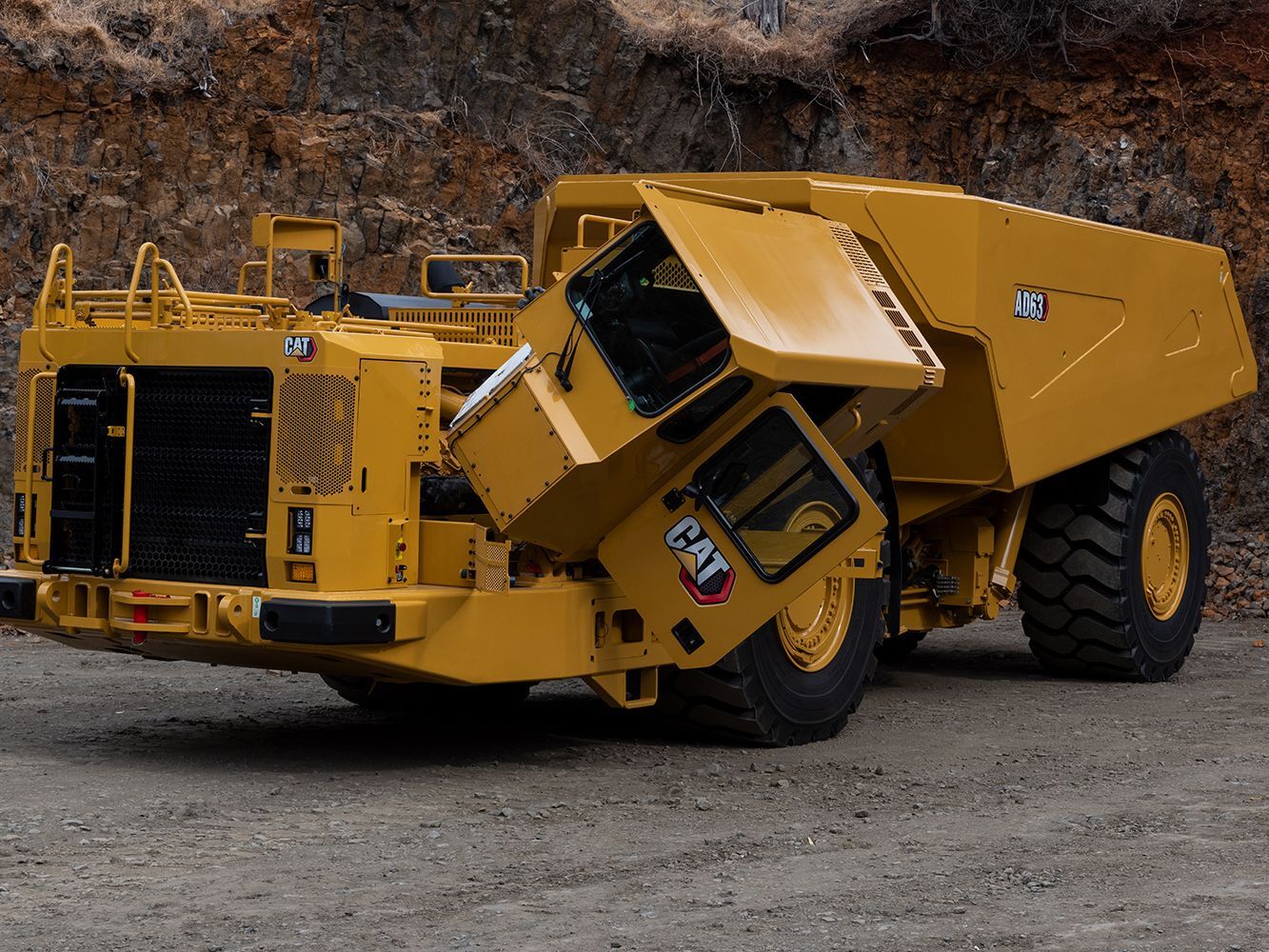

  • Ability to tilt the cab for improved access to the cab side of the engine, improved access to brake accumulator and engine mounting hardware, plus access to alternator and starter motor without removing belly plates.
  • Ground-level access to all tanks, filters, lubrication points and compartment drains; remote mounted fuel filters for easier serviceability; and fluid-level sight gauges.
  • Radial seal air filters that are easy to change, reducing time required for air filter maintenance; plus upsized radiator surround has to improve access to pre-cleaner and filters.
  • Electrical connectors that are sealed to lock out dust and moisture, harnesses that are covered for protection, and wires that are color- and number-coded for easy diagnosis and repair.

TECHNOLOGY

  • Product Link™ Elite (PLE) network management module, which stores and transfers data and serves as a connectivity enabler for dealer-provided condition monitoring services and integrates with Cat MineStar Fleet and Health for diagnostic and equipment management.
  • Optional MineStar Fleet for underground, which provides real-time visibility to cycle time, payload, machine position and other key operational parameters; and MineStar Detect, which uses a proximity detection system coupled with a revolutionary communications and tracking network to prevent incidents and track people and machines in real time.
  • Truck Payload Measurement System, which automatically records load cycle information when the load is dumped, giving operators real-time loading data and sorting it for download.
  • Cat Electronic Technician (ET), which enables quick electronic diagnosis of machine performance and key diagnostic data for effective maintenance and repairs.
  • Cat Electronic Monitoring System (EMS), which provides continuous access to critical machine data to keep the machine performing at a high level.

SUSTAINABILITY

  • Cat C27 EU Stage V engine that meets the strictest emission standards and is approved by CANMET; does not require Diesel Exhaust Fluid (DEF) to meet standards.
  • Optional Cat Diesel Particulate Filters, which further reducing particulate matter in the exhaust.
  • Ongoing research and development into engine compatibility with diesel fuel blended with lower-carbon intensity fuels such as biofuels and renewable fuels, plus power options like electrification.
  • Cat Rebuild and Cat Reman programs, which preserve raw materials, conserve energy and reduce emissions, plus retrofits and upgrades for older machines to incorporate efficiency improvements and emission reductions.

Videos

Virtual Tours

Documents & Brochures

Standard Equipment

POWERTRAIN
  • Brake retarder control, automatic
  • Brakes:
    – All wheel disc
    – Oil cooled
    – Parking brakes, four wheels
  • Control throttle shifting
  • Engine:
    – Cat C27 12 cylinder diesel engine
    – EU Stage V
    – Air-to-air aftercooler (ATAAC)
    – Fuel priming aid
  • Transmission, automatic planetary power shift (7F/1R)
    – Gear blockout with tray up, programmable
    – Ground speed limiting, programmable
    – Torque converter with automatic lockup
  • Four wheel drive
  • Remote transmission cooler
ELECTRICAL
  • Alarm, reversing
  • Alternator, 225 amp
  • Disconnect switch, 2 post, ground level
    – Electric starting, 24V
  • Lights, LED:
    – Headlights with dimmer switch
    – Light, brake and tail
    – Lights, reversing, automatic when reverse gear selected
  • Work light, rear, cab mounted
    – Receptacle GP, auxiliary start
    – Shutdown switch, ground level
    – Product Link Elite
    – Machine health information
OPERATOR ENVIRONMENT
  • Cab, enclosed:
    – ROPS/FOPS certified
    – Tilt (cab is able to tilt 43° for maintenance access)
    – HVAC, dual system
  • Caterpillar Electronic Monitoring System (CEMS), (dash instrument panels)
  • Operator Presence System
  • Automatic Brake Application (ABA)
  • Brake Gauges, Front and Rear
  • Idle timer (programmable)
  • Light, residual brake pressure
  • Low hydraulic oil level alarm
  • Low park brake pressure indicator
  • Mirrors, rear view
  • Radio ready
  • Seat, trainer/passenger with seat belt
  • Steering wheel, tilt/telescopic
  • Turn signal indicators
  • Windshield wiper and washer
  • TLV2 Cat Comfort Air Seat
TIRES, RIMS, AND WHEELS
  • Tires must be selected from the mandatory attachments section
  • Rims (set of 4):
    – Five piece
    – Tubeless
OTHER STANDARD EQUIPMENT
  • Adapters, oil sample
  • Indicator light, tray up
  • Axle suspension, front
  • Belly guards
  • Bumpers, front, rubber
  • Cap, radiator, manual release
  • Catalytic exhaust purifier/muffler
  • Covers, exhaust
  • Handholds
  • Handrails, fold down
  • Dump body
  • Firewall
  • Hitch, articulated and oscillated
  • Hydraulic Burst Protection
  • Lifting lugs, frame
  • Secondary steering
  • Tow pin, front and rear
  • Tire Arrangement:
    – Tire, 35/65 R33 VSNT Bridgestone
  • Ventilated covers

Additional information

Offering Type

Engine - Note (1)

Meets EU Stage V emission standards and U.S. EPA Tier 4 Final.
Engine - Note (2)

Power ratings apply at a rated speed of 1,800 rpm when tested under the reference conditions for the specified standard.
Transmission - Note

Maximum travel speeds with standard 35 × 65 R33 tires.
Body Capacities - Note

Heaped SAE 2:1.
Operating Specifications - Gross Machine Operating Mass

118940 kg ( 262218 lb )
Body Capacities - Dump Body - 1 - Standard

26.9 m³ ( 35.2 yd³ )
Body Capacities - Dump Body - 2

32.6 m³ ( 42.6 yd³ )
Body Capacities - Dump Body - 4

36.6 m³ ( 47.9 yd³ )
Body Capacities - Dump Body - 5 (Light Material)

38.3 m³ ( 50.1 yd³ )
Turning Dimensions - Inside Turn Radius

5540 mm ( 218.1 in )
Engine Model

Cat® C27
Engine - Bore

137.2 mm ( 5.4 in )
Engine - Stroke

152.4 mm ( 6 in )
Engine - Displacement

27 l ( 1650 in² )
Engine Power - EU Stage V Engine - ISO 14396:2002

593 kW ( 795 HP )
Operating Specifications - Body Capacities

26.9-38.3 m³ (35.2-50.1 yd³)
Operating Specifications - Nominal Payload Capacity

63000 kg ( 138891 lb )
Weights - Empty

52425 kg ( 115577 lb )
Weights - Empty - Front Axle

37066 kg ( 81716 lb )
Weights - Empty - Rear Axle

15359 kg ( 33861 lb )
Weights - Loaded

115425 kg ( 254468 lb )
Weights - Loaded - Front Axle

57456 kg ( 126669 lb )
Weights - Loaded - Rear Axle

57969 kg ( 127800 lb )
Weight Distribution - Empty - Front Axle

70.7%
Weight Distribution - Empty - Rear Axle

29.3%
Weight Distribution - Loaded - Front Axle

49.8%
Weight Distribution - Loaded - Rear Axle

50.2%
Transmission - Forward - 1

6.5 km/h ( 4.1 mile/h )
Transmission - Forward - 2

9.2 km/h ( 5.7 mile/h )
Transmission - Forward - 3

12.4 km/h ( 7.7 mile/h )
Transmission - Forward - 4

16.6 km/h ( 10.3 mile/h )
Transmission - Forward - 5

22.5 km/h ( 14.0 mile/h )
Transmission - Forward - 6

30.3 km/h ( 18.9 mile/h )
Transmission - Forward - 7

41.0 km/h ( 25.5 mile/h )
Transmission - Reverse - 1

8.6 km/h ( 5.3 mile/h )
Final Drives - Differential Ratio

3.46:1
Final Drives - Final Drive Ratio

5.5:1
Final Drives - Total Reduction Ratio

19.04:1
Body Hoist - Raise

13 s ( 13 s )
Body Hoist - Lower

24 s ( 24 s )
Body Hoist - Total Cycle Time

37 s ( 37 s )
Body Capacities - Dump Body - 3

33.8 m³ ( 44.2 yd³ )
Turning Dimensions - Outside Clearance Radius

10005 mm ( 393.9 in )
Turning Dimensions - Frame Oscillation

10°
Turning Dimensions - Articulation Angle

42.5 ° ( 42.5 ° )
Service Refill Capacities - Engine Crankcase - With Filter

95 l ( 25.0 gal (US) )
Service Refill Capacities - Transmission

53 l ( 14.0 gal (US) )
Service Refill Capacities - Hydraulic Tank

381 l ( 100.6 gal (US) )
Service Refill Capacities - Cooling System

150 l ( 39.6 gal (US) )
Service Refill Capacities - Front Differential and Final Drives

138 l ( 36.5 gal (US) )
Service Refill Capacities - Rear Differential and Final Drives

138 l ( 36.5 gal (US) )
Service Refill Capacities - Fuel Tank

900 l ( 237.7 gal (US) )
Tires - Tire Size

35 × 65 R33
Standards

ROPS/FOPS Certified Cab
Engine - Note (3)

All rating conditions are based on ISO/TR14396, inlet air standard conditions with a total barometric pressure of 100 kPa (29.5 in Hg), with a vapor pressure of 1 kPa (0.295 in Hg), and 25° C (77° F). Performance measured using fuel to EPA specifications in 40 CFR Part 1065 and EU specifications in Directive 97/68/EC with a density of 0.845-0.850 kg/L @ 15° C (59° F) and fuel inlet temperature 40° C (104° F).
