G3616 A4

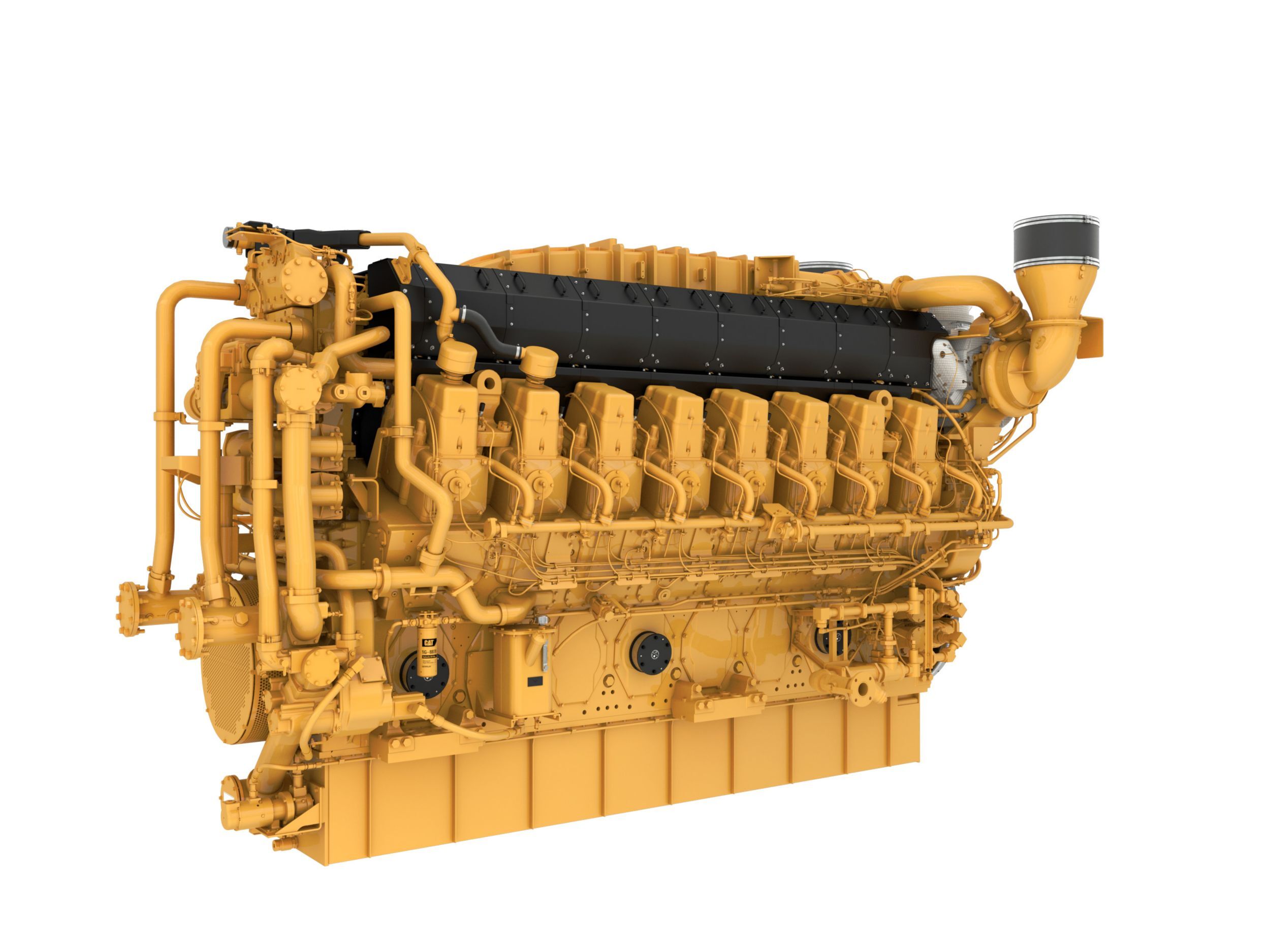

G3616 A4 Gas Compression Engine
G3600 A4 engines provide a wide range of power options to fit your gas compression application. G3600 A4 engines bring the highest uptime in the industry and long operating intervals between overhaul. Operators that use G3600 A4 engines in their fleet enjoy virtually no unscheduled downtime, the right power for their application, the lowest operating costs, and emissions compliance. Ideal applications for G3600 engines include centralized gathering stations, gas processing, transmissions, and storage applications. Cat G3616 A4 Gen 1 gas engine with ratings: 3729-3990 bkW (5000-5350 bhp) @ 1000 rpm and Cat G3616 A4 Gen 2 gas engines with ratings 4101 bKW (5500 bhp) @ 1000 rpm. NSPS site compliant capable.
Emissions
Meets U.S. EPA Spark Ignited Stationary NSPS Emissions for 2010/11 with the use of an oxidation catalyst
Lean Burn Engine Technology
Lean-burn engines operate with large amounts of excess air. The excess air absorbs heat during combustion reducing the combustion temperature and pressure, greatly reducing levels of NOx. Lean-burn design also provides longer component life and excellent fuel consumption
Ease of Operation
Includes engine mounted thermostats, compress oil cooler connections, jacket water and lube oil heater connections.
Advanced Digital Engine Management
ADEM4 engine management system integrates speed control, air/fuel ratio control, and ignition/detonation controls into a complete engine management system. ADEM4 has improved: user interface, display system, shutdown controls, and system diagnostics.
Gas Engine Rating Pro
GERP is a web-based program designed to provide site performance capabilities for Cat® natural gas engines for the gas compression industry. GERP provides engine data for your site's altitude, ambient temperature, fuel, engine coolant heat rejection, performance data, installation drawings, spec sheets, and pump curves.https://gerp.cat.com
Product Support Offered Through Global Cat Dealer
More than 2,200 dealer outlets Cat factory-trained dealer technicians service every aspect of your petroleum engine Cat parts and labor warranty Preventive maintenance agreements available for repairbefore-failure options S•O•SSM program matches your oil and coolant samples against Caterpillar set standards to determine: - Internal engine component condition - Presence of unwanted fluids - Presence of combustion by-products - Site-specific oil change interval
Over 80 Years of Engine Manufacturing Experience
Over 60 years of natural gas engine production Ownership of these manufacturing processes enables Caterpillar to produce high quality, dependable products - Cast engine blocks, heads, cylinder liners, and flywheel housings - Machine critical components - Assemble complete engine
Website
For all your petroleum power requirements, visit www.cat.com/oilandgas
Virtual Tours
Documents & Brochures
Standard Equipment
Air Inlet System
- Air cleaner — standard duty
- Inlet air adapter
Control System
- A4 control system — provides electronic governing integrated with air/fuel ratio control and individual cylinder ignition timing control
Cooling System
- Jacket water pump
- Jacket water thermostats and housing
- Aftercooler pump
- Aftercooler water thermostats and housing
- Single-stage aftercooler
Exhaust System
- Dry wrapped exhaust manifolds
- Vertical outlet adapter
Flywheel & Flywheel Housing
- SAE standard rotation
Fuel System
- Gas supply and and shut-off valves — electronically controlled fuel supply pressure
Ignition System
- A4 control system — senses individual cylinder detonation and controls individual cylinder timing
Instrumentation
- LCD display panel — monitors engine parameters and displays diagnostic codes
Lube System
- Crankcase breathers — top mounted
- Oil cooler
- Oil filter
- Oil pan drain valve
Mounting System
- Engine mounting feet (six total)
Protection System
- Electronic shutoff system with purge cycle
- Crankcase explosion relief valves
- Gas shutoff valve
Starting System
- Air starting system
General
- Paint — Cat yellow
- Vibration dampers
Additional information
| Offering Type | |
|---|---|
| Engine Specifications - Maximum Rating | 4101 bkW ( 5500 BHP ) |
| Engine Specifications - Emissions | NSPS Site Compliant Capable |
| Engine Specifications - Displacement | 339 l ( 20698.0 in³ ) |
| Engine Specifications - Minimum Rating | 3729 bkW ( 5000 BHP ) |
| Engine Specifications - Compression Ratio | Gen 1 (9.2:1) Gen 2 (7:6:1) |
| Engine Specifications - Aspiration | Turbocharged-Aftercooled |
| Engine Specifications - Rotation from Flywheel End | Counterclockwise |
| Engine Specifications - Flywheel Teeth | 255 |
| Engine Specifications - Weight - Dry | 32659.0 kg ( 72000.0 lb ) |
| Engine Specifications - Oil Change Interval | 5000 hours |
| Engine Specifications - Ignition, Protection | Electronic, ADEM™4 |
| Engine Specifications - Stroke | 300.0 mm ( 11.8 in ) |
| Engine Specifications - Bore | 300.0 mm ( 11.8 in ) |
| Capacity for Liquids - Cooling System | 798.0 l ( 211.0 gal (US) ) |
| Capacity for Liquids - Lube Oil System - Refill | 1329.0 l ( 351.0 gal (US) ) |
