R1700 XE (Battery-Electric)

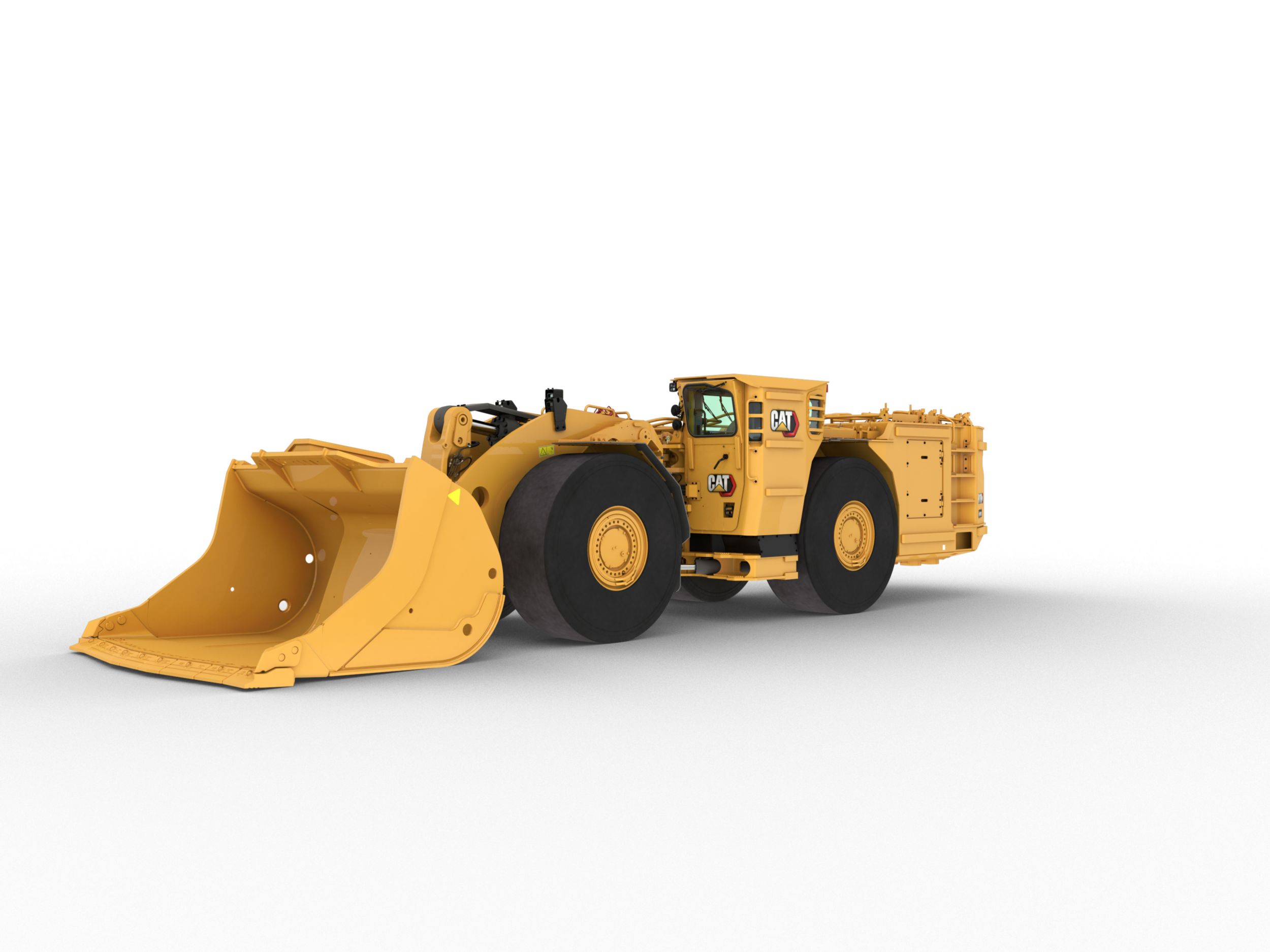

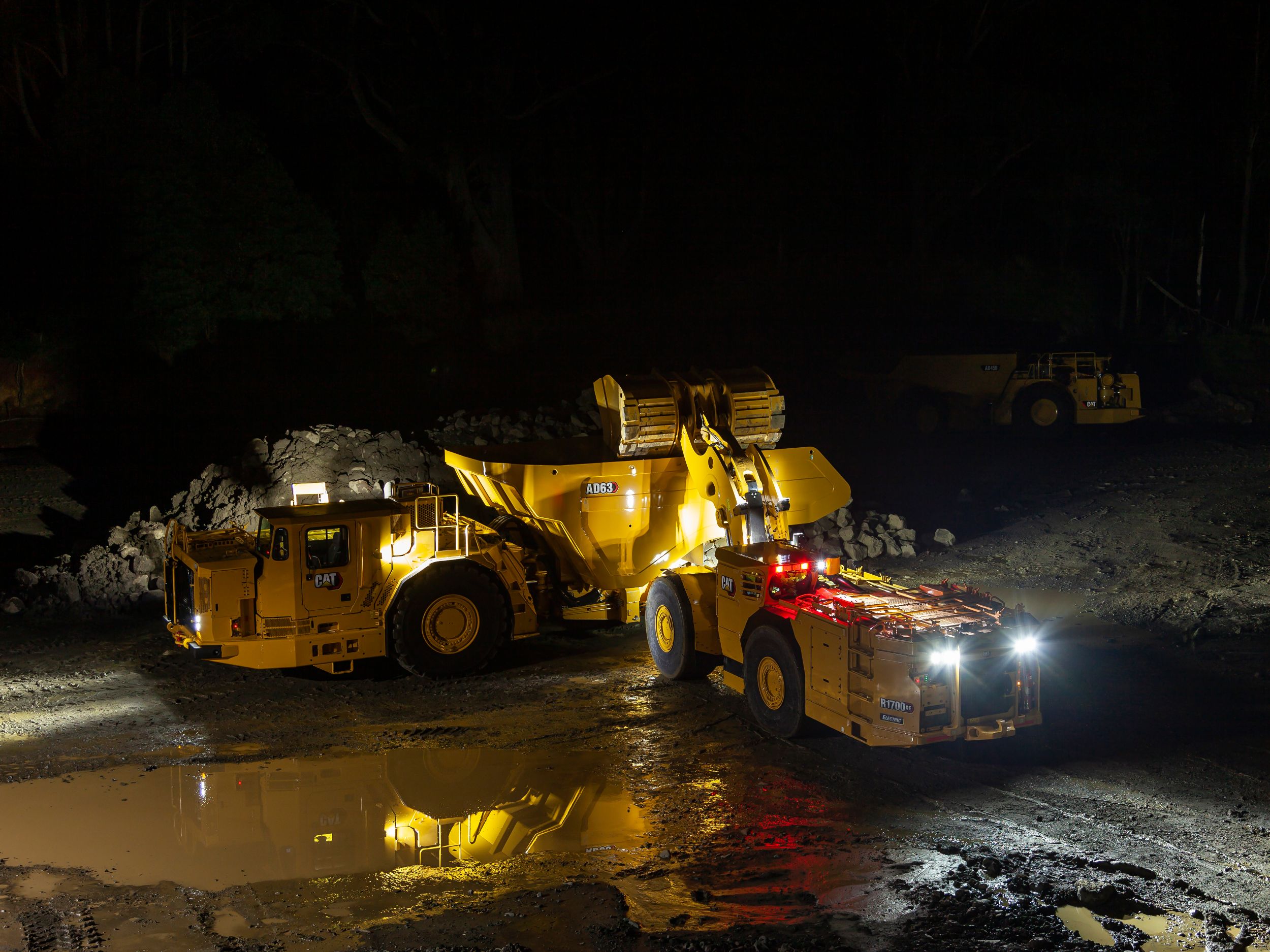

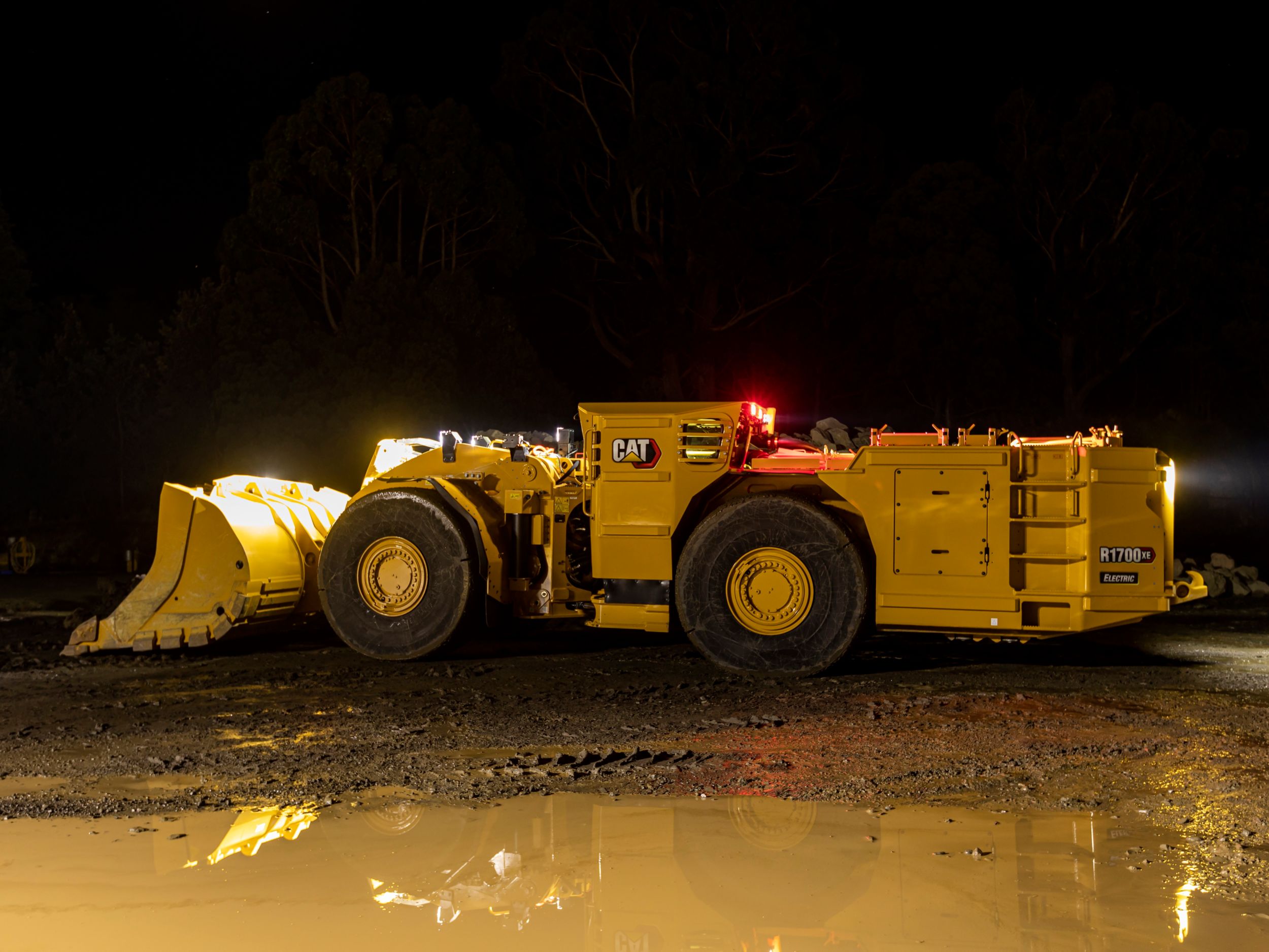

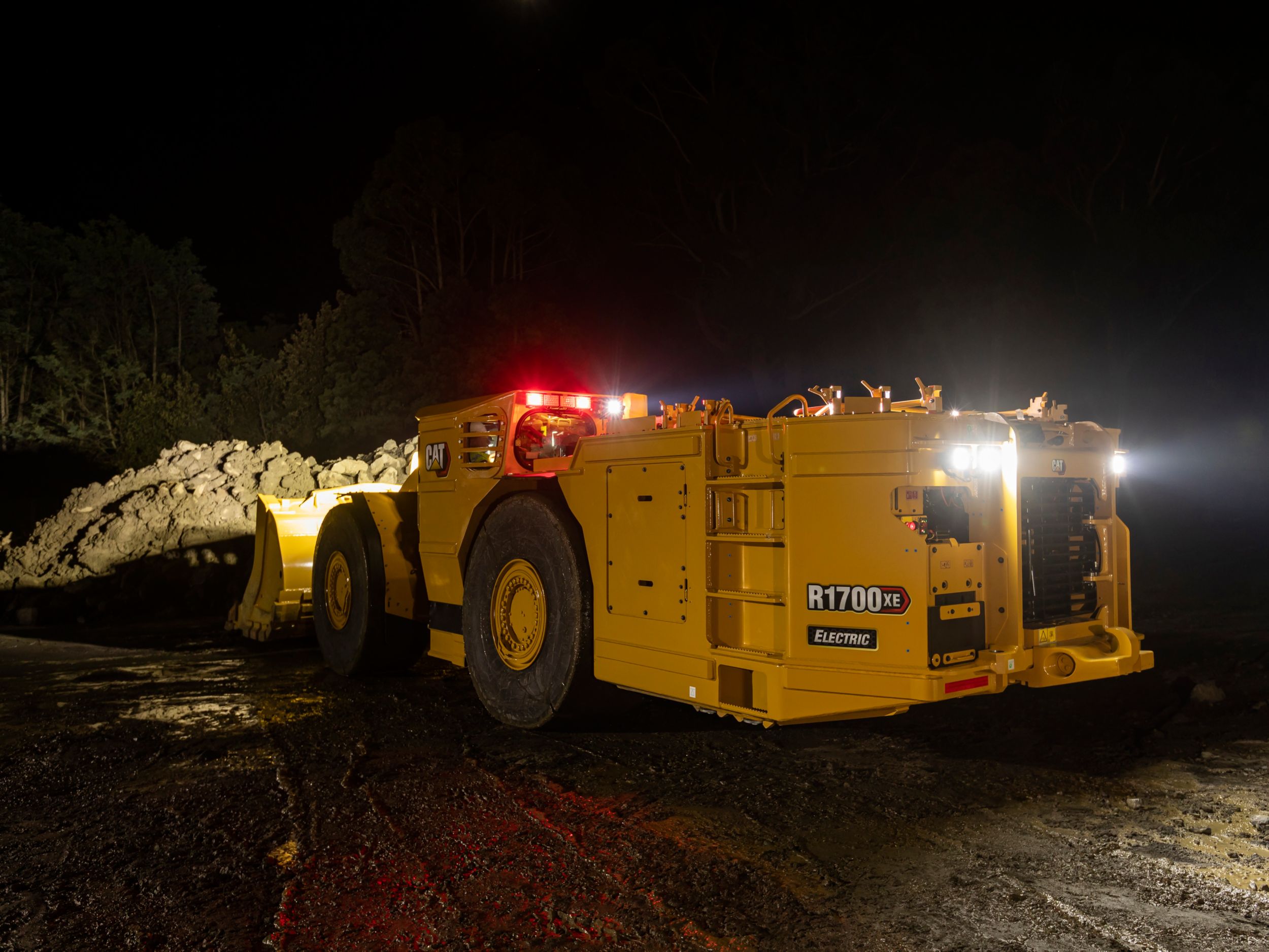

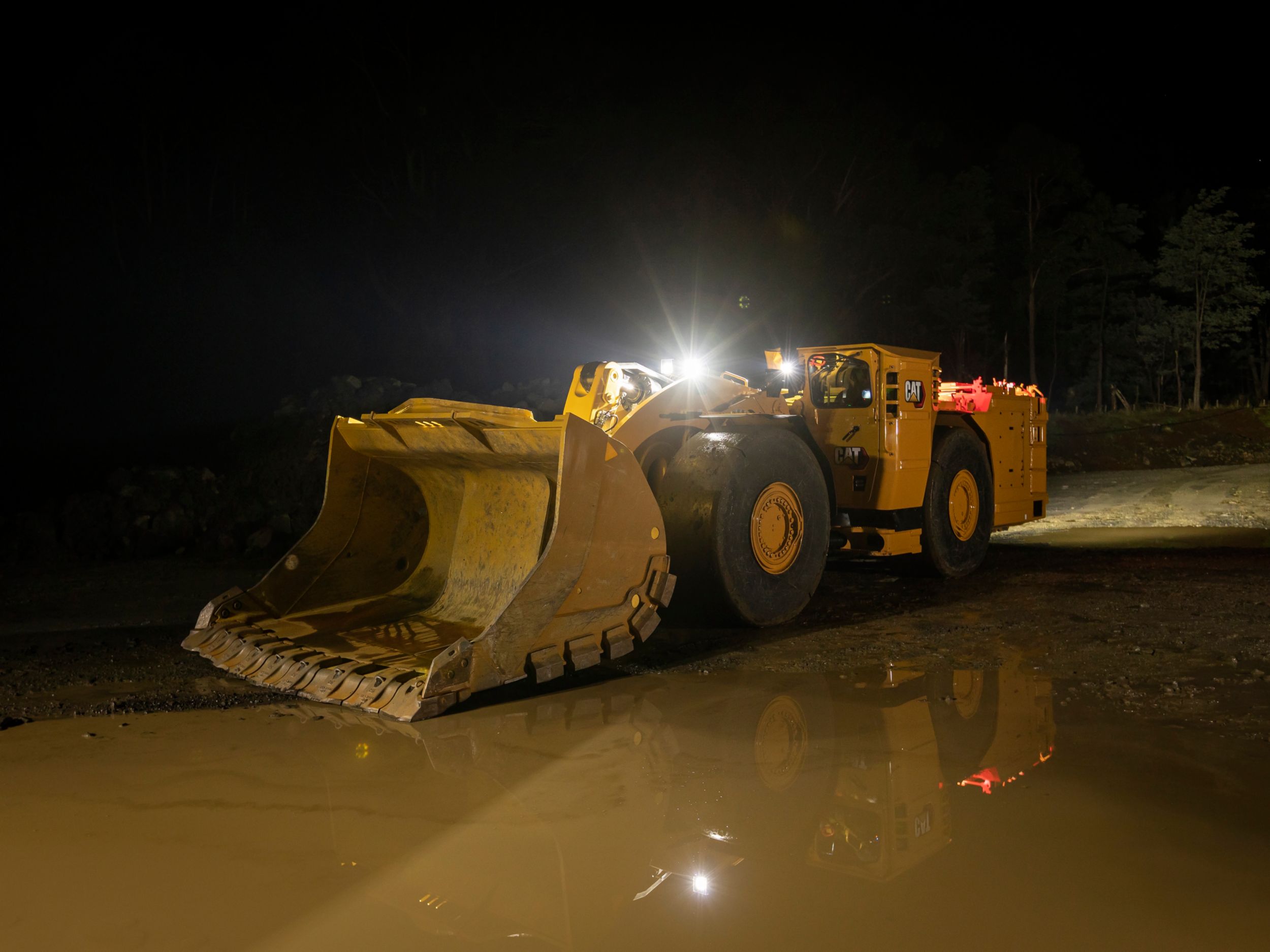

R1700 XE Underground Battery-Electric LHD Loader
What if you could have the class-leading payload and superior productivity of the proven Cat® R1700 underground loader without the engine heat or exhaust emissions? You can. Introducing the R1700 XE battery electric LHD—a high-productivity, zero exhaust emission loader with the industry’s only onboard battery. It charges quickly—in less than 20 minutes when paired with two of the durable and mobile Cat MEC500 chargers. This provides an alternative to expensive static charging station infrastructure, as well as the need for additional batteries, battery handling and battery swapping. The machine also features Auto Dig for optimized loading and is factory-ready for autonomous operation. And it delivers the powerful performance, maximum uptime and low operating costs you demand.
SAFETY
- Improvements in visibility, with lighting and camera coverage, including optional rearview camera with color display, and standardized LED lights that provide illumination to the front and rear.
- Factory-ready for fire suppression, dedicated canister area and multiple fire suppression activation points, including from within the cab.
- Improved access and egress with anti-slip tread on all walking surfaces, newly redesigned handrail system with full coverage and two emergency exits.
- Operator Present System, which protects the machine and operator from uncontrolled machine movements, with hydraulic system neutralization and door sensor.
- Safer service with integrated lock-out/tag-out points, front linkage pins for locking the lift arms in place, and bolt-on tow hooks.
OPERATOR COMFORT & CONTROL
- Completely redesigned cab with more space, with operator seated lower to improve ride quality and head room; adjustable padding for the operator’s knees; and additional foot-space during pedal operation.
- Climate control standard with pressurized enclosed option; all new HVAC coverage with improved airflow, greater defrosting coverage and reduced noise levels.
- Improved ergonomics on all controls, easy-to-use joystick controls, and an isolation-mounted cab to reduce vibration transfer to the operator.
- Optional dual pane windows for reduced noise and improved temperature control in extreme ambient conditions
- Confidence-building features such as continuously variable speed control and implemented virtual gears for machine controllability; automatic retarding controls for maintaining speed on grade; anti-rollback feature; smoother directional changing, with no driveline or powertrain shock loads; and programmable speed management, which improves operator efficiency and reduces fatigue.
PRODUCTIVITY & PERFORMANCE
- 20% capacity increase from previous models, making the R1700 XE a true 15-tonne (16.5-ton) loader for both load and haul and truck loading applications.
- Fast dumping times — 13.2 seconds to raise, dump and lower — combined with an 18-kph (11 mph) top speed and new traction control system for reduced cycle times, more material moved and lower cost per tonne.
- Excellent machine balance and new electrohydraulic braking system that aid load-and-carry cycles.
- State-of-the-art hydraulic system that delivers 65% more lift force than previous versions and 24,190-kg lift and tilt breakout.
- Features that deliver excellent responsiveness, such as Auto Dig, which automates loading of the bucket; and pilot-controlled steering system to provide more acute feel in tight spaces.
ELECTRIC DRIVE SYSTEM AND BATTERY
- Proven switched reluctance (SR) electric drive system that is Caterpillar designed, integrated, validated and supported for reliability, ease of cooling and high performance.
- Proven and durable system battery system for fast charging and high output, with Caterpillar engineered cooling system that maximizes performance and battery life.
- Electrical safety built into every level of the battery system, with multiple layers of redundancy and testing to global standards.
- Industry-first onboard batteries, which maximize available run time and provide an alternative to expensive static charging station infrastructure, as well as the need for additional batteries, battery handling and battery swapping.
- Can be fully charged in 30 minutes, or in 20 minutes using dual Cat MEC500 Mobile Equipment Chargers.
MOBILE EQUIPMENT CHARGER

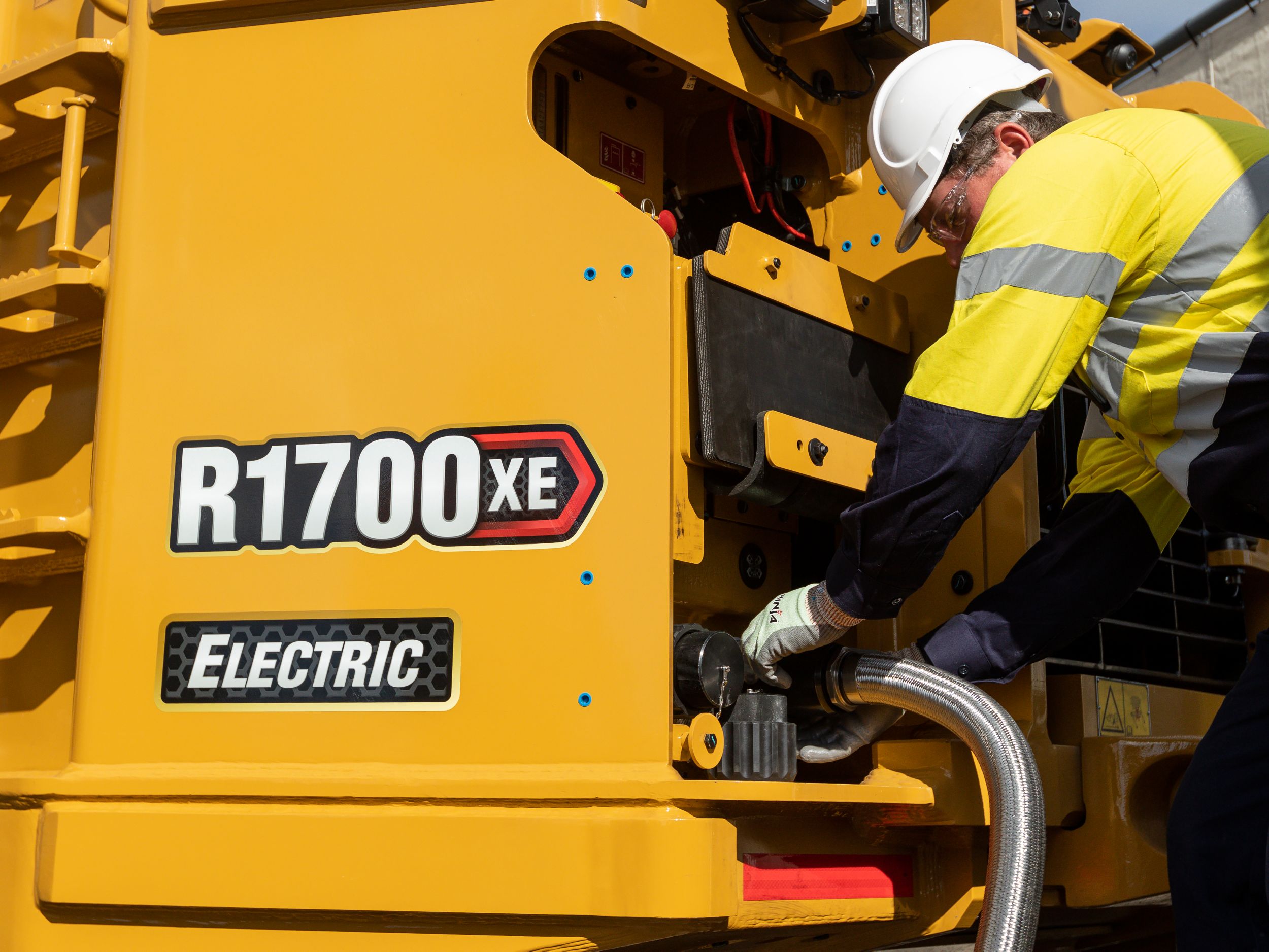

- Industry-first standalone Cat MEC500 Mobile Equipment Charger that can be towed, dragged or fork-lifted — eliminating the need for expensive static charging infrastructure.
- Charges quickly, with high power output (300-1,000 volts) and the ability to be used alone or in tandem for optimized charging; boosts voltage to accommodate variable input voltages and offers an adjustable output current that can be used to trickle the charge.
- Connects wherever there is mine power, and two units can charge in parallel with a single transformer.
- Equipped with multiple safety protocols with ground fault monitoring, continually regulating and protecting during the charging process.
- Designed for challenging conditions, with rock fall protection, rated for water and dust, key components mounted against vibration and seismic activity; and sealed against humidity with enclosed air conditioning.

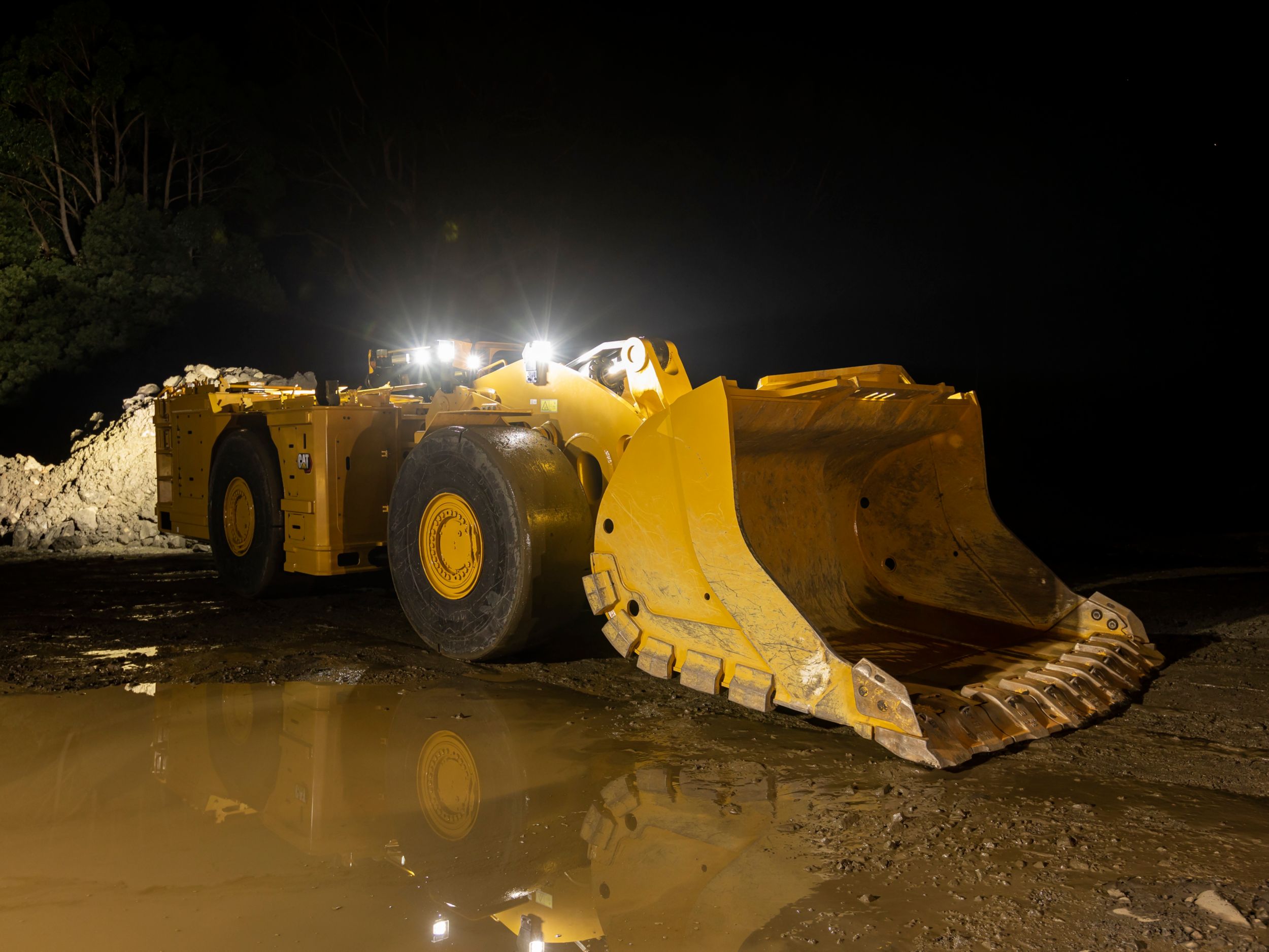

BUCKETS AND G.E.T.
- Newly patented bucket design that offers load path management for long wear life, increased throat angle for easier loading in rock, improved tire coverage for cleanup and tire protection, added strength to match improved breakout force, and added stiffness to inside torque tube for torsional rigidity.
- Five bucket options, including four dump and one bolt-together option — all designed and manufactured to match their performance capabilities.
- Welded, bolted or hammerless Ground Engaging Tools (GET) to meet site-specific needs and fit with site maintenance strategy.
- Bolt-On Half Arrow (BOHA) GET for bucket edges, which offer more wear material than standard weld-on GET and feature a bolt-on design that enables fast and easy removal and replacement.
- New Durilock Lip Shroud system that features hammerless installation and maintenance-free retention of GET, with three interchangeable shroud styles to meet specific applications.
RELIABILITY & DURABILITY
- Front frame section with four-plate design that offers new, fully integrated front axle support casting that absorbs greater impact, vibration and tram loads that come with the growth of the machine capacity and weight.
- Increased axle housing thickness for abrasion protection and corrosion resistance.
- Visibly stronger lift arms with additional steel thicknesses, to ensure extreme loads encountered during loading and tramming are efficiently dissipated for long service life.
- Frame, powertrain, engine and components that are built to be rebuilt.
SERVICEABILITY
- ECMs located in single, air-cooled and sealed box located on the service platform of the machine.
- Redesigned hitch with simplified hydraulic routings and more space for technicians to work and clean.
- Modular components that can be removed from the machine and slotted back into place as a single unit, allowing the machine to get back into service much more quickly.
- Improved service access, with swing-open radiator guard, and filter and key service tasks grouped into centralized service section with oil coolers and batteries located just below.
- Electric drive system with fewer moving parts and extended maintenance intervals; sealed electrical connectors, which lock out dust and moisture; and added remote mounted test ports for testing and troubleshooting.
TECHNOLOGY
- Factory-ready for remote operation and can be equipped with the industry-proven Cat® MineStar™ Command for underground, which offers line-of-sight remote control; teleremote operation; co-pilot, which requires only directional input from the operator; and fully autonomous operation.

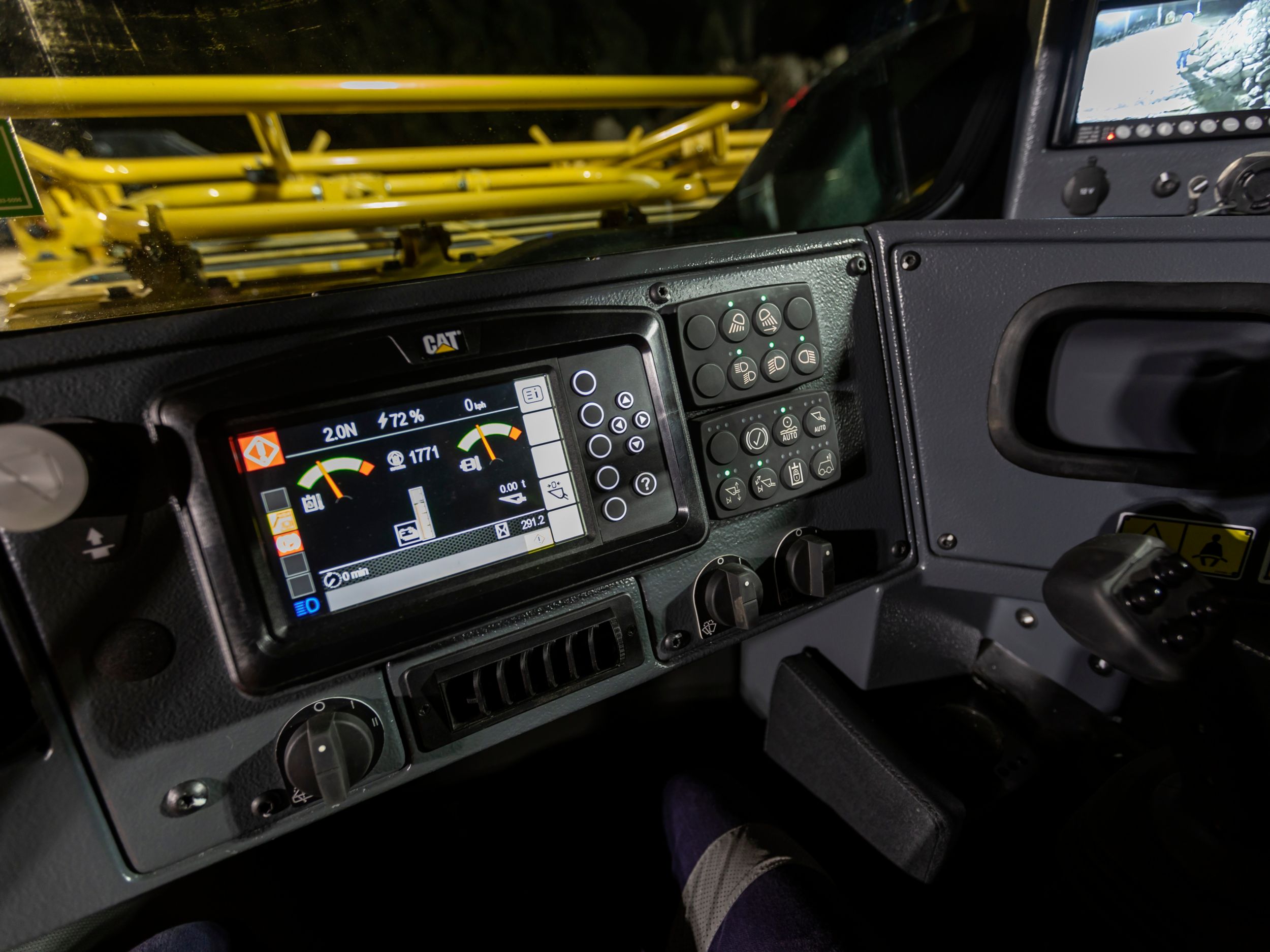

- High-resolution dash displays with 11 language options for access to real-time system information.
- In-cab health monitoring visible on the digital display and monitored through the Cat Product Link™ Elite (PLE) system, including integrated MineStar Health offerings that enable proactive maintenance services and predictive equipment analysis.
- Optional MineStar Fleet for underground, which provides real-time visibility to cycle time, payload, machine position and other key operational parameters.
- Optional MineStar Detect, which uses a proximity detection system coupled with a revolutionary communications and tracking network to prevent incidents and track people and machines in real time.
SUSTAINABILITY
- Battery electric power, which produces zero exhaust emissions, significantly less heat, less vibration, reduced noise and a better working environment.
- Ongoing research and development into engine compatibility with diesel fuel blended with lower-carbon intensity fuels such as biofuels and renewable fuels.
- Cat Rebuild and Cat Reman programs, which preserve raw materials, conserve energy and reduce emissions.
- Retrofits and upgrades for older machines — to incorporate efficiency improvements and emission reductions, and to keep them in production longer to conserve energy and minimize the need for raw materials.
Videos
Documents & Brochures
Standard Equipment
POWER TRAIN
- Brake axle cooling
- Brakes, full hydraulic enclosed wet multiple-disc (SAFR)
- Machine Power Source:
– Battery
– Two independently controlled motors for propulsion and hydraulics
ELECTRICAL
- Alarm, reversing
- DC-DC convertor, 8 Amp
- 24V Battery disconnect switch, ground level
- 24V Batteries, low maintenance
- HV indication lamp
- HV battery disconnect switch
- Diagnostic connector
- Lighting, external, front, rear (LED)
- Lighting, stop, dual (LED)
- Receptacle, auxiliary start
OPERATOR ENVIRONMENT
- Enclosed Cab, ROPS/FOPS certified
- Color Multi Purpose Display (CMPD):
– Front and rear brake gauges
– System diagnostics
– Residual brake warning - Horns, electric
- Instrumentation/gauges:
– Speedometer/tachometer
– Battery SOC (State of Change) level
– Hydraulic oil temperature
– Battery and PTO coolant temperature - Operator presence system
- Automatic Brake Application (ABA)
- Light, warning, residual brake
- Monitor, door latch
- Electrohydraulic implement controls (single joystick)
- Seat belt, retractable
- Mounts, radio and speaker (×2)
- Storage box, enclosed, 5 L (3 gal)
- Armrests and kneepads, independently adjustable
TIRES, RIMS, AND WHEELS
- Tires
- Rims (set of four):
– Five piece
TECHNOLOGY
- Traction control
- Product Link™ Elite System
OTHER EQUIPMENT
- Dump bucket
- Lift arm positioner for return to dig
CHOOSE BETWEEN:
- Cab: Standard height
- Cab: Raised height
Additional information
| Offering Type | |
|---|---|
| Operating Specifications - Bucket Capacities | 5.7-7.5 m³ (7.5-9.8 yd³) |
| Operating Specifications - Operating Mass | 48743 kg ( 107460 lb ) |
| Operating Specifications - Ride Control | Yes |
| Traction Motor - Rated Power - Peak | 250 kW ( 335 HP ) |
| Traction Motor - Rated Power - Nominal | 220 kW ( 295 HP ) |
| Traction Motor - Motor Type | Switched Reluctance |
| Traction Motor - Rated Torque (peak, nominal = @ 12 km/h [7.5 mph] and nominal power) | 3200 N·m/660 N·m (2360 lbf-ft/443 lbf-ft) |
| Traction Motor - Efficiency | 95% |
| Traction Motor - Cooling Method | Liquid |
| Traction Motor - Ability of Regenerative Braking | Yes |
| Traction Motor - Service Interval | 12,000-13,000 hours |
| Auxiliary Motor - Rated Power (peak, nominal) | 226 kW ( 303 HP ) |
| Auxiliary Motor - Motor Type | Switched Reluctance |
| Auxiliary Motor - Rated Torque (peak, nominal = 1,600 equivalent rpm) | 600 N·m/531 N·m (443 lbf-ft/392 lbf-ft) |
| Auxiliary Motor - Efficiency | 96% |
| Auxiliary Motor - Cooling Method | Liquid |
| Auxiliary Motor - Service Interval | 12,000-13,000 hours |
| Power Electronics - Inverter Rating | 350A (nominal DC), 715VDC |
| Power Electronics - Cooling Method | Liquid (coolant) |
| Power Electronics - Component Ratings | IP67, IP69K |
| Power Electronics - Service Interval | 12,000-13,000 hours |
| Grade Performance - 25 Degree Ambient, 2% Rolling Resistance - 0% Grade - Loaded | 18 km/h ( 11.2 mile/h ) |
| Grade Performance - 25 Degree Ambient, 2% Rolling Resistance - 0% Grade - Unloaded | 18 km/h ( 11.2 mile/h ) |
| Grade Performance - 25 Degree Ambient, 2% Rolling Resistance - 5% Grade - Loaded | 14.8 km/h ( 9.2 mile/h ) |
| Grade Performance - 25 Degree Ambient, 2% Rolling Resistance - 5% Grade - Unloaded | 18 km/h ( 11.2 mile/h ) |
| Grade Performance - 25 Degree Ambient, 2% Rolling Resistance - 10% Grade - Loaded | 8.6 km/h ( 5.3 mile/h ) |
| Grade Performance - 25 Degree Ambient, 2% Rolling Resistance - 10% Grade - Unloaded | 11.1 km/h ( 6.9 mile/h ) |
| Grade Performance - 25 Degree Ambient, 2% Rolling Resistance - 15% Grade - Loaded | 6.1 km/h ( 3.8 mile/h ) |
| Grade Performance - 25 Degree Ambient, 2% Rolling Resistance - 15% Grade - Unloaded | 7.9 km/h ( 4.9 mile/h ) |
| Grade Performance - 25 Degree Ambient, 2% Rolling Resistance - 20% Grade - Loaded | 4.8 km/h ( 3 mile/h ) |
| Grade Performance - 25 Degree Ambient, 2% Rolling Resistance - 20% Grade - Unloaded | 6.2 km/h ( 3.9 mile/h ) |
| Battery - Battery Pack - Battery Chemistry | Li-lon |
| Battery - Battery Pack - Battery Monitoring | With integrated Caterpillar controls systems |
| Battery - Battery Pack - Pack Voltage - Nominal | 715 V |
| Battery - Battery Pack - Pack Energy Capacity - Total | 213 kWh |
| Battery - Battery Pack - Charging Method | Ultra Fast Charge Onboard |
| Battery - Battery Pack - On Board Fast Charging Charge time (0-100%) | Less than 20 minutes (two MEC500 in parallel); Less than 30 minutes (one MEC500) |
| Battery - Battery Pack - Battery Cooling Method | Chilled Liquid (Extended Life Coolant) |
| Battery - Battery Pack - Operating Temperature Limits (ambient) | 50° C/–20° C (122° F/-4° F) |
| Battery - Battery Pack - Charging Current, Voltage | 1160A (output), 820VDC |
| Battery - Battery Pack - Maximum Charging Rate | 840 kW (two MEC500 chargers) |
| Battery - Battery Pack - Minimum Charging Rate | 500 kW |
| Battery - Battery Pack - Charging Rate | Up to 4C (matched with MEC500 chargers) |
| Operating Specifications - Nominal Payload Capacity | 15000 kg ( 33069 lb ) |
| Operating Specifications - Shipping Weight | 51918 kg ( 114460 lb ) |
| Operating Specifications - Breakout Force - Lift and Tilt | 24190 kg ( 53330 lb ) |
| Operating Specifications - Static Tipping Load - Straight Ahead - Lift Arms Horizontal | 49203 kg ( 108500 lb ) |
| Operating Specifications - Static Tipping Load - Full Turn - Lift Arms Horizontal | 40649 kg ( 89600 lb ) |
| Hydraulic System - Lift/Tilt - Lift/Tilt System - Circuit | Electro – Hydraulic, Positive Flow Control, Flow Sharing |
| Hydraulic System - Lift/Tilt - Lift/Tilt System - Pump | Variable Flow Piston/Hydraulic Load Sense |
| Hydraulic System - Lift/Tilt - Maximum Flow | 297 l/min ( 78.5 gal/min ) |
| Hydraulic System - Lift/Tilt - Relief Valve Setting - Main | 34000 kPa ( 4932 psi ) |
| Hydraulic System - Lift/Tilt - Lift Cylinder - Bore | 170 mm ( 7 in ) |
| Hydraulic System - Lift/Tilt - Lift Cylinder - Stroke | 830 mm ( 33 in ) |
| Hydraulic System - Lift/Tilt - Tilt Cylinder - Bore | 210 mm ( 8 in ) |
| Hydraulic System - Lift/Tilt - Tilt Cylinder - Stroke | 564 mm ( 22 in ) |
| Hydraulic Cycle Times - Raise | 6.8 s ( 6.8 s ) |
| Hydraulic Cycle Times - Dump | 3.3 s ( 3.3 s ) |
| Hydraulic Cycle Times - Lower, Empty, Float Down | 2.9 s ( 2.9 s ) |
| Hydraulic Cycle Times - Total Cycle Time | 13.2 s ( 13.2 s ) |
-
