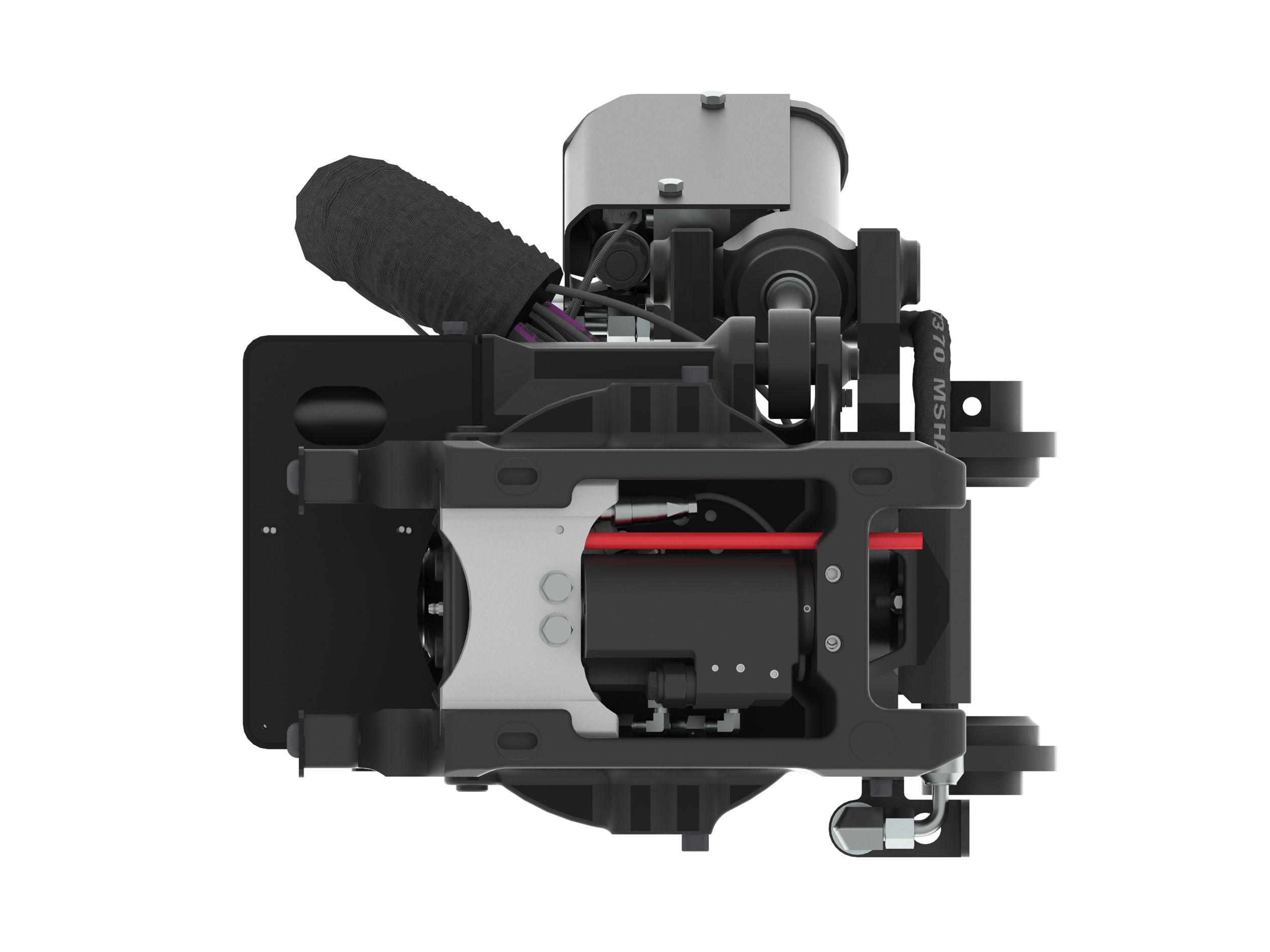

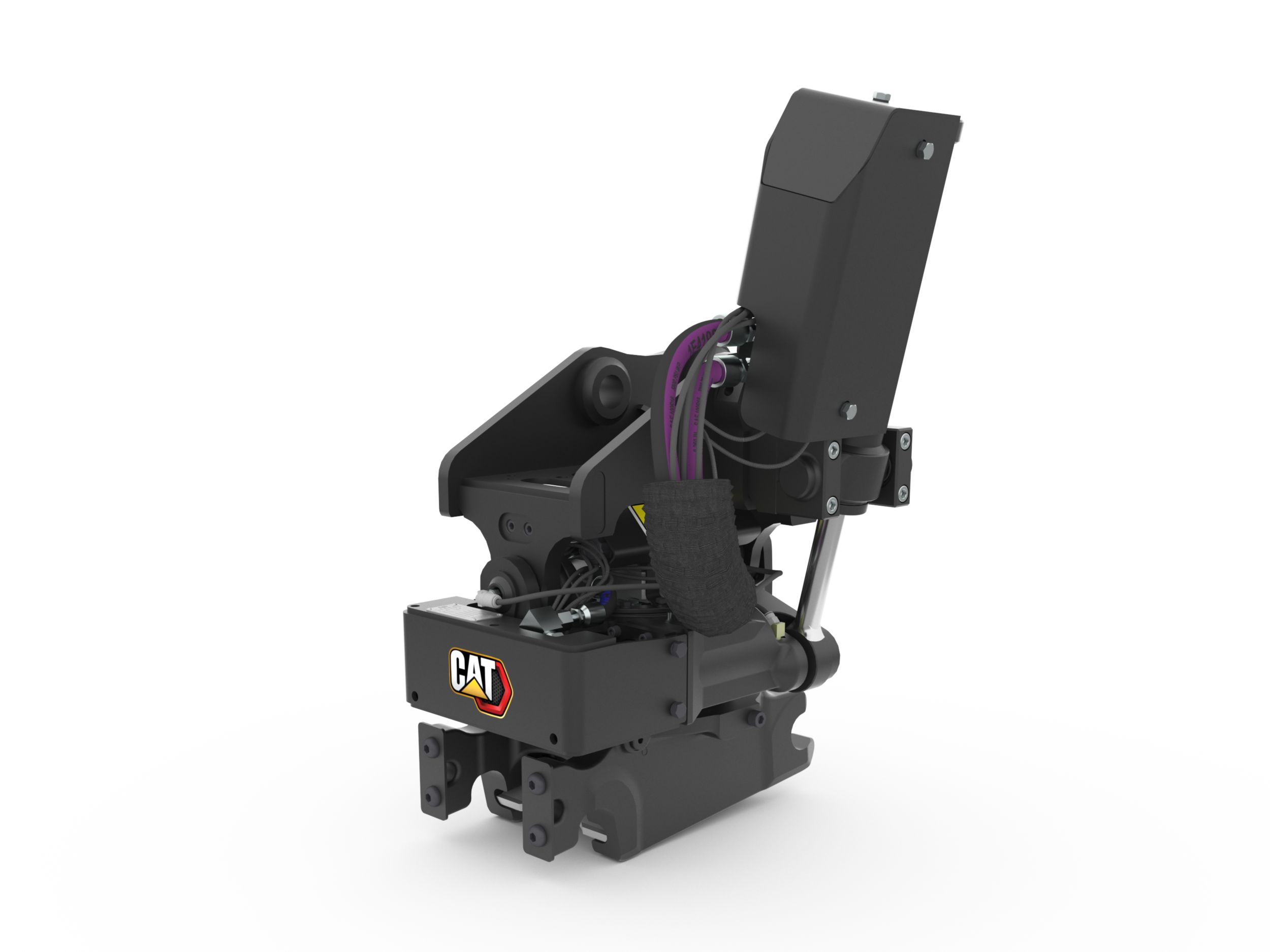

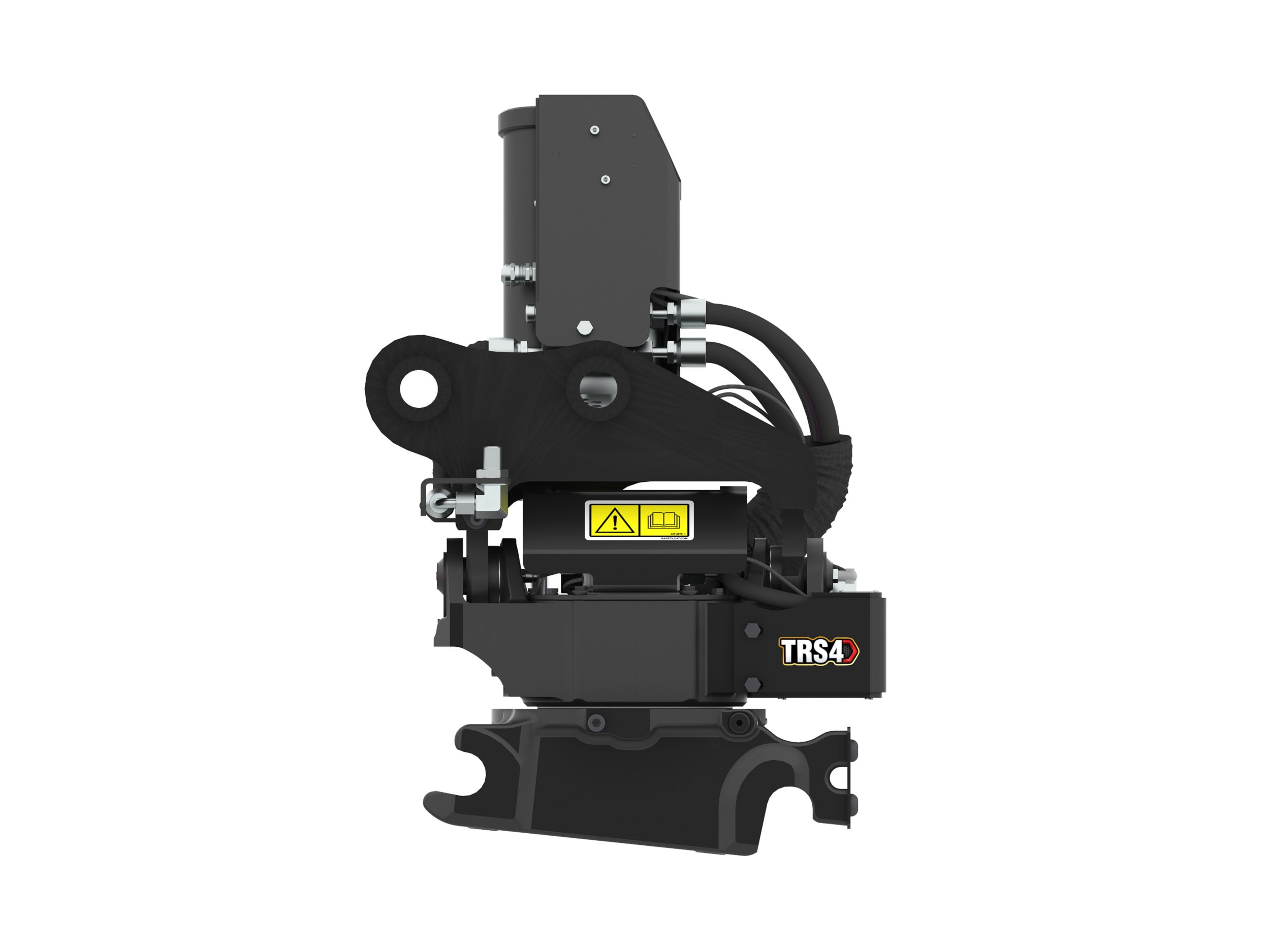

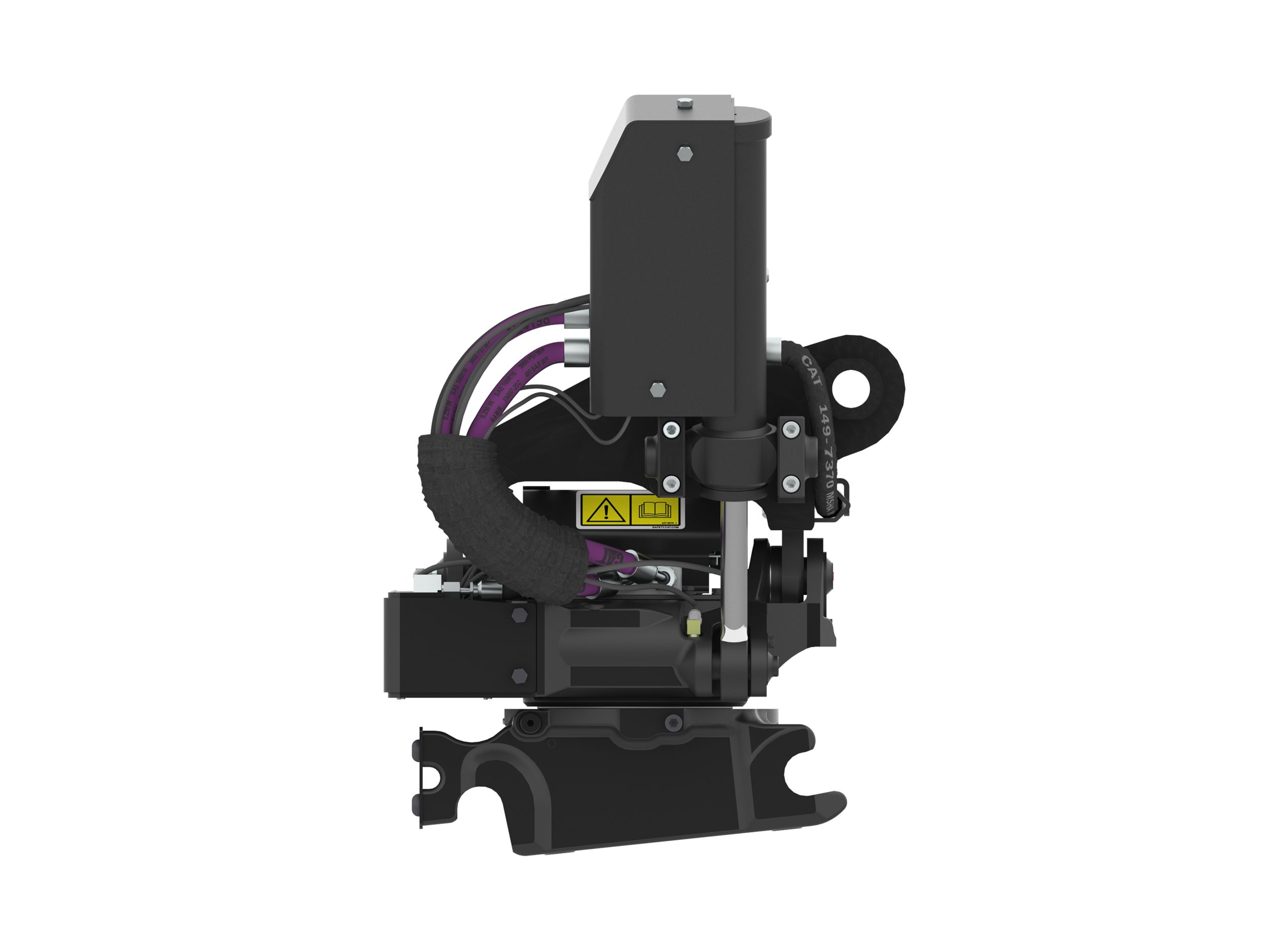

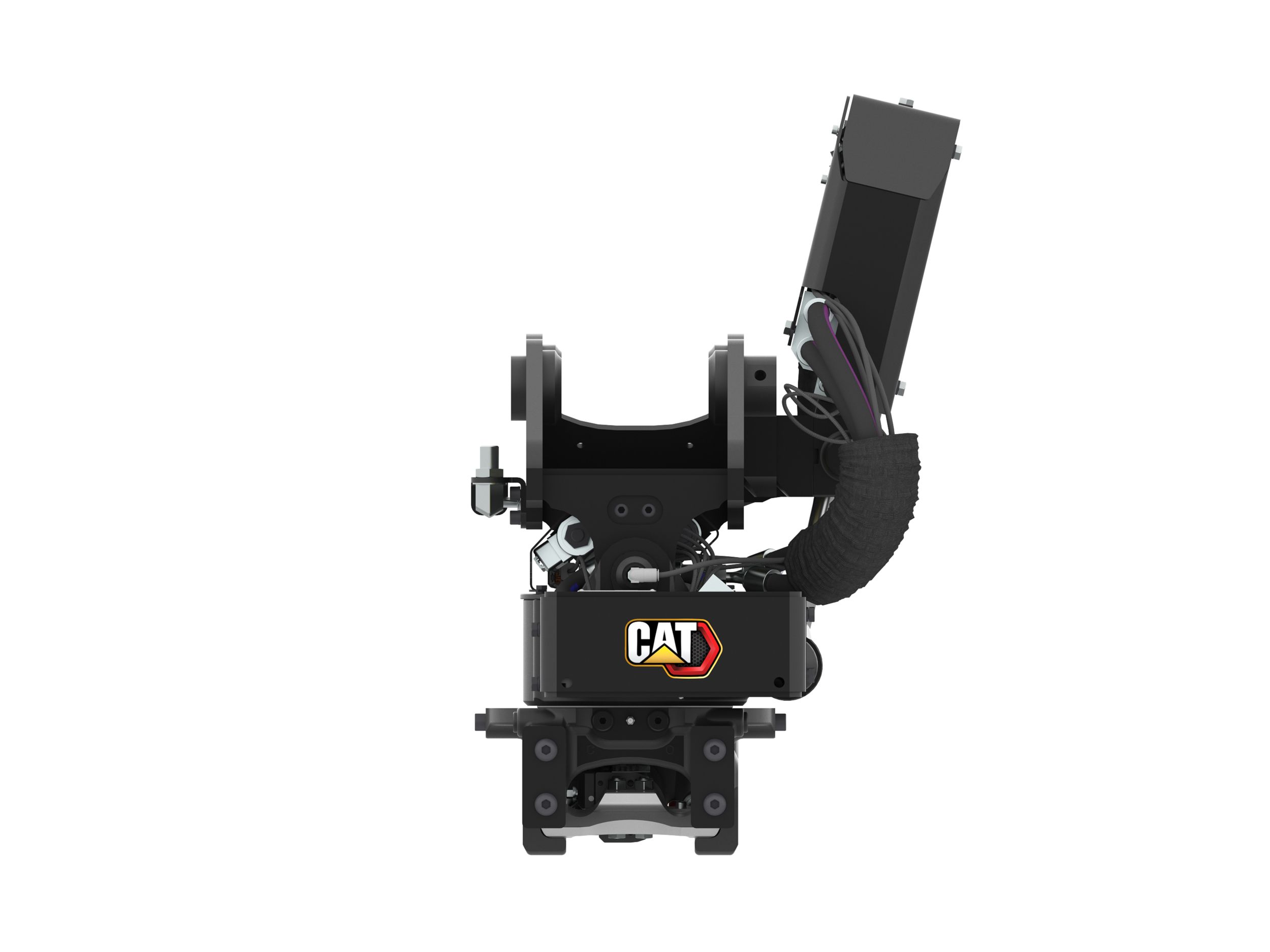

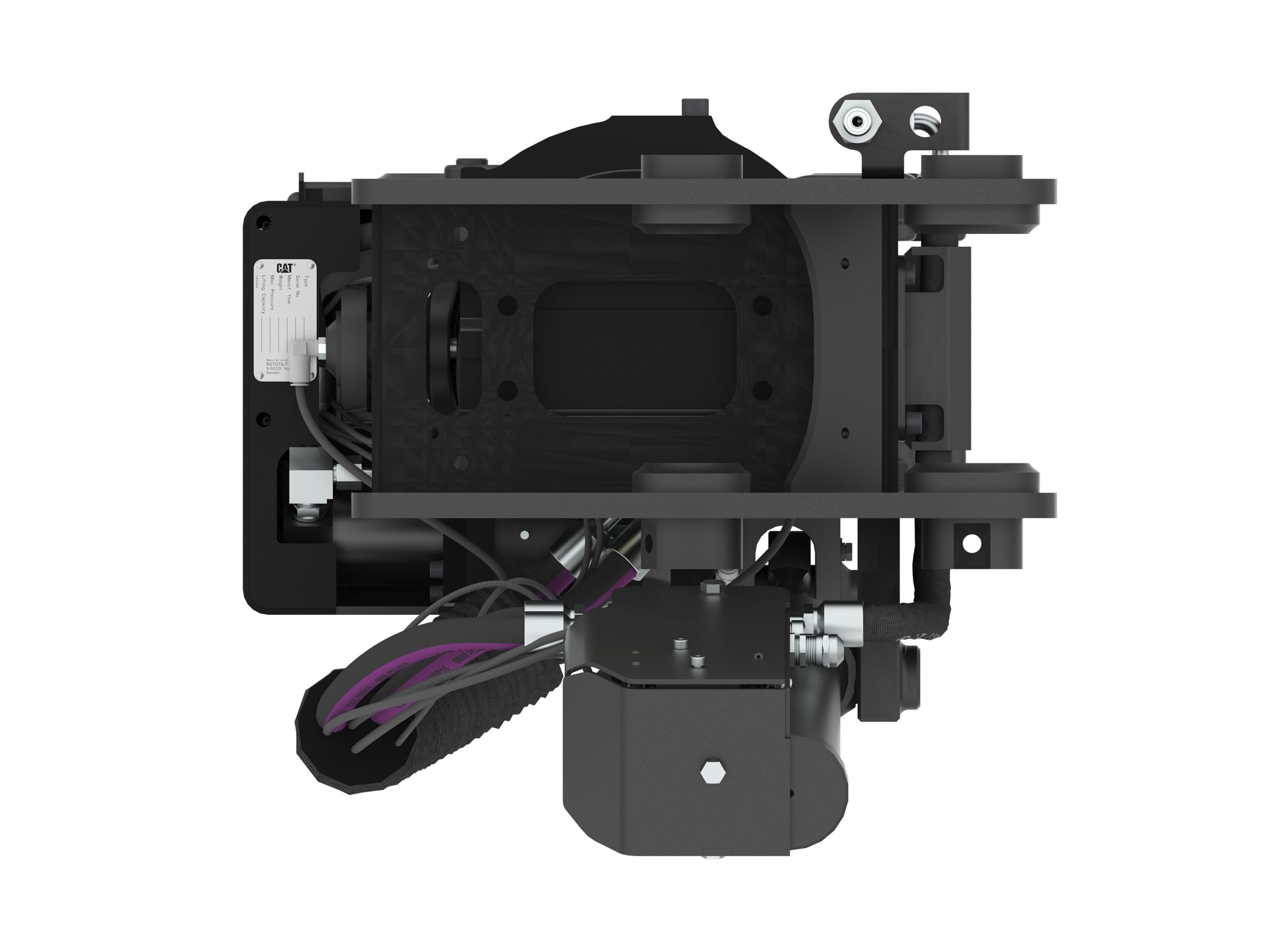

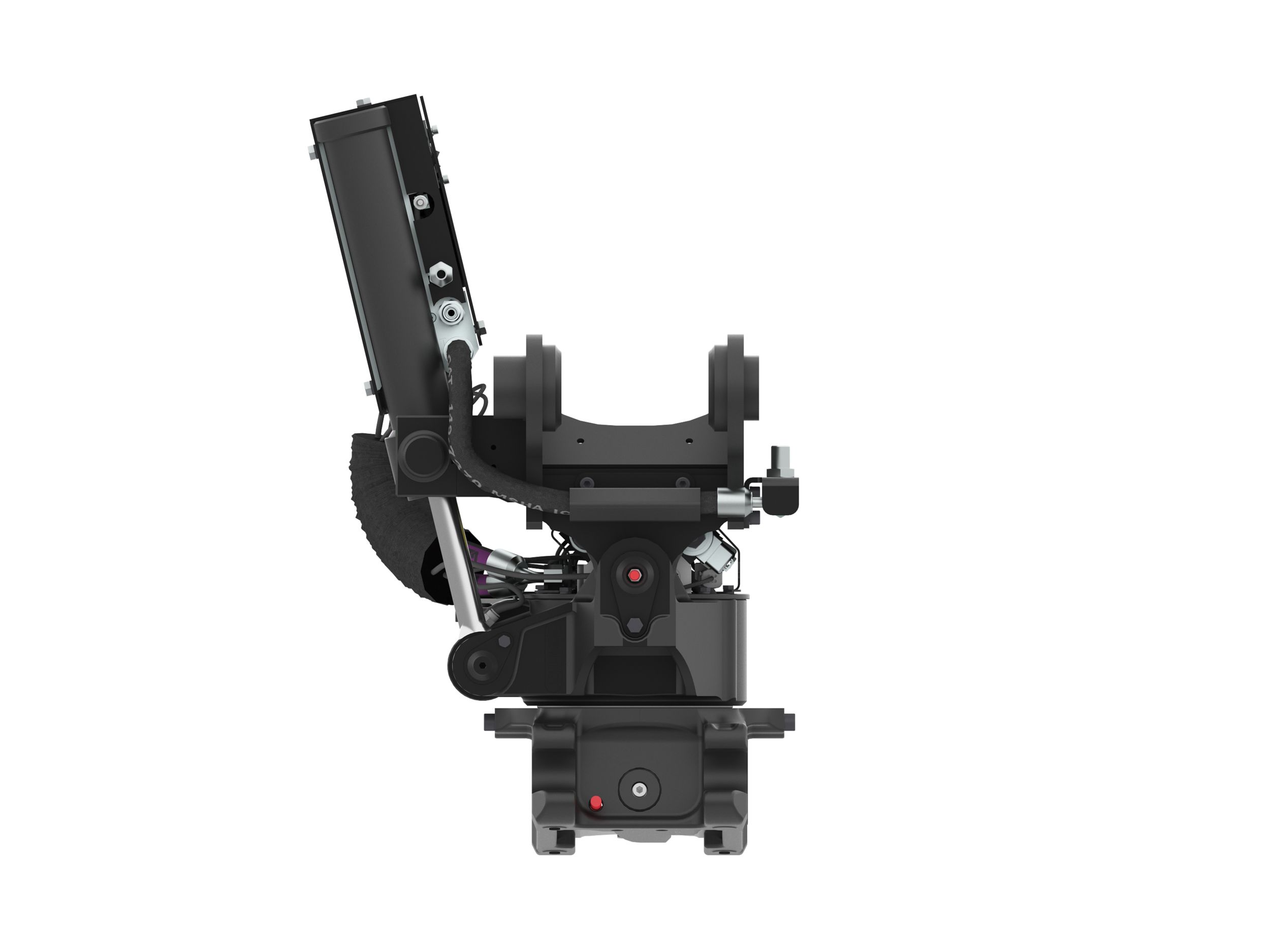

TRS4
Complete 360 Degree Rotation
Provides optimal control of your work tools to provide greater flexibility.
Integrated Central Lubrication System
A single point of entry for grease allows the entire unit to be greased quickly and easily.
Optional Grapple Module
Used to pick up objects such as pipe and debris.
Oil Filled Gearbox
A maintenance free solution that more effectively distributes heat, providing better lubrication than grease.
Heavy Duty Worm Gear
Worm gear box with high rotation torque and self locking ability allows digging in all directions with full power, allowing the gear to accept the maximum machine forces and split the load through the entire TRS construction.
Double Acting Cylinder with Load Hold Valve
Valves sustain holding pressures and prevent cylinder movement under load constraints.
Visual Verification Indicator
The visual verification indicator allows the operator to visibly confirm, from the cab, that the coupler has successfully locked the attachment into place properly.
Locking Control System (LCS)
LCS incorporates an electronic position sensor integrated into the quick coupler hydraulic cylinder. This sensor provides precise and reliable input to an electronic processor mounted inside the quick coupler. This microprocessor provides digital communication to the Next Generation MHE machine Electronic Control Module (ECM) by way of an electrical harness. This data is then displayed on the operators display screen, and will provide audible indications when that locking status changes.
Compatibility Note
Only compatible with the following Next Gen machines and serial numbers:
- 302.7 - S/N CZ6 1 & Up
Virtual Tours
Documents & Brochures
Additional information
فئة الماكينة | الحفارات الصغيرة 2 أطنان |
---|---|
الوزن | 120 كجم ( 264.6 رطل ) |
خيارات الوصلة البينية: علوية-سفلية | تثبيت بمسامير / S40 |
الارتفاع الإجمالي | 702 مم ( 27.6 بوصة ) |
الطول | 480 مم ( 18.9 بوصة ) |
العرض الإجمالي | 381 مم ( 15 بوصة ) |
سرعة التدوير | 7 ثوانٍ لكل دورة واحدة كاملة |
نطاق زاوية الميل +/- | 40 درجة يسارًا/يمينًا |
سعة الجرافة القصوى | 110 l ( 3.9 قدم³ ) |
أقصى عرض للجرافة | 1000 مم ( 39.4 بوصة ) |
التدفق الهيدروليكي المثالي | 17-25 لترًا/دقيقة (4,5-6,7 جالونات في الدقيقة) |
ضغط التشغيل الأقصى | 21000 كيلو باسكال ( 3045.8 رطل لكل بوصة مربعة ) |
المكونات الهيدروليكية المطلوبة | الإضافي الأول |
عزم الإمالة | 5800 نيوتن-متر ( 4277.9 lb/ft ) |
عزم الدوران | 1700 نيوتن-متر ( 1253.9 lb/ft ) |
