12 m³ (15.7 yd³) – 466-0278

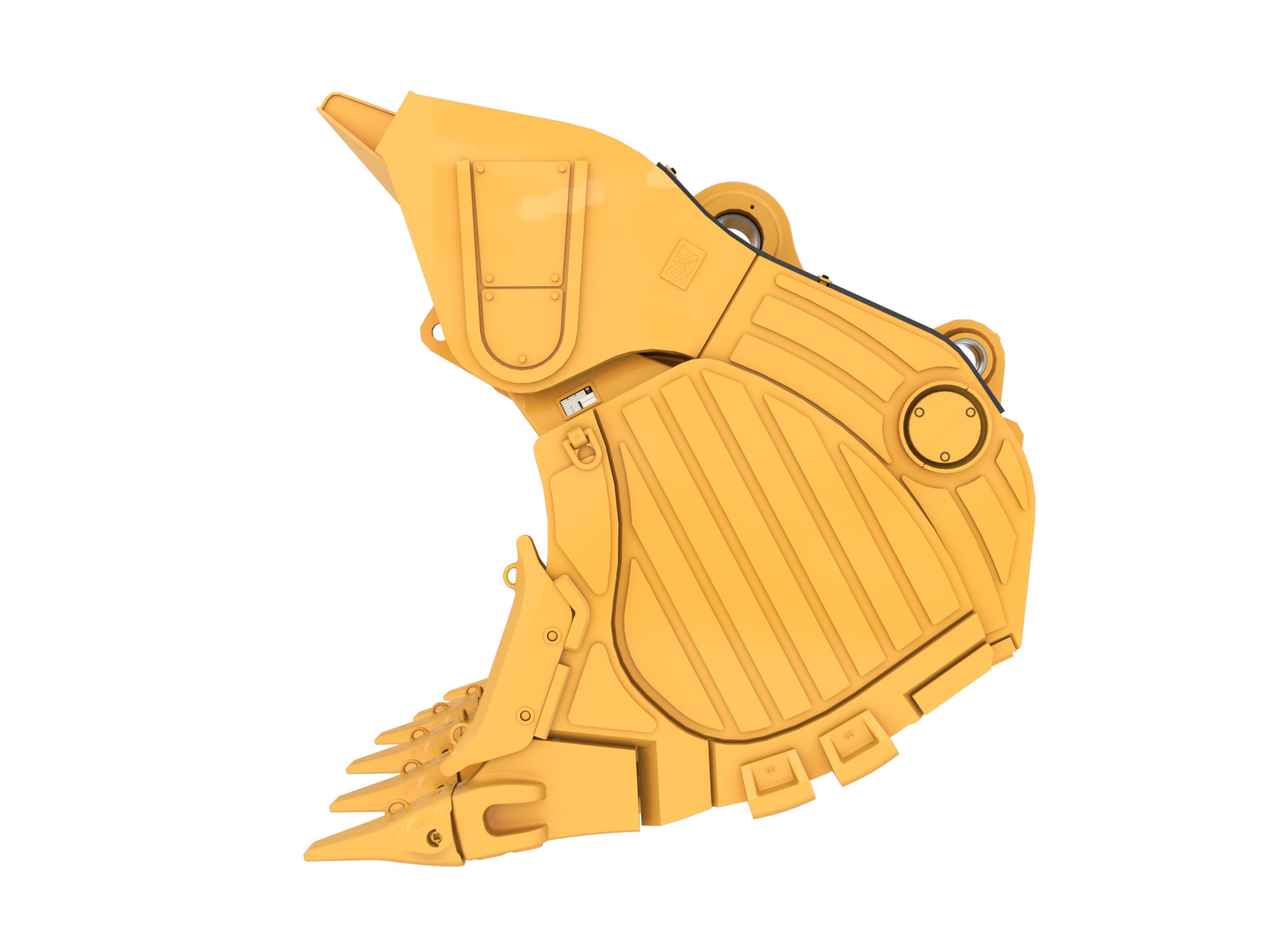

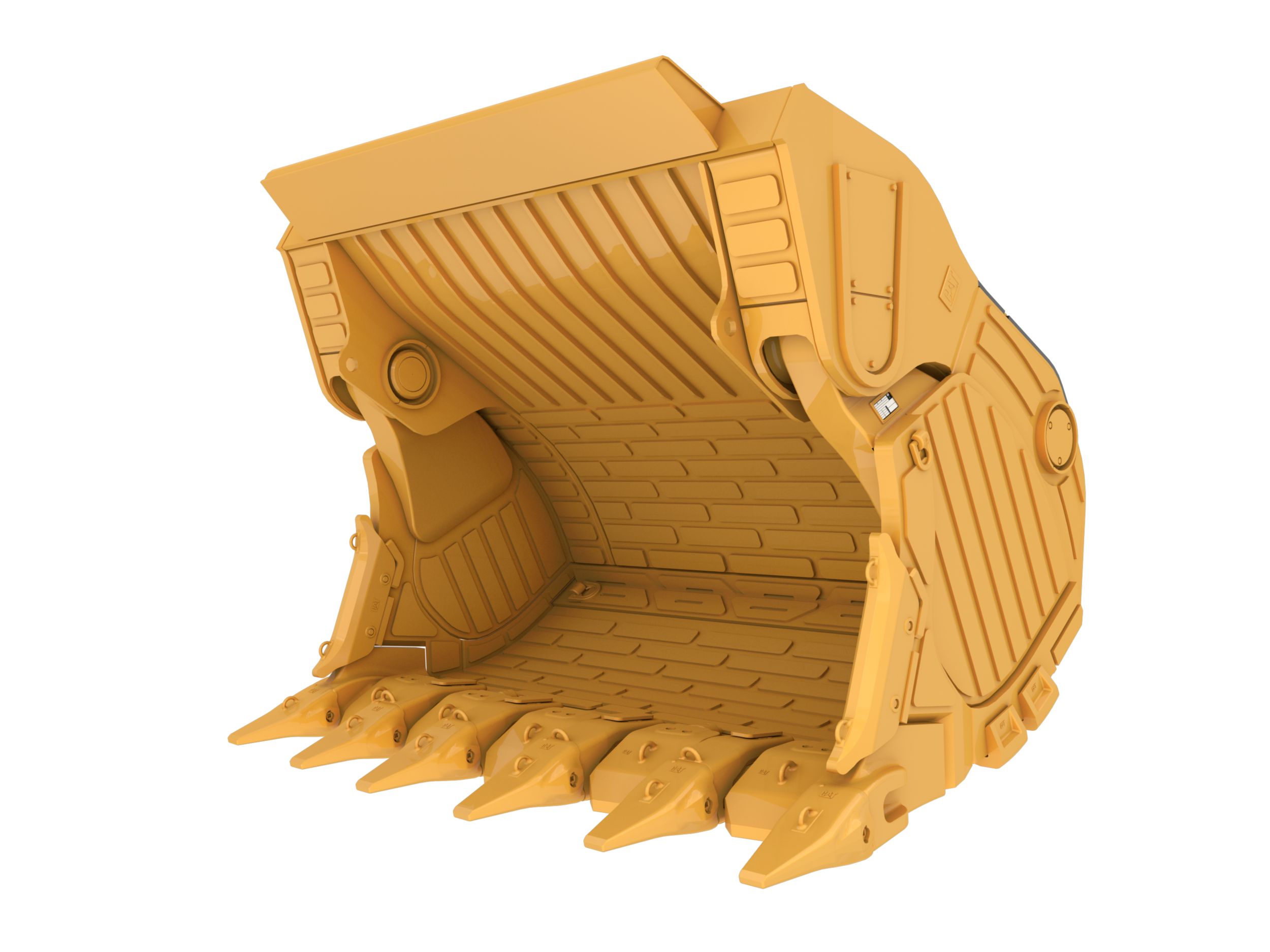

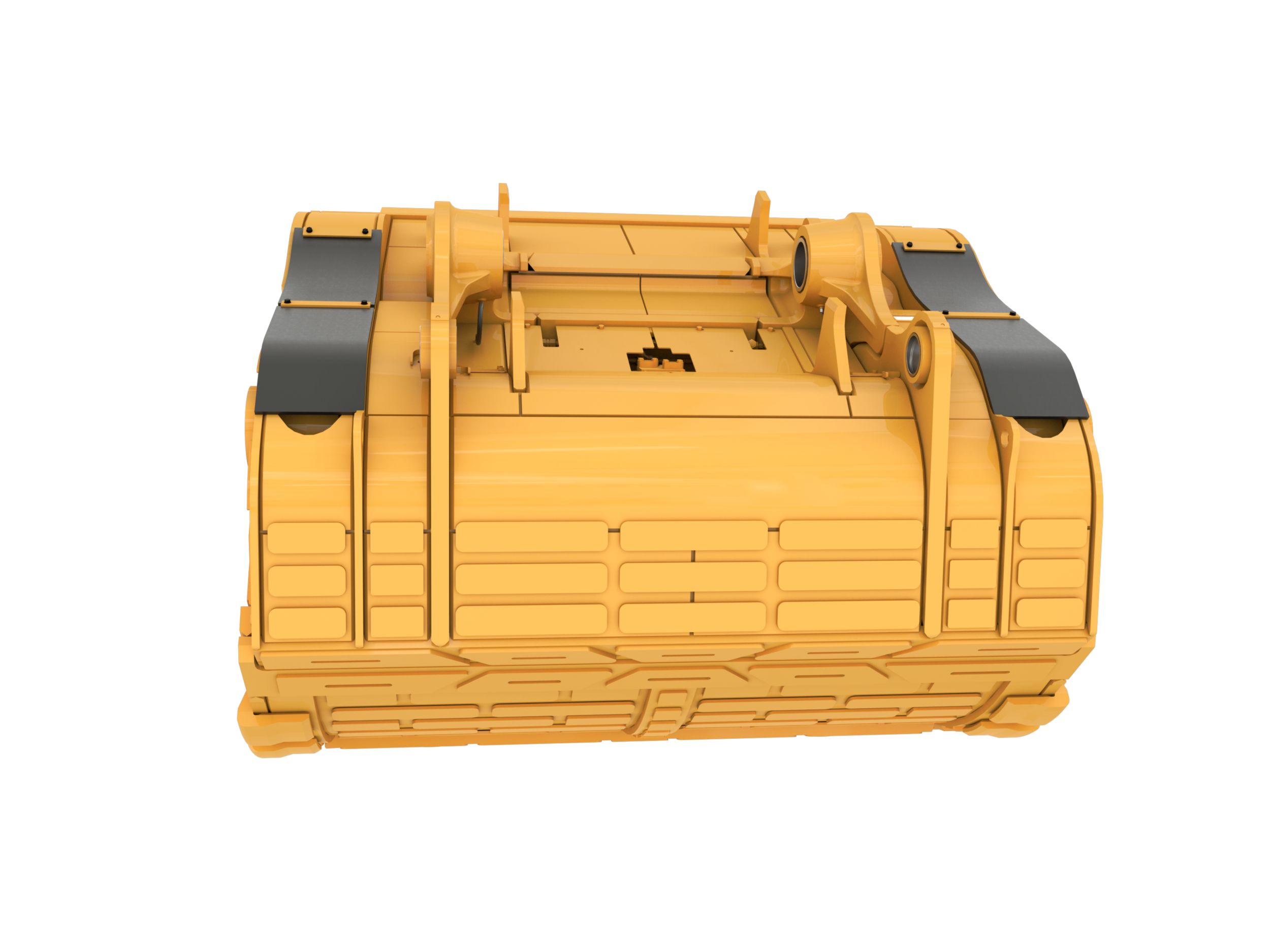

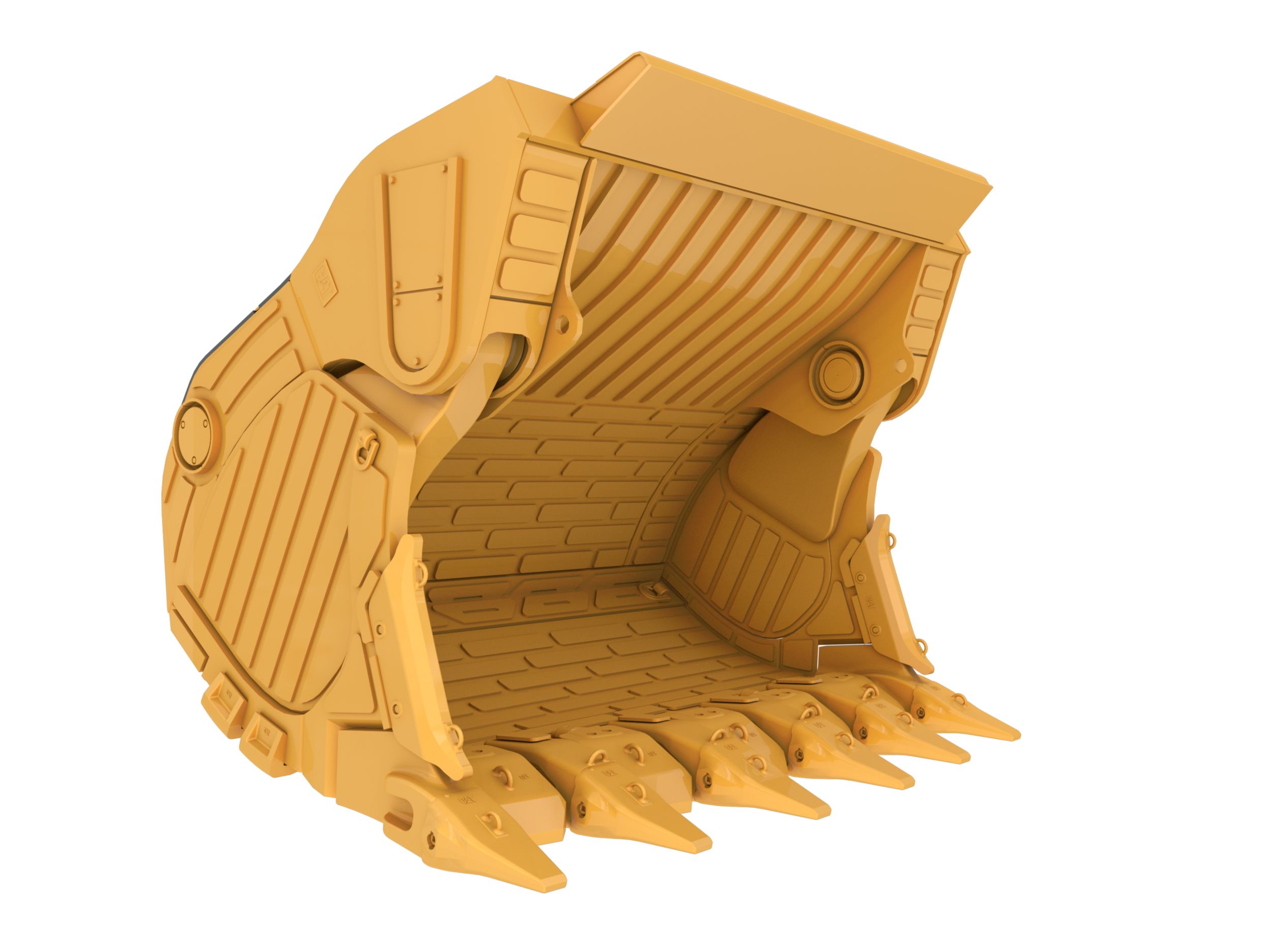

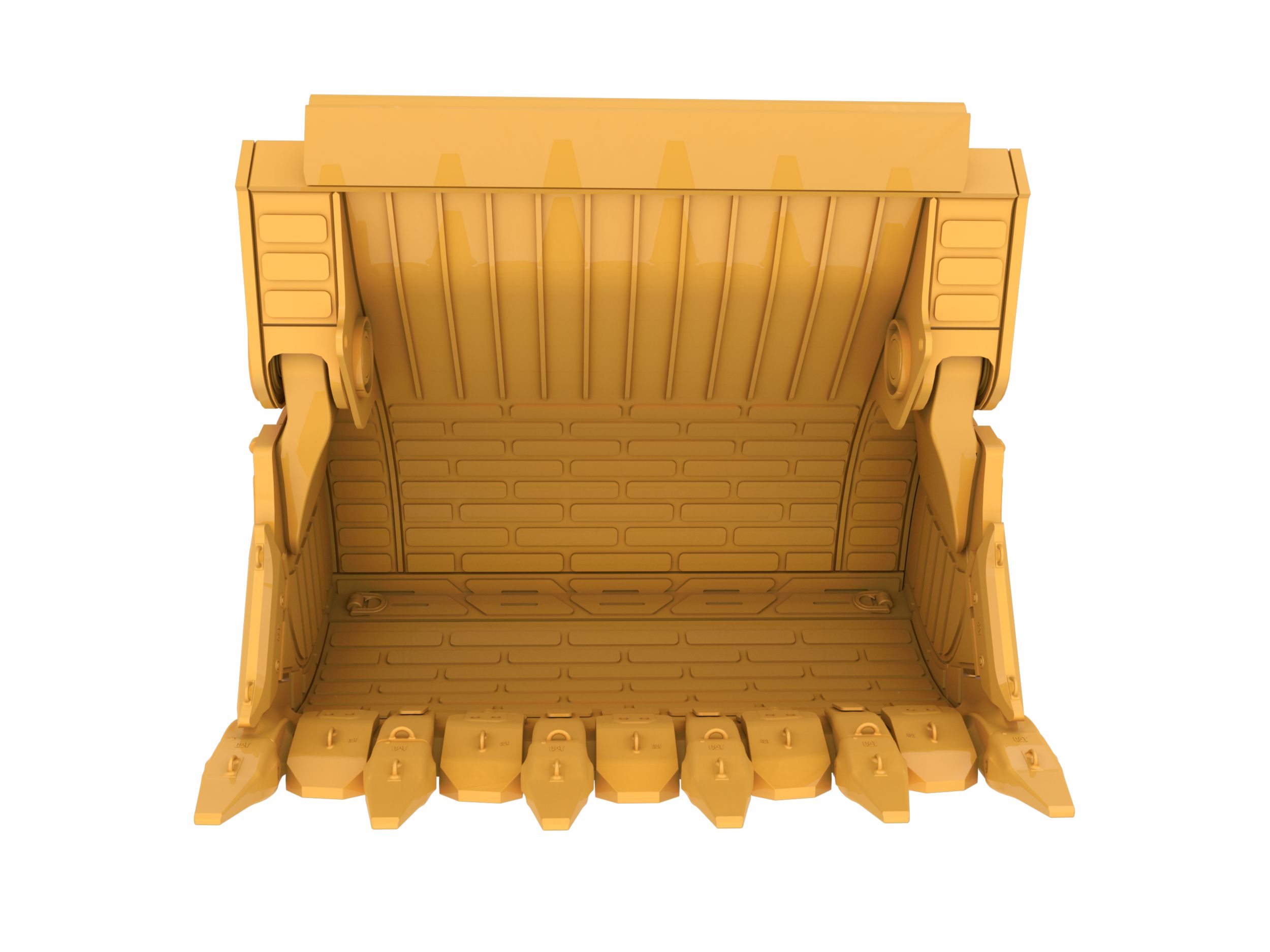

12 m³ (15.7 yd³) Heavy Rock and Iron Ore bucket for the 6030 Hydraulic Mining Shovel
Cat Heavy Rock and Ore buckets are designed for use in high-density materials and extremely aggressive applications, such as loading ore or poorly blasted rock. Cat Heavy Rock and Ore buckets come equipped with either an extreme duty or heavy duty wear package that includes increased wear plate thickness, heavy duty heel shrouds, and additional protection for the hinge casting and lip. Wear packages are also optimized for either high impact or high abrasion, depending upon the application.
Additional information
Offering Type | |
---|---|
Material Density | 2.6 t/m³ ( 4382 lb/yd³ ) |
Wear Package | Heavy Duty – Abrasion |
Ground Engaging Tool (GET) System | Cat C95 |
Machine Model | 6030 |
Capacity | 12 m³ ( 15.7 yd³ ) |
Weight | 25866 kg ( 57,025 lb ) |
Outer Width | 3931 mm ( 154.8 in ) |
Inner Width | 3430 mm ( 135 in ) |
-
