12 m³ (15.7 yd³) – 458-9461

12 m³ (15.7 yd³) - 458-9461
12 m³ (15.7 yd³) - 458-9461 - Image 2
12 m³ (15.7 yd³) - 458-9461 - Image 3
12 m³ (15.7 yd³) - 458-9461 - Image 4
12 m³ (15.7 yd³) - 458-9461 - Image 5
12 m³ (15.7 yd³) - 458-9461 - Image 6

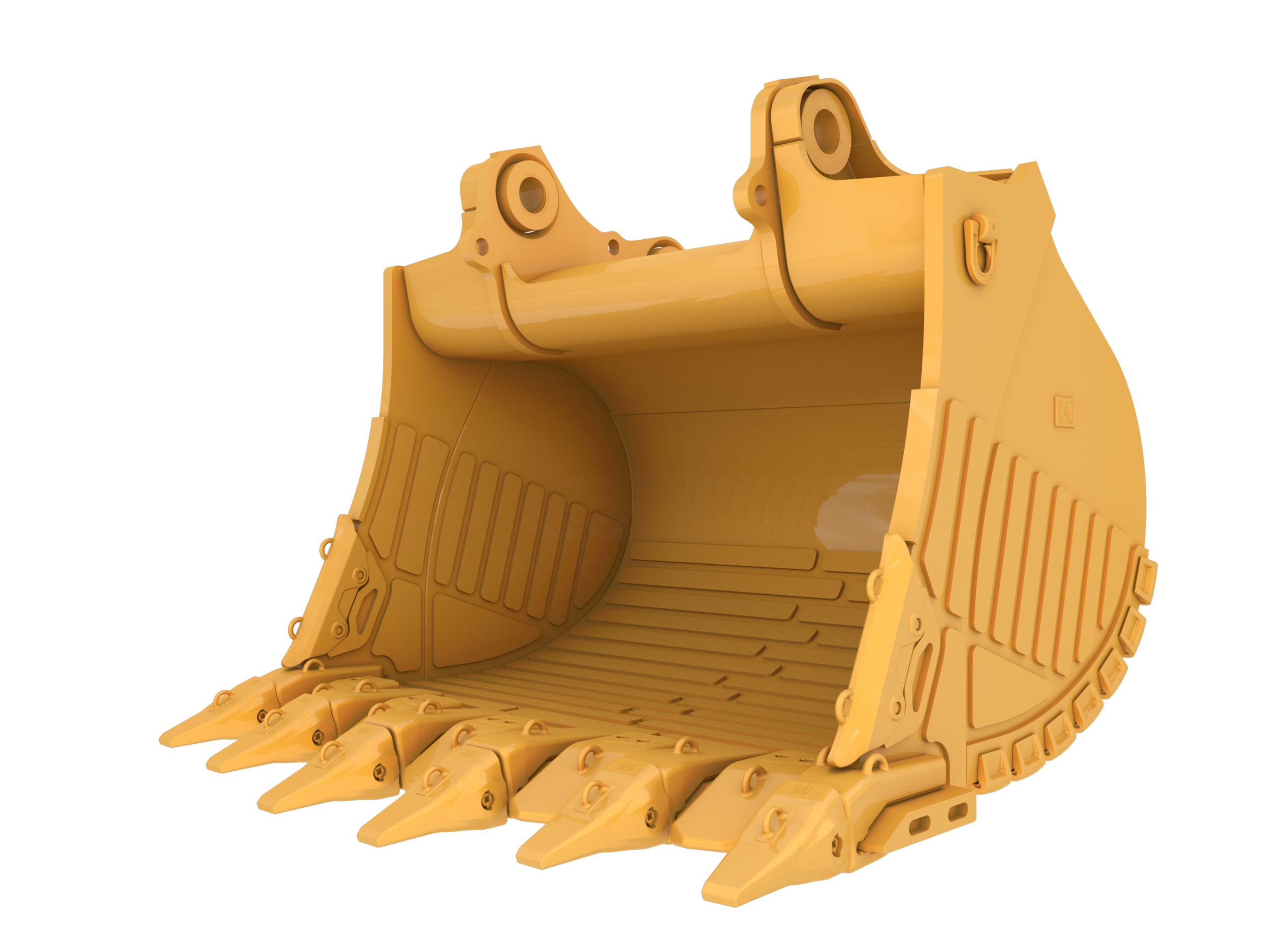

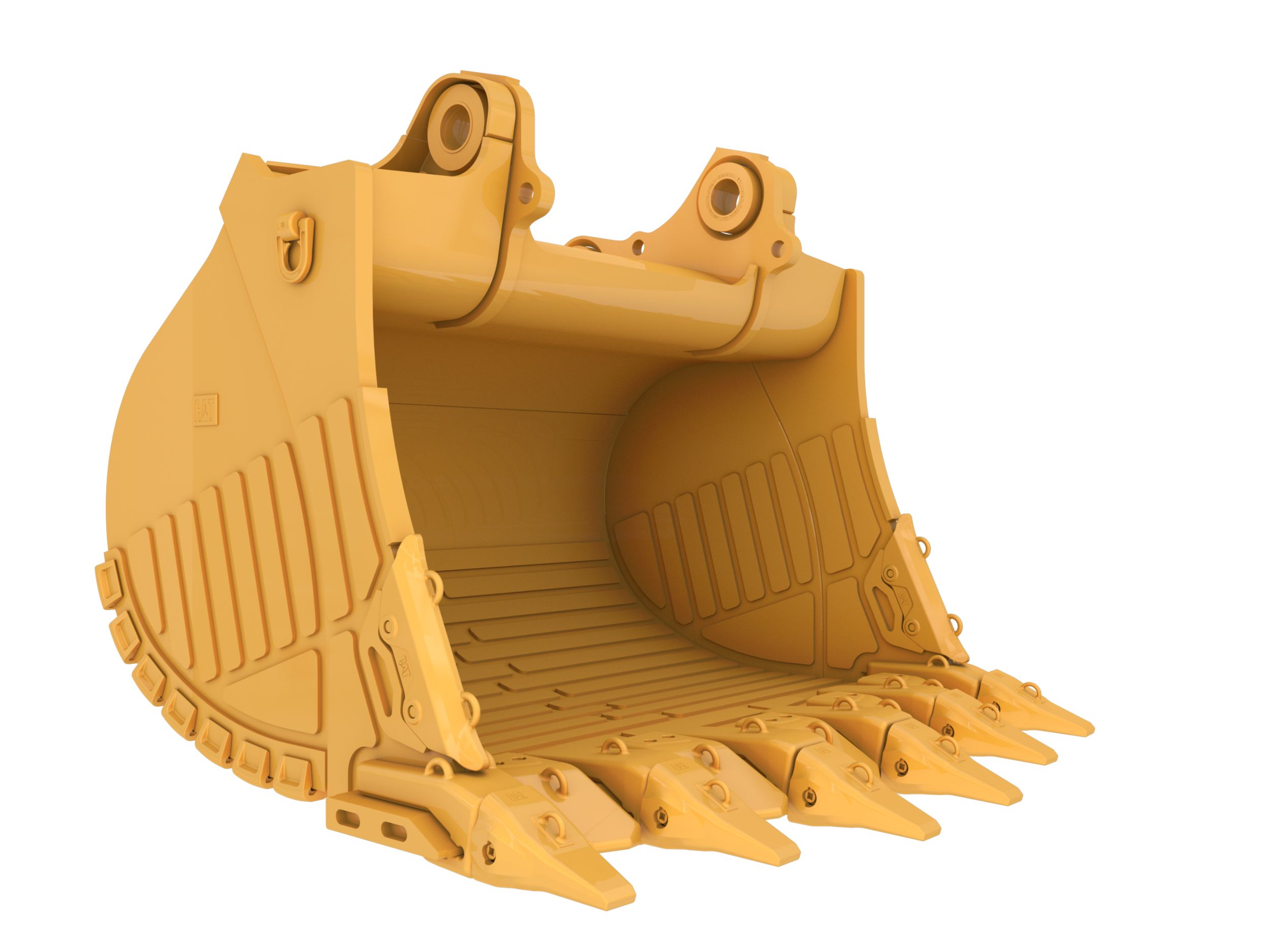

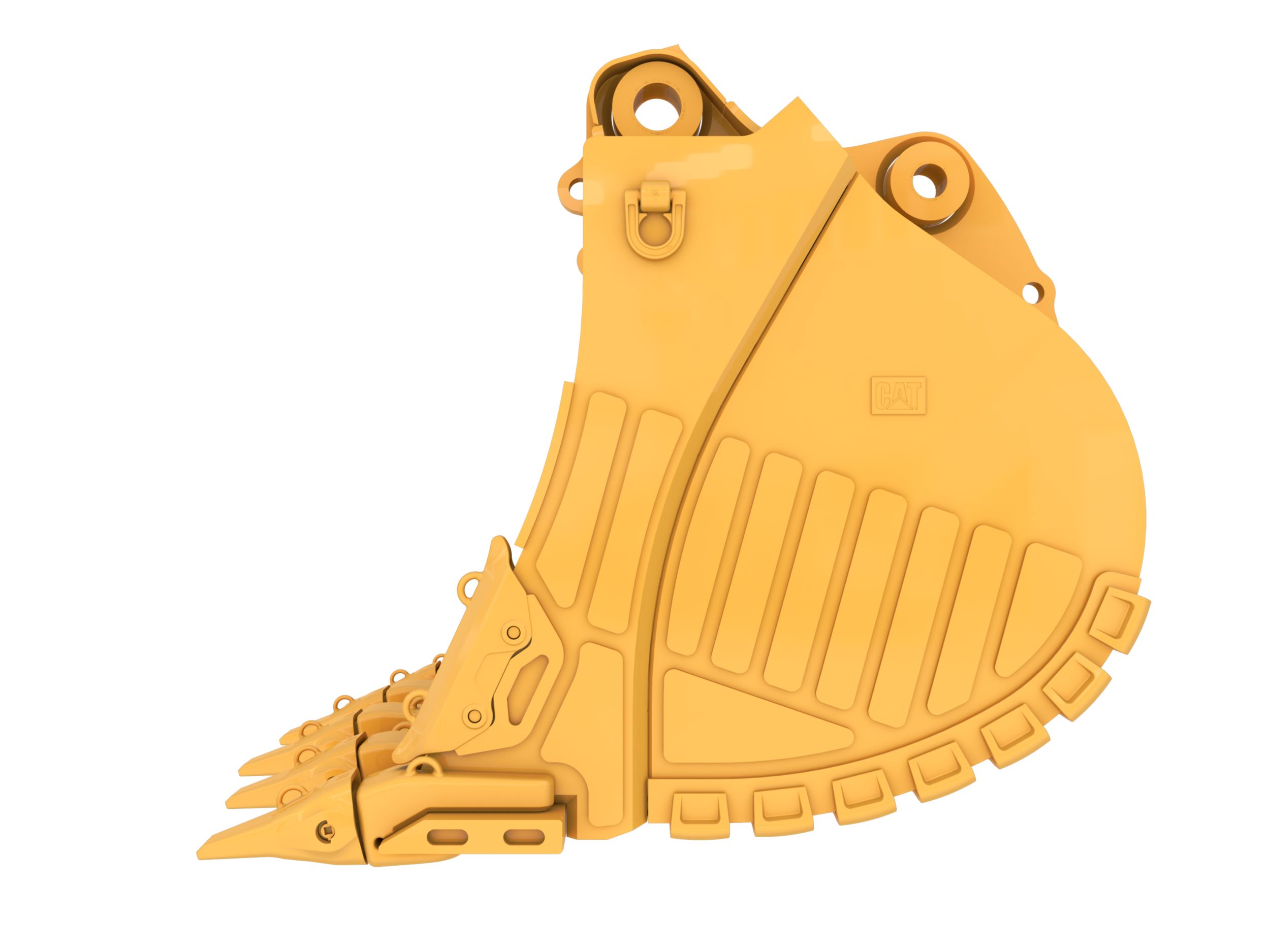

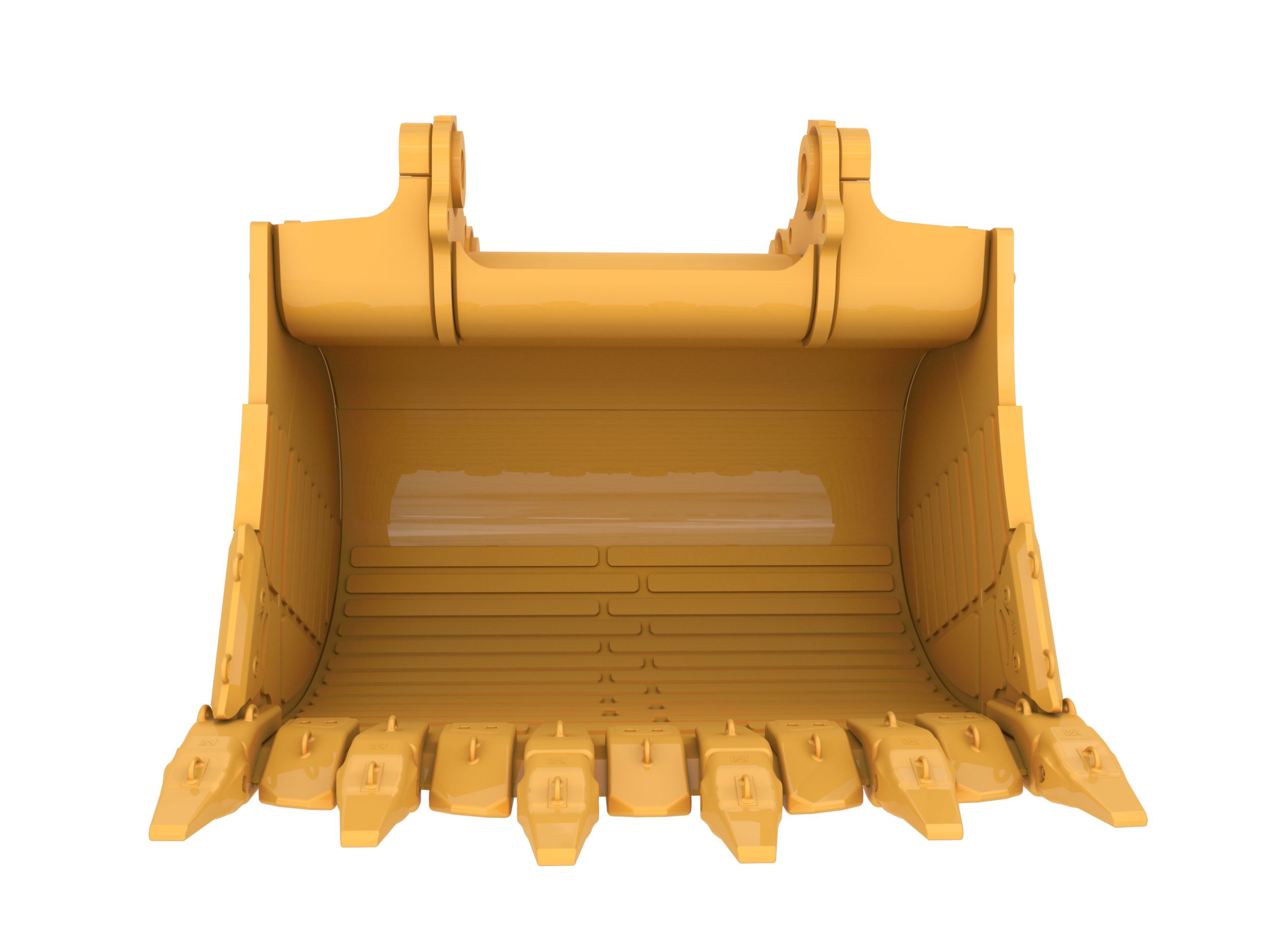

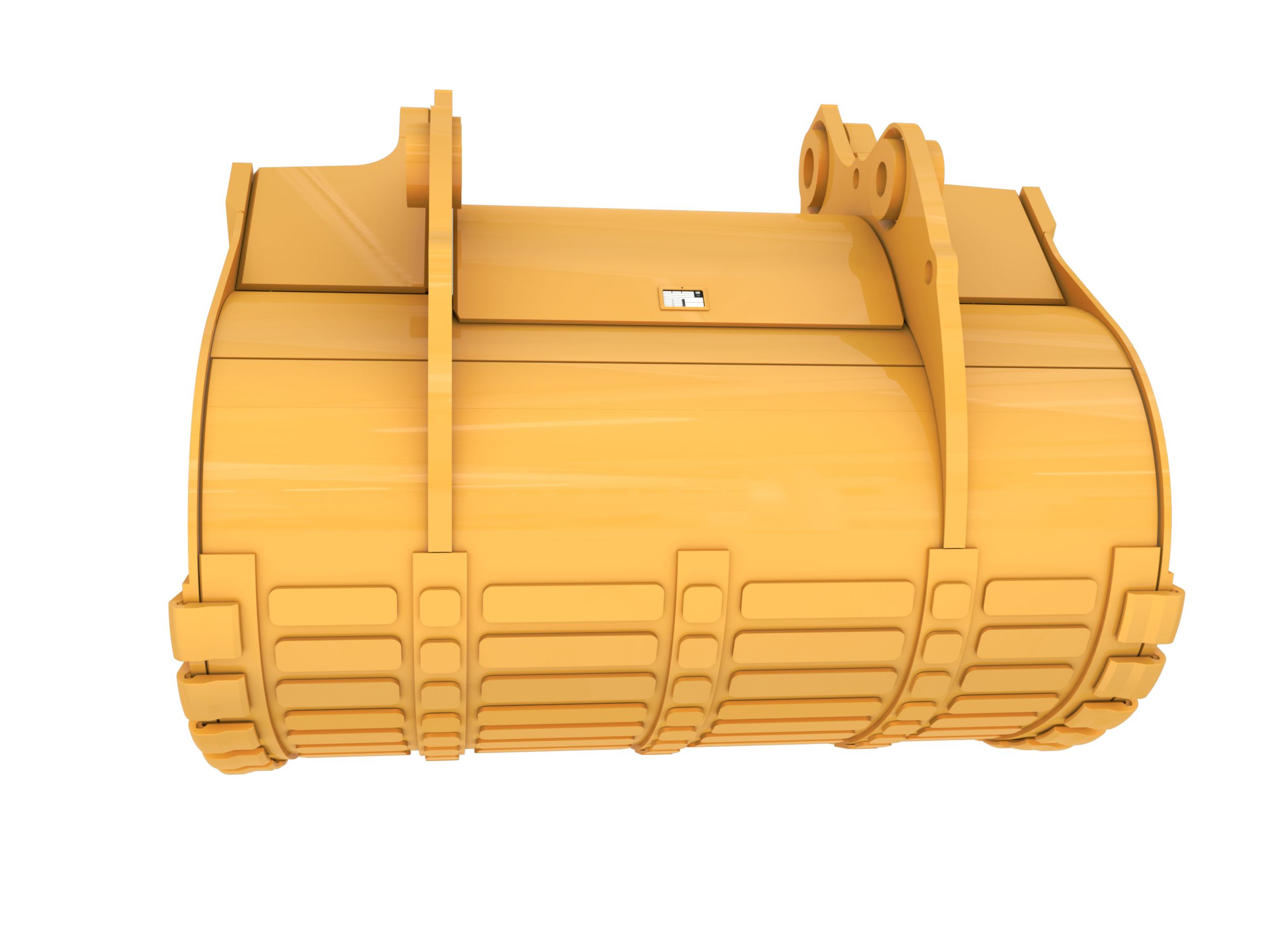

12 m³ (15.7 yd³) Standard Rock bucket for the 6020B Hydraulic Mining Shovel

Cat Standard Rock buckets are production-oriented buckets designed for use in medium-density material, which can stick to the walls of other buckets. Standard Rock buckets come equipped with wear protection for the leading edges and heel. Wear plates are usually Quenched and Tempered for maximum durability in high-impact conditions.

Category:
Add to Quote

Additional information

Material Density

3034 t/m³ ( 1.8 lb/yd³ )
Wear Package

Heavy Duty – Impact
Ground Engaging Tool (GET) System

Cat C85
Machine Model

6020B
Capacity

12 m³ ( 15.7 yd³ )
Weight

12744 kg ( 28096 lb )
Outer Width

3450 mm ( 135.8 in )
Inner Width

3000 mm ( 118.1 in )
Offering Type

Related products

  • Standard Rock Bucket

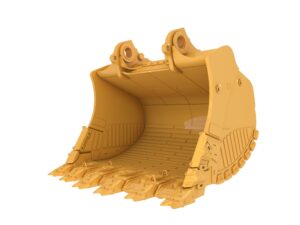

    34 m³ (44.5 yd³) – 512-7166
