16 GC
16 GC

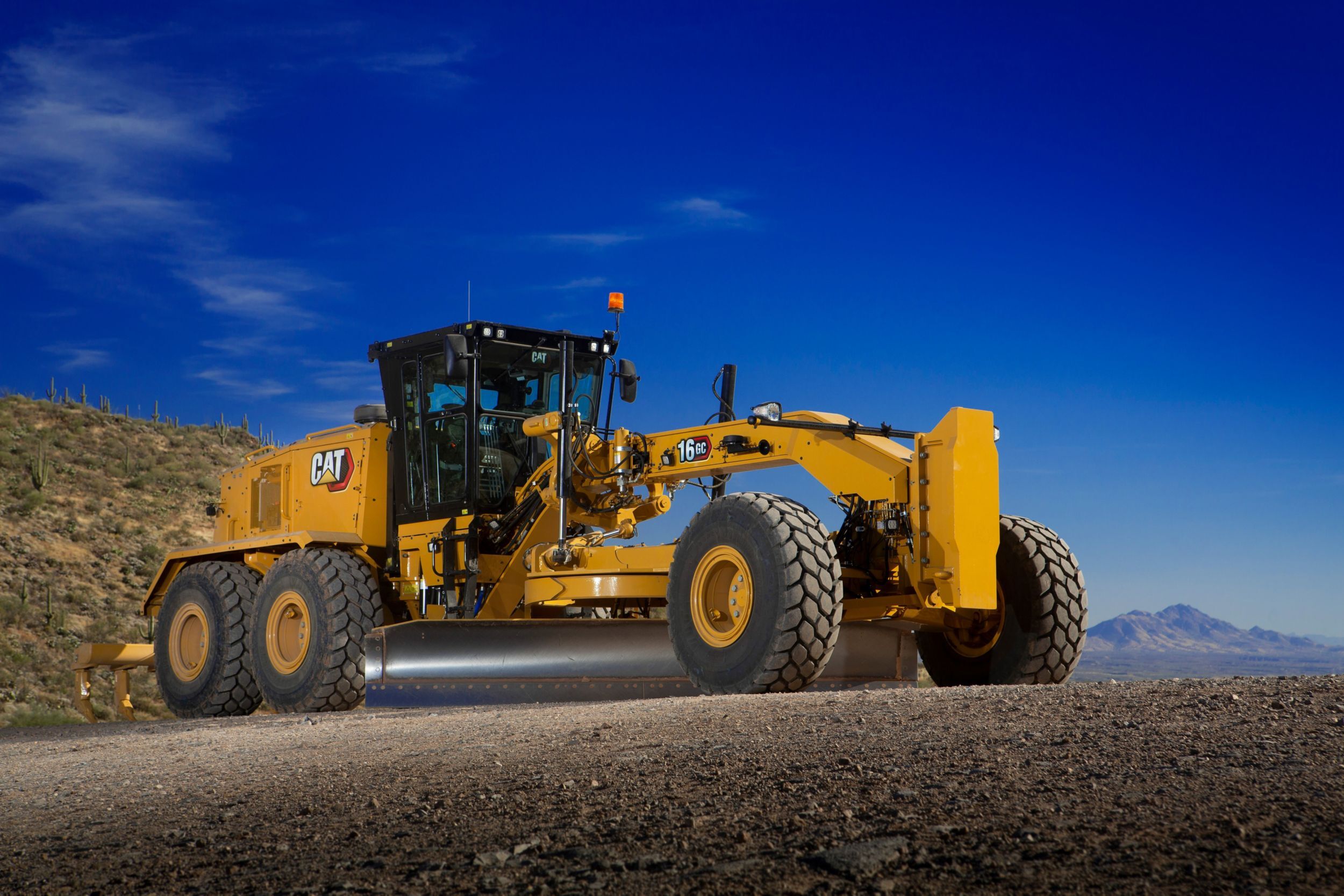

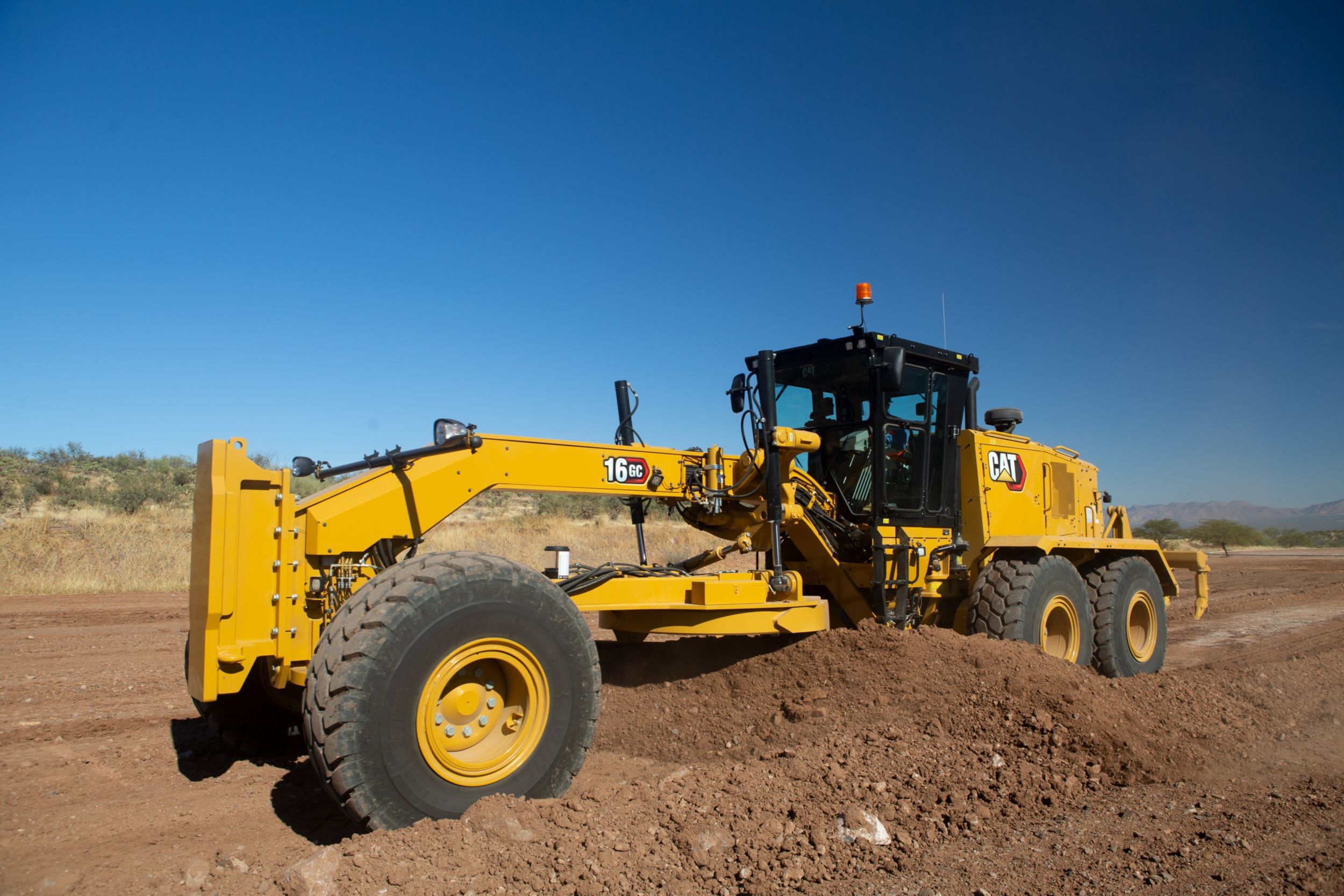

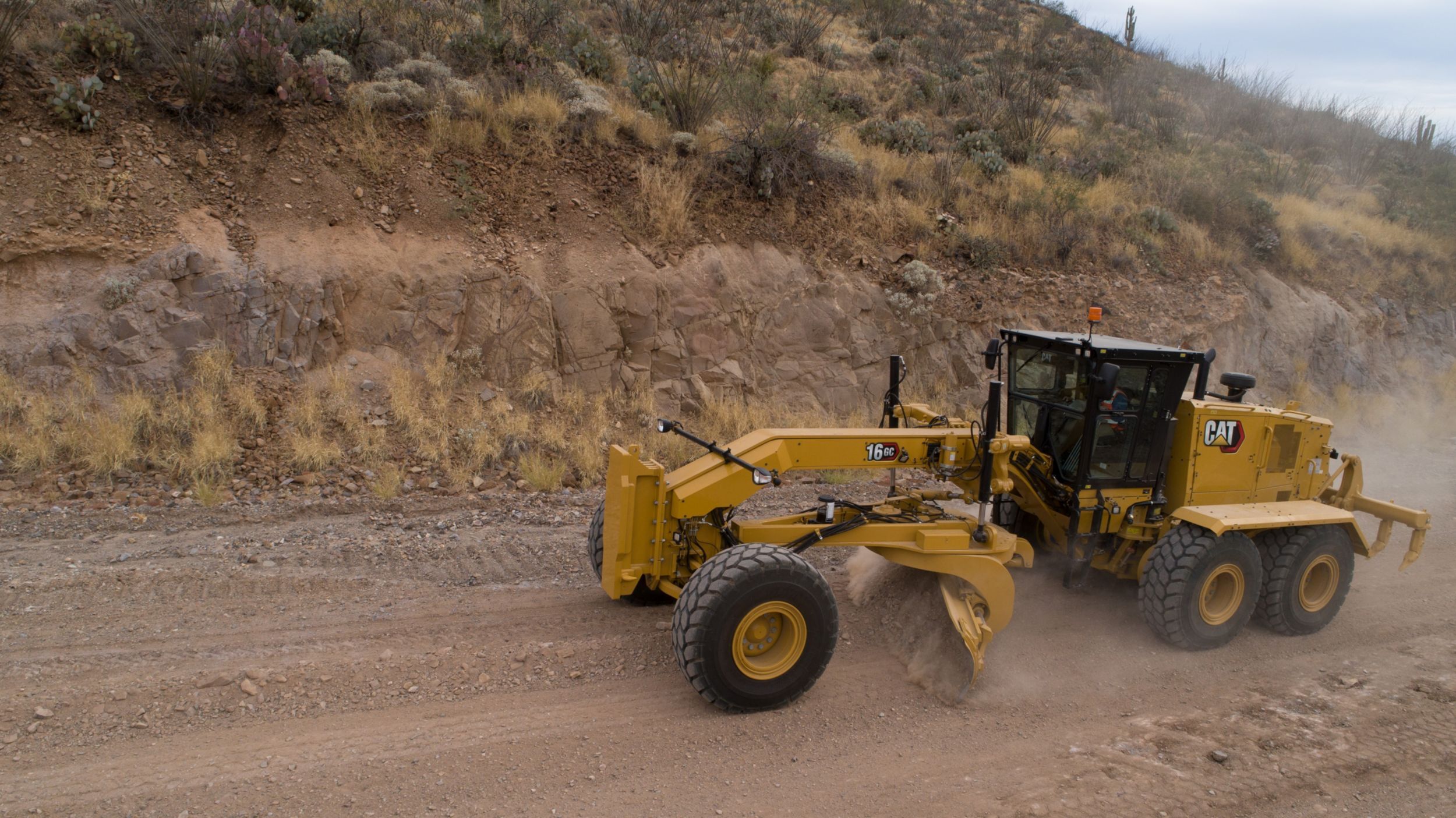

The Cat® 16 GC Motor Grader is easy to operate and maintain. Control the blade with consistent precision using the steering wheel and lever controls from the comfort of the cab. An on-demand fan and standard Eco mode reduces fuel consumption while easy access to maintenance points makes service quick and simple.
Productive and Economical
- Get the reliable power you need to get the job done with the Cat C13 engine.
- The machine is well-balanced to help you get full drawbar power to the ground.
- Increase your fuel economy up to 5% with the standard ECO mode.
- The on-demand fan reduces fuel consumption and under-hood heat for longer component life.
- The powershift transmission provides smooth shifting and has the capability to make quick directional changes when utilizing the new ergonomic shifter. With eight forward and six reverse speeds, you can select the right gear for the job.
- Improve productivity with the Electronic Throttle Control which matches engine power and torque to application requirements.
- The efficient hydraulic system helps you to create a more precise and consistent grade.
- The Digital Blade Slope Meter option shows you the grade without relying on manual grade checkers.
- Get extra traction with the differential lock when working in loose material.
- Keep your machine’s engine speed at your desired level when using throttle lock and throttle hold.
- Product Link™ Elite provides location, machine hours, fuel usage, productivity, idle time, diagnostic codes, and other machine data on demand through the VisionLink® online interface, which helps you improve jobsite efficiency with lower operating costs. Minestar™ can also be configured to your machine for added support.
Cab Keeps You Comfortable All Day Long
- Choose your comfort level in the cab with the mechanical suspension or air suspension seat.
- Easily pull the control console and tilt the steering wheel to your ideal position.
- The standard Heating, Ventilation and Air Conditioning (HVAC) system circulates fresh air, prevents dust entry, and keeps windows from fogging.
- Standard fresh air vents at the rear of the cab help to keep the windows clear.
- Easily add a radio to the cab using the standard mount, speakers and wiring.
- Neatly pack away all your gear with in-cab storage space, cup and cell phone holder.
Reliable Performance
- The adjustable drawbar circle moldboard helps to stay factory tight with shimmable draftball, circle and blade wearstrips and to provide precision grading pass after pass.
- The machine is built for a long life with reinforced structures.
- The standard slip clutch protects the circle drive if the moldboard strikes an immovable object.
- The front axle maximizes bearing life while also minimizing maintenance with the live spindle design.
- The standard compression brakes help to extend the brakes life while also maintaining the machine’s braking power.
- Standard blade lift accumulators help to absorb impact loads from the moldboard and help protect the ground engagement tools and front frame from potential damage.
Safely Home Every Day
- See what’s behind you with the high-resolution rear camera option. The dedicated display can always be on to ensure a safe work environment.
- In the event of a drop in hydraulic pressure, count on the secondary steering system option to help stop the machine safely.
- Use three points of contact when entering and exiting the machine with strategically placed walkways and grab rails. An optional rear step is available to help with access to the tandems. The steps use an anti-skid punch plate to prevent slipping.
- Ground level engine shut-off switch stops all fuel to the engine when activated and shuts the machine down.
- See the rear of your machine with side and rearview mirrors.
- Work past sundown using the strategically placed lights for nighttime visibility.

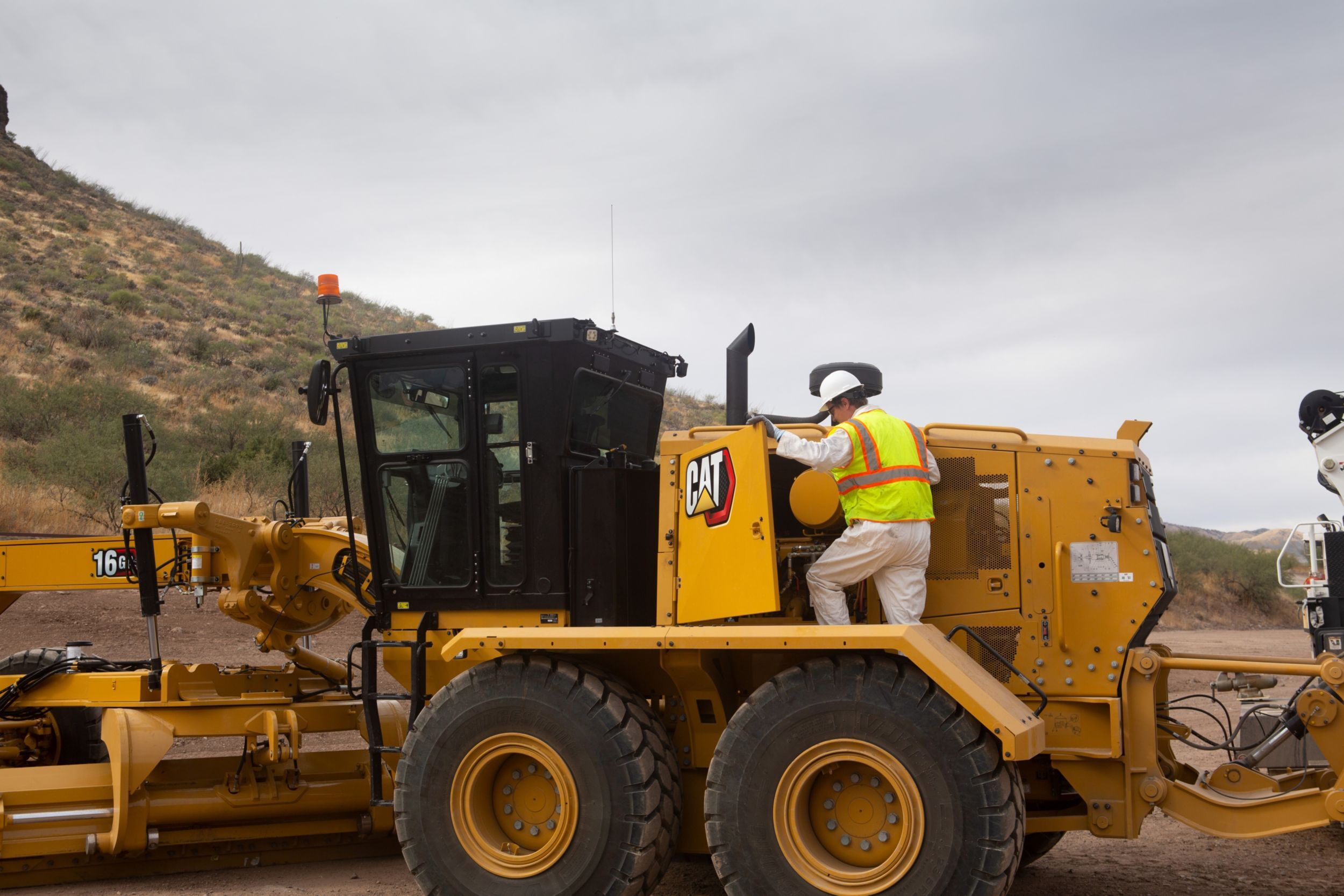

Maintenance Made Easy
- Filters are grouped together for easy access and preventative maintenance.
- The standard drawbar circle moldboard increases durability using hardened circle teeth and replaceable wear inserts to help sustain factory tightness.
- Split shims are added for easier service and adjustments for the ball and socket.
- Reduce daily greasing requirements and potential costly repairs to critical joints with the optional autolube system.
- Delayed engine shutdown allows for proper cooling of the engine which helps to prolong component life.
- Brake adjustments are easily accessible and offer an indicator when service is needed.
- Add the optional under hood lighting to illuminate daily maintenance points.
- An optional ground level fast fill system is available to speed up fuel stops.
Versatile to Fit Your Needs
- Improve the performance and efficiency of your machine with the optional push block.
- Optional rippers are available to assist with grading hard ground.
- Make your machine fire suppression ready with the optional dealer installed kit.
- Optional guarding protects your machine from damage in demanding applications. The optional bottom guard shields the transmission and filter. Optional front axle guards help to protect the front axle and steering cylinders.
Virtual Tours
Documents & Brochures
Standard Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
CAB
- Mechanical suspension seat
- Rollover Protective Structure (ROPS)/ Falling Object Protective Structure (FOPS)
- Heating/cooling cab system
- Low profile
- Fire extinguisher mounting ready
- Information display screen
- 12V power ports
- Cell phone holder
- Entertainment radio ready
- Front wipers
- Product Link™ Elite
ENGINE
- Cat® C13
- ECO mode
- On-demand fan
DRAWBAR CIRCLE MOLDBOARD
- 4.9 m (16 ft) moldboard
- Circle drive slip clutch
SAFETY
- Parking brake
- Signaling/warning horn
- Rearview mirror
- Hydraulic brakes
- Side-view mirrors
- Walkways and grab rails
Additional Information
| المحرك - صافي القدرة - ISO 9249/SAE J1349 | 249 كيلووات ( 334 حصان ) |
|---|---|
| موديل المحرك | Cat® C13 |
| المحرك - الانبعاثات | المعايير المكافئة لمعايير وكالة حماية البيئة (EPA) الأمريكية من المستوى 3/معايير الاتحاد الأوروبي من المرحلة IIIA |
| المحرك - الإزاحة | 12.5 l ( 763 بوصة³ ) |
| المحرك - التجويف | 130 مم ( 5.1 بوصة ) |
| المحرك - الشوط | 157 مم ( 6.2 بوصة ) |
| المحرك - زيادة عزم الدوران - ISO 9294 | 46% |
| المحرك - أقصى عزم دوران | 1738 نيوتن-متر ( 1,282 lb/ft ) |
| المحرك - قدرة محيطة عالية | 50 °C ( 122 °F ) |
| المحرك - عدد الأسطوانات | 6 |
| المحرك - ملاحظة (1) | تم اختبار صافي القدرة وفقًا للمعايير ISO 9249، وSAE J1349، وEEC 80/1269 المعمول بها وقت التصنيع. |
| المحرك - ملاحظة (2) | صافي القدرة المعلن هو القدرة المتوفرة عند سرعة مقدرة تبلغ 2000 دورة في الدقيقة، والذي تم قياسه عند الحدافة عندما يكون المحرك مزوَّدًا بمروحة، ومنظف هواء، وكاتم صوت، ومولد تيار متردد. |
| المحرك - ملاحظة (3) | القدرة المعلنة وفقًا لمعايير ISO 14396. |
| وزن الماكينة - ملاحظة | يتم حساب وزن الماكينة المزودة بالمعدات النموذجية مع السوائل الكاملة ، وشفرة 4,9 م (16 قدمًا)، ولوحة الدفع، والكسارة، والوقاء السفلي، والمشغل. |
| لوحة التشكيل - عرض الشفرة | 4.9 m ( 16 قدم ) |
| الأبعاد - الارتفاع - قمة الكابينة | 3539 مم ( 139.3 بوصة ) |
| الأبعاد - طول الماكينة* | 11781 مم ( 463.8 بوصة ) |
| الأبعاد - العرض | 3319 مم ( 130.7 بوصة ) |
| الأبعاد - ملاحظة | تشتمل التجهيزات النموذجية على مجموعة الدفع والكسارة. |
| لوحة التشكيل - ارتفاع الشفرة | 787 مم ( 31 بوصة ) |
| لوحة التشكيل - نصف قطر القوس | 413 مم ( 16.3 بوصة ) |
| لوحة التشكيل - اللقمة الطرفية - العرض | 152 مم ( 6 بوصة ) |
| لوحة التشكيل - خلوص العنق | 126 مم ( 5 بوصة ) |
| مدى الشفرة - إزاحة مركز الحلقة إلى اليسار | 690 بوصة ( 27.2 بوصة ) |
| مدى الشفرة - إزاحة مركز الحلقة إلى اليمين | 560 مم ( 22 بوصة ) |
| مدى الشفرة - النقل الجانبي للوحة التشكيل لليمين | 790 مم ( 31.1 بوصة ) |
| مدى الشفرة - أقصى عمق للقطع | 470 مم ( 18.5 بوصة ) |
| مدى الشفرة - الحد الأقصى للرفع فوق الأرض | 400 مم ( 15.7 بوصة ) |
| مدى الشفرة - نطاق طرف الشفرة الأمامي | 40° |
| مدى الشفرة - نطاق طرف الشفرة الخلفي | 5° |
| سعات إعادة التعبئة للخدمة - خزان الوقود | 432 l ( 114 جالون (أمريكي) ) |
| سعات إعادة التعبئة للخدمة - نظام التبريد | 69 l ( 18.2 جالون (أمريكي) ) |
| سعات إعادة التعبئة للخدمة - علبة مرافق المحرك | 36 l ( 9.5 جالون (أمريكي) ) |
| سعات إعادة التعبئة للخدمة - مجموعة إدارة الحلقة | 10 l ( 2.6 جالون (أمريكي) ) |
| سعات إعادة التعبئة للخدمة - النظام الهيدروليكي | 56 l ( 14.8 جالون (أمريكي) ) |
| سعات إعادة التعبئة للخدمة - ناقل الحركة والتروس التفاضلية | 117 l ( 30.9 جالون (أمريكي) ) |
