160 LVR

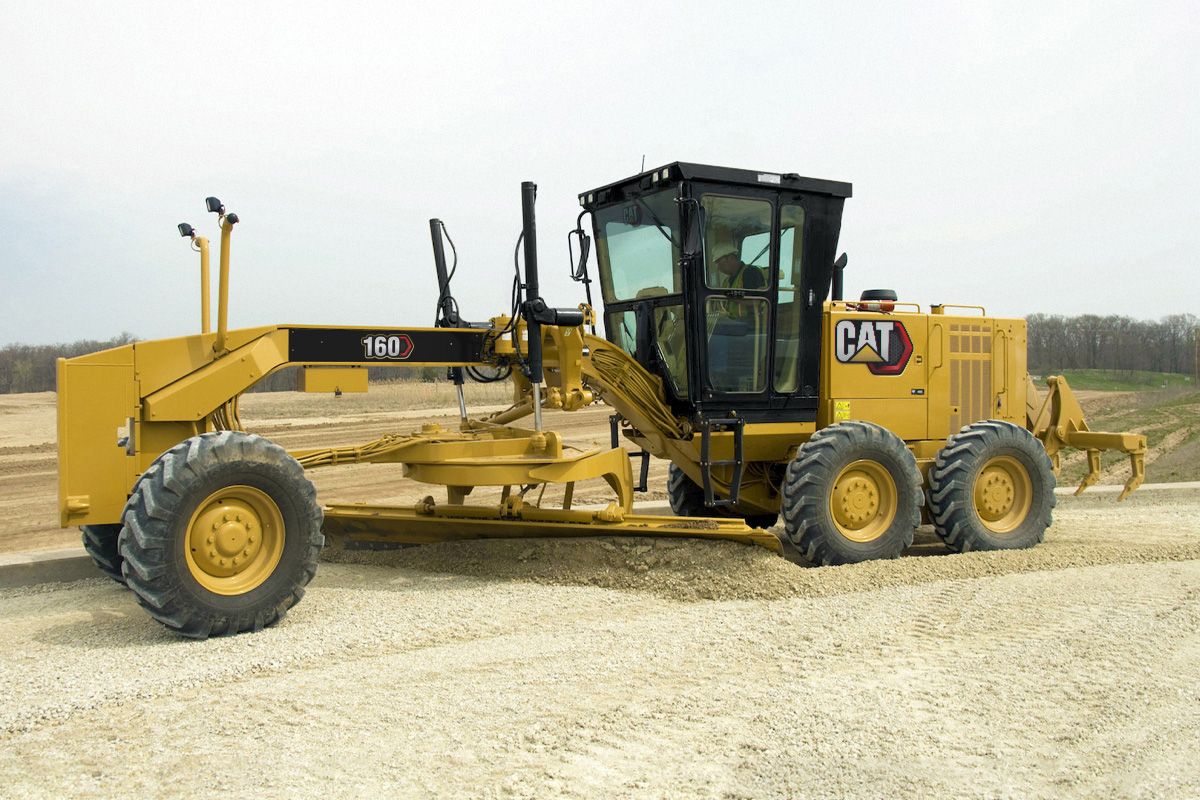

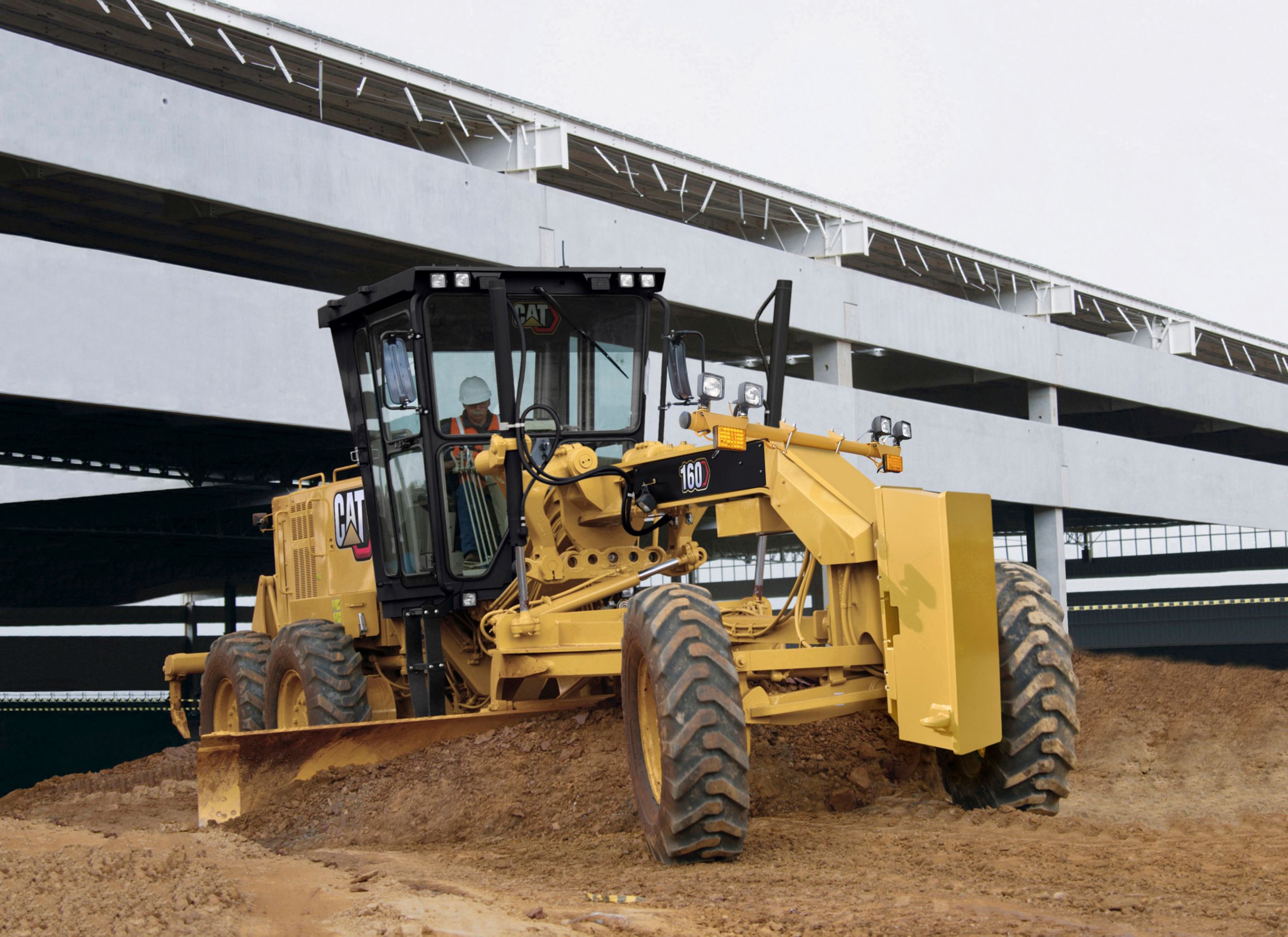

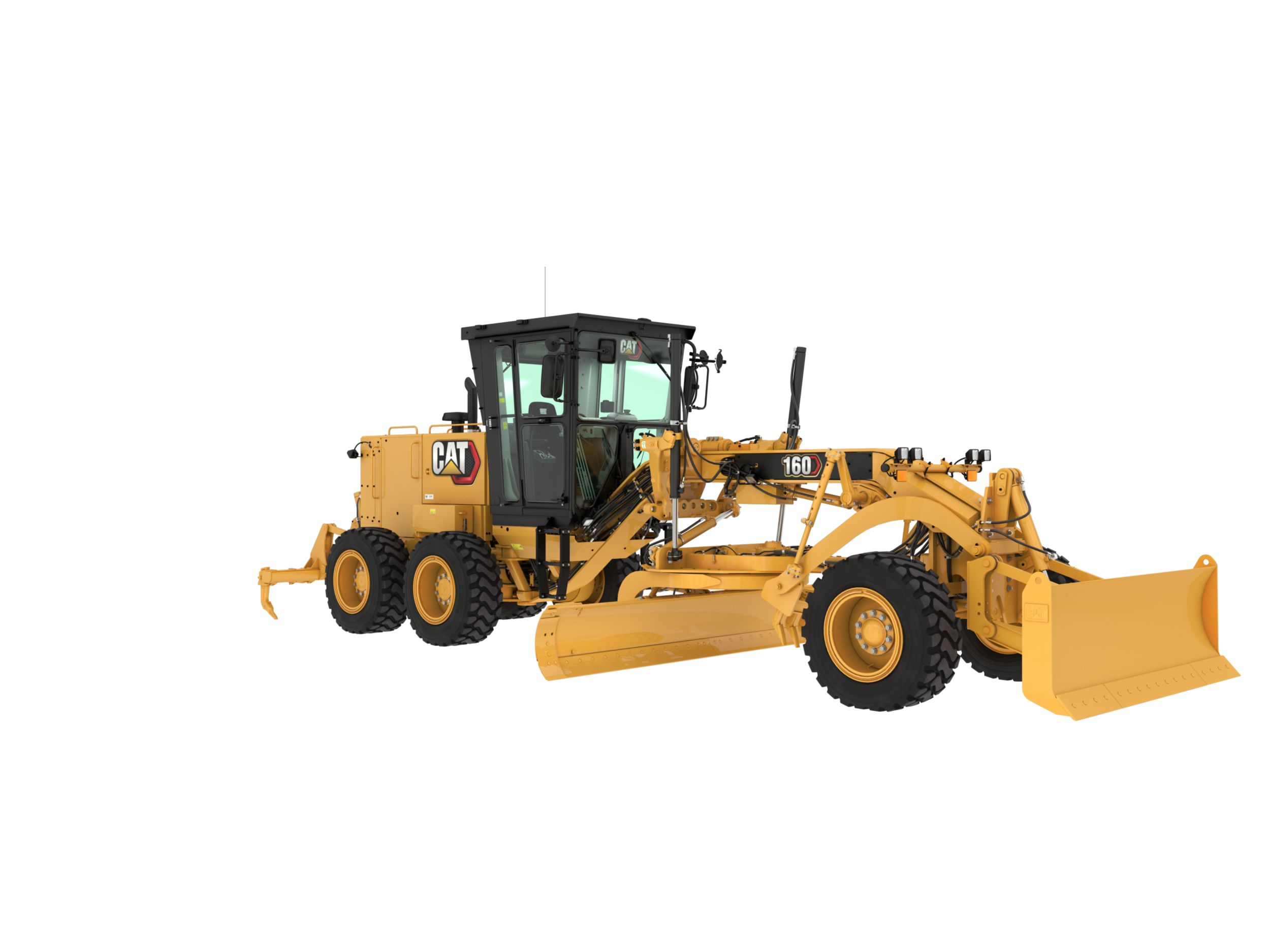

160 LVR Motor Grader

New Name, Same Fame. The 160K is now named the 160. Equipped with a Cat® C7 engine, direct-drive powershift transmission, and load-sensing hydraulics and Cat technology solutions, the 160 motor grader takes on your grading work with power, control, comfort and productivity.

Category:

PERFORMANCE AND PRODUCTIVITY

  • Cat C7 engine meets U.S. EPA Tier 3/EU Stage IIIA equivalent or Tier 2/Stage II equivalent emissions standards, depending on emission standards of specific country.
  • Power Shift Countershaft Transmission matched to engine, maximizing power to the ground.

POWERFUL EFFICIENCY

  • Electronic Throttle Control helps improve productivity by optimizing HP and torque to match the power demands of the application.
  • Aggressive blade angles, optimized moldboard curvature and large throat clearance allows material to roll more freely along blade, increasing efficiency.
  • Hydraulic demand fan automatically adjusts speed according to cooling requirements maximizing power to the ground and improving fuel efficiency.
  • Engine Idle Shutdown is available to shut down engine after a set period of time, saving fuel and helping reduce emissions.

SIMPLE TO OPERATE



  • Proportional Priority Pressure-Compensating (PPPC) provides load-sensing hydraulics with superior control, enhanced performance, and efficiency.
  •

  • Optional AutoShift Transmission improves ease of operation and maximizes productivity by automatically shifting the transmission at optimal shift points.
  •

  • Rocker and control switches are in easy reach.
  •

  • Proven conventional controls provide industry-standard control pattern and feel for precise cutting edge movement.

SAVE MAINTENANCE TIME

  • Durable nylon composite wear inserts maximize circle torque and component life.
  • Sacrificial brass moldboard slide rail wear strips between blade mounting group and moldboard can be easily adjusted and replaced.
  • Left-side, ground level service area access speeds up maintenance and ensures that routine service is performed on time.

HEAVY DUTY CONSTRUCTION



  • Utilizing rigorous component design and machine validation processes results in unmatched reliability, durability and high uptime.
  •

  • Components are designed and manufactured to Caterpillar quality standards throughout all Caterpillar facilities.

WORK IN COMFORT

  • Optional HVAC, defroster fan and sun shades keep you comfortable, while conveniently placed power ports keep additional communication devices charged and ready.

PRODUCTIVITY WITH TECHNOLOGY



  • Optional Cat Grade uses positioning and guidance technologies, machine sensors, and automatic blade control to help get to grade faster, easier, and more efficiently.
  •

  • Optional Cat Product Link™ aids your equipment management with remote monitoring capabilities.
  •

  • Grade Attachment Ready Option (ARO) can be ordered as a factory or dealer installed option making installation of the Grade grade control system faster and easier.

BUILT-IN SAFETY FEATURES



  • Brakes located at each tandem wheel offer the largest total brake surface area in the industry, delivering dependable stopping power.
  •

  • Standard circle drive slip clutch protects the drawbar, circle and moldboard from shock loads when the blade encounters an immovable object.
  •

  • Ground level engine shutoff allows anyone nearby to shut the machine down in case of an emergency.
  •

  • Built-in lock check valves.
  •

  • Clear view to moldboard heel and tandem tires enhance productivity and safe operation.
  •

  • Blade Lift Accumulators help absorb impact loads to the moldboard by allowing vertical blade travel.

Standard Equipment

NOTE
  • Standard and optional equipment may vary. Consult your Cat dealer for details.
Electrical
  • Alternator, 115 ampere
  • Backup alarm, reversing lights
  • Batteries, maintenance free 750 CCA
  • Common fuse block
  • Electrical system, 24 volt
  • Horn, electric
  • Indication display
  • Lights, stop and tail
  • Motor, starting
  • Product Link ready
  • Working lights
Operator Environment
  • Accelerator
  • Control console, adjustable
  • Gauge cluster (includes voltmeter, articulation, engine coolant temperature, air brake pressure and fuel level)
  • Guard rails, operator station
  • Hydraulic controls, load sensing (right/left blade lift, circle drive, centershift, sideshift, front wheel lean and articulation)
  • Indicator lights (includes high beam, LH and RH turn, low engine oil pressure, throttle lock, check engine, transmission filter bypass and check, centershift pin, brake air pressure, parking brake engaged, auto shift)
  • Key start/stop switch
  • Meter, hour
  • Power steering, hydraulic
  • Seat, vinyl-covered static
  • Seat belt
  • Steering wheel, tilt, adjustable
  • Storage area, cooler/lunch box
  • Throttle, electronic control
Powertrain
  • Air cleaner, dry type radial seal with service indicator and automatic dust ejector
  • Air to air after cooler (ATAAC)
  • Blower fan
  • Brakes, oil disc, four-wheel air actuated
  • Differential with lock/unlock
  • Eco mode
  • Engine idle shutdown
  • Engine, Cat C7 diesel with automatic engine derate and idle control
  • Fuel water separator
  • Muffler, under hood
  • Next gen filter design
  • Parking brake, multi-disc, sealed and oil cooled
  • Prescreener
  • Priming pump fuel, resiliently mounted
  • Sediment drain, fuel tank
  • Tandem drive
  • Transmission, 8 speed forward and 6 speed reverse, power shift, direct drive with electronic shift control and overspeed protection
  • VHP (Variable Horse Power)
Other Standard Equipment
  • Blade Float
  • Bumper, rear
  • CD ROM Parts Book
  • Circle drive slip clutch
  • Cutting edges, 152 mm x 16 mm (6 in x 5/8 in) curved DH-2 steel
  • Doors, engine compartment
  • Drawbar, 6 shoe, replaceable nylon composite wear strips
  • End bits, 16 mm (5/8 in) DH-2 steel
  • Frame, articulated with safety lock
  • Fuel tank, 305 L (80.6 gal)
  • Ground level engine shutdown
  • Link bar, 7 position
  • Moldboard, 3658 mm x 610 mm x 22 mm (12 ft x 24 in x 7/8 in) blade with hydraulic sideshift and mechanical tip
  • Moldboard, 4267 mm x 686 mm x 25 mm (14 ft x 27 in x 1 in) blade with hydraulic sideshift and tip
  • SOS ports, engine, hydraulic, transmission and cooling
  • Toolbox with padlock
  • Vandalism protection - including cap locks for hydraulic tank, radiator access cover, fuel tank, engine and transmission oil check/fill and lockable battery boxes
Antifreeze
  • Extended Life Coolant to -35 degrees Celcius (-30 degrees Fahrenheit)

Additional information

Offering Type

Engine - Base Power (1st Gear) - Net

139 kW ( 186 HP )

Engine Model

Cat C7

Engine - Displacement

7.2 l ( 439 in³ )

Engine - Bore

105 mm ( 4.1 in )

Engine - Stroke

127 mm ( 5 in )

Engine - High - Ambient Capability

50 °C ( 122 °F )

Engine - Maximum Torque

1076 N·m ( 794 ft-lb )

Engine - Derating Altitude

3048 m ( 10000 ft )

Engine - Number of Cylinders

6

Engine - Note (2)

Net power advertised is the power available at rated speed of 2,000 rpm, measured at the flywheel when engine is equipped with fan, air cleaner, muffler and alternator.

Engine - Torque Rise

46%

Engine - VHP Range - Net

139-154 kW (186-206 hp)

Engine - Note (3)

Maximum torque measured at 1,000 rpm in gears 4-8.

Engine - Note (1)

Net power is tested per ISO 9249, SAE J1349, and EEC 80/1269 standards in effect at the time of manufacture.

Weights - Operating Weight - Typically Equipped

39035 kg ( 17706 lb )

Moldboard - Blade Width

4.3 m ( 14 ft )

Moldboard - Arc Radius

413 mm ( 16.3 in )

Moldboard - Throat Clearance

90 mm ( 3.5 in )

Moldboard - Thickness

25 mm ( 1.0 in )

Moldboard - End Bit - Thickness

16 mm ( 0.6 in )

Moldboard - Cutting Edge Thickness

16 mm ( 0.6 in )

Moldboard - Cutting Edge Width

203 mm ( 8.0 in )

Moldboard - Height

686 mm ( 27.0 in )

Moldboard - End Bit - Width

152 mm ( 6.0 in )

Blade Range - Circle Centershift - Right

728 mm ( 28.7 in )

Blade Range - Maximum Lift Above Ground

452 mm ( 17.8 in )

Blade Range - Maximum Depth of Cut

790 mm ( 31.1 in )

Blade Range - Moldboard Sideshift - Right

943 mm ( 37.1 in )

Blade Range - Moldboard Sideshift - Left

851 mm ( 33.5 in )

Blade Range - Blade Tip Range - Backward

Blade Range - Maximum Shoulder Reach Outside of Tires - Left

2223 mm ( 87.5 in )

Blade Range - Blade Tip Range - Forward

40°

Blade Range - Maximum Shoulder Reach Outside of Tires - Right

2261 mm ( 89.0 in )

Blade Range - Circle Centershift - Left

752 mm ( 29.6 in )

Frame - Front Axle - Total Oscillation per Side

32°

Frame - Front Axle - Wheel Lean - Left/Right

18°

Frame - Circle - Outer Diameter

1553 mm ( 61.1 in )

Weights - Gross Vehicle Weight - Typically Equipped

17706 kg ( 39035 lb )

Weights - Gross Vehicle Weight - Base - Rear Axle

10726 kg ( 23646 lb )

Weights - Gross Vehicle Weight - Base - Total

15185 kg ( 33477 lb )

Weights - Gross Vehicle Weight - Typically Equipped - Total

17706 kg ( 39035 lb )

Weights - Gross Vehicle Weight - Base - Front Axle

4459 kg ( 9831 lb )

Weights - Gross Vehicle Weight - Typically Equipped - Rear Axle

12570 kg ( 27711 lb )

Weights - Gross Vehicle Weight - Typically Equipped - Front Axle

5136 kg ( 11324 lb )
