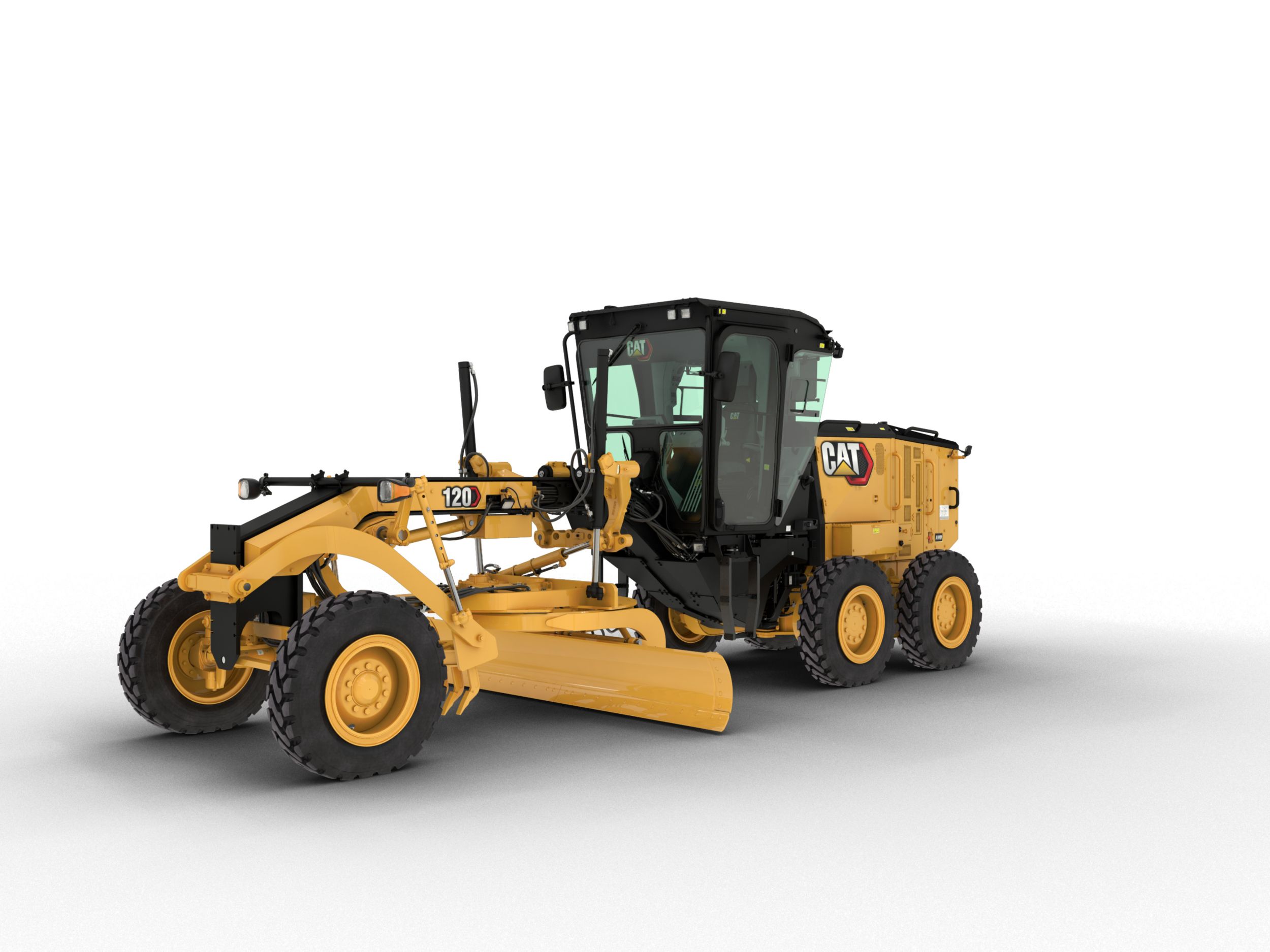

120 / 120 AWD

120 – 2019 – Global – Tier 3

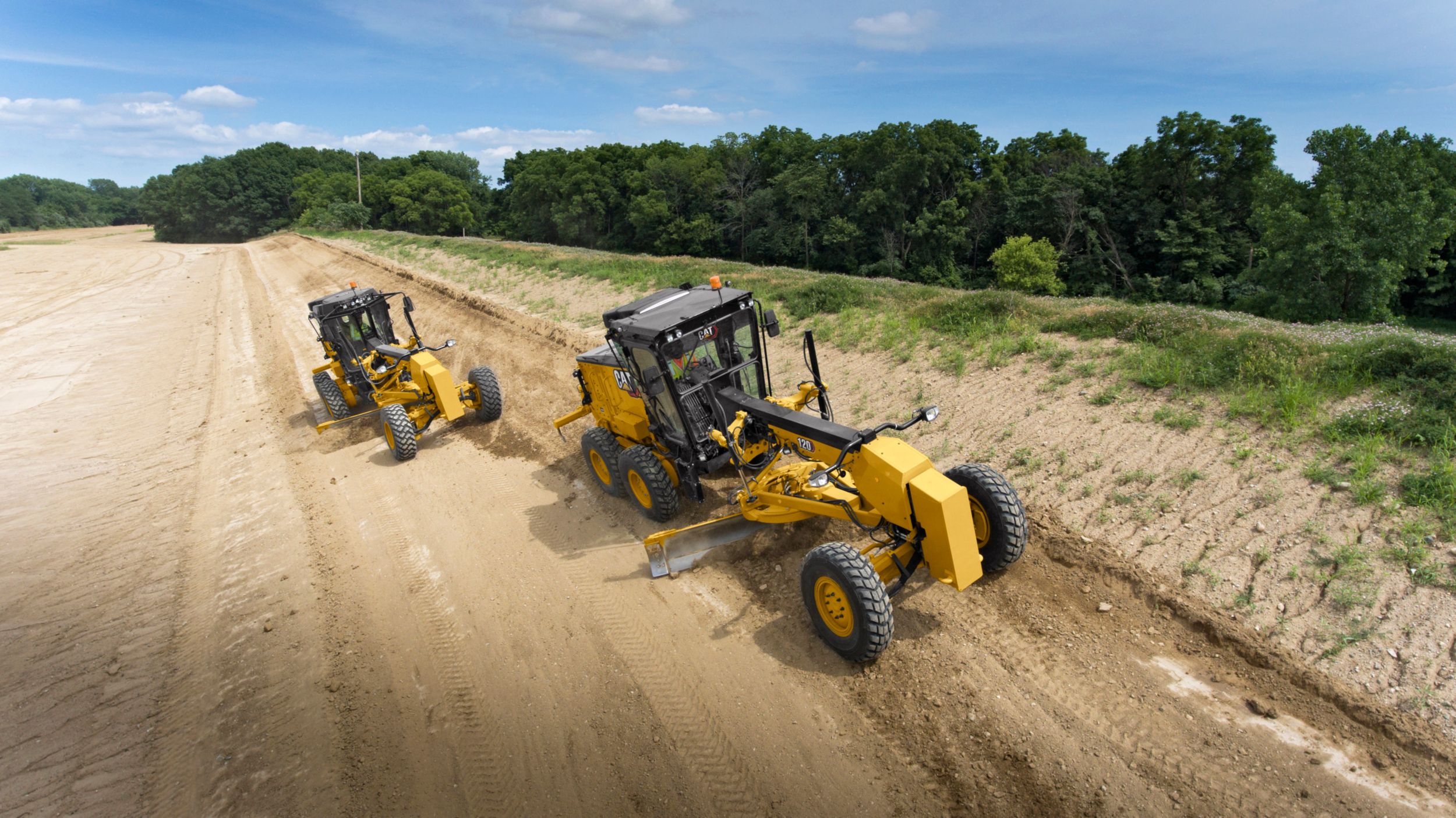

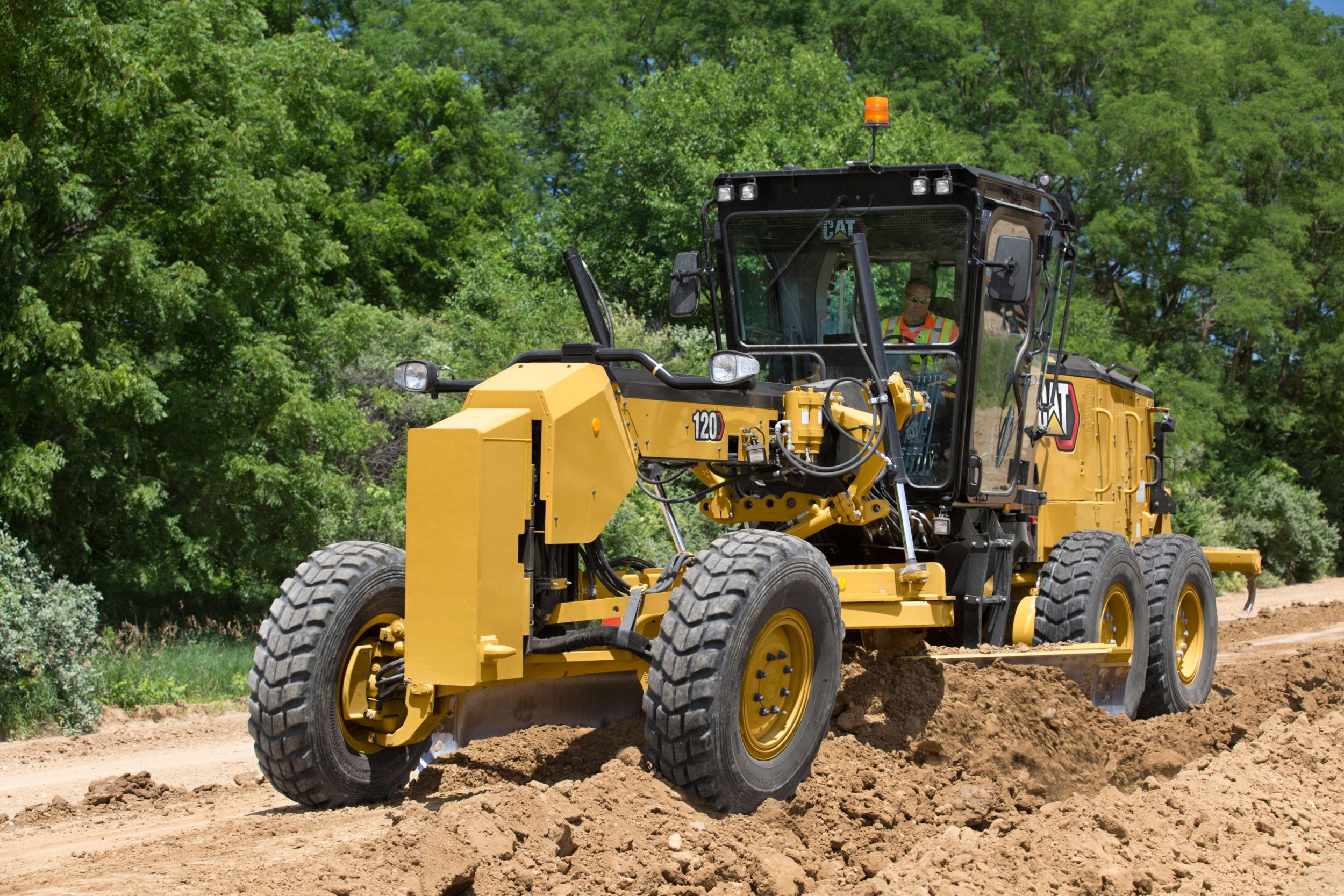

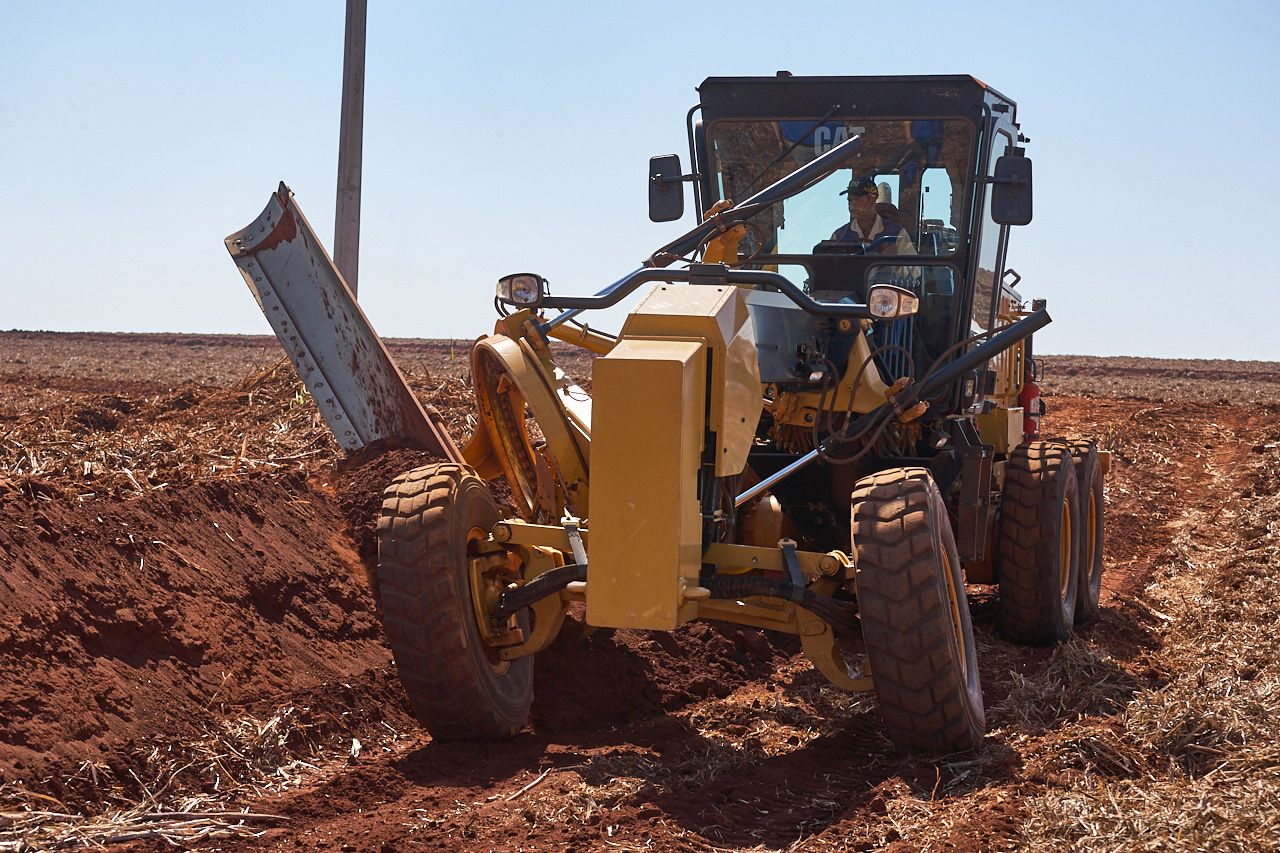

Operator comfort, smart systems and respected Cat construction help make the Cat 120 and 120 All-Wheel Drive (AWD) motor graders leaders in their class. With technologies to speed and enhance grading performance, this machine is ready to tackle your needs.

Category:

BUILT TO PERFORM



  • Get to work with balanced weight and power in the Cat C7.1 engine.
  •

  • Increase your fuel economy up to 15% with the standard Eco mode.
  •

  • Cat Grade technology helps you get to the target grade in fewer passes.
  •

  • The powershift transmission works hard with machine balance to ensure drawbar power to the ground.
  •

  • Powertrain components are specifically made to be rebuilt.

WORK IN COMFORT

  • Choose your comfort level in the cab with standard, comfort plus, and premium plus options.
  • With one 203 mm (8 in) color touchscreen, view your machine information from fuel levels to GRADE technology options and machine alerts. The anti-glare screen makes it easy to read no matter how bright it gets.
  • Connect your phone with Bluetooth™ or auxiliary cord option to listen to music and podcasts throughout your work day.
  • Decrease clutter with more storage areas in the cab.
  • The high capacity Heating, Ventilation and Air Conditioning (HVAC) system dehumidifies and pressurizes the cab, circulates fresh air, seals out dust and keeps windows clear from fogging.
  • With the auto-controlled climate option, you can set your ideal temperature.
  • Easily add a radio to the cab using the built-in mounting location.
  • Keep your phone charged with the optional USB charging port along with a spot designed to hold your phone.

TECHNOLOGY THAT GETS WORK DONE

  • The next generation motor grader offers updated Grade technology displayed on the 203 mm (8 in) color touchscreen option.
  • Use the Digital Blade Slope Meter to get to grade without relying on manual grade checkers.
  • Cat Grade with Cross Slope Indicate option provides a real-time readout of cross slope and can be scaled to Cat Grade with Cross Slope for automatic blade movement.
  • Cat Grade Attachment Ready Option (ARO) gives you the connections that you need to add grade control technologies.
  • Stable Blade senses blade bounce before you to reduce manual throttle use and site rework.
  • Product Link™ provides location, machine hours, fuel usage, productivity, idle time, diagnostic codes, and other machine data on demand through the VisionLink® online interface, which helps you improve jobsite efficiency with lower operating costs.
  • Update machine software with Remote Services without taking the machine out of service.

BUILT-IN SAFETY FEATURES

  • View your surroundings with the rear camera option to ensure the safety of you and those around you. The dedicated display can be always on to ensure a safe work environment.
  • The heated lens keeps the rearview camera clear.
  • In the event of an engine stall, count on the secondary steering system to turn on to help you stop the machine safely.
  • Ensure three points of contact when entering and exiting the machine with strategically placed walkways and grab rails.
  • Ground level engine shut-off switch stops all fuel to the engine when activated and shuts down the machine.
  • See the rear of your machine with connecting windows.
  • Work past sundown using the LED light option for increased night time visibility.
  • Keep your work site safer with Cat GRADE technology, which reduces the need for manual grade checking with working machines.

SAVE ON SERVICE AND MAINTENANCE

  • Filters, such as fuel, engine air, and oil filters, are grouped together for easy access and preventative maintenance.
  • The next generation filters help you to get up to 15 percent in reduced filtration costs.
  • Maintain roads with the standard drawbar circle moldboard with hardened circle teeth for increased durability.
  • For tight finish grading, consider the top adjust drawbar option for applications that require maximum accuracy. It offers up to 45 percent reduction in maintenance cost over the standard.
  • Hydraulic brakes are well oiled to keep them maintenance free.
  • Lower costly repairs to your circle and pinion with the Circle Saver.

OPTIONS TO MEET YOUR NEEDS

  • Improve the balance of your machine with the counterweight or push block for increased performance and efficiency.
  • Ripper and scarifier options are available to assist with grading hardened ground.
  • The front lift group option is ready for attachments like the straight or front blade.
  • For more road coverage, add a moldboard extension to add 605 mm (24 in).

Standard Equipment

NOTE
  • Standard and optional equipment may vary. Consult your Cat dealer for details.
Cab
  • Vinyl Seat
  • ROPS, Standard Sound Suppression
  • Heating/Cooling Cab System
  • Base Cab
  • 254 mm (10 in) Hybrid Information Display
  • Halogen Lighting
Cat Technology
  • Product Link
Engine
  • Cat C7.1
  • ECO Mode
  • Hydraulic Demand Fan
Drawbar Circle Moldboard
  • Standard
  • Circle Drive Slip Clutch
Safety
  • Parking brake
  • Signaling/warning horn
  • Rearview mirror
  • Hydraulic brakes
  • Secondary steering system
  • Side view mirrors
  • Walkways and Grab Rails

Additional information

Offering Type

Engine - Net Power Range (Tier 3)

97 kW ( 130 HP )

Engine - Derating Altitude (AWD)

1676 m ( 5499 ft )

Engine - Maximum Torque - ISO 9249

822 N·m ( 606 lb/ft )

Engine - Derating Altitude

3000 m ( 9842.5 ft )

Engine - Note (2)

Net power advertised is the power available at rated speed of 2,000 rpm, measured at the flywheel when engine is equipped with fan, air cleaner, muffler and alternator.

Engine - Maximum Torque - AWD On

828 N·m ( 611 lb/ft )

Engine - All-Wheel Drive Net Power Range (Tier 3)

101 kW ( 136 HP )

Engine - Bore

105 mm ( 4.1 in )

Engine - Displacement

7.01 l ( 427.8 in³ )

Engine - Number of Cylinders

6

Engine - Torque Rise - ISO 9294

42%

Engine RPM

2,000

Engine Model

Cat 7.1

Engine - Note (3)

Power as declared per ISO 14396

Engine - Note (1)

Net power is tested per ISO 9249, SAE J1349, and EEC 80/1269
Standards in effect at the time of manufacture.

Engine - Stroke

135 mm ( 5.3 in )

Engine - Standard Capability

50 °C ( 122 °F )

Engine - Emissions

China Nonroad Stage III and Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3/EU Stage IIIA

Weights - Operating Weight - Typically Equipped

15803 kg ( 34839 lb )

Machine Weight - Joystick Weight* Tier 3

15824 kg ( 34,886 lb )

Machine Weight - Joystick All-Wheel Drive (AWD) Weight* Tier 3

16499 kg ( 36,374 lb )

Machine Weight - Lever/Steering Wheel Weight* Tier 3

15699 kg ( 34,610 lb )

Machine Weight - Note

*Typically equipped includes 3.7 m (12 ft) plus blade, tires, push plate, ripper, bottom guard, operator, and full fluids.

Moldboard - Blade Width

3.7 m ( 12 ft )

Moldboard - Cutting Edge

152 mm ( 6 in )

Moldboard - Blade Height

610 mm ( 24 in )

Moldboard - End Bit

152 mm ( 6 in )

Moldboard - Cutting Edge Width

152 mm ( 6 in )

Moldboard - Arc Radius

413 mm ( 16.3 in )

Moldboard - Throat Clearance

120 mm ( 4.7 in )

Dimensions - Length of Machine*

9838 mm ( 387 in )

Dimensions - Width

2592 mm ( 102 in )

Dimensions - Width All Wheel Drive (AWD)

100.4 in ( 2551 mm )

Dimensions - Maximum Height

3465 mm ( 136.4 in )

Dimensions - Note

*Typically equipped with push block and ripper.

Blade Range - Maximum Depth of Cut

775 mm ( 30.5 in )

Blade Range - Maximum Shoulder Reach Right

1928 mm ( 76 in )

Blade Range - Circle Center Shift Right

656 mm ( 26 in )

Blade Range - Blade Tip Range Forward

40

Blade Range - Moldboard Side Shift Right

663 mm ( 26.1 in )

Blade Range - Blade Tip Range Backward

5

Blade Range - Maximum Lift Above Ground

410 mm ( 16.1 in )

Blade Range - Maximum Shoulder Reach Left

1764 mm ( 69.4 in )

Blade Range - Moldboard Side Shift Left

512 mm ( 20.1 in )

Blade Range - Circle Center Shift Left

656 mm ( 26 in )

Service Refill Capacities - Circle Drive

7 l ( 1.8 gal (US) )

Service Refill Capacities - Engine Crankcase

18 l ( 4.8 gal (US) )

Service Refill Capacities - Transmission and Differential

60 l ( 15.9 gal (US) )

Service Refill Capacities - Hydraulic System

97 l ( 25.6 gal (US) )

Service Refill Capacities - Fuel Tank

246 l ( 65 gal (US) )

Service Refill Capacities - Cooling System

52.5 l ( 14 gal (US) )
