140 LVR

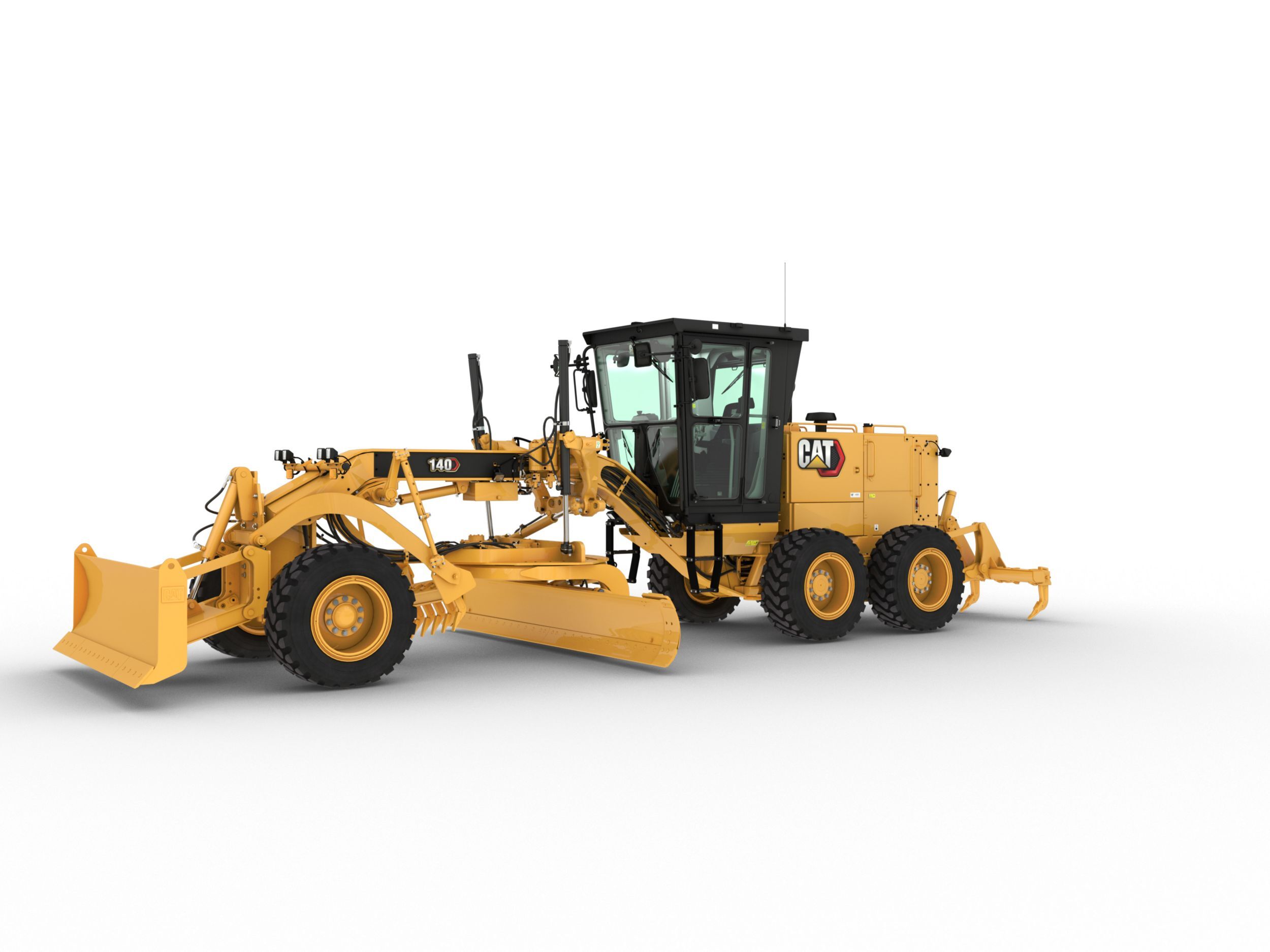

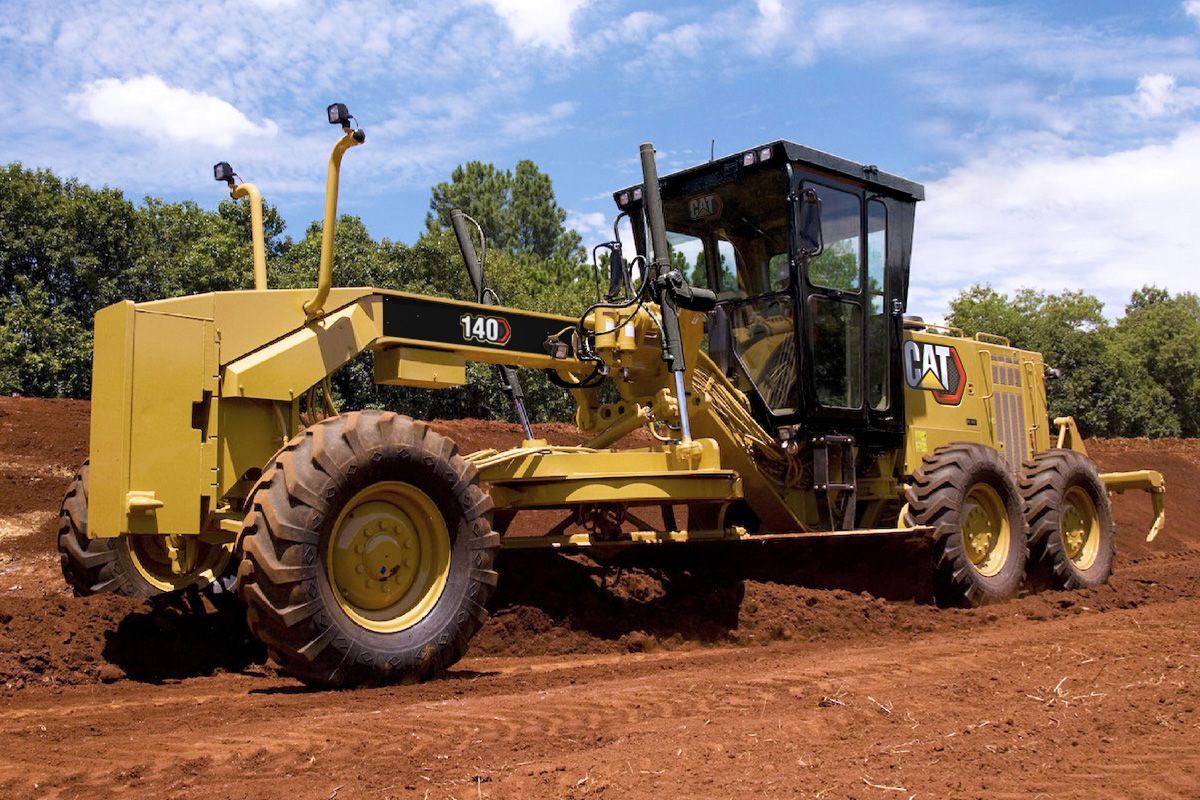

140 LVR Motor Grader

New Name, Same Fame. The 140K is now named the 140. Equipped with a Cat® C7 engine, direct-drive powershift transmission, and load-sensing hydraulics solutions, the 140 motor grader takes on your grading work with power, control, comfort and productivity.

Category:
Add to Quote

BUILT TO PERFORM



  • Cat C7 engine meets U.S. EPA Tier 3/EU Stage IIIA equivalent or Tier 2/Stage II equivalent emissions standards, depending on emission standards of specific country.

    •

  • Power Shift Countershaft Transmission matched to engine, maximizing power to the ground.

PERFORMANCE WITH LESS FUEL

  • Electronic Throttle Control helps improve productivity by optimizing HP and torque to match the power demands of the application.
  • Aggressive blade angles, optimized moldboard curvature and large throat clearance allows material to roll more freely along blade, increasing efficiency.
  • Hydraulic demand fan automatically adjusts speed according to cooling requirements maximizing power to the ground and improving fuel efficiency.
  • Engine Idle Shutdown is available to shut down engine after a set period of time, saving fuel and helping reduce emissions.

DESIGNED FOR OPERATORS

  • Proportional Priority Pressure-Compensating (PPPC) provides load-sensing hydraulics with superior control, enhanced performance, and efficiency.
  • Optional AutoShift Transmission improves ease of operation and maximizes productivity by automatically shifting the transmission at optimal shift points.
  • Rocker and control switches are in easy reach.
  • Proven conventional controls provide industry-standard control pattern and feel for precise cutting edge movement.

SAVE MAINTENANCE TIME

  • Durable nylon composite wear inserts maximize circle torque and component life.
  • Sacrificial brass moldboard slide rail wear strips between blade mounting group and moldboard can be easily adjusted and replaced.
  • Left-side, ground level service area access speeds up maintenance and ensures that routine service is performed on time.

LONG TERM VALUE AND DURABILITY

  • Utilizing rigorous component design and machine validation processes results in unmatched reliability, durability and high uptime.
  • Components are designed and manufactured to Caterpillar quality standards throughout all Caterpillar facilities.

WORK IN COMFORT

  • Optional HVAC, defroster fan and sun shades keep you comfortable, while conveniently placed power ports keep additional communication devices charged and ready.

PRODUCTIVITY WITH TECHNOLOGY



  • Optional Cat Grade uses positioning and guidance technologies, machine sensors, and automatic blade control to help get to grade faster, easier, and more efficiently.

    •

  • Optional Cat Product Link™ aids your equipment management with remote monitoring capabilities.

    •

  • Attachment Ready Option (ARO) can be ordered as a factory or dealer installed option making installation of the Grade grade control system faster and easier.

BUILT-IN SAFETY FEATURES

  • Brakes located at each tandem wheel offer the largest total brake surface area in the industry, delivering dependable stopping power.
  • Standard circle drive slip clutch protects the drawbar, circle and moldboard from shock loads when the blade encounters an immovable object.
  • Ground level engine shutoff allows anyone nearby to shut the machine down in case of an emergency.
  • Built-in lock check valves
  • Clear view to moldboard heel and tandem tires enhance productivity and safe operation.
  • Blade Lift Accumulators help absorb impact loads to the moldboard by allowing vertical blade travel.

Virtual Tours

Documents & Brochures

Standard Equipment

NOTE
  • Standard and optional equipment may vary. Consult your Cat dealer for details.
Electrical
  • Alternator, 115 ampere
  • Backup alarm, reversing lights
  • Batteries, maintenance free 750 CCA
  • Common fuse block
  • Electrical system, 24 volt
  • Horn, electric
  • Indication display
  • Lights, stop and tail
  • Motor, starting
  • Product Link ready
  • Working lights
Operator Environment
  • Accelerator
  • Control console, adjustable
  • Gauge cluster (includes voltmeter, articulation, engine coolant temperature, air brake pressure and fuel level)
  • Guard rails, operator station
  • Hydraulic controls, load sensing (right/left blade lift, circle drive, centershift, sideshift, front wheel lean and articulation)
  • Indicator lights (includes high beam, LH and RH turn, low engine oil pressure, throttle lock, check engine, transmission filter bypass and check, centershift pin, brake air pressure, parking brake engaged, auto shift)
  • Key start/stop switch
  • Meter, hour
  • Power steering, hydraulic
  • Seat, vinyl-covered static
  • Seat belt
  • Steering wheel, tilt, adjustable
  • Storage area, cooler/lunch box
  • Throttle, electronic control
Power Train
  • Air cleaner, dry type radial seal with service indicator and automatic dust ejector
  • Air to air after cooler (ATAAC)
  • Blower fan
  • Brakes, oil disc, four-wheel air actuated
  • Differential with lock/unlock
  • Eco mode
  • Engine idle shutdown
  • Engine, Cat C7 diesel with automatic engine derate and idle control - emits equivalent to Tier 3/Stage IIIA
  • Fuel water separator
  • Muffler, under hood
  • Next gen filter design
  • Parking brake, multi-disc, sealed and oil cooled
  • Prescreener
  • Priming pump, fuel, resiliently mounted
  • Sediment drain, fuel tank
  • Tandem drive
  • Transmission, 8 speed forward and 6 speed reverse, power shift, direct drive with electronic shift control and overspeed protection
  • VHP (Variable Horse Power)
Other Standard Equipment
  • Blade Float
  • Bumper, rear
  • CD ROM Parts Book
  • Circle drive slip clutch
  • Cutting edges, 152 mm x 16 mm (6 in x 5/8 in) curved DH-2 steel
  • Doors, engine compartment
  • Drawbar, 6 shoe, replaceble nylon composite wear strips
  • End bits, 16 mm (5/8 in) DH-2 steel
  • Frame, articulated with safety lock
  • Fuel tank, 305 L (80.6 gal)
  • Ground level engine shutdown
  • Link bar, 7 position
  • SOS ports, engine, hydraulic, transmission and cooling
  • Toolbox with padlock
  • Vandlism protection - including cap locks for hydraulic tank, radiator access cover, fuel tank, engine and transmission oil check/fill and lockable battery boxes
Antifreeze
  • Extended Life Coolant to -35 degrees Celcius (-30 degrees Fahrenheit)

Additional information

Offering Type

Engine - Base Power (1st Gear) - Net

128 kW ( 171 HP )
Engine Model

Cat C7
Engine - Displacement

7.2 l ( 439 in³ )
Engine - Bore

105 mm ( 4.1 in )
Engine - Stroke

127 mm ( 5 in )
Engine - High - Ambient Capability

50 °C ( 122 °F )
Engine - Maximum Torque

996 N·m ( 735 ft-lb )
Engine - Note (3)

Maximum torque measured at 1,000 rpm in gears 4-8.
Engine - VHP Range - Net

128-143 kW (171-191 hp)
Engine - Number of Cylinders

6
Engine - Torque Rise

46%
Engine - Note (1)

Net power is tested per ISO 9249, SAE J1349, and EEC 80/1269 standards in effect at the time of manufacture.
Engine - Derating Altitude

3048 m ( 10000 ft )
Engine - Note (2)

Net power advertised is the power available at rated speed of 2,000 rpm, measured at the flywheel when engine is equipped with fan, air cleaner, muffler and alternator.
Weights - Operating Weight - Typically Equipped

17271 kg ( 38076 lb )
Moldboard - Blade Width

3.7 m ( 12 ft )
Moldboard - Arc Radius

413 mm ( 16.3 in )
Moldboard - Throat Clearance

120 mm ( 4.7 in )
Moldboard - Height

610 mm ( 24.0 in )
Moldboard - End Bit - Thickness

16 mm ( 0.6 in )
Moldboard - End Bit - Width

152 mm ( 6.0 in )
Moldboard - Cutting Edge Thickness

16 mm ( 0.6 in )
Moldboard - Cutting Edge Width

152 mm ( 6.0 in )
Moldboard - Thickness

22 mm ( 0.9 in )
Blade Range - Moldboard Sideshift - Left

512 mm ( 20.2 in )
Blade Range - Circle Centershift - Right

728 mm ( 28.7 in )
Blade Range - Circle Centershift - Left

752 mm ( 29.6 in )
Blade Range - Blade Tip Range - Backward

5°
Blade Range - Maximum Lift Above Ground

480 mm ( 18.9 in )
Blade Range - Maximum Depth of Cut

735 mm ( 28.9 in )
Blade Range - Maximum Shoulder Reach Outside of Tires - Left

1896 mm ( 74.6 in )
Blade Range - Maximum Shoulder Reach Outside of Tires - Right

1978 mm ( 77.9 in )
Blade Range - Blade Tip Range - Forward

40°
Blade Range - Moldboard Sideshift - Right

663 mm ( 26.1 in )
Frame - Front Axle - Wheel Lean - Left/Right

18°
Frame - Front Axle - Total Oscillation per Side

32°
Frame - Circle - Outer Diameter

1530 mm ( 60.2 in )
Weights - Gross Vehicle Weight - Typically Equipped - Rear Axle

12335 kg ( 27193 lb )
Weights - Gross Vehicle Weight - Base - Rear Axle

10491 kg ( 23128 lb )
Weights - Gross Vehicle Weight - Base - Total

14750 kg ( 32518 lb )
Weights - Gross Vehicle Weight - Base - Front Axle

4259 kg ( 9390 lb )
Weights - Gross Vehicle Weight - Typically Equipped - Total

17271 kg ( 38076 lb )
Weights - Gross Vehicle Weight - Typically Equipped - Front Axle

4936 kg ( 10883 lb )
Weights - Gross Vehicle Weight - Typically Equipped

17271 kg ( 38076 lb )
