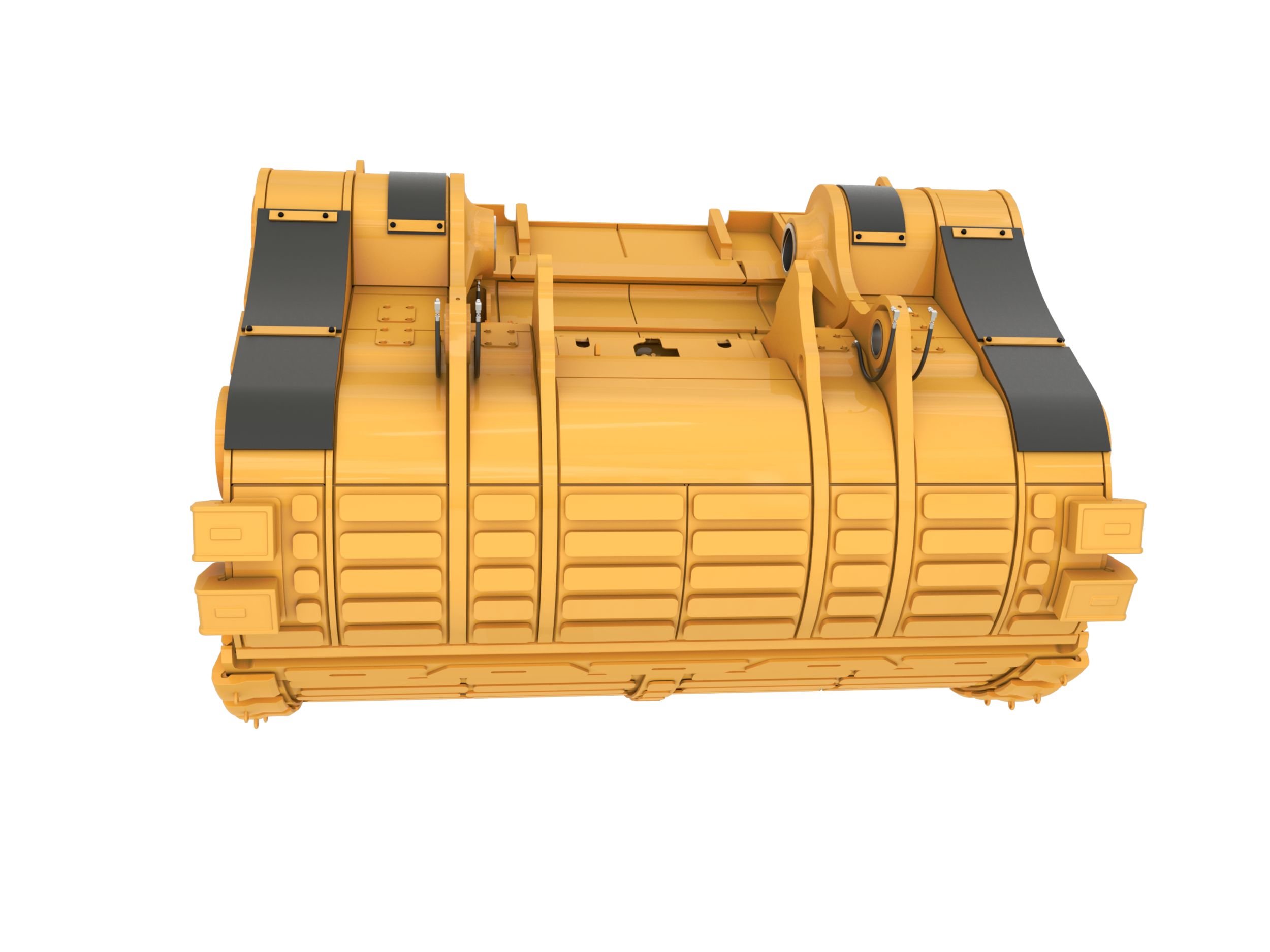

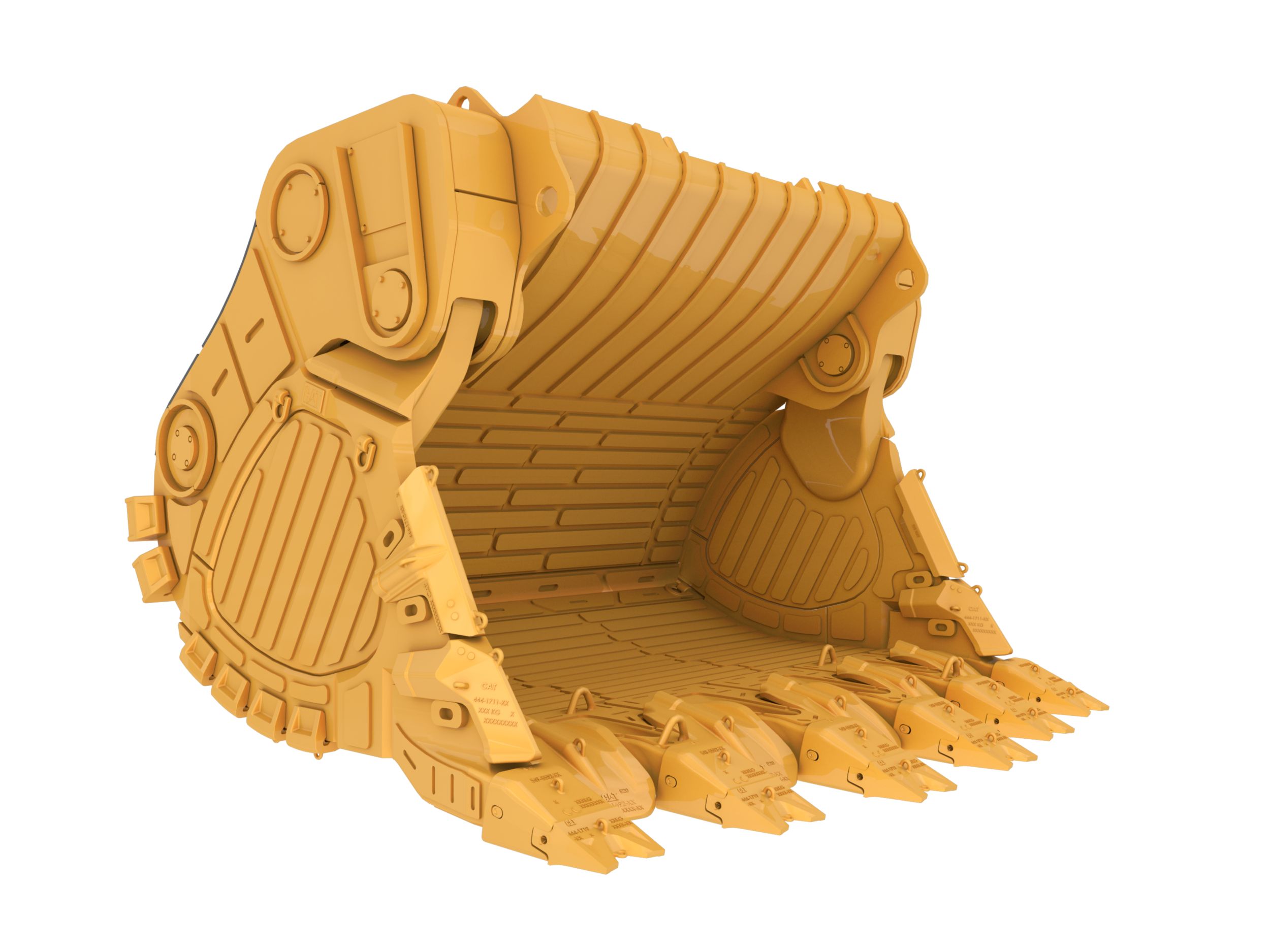

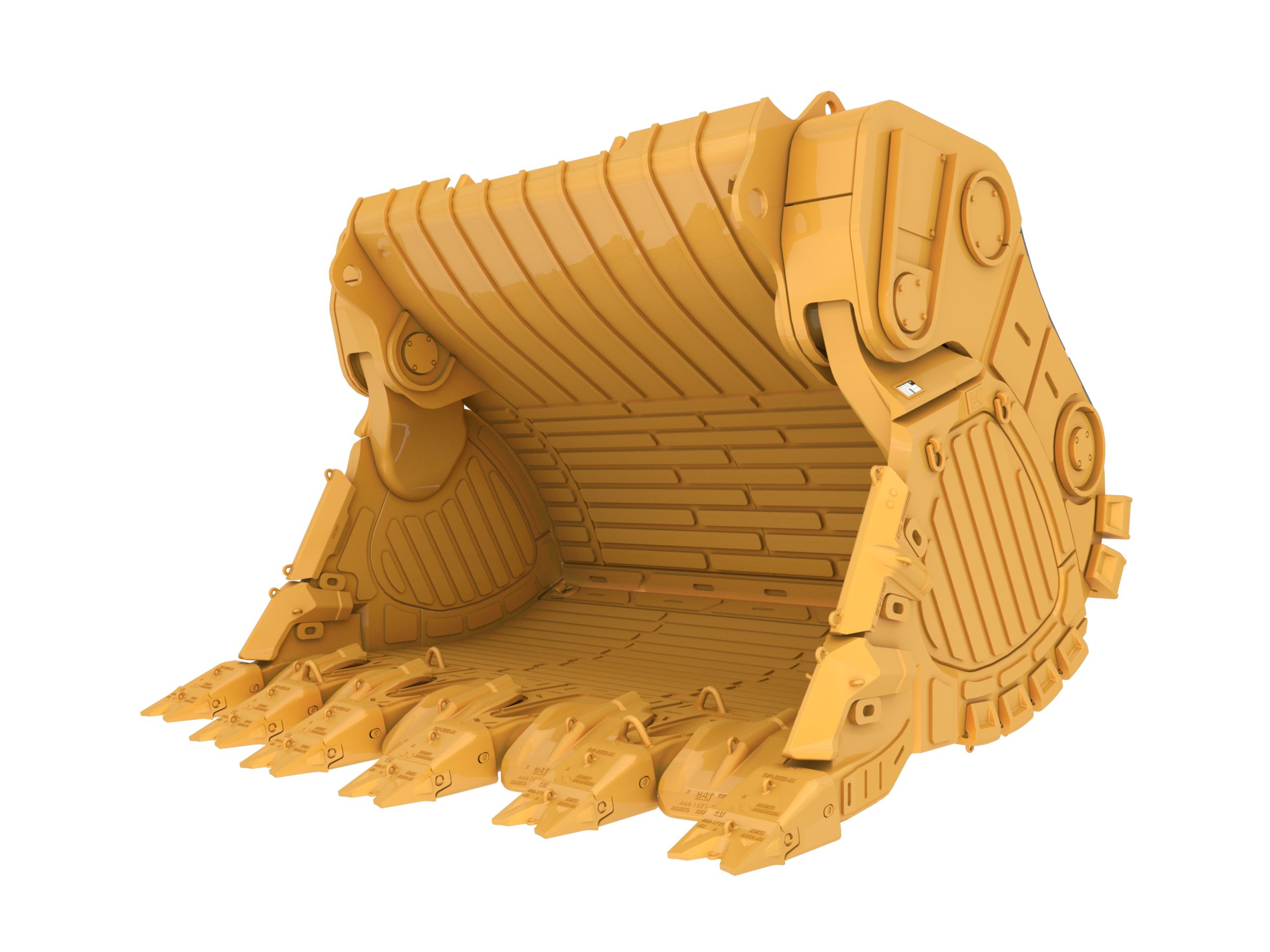

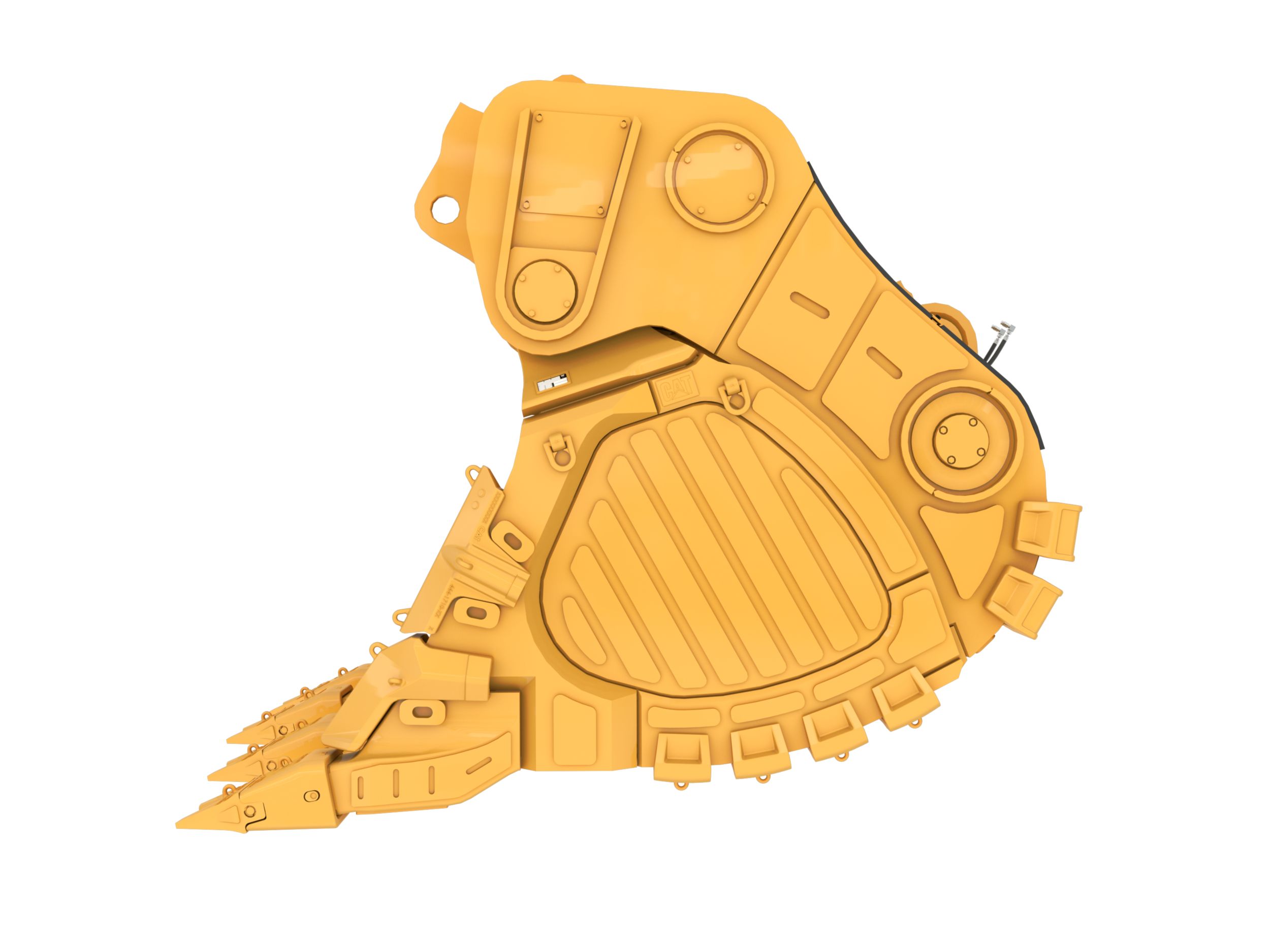

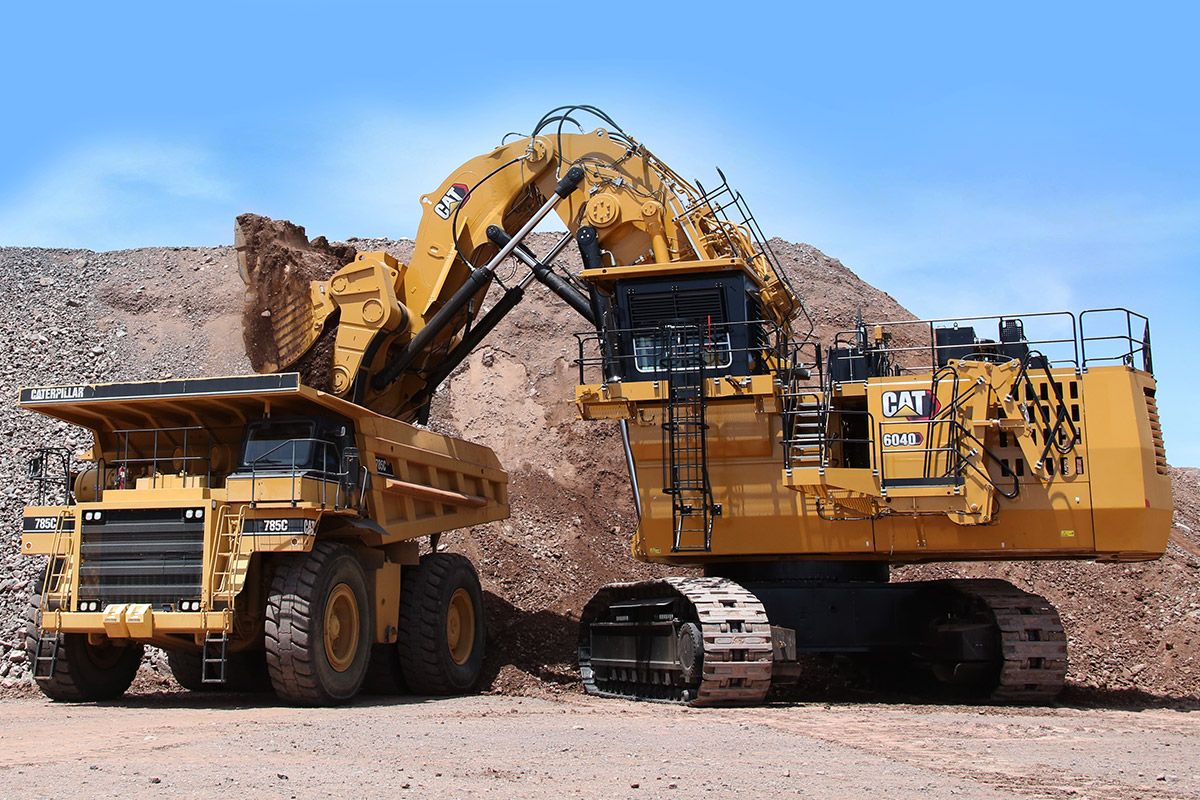

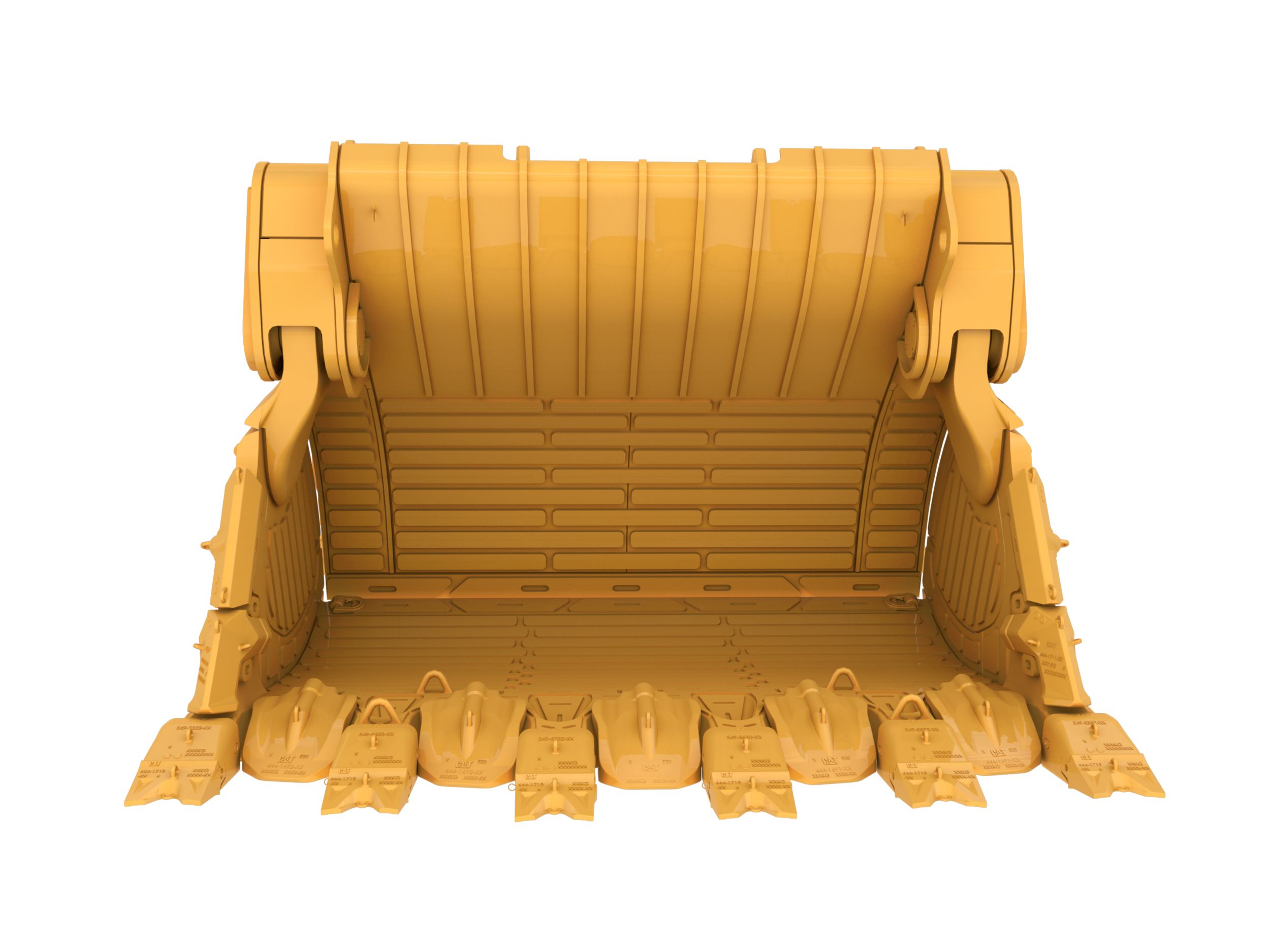

22 m³ (28.8 yd³) Standard Rock bucket for the 6040 Hydraulic Mining Shovel

Cat Standard Rock buckets are production-oriented buckets designed for use in medium-density material, which can stick to the walls of other buckets. Standard Rock buckets come equipped with wear protection for the leading edges and heel. Wear plates are usually Quenched and Tempered for maximum durability in high-impact conditions.

Category:
Add to Quote

Additional information

Material Density

1.8 t/m³ ( 3034 lb/yd³ )
Wear Package

Standard Duty
Ground Engaging Tool (GET) System

Cat W850R
Machine Model

6040
Capacity

22 m³ ( 28.8 yd³ )
Weight

38117 kg ( 84034 lb )
Outer Width

4836 mm ( 190.4 in )
Inner Width

4300 mm ( 169.3 in )
Offering Type
