24-220 kVA SA Lvl 2 Enclosure
24-220 kVA SA Lvl 2 Enclosure

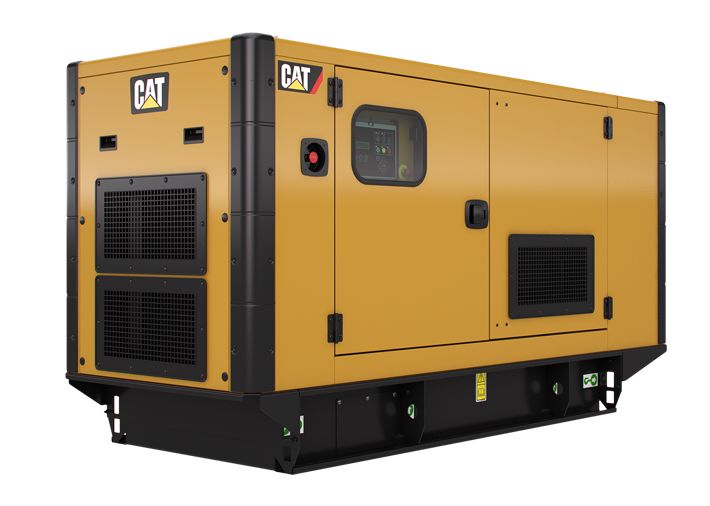

The sound attenuated Level 2, factory installed enclosures incorporate internally mounted critical level silencers. They are the premium enclosure offering for this range, designed for safety and aesthetic value on an integral fuel tank base. Extremely durable and weather resistant, these enclosures are designed to resist corrosion and handling damage.
Durable and Robust Construction
- Galvanised steel protected by powder coat paint
- Black finish stainless steel locks and hinges
- Zinc plated / stainless steel fasteners
Excellent Service and Maintenance Access
- Side hinged doors on both sides of the enclosure opening to 180°
- Side hinged doors lift off at 90°
- Removable front and rear access panels
- Lube oil and coolant drain valves
Security and Safety
- Control panel viewing via large viewing window in lockable enclosure door
- Emergency stop push button mounted on enclosure exterior below control panel
- Cooling fan and battery charging alternator fully guarded
- Fuel fill and battery can only be reached via lockable access doors
- Fully enclosed exhaust silencing system for operator safety
Transportability
- Lifting points on base frame facilitating handling from both sides
Documents & Brochures
Additional Information
| الأوزان والأبعاد - العرض | 980 – 11130 mm |
|---|---|
| الأوزان والأبعاد - الطول | 2120 – 3520 mm |
| الأوزان والأبعاد - الارتفاع | 1519 – 1809 mm |
| الأوزان والأبعاد - الوزن | 991 – 2238 kg |
| Offering Type |
