28 m³ (36.6 yd³) – 543-9929

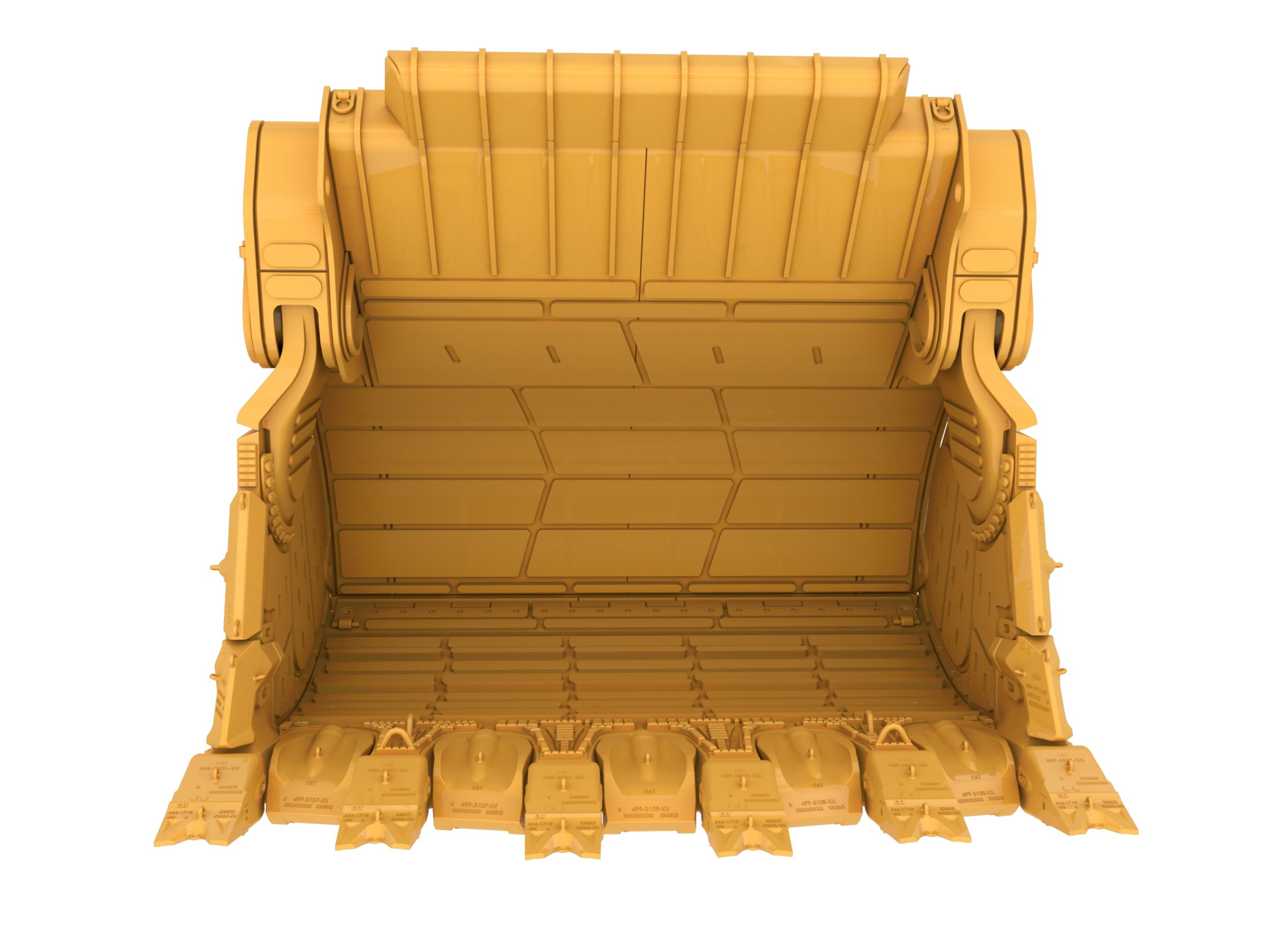

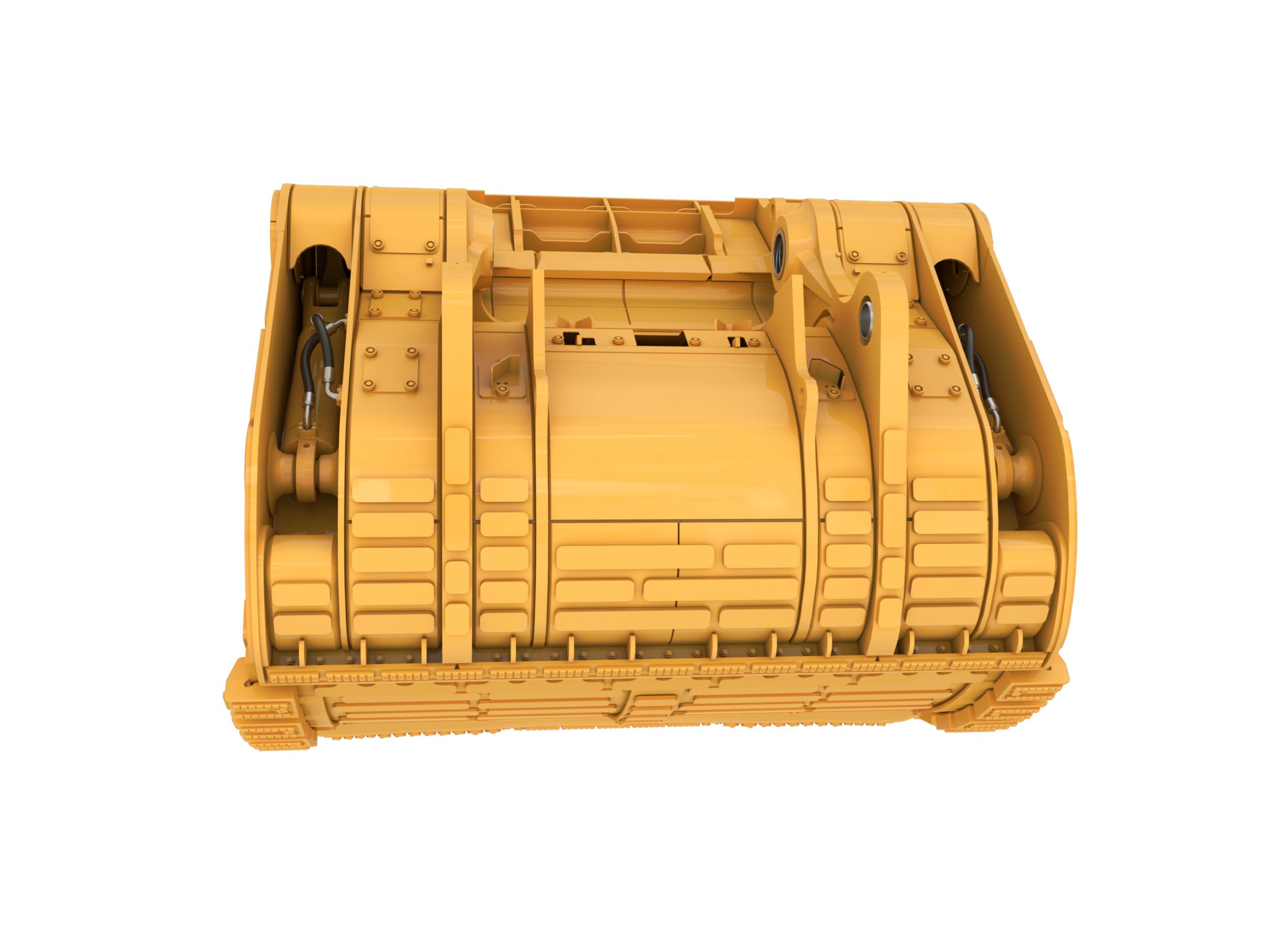

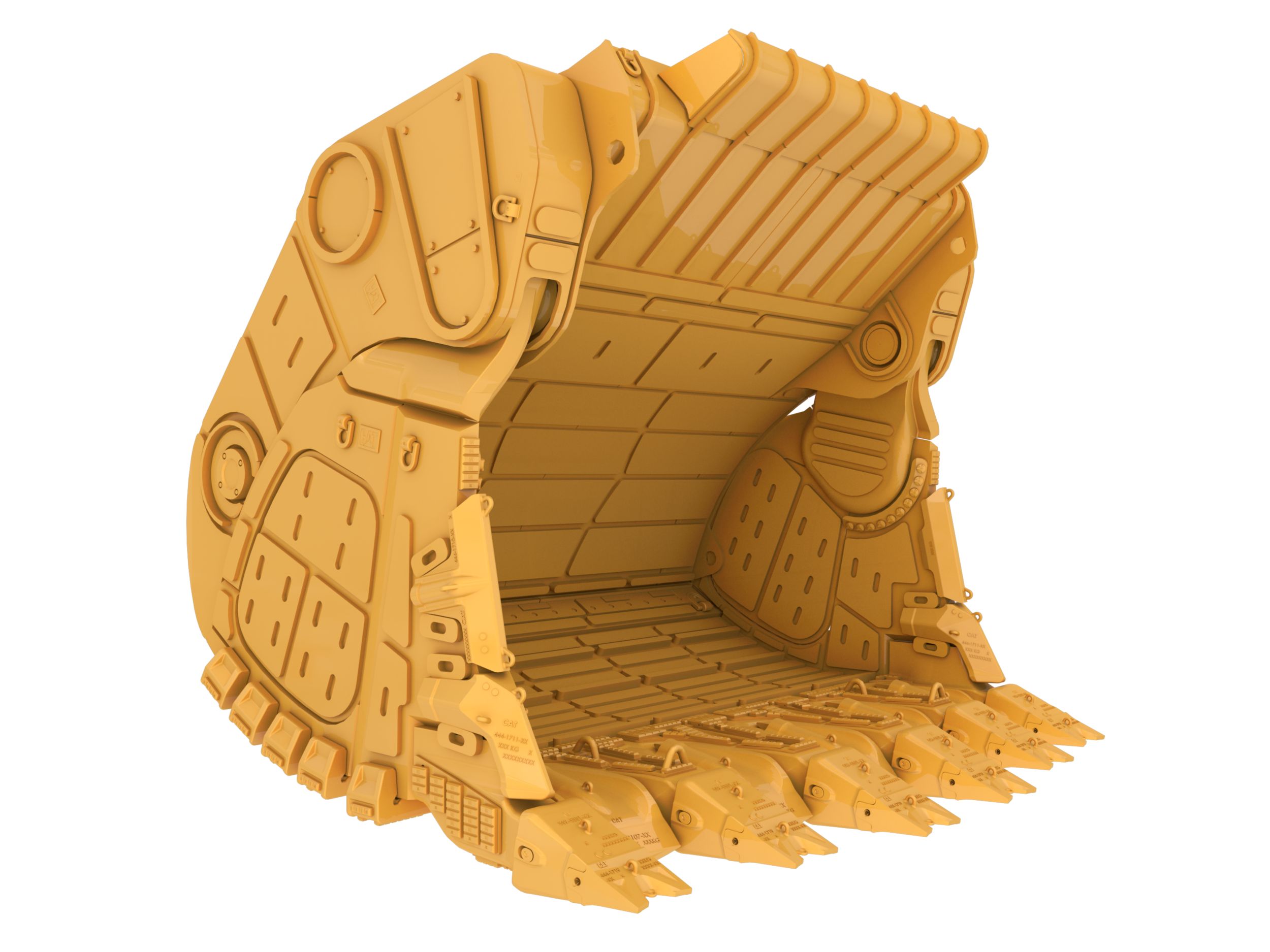

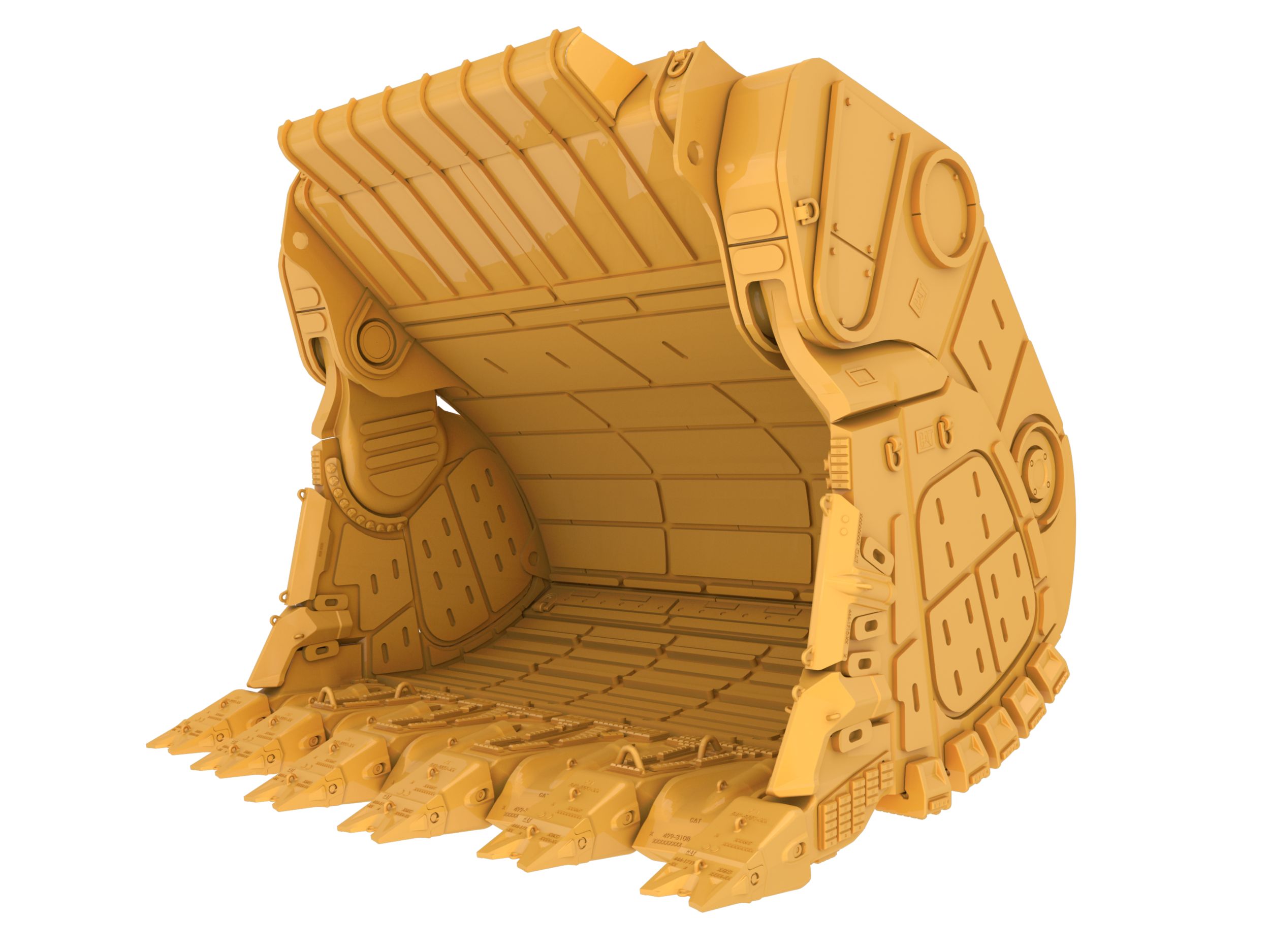

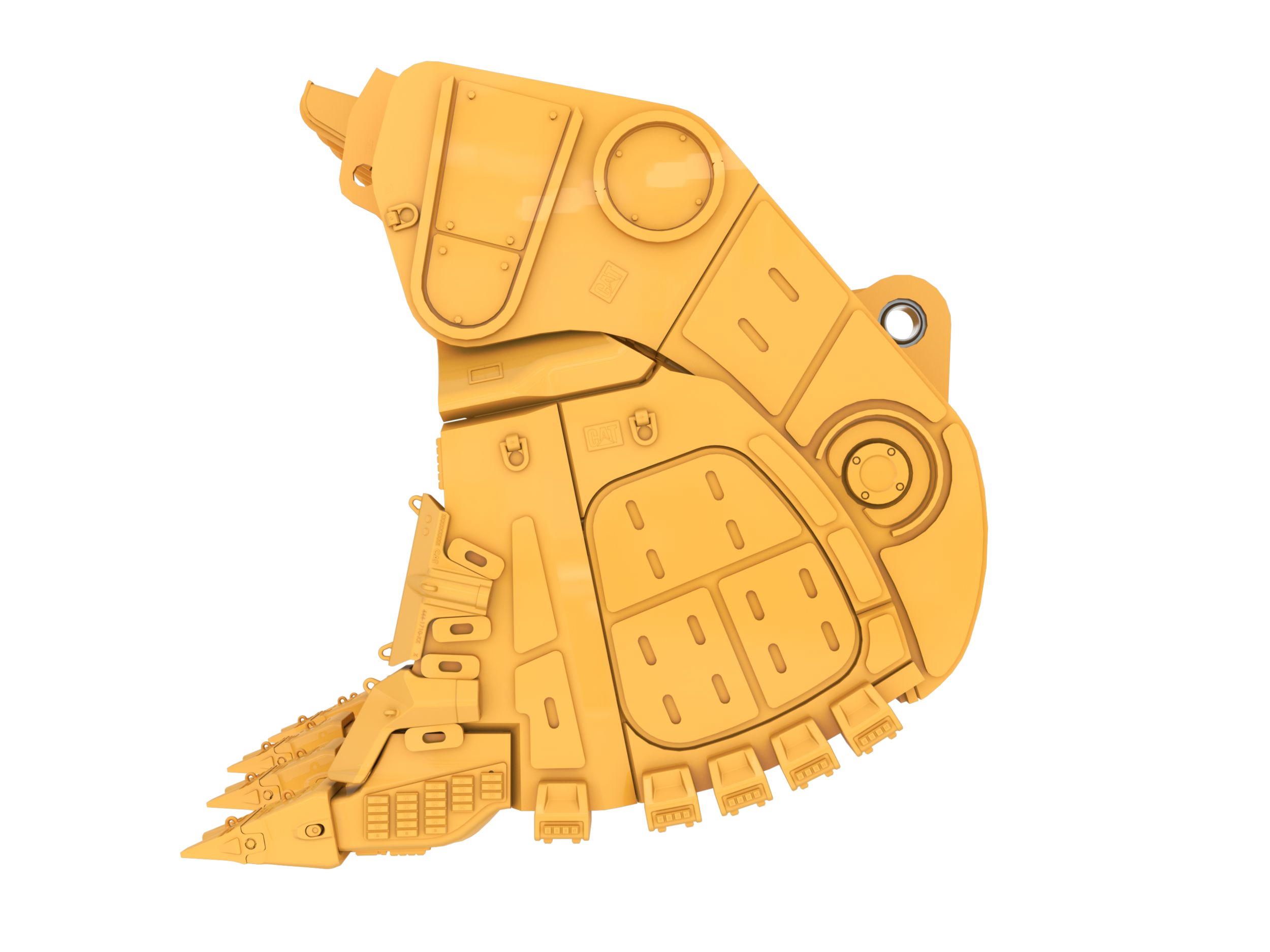

28 m³ (36.6 yd³) Heavy Rock bucket for the 6060 Hydraulic Mining Shovel
28 m³ (36.6 yd³) Heavy Rock face shovel for the 6060 Hydraulic Mining Shovel
Optimum Productivity
A perfect match to the Cat Hydraulic Mining Shovels. Designed to give excellent payload and matched to the power of Cat machines for a long service life.
Efficient
Pass matched to Cat and Unit Rig trucks for an efficient system at your mine site.
Max Payload
Rated with ISO 7451 payload standards with a 1:1 heap ratio
The Support You Need
Cat buckets are fully covered by the Cat dealer network for round the clock support.
Additional information
| Material Density | 2.2 t/m³ ( 3708 lb/yd³ ) |
|---|---|
| Wear Package | Extreme Duty – Abrasion |
| Ground Engaging Tool (GET) System | Cat W950R |
| Machine Model | 6060 |
| Capacity | 28 m³ ( 36.6 yd³ ) |
| Weight | 50 937 kg ( 112,297 lb ) |
| Outer Width | 4773 mm ( 187.9 in ) |
| Inner Width | 4300 mm ( 169.3 in ) |
| Offering Type |
-
Hydraulic Mining Shovels
6060
View Details
