3406C

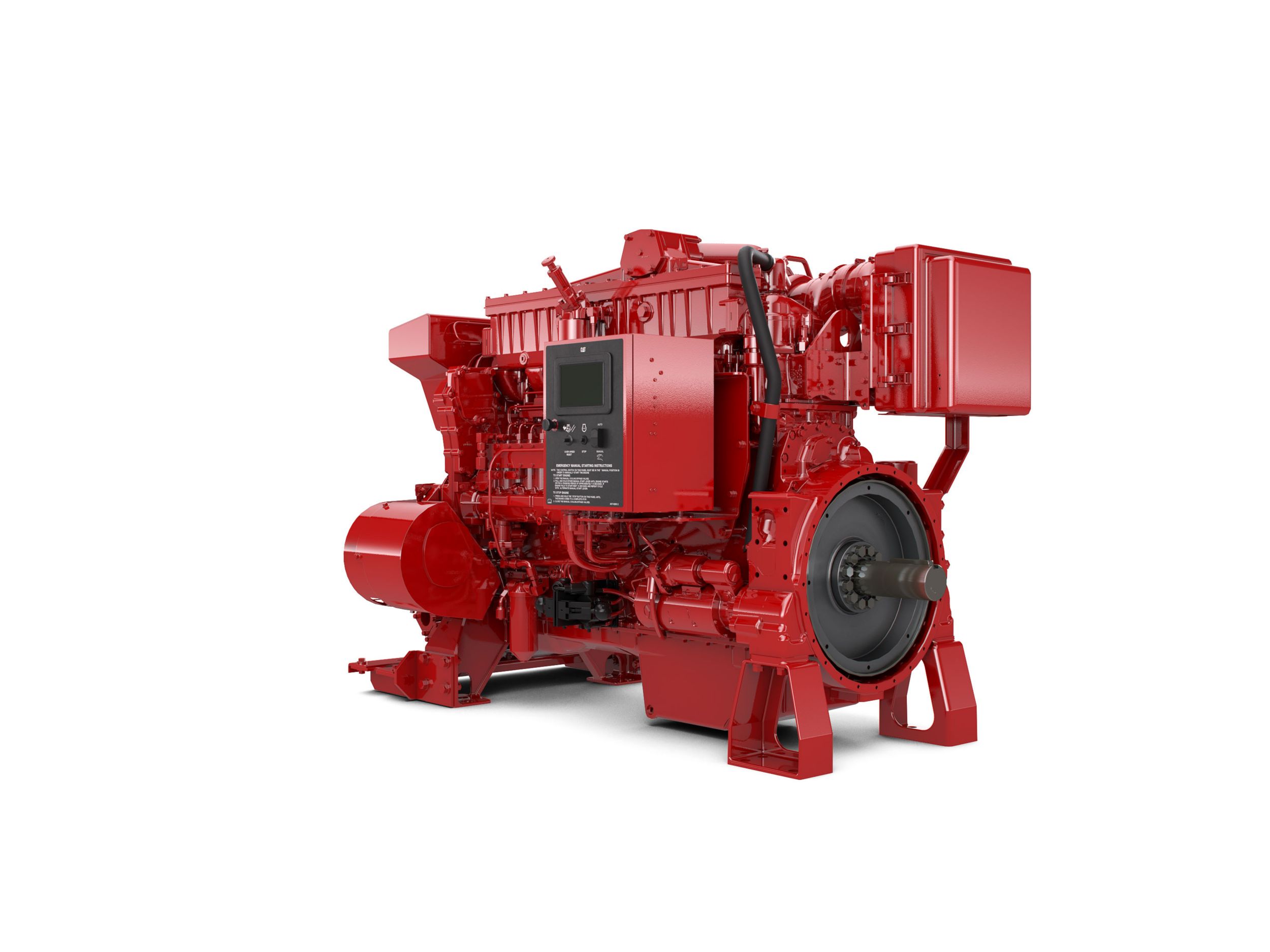

Cat® 3406C Fire Pump Engine
The Cat® 3406C Industrial Diesel Fire Pump Engine is offered in ratings ranging from 218-359 kW (292-482 hp) @ 1750-2300 rpm. These ratings are non-certified and available for global non-regulated areas. They are FM Approved and UL Listed. Additional 3406C ratings with or without radiators are available, but not FM approved or UL listed. Starting on demand is a must for a fire pump engine – always. Cat® fire pump engines have a reputation for reliable starts and long efficient service.
Reliable, Quiet and Durable Power
World-class manufacturing capability and processes coupled with proven core engine designs assure reliability, quiet operation, and many hours of productive life.
Quality
Every Cat engine is manufactured to stringent quality standards in order to assure customer satisfaction.
World-class Product Support Offered Through Global Cat Dealer Network
- Scheduled maintenance, including SOSSM sample
- Customer Support Agreements (CSA)
- Caterpillar Extended Service Coverage (ESC)
- Superior dealer service network
- Extended dealer service network through the Cat Industrial Service Distributor (ISD) program
World-class Product Support Offered Through Global Cat Dealer Network
- Scheduled maintenance, including SOSSM sample
- Customer Support Agreements (CSA)
- Caterpillar Extended Service Coverage (ESC)
- Superior dealer service network
- Extended dealer service network through the Cat Industrial Service Distributor (ISD) program
Virtual Tours
Standard Equipment
Air Inlet System
- Dry or watercooled manifold and turbocharger
Charging System
- Charging Alternator, 24 volt, 35 amp
Control System
- Hydra-mechanical governor
Cooling System
- Thermostats and housing
- Jacket water pump, gear driven, centrifugal
- Heat exchanger
- Expansion tank
- FM Required Raw Water Cooling Loops: 1.5" iron, horizontal or vertical, 1.5" 316 stainless steel, horizontal or vertical
- Optional Radiator, not UL listed or FM approved
Exhaust System
- Exhaust manifold, water-cooled (wet) or dry
- Exhaust elbow, dry, 152 mm (6 in), 4 bolt flange
Flywheels and Flywheel Housing
- SAE No. 1 flywheel
- SAE No. 1 flywheel housing
- SAE standard rotation
Fuel System
- Fuel filter, LH
- Fuel transfer pump
- Primary fuel filter / water separator
Instrumentation
- Instrument panel, LH
- Engine oil pressure gauge
- Fuel pressure gauge
- Water temperature gauge
- Service meter
Lube System
- Crankcase breather
- Oil cooler
- Lube oil filter
- Oil filler in valve cover and dipstick, both RH
- Rear sump oil pan
- Oil filler in valve cover
- Dipstick
Mounting System
- Supports
Power Take-Offs
- Flywheel stub shaft
Protection System
- Stop-Start System, automatic (compatible with NFPA 20 requirements, able to be energized from either of two battery sources and capable of manual starter actuation)
General
- Vibration damper and guard
- Lifting eyes
- Paint - fire pump red, optional radiator painted black
Additional Information
| تقدير القدرة - القدرة القصوى | 359 كيلووات ( 482 حصان ) |
|---|---|
| تقدير القدرة - السرعة المقدرة | 1750-2300 دورة في الدقيقة |
| تقدير القدرة - القدرة الدنيا | 218 كيلووات ( 292 حصان ) |
| معايير الانبعاثات - الانبعاثات | غير معتمد. وهي متوفرة للمناطق غير الخاضعة لمتطلبات تنظيمية في العالم. معتمد من FM، ومدرج في قوائم UL |
| عام - تكوين المحرك | ديزل بدورة من 4 أشواط، ذو 6 أسطوانات في خط مستقيم |
| عام - التجويف | 137 مم ( 5.4 بوصة ) |
| عام - الشوط | 165 مم ( 6.5 بوصة ) |
| عام - الإزاحة | 14.6 l ( 893 بوصة³ ) |
| عام - نسبة الانضغاط | 14.5:1 |
| عام - السحب | مزوَّد بشاحن توربيني وتبريد لاحق |
| عام - الدوران من طرف الحدافة | عكس اتجاه حركة عقارب الساعة |
| عام - المعالجة اللاحقة | – |
| أبعاد المحرك - بالتقريب - الطول | 1660 مم ( 65.4 بوصة ) |
| أبعاد المحرك - بالتقريب - الارتفاع | 1335 مم ( 52.6 بوصة ) |
| Offering Type |
