3516B

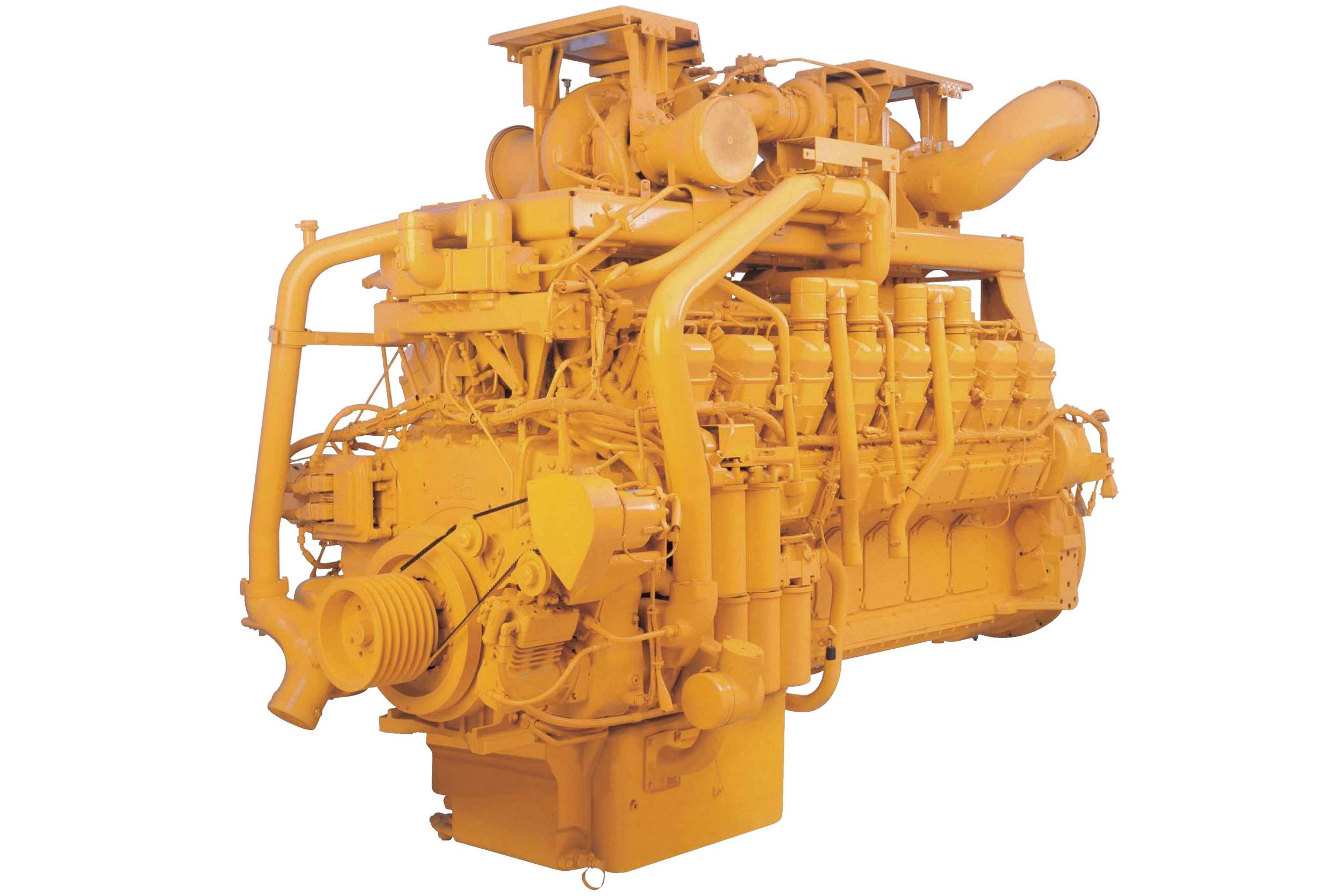

Cat® 3516B Industrial Diesel Engine
For your largest power needs in any environment, Cat® 3516B Industrial Diesel Engines offer the unsurpassed performance and durability your customers need to keep their industrial applications and operations running. They deliver high power output, proven reliability and excellent fuel efficiency. These engines maintain low operating costs to keep your customers profitable for years to come. Industries and applications powered by 3516B engines include Bore/Drill Rigs, Chippers/Grinders, Construction, Cranes, Dredgers, Forestry, General Industrial, Material Handling, Mining, Mobile Earthmoving Equipment, Pumps, Shovels/Draglines, Surface Hauling Equipment and Trenchers. These 3516B engines, with ratings: 1492-1640 bkW (2000-2200 bhp) @ 1800 rpm, are non-certified. They are available for global non-regulated areas.
Reliable, Quiet and Durable Power
World-class manufacturing capability and processes coupled with proven core engine designs assure reliability, quiet operation, and many hours of productive life.
Fuel Efficiency
Fuel consumption optimized to match operating cycles of a wide range of equipment and applications while maintaining low operating costs.
Quality
Every Cat engine is manufactured to stringent quality standards in order to assure customer satisfaction.
World-class Product Support Offered Through Global Cat Dealer Network
- Scheduled maintenance, including SOSSM sample
- Customer Support Agreements (CSA)
- Caterpillar Extended Service Coverage (ESC)
- Superior dealer service network
- Extended dealer service network through the Cat Industrial Service Distributor (ISD) program
Standard Equipment
Air Inlet System
- Aftercooler core, corrosion resistant coated (air side)
- Air cleaner. Regular duty, dry, panel type with service indicators, turbocharger, jacket water aftercooled.
- Turbocharger, rear mounted
- Jacket water aftercooled
Control System
- Governor, RH, 3161 with self contained synthetic oil sump
- Air-fuel ratio control
- Mechanical speed control, without torque control
- Governor control
- Positive locking
Cooling System
- Thermostats and housing
- Jacket water pump, centrifugal
Exhaust System
- Exhaust manifold, dry
Flywheels and Flywheel Housing
- SAE No. 00 flywheel
- 183 flywheel teeth
- SAE No. 00 flywheel housing
Fuel System
- Fuel filter, with service indicators, cartridge type with RH service
- Fuel transfer pump
Instrumentation
- Instrument Panel, RH
- Engine oil pressure gauge
- Fuel pressure gauge
- Oil filter differential gauge
- Jacket water temperature gauge
- Service meter, electric
- Tachometer
Lube System
- Crankcase breather, top mounted
- Oil cooler
- Oil filler
- Oil dipstick
- Oil pump
- Oil filter, cartridge type with RH service
- Shallow oil pan
Mounting System
- Rails, mounting, engine length, 254 mm (10 in), industrial-type, C-channel.
Power Take Off
- Accessory drive, upper RH
- Front housing, single sided
Protection System
- Junction box
- Manual shutoff, RH
- Safety shutoff protection, energized to shutdown
- Low oil pressure, low idle 69 kPa (10 psi); high idle 207 kPa (30 psi)
- Water temperature
- Overspeed
- 3161 governor solenoid energized to shutdown
Starting System
- Starting switch
General
- Vibration damper
- Lifting eyes
- Paint: Caterpillar yellow, with optional colors available at request
Additional information
| تقدير القدرة - القدرة القصوى | 1640 كيلووات ( 2200 حصان ) |
|---|---|
| تقدير القدرة - السرعة المقدرة | 1800 دورة في الدقيقة |
| تقدير القدرة - القدرة الدنيا | 1492 كيلووات ( 2000 حصان ) |
| معايير الانبعاثات - الانبعاثات | غير معتمد |
| عام - تكوين المحرك | ديزل بدورة من 4 أشواط، ذو 16 أسطوانة على شكل V |
| عام - التجويف | 170 مم ( 6.7 بوصة ) |
| عام - الشوط | 190 مم ( 7.5 بوصة ) |
| عام - الإزاحة | 69 l ( 4210 بوصة³ ) |
| عام - السحب | مزوَّد بشاحن توربيني وتبريد لاحق |
| عام - الدوران من طرف الحدافة | عكس اتجاه حركة عقارب الساعة |
| عام - المعالجة اللاحقة | – |
| أبعاد المحرك - بالتقريب - الطول | 3008 مم ( 119 بوصة ) |
| أبعاد المحرك - بالتقريب - العرض | 1443 مم ( 57 بوصة ) |
| أبعاد المحرك - بالتقريب - الارتفاع | 1980 مم ( 78 بوصة ) |
| أبعاد المحرك - بالتقريب - الوزن - الصافي الجاف - محرك التشغيل الأساسي من دون الملحقات الاختيارية | 7484 كجم ( 16500 رطل ) |
| Offering Type |
