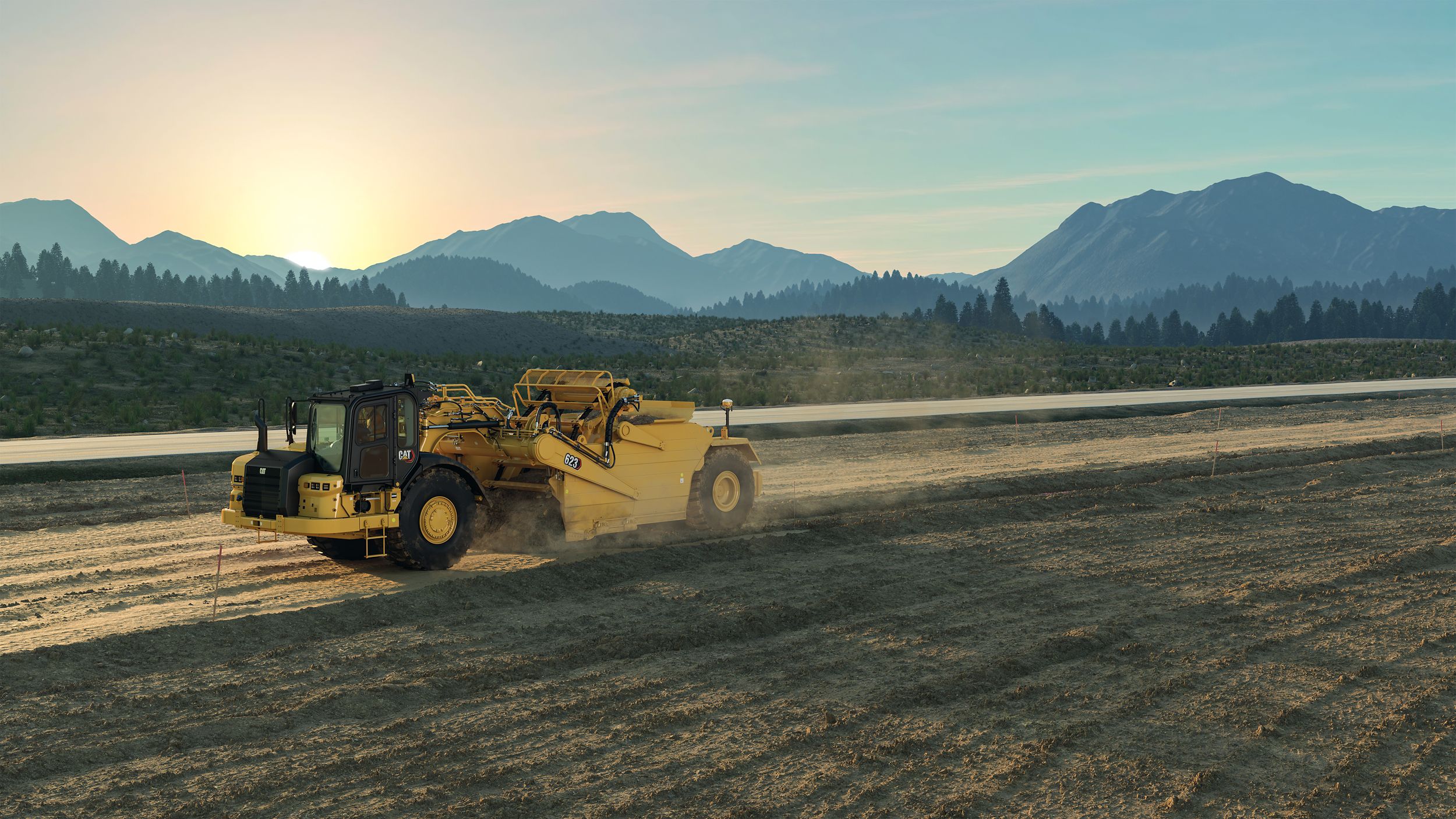

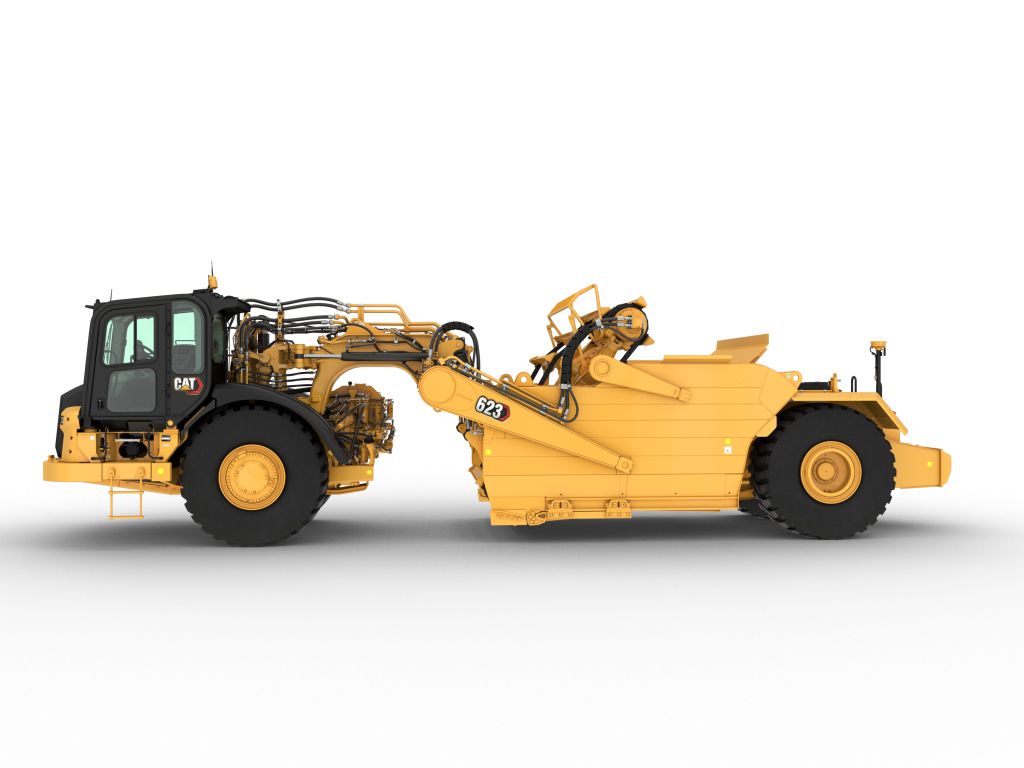

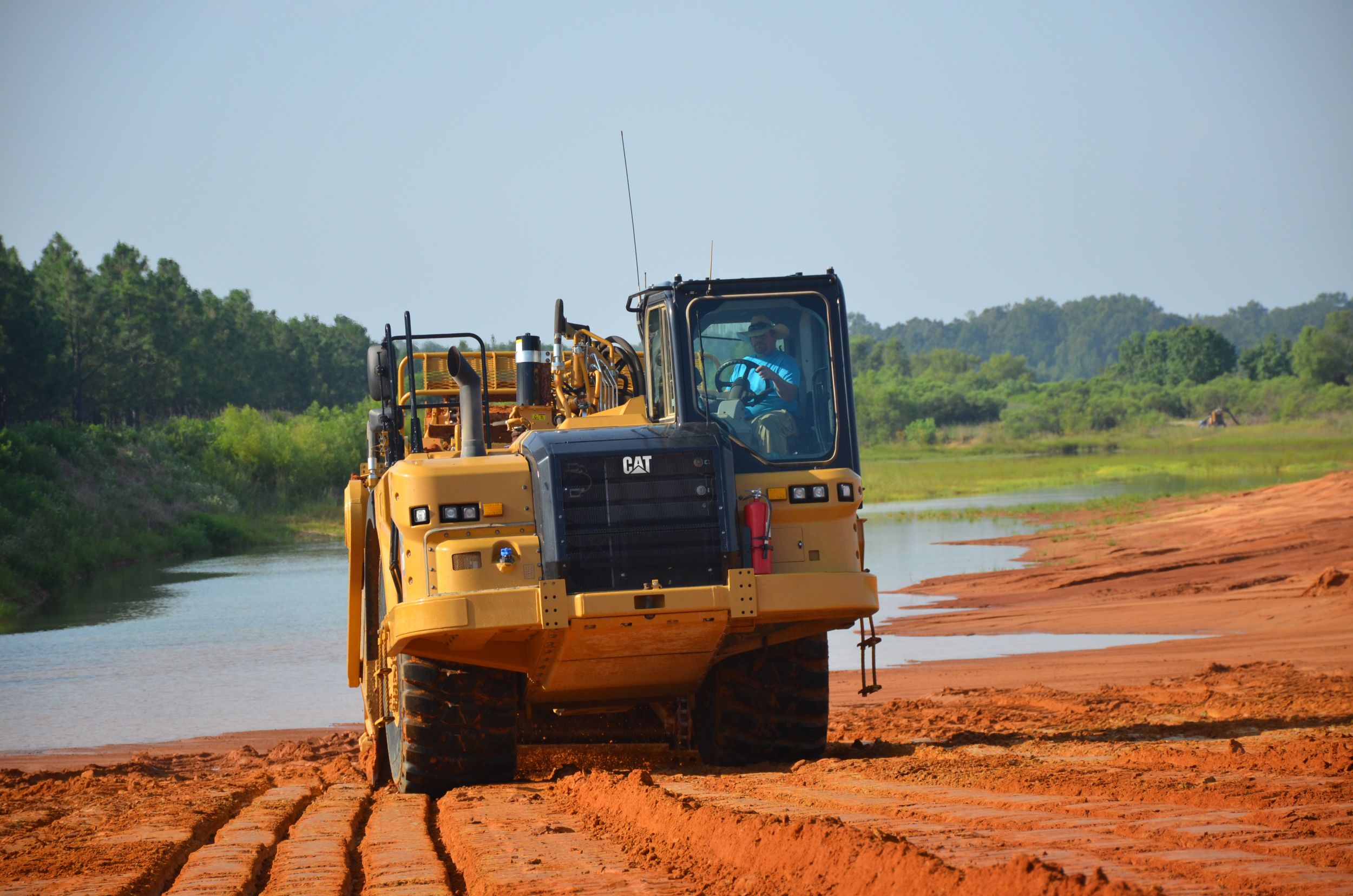

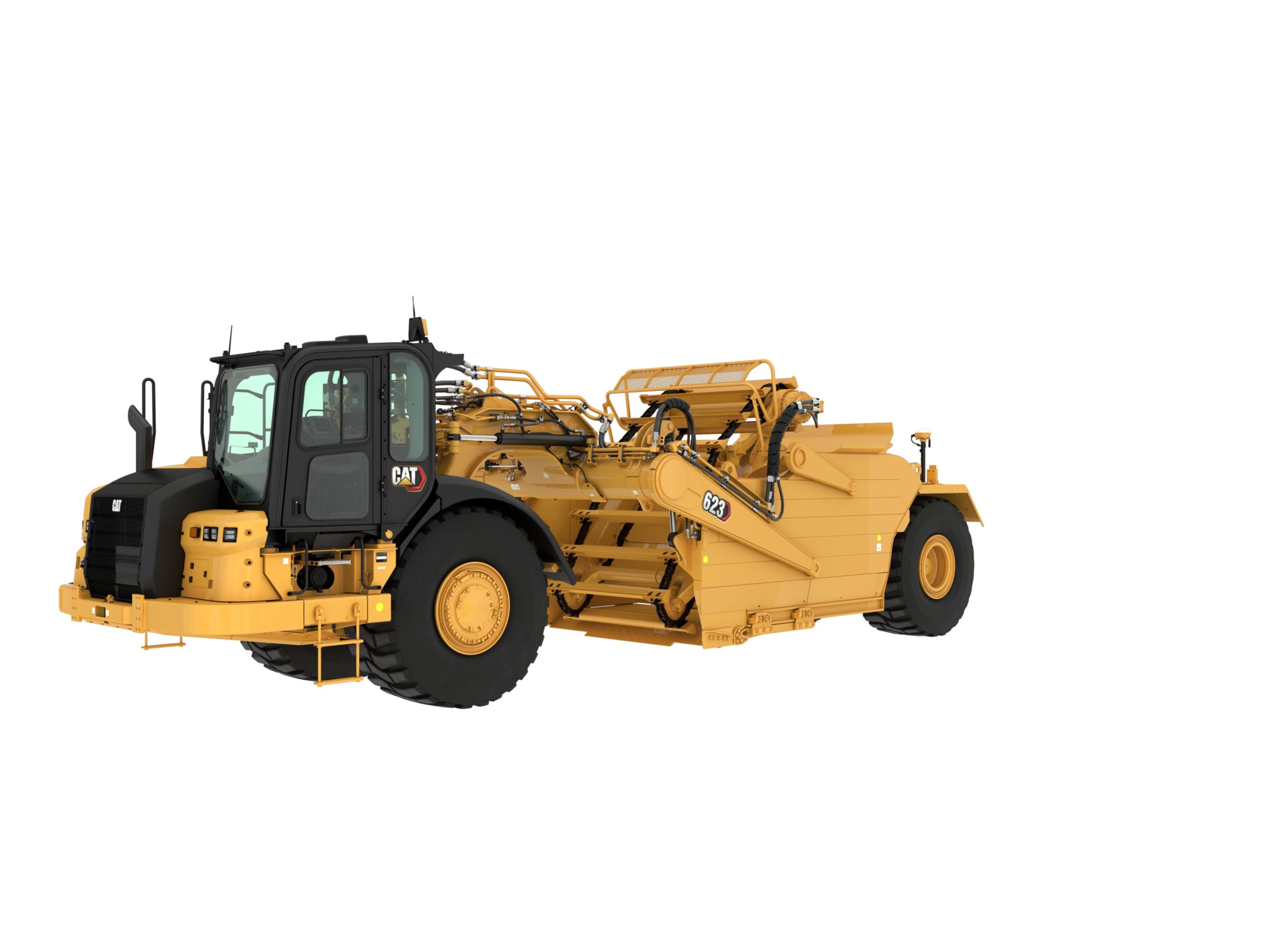

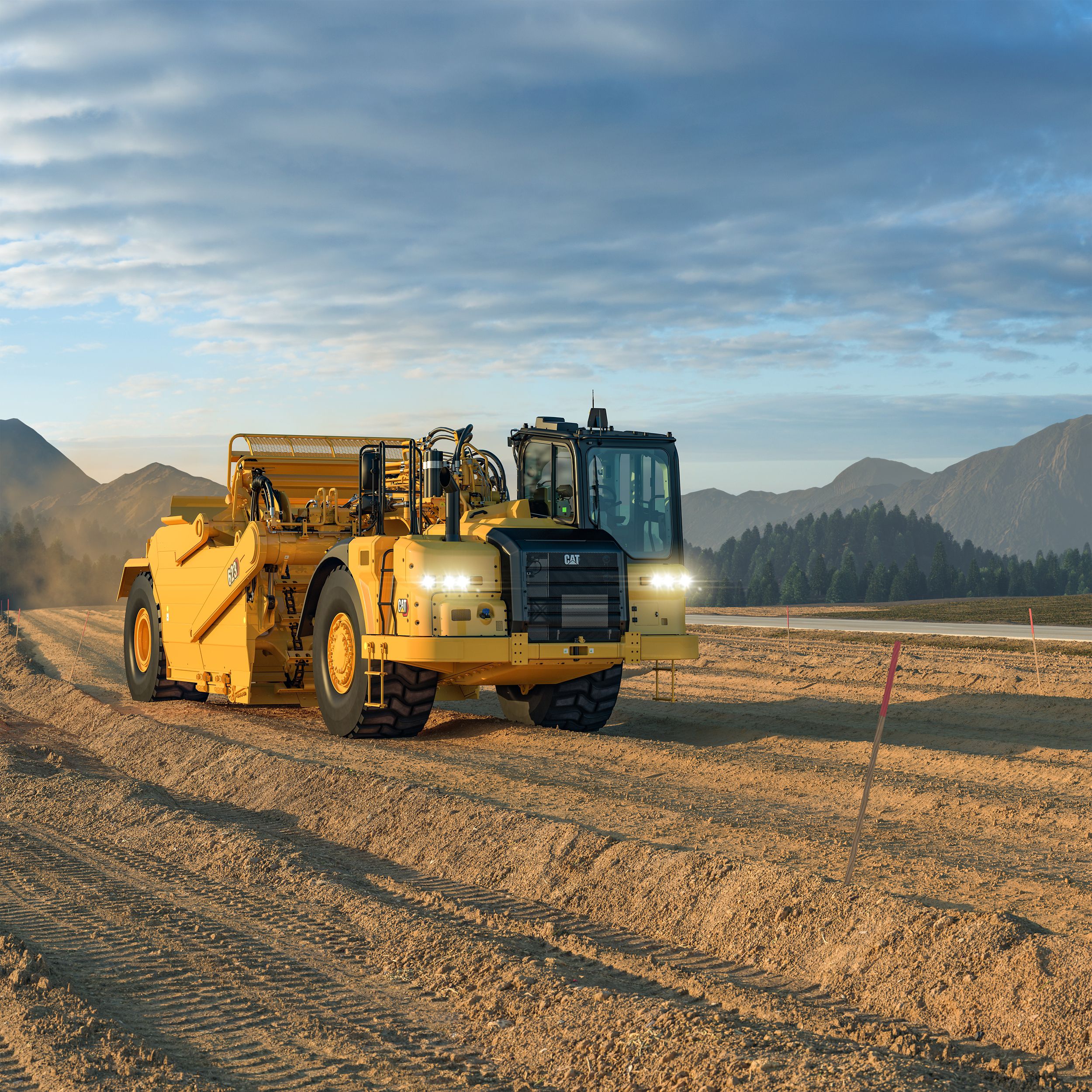

623 Wheel Tractor-Scraper
Quick loading, high travel speeds and the ability to load and dump on the run yield fast cycle times, allowing Cat Wheel Tractor-Scrapers to consistently deliver high productivity at the lowest cost per ton.
BE MORE PRODUCTIVE
WORK IN COMFORT
DESIGNED FOR SAFETY
EASY TO OPERATE
INTEGRATED CAT TECHNOLOGIES
EXECUTE EFFICIENCY
Virtual Tours
Documents & Brochures
Standard Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
POWER TRAIN - TRACTOR
- Cat C13
- Cat engine brake
- Electric start, 24 Volt
- Air cleaner, dry type with precleaner
- Fan, hydraulic
- Ground level engine shutdown
- Radiator, aluminum unit core, 9 fins per inch
- Guard, crankcase
- Muffler (only for less or non-regulated regions engine arrangement only)
- Starting aid, ether
BRAKING SYSTEM
- Throttle lock
- Primary and secondary, wet disc, hydraulic
- Parking , hydraulic released, spring applied
- Primary and secondary, wet disc, hydraulic
TRANSMISSION
- ECPC control
- Standard tire spin reduction
- 8-speed planetary power shift
- Programmable top gear selection
- Differential lock
- Transmission hold
- Differential lock protection
- Machine speed limit
- Guard, power train
- Ground speed control
- APECS software
ELECTRICAL - TRACTOR
- Alternator, 150 Amp
- Batteries (4), 12V, 1,000 CCA, maintenance free, high output
- Electrical system, 24V
- Starting/charging receptacle
LIGHTING SYSTEM - TRACTOR
- Turn Signals with hazard Function
- Headlights, halogen
- LED Floodlights
- Bowl (1)
- Cutting Edge (2)
- Halogen sdie vision (2)
ELECTRICAL - SCRAPER
- Alarm, backup
LIGHTING SYSTEM - SCRAPER
- Trun signals with hazard function, LED
- Brake lights, LED
KEYPAD SWITCHES
- Throttle lock
- Work lights on/off
- Wipers/washers
- Information mode on Messenger Display
- Retarding level select
- Hazard lights
SAFETY TAB ROCKER SWITCHES
- Parking Brake
- Regeneration control
OPERATOR ENVIRONMENT - TRACTOR
- HVAC system, heat, AC, defrost
- Thermostat control of HVAC system
- Coat hook
- Lunchbox platform with holding strap
- Diagnostic connection (2)
- 12V power ports (2)
- Differential lock (1)
- Dome courtesy light
- Horn, electric
- T-Handle implement control
- Mirror, rearview
- Radio ready
- ROPS/FOPS cab, pressurized
- Seat belt, static two-piece
- Seat, Cat Advanced Ride Management (ARM), Cat Comfort Series 3, rotates 30 degrees
- Steering wheel, tilt, telescoping, padded
- Windows, right side emergency egress
- Windows, sliding
- Windows, laminated, zipped in
- Windshield wipers, front and rear windows, includes washers
- Door lock
- Messenger Display
GAUGES, WARNINGS INCLUDE:
- Cushion hitch
- Coolant temperature
- System voltage
- Secondary steering
- High beam lights
- Brake system
- Bail down
- Park brake
- Implement lockout
- Engine oil temperature
- Apron float
- Differential lock (1)
- Hydraulic oil temperature
- Engine speed, rpm
- Throttle lock
- Action lamp
- Ejector auto
- Transmission hold
- Regeneration required
- Gear selection
- Fuel level
FLUIDS
- Extended Life Coolant to -37� C (-34� F)
OTHER STANDARD EQUIPMENT - TRACTOR
- Advanced cushion hitch
- Accumulators (cushion hitch) with Canadian Registration Number (CRN)
- Fast oil change
- Fenders, non-metallic
- Heater, engine coolant 120V
- Rims (2)
- Tow pin, front
- Vandalism locks
- Heater, engine coolant 120V
BOWL
- 17.6 m³ (23 yd³), heaped
- 13.5 m� (17.6 yd�), struck
OTHER STANDARD EQUIPMENT - SCRAPER
- Vandalism locks

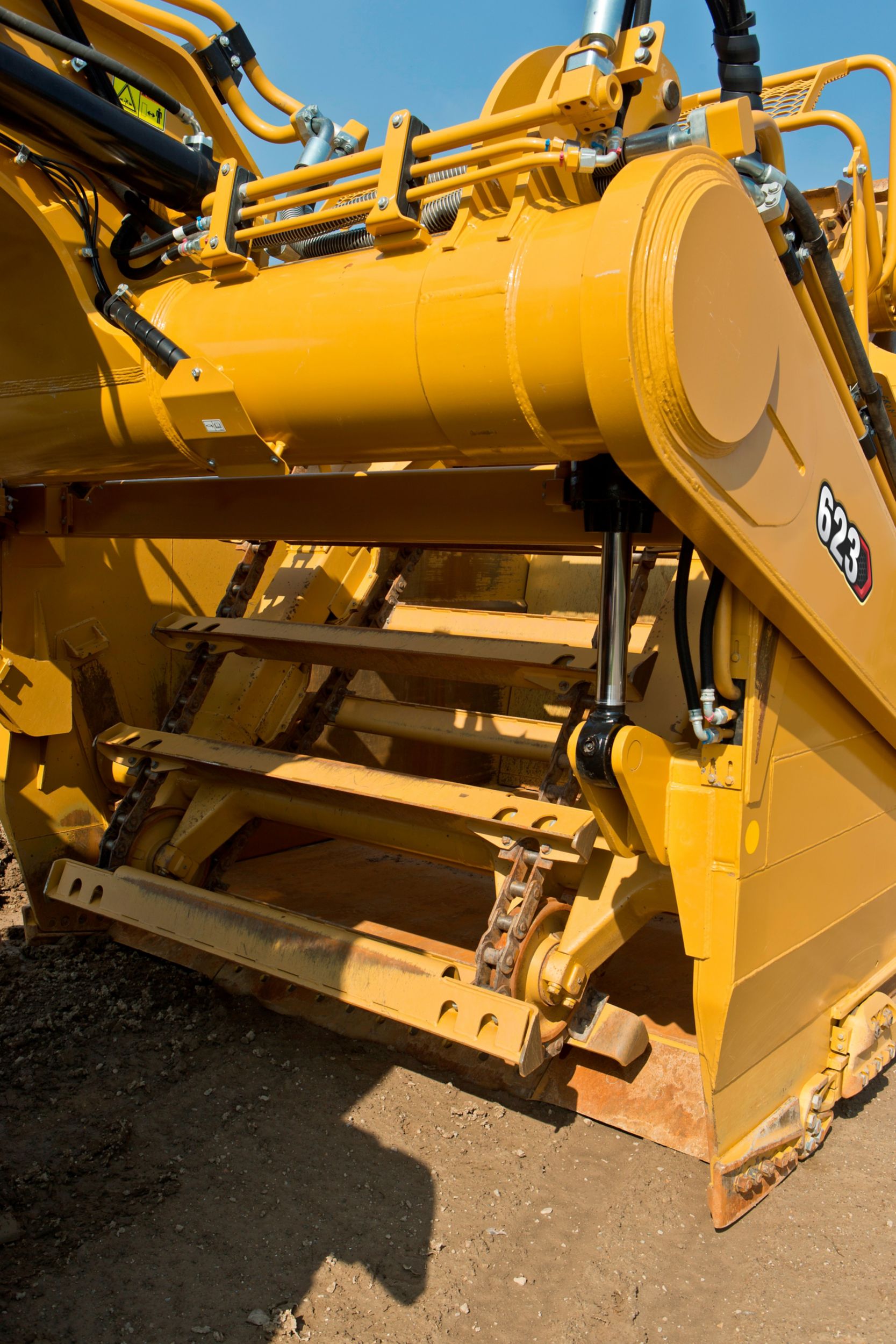

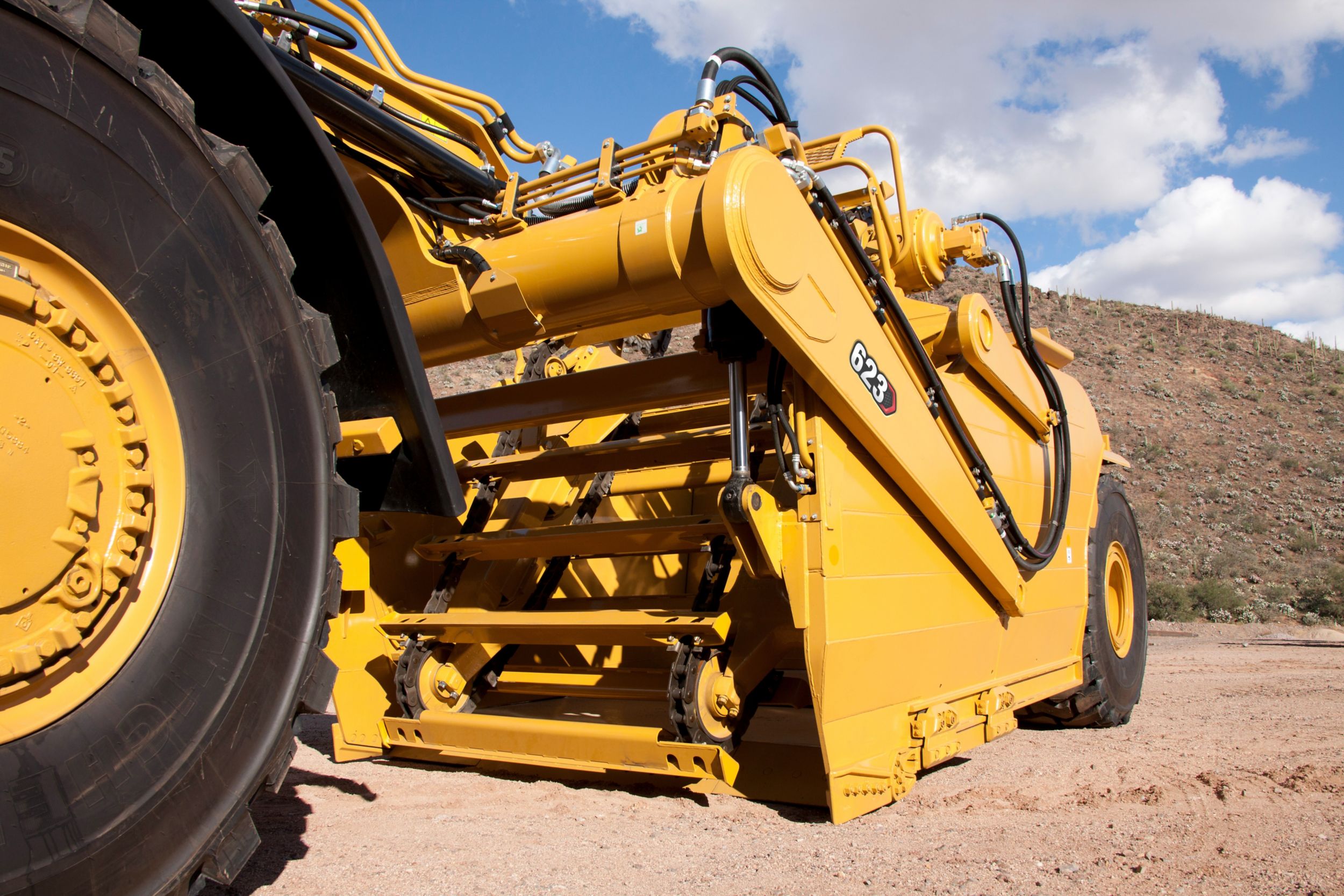

- Elevator with 15 flights
- Hydraulic position sensing cylinders (bowl lift and apron)
Additional information
| General - Width - Cut | 3.14 m ( 10.3 ft ) |
|---|---|
| General - Fuel Tank Refill Capacity - Scraper | 763.0 l ( 201.0 gal (US) ) |
| General - 180° Curb-to-Curb Turning Width | 11.8 m ( 38.71 ft ) |
| General - Overall Length | 13.77 m ( 45.18 ft ) |
| General - Scraper Capacity - Struck | 14.4 m³ ( 18.8 yd³ ) |
| General - Scraper Capacity - Heaped | 17.6 m³ ( 23.0 yd³ ) |
| General - Maximum Depth of Cut | 262.0 mm ( 10.3 in ) |
| General - Tires - Tractor Drive | 33.25R29**E3 |
| General - Overall Shipping Height | 3.77 m ( 12.37 ft ) |
| General - Maximum Depth of Spread | 465.0 mm ( 18.3 in ) |
| General - Overall Width | 3.57 m ( 11.71 ft ) |
| General - Top Speed - Loaded | 53.9 km/h ( 33.5 mile/h ) |
| General - Elevator Flight Spacing | 520.0 mm ( 20.0 in ) |
| General - Number of Flights | 15 |
| General - Rated Load | 25 038 kg (55,200 lb); 25.1 tonnes (27.6 tons) |
| General - Maximum Floor Opening | 1.34 m ( 4.4 ft ) |
| General - Operating Weight - Empty | 39937.0 kg ( 88061.0 lb ) |
| General - Tires - Scraper | 33.25R29**E3 |
| Engine - Flywheel Power - Tractor/Scraper | 304 kW (407 hp) |
| Engine - Flywheel Power - Tractor | 304.0 kW ( 407.0 hp ) |
| Rated Engine RPM | 2000.0 r/min ( 2000.0 r/min ) |
| Engine Model | Cat C13 |
| Engine - Note | C13 engine emits equivalent to U.S. EPA Tier 2/EU Stage II or U.S. EPA Tier 3/EU Stage III. |
| Transmission - Top Speed - Loaded | 53.9 km/h ( 33.5 mile/h ) |
| Scraper Bowl - Scraper Capacity - Heaped | 17.6 m³ ( 23.0 yd³ ) |
| Service Refill Capacities - Fuel Tank | 818.0 l ( 216.09 gal (US) ) |
| Service Refill Capacities - Crankcase | 30.58 l ( 8.08 gal (US) ) |
| Service Refill Capacities - Cooling System | 45.0 l ( 11.89 gal (US) ) |
| Service Refill Capacities - Hydraulic System | 83.0 l ( 21.926 gal (US) ) |
| Service Refill Capacities - Transmission System | 93.0 l ( 24.76 gal (US) ) |
| Dimensions - Height - Overall Shipping | 4037.0 mm ( 158.9 in ) |
| Dimensions - Length - Overall Machine | 13767.0 mm ( 542.0 in ) |
| Dimensions - Width - Overall Machine | 3585.0 mm ( 141.1 in ) |
| Dimensions - Height - Top of Cab | 3621.0 mm ( 142.6 in ) |
| Dimensions - Height - Scraper Blade Maximum | 520.0 mm ( 20.5 in ) |
| Dimensions - Width - Tractor | 3381.0 mm ( 133.1 in ) |
| Dimensions - Width - Inside of Bowl | 3048.0 mm ( 120.0 in ) |
| Dimensions - Width - Outside Rear Tires | 3275.0 mm ( 128.9 in ) |
| Dimensions - Front of Tractor to Front Axle | 3119.0 mm ( 122.8 in ) |
| Dimensions - Wheel Base | 8370.0 mm ( 329.5 in ) |
| Dimensions - Rear Axle - Rear of Machine | 2278.0 mm ( 89.7 in ) |
| Dimensions - Ground Clearance - Tractor | 557.0 mm ( 21.9 in ) |
| Dimensions - Width - Overall Machine - Ladder Down | 3790.0 mm ( 149.2 in ) |
| Dimensions - Height - Top of Elevator | 3768.0 mm ( 148.3 in ) |
| Dimensions - Axle to Vertical Hitch Pin | 432.0 mm ( 17.0 in ) |
| Dimensions - Width - Rear Tire Centers | 2290.0 mm ( 90.2 in ) |
| Cab - ROPS/FOPS | Meets ISO standards |
| Cab - Exterior Sound Level | The exterior sound power level for the standard machine (ISO 6393) is 111.5 dB(A). |
| Safety Criteria Compliance Standards - Falling Object Protective Structure (FOPS) | ISO 3449:2005 Level II |
| Safety Criteria Compliance Standards - Brakes | ISO 3450:2011 |
| Safety Criteria Compliance Standards - Steering System | ISO 5010:2007 |
| Safety Criteria Compliance Standards - Seat Belt | SAE J386:JUN1985 |
| Safety Criteria Compliance Standards - Rollover Protection Structure (ROPS) | ISO 3471:2008 for up to 17 084 kg (37,664 lb) |
| Safety Criteria Compliance Standards - Reverse Alarm | ISO 9533:2010 |
| Travel Speeds - Runout - Transmission Gear - Reverse | 9.2 km/h ( 5.7 mile/h ) |
| Travel Speeds - Runout - Transmission Gear - Fifth | 21.9 km/h ( 13.6 mile/h ) |
| Travel Speeds - Runout - Transmission Gear - First | 5.0 km/h ( 3.1 mile/h ) |
| Travel Speeds - Runout - Transmission Gear - Eighth | 53.9 km/h ( 33.5 mile/h ) |
| Travel Speeds - Runout - Transmission Gear - Sixth | 29.6 km/h ( 18.4 mile/h ) |
| Travel Speeds - Runout - Transmission Gear - Third | 12.1 km/h ( 7.5 mile/h ) |
| Travel Speeds - Runout - Transmission Gear - Seventh | 39.9 km/h ( 24.8 mile/h ) |
| Travel Speeds - Runout - Transmission Gear - Second | 8.9 km/h ( 5.5 mile/h ) |
| Travel Speeds - Runout - Transmission Gear - Fourth | 16.3 km/h ( 10.1 mile/h ) |
| Implement Cycle Times - Ejector Retract | 9.7 s ( 9.7 s ) |
| Implement Cycle Times - Ejector Extend | 6.45 s ( 6.45 s ) |
| Implement Cycle Times - Bowl Raise | 3.0 s ( 3.0 s ) |
| Implement Cycle Times - Bowl Lower | 3.5 s ( 3.5 s ) |
