63.46 m³ (83.0 yd³)

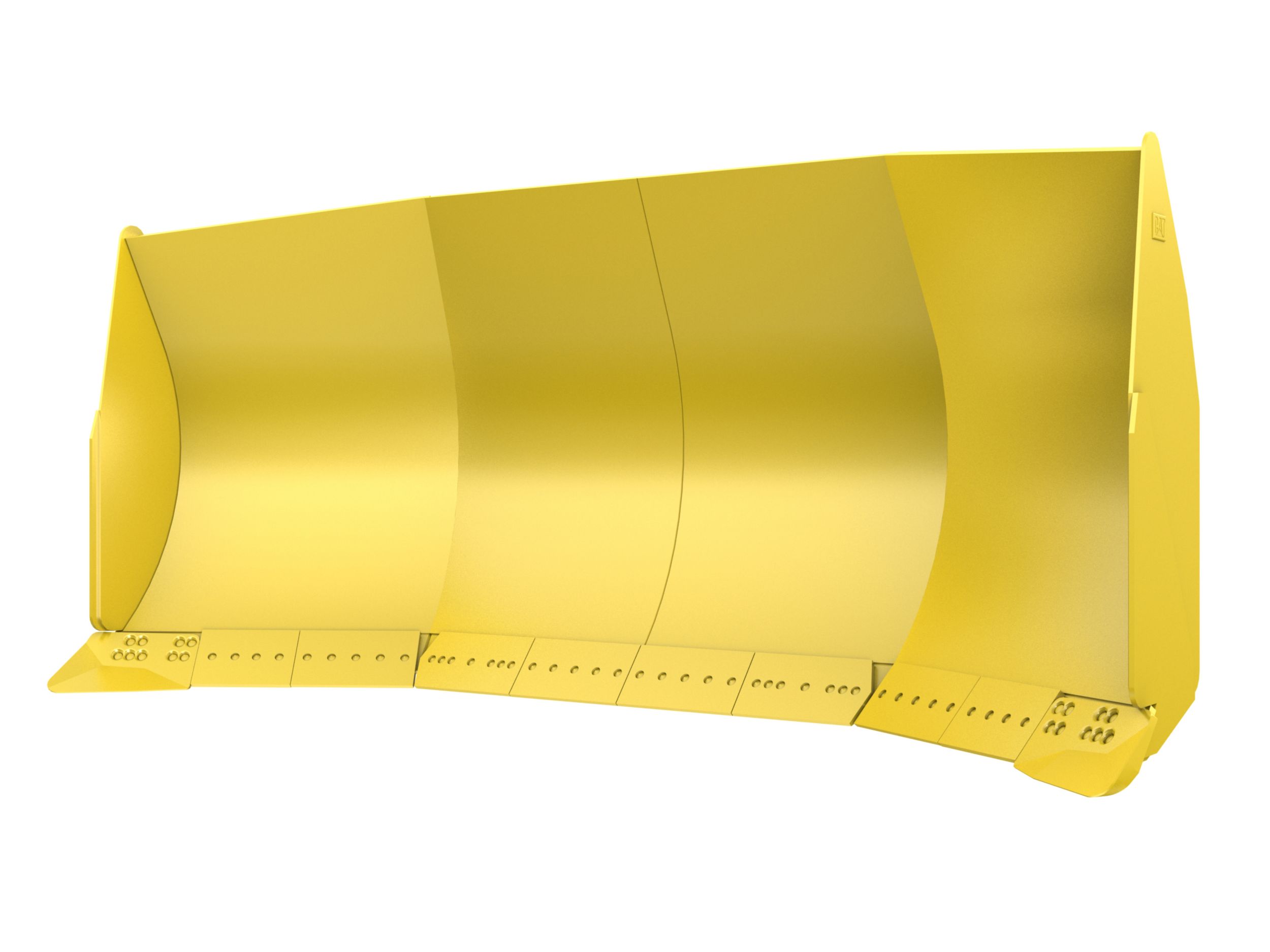

63.46 m³ (83.0 yd³) Coal U-Blade

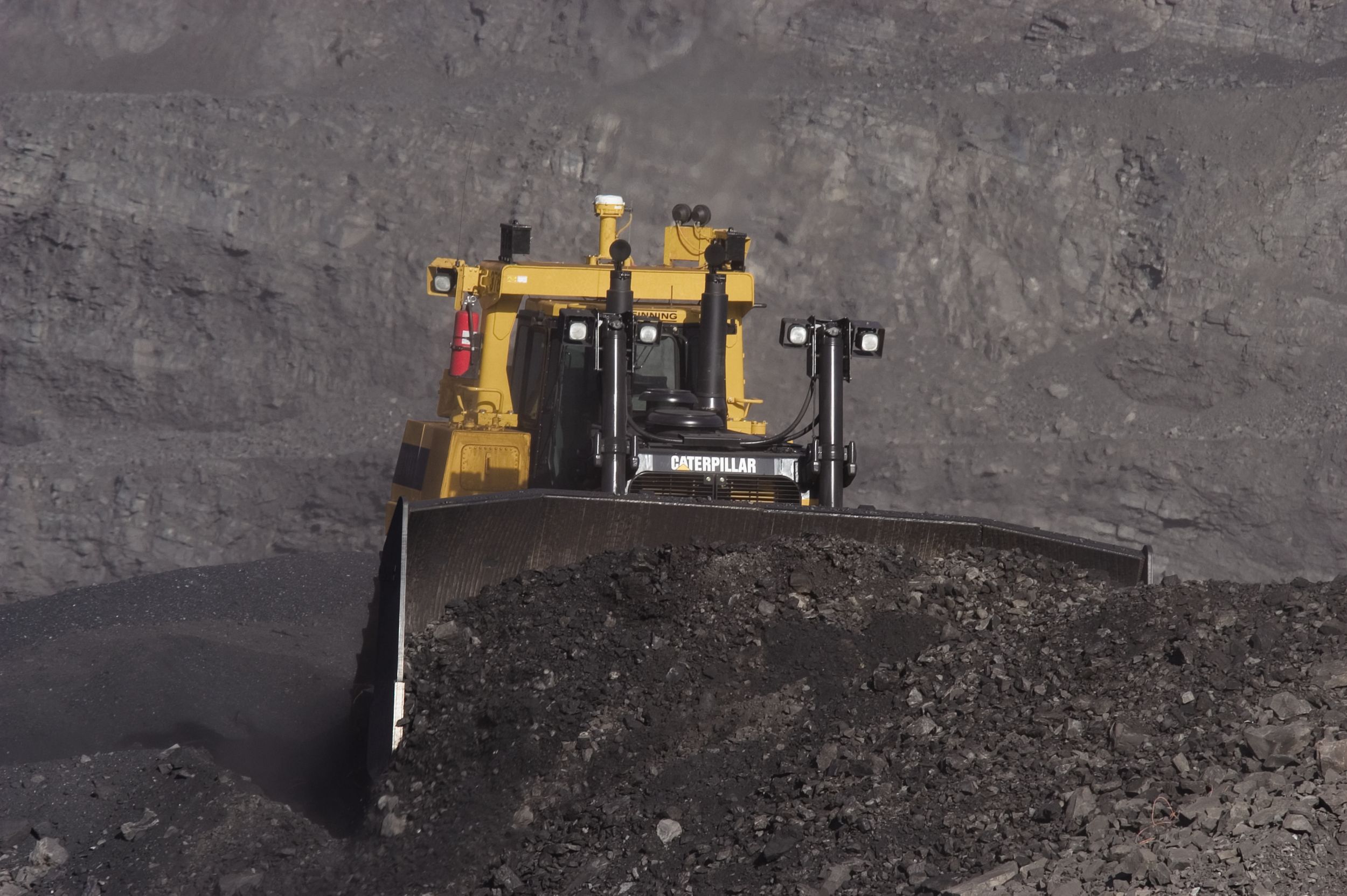

Cat Coal U-blades are production oriented: move as much coal as efficiently as possible. The sidebars are vertical through half their length, and angled above for penetration into coal piles without excessive drag or weight. Stainless steel liners are available on some blades to resist corrosion of acidic coal. Optional center push-plates are available for tandem pushing of another dozer.

Category:
Add to Quote

Additional information

Offering Type

Width

6858.0 mm ( 270.0 in )
Wing Angle

30.0 ° ( 30.0 ° )
Height

3073.0 mm ( 121.0 in )
Weight

10659.0 kg ( 23500.0 lb )
Capacity

63.46 m³ ( 83.0 yd³ )
