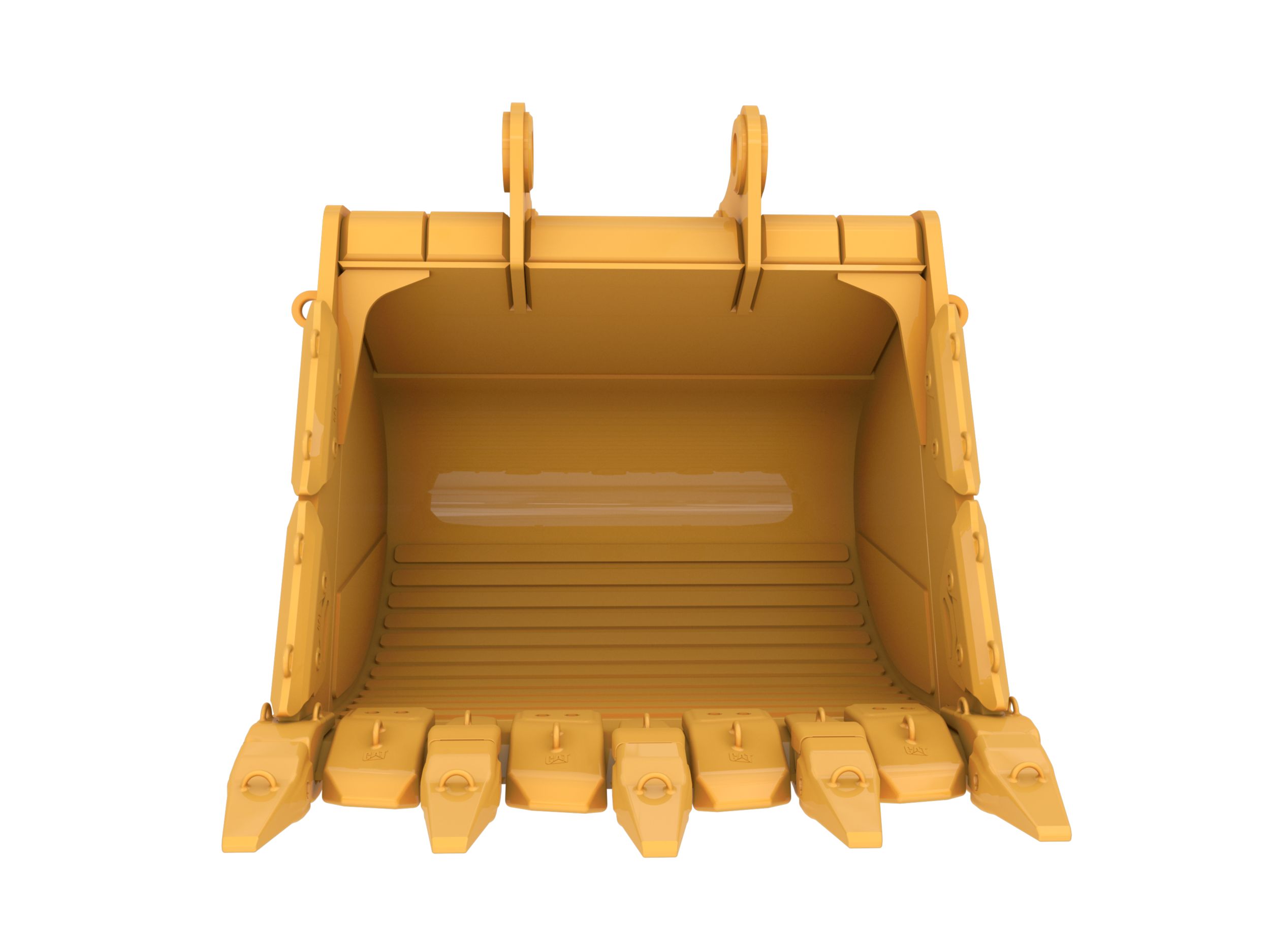

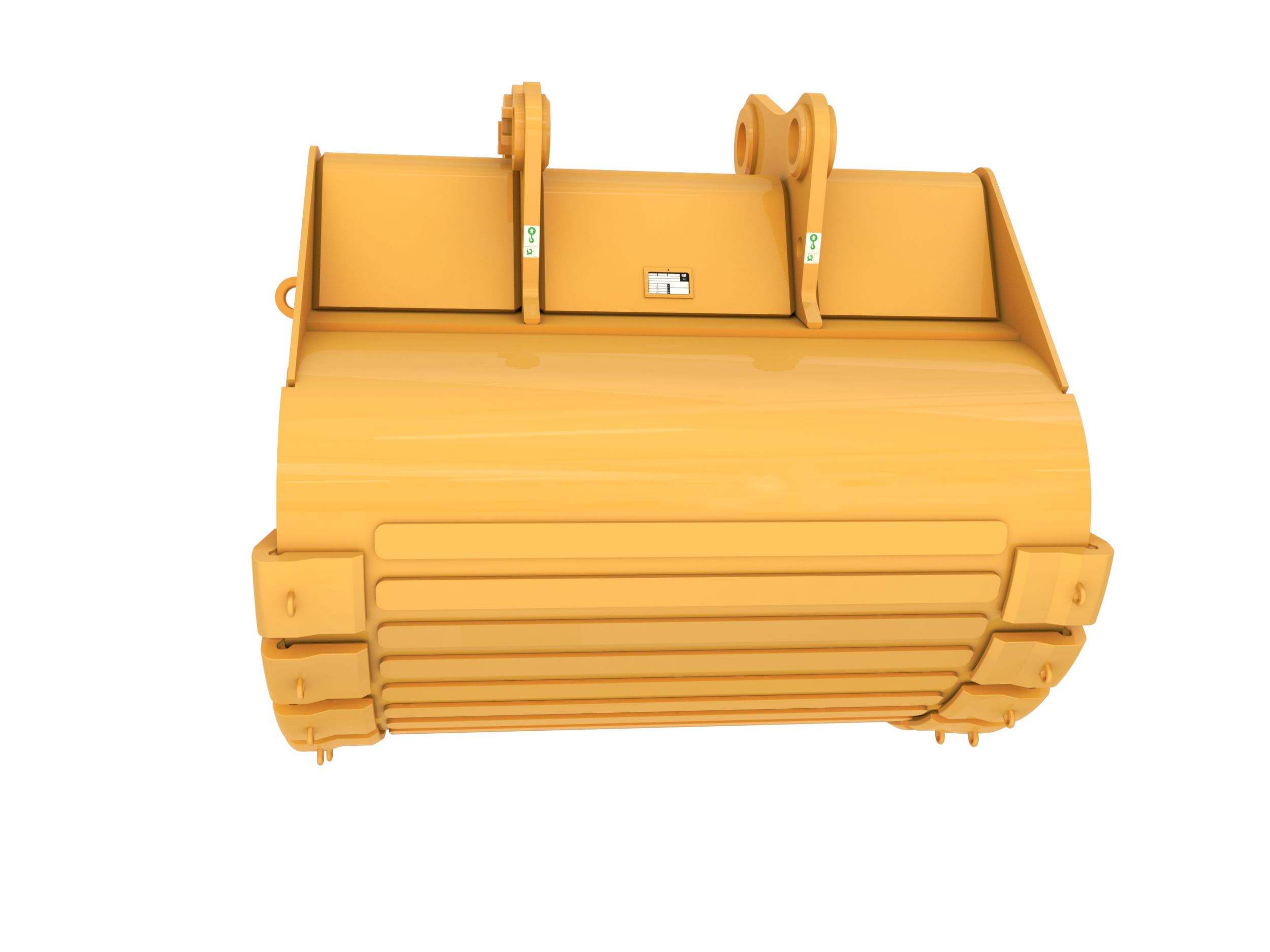

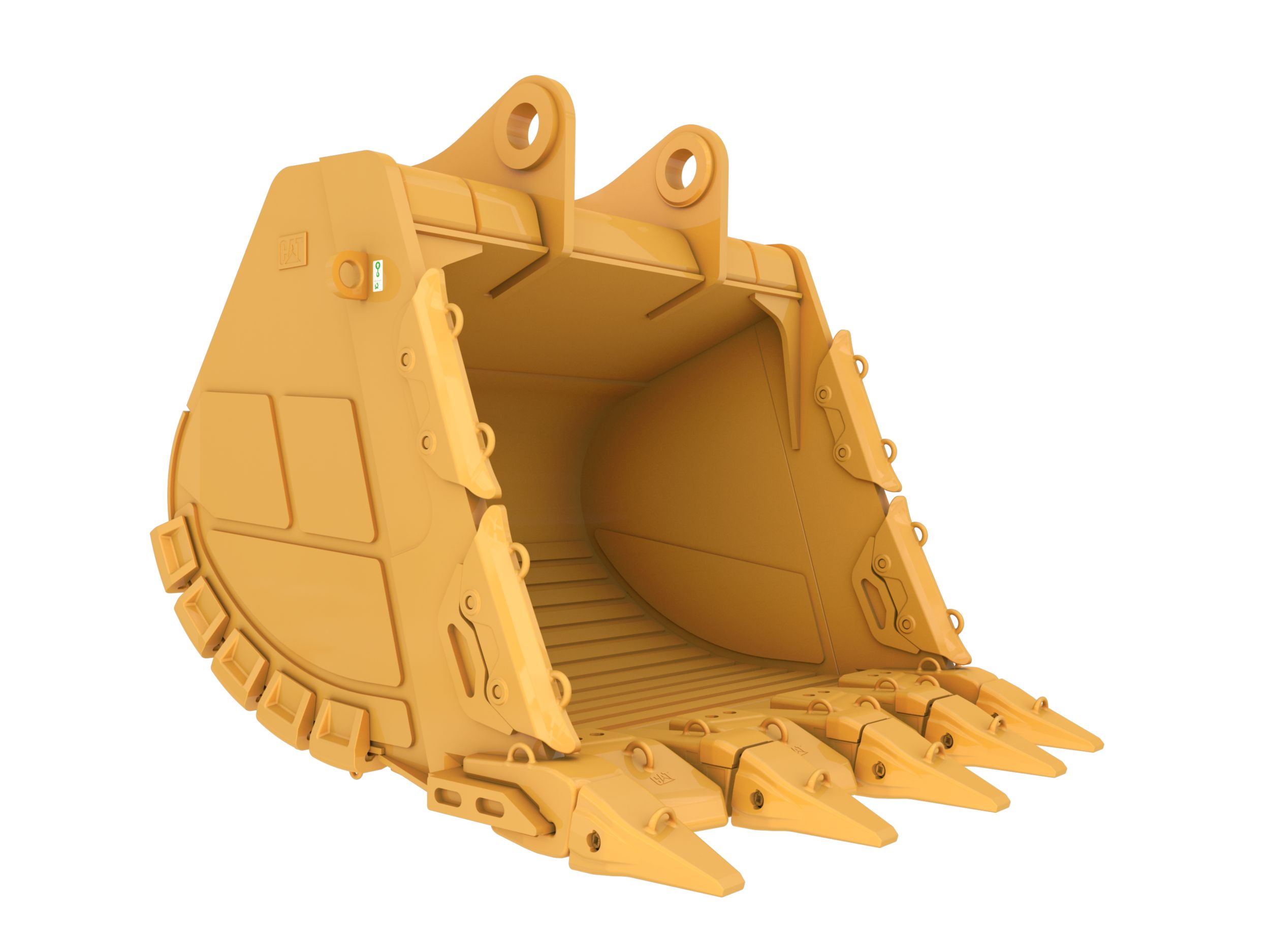

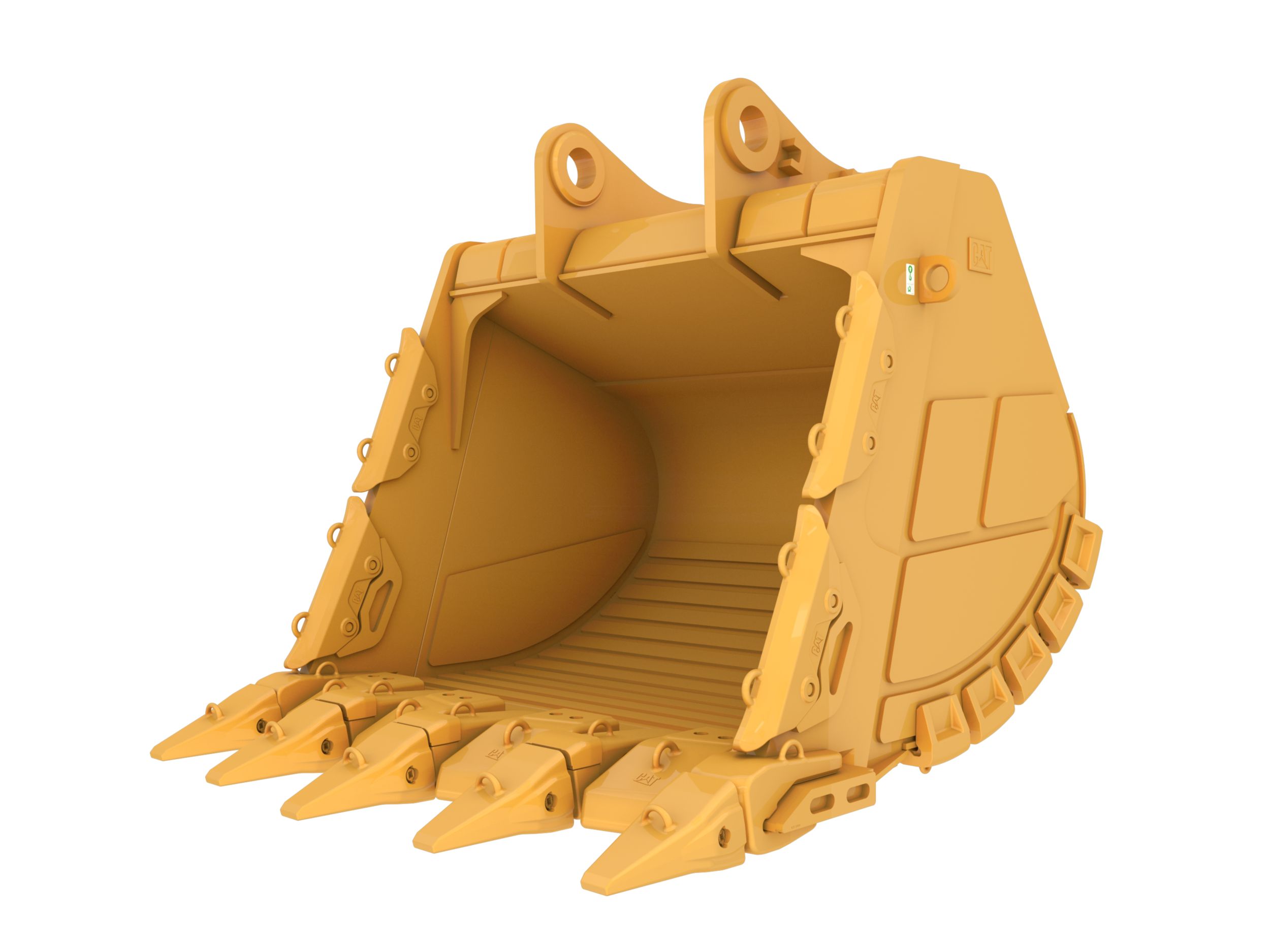

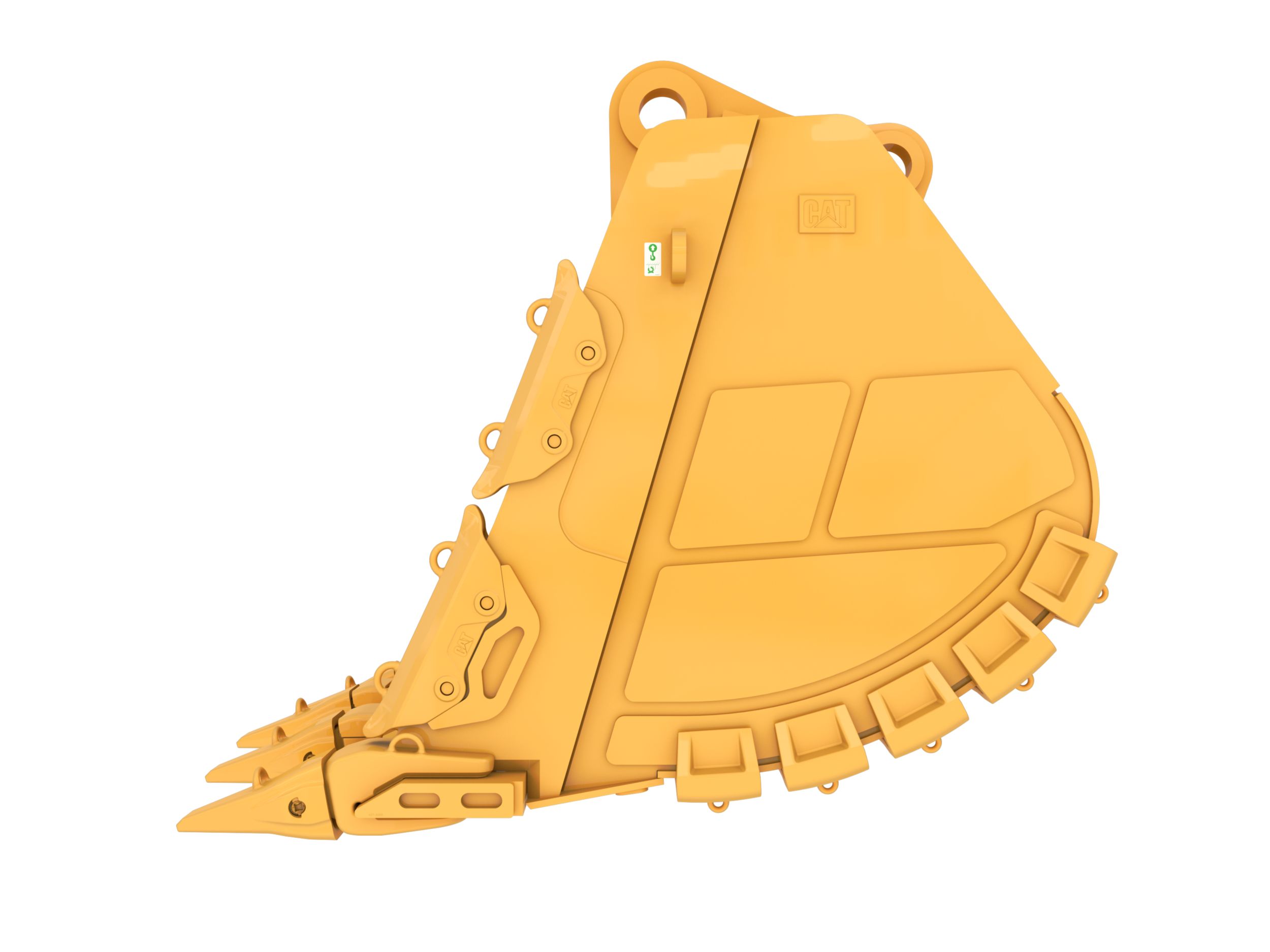

8.1 m³ (10.6 yd³) Standard Rock bucket for the 6015 Hydraulic Mining Shovel

Cat Standard Rock buckets are production-oriented buckets designed for use in medium-density material, which can stick to the walls of other buckets. Standard Rock buckets come equipped with wear protection for the leading edges and heel. Wear plates are usually Quenched and Tempered for maximum durability in high-impact conditions.

Category:
Add to Quote

Additional information

Material Density

1.8 t/m³ ( 3034 lb/yd³ )
Wear Package

Heavy Duty – Impact
Ground Engaging Tool (GET) System

Cat M75
Machine Model

6015
Capacity

8.1 m³ ( 10.6 yd³ )
Weight

8737 kg ( 19262 lb )
Outer Width

2682 mm ( 105.6 in )
Inner Width

2294 mm ( 90.3 in )
Offering Type
