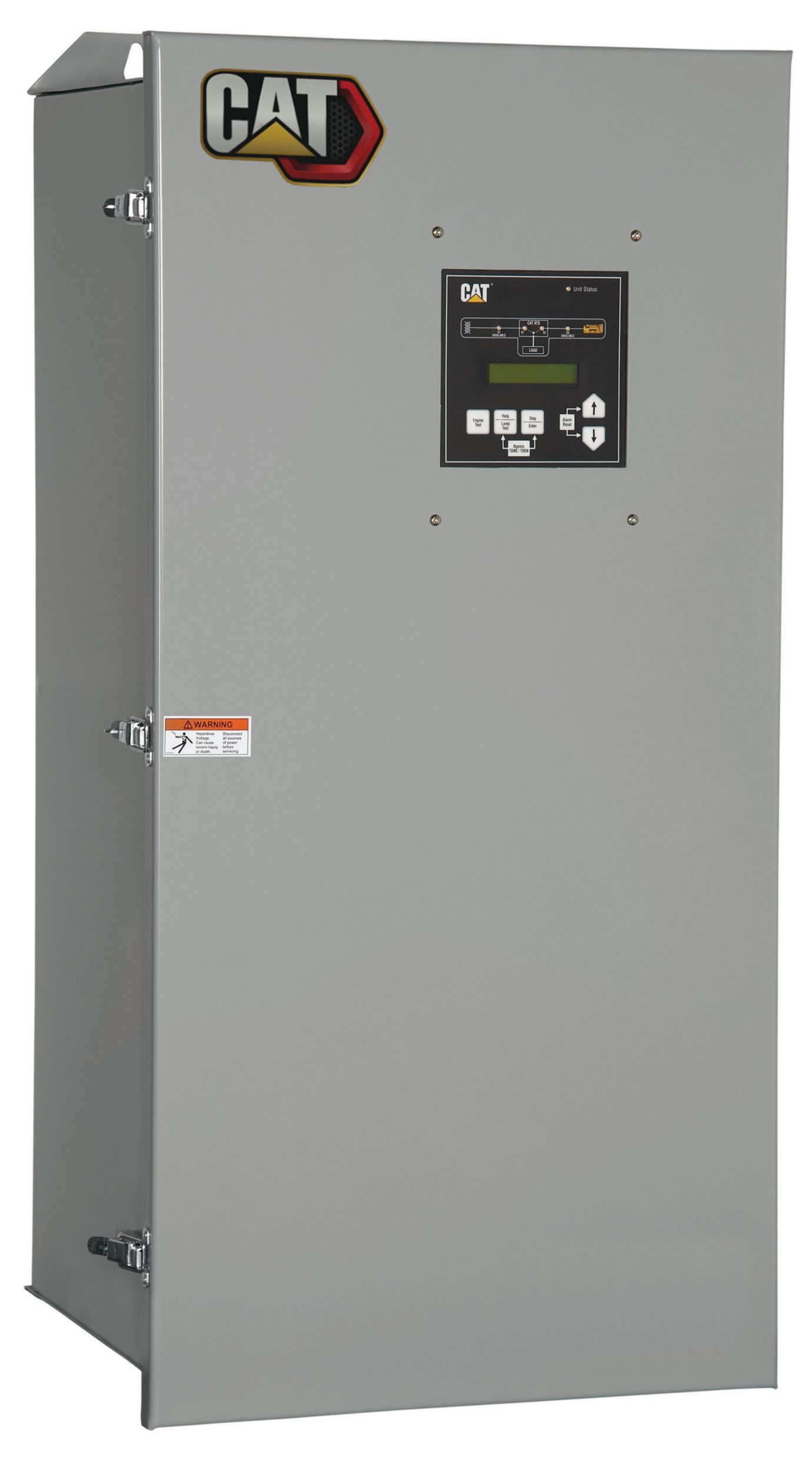

Cat® transfer switches are designed for a variety of standby power applications. They provide flexibility, reliability and value in a compact package. The open and delayed transition contactor-based Automatic Transfer Switch (ATS) provides fully functioning transfer in Applications where a momentary loss of power is acceptable during transfer and retransfers between normal and emergency power supply.
The closed transition contactor-based ATS is designed to Meet application requirements where emergency back up power is required with no momentary loss of power by connecting both sources before the transfer occurs. Closed transition also permits periodic testing of the emergency power source without interrupting power to the loads.
Product Features
- ATC-100, ATC-300+ or ATC-800 microprocessor-based controller
- Voltage and frequency sensing
- High withstand and closing ratings
- Multiple field programmable set points
- Status Display including switch position indication
- Source availability indication
- Source 1 and 2 auxiliary contacts
- True RMS voltage and frequency sensing
- Programmable plant exerciser
- System test pushbutton
- Mimic diagram
- Double-throw, mechanically interlocked transfer mechanism
- Switch position indication
- Status display
- Double-throw UL 1008 3-position contactors
Documents & Brochures
Standard Equipment
Contact Composition
- Caterpillar utilizes silver composition contacts designed to meet the stringent requirements of UL 1008. All contactors are designed so that the contacts can be visually inspected without major disassembly and are protected by arcing contacts.
Controls and Wiring
- All controls relays and industrial grade relays are totally encapsulated to minimize exposure to dust and dirt. Lugs are 90º rated and all control wire is #16 AWG, type XLPE with a 125º temperature rating.
Enclosure
- Durable powder-coated steel NEMA 1, 3R or 12 enclosures with three door hinges to ensure proper support of the door and door mounted devices. The hinges have removable hinge pins to facilitate door removal for easy wall mounting or service and are supplied with pad-lockable latches.
Additional information
| الملخص الفني - نطاق التقديرات | 40-1600 أمبير |
|---|---|
| الملخص الفني - نوع النقل | الانتقال المفتوح / المغلق |
| الملخص الفني - نوع المفتاح | قائم على ملامس |
| المعدلات - التحكم في الطاقة | التثبيت على الحائط بقدرة 40-600 أمبير مع 2 أو 3 أقطاب<br>التثبيت على الأرضية بقدرة 600 أمبير مع 4 أقطاب و800-1200 أمبير مع 2، أو 3، أو 4 أقطاب |
| المعدلات - الملامسات ثنائية المواضع | الملامسات ثنائية المواضع بقدرة 40-400 أمبير |
| المعدلات - الملامسات ثلاثية المواضع | الملامسات ثلاثية المواضع بقدرة 40-1200 أمبير |
| المعدلات - استخدام جهد النظام | حتى 600 فولت من التيار المتردد، 50/60 هرتز |
| المعدلات - الاختبارات المنطبقة | مدرج على UL 1008، معتمد حسب CSA C22.2 رقم 178، وIBC 2006، وCBC 2007، وOSHPD |
