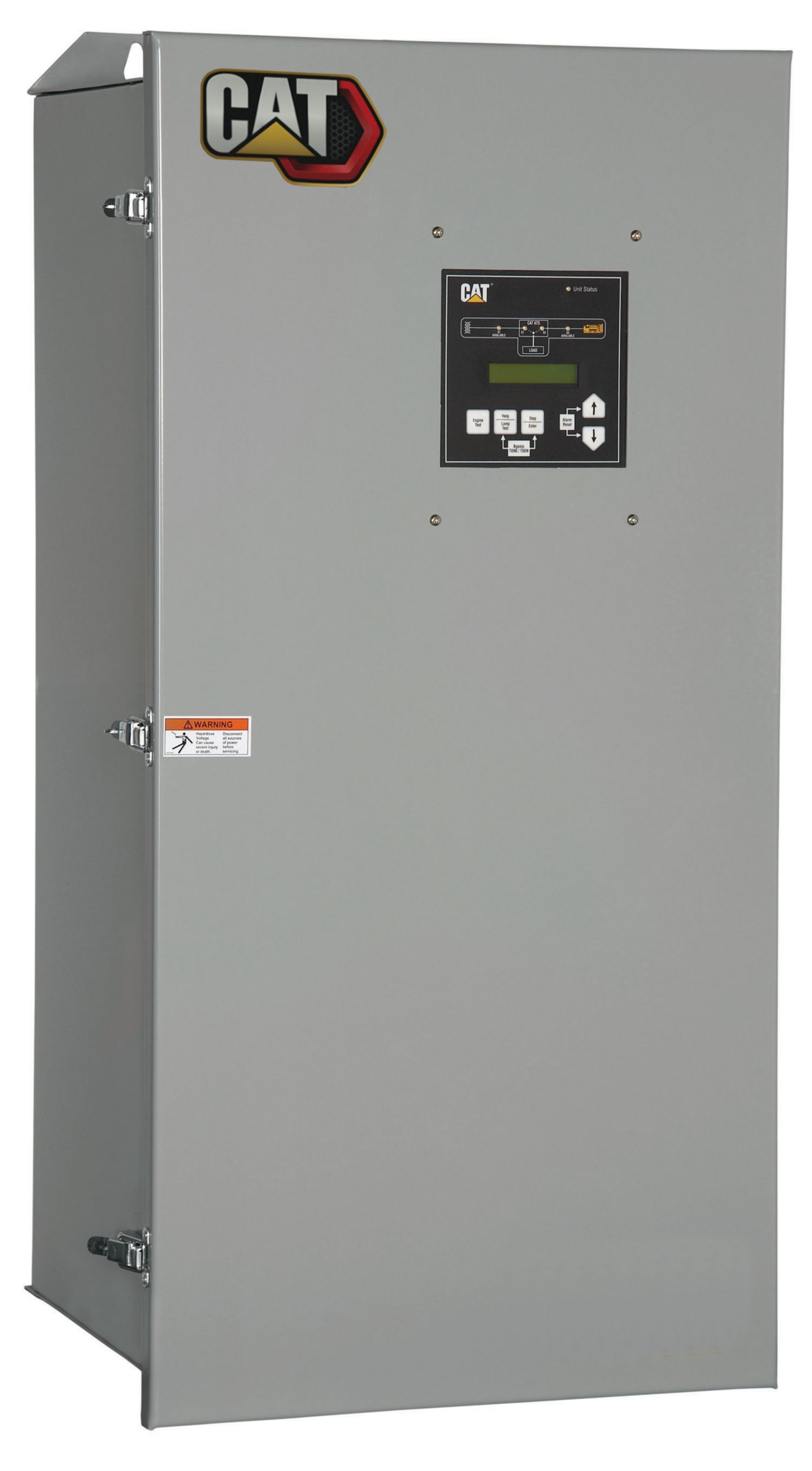

ATC Molded Case Circuit Breaker & Molded Case Switch ATS
ATC Molded Case Circuit Breaker & Molded Case Switch Automatic Transfer Switch
Cat® transfer switches are designed for a variety of standby power applications. They provide flexibility, reliability and value in a compact package. The open transition breaker-based Automatic Transfer Switch (ATS) will provide fully functioning transfer in applications where a momentary loss of power is acceptable on retransfer from emergency to normal power supply. The Cat Open Transition MCCB & MCS types of ATS also permits periodic testing of the emergency source without interrupting power to the loads and are available from 30 to 1000 amperes.
Product Features
- ATC-100, ATC-300+ or ATC-800 microprocessor-based controller
- Mechanical (cable) and electrical interlocking to prevent paralleling of sources
- Voltage and frequency sensing
- Multiple field programmable time delays
- Switch position indication
- Source availability indication
- Safe manual transfer under load
- Source 1 and Source 2 auxiliary contacts
- Programmable plant exerciser
- System test pushbutton
- Load Shed from emergency (ATC-800 only)
- Mimic diagram
- Mechanical (cable) and electrical interlocking to prevent paralleling of sources
- Safe manual operation under full load with permanently affixed operating handle
- Ambient temperature range: -40C to 40C (-40F to 104F)
- Operating temperature range: -20C to 70C (-4F to 158F)
- Operating humidity: up to 90%
- Relative humidity (non-condensing)
- Frequency sensing on Source 1 and 2
- True RMS three phase voltage sensing on Source 1, Source 2 and load
Documents & Brochures
Standard Equipment
Controls and Wiring
- All controls relays and industrial grade relays are totally encapsulated to minimize exposure to dust and dirt. Lugs are 90º rated and all control wire is #16 AWG, type XLPE with a 125º temperature rating.
Enclosure
- Durable powder-coated steel NEMA 1, NEMA 3R and NEMA 12 are available with ATC-100 and ATC-300+ controllers. NEMA 4 is only available with the ATC-800 controller. The enclosures are Seismic Qualified (BOCA, CBC, IBC, UBC). The hinges have removable hinge pins to facilitate door removal for easy wall mounting or service and are supplied with pad-lockable latches.
Additional Information
| الملخص الفني - نطاق التقديرات | 30-1000 أمبير |
|---|---|
| الملخص الفني - نوع النقل | الانتقال المفتوح |
| الملخص الفني - نوع المفتاح | علبة مصبوبة |
| المعدلات - التحكم في الطاقة | 30-1000 أمبير مع قطبين، و3، و4 أقطاب، وتقدير بنسبة 100% |
| المعدلات - استخدام جهد النظام | 120 – 600 فولت من التيار المتردد، 50/60 هرتز |
| المعدلات - المقاومة | المقاومة/الإغلاق/المقاطعة بقدرة 100000 أمبير عند 480 فولت من التيار المتردد |
| المعدلات - الاختبارات المنطبقة | معتمد وفق معيار CSA C22.2 رقم 178<br>IBC 2006، وCBC 2007، وOSHPD |
| Offering Type |
