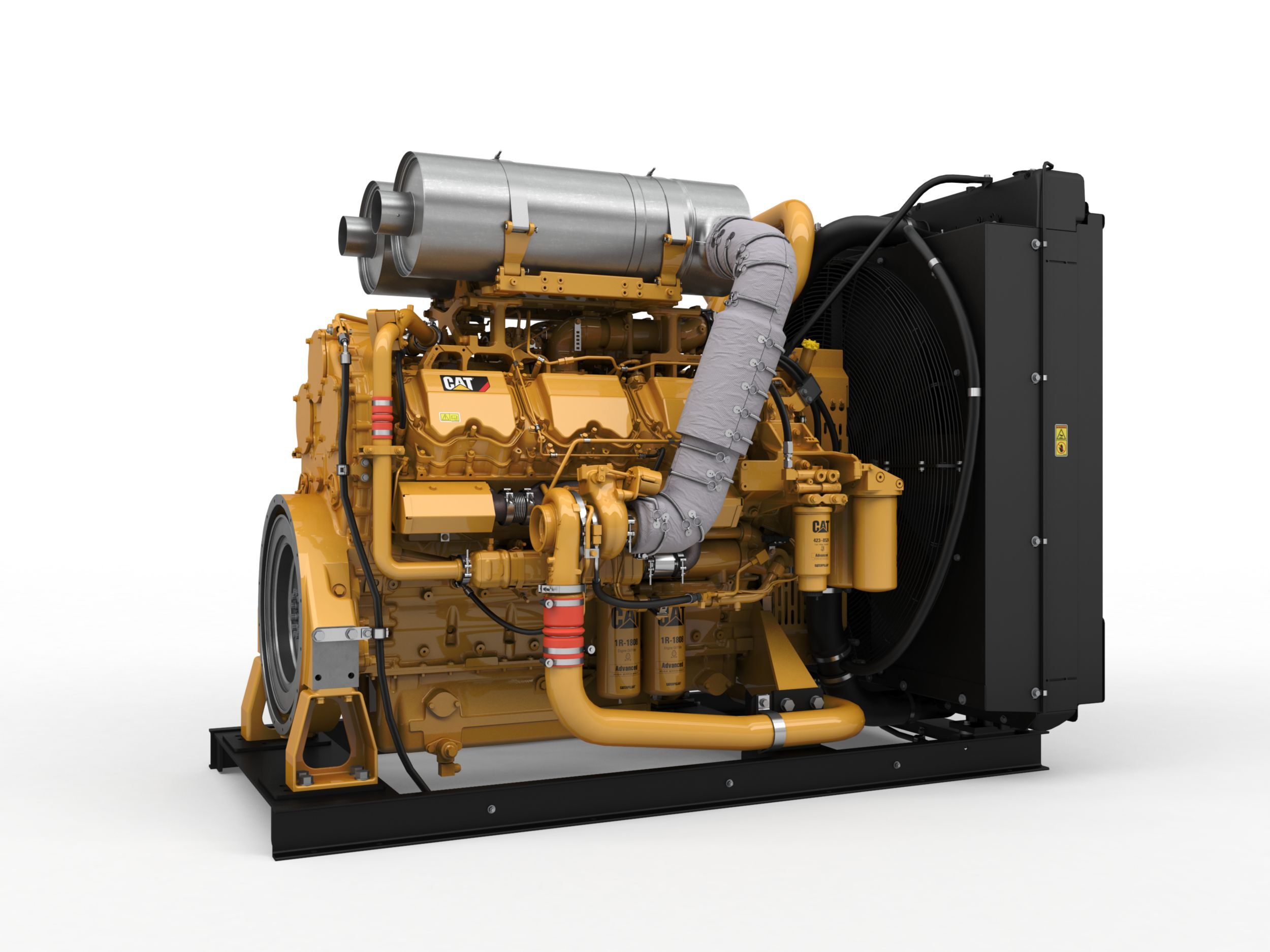

Cat® C27 Industrial Power Unit

The Cat® C27 Industrial Power Unit is offered in ratings ranging from 597-783 bkW (800-1050 bhp)@ 1800 rpm. Conveniently pre-configured for a wide range of applications, the Cat® Industrial Power Unit is a complete power package containing a radiator, flywheel, alternator and alternator wiring completely pre-assembled for fast, straightforward installation in a number of OEM, customer and packager applications. These fuel efficient units are ready made for irrigation, industrial, mining and other pump applications.

Category:
Add to Quote

Reliable, Quiet and Durable Power

World-class manufacturing capability and processes coupled with proven core engine designs assure reliability, quiet operation, and many hours of productive life.

High Performance

Simple and efficient turbocharger or series turbocharger for high power applications.

Fuel Efficiency

Fuel consumption optimized to match operating cycles of a wide range of equipment and applications while maintaining low operating costs.

Fuel & Oil

Tier 4 Interim or Tier 4 Final, Stage IIIB or Stage IV engines require Ultra Low Sulfur Diesel (ULSD) fuel containing a maximum of 10 ppm sulfur (EU) and 15 ppm sulfur (U.S.), and new oil formulations to support the new technology. Cat® engines are designed to accommodate B20 biofuel. Your Cat dealer can provide more information regarding fuel and oil.

Broad Application Range

Industry leading range of factory configurable ratings and options for agricultural, material handling, construction, mining, aircraft ground support, and other industrial applications.

World-class Product Support Offered Through Global Cat Dealer Network

  • Scheduled maintenance, including SOS℠ sample
  • Customer Support Agreements (CSA)
  • Caterpillar Extended Service Coverage (ESC)
  • Superior dealer service network
  • Extended dealer service network through the Cat Industrial Service Distributor (ISD) program

Virtual Tours

Standard Equipment

Air Inlet System
  • Turbocharged
  • Air-to-Air Aftercooled
  • Mid-mount turbocharged system with front and rear exhaust configurations (Tier 4 Final, Stage IV)
Control System
  • Electronic control system
  • Over-foam wiring harness
  • Automatic altitude compensation
  • Power compensated for fuel temperature
  • Remote fan control
  • Configurable software features
  • Engine monitoring system SAE J1939 broadcast and control
  • Integrated Electronic Control Unit (ECU)
Cooling System
  • Thermostats and housing, vertical outlet
  • Centrifugal water pump
  • Guidance on cooling system design available through your dealer to ensure equipment reliability
Flywheels and Flywheel Housing
  • Choice of SAE No. 0 or SAE No. 1 flywheel housing
  • Available SAE No. 1 power take off with optional SAE A, SAE B or SAE C power take off drives. Engine power can also be taken from the front of the engine with optional attachments. (Tier 4 Final, Stage IV).
Fuel System
  • MEUI injection
  • Primary fuel filter
  • Secondary fuel filters
  • Fuel transfer pump
  • Electronic fuel priming
Lube System
  • Open crankcase ventilation system
  • Oil cooler
  • Oil filler
  • Lube oil filter
  • Oil dipstick
  • Gear driven oil pump
  • Choice of front, rear or center sumps
  • Open crankcase ventilation system with fumes disposal (optional OCV filter system) (Tier 4 Final, Stage IV)
Power Take Off (PTO)
  • SAE A, SAE B or SAE C power take off (PTO) drives. Engine power can also be taken from the front of the engine on some applications.
General
  • Paint: Caterpillar yellow, with optional colors available at request
U.S. EPA Tier 4 Final, EU Stage IV Aftertreatment/ Clean Emissions Control Equipment
  • Cat Regeneration System
  • Aftertreatment information applies to ratings from 429-522 bkW (575-700 bhp)
  • Clean Emissions Module (CEM), consisting of Diesel Particulate Filter (DPF) and Diesel Oxidation Catalyst (DOC)
  • Aftertreatment Electronic Control Unit (ECU)
  • NOx Reduction System (NRS)
  • Pump Electronic Control Unit (PETU)
  • Selective Catalytic Reduction (SCR)
  • Available in 12V or 24V systems

Additional information

تقدير القدرة - القدرة القصوى

709 كيلووات ( 950 HP )
تقدير القدرة - أقصى عزم دوران

4354 Nm @ 1200 rpm ( 3211 lb-ft @ 1200 rpm )
تقدير القدرة - السرعة المقدرة

1800 دورة في الدقيقة
تقدير القدرة - القدرة الدنيا

597 كيلووات ( 800 HP )
معايير الانبعاثات - الانبعاثات

معايير وكالة حماية البيئة (EPA) الأمريكية من المستوى 4، معايير الاتحاد الأوروبي المرحلة V
عام - تكوين المحرك

ديزل بدورة من 4 أشواط، ذو 12 أسطوانة على شكل V
عام - التجويف

137.2 مم ( 5.7 بوصة )
عام - الشوط

152.4 مم ( 6 بوصة )
عام - الإزاحة

27 l ( 1649.5 بوصة³ )
عام - نسبة الانضغاط

16.0:1
عام - السحب

مزوَّد بشاحن توربيني مزدوج ومبرد لاحق (TTA)
عام - الدوران من طرف الحدافة

عكس اتجاه حركة عقارب الساعة
عام - المعالجة اللاحقة

حفاز أكسدة الديزل (DOC)
أبعاد وحدة القدرة - الطول

2532 مم ( 99.7 بوصة )
أبعاد وحدة القدرة - العرض

1241 مم ( 48.9 بوصة )
أبعاد وحدة القدرة - الارتفاع

2006 مم ( 79 بوصة )
أبعاد وحدة القدرة - الوزن

2650 كجم ( 5842 رطل )
أبعاد نظام المعالجة اللاحقة - العرض

1112 مم ( 43.8 بوصة )
أبعاد نظام المعالجة اللاحقة - الارتفاع

652 مم ( 25.7 بوصة )
أبعاد نظام المعالجة اللاحقة* - القُطر

330 مم ( 13 بوصة )
أبعاد نظام المعالجة اللاحقة - الوزن

268 كجم ( 591 رطل )
أبعاد وحدة الخزان الإلكترونية للمضخة (PETU) - معايير المستوى 4 النهائي فقط - السعة الحجمية

48.4 l ( 51.1 qt (US) )
