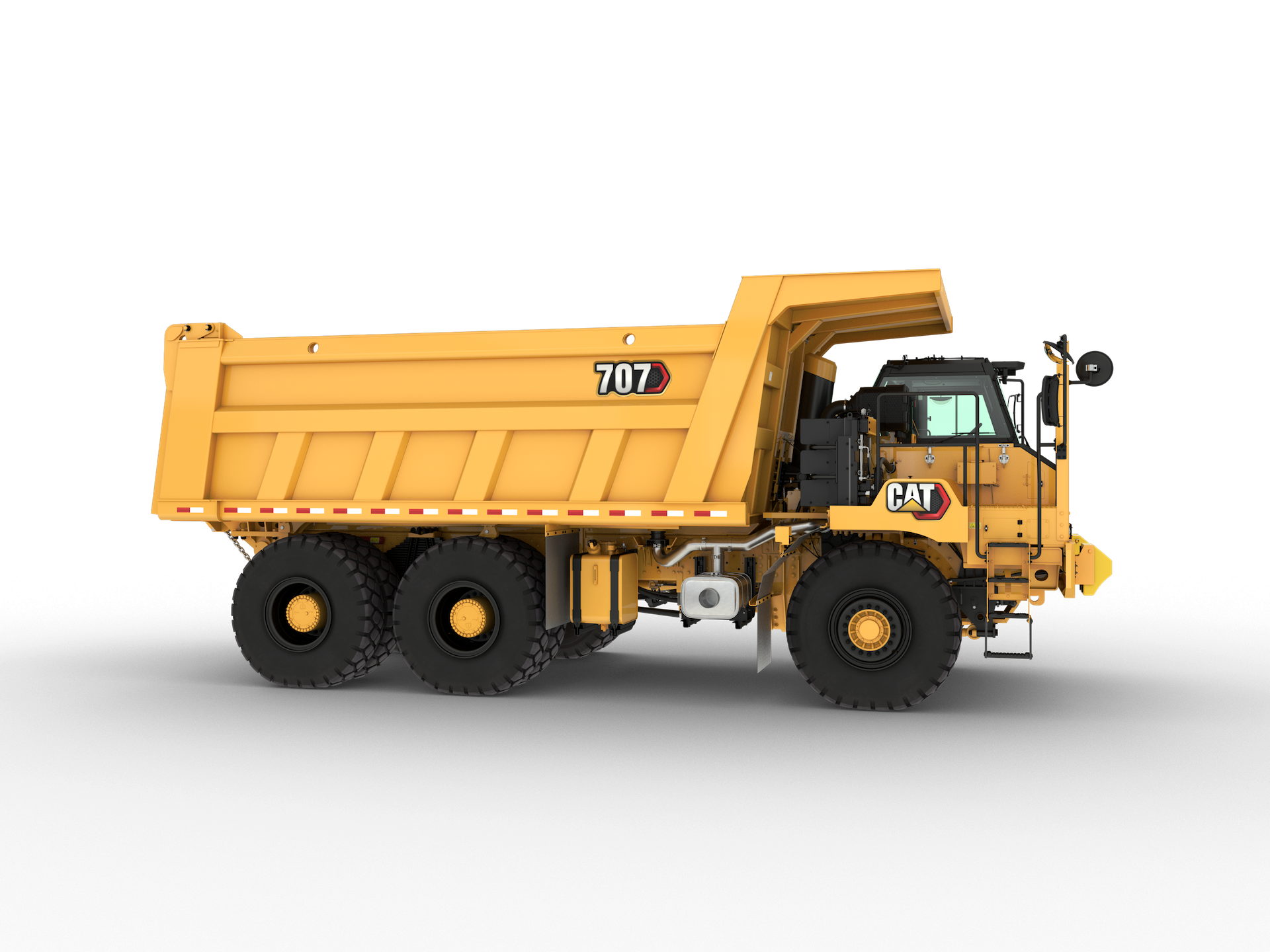

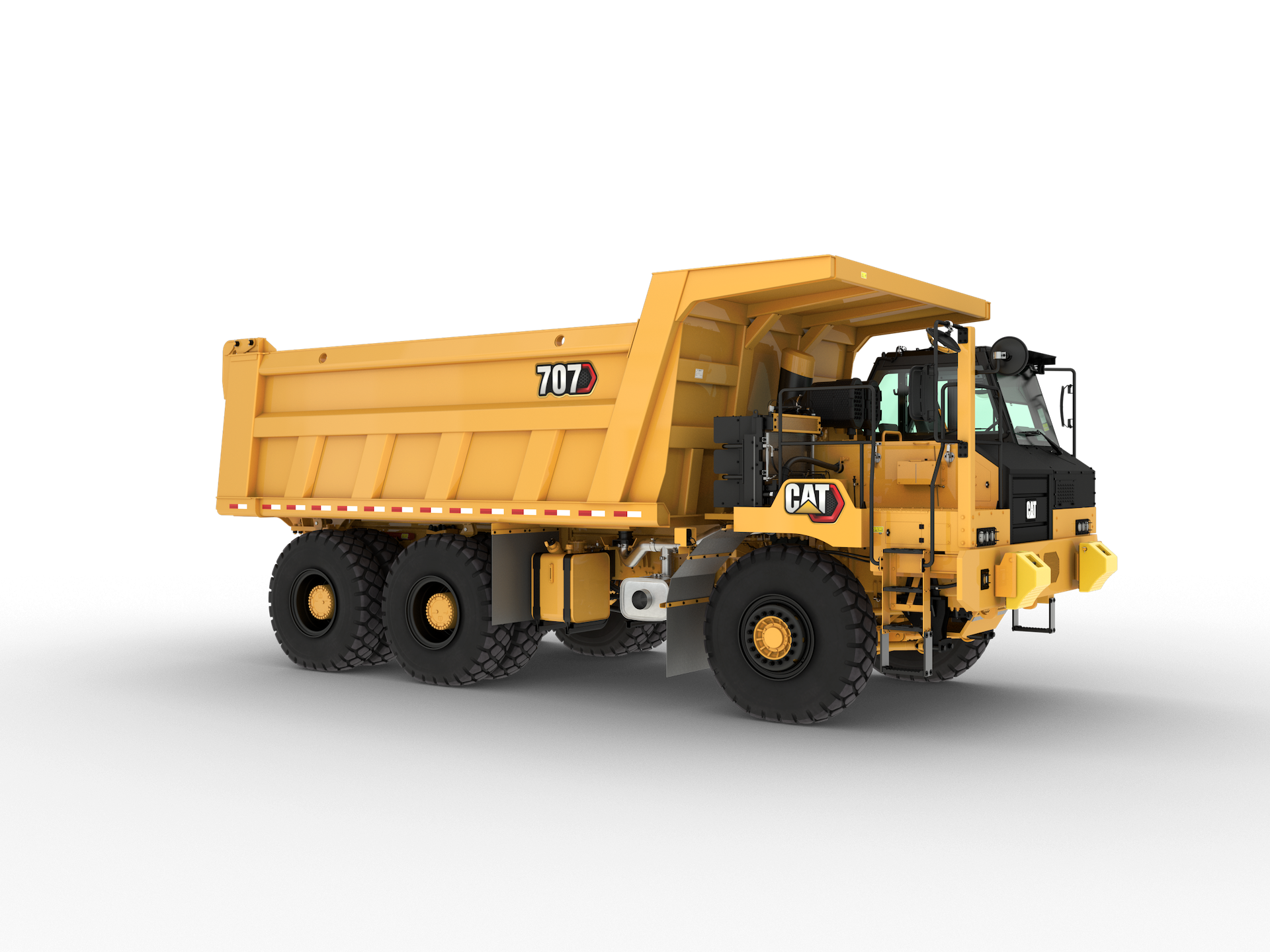

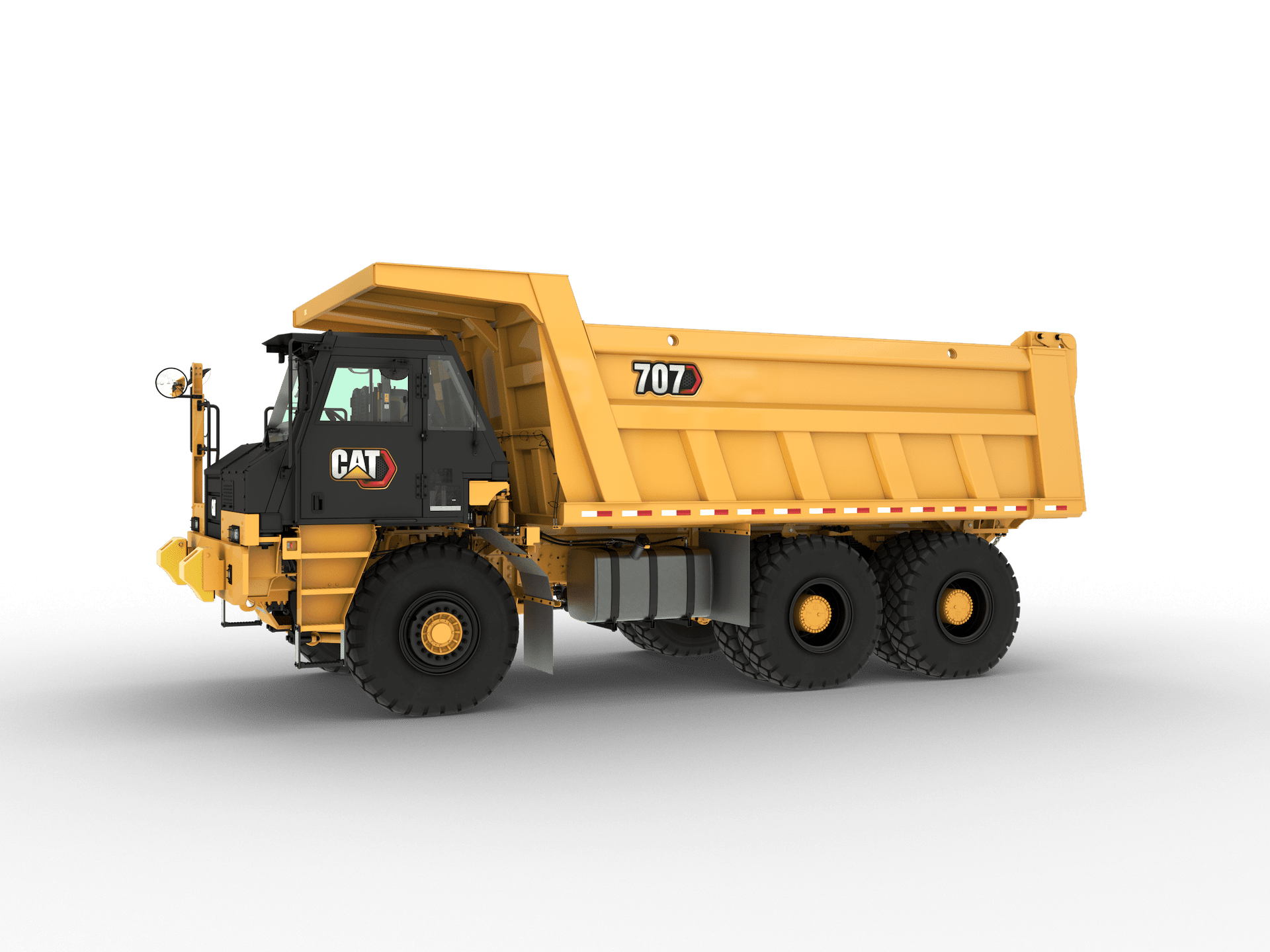

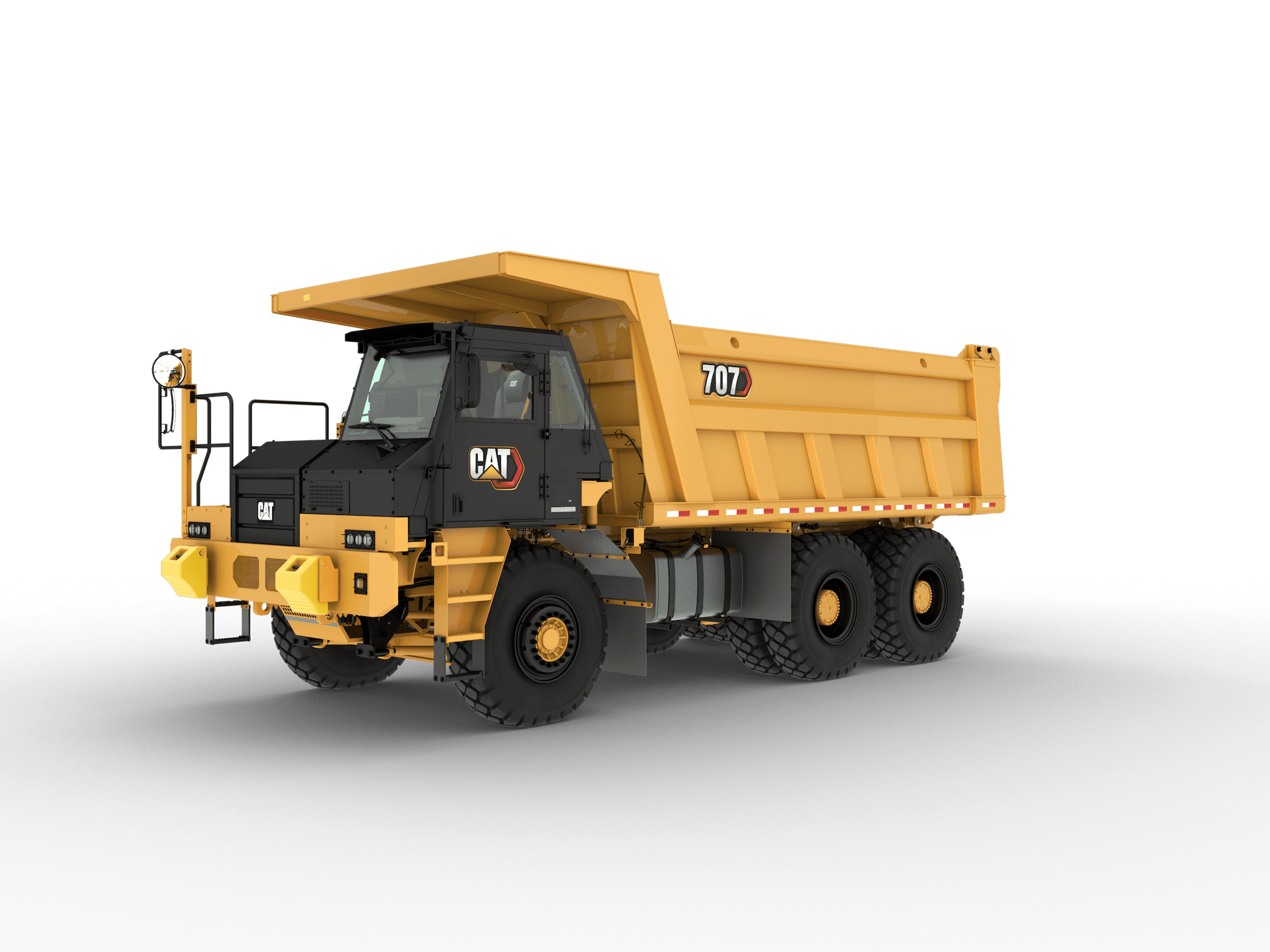

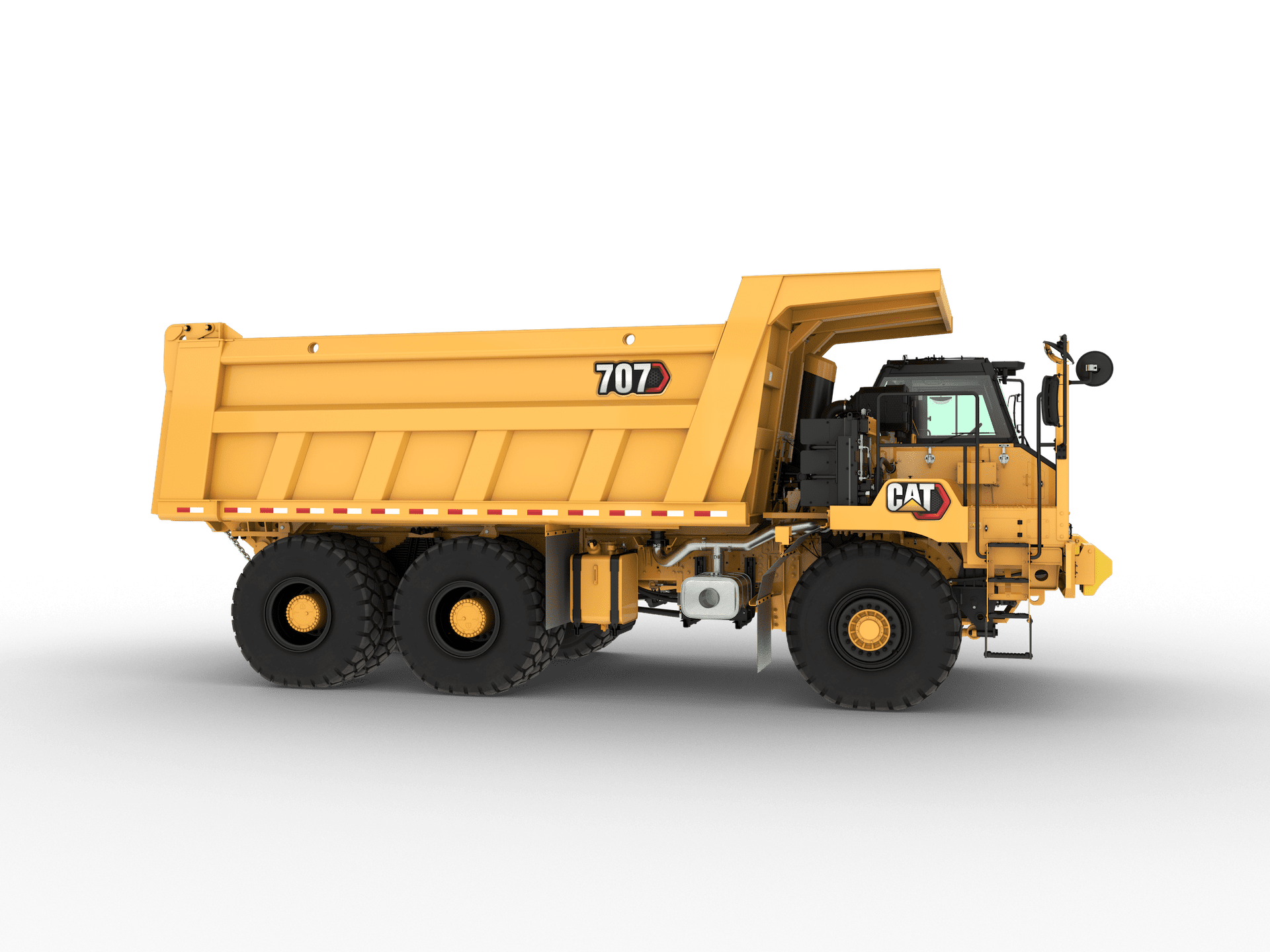

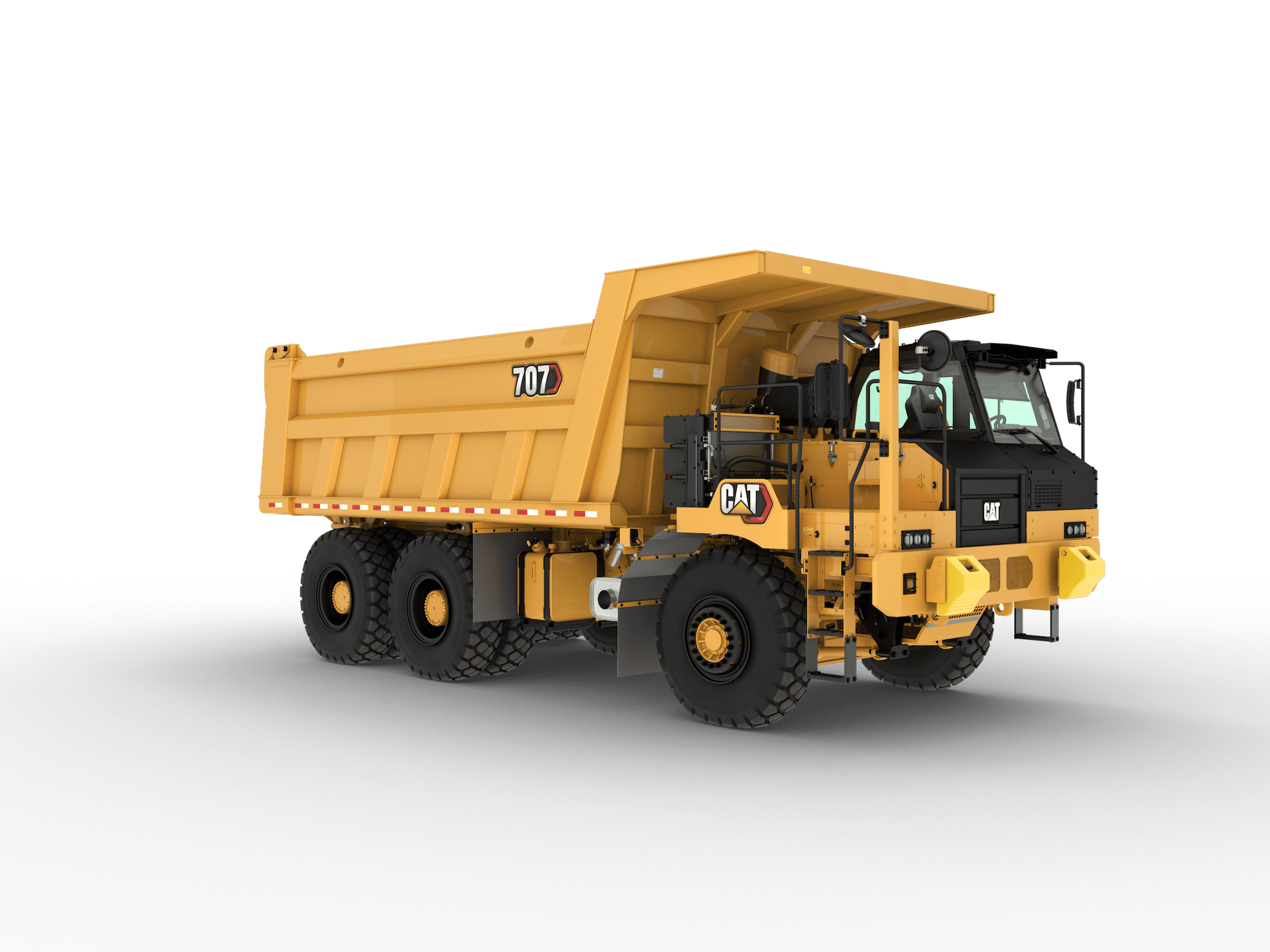

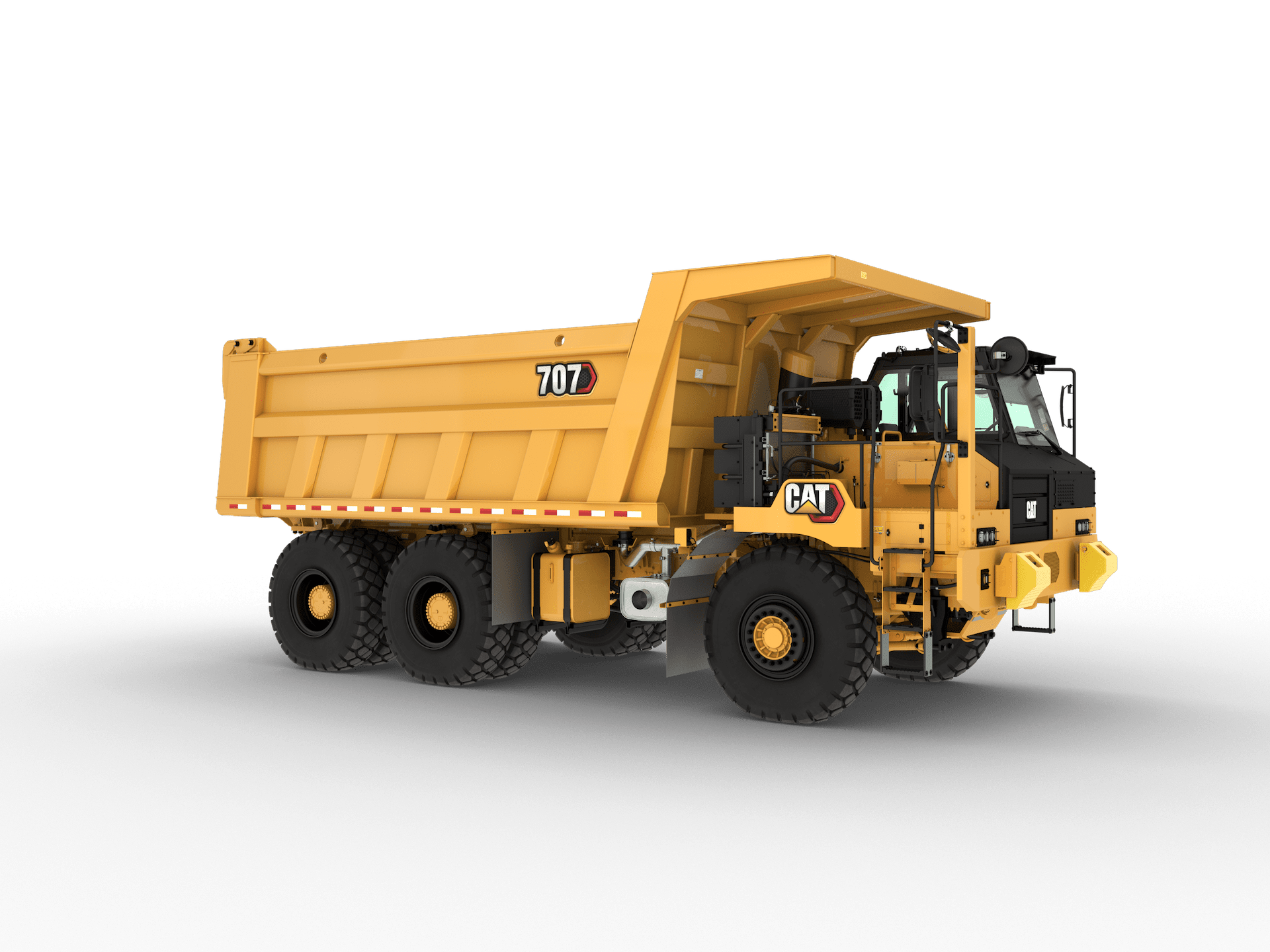

Cat® 707 Wide Body Truck

The Cat® 707 is the first model in Cat’s wide-body truck lineup. It is a three-axle, off-highway, rear dump truck engineered for durability and cost-effective rebuildability. The machine is built with a fully integrated Cat powertrain that includes a Cat C13 engine, Cat CX31RT automatic transmission, and proprietary Cat axles. It is designed to be rebuilt once and to support a mid-life overhaul of powertrain components, helping extend service life and improve uptime. The truck is also designed for ideal pass match with Cat loading tools, reduced maintenance costs, and enhanced safety through integrated braking and optional ROPS cab features.

Key Features

• Fully integrated Cat powertrain components

• Cat C13 engine

• Cat CX31RT fully automatic transmission

• Proprietary Cat axles

• Optional integrated hydraulic retarder

• Designed to be rebuilt once for a second lifecycle

• Ideal pass match with Cat loading tools

• Superior brake performance meeting ISO 3450:2011

• Optional ROPS cab and rear view camera

• Lower maintenance costs through grouped service points and parts commonality

Applications / Benefits

• Longer durability and higher uptime

• Better downhill loaded control

• Safer hauling cycles

• Reduced maintenance and repair costs

• Flexible body options for different material and jobsite requirements

• Suitable for fleets paired with Cat loaders and excavators

Engine

• Engine Model: C13B / C13

• Rated Power with Fan:

  • C13B: 400 kW @ 2100 rpm

  • C13: 358 kW @ 2000 rpm

• Cylinders: 6

• Displacement: 12.5 L

• Bore x Stroke: 130 mm x 157 mm

• High Idle Speed: 2200 rpm

• Low Idle Speed: 750 rpm

• Net Torque:

  • C13B: 2408 N·m

  • C13: 2306 N·m

Transmission

• Cat CX31RT 6-speed automatic powershift transmission

• Optional fully integrated hydraulic retarder

Brake System

• Air actuated drum brakes

• Service brake: dry air brakes

• Parking brake: spring actuated drum

• Secondary brake: spring actuated drum

• Brake standard: ISO 3450:2011

Body Options

• Tailgate body – standard-duty 40 m³

• Tailgate body – heavy-duty 40 m³

• Tailgate body – standard-duty 42 m³

• Tailgate body – heavy-duty 42 m³

• Body heat optional

• Rock ejector optional

Weights

• Empty machine weight with body: 35,000 to 36,200 kg depending on options

• Maximum loaded machine weight: 102,200 kg

Service Refill Capacities

• Fuel Tank: 540 L

• Cooling System: 53 L

• Differentials and Final Drives: 111 L

Suspension

• Front: Hydraulic strut

• Rear: Leaf spring

Steering

• Turning Diameter on Front Wheel Track: 23.7 m

• Vehicle Clearance Turn Circle: 24.1 m

• Optional secondary steering: Electric

• Steering standard: ISO 5010:2019

Hoist System

• Raise Time: 20 s

• Lower Time: 20 s

Sound Levels

• Spectator Sound Power Level: 113 dB(A)

• Operator Sound Pressure Level: 80 dB(A)

Dimensions

• Height, Top of Cab, Empty: 3340 mm

• Length, Overall: 9075 mm

• Wheelbase 1st: 3830 mm

• Wheelbase 2nd: 1720 mm

• Width, Operating: 4410 mm

• Height Overall, Body Raised: 8240 mm

• Width, Inside Body: 3400 mm

• Body Lift Angle: 47° +/- 1°

Safety / Standards

• Optional ROPS cab

• FOPS protection

• Optional rear-view camera

• Optional secondary steering

• Compliance includes:

  • ROPS: ISO 3471:2008

  • FOPS: ISO 3449:2005 Level II

  • Brakes: ISO 3450:2011

  • Seat Belts: ISO 6683:2005

  • Warning Alarms: ISO 9533:2010

  • Steering: ISO 5010:2019

  • Visibility: ISO 5006:2017

  • Lighting: ISO 12509:2023

  • EMC: ISO 13766:2018

Optional Equipment

• Hydraulic retarder

• Secondary steering

• Rear view camera

• Trainer seat

• ROPS cab

• Body heat

• Rock ejector

• Weather packages

• Spare tire options

• Product Link

• Network manager
