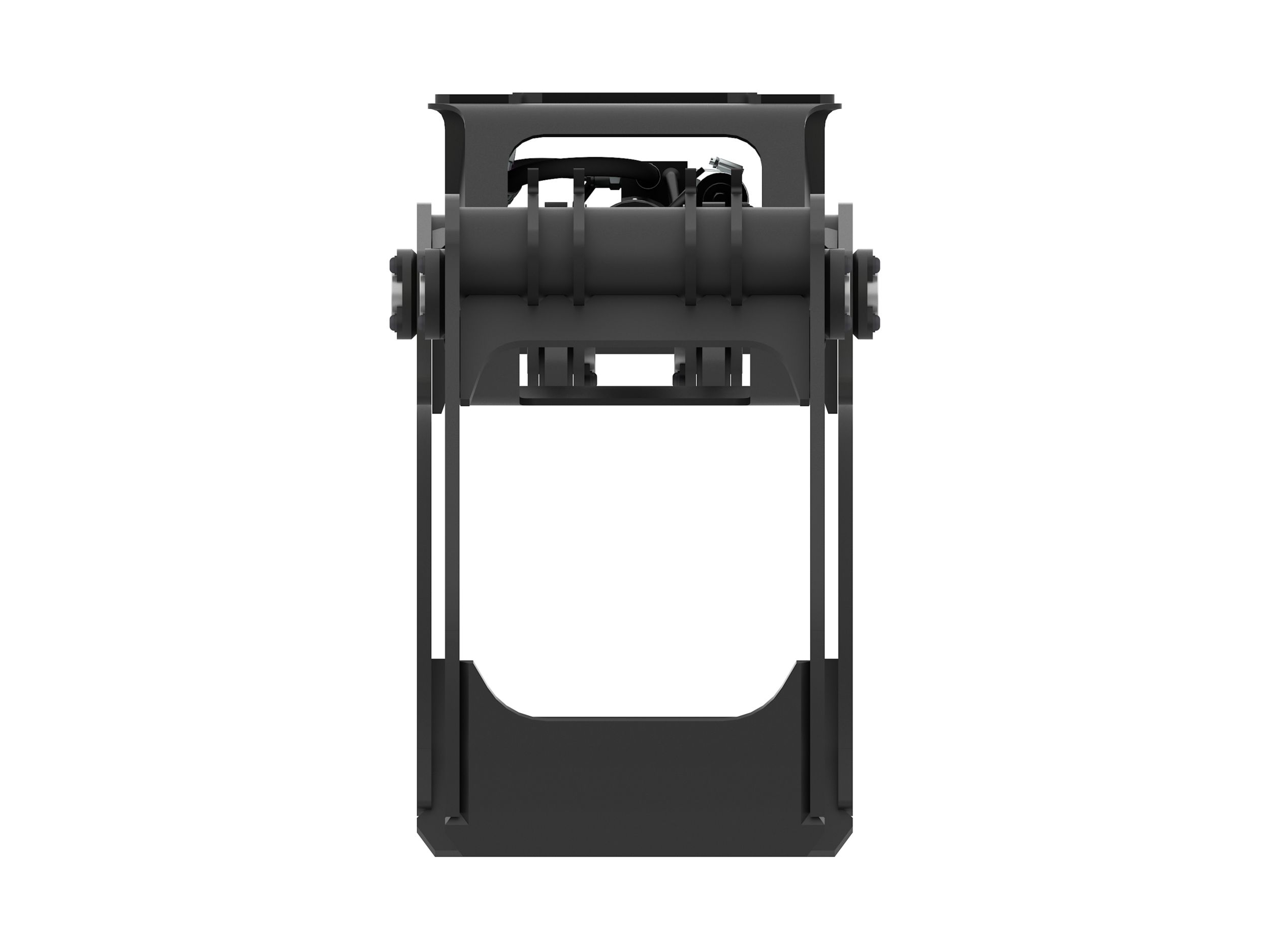

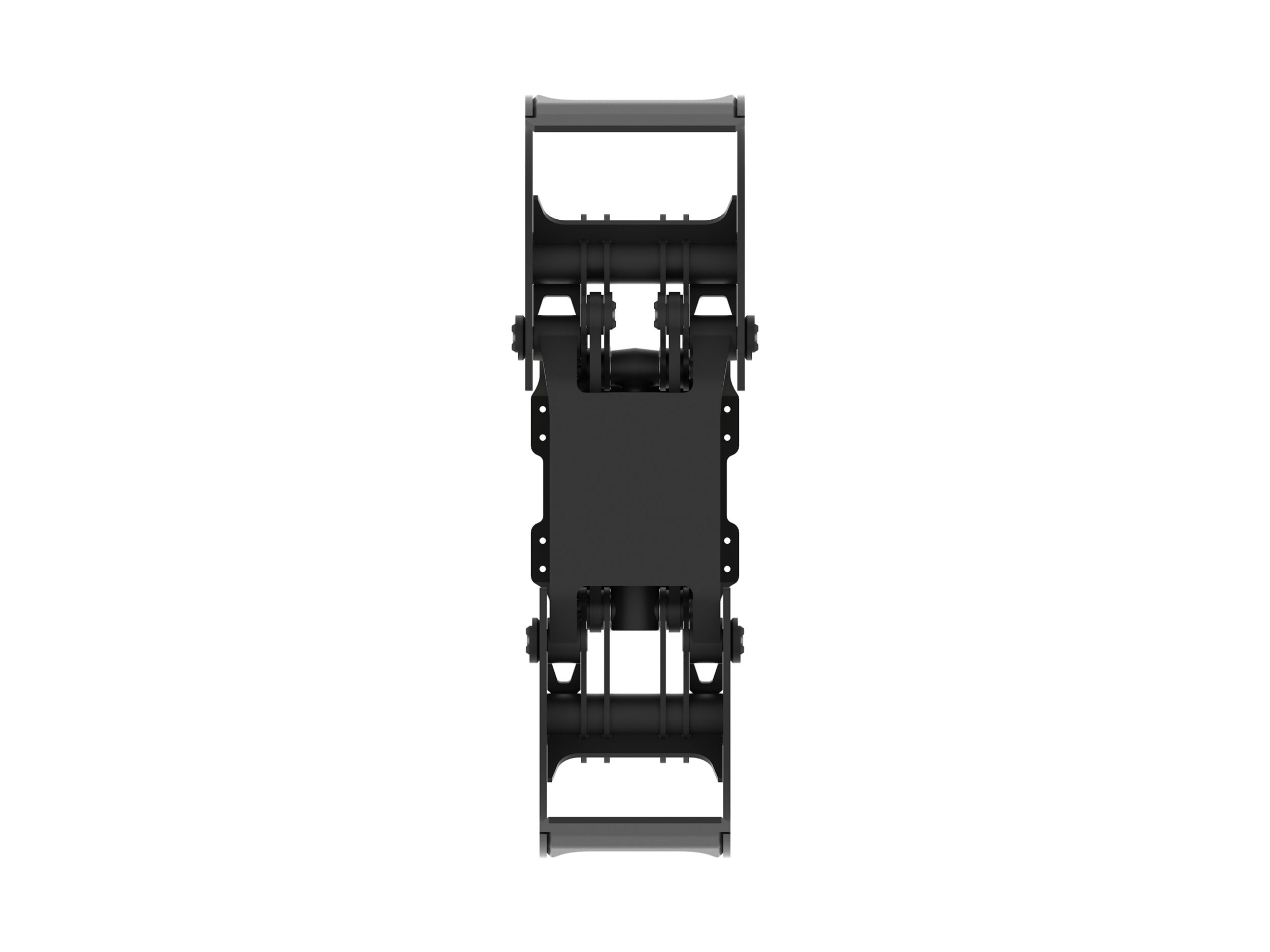

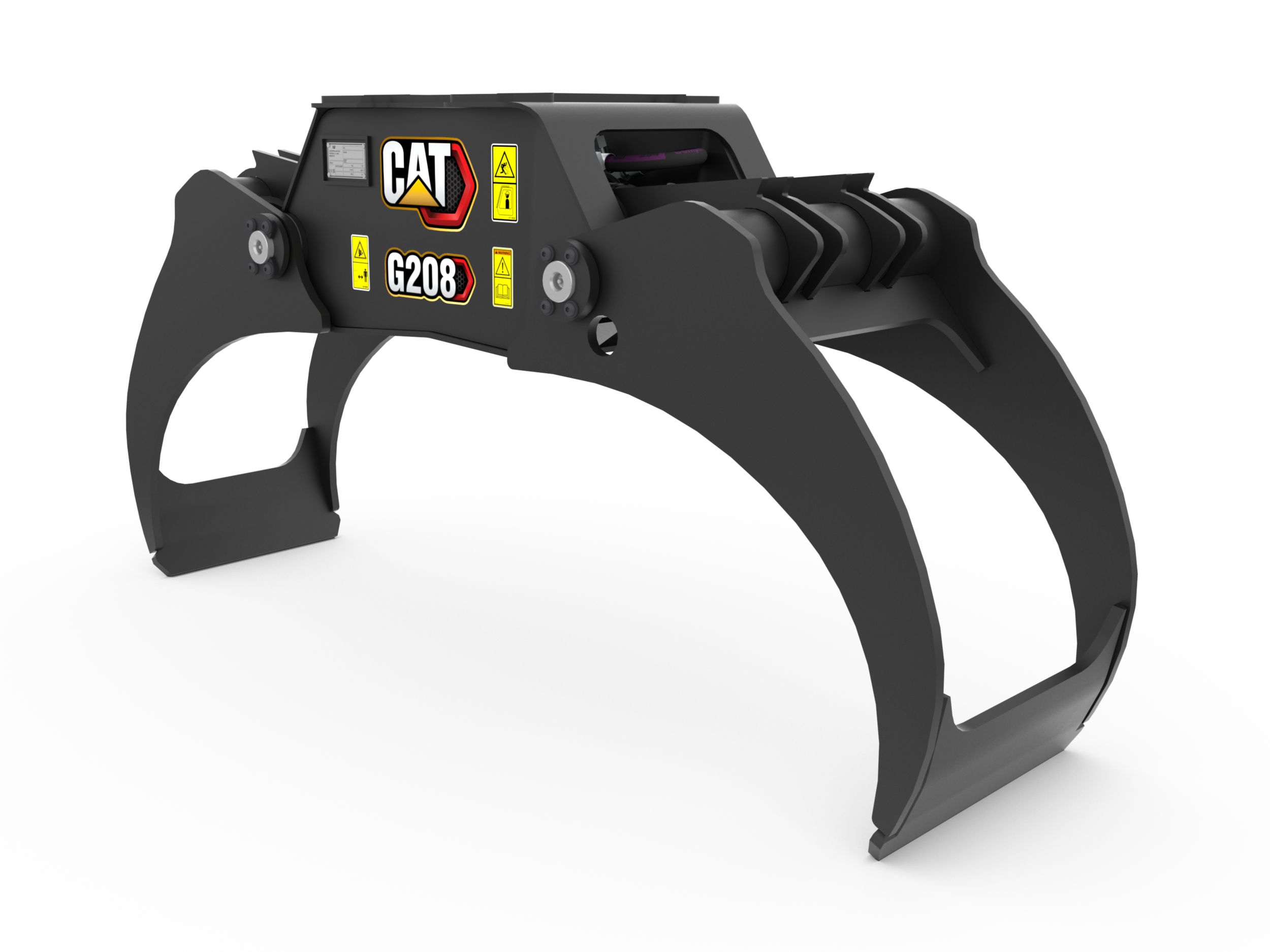

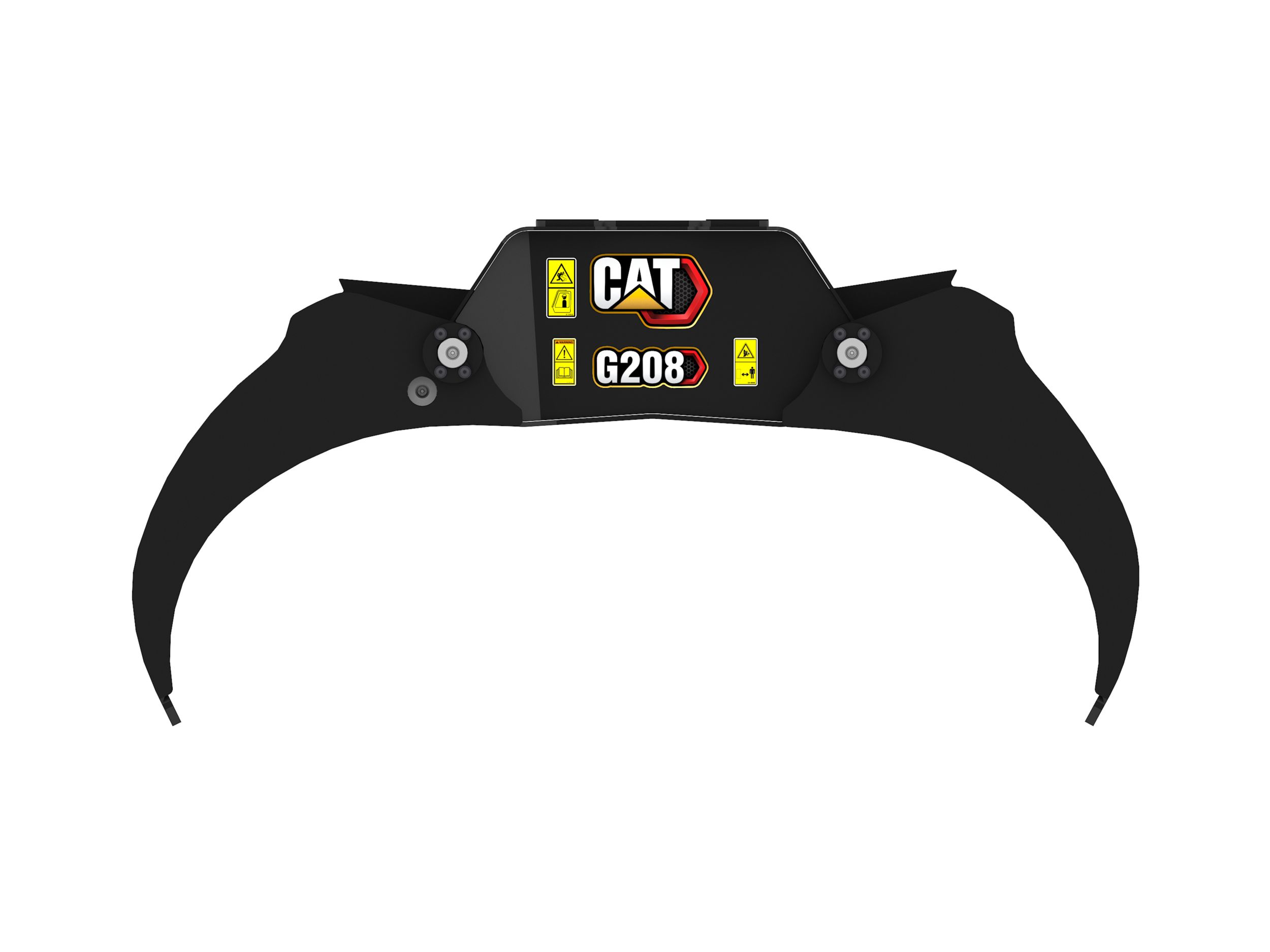

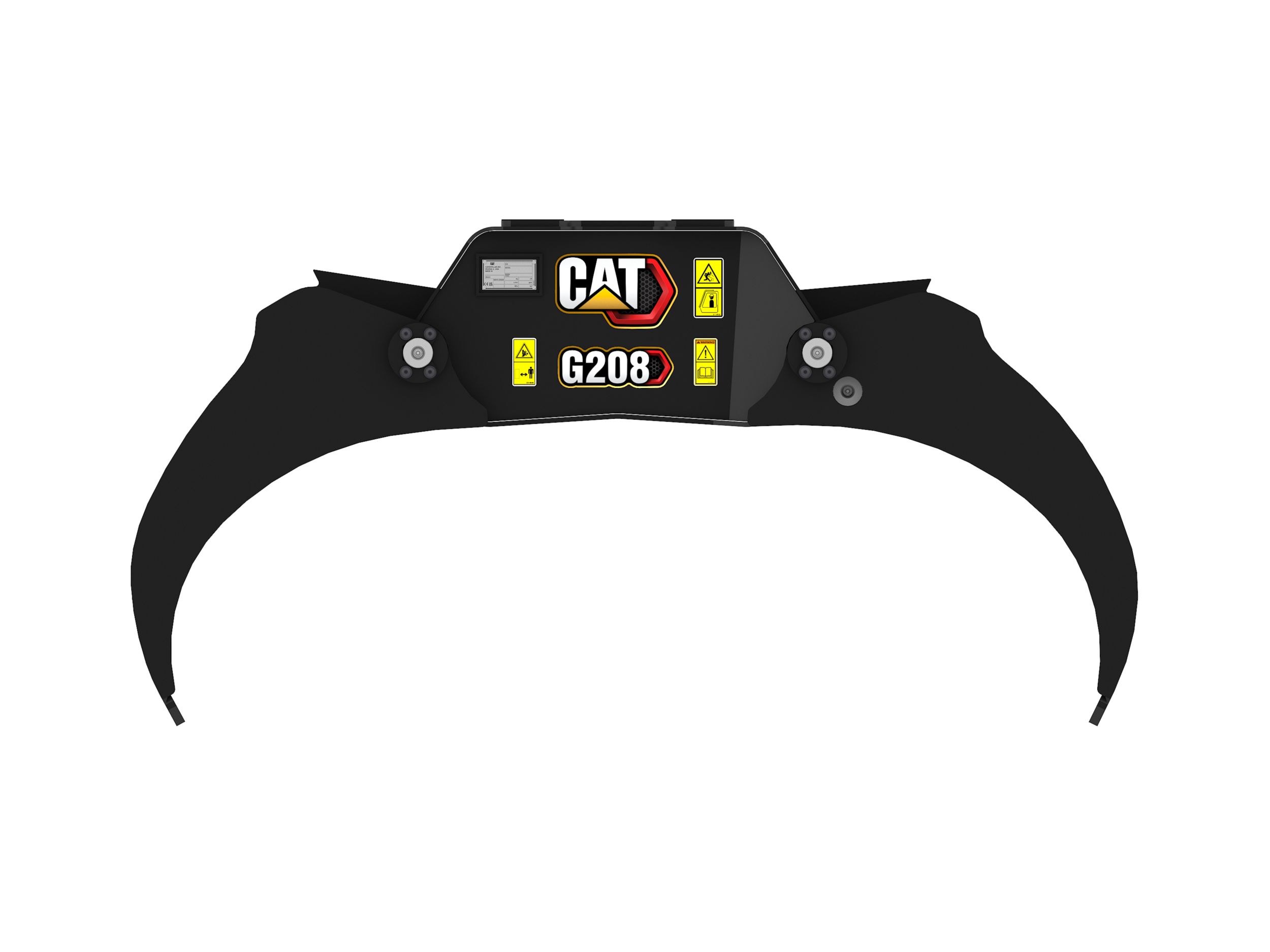

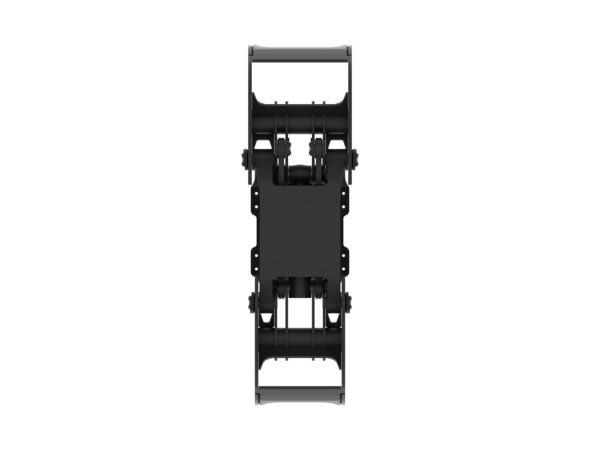

G208

Integrated Bracket

Integrated bracket specifically designed for the hydraulic TRS attachments to ensure load forces are always evenly distributed providing a smoother operation.

Integrated Cylinder Load Holding Valve

Load holding valve maintains grapple closing pressure with zero leakage.

Integrated Jumper Lines

Higher and shorter routing offers superior protection against damage, dirt and debris.

Hard Mounted Piston Accumulator

Hard mounted piston accumulator reduces potential leaks and decreases hydraulic response time.

Double Connecting Rods

Double connecting rods provide optimal open and close force guidance on both sides of the cylinder.

Pins and Bushings

Integrated pin joint lip seals keep grease in and dirt out.

High Strength Steel Grapple Arms

Arms hardened to AR450 and edges hardened to AR500/HB500 standards provide higher strength and longer wear in rough conditions.

Torque Tube

Grapple arm paddle design has an integrated torque tube with 360 degrees welded connection from grapple arms and cylinder hinge plate. This helps to more evenly distribute load forces throughout the structure.

Double Mechanical Stops

Double mechanical stops prevent over closing and help ensure optimal functionality.

Welded Box Structure

Welded box structure supports pivot points which help to avoid any bending/twisting torques in the radial direction. Box structure also increases the reliability of hydraulic components as they are protected in a closed-in box housing, with access panels on both sides.

Grapple Stability

Remains stable and vertical, allowing operator to quickly engage or disengage a TRS bottom side quick coupler for ease of picking up the multi purpose grapple.

Optimal TRS8 Matching

The G208 multi-purpose grapple was designed to function optimally when paired with the TRS8 using the TRS bracket system.
