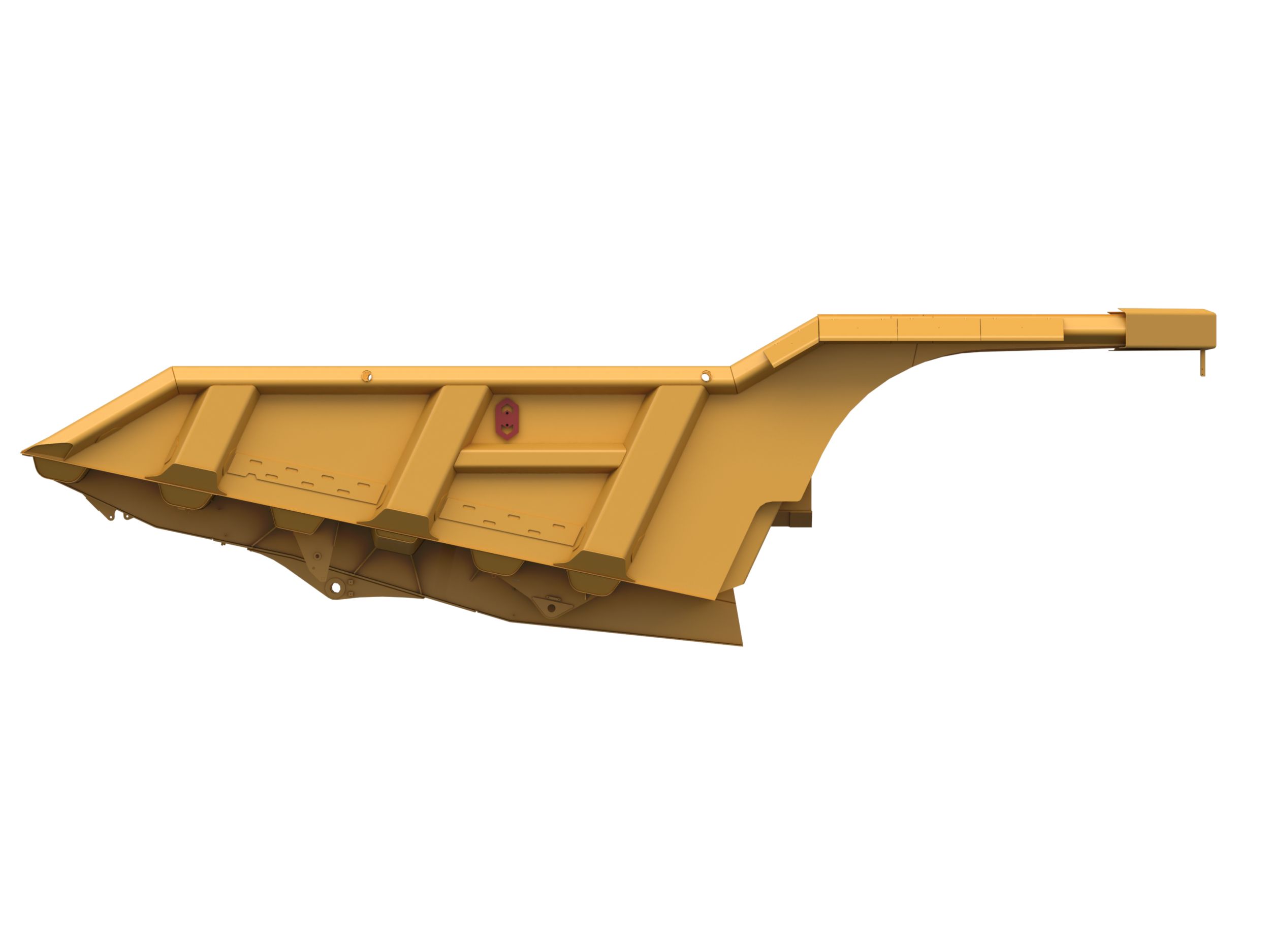

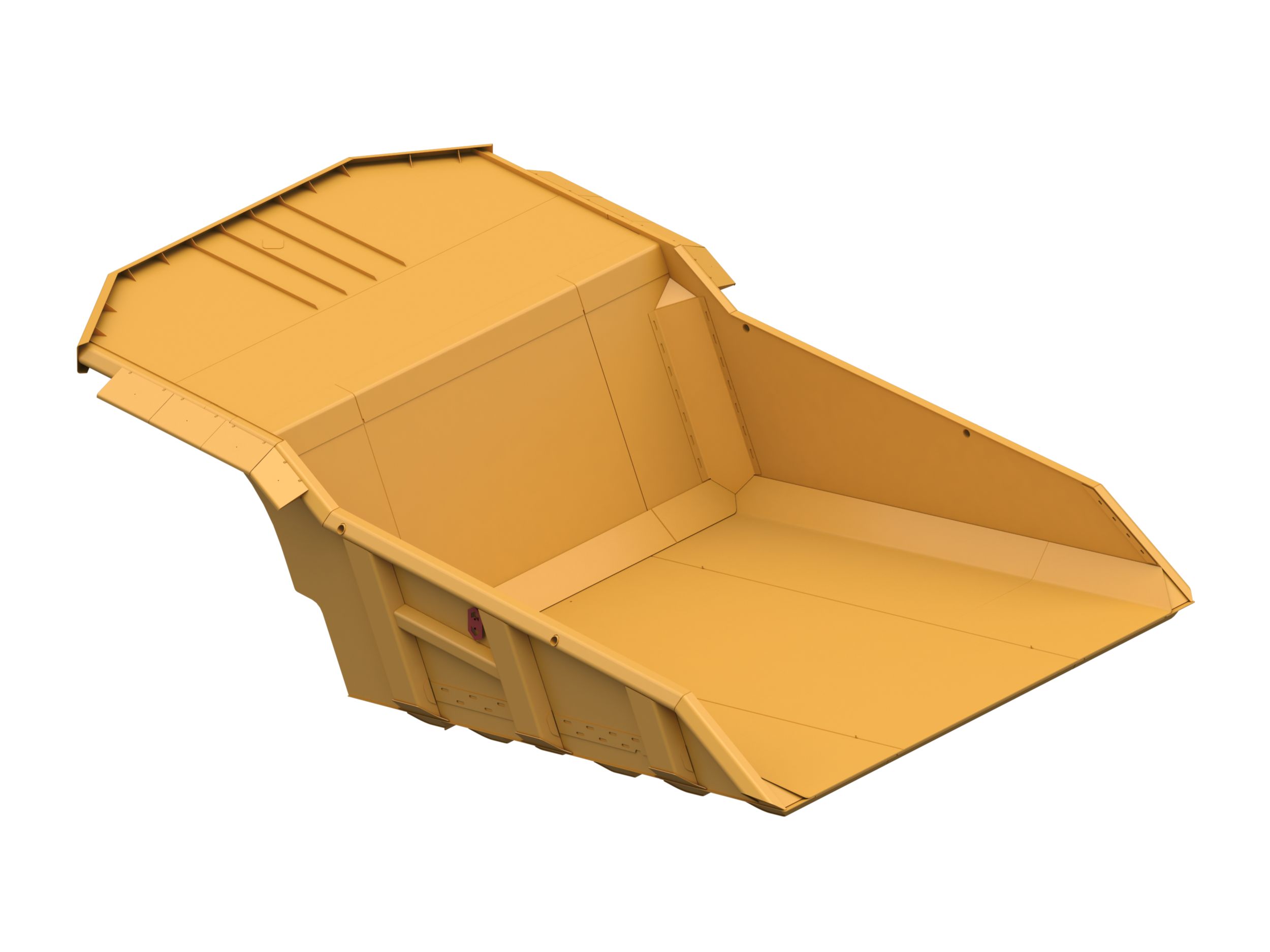

MSD II Body – 785
The Cat® Mine Specific Design (MSD II) Body offers a lightweight and customizable platform that provides maximum versatility for use in most applications. This is a site-specific designed body that is to maximize performance based on the application. Highly versatile, it’s available in several sizes for high payload potential in varying material densities. This is a lightweight base body with full canopy coverage and features configurable liner zones to prioritize productivity and durability. The MSD II is the most widely chosen lightweight body on the market, proving its value through its reliability and durability.
Videos
Documents & Brochures
Additional information
Offering Type | |
---|---|
Capacity | 99-122 m3 (130-160 yd3) |
Base Body Weight | 21 200-22 400 kg (46,750-49,300 lbs) |
Life Expectancy | 40K hours (1-2 rebuild/reline cycles) |
Machine Model | 785 |
Material Application | All ferrous and non-ferrous material, overburden |
Ideal Site and Maintenance Application | Established mine prioritizing payload over durability |
Base Body Weight, Standard Configuration | 21 200-22 400 kg (46,750-49,300 lbs) |
Liner Weight, Typical | 5 000 kg (11,000 lbs) |
Liner Material | 450-500 BHN |
Liner Options | Rock box, smooth plate, impact plate |
Dump Clearance | 1.1 m (3 ft 8 in) |
Heated or Non-Heated | Heated available |
-
Mining Trucks

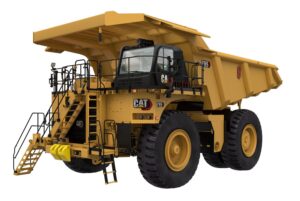

785
