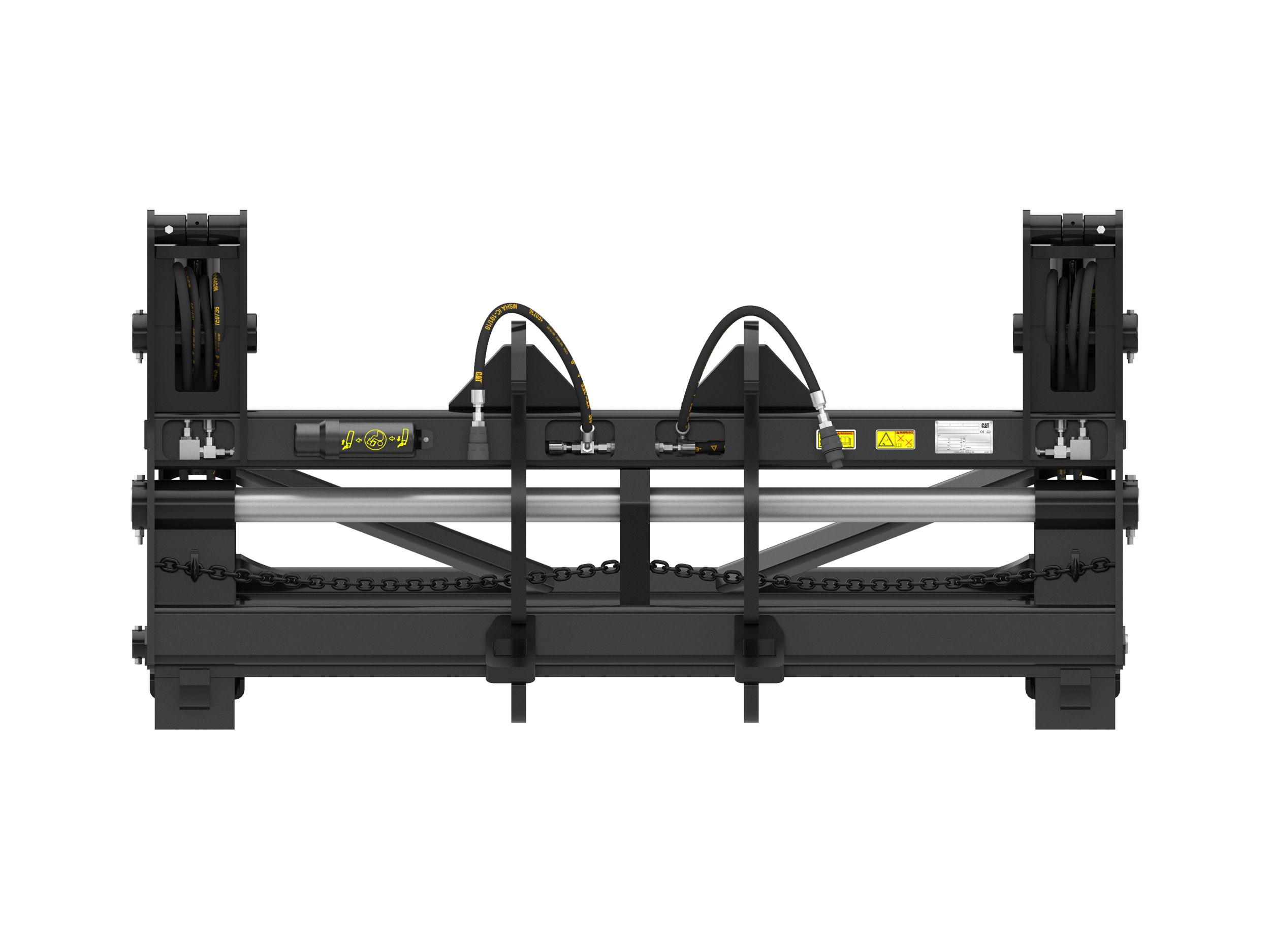

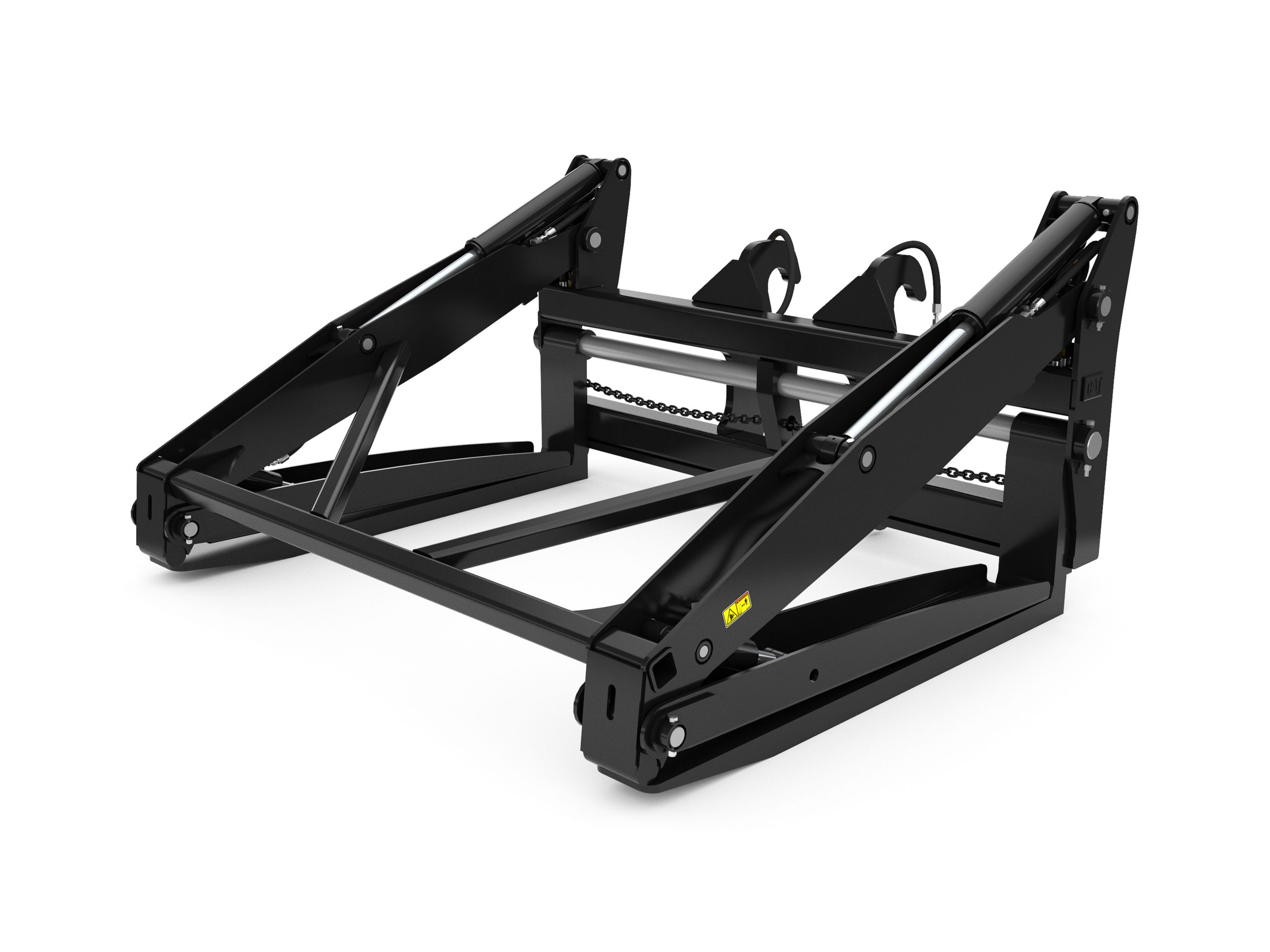

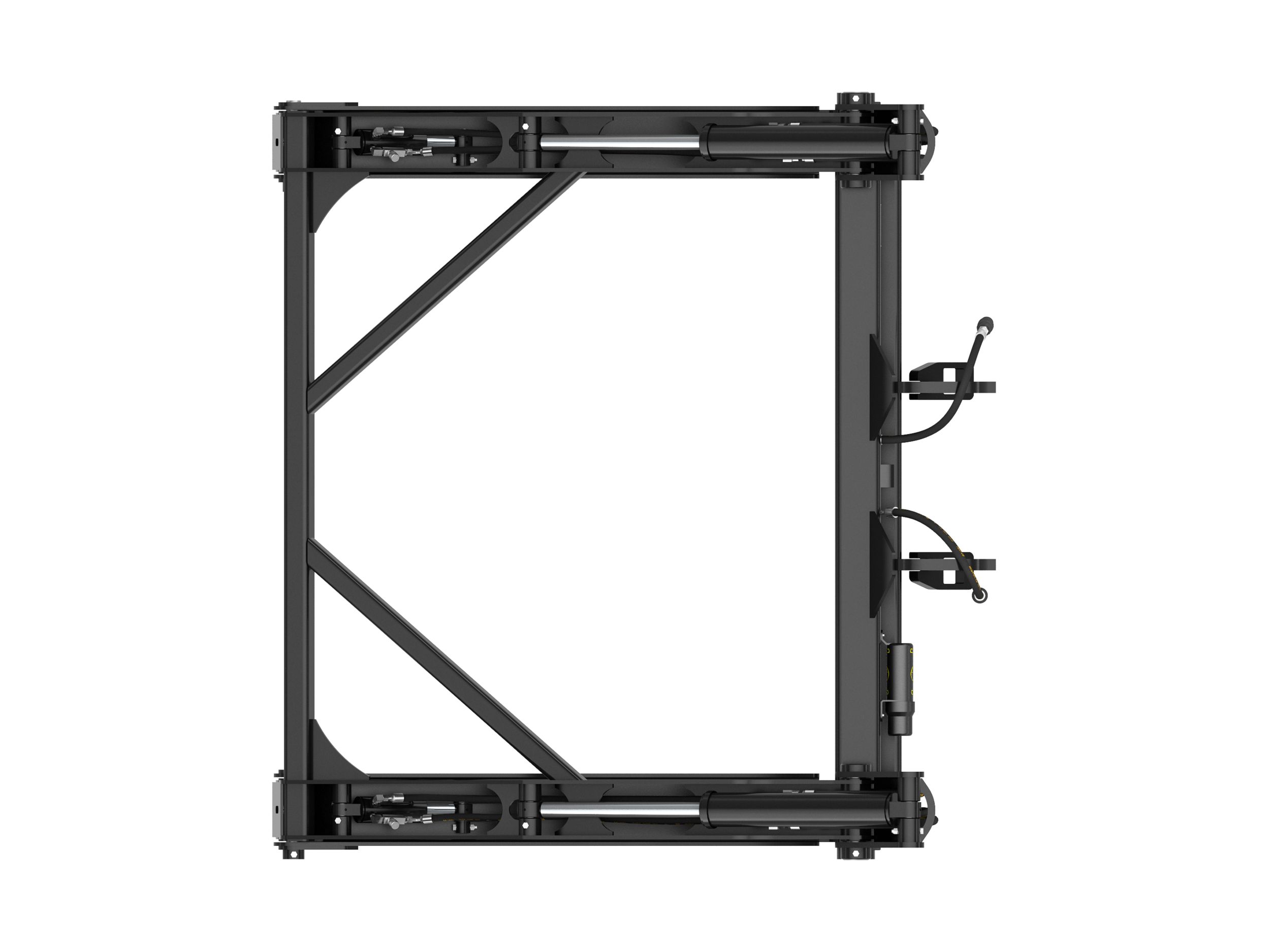

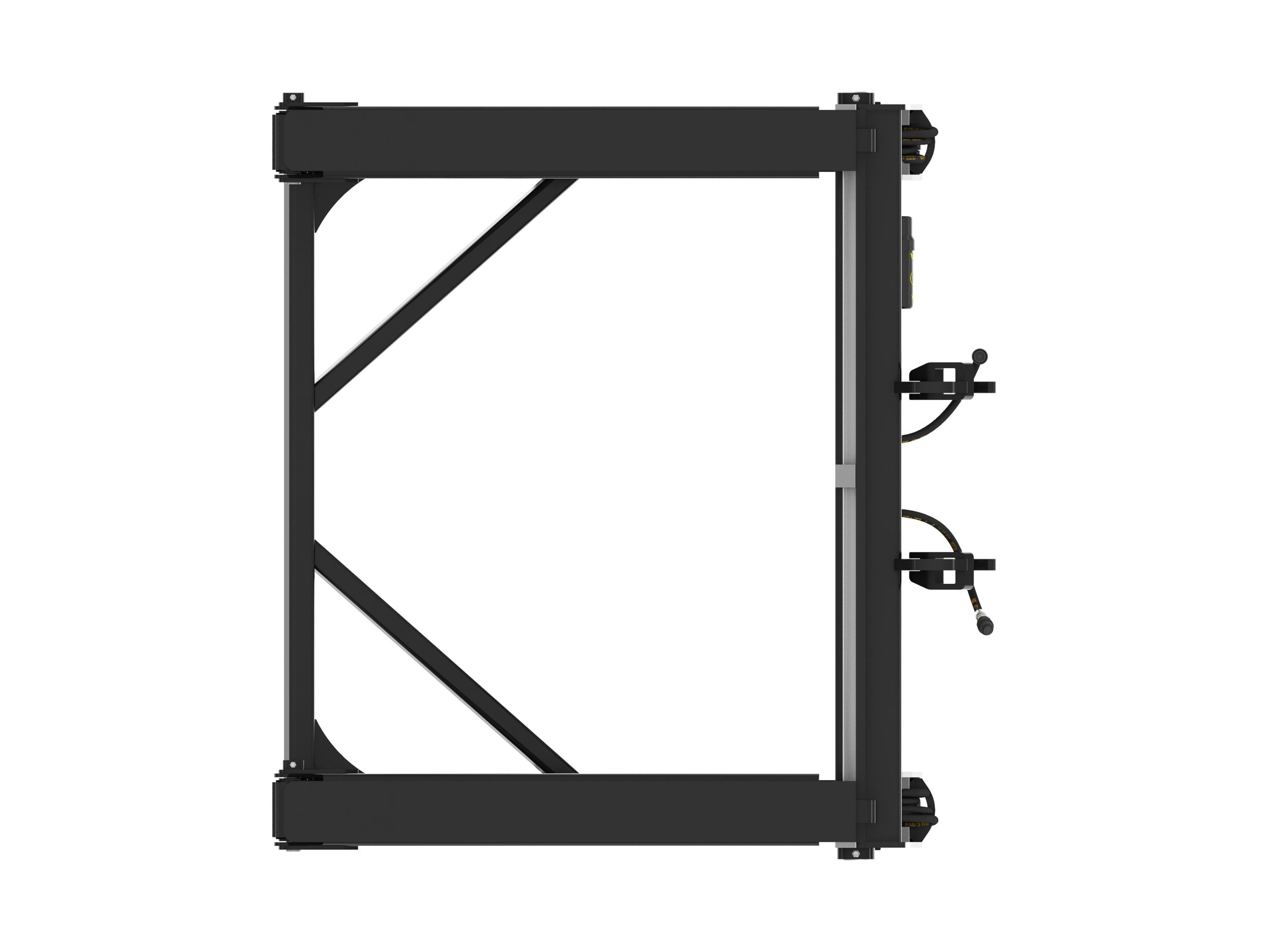

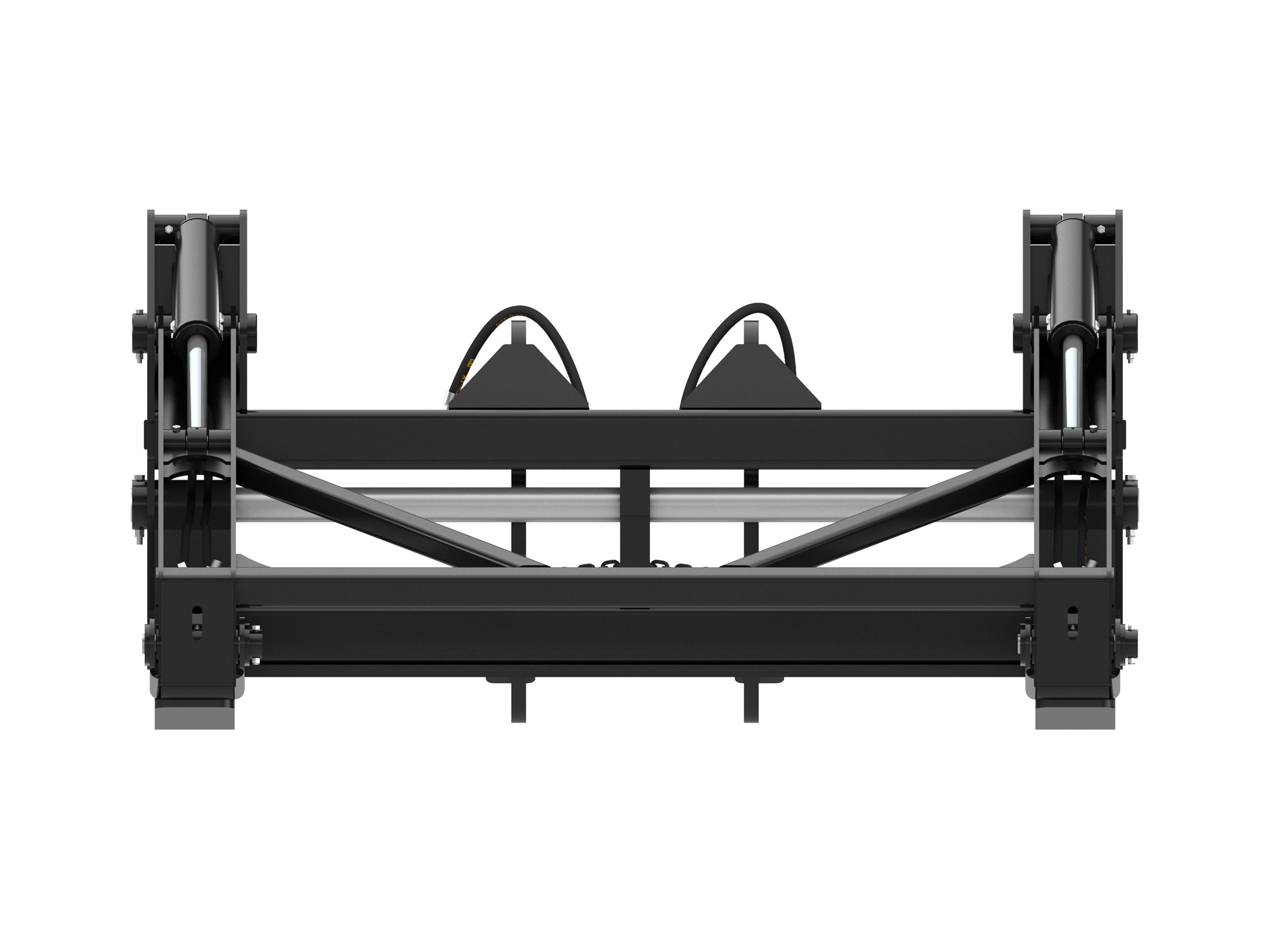

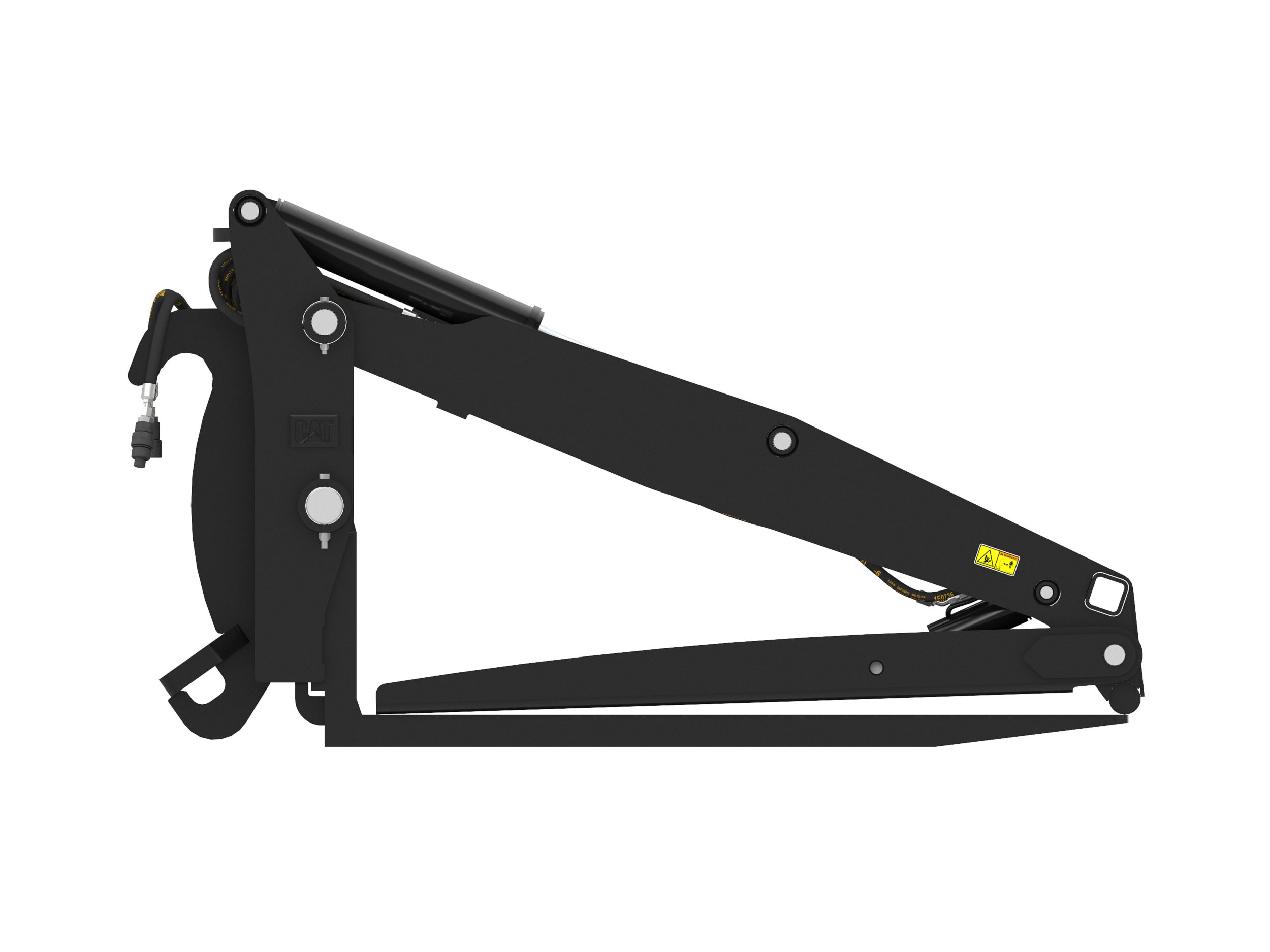

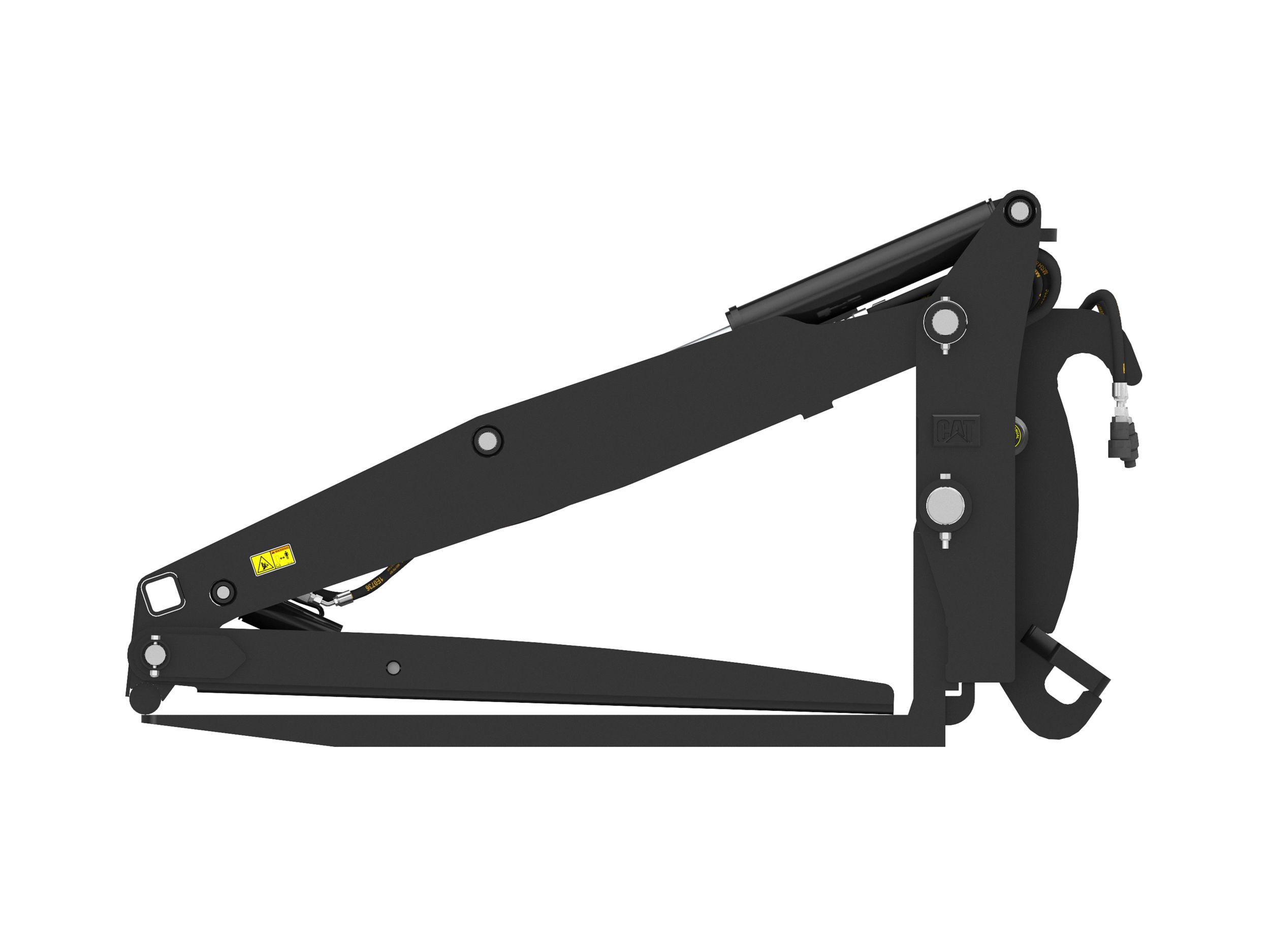

1829 mm (72 in) Pipe & Pole Forks

Cat® Pipe & Pole Forks are designed and built for use in oil and gas field drilling, pipe line construction and above-ground utilities work.



Developed with a robust structure, Cat® Pipe & Pole Forks allow for high performance carrying of 76 mm (3 in) pipe up to 762 mm (30 in), all while using the same tool.

Robust and Versatile Structure

  • Robust carriage and top clamp ensure high levels of production
  • Wide two-piece clamp holds pipe in place against tines and carriage
  • Clamp can be positioned for desirable diameter of materials
  • Single stems or multiple pieces, at the same diameter, can be transported at the same time, increasing productivity

Adjustable Tines

  • Tines width can be adjusted to better fit at application requirements
  • No tools required for adjustment

Protected Hydraulic Cylinders

The top clamp design allows the hydraulic cylinders to stay protected, avoiding undesirable damages at the cylinder and unexpected down time.

Pallets and other Materials

If palletized material transport is required, just totally open the clamp and use the carriage as a fork.

Virtual Tours

Additional information

Offering Type


2559 mm ( 100.7 in )

Tine Length

1829 mm ( 72 in )


1951 kg ( 4301.2 lb )

Interface Type

Fusion™ Coupler

Required Hydraulics

3rd Function

Carriage Height - Closed Clamp

1321 mm ( 52 in )

Carriage Height - Open Clamp

3143 mm ( 123.7 in )

Tine Spacing - Maximum Width

2438 mm ( 96 in )

Tine Width

203 mm ( 8 in )

Tine Thickness

76 mm ( 3 in )

Load Capacity

3357 kg ( 7400.9 lb )
