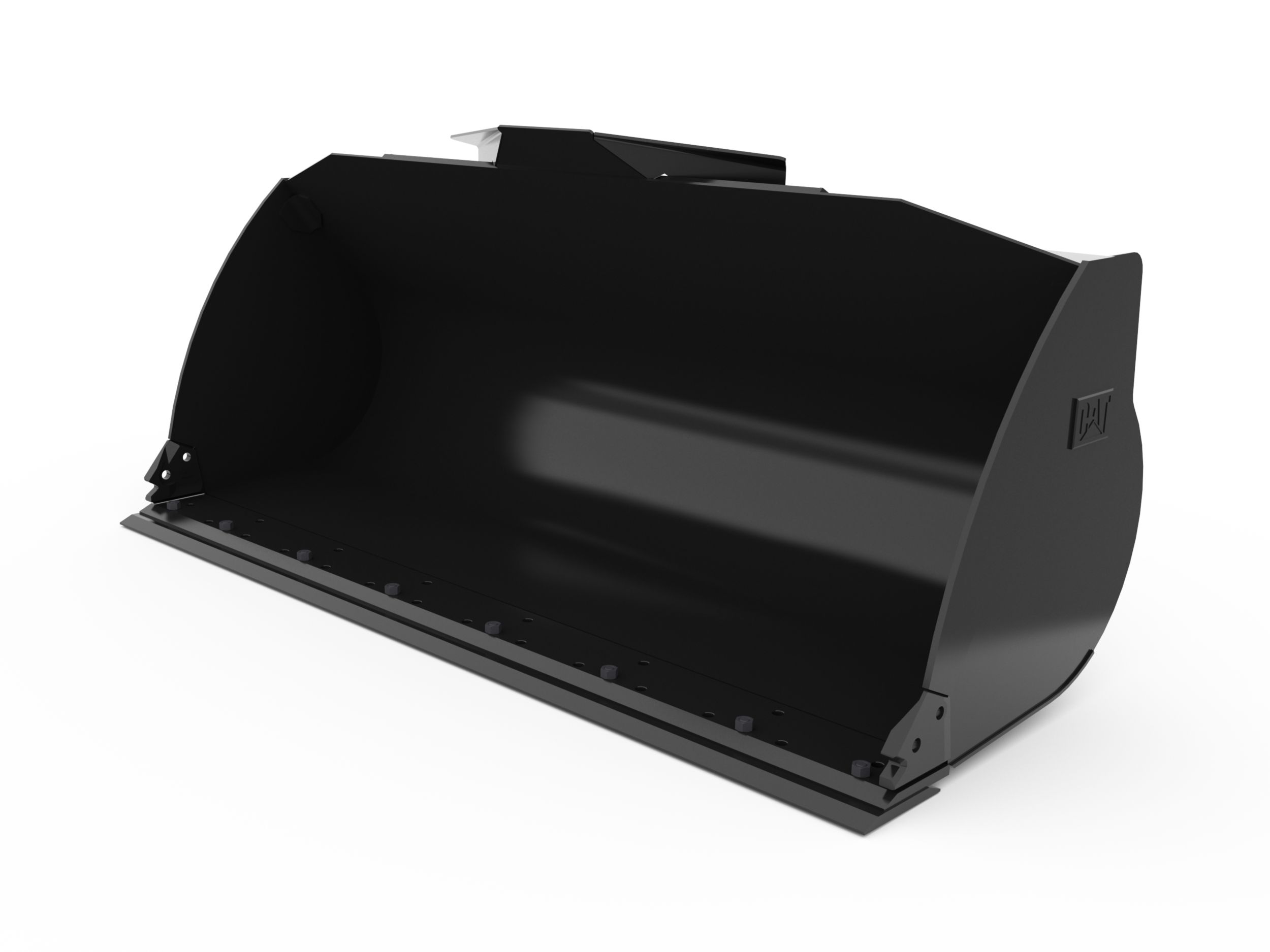

2.6 m3 (3.4 yd3), Fusion™ Coupler, Bolt-On Cutting Edge

2.6 m3 (3.4 yd3) Fusion™ Coupler General Purpose Bucket – Performance Series With Bolt-On Cutting Edge

General Purpose Performance Series buckets provides higher fill factors and material retention in load and carry applications, as well as grading, leveling and dumping in a wide variety of applications and materials.


General Purpose Performance Series Buckets provide good all-around performance for stockpiling, re-handling, excavating, and bank loading. As the name suggests, these buckets work well in loading from stockpiles as well as bank loading. They are designed for standard breakout forces and abrasion conditions. Ideal for back dragging and grading applications. The fill factor for Performance Series buckets can be up to 115% on top of the specified capacity.

Integrated Spill Guard

Integrated Spill Guard provides protection of machine linkage and improved load retention by preventing material spillage.

Rounded Sidebars

Rounded sidebars help funnel material into the bucket and retain it.

Performance Series Profile

Performance Series profile for easy loading and maximum carry load.

Open Throat Design

Open throat design improves heap size and fill factor.

Bottom Wear Plates

Replaceable wear plates on the rear of the bucket bottom help to provide a much longer life for the bucket in high wear situations.

Additional information

Offering Type


2950 mm ( 116 in )


1314 mm ( 51.7 in )


1130 kg ( 2491.2 lb )


1313 mm ( 51.7 in )


2.6 m³ ( 3.4 yd³ )

Base Edge Thickness

25 mm ( 1 in )

Cutting Edge Thickness

25 mm ( 1 in )

Interface Type
